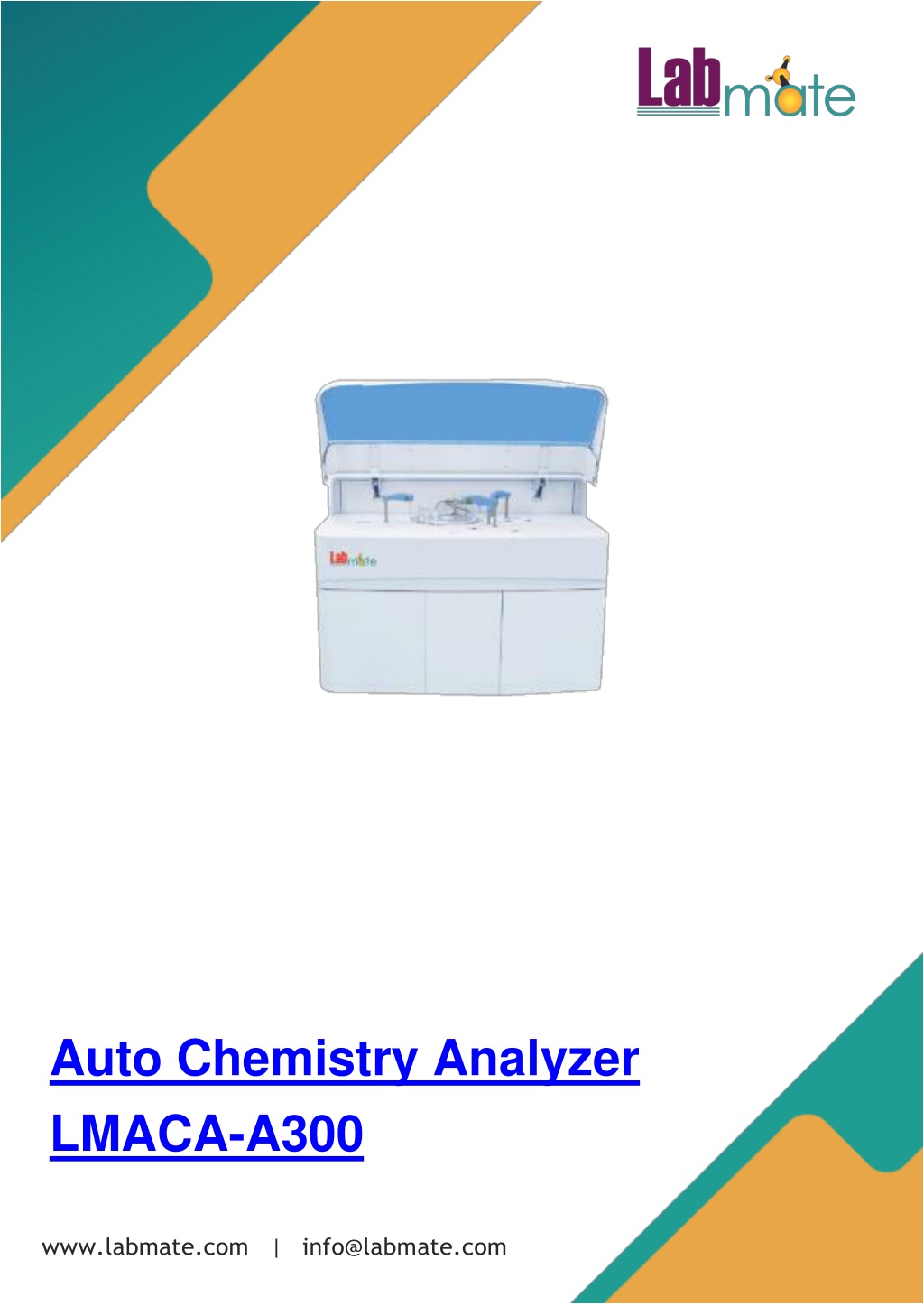

  1. Auto Chemistry Analyzer LMACA-A300 www.labmate.com | info@labmate.com

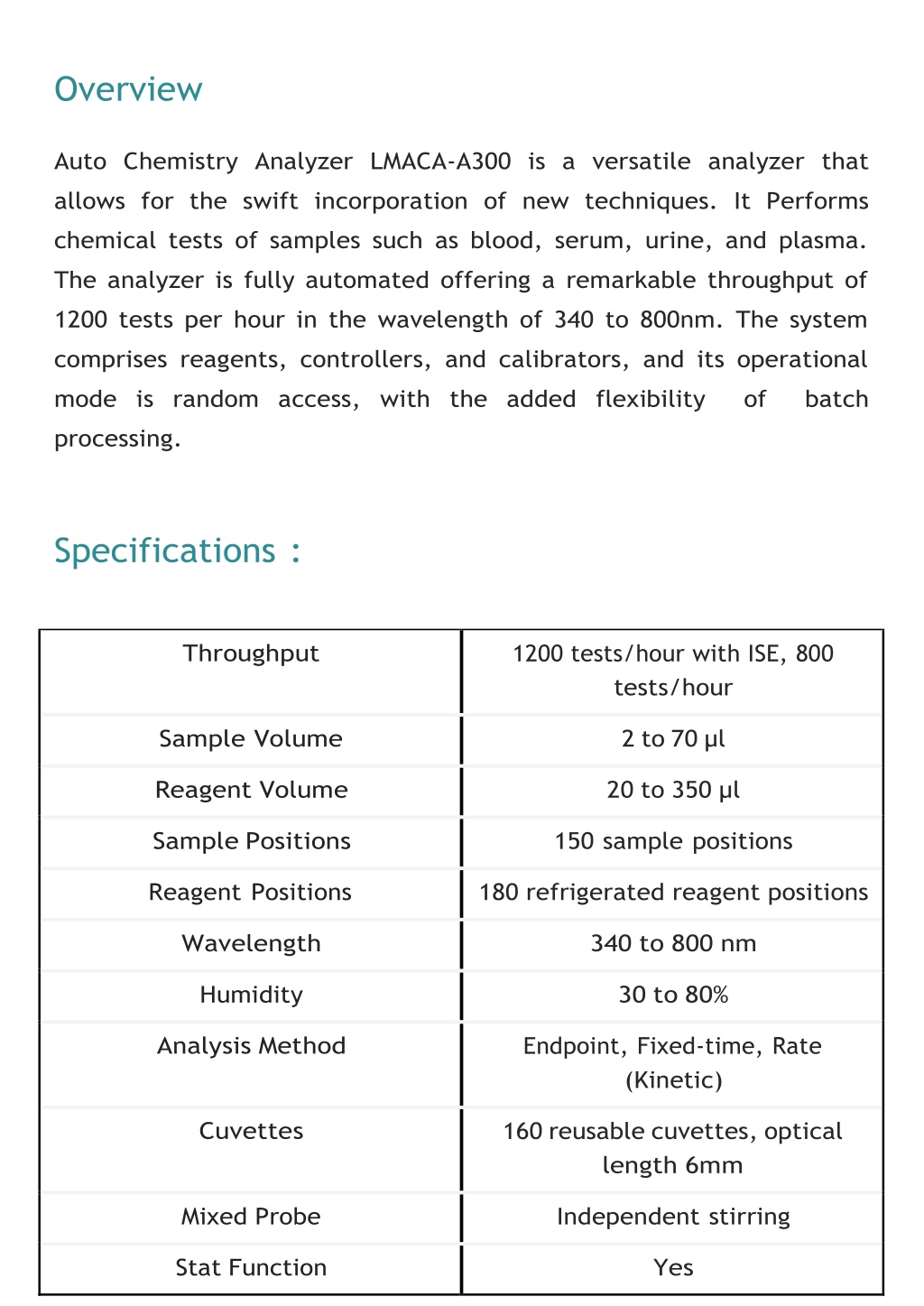

  2. Overview Auto Chemistry Analyzer LMACA-A300 is a versatile analyzer that allows for the swift incorporation of new techniques. It Performs chemical tests of samples such as blood, serum, urine, and plasma. The analyzer is fully automated offering a remarkable throughput of 1200 tests per hour in the wavelength of 340 to 800nm. The system comprises reagents, controllers, and calibrators, and its operational mode is random access, with the added flexibility of batch processing. Specifications : Throughput 1200 tests/hour with ISE, 800 tests/hour Sample Volume 2 to 70 µl Reagent Volume 20 to 350 µl Sample Positions 150 sample positions Reagent Positions 180 refrigerated reagent positions Wavelength 340 to 800 nm Humidity 30 to 80% Analysis Method Endpoint, Fixed-time, Rate (Kinetic) Cuvettes 160 reusable cuvettes, optical length 6mm Mixed Probe Independent stirring Stat Function Yes

  3. Light Source 12V/20W halogen lamp Spectrophotometry Post-spectral spectrophotometry Calibration Linear: K factor, 1-point, 2-point, and multipoint Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5 Quality Control Real-time QC Westward multi-rule Cumulative sum check Twin Plot(2D) Software Windows 7/8/10, 32 or 64bit LIS System Bi-direction, support HL7 protocol Interface LAN port access Temperature 10 to 30°C Temperature Control 37±0.1°C, real-time monitor Water Consumption Deionized water: 20 L/H Power Supply AC220V±10%, 60/50Hz, 110V±10%, 60Hz, 1500 W External Dimension (W×D×H) 1360 × 791 × 1157 mm Package Dimension (W×D×H) 1348 × 928 × 1399 mm Net Weight 286 kg Gross Weight 390 kg Features : -Leverages intelligent software for enhanced functionality -Guarantees seamless workflow without interruptions

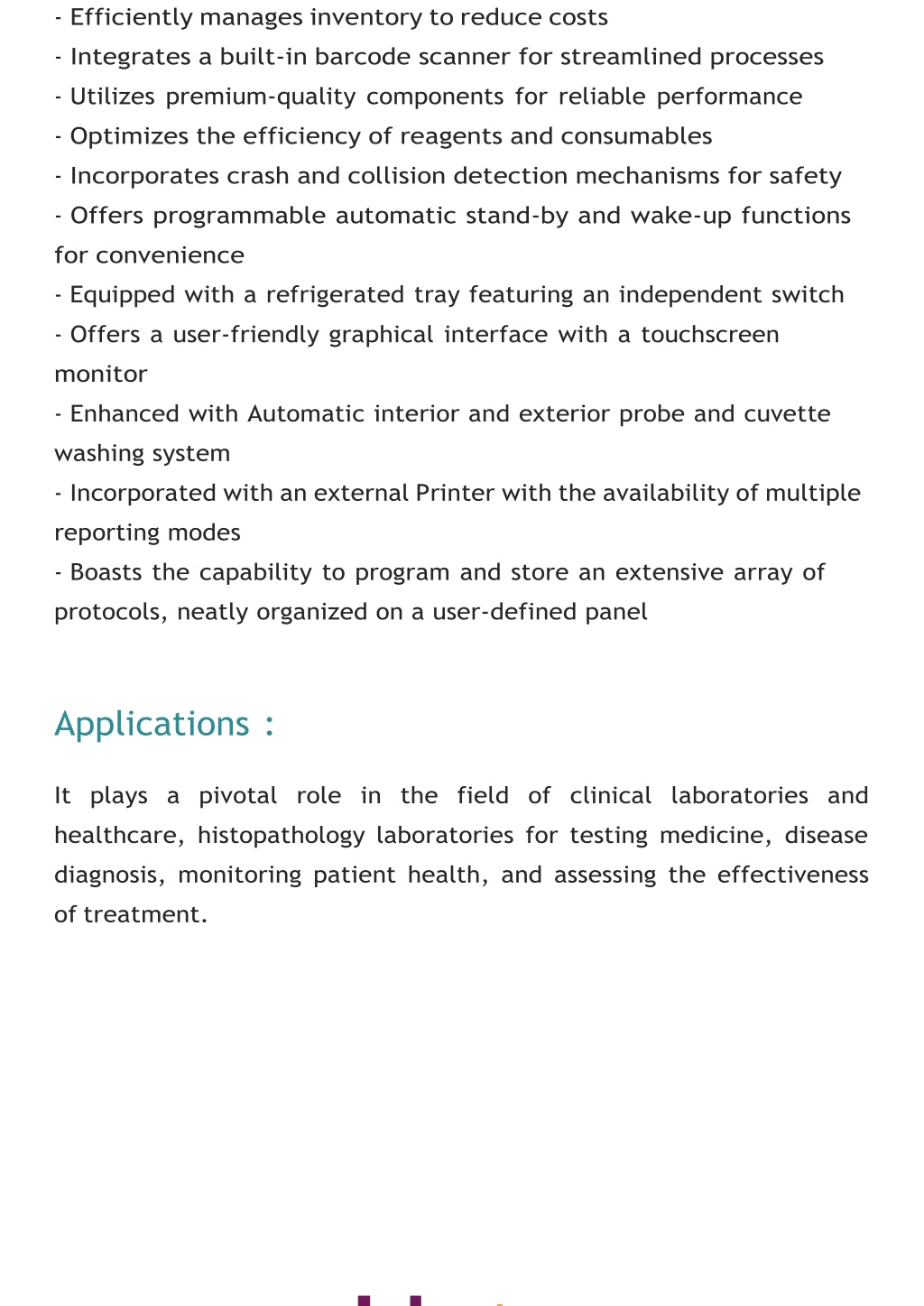

  4. -Efficiently manages inventory to reduce costs -Integrates a built-in barcode scanner for streamlined processes -Utilizes premium-quality components for reliable performance -Optimizes the efficiency of reagents and consumables -Incorporates crash and collision detection mechanisms for safety -Offers programmable automatic stand-by and wake-up functions for convenience -Equipped with a refrigerated tray featuring an independent switch -Offers a user-friendly graphical interface with a touchscreen monitor -Enhanced with Automatic interior and exterior probe and cuvette washing system -Incorporated with an external Printer with the availability of multiple reporting modes -Boasts the capability to program and store an extensive array of protocols, neatly organized on a user-defined panel Applications : It plays a pivotal role in the field of clinical laboratories and healthcare, histopathology laboratories for testing medicine, disease diagnosis, monitoring patient health, and assessing the effectiveness of treatment.

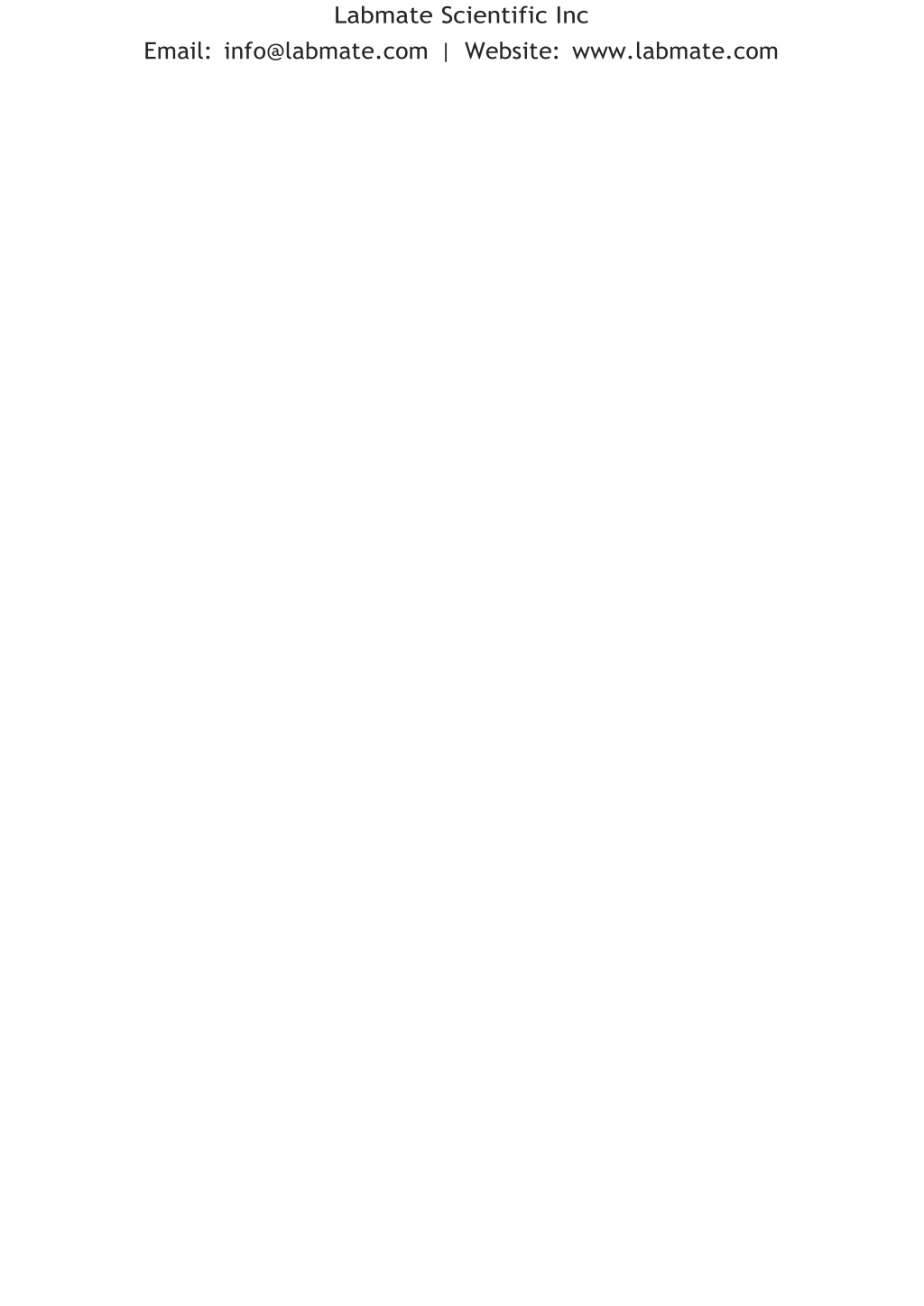

  5. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
