Auto Chemistry Analyzer

Labmate Auto Chemistry Analyzer is a fully automated tabletop analyzer performing 400 tests/hr. It requires just a 2-70 u00b5l sample volume, with results displayed on an LCD. Features efficient reagent use, anti-collision sensors, random execution, and bath operation support for enduring reliability.

hannacurry
Download Presentation

Auto Chemistry Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

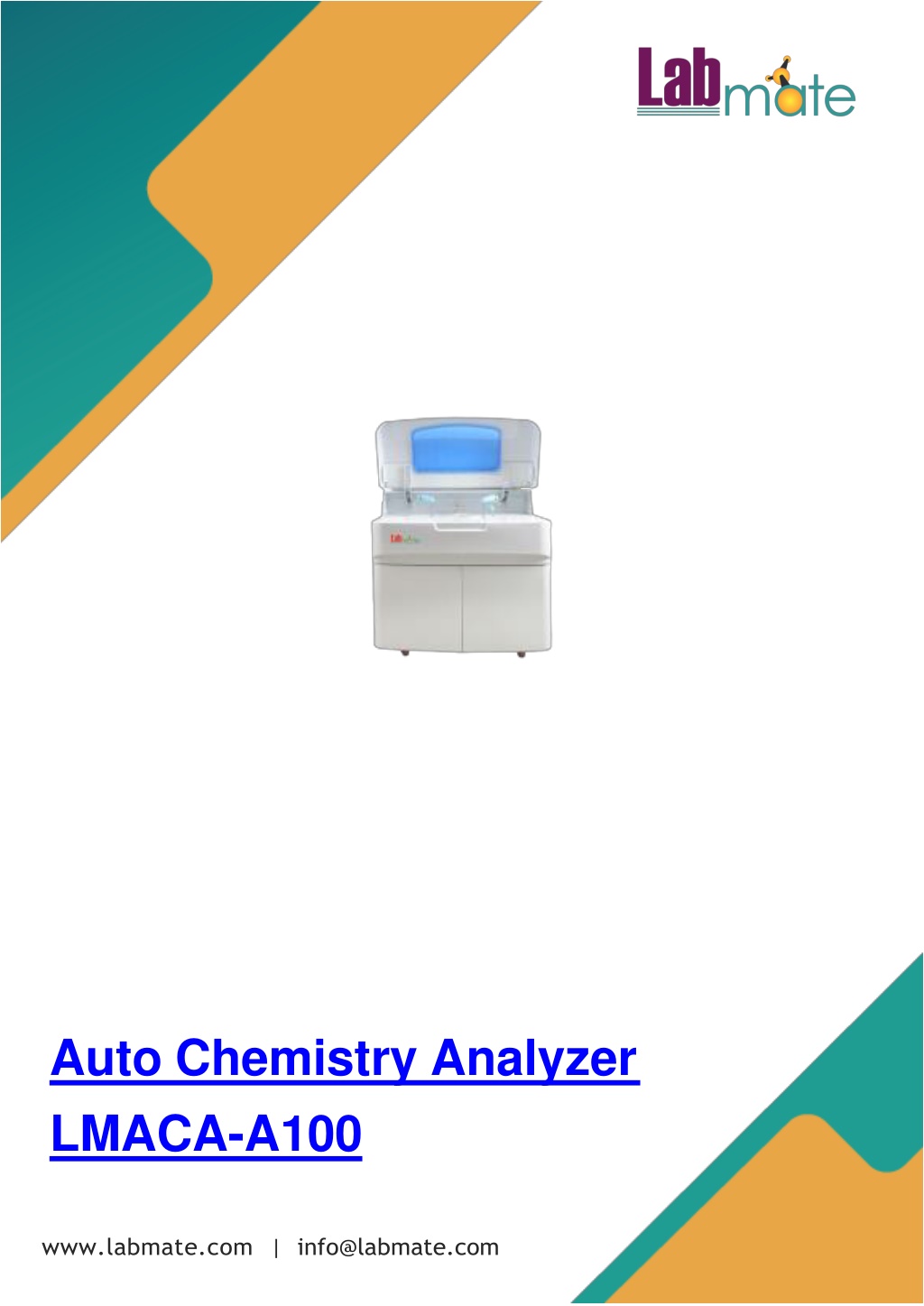

  1. Auto Chemistry Analyzer LMACA-A100 www.labmate.com|info@labmate.com

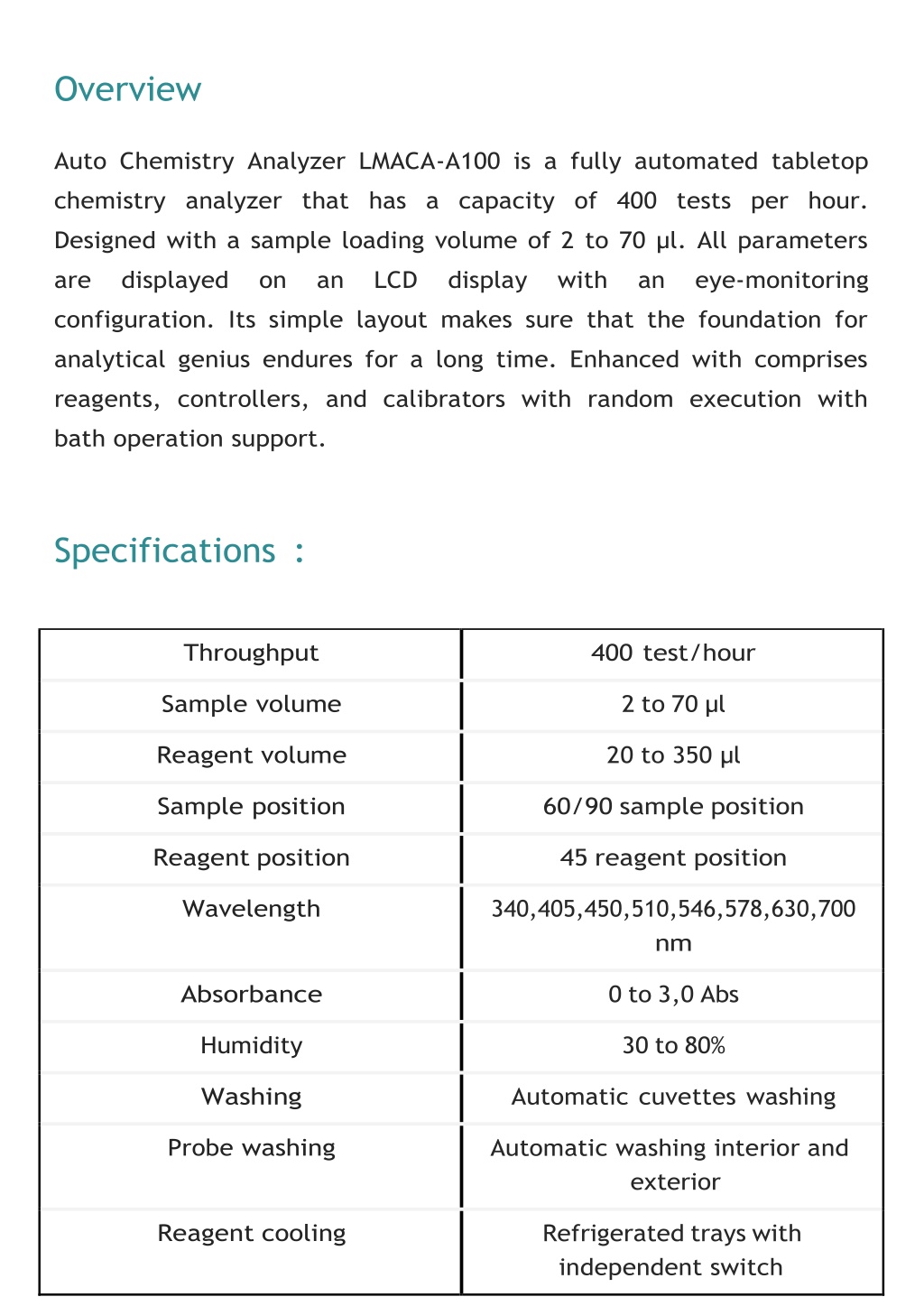

  2. Overview Auto Chemistry Analyzer LMACA-A100 is a fully automated tabletop chemistry analyzer that has a capacity of 400 tests per hour. Designed with a sample loading volume of 2 to 70 µl. All parameters are displayed on an LCD display with an eye-monitoring configuration. Its simple layout makes sure that the foundation for analytical genius endures for a long time. Enhanced with comprises reagents, controllers, and calibrators with random execution with bath operation support. Specifications : Throughput 400 test/hour Sample volume 2 to 70 µl Reagent volume 20 to 350 µl Sample position 60/90 sample position Reagent position 45 reagent position Wavelength 340,405,450,510,546,578,630,700 nm Absorbance 0 to 3,0 Abs Humidity 30 to 80% Washing Automatic cuvettes washing Probe washing Automatic washing interior and exterior Reagent cooling Refrigerated trays with independent switch

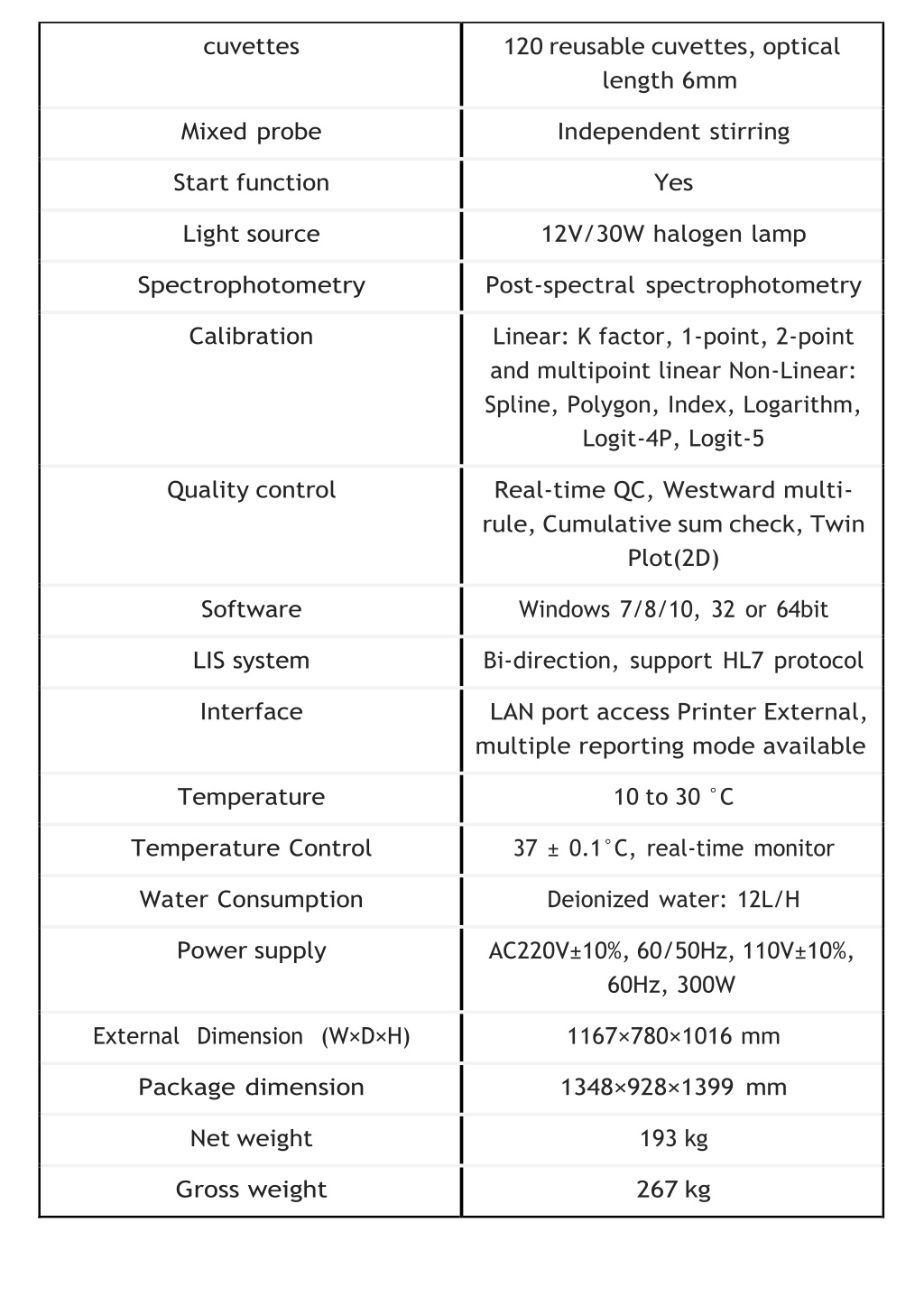

  3. cuvettes 120 reusable cuvettes, optical length 6mm Mixed probe Independent stirring Start function Yes Light source 12V/30W halogen lamp Spectrophotometry Post-spectral spectrophotometry Calibration Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5 Quality control Real-time QC, Westward multi- rule, Cumulative sum check, Twin Plot(2D) Software Windows 7/8/10, 32 or 64bit LIS system Bi-direction, support HL7 protocol Interface LAN port access Printer External, multiple reporting mode available Temperature 10 to 30 °C Temperature Control 37 ± 0.1°C, real-time monitor Water Consumption Deionized water: 12L/H Power supply AC220V±10%, 60/50Hz, 110V±10%, 60Hz, 300W External Dimension (W×D×H) 1167×780×1016 mm Package dimension 1348×928×1399 mm Net weight 193 kg Gross weight 267 kg

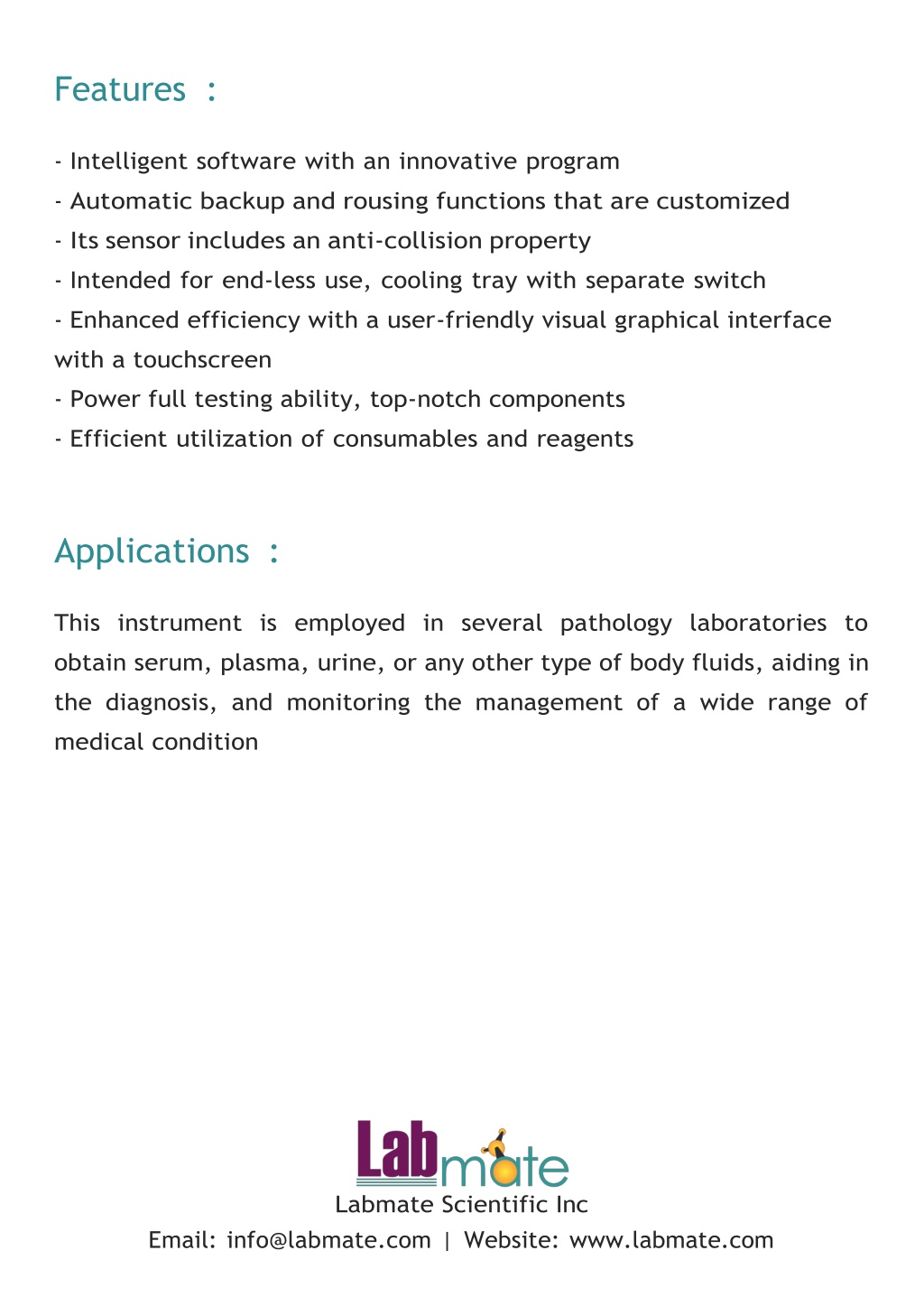

  4. Features: -Intelligent software with an innovative program -Automatic backup and rousing functions that are customized -Its sensor includes an anti-collision property -Intended for end-less use, cooling tray with separate switch -Enhanced efficiency with a user-friendly visual graphical interface with a touchscreen -Power full testing ability, top-notch components -Efficient utilization of consumables and reagents Applications: This instrument is employed in several pathology laboratories to obtain serum, plasma, urine, or any other type of body fluids, aiding in the diagnosis, and monitoring the management of a wide range of medical condition Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
