Ash Content Tester 1200℃

Labmate Ash Content Tester features a muffle furnace with a max temperature of 1200u2103 and an adjustable heating plate (1-6 grades). It ensures high accuracy (0.001%-0.180%), quick heating, minimal overshoot, and precise control. Includes an LED screen for easy monitoring.

hannacurry
Download Presentation

Ash Content Tester 1200℃

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ash Content Tester LMACT-A100 www.labmate.com | info@labmate.com

  2. Overview Ash Content Tester LMACT-A100 is equipped with a muffle furnace and operates with a maximum temperature of 1200 ℃. It is incorporated with an electric heating plate with adjustable 1 to 6 grades allowing for precise control of the heating level. It is designed for highly accurate measurements within 0.001% to 0.180%. Our tester is equipped with an LED screen for operating and monitoring key parameters. Specifications: Muffle Furnace Controlled Temperature 775 ±25 ℃ Temperature Rising Time ≤ 50 min Temperature Uniformity ≤15℃ Temperature Controller Maximum Temperature 1200 ℃ Electric Heating Plate Heating Power (1 to 6) grades, continuously adjustable Electric Heating Plate Temperature 400℃ Electric Heating Plate Diameter Φ 180 mm Electric Heating Plate Dimension 280 × 250 × 90 mm Temperature Controller Power Consumption 5000 W Temperature Controller Power Supply AC 220±10% V, 50Hz

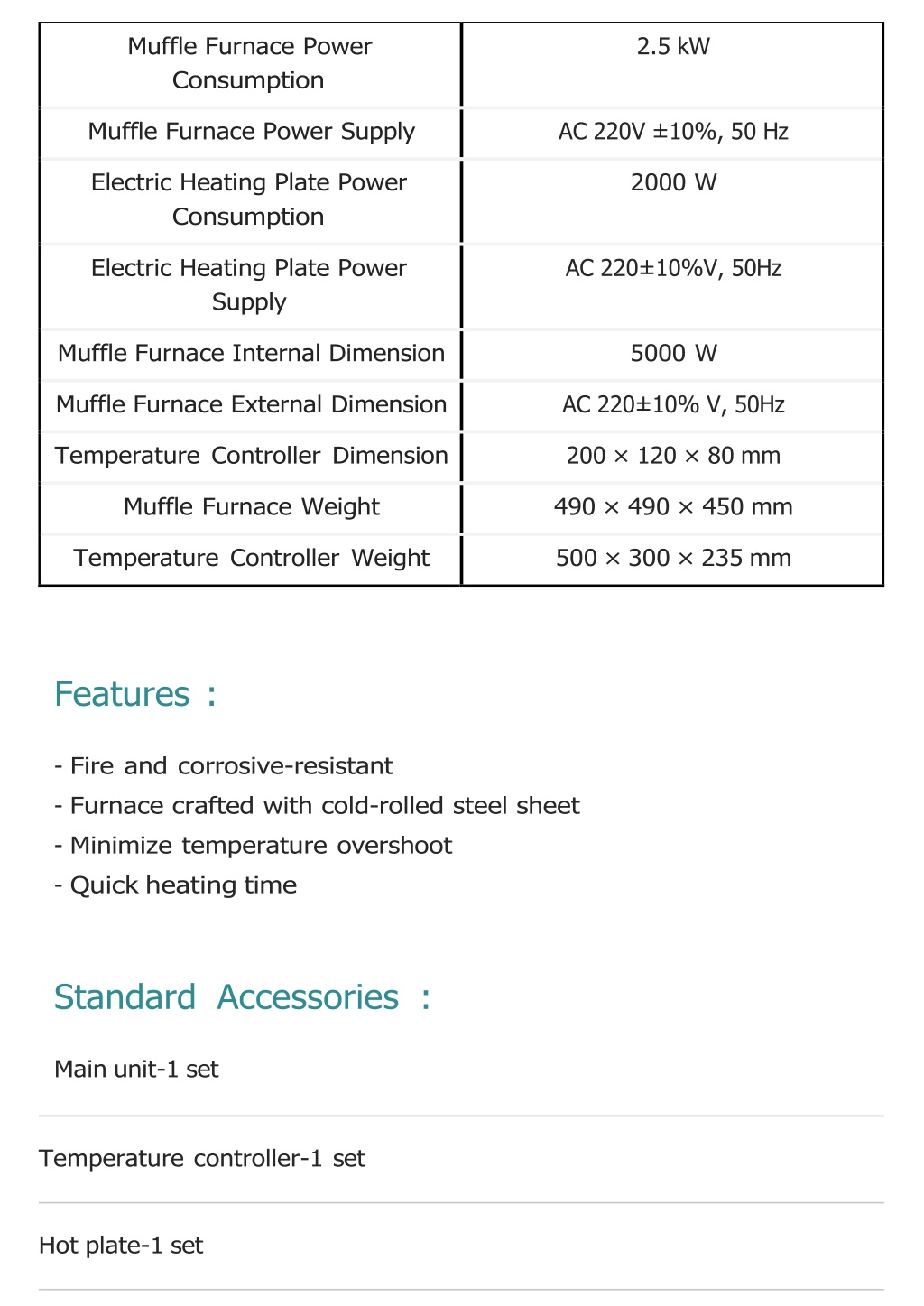

  3. Muffle Furnace Power Consumption 2.5 kW Muffle Furnace Power Supply AC 220V ±10%, 50 Hz Electric Heating Plate Power Consumption 2000 W Electric Heating Plate Power Supply AC 220±10%V, 50Hz Muffle Furnace Internal Dimension 5000 W Muffle Furnace External Dimension AC 220±10% V, 50Hz Temperature Controller Dimension 200 × 120 × 80 mm Muffle Furnace Weight 490 × 490 × 450 mm Temperature Controller Weight 500 × 300 × 235 mm Features : -Fire and corrosive-resistant -Furnace crafted with cold-rolled steel sheet -Minimize temperature overshoot -Quick heating time StandardAccessories: Main unit-1 set Temperature controller-1 set Hot plate-1 set

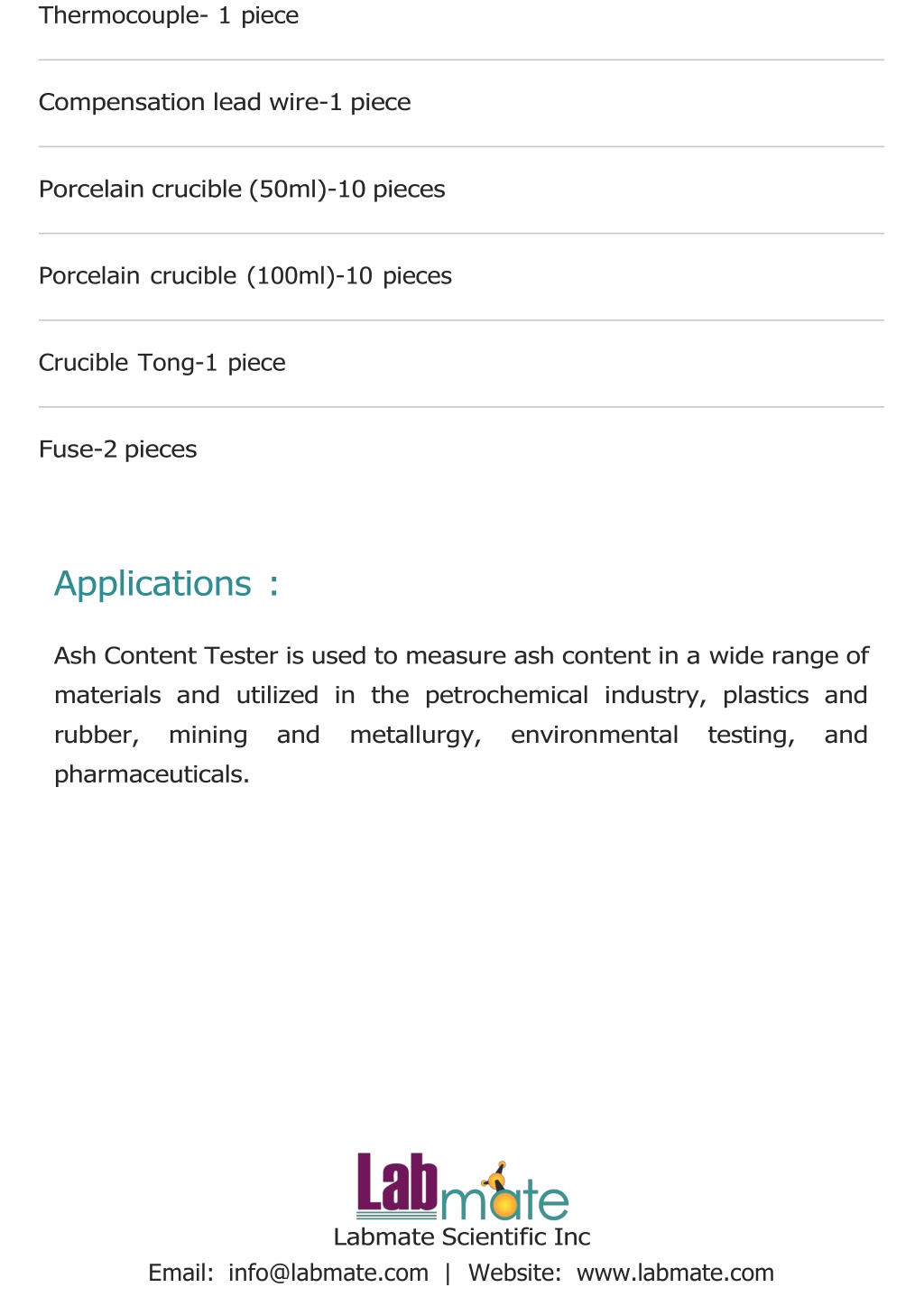

  4. Thermocouple- 1 piece Compensation lead wire-1 piece Porcelain crucible (50ml)-10 pieces Porcelain crucible (100ml)-10 pieces Crucible Tong-1 piece Fuse-2 pieces Applications : Ash Content Tester is used to measure ash content in a wide range of materials and utilized in the petrochemical industry, plastics and rubber, mining and metallurgy, environmental testing, and pharmaceuticals. Labmate Scientific Inc Email: info@labmate.com |Website: www.labmate.com
