Anaerobic Jar 6.3 kg

Labmate Anaerobic Jar is a 7L pump-operated chamber for anaerobic microorganism cultivation. Made of transparent PMMA, it has airtight construction with a 3/25 R holder for 3 stacks of 8 petri dishes (9-10 cm). Includes an O-ring for leak prevention.

hannacurry
Download Presentation

Anaerobic Jar 6.3 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

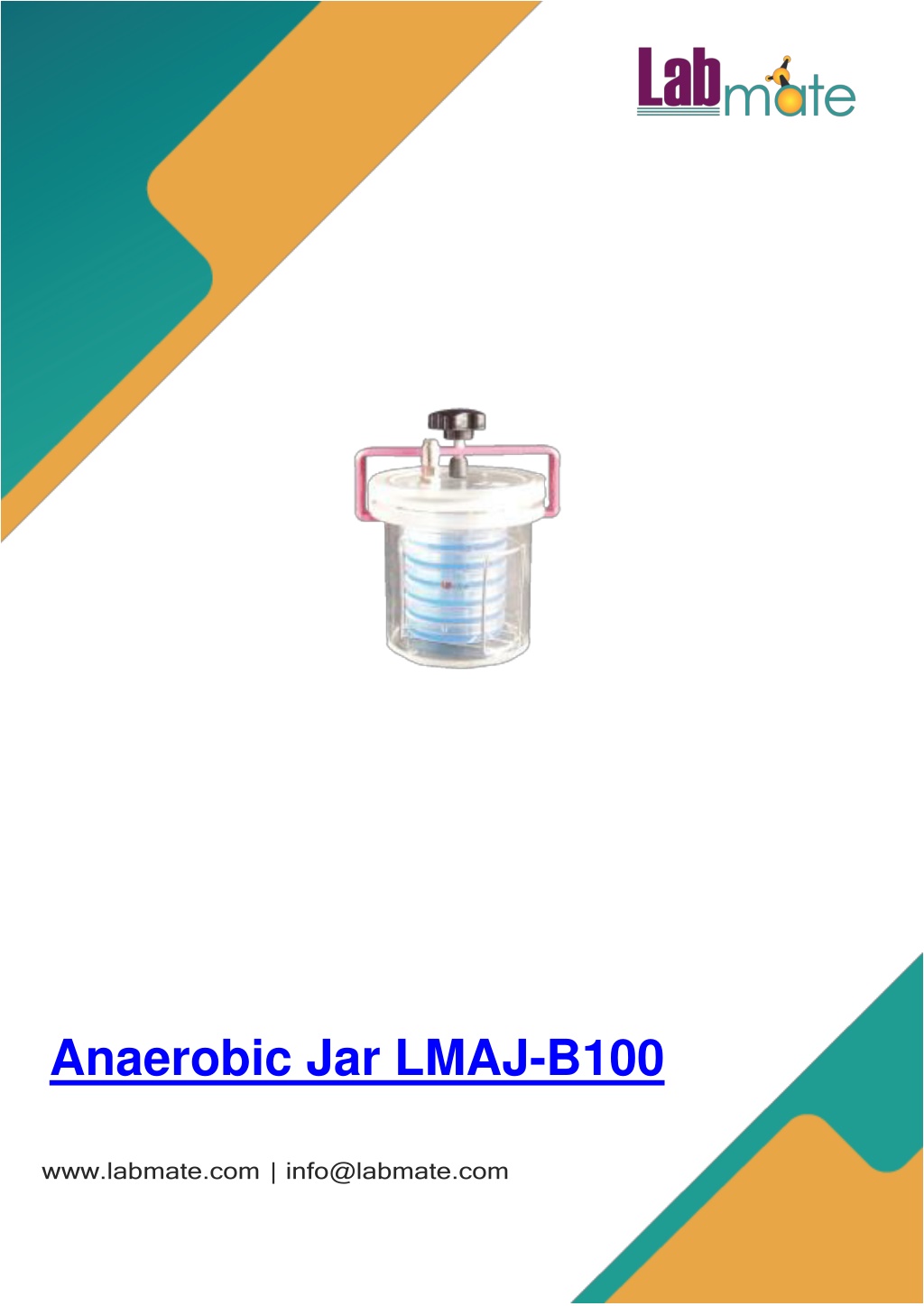

  1. Anaerobic Jar LMAJ-B100 www.labmate.com | info@labmate.com

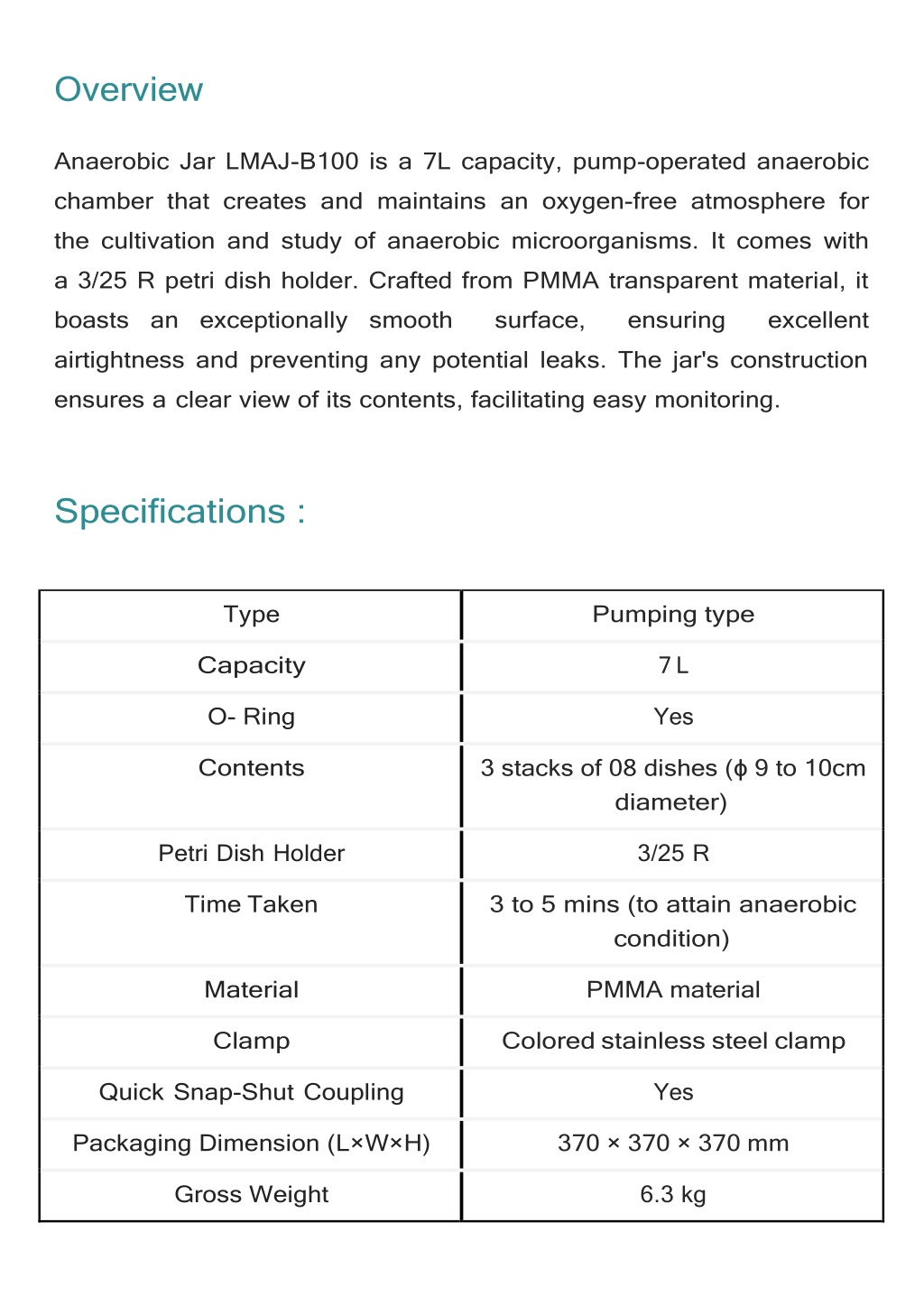

  2. Overview Anaerobic Jar LMAJ-B100 is a 7L capacity, pump-operated anaerobic chamber that creates and maintains an oxygen-free atmosphere for the cultivation and study of anaerobic microorganisms. It comes with a 3/25 R petri dish holder. Crafted from PMMA transparent material, it boasts an exceptionally smooth surface, ensuring excellent airtightness and preventing any potential leaks. The jar's construction ensures a clear view of its contents, facilitating easy monitoring. Specifications : Type Pumping type Capacity 7 L O- Ring Yes Contents 3 stacks of 08 dishes (ɸ 9 to 10cm diameter) Petri Dish Holder 3/25 R Time Taken 3 to 5 mins (to attain anaerobic condition) Material PMMA material Clamp Colored stainless steel clamp Quick Snap-Shut Coupling Yes Packaging Dimension (L×W×H) 370 × 370 × 370 mm Gross Weight 6.3 kg

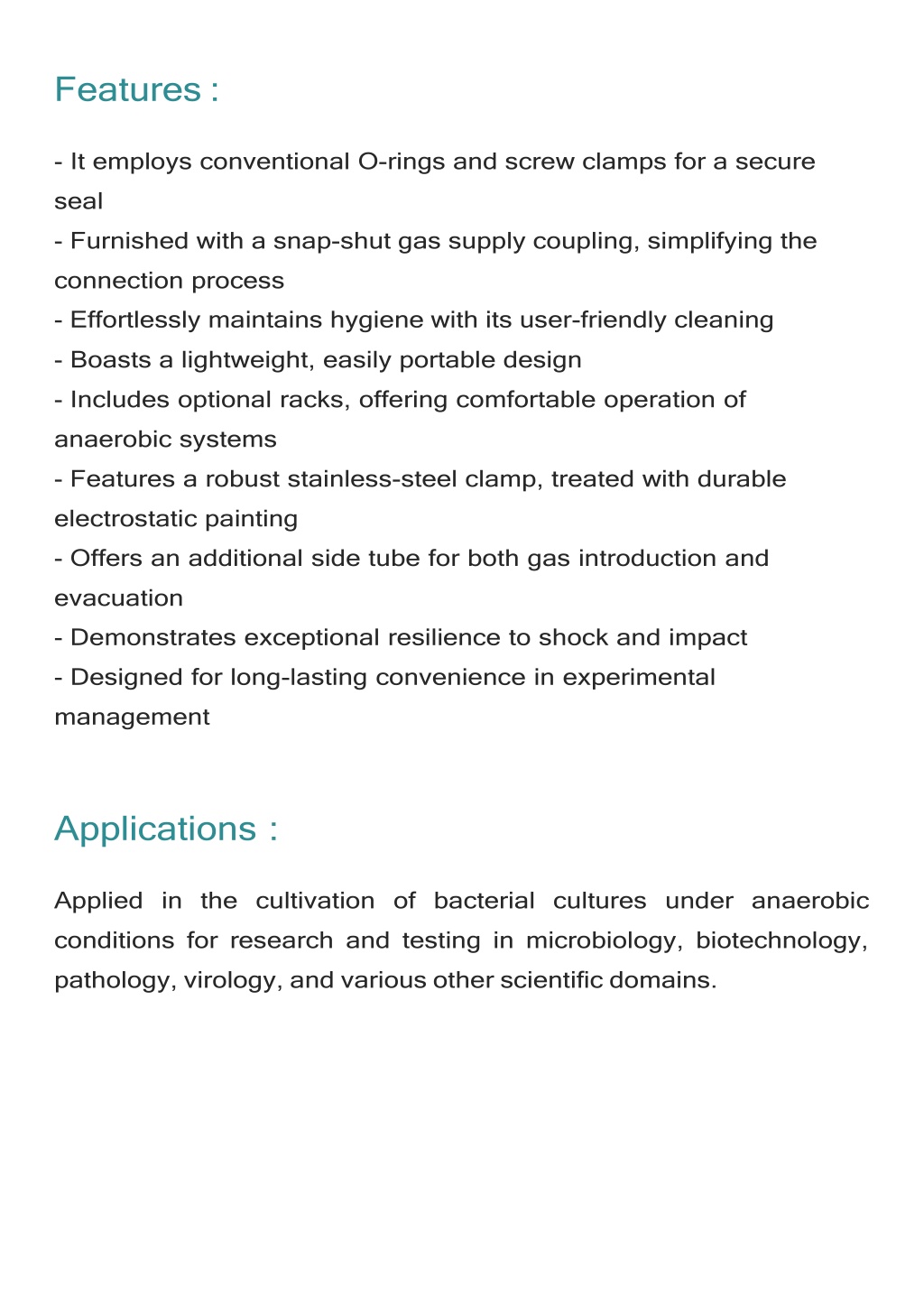

  3. Features : -It employs conventional O-rings and screw clamps for a secure seal -Furnished with a snap-shut gas supply coupling, simplifying the connection process -Effortlessly maintains hygiene with its user-friendly cleaning -Boasts a lightweight, easily portable design -Includes optional racks, offering comfortable operation of anaerobic systems -Features a robust stainless-steel clamp, treated with durable electrostatic painting -Offers an additional side tube for both gas introduction and evacuation -Demonstrates exceptional resilience to shock and impact -Designed for long-lasting convenience in experimental management Applications : Applied in the cultivation of bacterial cultures under anaerobic conditions for research and testing in microbiology, biotechnology, pathology, virology, and various other scientific domains.

  4. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
