Amino Acid Analyzer 0.001 to 10 ml/min

Labmate Amino Acid Analyzer, perfect for quantifying amino acids in hydrolyzed proteins and physiological fluids. It offers a versatile flow rate (0.001-10 ml/min) for optimal chromatographic separation, a wavelength range of 190 to 800 nm, and high gradient pump accuracy (u00b10.2%).<br>

hannacurry
Download Presentation

Amino Acid Analyzer 0.001 to 10 ml/min

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

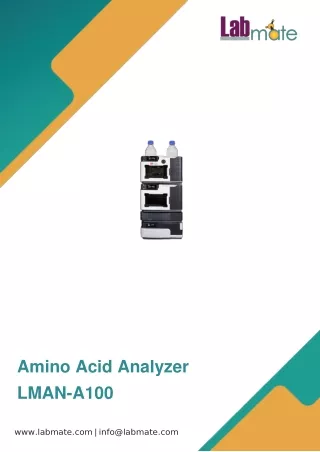

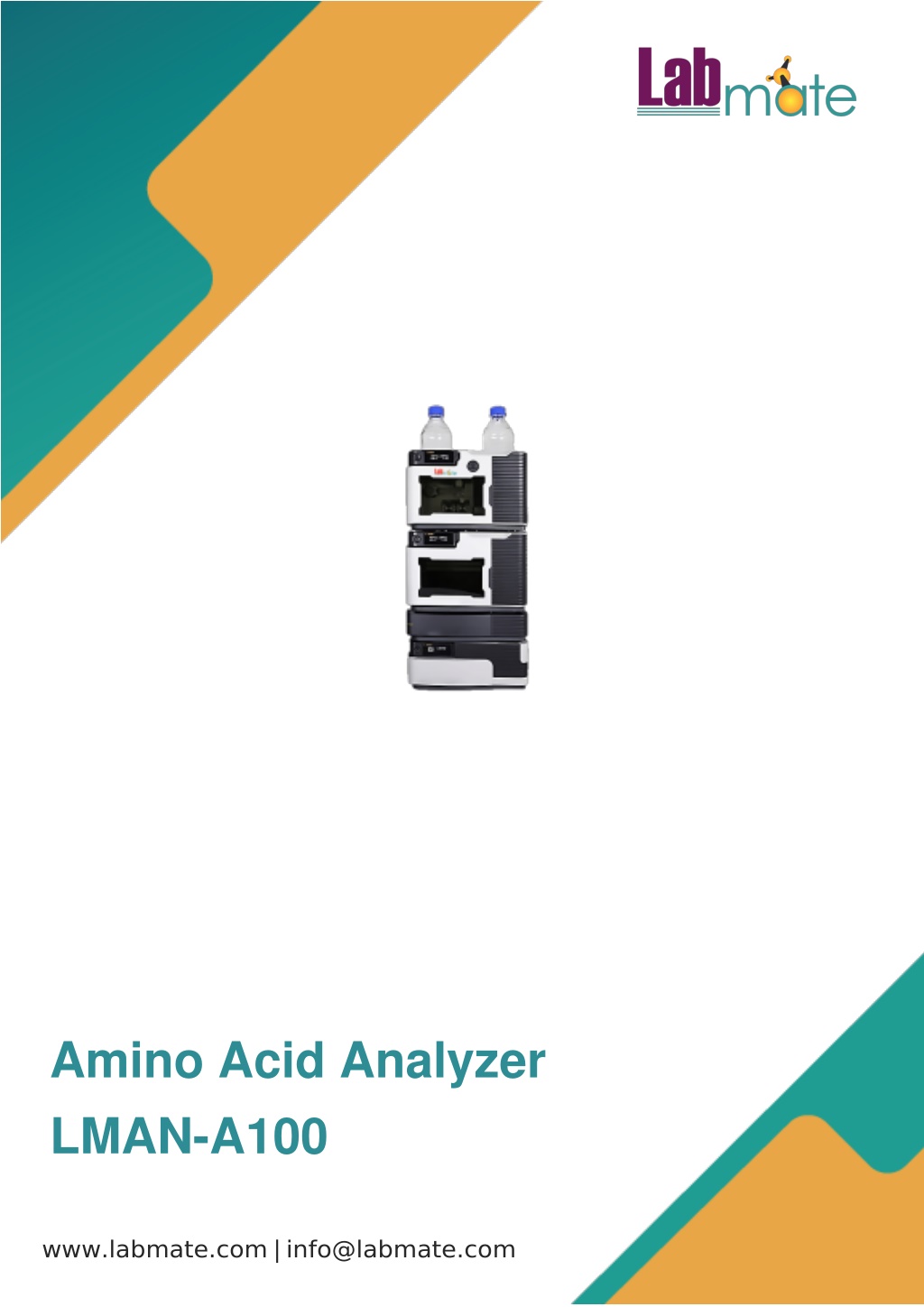

  1. Amino Acid Analyzer LMAN-A100 www.labmate.com info@labmate.com |

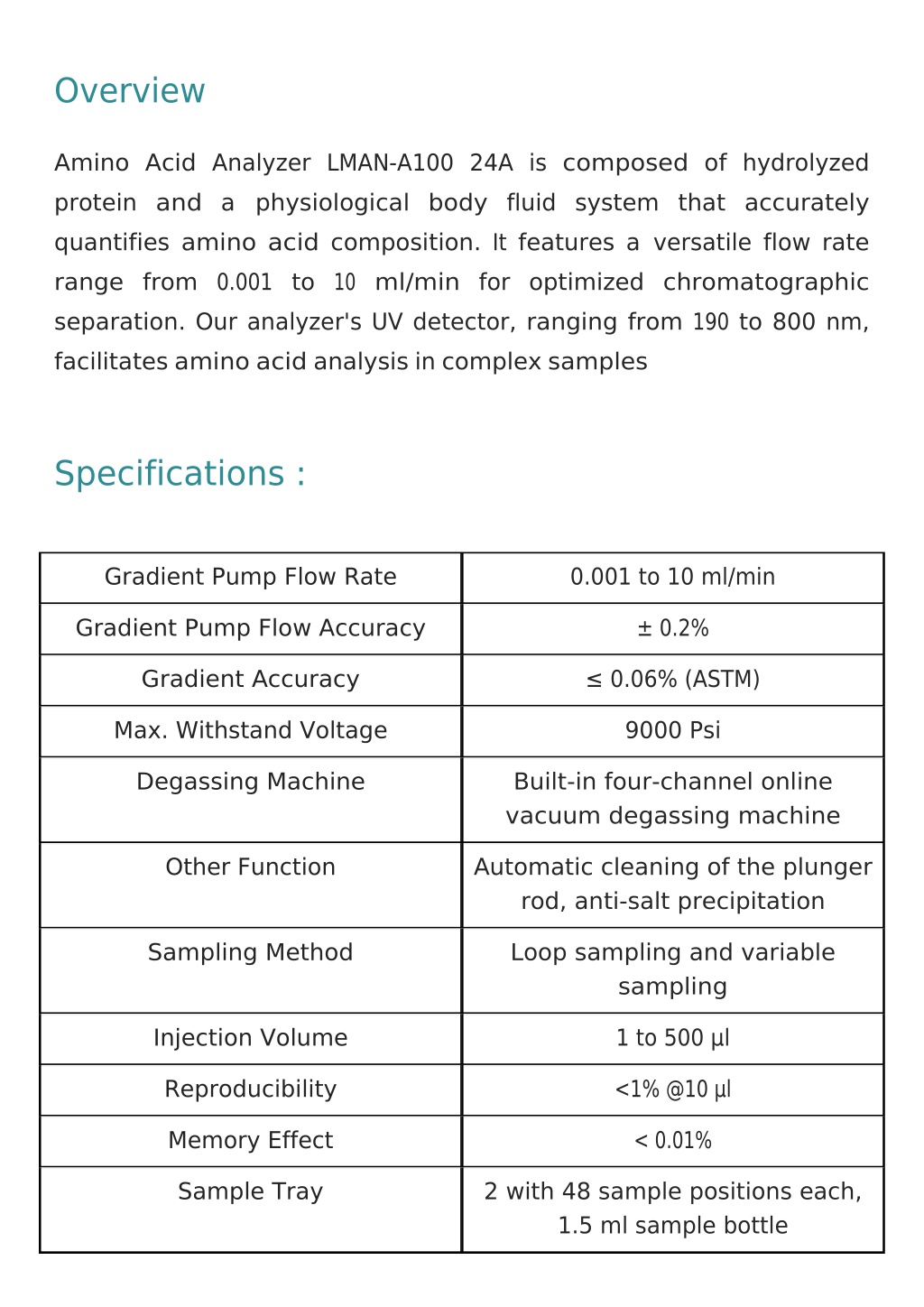

  2. Overview Amino Acid Analyzer LMAN-A100 24A is composed of hydrolyzed protein and a physiological body fluid system that accurately quantifies amino acid composition. It features a versatile flow rate range from 0.001 to 10 ml/min for optimized chromatographic separation. Our analyzer's UV detector, ranging from 190 to 800 nm, facilitates amino acid analysis in complex samples Specifications : Gradient Pump Flow Rate 0.001 to 10 ml/min Gradient Pump Flow Accuracy ± 0.2% Gradient Accuracy ≤ 0.06% (ASTM) Max. Withstand Voltage 9000 Psi Degassing Machine Built-in four-channel online vacuum degassing machine Other Function Automatic cleaning of the plunger rod, anti-salt precipitation Sampling Method Loop sampling and variable sampling Injection Volume 1 to 500 µl Reproducibility <1% @10 µl Memory Effect < 0.01% Sample Tray 2 with 48 sample positions each, 1.5 ml sample bottle

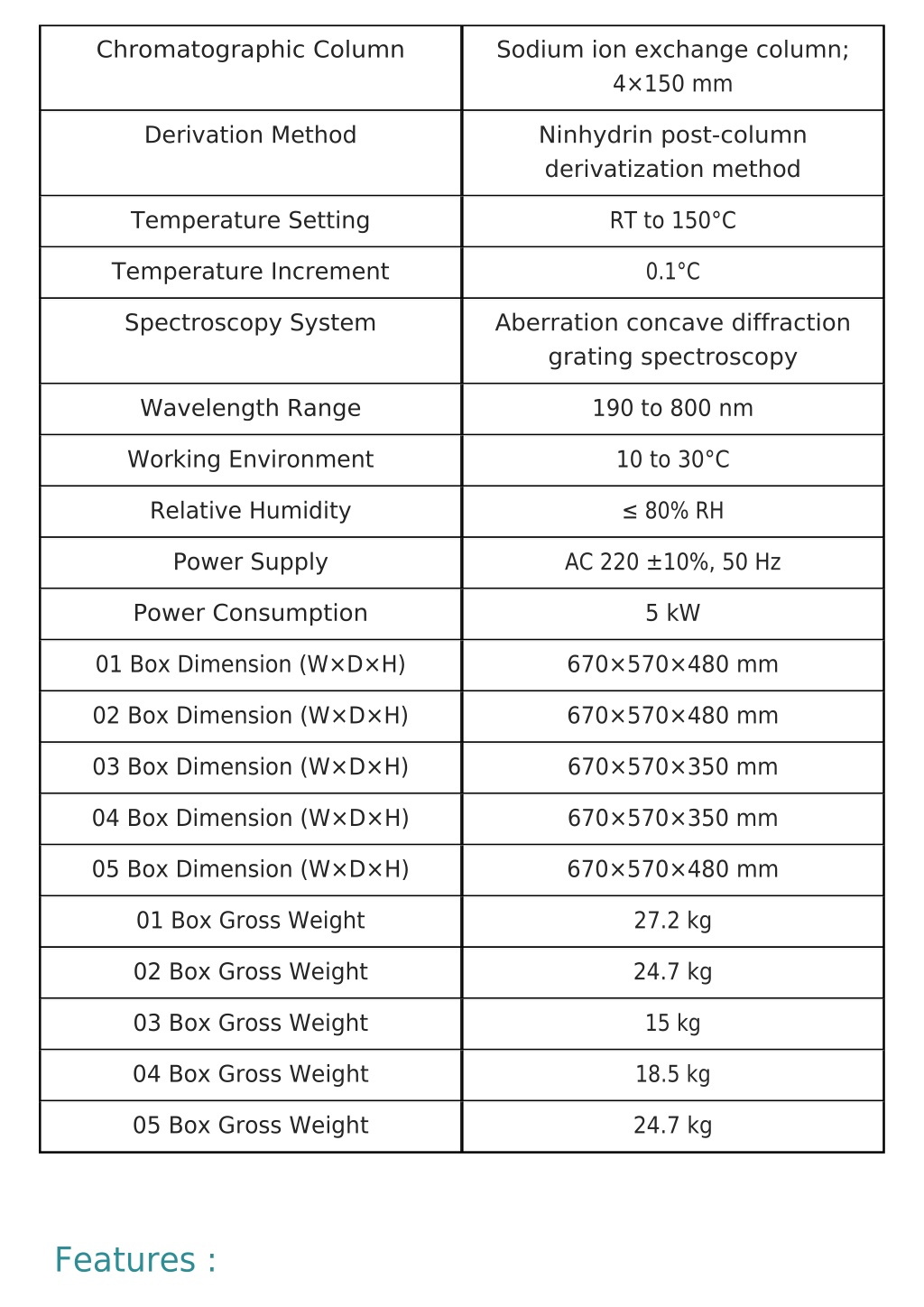

  3. Chromatographic Column Sodium ion exchange column; 4×150 mm Derivation Method Ninhydrin post-column derivatization method Temperature Setting RT to 150°C Temperature Increment 0.1°C Spectroscopy System Aberration concave diffraction grating spectroscopy Wavelength Range 190 to 800 nm Working Environment 10 to 30°C Relative Humidity ≤ 80% RH Power Supply AC 220 ±10%, 50 Hz Power Consumption 5 kW 01 Box Dimension (W×D×H) 670×570×480 mm 02 Box Dimension (W×D×H) 670×570×480 mm 03 Box Dimension (W×D×H) 670×570×350 mm 04 Box Dimension (W×D×H) 670×570×350 mm 05 Box Dimension (W×D×H) 670×570×480 mm 01 Box Gross Weight 27.2 kg 02 Box Gross Weight 24.7 kg 03 Box Gross Weight 15 kg 04 Box Gross Weight 18.5 kg 05 Box Gross Weight 24.7 kg Features :

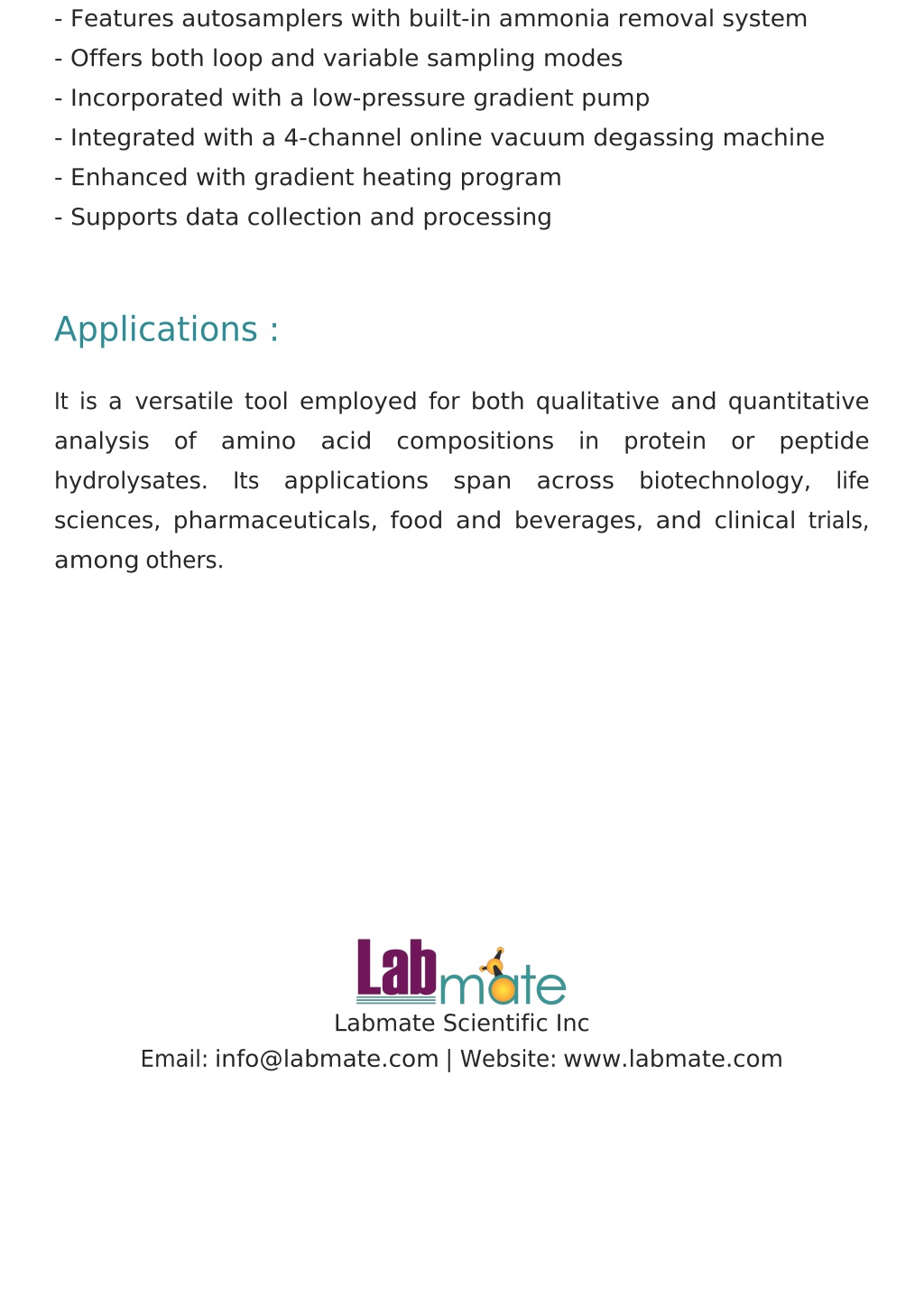

  4. - Features autosamplers with built-in ammonia removal system - Offers both loop and variable sampling modes - Incorporated with a low-pressure gradient pump - Integrated with a 4-channel online vacuum degassing machine - Enhanced with gradient heating program - Supports data collection and processing Applications : It is a versatile tool employed for both qualitative and quantitative analysis of amino acid compositions in protein or peptide hydrolysates. Its applications span across biotechnology, life sciences, pharmaceuticals, food and beverages, and clinical trials, among others. Labmate Scientific Inc | Website: info@labmate.com Email: www.labmate.com
