  1. DIGITAL NOTAM TRANSITION Moving Forward!

  2. NOTAM MODERNIZATIONAIM Segment 1 Program • Policy Alignment with the International Civil Aviation Organization (ICAO) • Working on new NOTAM manual to coincide with International policies and goals. • Modernization of Automation for NOTAM Entry and Distribution. • Streamline domestic NOTAM entry by working directly with airport operators.

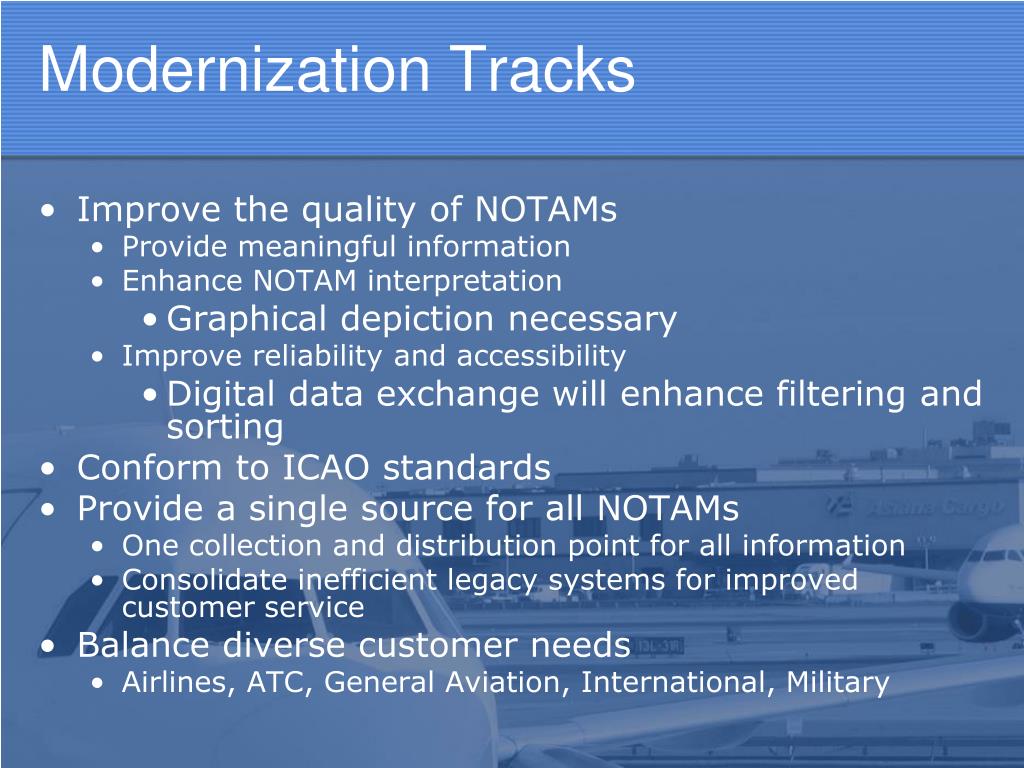

  3. Modernization Tracks • Improve the quality of NOTAMs • Provide meaningful information • Enhance NOTAM interpretation • Graphical depiction necessary • Improve reliability and accessibility • Digital data exchange will enhance filtering and sorting • Conform to ICAO standards • Provide a single source for all NOTAMs • One collection and distribution point for all information • Consolidate inefficient legacy systems for improved customer service • Balance diverse customer needs • Airlines, ATC, General Aviation, International, Military

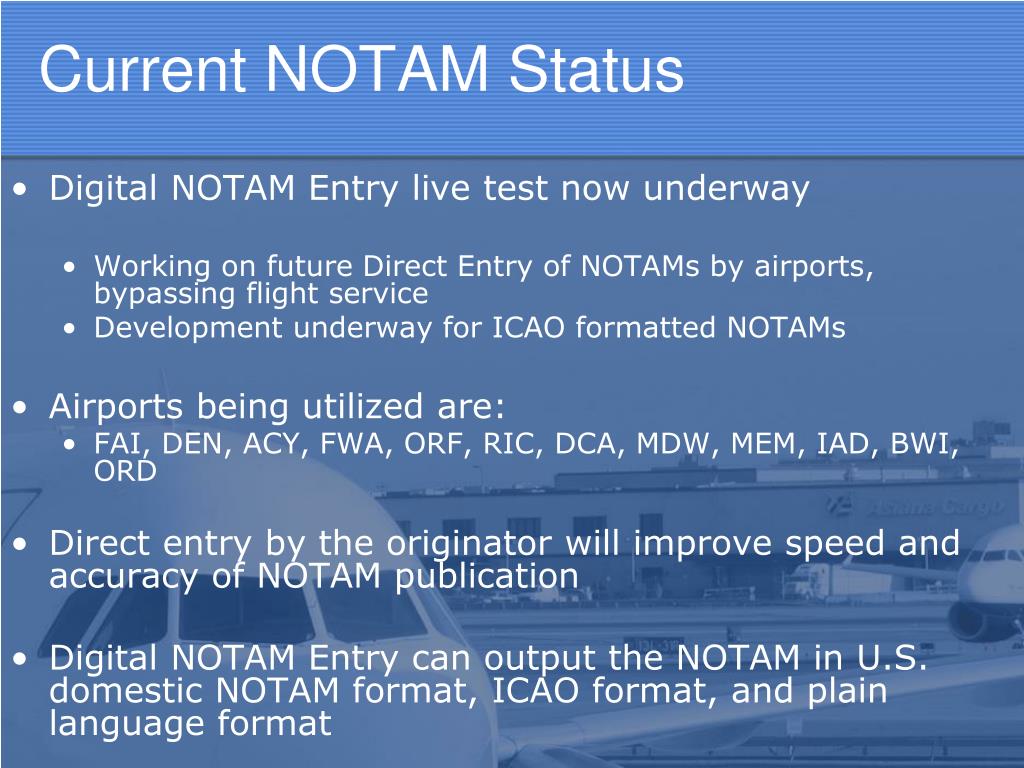

  4. Current NOTAM Status • Digital NOTAM Entry live test now underway • Working on future Direct Entry of NOTAMs by airports, bypassing flight service • Development underway for ICAO formatted NOTAMs • Airports being utilized are: • FAI, DEN, ACY, FWA, ORF, RIC, DCA, MDW, MEM, IAD, BWI, ORD • Direct entry by the originator will improve speed and accuracy of NOTAM publication • Digital NOTAM Entry can output the NOTAM in U.S. domestic NOTAM format, ICAO format, and plain language format

  5. NOTAM Keywords (Current)Effective November 2010 • All (D) NOTAM shall be prefaced with a keyword: • AD Aerodrome • AIRSPACE Airspace • APRON Apron • COM Communications • NAV NAVAID • (O) Other Aeronautical Information • OBST Obstructions • RAMP Ramp (Goes away Nov 2010) • RWY Runway • SVC Services • TWY Taxiway • (U) Unverified Movement Area

  6. NOTAM Keywords (New)Effective November 2010 • ODP Obstacle Departure Procedure • SID Standard Instrument Departure • STAR Standard Terminal Arrival • CHART Chart Correction • DATA Dataset change • IAP Instrument Approach Procedure • VFP Visual Flight Procedure • ROUTE Route change with ATS routes • SPECIAL Special Instrument flight procedure • O Other Aeronautical Information • NOTE: These new additions are not put in by airport personnel except for possibly (O).

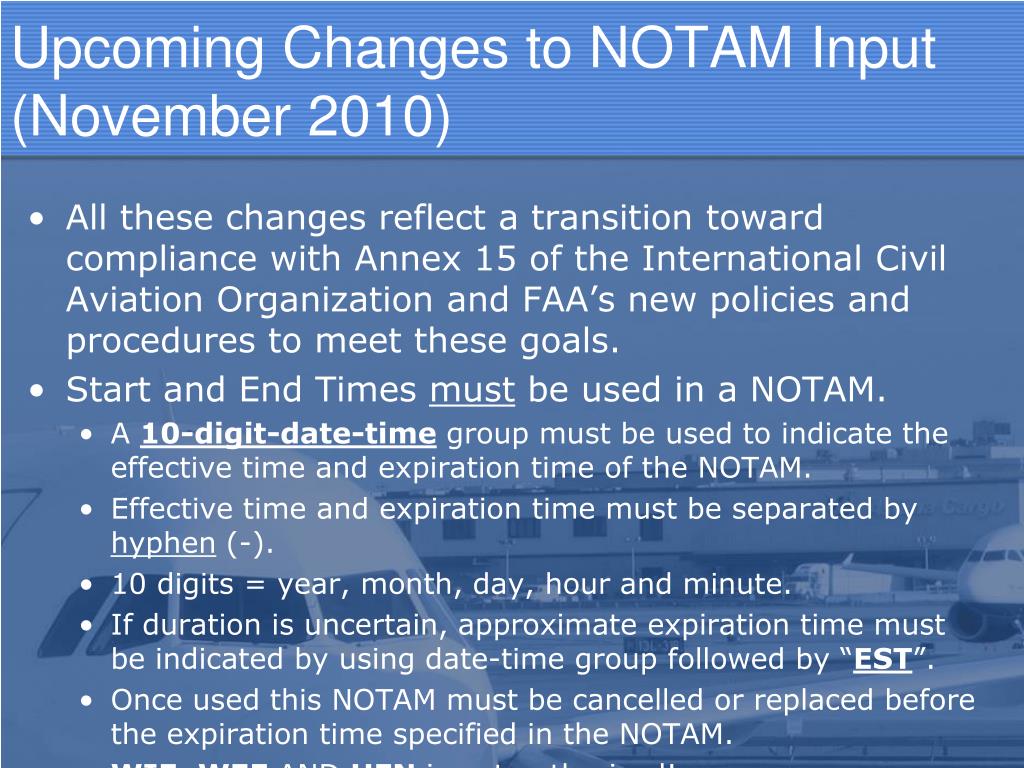

  7. Upcoming Changes to NOTAM Input (November 2010) • All these changes reflect a transition toward compliance with Annex 15 of the International Civil Aviation Organization and FAA’s new policies and procedures to meet these goals. • Start and End Times must be used in a NOTAM. • A 10-digit-date-time group must be used to indicate the effective time and expiration time of the NOTAM. • Effective time and expiration time must be separated by hyphen (-). • 10 digits = year, month, day, hour and minute. • If duration is uncertain, approximate expiration time must be indicated by using date-time group followed by “EST”. • Once used this NOTAM must be cancelled or replaced before the expiration time specified in the NOTAM. • WIE, WEF AND UFN is not authorized! • Use of TIL is not authorized!

  8. Examples of NOTAM Changes • Time: !ABC ABC RWY 9/27 CLSD 1011011100-1011011400 • Notice what is missing….WEF before the start time. • TIME: !ABC ABC AD CLSD 1012250001-1012252359EST • Notice the EST now in use, only underlined for demo purpose. • TIME: Start times will either be put in by the operator or a box can be clicked that puts the start time in upon activation. • These are all drop down menus on a template supplied to the airport from the FAA or a third party vendor. Web based applications. • Keyword: RAMP will no longer be used, to be included under the keyword APRON. • !DSM DSM APRON SOUTH CARGO RAMP CLSD 1011171410-1011172000

  9. Digital Goal • Sort - Order the data • Filter - Geographic, temporal, or logical extract • Transpose – Convert data to graphic • Alert - Evaluate the data and take action • Fuse – Ability to merge multiple datasets

  10. Quality Assurance • Direct entry would bypass current procedure of going through flight service • Eliminates third party errors • Improves the quality of the NOTAM for safety purposes • Shortens the time it takes to put out a NOTAM for all stakeholders • Originating at the source improves data integrity, traceability and is encoded digitally • Validation is to strict business rules • Eliminates incorrect runway numbering and other human typo errors (NASR database tie-in)

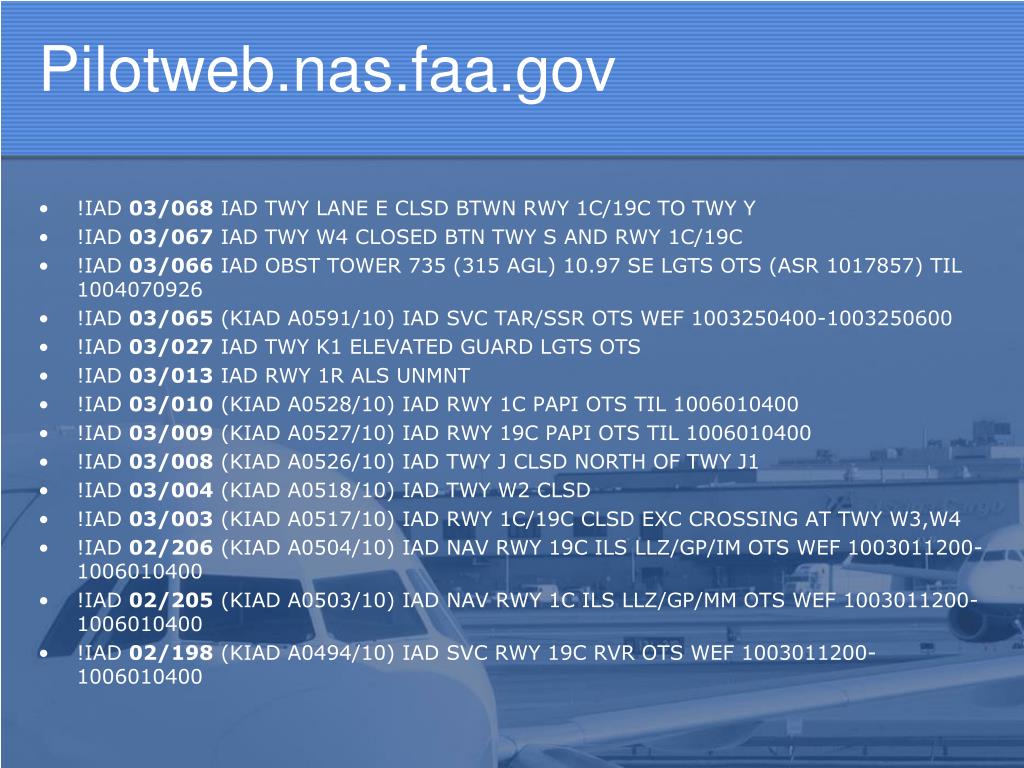

  11. Pilotweb.nas.faa.gov • !IAD 03/068 IAD TWY LANE E CLSD BTWN RWY 1C/19C TO TWY Y • !IAD 03/067 IAD TWY W4 CLOSED BTN TWY S AND RWY 1C/19C • !IAD 03/066 IAD OBST TOWER 735 (315 AGL) 10.97 SE LGTS OTS (ASR 1017857) TIL 1004070926 • !IAD 03/065 (KIAD A0591/10) IAD SVC TAR/SSR OTS WEF 1003250400-1003250600 • !IAD 03/027 IAD TWY K1 ELEVATED GUARD LGTS OTS • !IAD 03/013 IAD RWY 1R ALS UNMNT • !IAD 03/010 (KIAD A0528/10) IAD RWY 1C PAPI OTS TIL 1006010400 • !IAD 03/009 (KIAD A0527/10) IAD RWY 19C PAPI OTS TIL 1006010400 • !IAD 03/008 (KIAD A0526/10) IAD TWY J CLSD NORTH OF TWY J1 • !IAD 03/004 (KIAD A0518/10) IAD TWY W2 CLSD • !IAD 03/003 (KIAD A0517/10) IAD RWY 1C/19C CLSD EXC CROSSING AT TWY W3,W4 • !IAD 02/206 (KIAD A0504/10) IAD NAV RWY 19C ILS LLZ/GP/IM OTS WEF 1003011200-1006010400 • !IAD 02/205 (KIAD A0503/10) IAD NAV RWY 1C ILS LLZ/GP/MM OTS WEF 1003011200-1006010400 • !IAD 02/198 (KIAD A0494/10) IAD SVC RWY 19C RVR OTS WEF 1003011200-1006010400

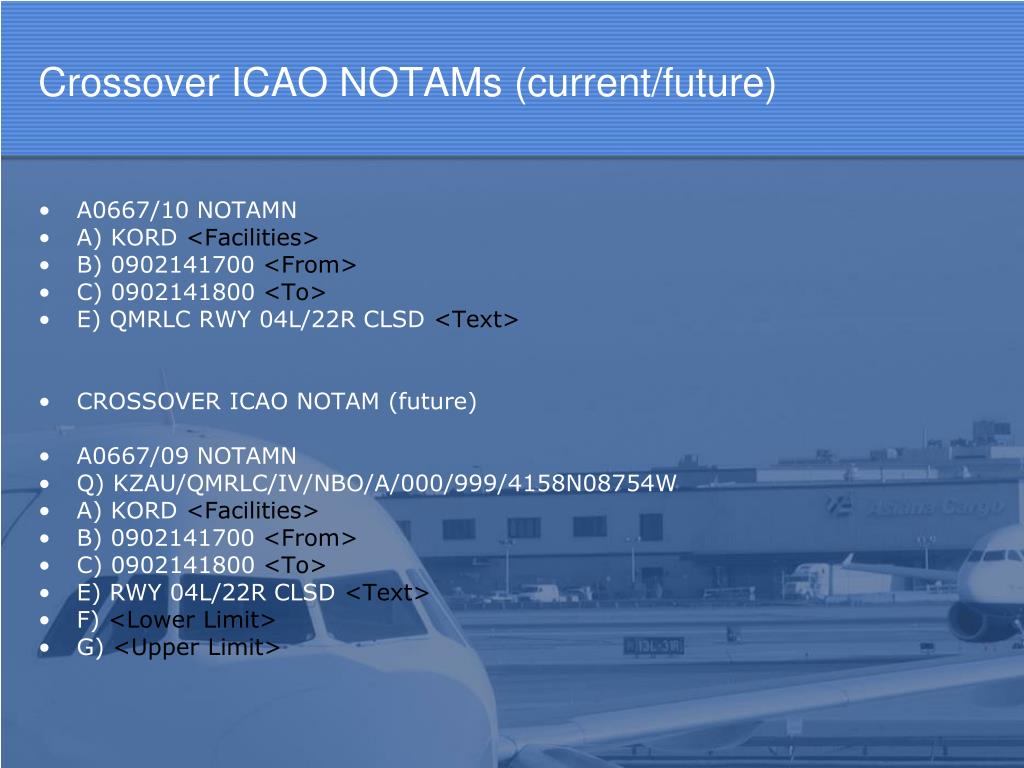

  12. Crossover ICAO NOTAMs (current/future) • A0667/10 NOTAMN • A) KORD <Facilities> • B) 0902141700 <From> • C) 0902141800 <To> • E) QMRLC RWY 04L/22R CLSD <Text> • CROSSOVER ICAO NOTAM (future) • A0667/09 NOTAMN • Q) KZAU/QMRLC/IV/NBO/A/000/999/4158N08754W • A) KORD <Facilities> • B) 0902141700 <From> • C) 0902141800 <To> • E) RWY 04L/22R CLSD <Text> • F) <Lower Limit> • G) <Upper Limit>

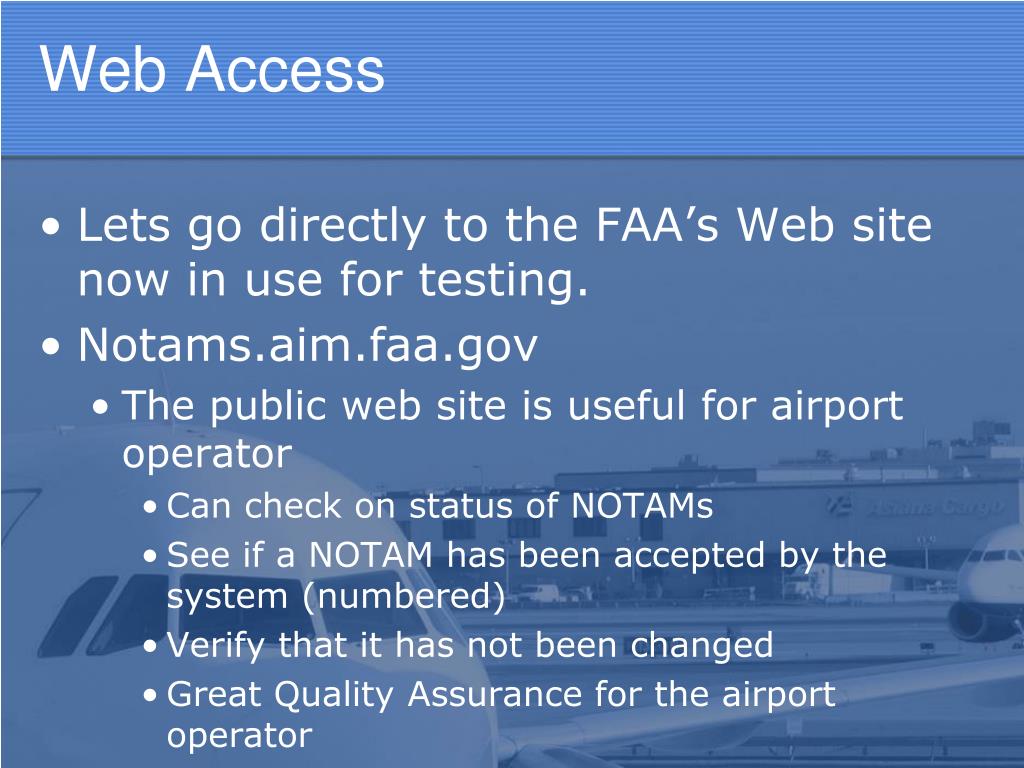

  13. Web Access • Lets go directly to the FAA’s Web site now in use for testing. • Notams.aim.faa.gov • The public web site is useful for airport operator • Can check on status of NOTAMs • See if a NOTAM has been accepted by the system (numbered) • Verify that it has not been changed • Great Quality Assurance for the airport operator

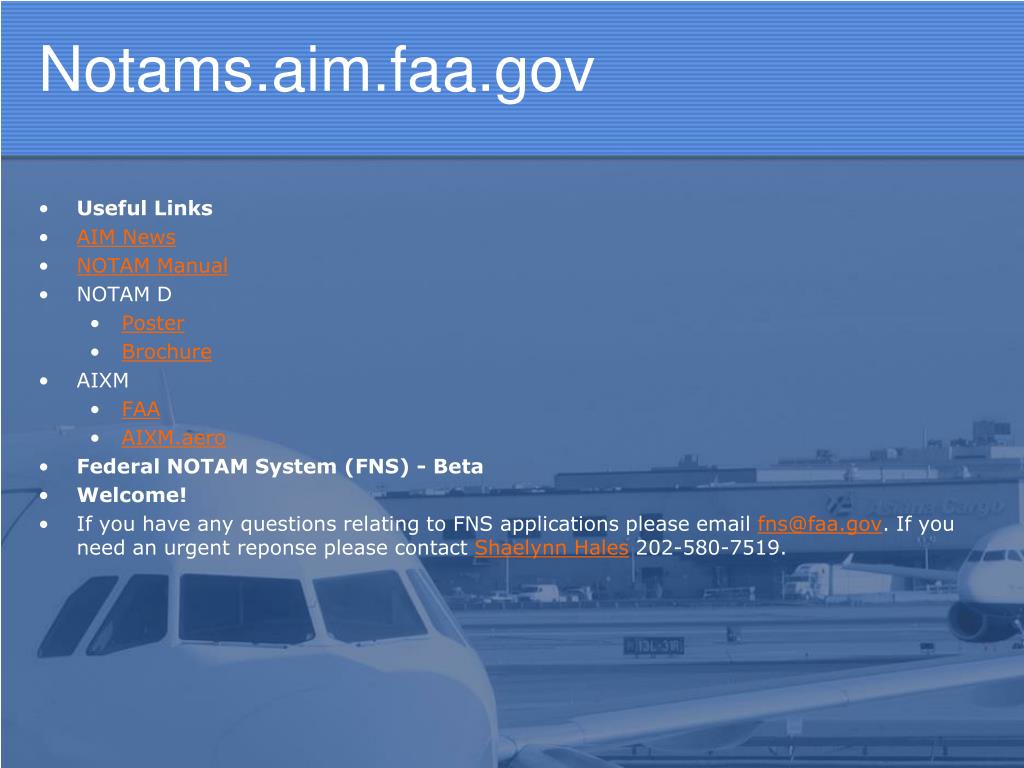

  14. Notams.aim.faa.gov • Useful Links • AIM News • NOTAM Manual • NOTAM D • Poster • Brochure • AIXM • FAA • AIXM.aero • Federal NOTAM System (FNS) - Beta • Welcome! • If you have any questions relating to FNS applications please email fns@faa.gov. If you need an urgent reponse please contact Shaelynn Hales 202-580-7519.

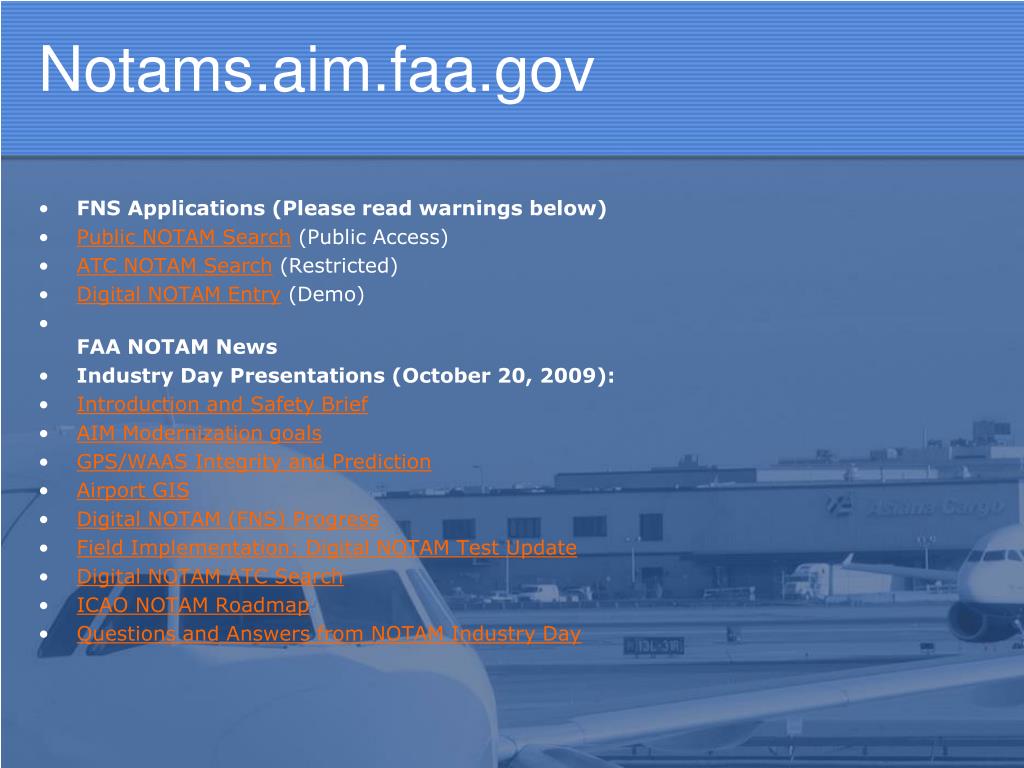

  15. Notams.aim.faa.gov • FNS Applications (Please read warnings below) • Public NOTAM Search (Public Access) • ATC NOTAM Search (Restricted) • Digital NOTAM Entry (Demo) • FAA NOTAM News • Industry Day Presentations (October 20, 2009): • Introduction and Safety Brief • AIM Modernization goals • GPS/WAAS Integrity and Prediction • Airport GIS • Digital NOTAM (FNS) Progress • Field Implementation: Digital NOTAM Test Update • Digital NOTAM ATC Search • ICAO NOTAM Roadmap • Questions and Answers from NOTAM Industry Day

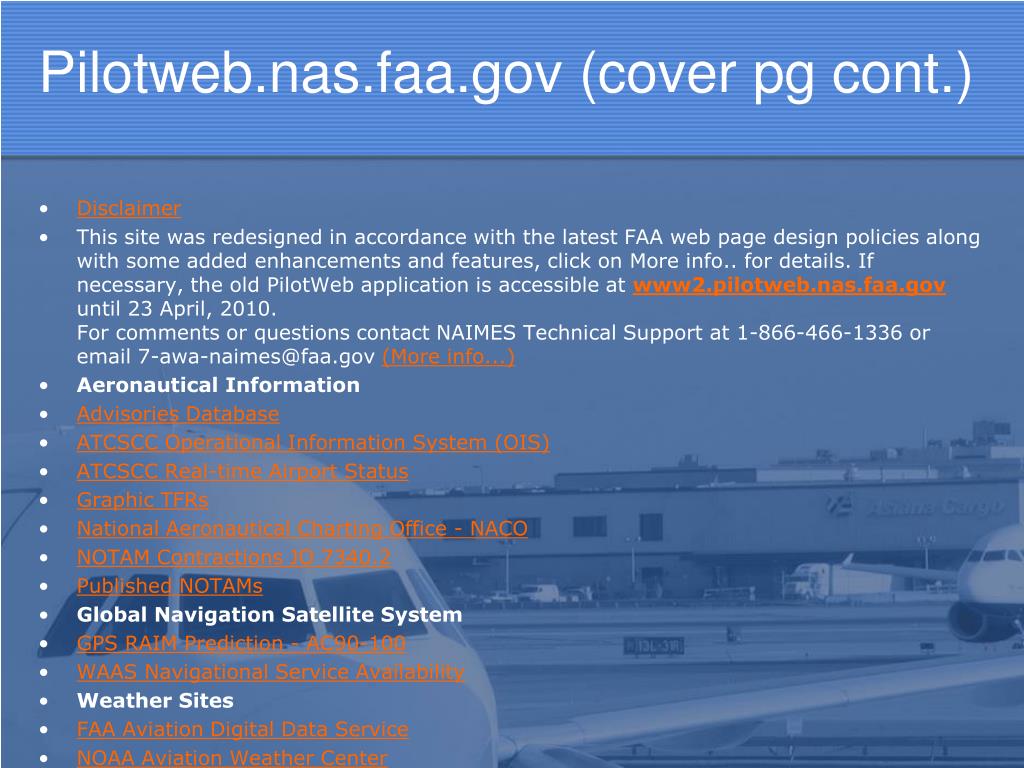

  16. Pilotweb.nas.faa.gov (cover page) • Home • About PilotWeb • Help • Contact Us • Fri, 26 Mar 2010 03:50:25 (UTC) • FAA Home • NOTAM Functions Domestic Format • View All ARTCC TFRs • View All GPS NOTAMs • View CARF NOTAMs • View Special Notices • ICAO Format • View All ARTCC TFRs • View All GPS NOTAMs • View CARF NOTAMs • View Special Notices • Tracks North Atlantic Tracks • Pacific Tracks • Tools Airport Arrival Demand Chart • Q-Code Combination Search • Route Management Tool (RMT) • Runway Visual Range (RVR) • Special Event Reservations (e-STMP) • Disclaimer • This site was redesigned in accordance with the latest FAA web page design policies along with some added enhancements and features, click on More info.. for details. If necessary, the old PilotWeb application is accessible at www2.pilotweb.nas.faa.govuntil 23 April, 2010.For comments or questions contact NAIMES Technical Support at 1-866-466-1336 or email 7-awa-naimes@faa.gov (More info...) • Aeronautical Information • Advisories Database • ATCSCC Operational Information System (OIS) • ATCSCC Real-time Airport Status • Graphic TFRs • National Aeronautical Charting Office - NACO • NOTAM Contractions JO 7340.2 • Published NOTAMs • Global Navigation Satellite System • GPS RAIM Prediction - AC90-100 • WAAS Navigational Service Availability • Weather Sites • FAA Aviation Digital Data Service • NOAA Aviation Weather Center • NOAA National Weather Service • Links • AIM News & Updates • AOPA Home Page • ATCSCC Home / Products • EAA Home Page • FAA Home Page • FAA Air Traffic Organization (ATO) • NBAA Home Page • NOTAM Retrieval • Report Format Type: • Locations: • Text Type: • NOTAM Search by Number • Report Format Type: • Accountability or Location: • NOTAM Number: • Text Type: • Radius Search • Report Format Type: • Location: • Radius: NM • Latitude/Longitude Radius Search • Report Format Type: • Latitude: °´ • Longitude: °´ • Radius: NM • Flight Path Search (Enter from two to five locations below) • Report Format Type: • Locations: • Buffer(Both Sides): NM • Include: Enroute Airports and Navigational Aids Regulatory Notices •   ARTCCs/UIRs/FIRs FDC TFR Notices Only • ARTCC Notices, TFRs and Special Notice Page • Report Format Type:   Include Regulatory Notices (FDC,ZZZ): • Select the Air Route Traffic Control Centers (ARTCCs) to receive Notices from: • ZAB (KZAB) Albuquerque,NM • ZAK (KZAK) Oakland OCA/FIR • ZAN (PAZA) Anchorage,AK • ZAU (KZAU) Chicago,IL • ZBW (KZBW) Boston,MA • ZDC (KZDC) Washington,DC • ZDV (KZDV) Denver,CO • ZFW (KZFW) Fort Worth,TX • ZHN (PHZH) Honolulu,HI • ZHU (KZHU) Houston,TX • ZID (KZID) Indianapolis,IN • ZJX (KZJX) Jacksonville,FL • ZKC (KZKC) Kansas City,KS • ZLA (KZLA) Los Angeles,CA • ZLC (KZLC) Salt Lake City,UT • ZMA (KZMA) Miami,FL • ZME (KZME) Memphis,TN • ZMP (KZMP) Minneapolis,MN • ZNY (KZNY) New York,NY • ZOA (KZOA) Oakland,CA • ZOB (KZOB) Cleveland,OH • ZSE (KZSE) Seattle,WA • ZSU (TJZS) San Juan,PR • ZTL (KZTL) Atlanta,GA • ZUA (PGZU) Guam CERAP • ICAO Search • The following ICAO search feature will allow a user to search for an ICAO airport and country. Enter up to five locations below, separated by a space. • Locations:

  17. Pilotweb.nas.faa.gov (cover pg cont.) • Disclaimer • This site was redesigned in accordance with the latest FAA web page design policies along with some added enhancements and features, click on More info.. for details. If necessary, the old PilotWeb application is accessible at www2.pilotweb.nas.faa.govuntil 23 April, 2010.For comments or questions contact NAIMES Technical Support at 1-866-466-1336 or email 7-awa-naimes@faa.gov (More info...) • Aeronautical Information • Advisories Database • ATCSCC Operational Information System (OIS) • ATCSCC Real-time Airport Status • Graphic TFRs • National Aeronautical Charting Office - NACO • NOTAM Contractions JO 7340.2 • Published NOTAMs • Global Navigation Satellite System • GPS RAIM Prediction - AC90-100 • WAAS Navigational Service Availability • Weather Sites • FAA Aviation Digital Data Service • NOAA Aviation Weather Center

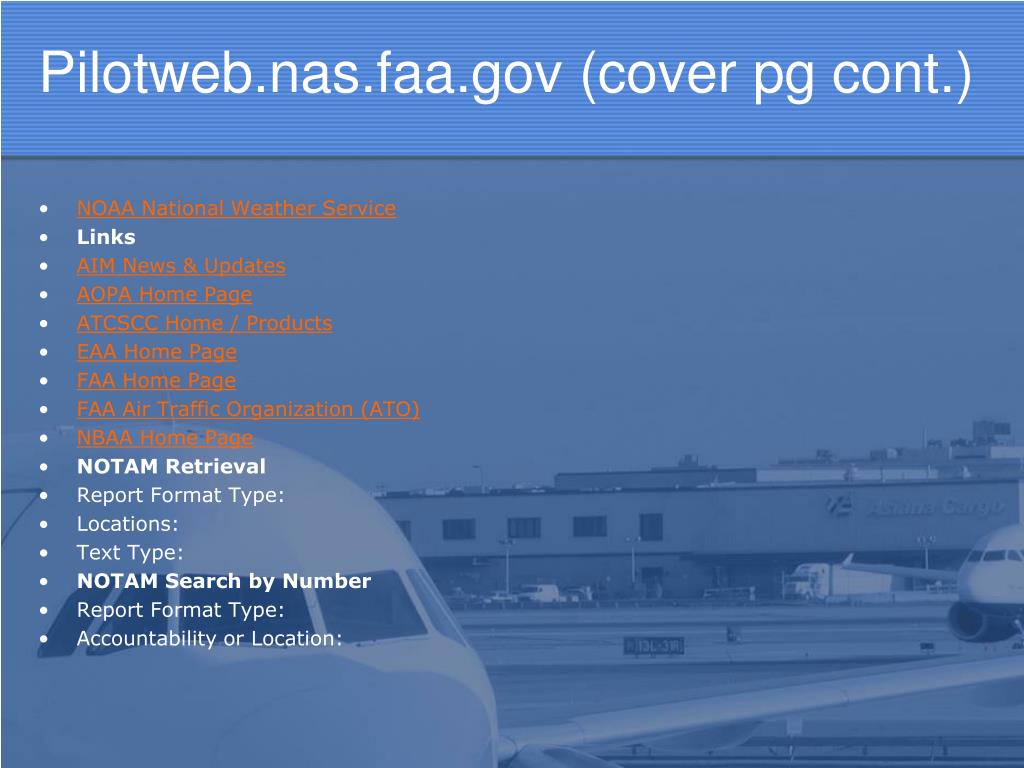

  18. Pilotweb.nas.faa.gov (cover pg cont.) • NOAA National Weather Service • Links • AIM News & Updates • AOPA Home Page • ATCSCC Home / Products • EAA Home Page • FAA Home Page • FAA Air Traffic Organization (ATO) • NBAA Home Page • NOTAM Retrieval • Report Format Type: • Locations: • Text Type: • NOTAM Search by Number • Report Format Type: • Accountability or Location:

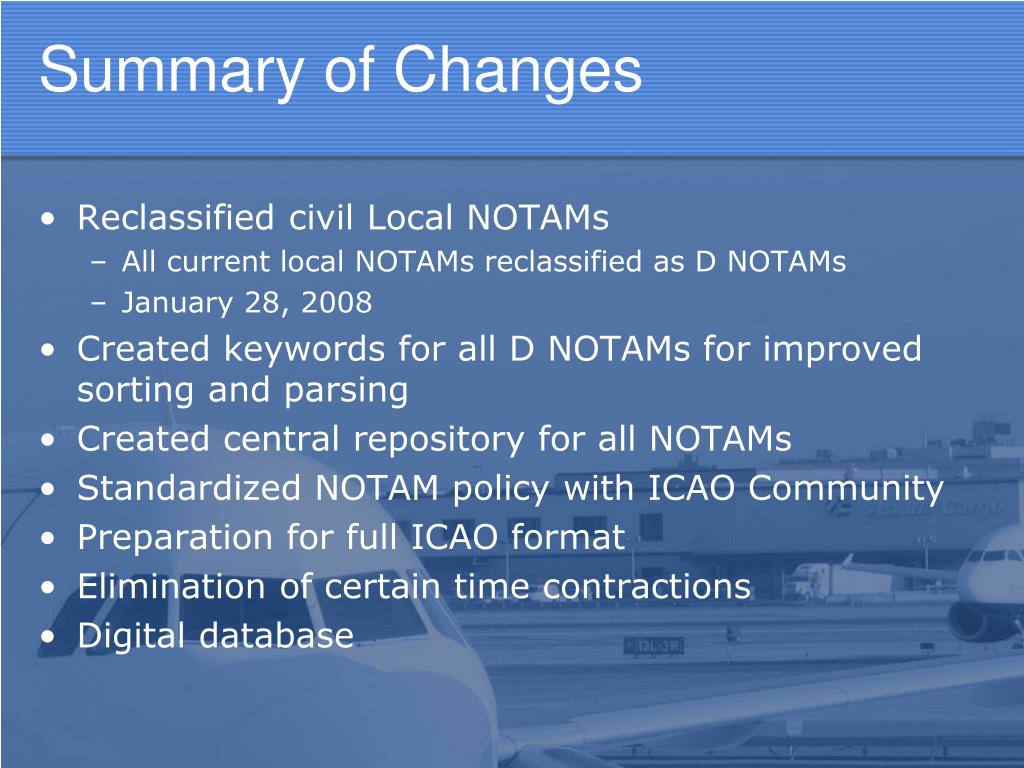

  19. Summary of Changes • Reclassified civil Local NOTAMs • All current local NOTAMs reclassified as D NOTAMs • January 28, 2008 • Created keywords for all D NOTAMs for improved sorting and parsing • Created central repository for all NOTAMs • Standardized NOTAM policy with ICAO Community • Preparation for full ICAO format • Elimination of certain time contractions • Digital database

  20. Changes are coming… • Direct Entry of NOTAMs • By-passing flight service • Near real time availability of information • ICAO Formatted NOTAMS • One stop shopping for Aeronautical Information • More keywords • Digital Database • Graphical Products • Seamless transition • User Friendly

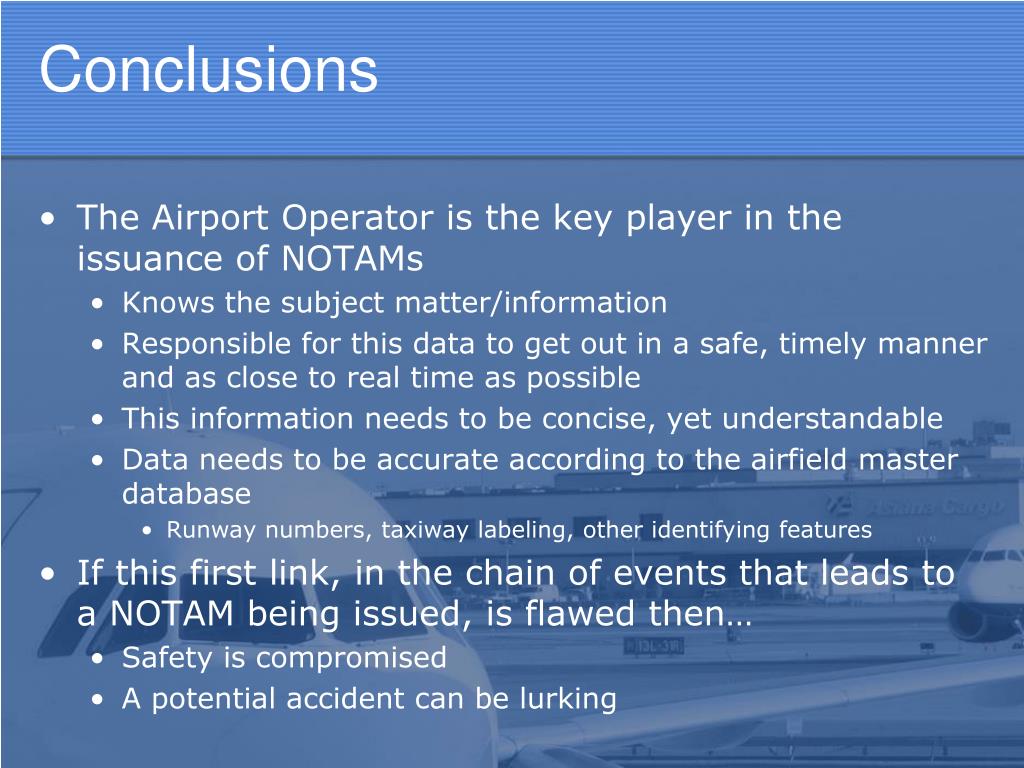

  21. Conclusions • The Airport Operator is the key player in the issuance of NOTAMs • Knows the subject matter/information • Responsible for this data to get out in a safe, timely manner and as close to real time as possible • This information needs to be concise, yet understandable • Data needs to be accurate according to the airfield master database • Runway numbers, taxiway labeling, other identifying features • If this first link, in the chain of events that leads to a NOTAM being issued, is flawed then… • Safety is compromised • A potential accident can be lurking

  22. Conclusions • Safety Improvements for NOTAMs… • Improved NOTAM training on site with new employees • Constant review of FAA NOTAM Orders, including FAA Airport Advisory Circulars • Better communication at all levels when a NOTAM is being issued • Monitoring of what aeronautical information/NOTAMs are being issued to the public • Checking web sites • Pilotweb • FAA Beta test site for FNS • Third party sites • E-NOTAM system • Phone calls • These can be done now, but in the near future……

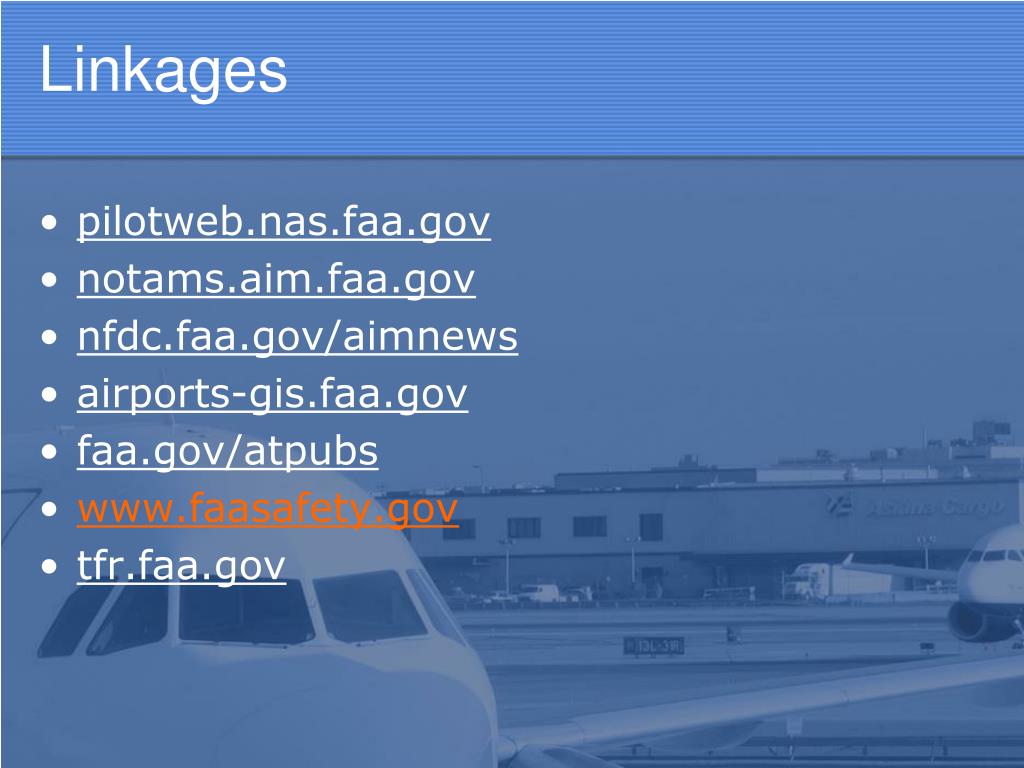

  23. Linkages • pilotweb.nas.faa.gov • notams.aim.faa.gov • nfdc.faa.gov/aimnews • airports-gis.faa.gov • faa.gov/atpubs • www.faasafety.gov • tfr.faa.gov

  24. Thank You! Gary Bobik Consultant-Aeronautical Information
