Presentation Transcript
unit 3

Unit 3

Characteristics of Electricity

unit 31
Unit 3
  • Electrical energy has allowed us to develop technologies that have enhanced our way of life
hybrid
Hybrid
  • Hybrid vehicles are often used today where, one part of the vehicle uses a gasoline powered motor and also energy from an electrical motor
  • As oil prices continue to rise and the environmental concerns are addressed, using electricity for transportation will become even more important
chapter 7

Chapter 7

Static Electricity is produced by electron transfer

objectives
Objectives

By the end of the lesson you should be able to:

  • State the 3 Laws of Electrostatics
  • Describe a Coulomb
  • Describe how a static charge is created, measured and transferred
  • Describe insulators and conductors
physics intro
Physics Intro
  • Physics: the study of energy and its uses
  • For this unit we will be focusing on Electrical Energy
electricity
Electricity
  • Electricity is the study of the electron and its uses
  • Where is electricity used?
  • Why do we get shocked?
  • How do light bulbs work?
  • How does electricity actually flow?
remember
Remember
  • An atom has 3 subatomic particles

Proton Neutron Electron

  • There are positive and negative charges
  • Electrons move fairly easily – Proton and neutrons do not!
  • Add electrons = negative
  • Remove electrons = positive
electrostatics
Electrostatics
  • Electrostatics = the study of non-moving electrons
  • The Laws of Electrostatics:
    • Opposite charges attract
    • Like charges repel
    • Neutral objects are attracted to any charge
  • An induced charge results from the movement of electrons by charged objects nearby, not by direct contact!
  • An electroscope measures the amount of static electricity
static charge
Static Charge
  • An excess of positive or negative charges that stay in place on an object for a relatively long period of time.

Examples: Lightning, static cling in clothes, receiving a shock when touching a door handle

the coulomb
The Coulomb
  • Charles Coulomb: lived during the 1700s
    • Developed a way to measure the quantity of electrons
    • Named the unit the Coulomb (C)
    • One C equals 6.25x1018charges

Since 1 electron = 1 negative charge

1 C = 6.25 x 1018 electrons!!

did you know
Did you know
  • Lightning contacts the ground at a speed of approximately 220000 km/h

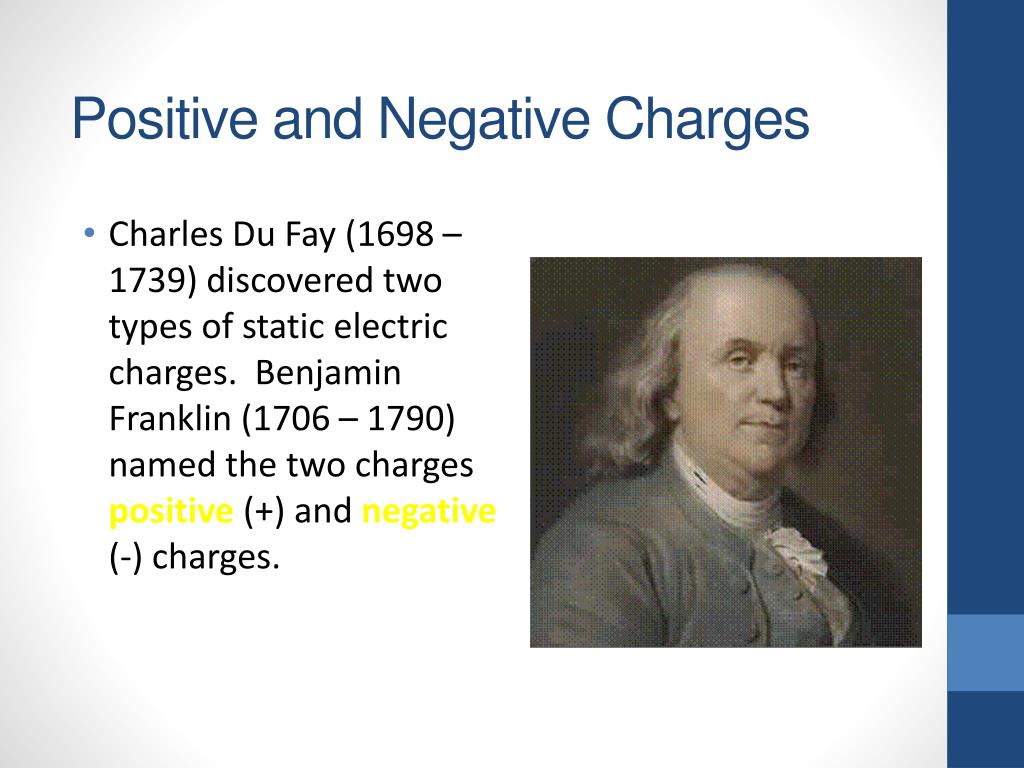

positive and negative charges
Positive and Negative Charges
  • Charles Du Fay (1698 – 1739) discovered two types of static electric charges. Benjamin Franklin (1706 – 1790) named the two charges positive (+) and negative (-) charges.
chemistry recap
Chemistry Recap
  • Atoms are made up of protons ( +), neutrons (0), and electrons (-).
  • # protons = # electrons, the atom is neutral.
  • Electrons orbit the nucleus and move quite easily.
  • Movement or transfer of electrons from one atom to another changes the charge on the atom.
chemistry recap1
Chemistry Recap
  • When an atom loses electrons, the atom becomes more positive.
  • When the atom gains electrons, it becomes more negative.
  • Neutral objects do not have a charge.
conductors
Conductors
  • Allow electrons to transfer freely
  • Metals are excellent conductors because they can give electrons easily eg. Copper or aluminum
insulators
Insulators
  • Materials that do not allow electrons to move easily from one location on an object to another (electrons tend to stay with the atom they are attached to).

Examples: glass, plastics, ceramics, dry wood.

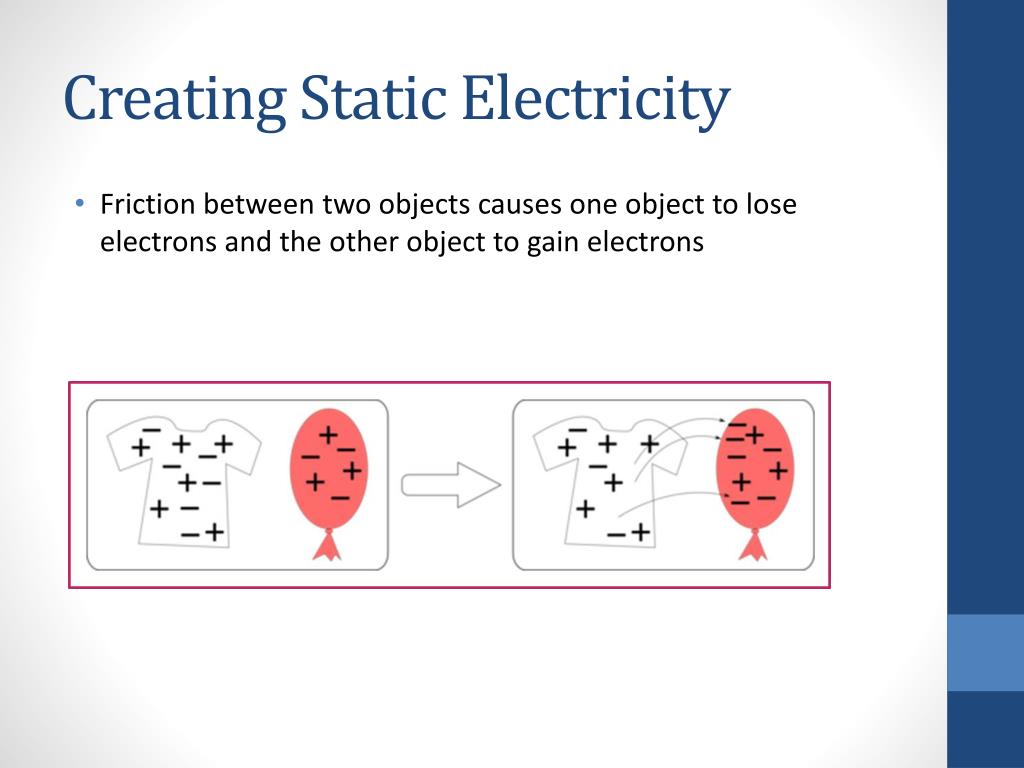

creating static electricity
Creating Static Electricity
  • Friction between two objects causes one object to lose electrons and the other object to gain electrons
generating static charge
Generating Static Charge
  • Friction causes objects to become charged
  • For example, the static charge in clouds is produced due to the friction as hot air rises rapidly in the cloud banks
  • The Van de Graaff generator uses friction to produce a large static charge on a metal dome using a moving belt
applications
Applications
  • Devices in chimneys use static charge to remove small particles of dust
  • Plastic sandwich wrap clings use static electricity
  • Air Ionizers clean the air by attracting charged particles in the air
  • Static electricity is used in painting automobiles
  • Refuelling
dangers of static electricity
Dangers of Static Electricity
  • Before pumping fuel you need to get rid of static electricity because they can cause an explosion
  • Allowing charge to flow into Earth’s surface is called grounding
  • Lightning rods on houses and large buildings provide a ground rather than hitting the building
