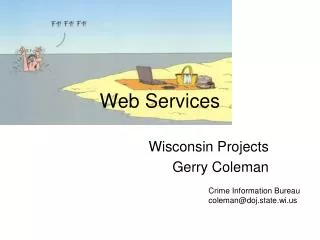

Web Services. Wisconsin Projects Gerry Coleman. Crime Information Bureau coleman@doj.state.wi.us. Web Services: the protocol Web Services: the architecture Network architecture Distributed data. This is not “ Web Services”. Application (computer program). User. Data.

hamish-barnett
Download Presentation

Web Services

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Web Services Wisconsin Projects Gerry Coleman Crime Information Bureau coleman@doj.state.wi.us

  2. Web Services: the protocol • Web Services: the architecture • Network architecture • Distributed data

  3. This is not “Web Services” Application (computer program) User Data The connection between a user and an application is never Web Services A tightly coupled, (in house?) relationship between an application and data is not Web Services

  4. This is “Web Services” Application (computer program) Application (computer program) User Data The connection between a user and an application is never Web Services The user’s application is using Web Services to obtain data from another application.

  5. Server to Server Application (computer program) Application (computer program) Data Web Services Interface

  6. Server Server IBM WebSphere (application server) Microsoft .NET (application server) Application (computer program) Application (computer program) Web Services Interface

  7. Web Services: the protocol Wisconsin IBM WebSphere (application server) Microsoft .NET (application server) eTIME (computer program) XMR (computer program) Web Services Interface

  8. Web Services: the protocol Browser User Application (Message Switch?) (Record Mgt System?) Data Application (NLETS XMR?) User The connection between a browser and a remote application is never Web Services Protocol is HTTP(s) The user’s application is using Web Services to obtain data from another application.

  9. Web Services: the architecture Data Application Data Application User Application Data Application Data Application Browser Data Application Data Application

  10. User Network Architecture

  11. Data Network

  12. Network “BUS”

  13. To Do . . . • Every data source needs a Web Services face • Standardize reference documents (output from a data source) • Standardize reference transactions (input/inquiry to a data source) • Redefine networks • Establish domain name services
