  1. Requirements Prototype Design Construction Testing Delivery and Installation Software Waterfall Life Cycle Concept Exploration Operations and Maintenance

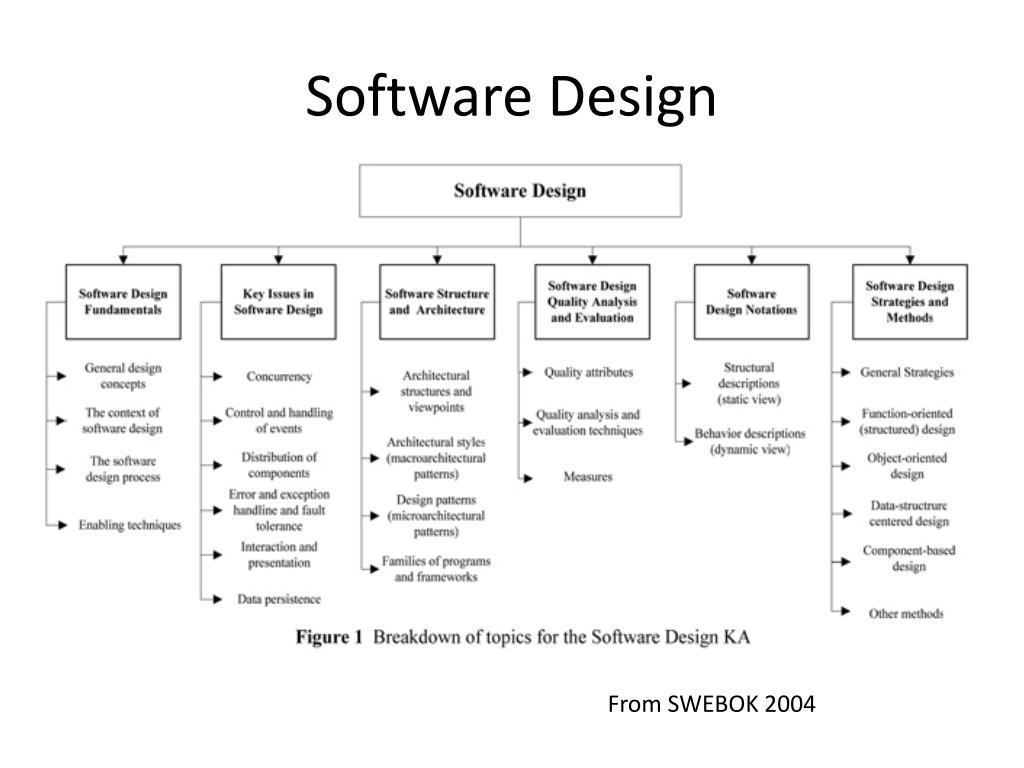

  2. Software Design From SWEBOK 2004

  3. V-Model

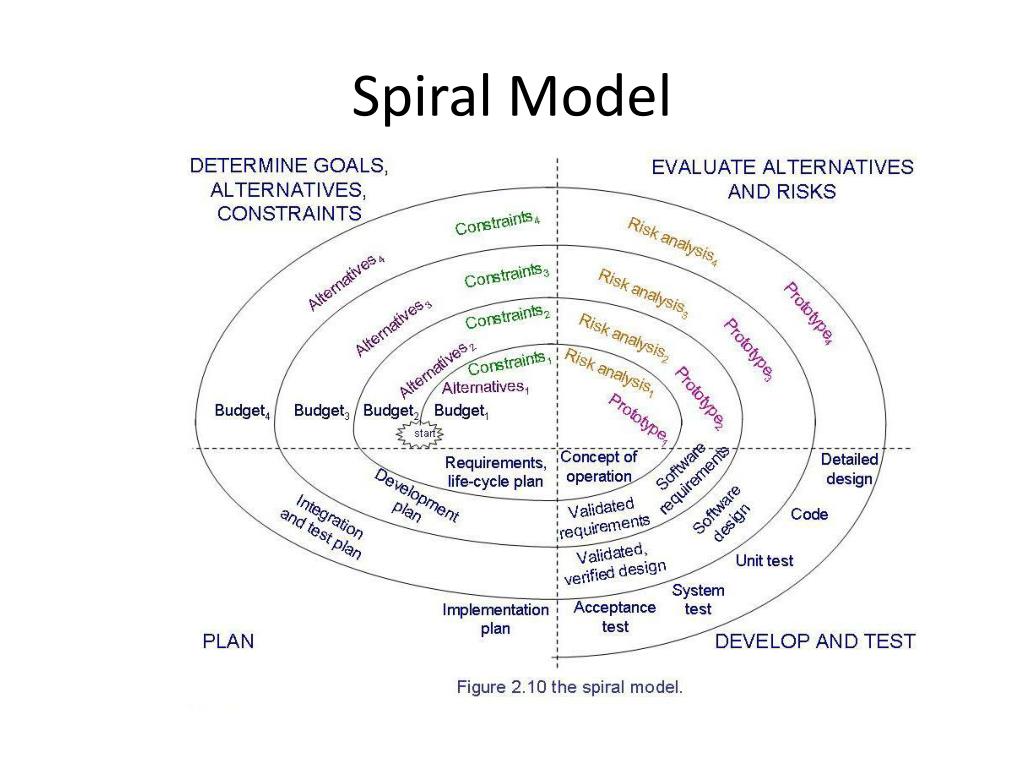

  4. Spiral Model

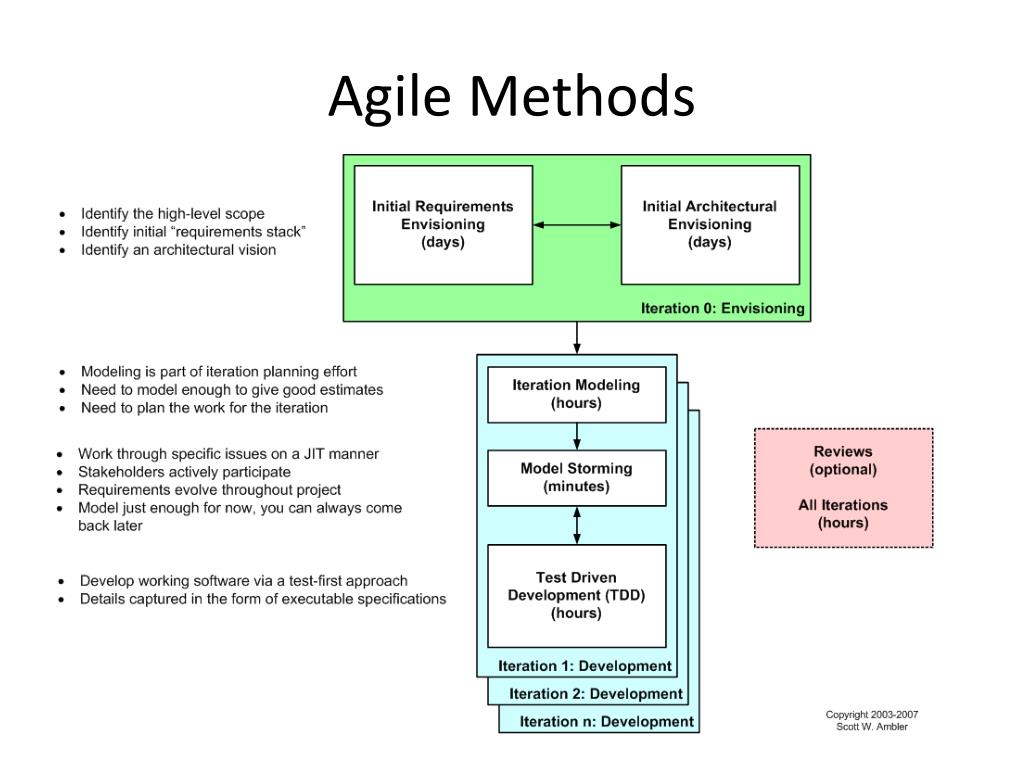

  5. Agile Methods

  6. Software Design From SWEBOK 2004

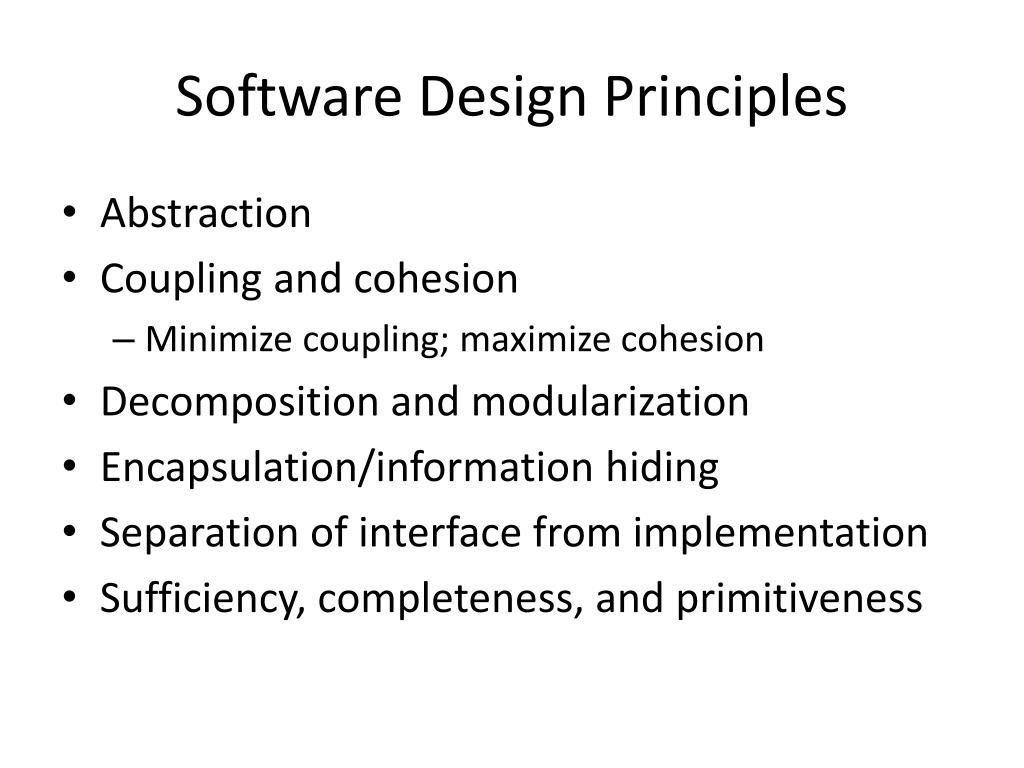

  7. Software Design Principles • Abstraction • Coupling and cohesion • Minimize coupling; maximize cohesion • Decomposition and modularization • Encapsulation/information hiding • Separation of interface from implementation • Sufficiency, completeness, and primitiveness

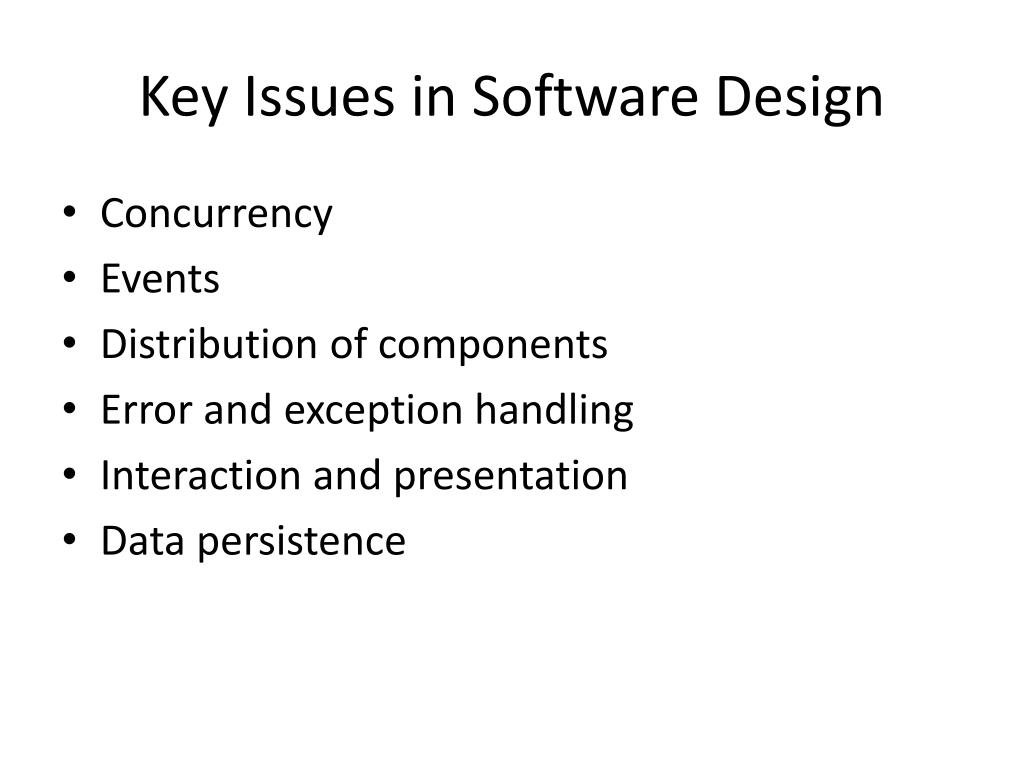

  8. Key Issues in Software Design • Concurrency • Events • Distribution of components • Error and exception handling • Interaction and presentation • Data persistence

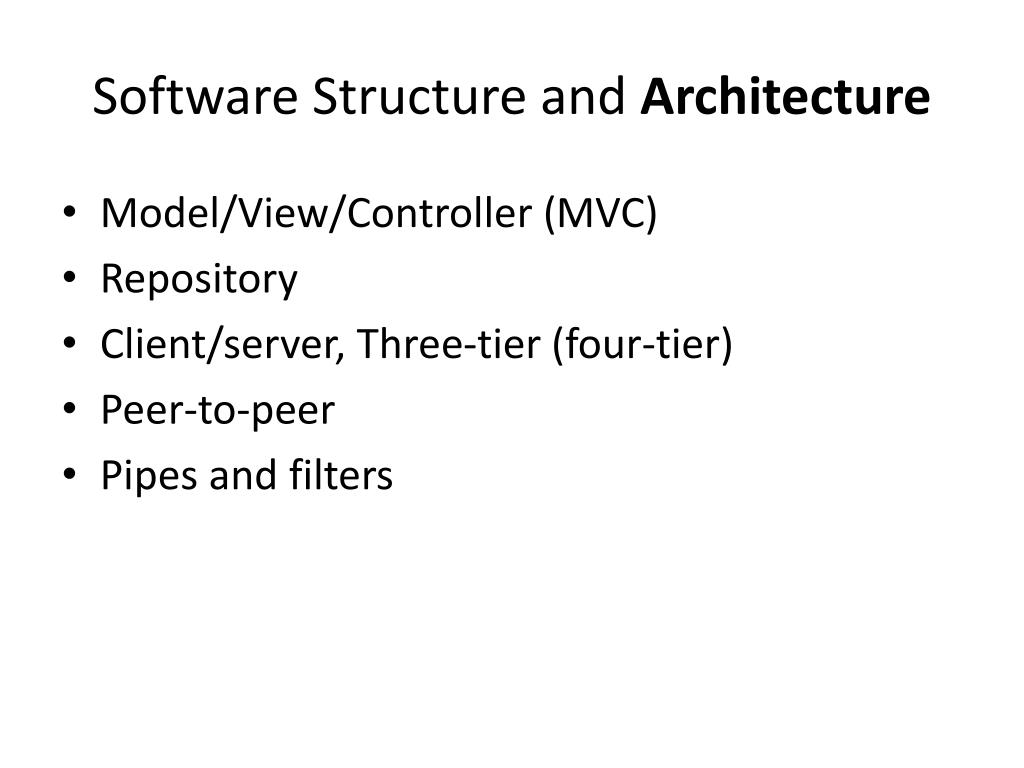

  9. Software Structure and Architecture • Model/View/Controller (MVC) • Repository • Client/server, Three-tier (four-tier) • Peer-to-peer • Pipes and filters

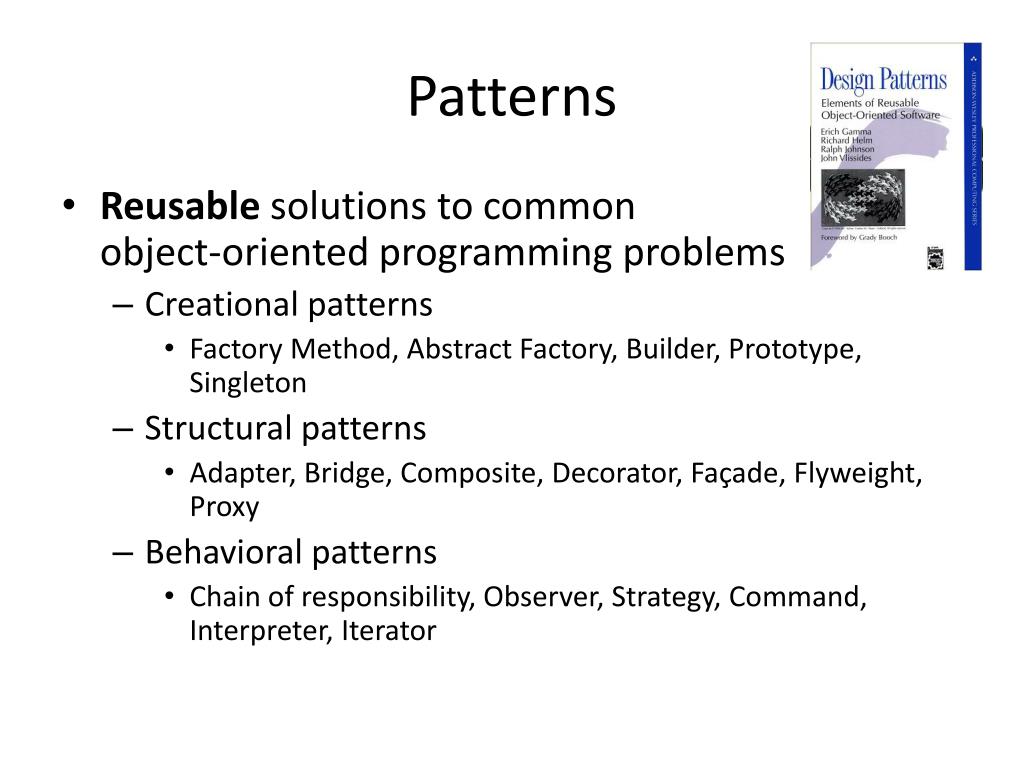

  10. Patterns • Reusable solutions to common object-oriented programming problems • Creational patterns • Factory Method, Abstract Factory, Builder, Prototype, Singleton • Structural patterns • Adapter, Bridge, Composite, Decorator, Façade, Flyweight, Proxy • Behavioral patterns • Chain of responsibility, Observer, Strategy, Command, Interpreter, Iterator

  11. Nonfunctional Requirements may suggest a design pattern • “manufacturer independent”, “device independent”, “must support a family of products” • Abstract Factory Pattern • “must interface with an existing object” • Adapter Pattern • “must deal with the interface to several systems, some of them to be developed in the future” • Bridge Pattern

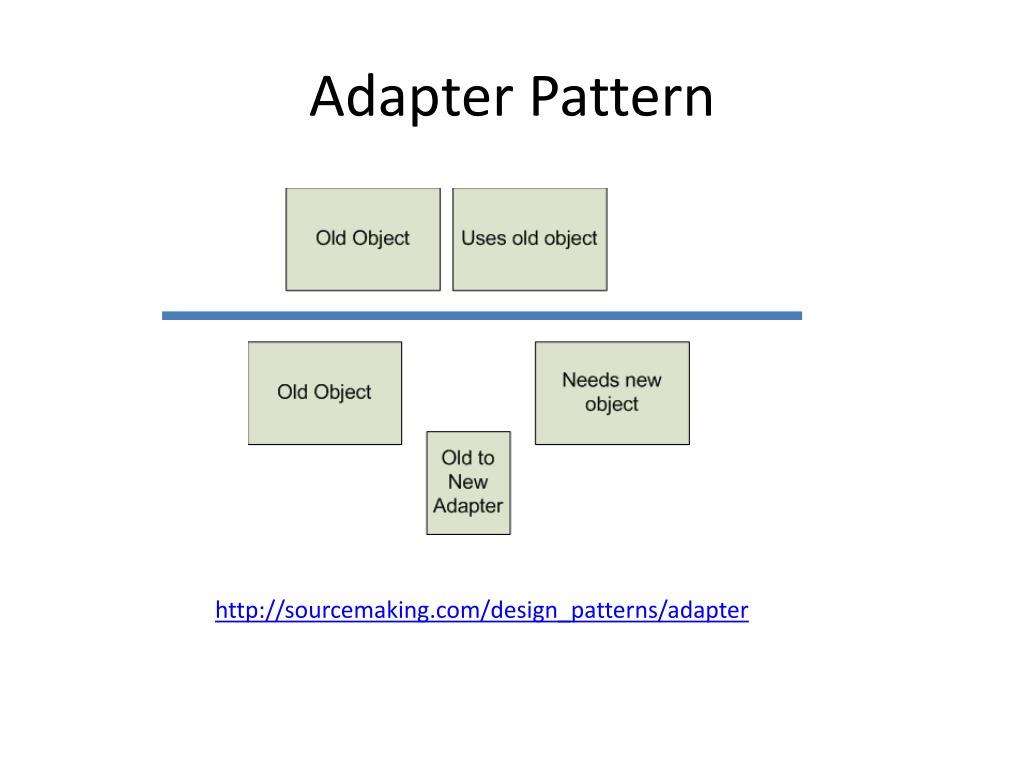

  12. Adapter Pattern http://sourcemaking.com/design_patterns/adapter

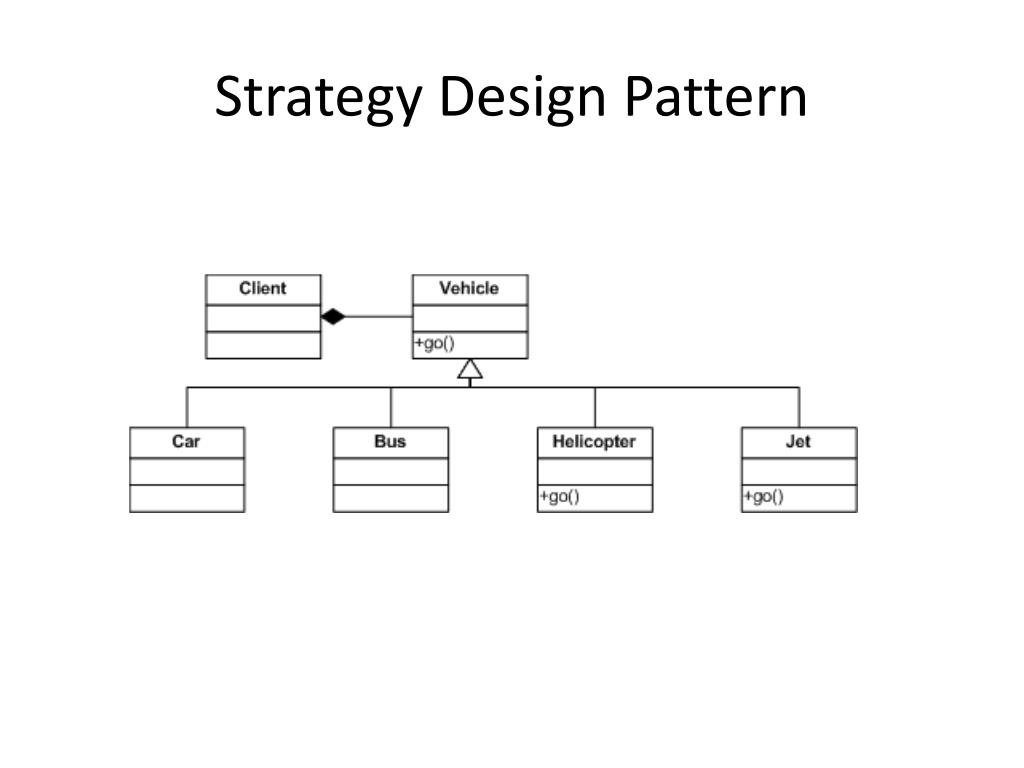

  13. Strategy Design Pattern
