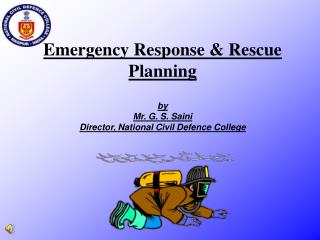

Emergency Response & Rescue Planning by Mr. G. S. Saini Director, National Civil Defence College PowerPoint Presentation
Download Presentation
Emergency Response & Rescue Planning by Mr. G. S. Saini Director, National Civil Defence College

Loading in 2 Seconds...

play fullscreen
1 / 90

Emergency Response & Rescue Planning by Mr. G. S. Saini Director, National Civil Defence College - PowerPoint PPT Presentation


  • 115 Views
  • Uploaded on

Emergency Response & Rescue Planning by Mr. G. S. Saini Director, National Civil Defence College . Scenario #1. You are a Safety officer of your Plant. You receive a call from a worker reporting a person down, clutching his throat and coughing.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Emergency Response & Rescue Planning by Mr. G. S. Saini Director, National Civil Defence College' - halona


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
emergency response rescue planning by mr g s saini director national civil defence college

Emergency Response & Rescue PlanningbyMr. G. S. SainiDirector, National Civil Defence College

scenario 1
Scenario #1
  • You are a Safety officer of your Plant.
  • You receive a call from a worker reporting a person down, clutching his throat and coughing.
  • Upon arrival at the scene you notice several people in the immediate vicinity also down
    • Some are clutching their chests and some are coughing heavily.
scenario 1 questions
Scenario #1 Questions
  • What is happening?
  • Is this a normal reaction for a heart attack?
  • Is it likely that five people have had heart attacks at the same time and place?
scenario 2
Scenario #2
  • Now people are staggering away from the scene
  • All are complaining of blurred vision & red teary eyes.
scenario 2 questions
Scenario #2 Questions
  • What might we be dealing with?
  • Are we dealing with something other than a heart attack?
  • Could this be caused by something in the atmosphere?
scenario 3
Scenario #3
  • People are starting to run from the scene.
  • Some people have lost consciousness.
scenario 3 questions
Scenario #3 Questions
  • What could account for all these symptoms?
  • What would you look for as the cause?
observations of incident
Observations of Incident
  • There is no debris, which might indicate a blast
  • No smoke or fire is apparent
  • There are multiple casualties, without the presence of trauma
  • It was a sudden onset
operational clues
Operational Clues
  • Clues that indicate a chemical incident
    • Symptoms exhibited in multiple casualties that are normally seen in a single person.
    • Multiple casualties for no apparent reason
    • Multiple casualties without trauma
    • Escalating number of victims
    • Escalating symptoms of the victims
solution
Solution
  • Observations indicate a toxic chemical agent has caused the incident
  • Symptoms indicate victims have likely been exposed to a choking agent-

CHLORINE

what is the next move
What is the Next Move?
  • Call in support based on
    • Increasing number of victims
    • Responder hazard (first response was for a unknown factor, now there is a chemical hazard)
    • Need for additional equipment
  • Protect yourself
  • Treat the victims
hazard
Hazard

“Any substance/operation that poses an unreasonable risk to life, property or the environment.”

  • Hazardous Material
    • “Any substance that poses an unreasonable risk to life, the environment, or property when not properly contained.”
how to identify
How to Identify ?

Hazardous materials pose many problems. One of the obvious problems is determining what constitutes a hazardous materials incident. Many agencies are involved with the handling, use, and the problems associated with hazardous materials. Each of these agencies has identified hazardous materials as it relates to their realm of service.

definition
Definition
  • OSHA and the National Institute for Occupational Safety and Health Administration (NIOSH) views a hazardous material from the standpoint of potential hazard. They rate conditions that may cause injury or death as they are found in the working environment, whether they are obvious or not.
problems
Problems
  • The problems encountered at a hazardous materials incident are many. The primary threats involve injury to the emergency worker and harm to the community.
  • Without emergency personnel, the situation cannot be handled in a safe or timely manner. When dealing with this type of incident, personal safety should always be the primary concern
hazardous chemical incident
Hazardous Chemical Incident
  • Methylisocyanate (MIC) incident at Bhopal, India
  • 3,300 people killed immediately; 16,000 after ten years
  • 40 tons of MIC released that covered 20 Km2
  • Over 500,000 people suffered effects of gas
  • Ground water hazard for ten years
hazardous chemicals
Physical Hazards

Explosives

Compressed gases

Flammable and combustible liquids

Flammable solids

Oxidizers

Poisons

Radioactive

Corrosives

Health Hazards

Asphyxiant

Carcinogen

Irritant

Corrosive

Sensitizer

Toxic Agent

Hazardous Chemicals

Any chemical (solid, liquid, gas) that can cause harm to people and their surroundings

effects of hazardous chemicals
Effects of Hazardous Chemicals
  • Any substance that can result in harmful effects
    • Immediate (acute)
    • Delayed (minutes or hours)
    • Long Term (chronic)
    • Temporary effects
    • Permanent effects
intensity of effects
Intensity of Effects
  • Varies by
    • Type of chemical
    • Exposure (time X amount)
    • Physical health
    • Age
    • Weather (wind, temperature, rain)
symptoms
Coughing

Constricted pupils, red teary eyes

Bleeding or hemorrhaging

Strong or unusual smell

Strange behavior

Convulsions

Unconsciousness

Symptoms
symptoms1
Symptoms
  • Difficulty breathing
  • Blurred vision
  • Runny eyes and nose
  • Slurred speech, disorientation
  • Skin irritation
  • Nausea
  • Sudden headache
  • Weakness

If you experience these symptoms, seek medical attention immediately

safety is a matter of attitude
Safety is a Matter of Attitude
  • Negative attitudes promote:
    • Carelessness
    • Recklessness
    • Overconfidence
  • Positive safety attitudes promote:
    • Openness to new ideas
    • Alertness
    • Planning ahead
multiple hazard characteristics
Multiple Hazard Characteristics
  • Explosive
  • Flammable
  • Thermally unstable
  • Reactive
  • Poisonous
  • Infectious
  • Radioactive
  • Corrosive
safety keypoint 1
Safety Keypoint #1
  • “Always consider the possibility of multiplehazard characteristics in each hazard class.”
safety keypoint 2
Safety Keypoint #2
  • “Approach all hazardous material incidents from upwind, upgrade, and upstream, positioning vehicles and apparatus headed away from the incident scene.”
distance is an ally
Distance is an Ally
  • Distance Safety Factors
    • 100' 1
    • 200' 2 times
    • 300' 4 times
    • 400' 16 times
    • 500' 256 times
staging area
Staging Area
  • A safe haven for personnel and equipment that allows a 3 minute scene access from a safe distance should the incident suddenly escalate
outward warning signs
Outward Warning Signs
  • People running from the hazardous area
outward warning signs1
Outward Warning Signs
  • People running from the hazardous area
  • People collapsed inside the hazardous area
outward warning signs2
Outward Warning Signs
  • People running from the hazardous area
  • People collapsed inside the hazardous area
  • Evidence of fire indicated by smoke
outward warning signs3
Outward Warning Signs
  • People running from the hazardous area
  • People collapsed inside the hazardous area
  • Evidence of fire indicated by smoke
  • A loud roar of increasing pitch from an operating relief valve
outward warning signs4
Outward Warning Signs
  • People running from the hazardous area
  • People collapsed inside the hazardous area
  • Evidence of fire indicated by smoke
  • A loud roar of increasing pitch from an operating relief valve
  • Evidence of a leak indicated by a hissing sound
outward warning signs5
Outward Warning Signs
  • People running from the hazardous area
  • People collapsed inside the hazardous area
  • Evidence of fire indicated by smoke
  • A loud roar of increasing pitch from an operating relief valve
  • Evidence of a leak indicated by a hissing sound
  • Birds and insects falling out of the sky
rescue considerations
Rescue Considerations
  • The Victim
    • Has the presence of the person(s) requiring rescue been confirmed visually or by credible sources?
    • How long has the person(s) been exposed to the hazardous material?
    • Is the person viable?
    • Is the person(s) requiring rescue trapped in a vehicle or by debris?
rescue considerations1
Rescue Considerations
  • The Product
    • What are the hazards of the material involved?
    • Is a fire or explosion likely?
    • How fast is the product leaking from it’s container?
    • Is the person(s) directly exposed to the product or it’s vapors?
rescue considerations2
Rescue Considerations
  • The Responder(s)
    • Does the responder have adequate training?
    • Is appropriate protective equipment available?
    • Are there sufficient personnel present to provide back-up?
    • How long must responders be exposed in the process of attempting rescue?
    • Are the proper tools available?
rescue considerations3
Rescue Considerations
  • Physical Factors
    • Must the vehicle or entrapping debris be stabilized?
    • Can the flow of product be diverted away from victim or stopped altogether?
    • Is access to the person difficult due to steep terrain or other reasons?
safety keypoint 3
Safety Keypoint #3
  • “In a hazardous material incident you may have to delay attending to the injured in order to save the lives of many others”
scene control
Scene Control
  • Initial actions taken to secure the scene will save many lives by preventing “convergence” into the hazardous area.
synergism
Synergism
  • Two or more chemicals combined resulting in a new compound
    • The resulting compound can be more hazardous than the original substances.

Chlorine + Ammonia = Chloramine gas

safety keypoint 4
Safety Keypoint #4
  • First operational priority:
    • Isolate the hazard area and deny entry.
establish perimeters
Establish Perimeters
  • Establish inner perimeter first.
  • Initially establish a large outer perimeter by closing major roadways into the area by using incoming response units.
  • Downwind perimeters should be 2-3 times larger than other perimeter boundaries.
scene safety
Scene Safety

After surveying the scene:

  • Set up zones

HOT

WARM

COLD

  • Control the scene
the hot zone
The HotZone
  • Center = center of the incident/explosion
  • First perimeter = location of the farthest piece of evidence
  • ‘y’ = distance between the center and perimeter

y

shrapnel

y=100 meters

the warm zone

x

The Warm Zone
  • Half the distance
  • Likely place for a second device
  • Distance between Hot and Warm zone is ‘x’

X=50 meters

the cold zone

CP

The ColdZone
  • Where the incident command post is set up
  • Choose the point which provides the most safety
safe deployment of resources
Safe Deployment of Resources

Maintain safe distances, up wind and up hill, if possible

operations for hazardous accidents
Operations for Hazardous Accidents

Wind Direction

Security

Medical & Triage

Operations &

Safety

Command Post

Staging Area

safety keypoint 5
Safety Keypoint #5
  • Only those emergency personnel in the proper protective clothing and positive pressure SCBA, “who are actively performing emergency operations” are to operate within the inner perimeter.”
emergency response plans
Emergency Response Plans
  • Must identify minimum perimeter distances to be utilized by the emergency responders for the protection of both the emergency responders and the citizens.
control zones
Control Zones
  • Recommended minimum initial isolation distances:
    • Minor incident = 150 mtrs
    • Major incident = 500 mtrs
    • Explosion potential = 800 mtrs
  • Isolate in all directions
safety keypoint 6
Safety Keypoint #6
  • “Recommended minimum safety perimeter for citizens = 1,000 mtrs beyond inner perimeter boundaries in open areas.”
safety keypoint 7
Safety Keypoint #7
  • “To avoid inhalation hazards, SCBA must be properly worn, used and maintained.”
    • Recognize the potential for downwind hazards to be present;
    • Use personnel in the proper level of personal protective clothing to expand downwind perimeters to well beyond the hazardous area.
safety keypoint 8
Safety Keypoint #8
  • “Never eat, smoke or drink at or around hazardous material incident scenes until you decontaminate and wash your hands, face, and hair thoroughly.”
absorption
Absorption
  • Skin absorption occurs by:
    • Direct contact of material with exposed skin (such as splashes and spills on unprotected skin)
    • Handling of contaminated patients, clothing, and equipment
    • Penetration of protective clothing
safety keypoint 9
Safety Keypoint #9
  • “Consult protective clothing compatibility data to ensure available protective clothing is compatible with the hazardous material(s) involved in the incident.”
medical surveillance
Medical Surveillance
  • Pre-employment exam
  • Annual or periodic exams and testing
  • Post employment
  • Post exposure treatment
  • Record keeping
exposure records
Exposure Records
  • Date
  • Time
  • Incident number
  • Blood gas levels (carboxyhemoglobin)
  • Material involved
  • Level of exposure
  • Medical treatment received
general safety precautions
General Safety Precautions
  • Isolate the hazard area and deny entry
general safety precautions1
General Safety Precautions
  • Isolate the hazard area and deny entry
  • Do not walk into or touch any spilled material
general safety precautions2
General Safety Precautions
  • Isolate the hazard area and deny entry
  • Do not walk into or touch any spilled material
  • Avoid inhalation of all gases, fumes, and smoke,
general safety precautions3
General Safety Precautions
  • Isolate the hazard area and deny entry
  • Do not walk into or touch any spilled material
  • Avoid inhalation of all gases, fumes, and smoke,
  • Do not assume that gases or vapors are harmless just because you can't see or smell them.
general safety precautions4
General Safety Precautions
  • Isolate the hazard area and deny entry
  • Do not walk into or touch any spilled material
  • Avoid inhalation of all gases, fumes, and smoke,
  • Do not assume that gases or vapors are harmless just because you can't see or smell them.
safety keypoint 10
Safety Keypoint #10

“Think of safety with every breath you take.”

primary considerations for response
Responder Safety

Public Safety

Scene Security

Hazard Assessment

Risk Assessment

Environmental Concerns

Property Conservation

Primary Considerations for Response
establish response priorities
Establish Response Priorities
  • Low
    • Protecting environment, property or equipment
  • Moderate
    • Attempt rescue of person(s) with low probability of survival
  • High
    • Attempt rescue of person(s) with high probability of survival
identify evacuation or relocation procedures
Identify Evacuation or Relocation Procedures
  • Evacuation
    • Action taken rapidly in the best interests of the public within the threatened area
  • Relocation
    • Preventing re-entry into the area when negative impacts will persist for a long period of time, or permanently
response reactions
Response Reactions
  • When looking at the hazards involved consider your responders safety and will their effects dramatically change the outcome of the incident
  • Decision time
    • “Stay and Play” (safely do the job)
    • “Get Out” (the risks are too great)
safe work practices
Safe Work Practices
  • Prevent direct contact with hazardous chemicals
  • Limit exposure levels and time
  • Good hygiene
  • Take appropriate fire prevention and control measures
safe work practices1
Safe Work Practices
  • Use appropriate personal protective equipment
  • Use equipment and tools not affected by the chemical being handled
  • Prevent chemicals from mixing that cause adverse reactions
  • Use good common sense
scene safety1
Scene Safety
  • Ensure that there is an evacuation plan and an escape route
  • Minimize the number of people on the scene
  • Set up the triage area

outside the event area

use emergency response guide
Use Emergency Response Guide
  • First responders guide developed jointly by transportation departments of Canada, United States and Mexico
    • Includes United Nations dangerous goods list
  • Assist first responders in making initial decisions
emergency response guide
Emergency Response Guide
  • Quick identification of the specific or generic hazards of the material(s) involved in the incident
  • Isolation and protection of first responders and the general public
emergency response guide1
Emergency Response Guide
  • Not a substitute for emergency response training, knowledge or sound judgment
  • Does not address all possible circumstances
  • No physical or chemical properties of hazardous materials
guidebook contents
Guidebook Contents
  • White pages
    • How to use the guidebook during a dangerous goods incident
    • General information
  • Yellow-bordered pages
    • Index list of dangerous goods in numerical order of four-digit ID number
  • Blue-bordered pages
    • Index list of dangerous goods in alphabetical order of material name
guidebook contents1
Guidebook Contents
  • Orange-bordered pages
    • Contains all safety recommendations in numerical order by 3-digit guide number
  • Green-bordered pages
    • Table of Initial Isolation and Protective Action and a table which lists, by ID number, Toxic by Inhalation (TIH) materials
hazmat ipod
Hazmat Ipod
  • Developed to address the unique needs of first responders determining unknown hazards using observable physical characteristics and signs and symptoms observed in victims.
  • Contains more than 91,000

chemical, biological warfare

(TICs, TIMs, CW agents),

biological agents (bio-weapon

and bioterror agents),

and improvised explosive devices

single gas detectors
Single Gas Detectors
  • Single-gas personal protection Monitors for continuous readouts of Toxic gas Concentrations
  • Ammonia
  • Carbon Monoxide
  • Chlorine
  • Chlorine Dioxide
  • Hydrogen Cyanide
  • Hydrogen Sulfide
  • Nitric Oxide
  • Nitrogen Dioxide
  • Oxygen
  • Phosphine
  • Sulfur Dioxide
multi gas detector
Multi Gas Detector
  • Combines a PID and a 4-gas Monitor
  • It measures oxygen, combustibles (LEL), carbon monoxide, and hydrogen sulfide
chemical disaster management tools
Chemical Disaster Management Tools

Detection Systems Are

Tools for Critical Decision Making

plan train practice
PLAN! TRAIN! PRACTICE!
  • Preplanning is essential
  • Train the way you plan to respond
  • Practice varying your response
summary
SUMMARY
  • Identify physical and structural hazards
  • Identify threats
  • Ensure responder safety.
  • Mark hazard areas and designate

safety zones

  • Request specialized services
  • Communicate & coordinate
  • Use appropriate equipment
