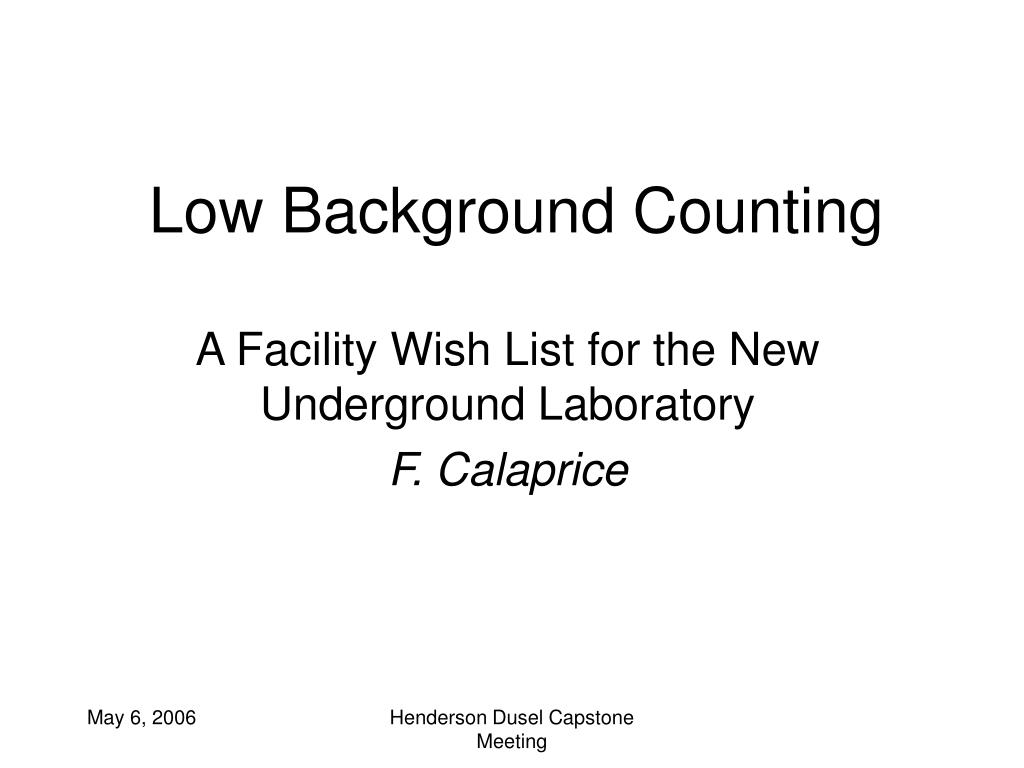

  1. Low Background Counting A Facility Wish List for the New Underground Laboratory F. Calaprice Henderson Dusel Capstone Meeting

  2. Low Background Experiments • Dark Matter Searches • Double Beta Decay • Solar neutrinos • Other • Radioactivity dating • Nuclear inspections Henderson Dusel Capstone Meeting

  3. Typical Background Problems • Cosmic ray muons • Muon-induced neutrons & radioactivity • Radon & A=210 Pb-Bi-Po daughters • Atmospheric radioactive rare gas atoms • 222Rn & daughters; 39Ar, 85Kr. • Gamma and neutron emission from materials • Radon emanation from materials Henderson Dusel Capstone Meeting

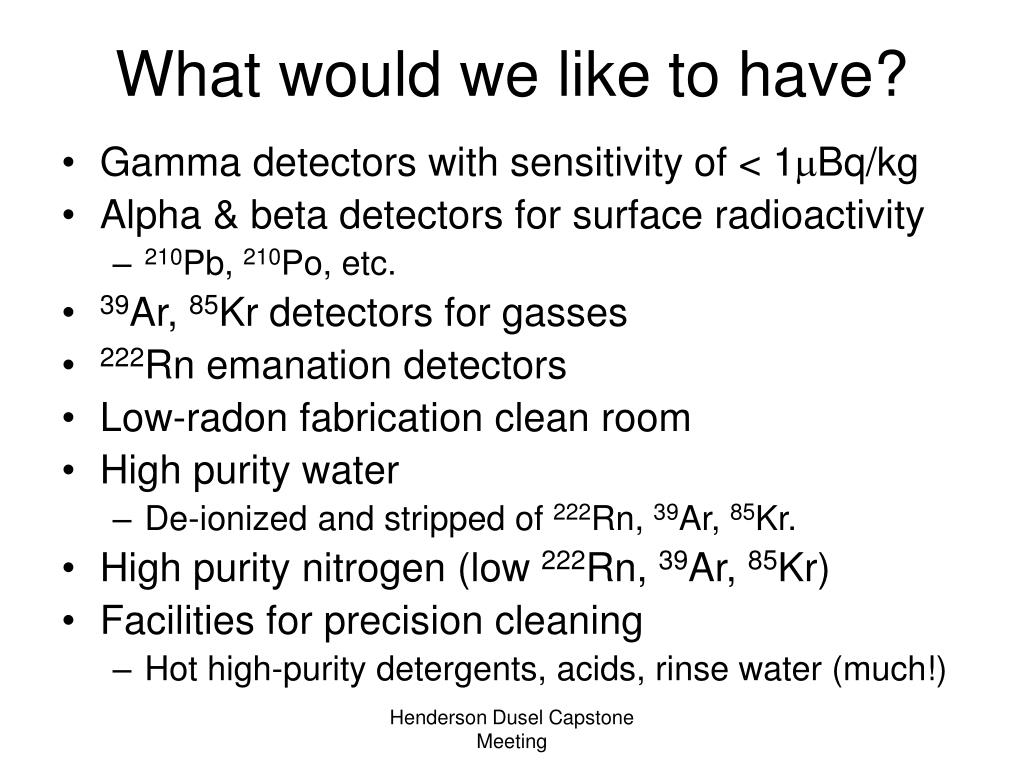

  4. What would we like to have? • Gamma detectors with sensitivity of < 1Bq/kg • Alpha & beta detectors for surface radioactivity • 210Pb, 210Po, etc. • 39Ar, 85Kr detectors for gasses • 222Rn emanation detectors • Low-radon fabrication clean room • High purity water • De-ionized and stripped of 222Rn, 39Ar, 85Kr. • High purity nitrogen (low 222Rn, 39Ar, 85Kr) • Facilities for precision cleaning • Hot high-purity detergents, acids, rinse water (much!) Henderson Dusel Capstone Meeting

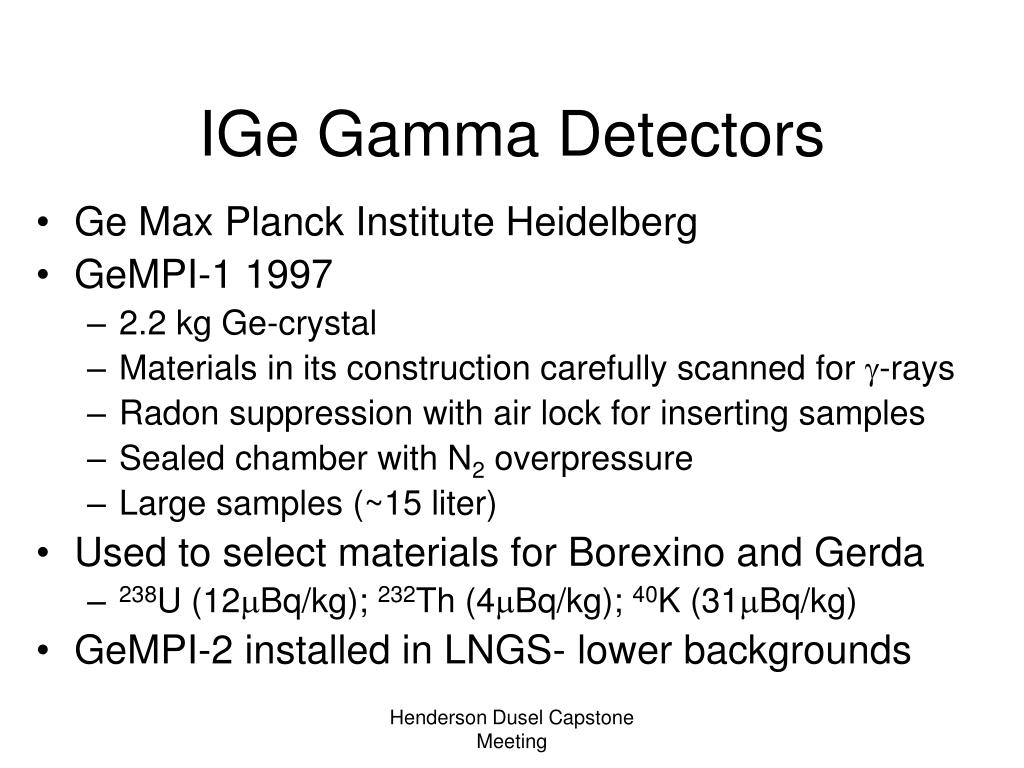

  5. IGe Gamma Detectors • Ge Max Planck Institute Heidelberg • GeMPI-1 1997 • 2.2 kg Ge-crystal • Materials in its construction carefully scanned for -rays • Radon suppression with air lock for inserting samples • Sealed chamber with N2 overpressure • Large samples (~15 liter) • Used to select materials for Borexino and Gerda • 238U (12Bq/kg); 232Th (4Bq/kg); 40K (31Bq/kg) • GeMPI-2 installed in LNGS- lower backgrounds Henderson Dusel Capstone Meeting

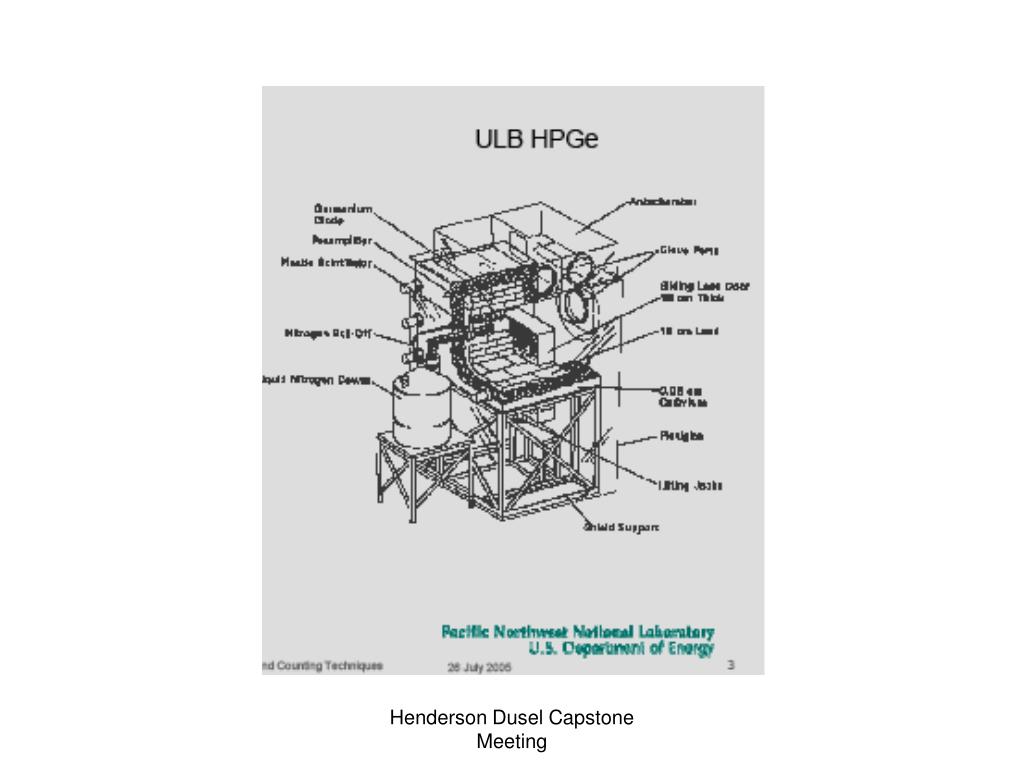

  6. Henderson Dusel Capstone Meeting

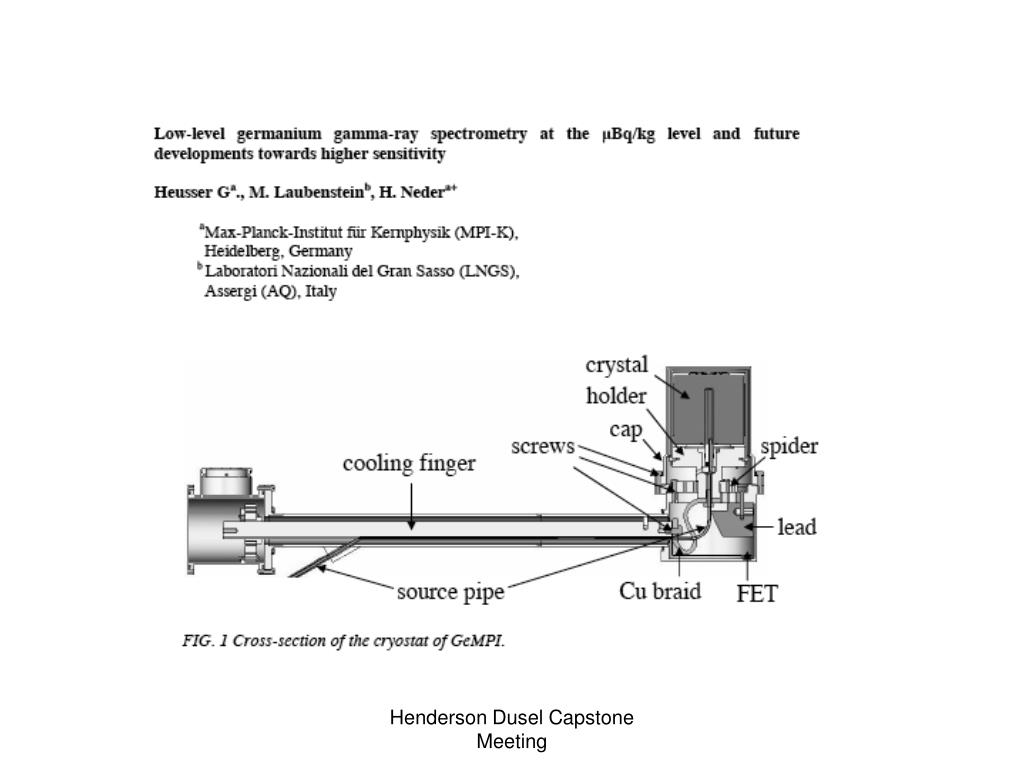

  7. Henderson Dusel Capstone Meeting

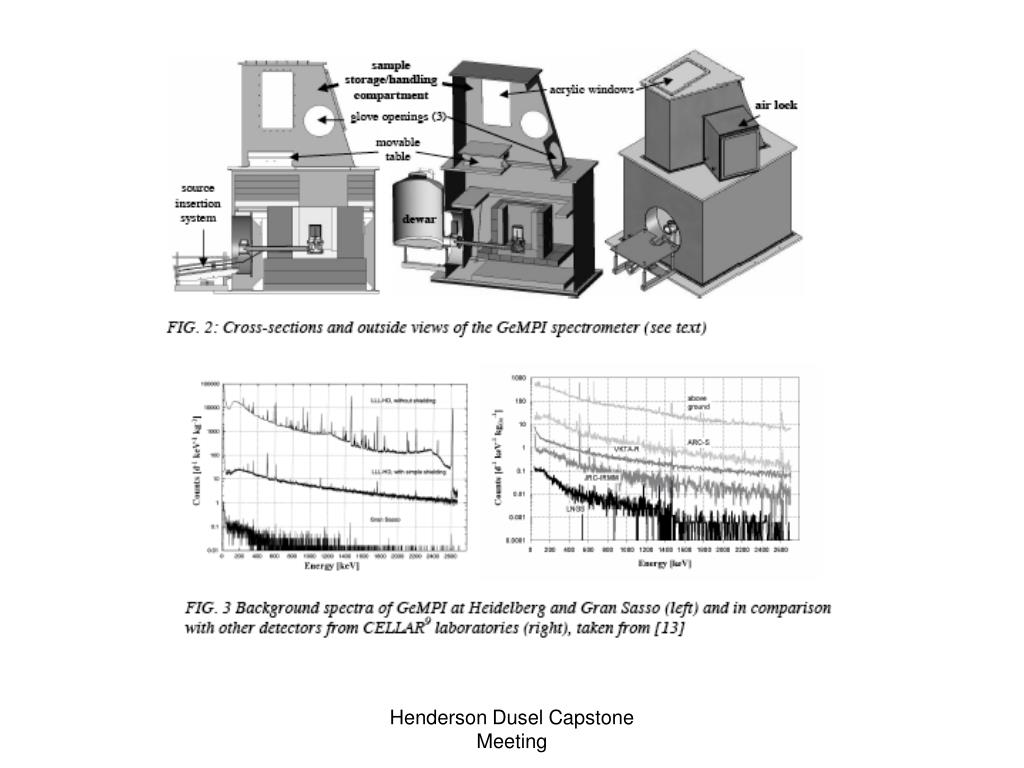

  8. Henderson Dusel Capstone Meeting

  9. Borexino CTF as -Detector • Liquid scintillator in water tank • Liq.Scint:Highest purity material known (~nBq/kg) • Energy resolution adequate for gamma spectroscopy. • High detection efficiency 4 • Small sample (~2-10 liters) • Sensitivity: 238U, 232Th: ~1 Bq/kg, or better • Current Ge detectors limited to ~10 Bq/kg Henderson Dusel Capstone Meeting

  10. Henderson Dusel Capstone Meeting

  11. Gamma Sensitivity of CTF Henderson Dusel Capstone Meeting

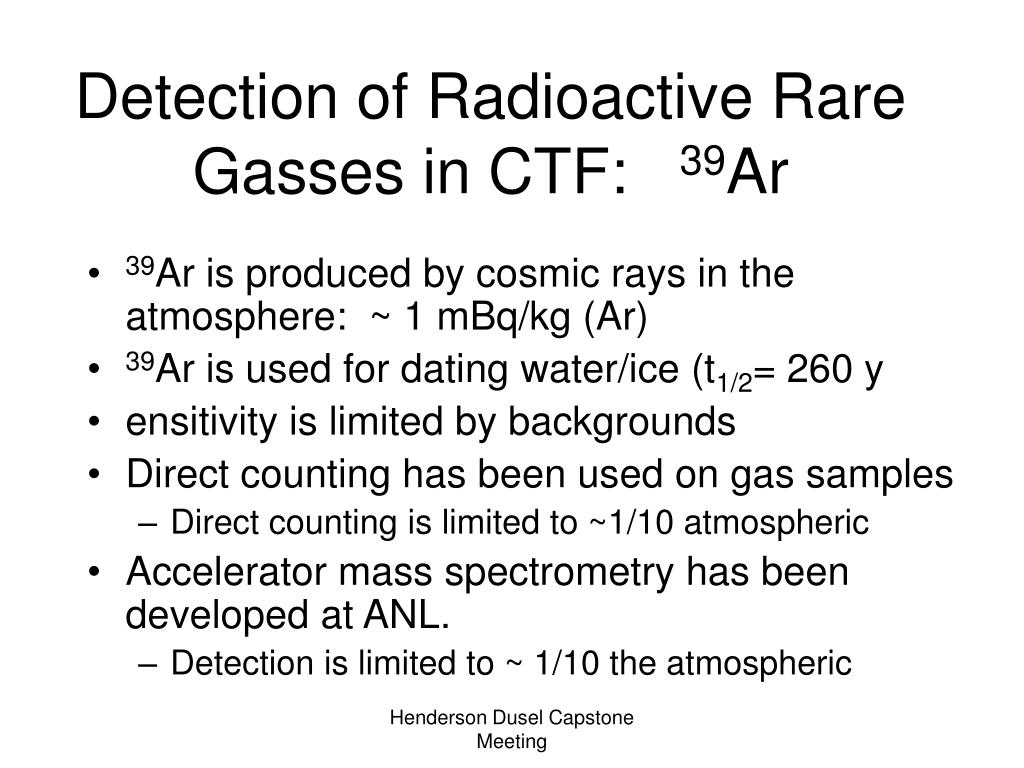

  12. Detection of Radioactive Rare Gasses in CTF: 39Ar • 39Ar is produced by cosmic rays in the atmosphere: ~ 1 mBq/kg (Ar) • 39Ar is used for dating water/ice (t1/2= 260 y • ensitivity is limited by backgrounds • Direct counting has been used on gas samples • Direct counting is limited to ~1/10 atmospheric • Accelerator mass spectrometry has been developed at ANL. • Detection is limited to ~ 1/10 the atmospheric Henderson Dusel Capstone Meeting

  13. Sensitivity of CTF to 39Ar • Rare gasses have high solubility in liquid scintillator: ~ 1% by mass. • I000 kg of liquid scintillator would have 10 kg of argon dissolved in it. • Count rate would be ~ 10 mBq. • CTF background is ~ 10 Bq/ton • Extend dating to 10 half-lives: ~ 2000 yr. Henderson Dusel Capstone Meeting

  14. Argon in oceans and lakes • Ocean and lake water in contact with the atmosphere has ~ 0.5 atm-cc argon dissolved in one liter of water. • Disintegration rate/liter of water: 0.075 c/d • Currently, argon is removed from > 1000 liters of water by stripping. Typical count rater per sample is 75 c/d. • In small scintillator sample with < 1c/d background an improvement of current methods by x10 should be “easy”. Henderson Dusel Capstone Meeting

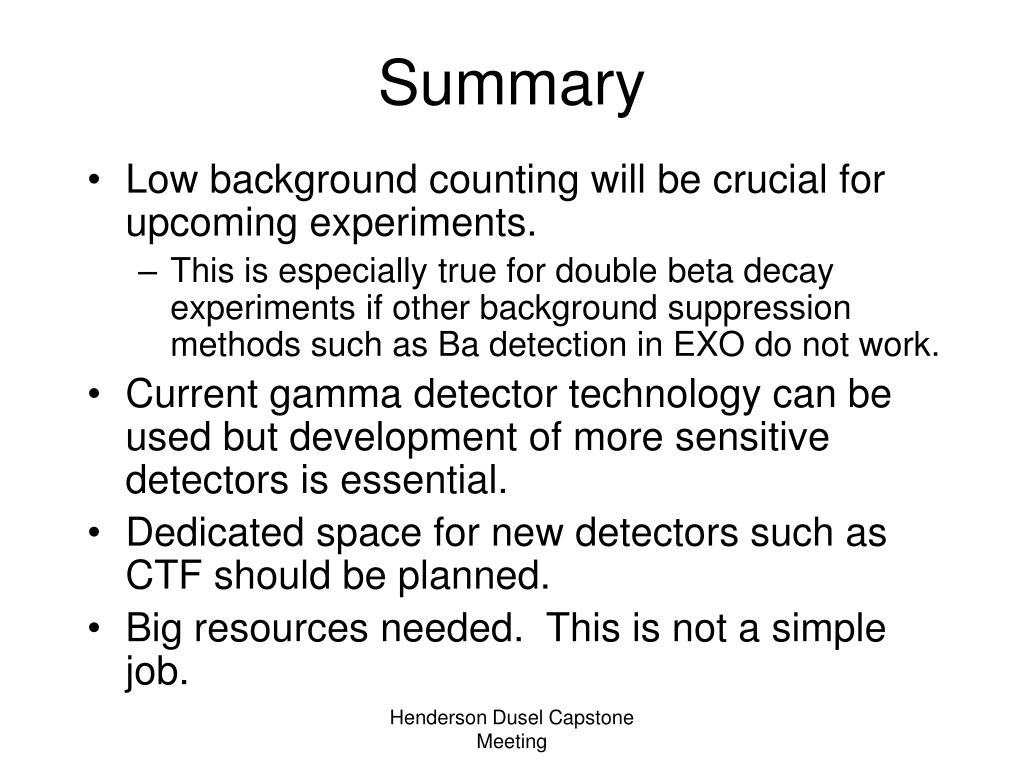

  15. Summary • Low background counting will be crucial for upcoming experiments. • This is especially true for double beta decay experiments if other background suppression methods such as Ba detection in EXO do not work. • Current gamma detector technology can be used but development of more sensitive detectors is essential. • Dedicated space for new detectors such as CTF should be planned. • Big resources needed. This is not a simple job. Henderson Dusel Capstone Meeting
