Presentation Transcript
slide1

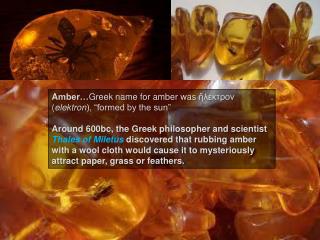

Amber…Greek name for amber was ἤλεκτρον (elektron), “formed by the sun”

Around 600bc, the Greek philosopher and scientist Thales of Miletus discovered that rubbing amber with a wool cloth would cause it to mysteriously attract paper, grass or feathers.

slide2

Electricity!

We learned shocking power (and something about forces of nature) from lightning…and fish!

slide3

Electric catfish (Malapteruruselectricus) 350V

Electricity!

Electric “eel” (Electrophorus electricus) 600V

We learned shocking power (and something about forces of nature) from lightning…and fish!

Electric rays (~60 species) 40-50V

slide4

Elektron, the Greek word for amber…

William Gilbert (1600) is the first to recognize the difference between the magnetic attraction of magnetite, and the static charge attraction built up on the surface of amber after it is rubbed…

Ben Franklin

“electricus”

1752, lightning =static charge

1755, charge exists on the exterior of a charged object…the interior is unaffected (the cage effect)

slide5

George Johnstone Stoney

G. JohnstoneStoney in Aug. 1874, and again in Feb. 1881.

"And, finally, Nature presents us, in the phenomenon of electrolysis, with a single definite quantity of electricity which is independent of the particular bodies acted on. To make this clear I shall express `Faraday's Law' in the following terms, which, as I shall show, will give it precision, viz.:-- For each chemical bond which is ruptured within an electrolyte a certain quantity of electricity traverses the electrolyte which is the same in all cases. This definite quantity of electricity I shall call Er. If we make this our unit quantity of electricity, we shall probably have made a very important step in our study of molecular phenomena."

1891

“In this paper an estimate was made of the actual amount of this most remarkable fundamental unit of electricity, for which I have since ventured to suggest the name electron. According to this determination the electron = a twentiethot (that is 10¯20) of the quantity of electricity which was at that time called the ampere…”

development of quantum theory
Development of quantum theory

John Dalton (1766-1844)

-1808Every element consists of indivisible particles called atoms

James Clerk Maxwell (1831-1879)

-1865Maxwell’s field equations –

The birth of field theory (from Faraday)

The electromagnetic theory of light-

Light propagates as waves

Johann Balmer (1825-1898)

-1885Discovers numerological relationship between frequency and prominent spectral lines of hydrogen:

Michael Faraday (1831), the electromagnetic field

n = integer

ν = frequency

c = speed of light

R = Rydberg constant

slide8

Wilhelm Conrad Roentgen (1845-1923)

-1895Demonstrates X-rays in experiments with passing electric current through low- pressure gas

First Nobel Prize in Physics!

J.J. Thompson (1856-1940)

-1897 Identifies “cathode rays” as negative particles = electrons

slide9

“The more important fundamental laws and facts of physical science have all been discovered, and these are now so firmly established that the possibility of their ever being supplanted in consequence of new discoveries is exceedingly remote . . . Our future discoveries must be looked for in the sixth place of decimals.”

Albert A. Michelson, 1894

“There is nothing new to be discovered in physics now.  All that remains is more and more precise measurement.”

William Thomson (Lord Kelvin), 1900

slide10

John William Strutt, 3rd Baron Rayleigh – Rayleigh scattering, Rayleigh waves, the theory of sound (his son was Robert John Strutt, 4th Baron Rayleigh – electrons

and gases, radiation)

Lord Rayliegh (1842-1919) and

James Jeans (1877-1946)

-1900 Calculation of black body radiation

“Ultraviolet catastrophe”

slide11

Max Plank (1858-1947)

-1901 Introduces the quantum concept -

Absorption and emission of radiant

energy in discrete packets

“An indispensable hypothesis, even though still far from being a guarantee of success, is however the pursuit of a specific aim, whose lighted beacon, even by initial failures, is not betrayed.

For many years, such an aim for me was to find the solution to the problem of the distribution of energy in the normal spectrum of radiating heat.”

– Nobel Lecture of Max Plank (1920)

E = hν

h = 6.6262 x 10-34 kg m2 / sec

slide12

Albert Einstein (1879-1955)

-1905 Photoelectric effect and the photon concept…

Special relativity too!

Ernest Rutherford (1871-1937)

-1911 An atom consists of a positively charged nucleus and negatively charged electrons orbiting the nucleus at constant speed

Niels Bohr (1885-1962)

-1913 Quantum model of hydrogen

(early quantum theory)

Predicts the Rydberg constant and the line spectra for gaseous hydrogen

slide13

Bohr’s Three Postulates:

1) There are certain orbits in which the electron is stable and does not radiate

The energy of an electron in an orbit can be calculated - that energy is directly proportional to the distance from the nucleus

Bohr simply forbids electrons from occupying just any orbit around the nucleus such that they can’t lose energy and spiral in…

2) When an electron falls from an outer orbit to an inner orbit, it loses energy

…expressed as a quantum of electromagnetic radiation

3) A relationship exists between the mass, velocity and distance from the nucleus of an electron and Planck’s quantum constant…

slide14

From these principles, Bohr realized he could calculate the energy corresponding to an orbit:

m = mass of electron

e = charge of electron

ħ = h / 2π

slide15

If an electron jumps from orbit n=2 to orbit n, the energy loss is:

energy is radiated, and expressing Plank’s relationship in terms of angular frequency (ω), rather than frequency (ν):

Bohr theoretically has expressed Balmer’s formula and could calculate the Rydberg constant knowing m, e, c, and ħ

slide16

Modern quantum theory:

Louis de Broglie (1892-1987)

-1924 wave theory of matter

ultimately led to the development of

wave mechanics

Wolfgang Pauli (1900-1958)

-1925 the exclusion principle

No two electrons can be in the same place at the same time

Electrons in an atom can be described by four quantum numbers

No two electrons in an atom can have the same set of quantum numbers

λ particle wavelength

h Planck’s constant

pparticle momentum

m rest mass

ν particle velocity

Predicted the neutrino!

slide17

Werner Heisenberg (1901-1976)

-1925 matrix mechanics

Observables are the sole source of change

-State vector does not change with time

Erwin Schrödinger (1887-1961)

-1926 wave mechanics

states are the sole source of change

slide18

Max Born (1882-1970)

-1926 Waves are probability waves

Paul Dirac (1902-1984)

-1925-28 Quantum field theory

Resolved particle-wave duality

Predicted antimatter

The relativistic quantum mechanical wave function (a relativistic generalization of the Schrodinger equation):

slide20

Bethe equation:

Hans Bethe (1906-2005)

-1930 Evaluates passage of charged particles through matter

From first Born approximation:

Bethe’s ionization equation – the probability of ionization of a given shell (nl)

Describes energy loss of charged particle with distance …

slide21

Development of concepts - SEM

Ernst Abbe (1840-1905)

-1878Geometric optics and the

resolving power of a microscope

What is resolution?

All lens images are diffraction patterns (circular slit diffraction)

An image point will be a disk, surrounded by diffraction rings representing diffraction maxima and minima

Airy Disk

Rayleigh Criterion: Central maximum produced by one object point must exceed the first diffraction minimum of the other object point…

fully resolved just resolved unresolved

slide22

At small angles…

A

O’

d

i

I

O

θ

I’

Extreme rays from O’ to I differ by 1.22λ, so …

B

To A

O’

s

Total path difference is then…

i

To B

and

The Abbe equation

O

Here, n is the refractive index

slide23

1) Visible light λ = 560 nm, for aperture angle of 0.9, and n = 1…

2) Electrons (remember de Broglie and the wave theory of matter) λ = 0.0054 nm…

  • True resolution depends on
  • Beam brightness
  • Lens aberrations
  • Scattering in specimen
slide24

Mass of an electron = 9.1091 X 10-31 kgSpeed of light = 299,790,000 meters/secondEnergy of an electron = 1.602 X 10-19 Newton meters/secondPlanck's Constant = 6.6256 X 10-34

Accelerating voltage physics calculator, University of Oklahoma electron microscopy laboratory

slide25

Louis de Broglie and the wave theory of matter allow the introduction of the basic concept of electron microscopy, but before that…

-1913Henry Moseley (1887-1915)

Following Bohr’s work, he demonstrates that the wavelengths of emitted X-rays correlates with atomic number

Moseley’s Law:

f= frequency, Z = atomic #

k1 and k2 are constants

-1914Max von Laue (1879-1960)shows that a beam of X-rays passing through a crystal produces a diffraction pattern.

slide26

-1914Karl Siegbahn (1886-1978) Discovered M-series of wavelengths in X-ray emission spectra, and developed methodology and instrumentation for detailed X-ray spectroscopy.

-1915WilliamBragg (1864-1942) and his son, W. Lawrence Bragg (1890-1971) pioneer the analysis of crystal structure using X-ray diffraction.

d

slide27

SEM and EPMA development

1926 – Hans Busch establishes geometrical electron optics theoretically

1927 – Hugo Stintzing develops the cathode-ray scanning microphotometer, and essentially develops the concept of the scanning electron microscope

1928 – Ernst Ruska experimentally demonstrates electromagnetic focusing.

1931 – Max Knoll and Ernst Ruska build the first transmission electron microscope (Berlin) (receives Nobel Prize…1986)

“conventional” TEM, not scanning

slide28

1931 – Johann and Cauchois develop sem-focusing spectrometers by bending multilayer structures.

1932 – Johansson develops the focusing spectrometer by bending a crystal to twice the radius if the focusing circle, then grinding to achieve full focus.

1938 - Manfred von Ardenne

Credited with developing the first scanning electron microscope

The first commercial electron microscope is introduced by Siemens

1942 – Vladimir Zworykin, James Hillier, and R.L.Snyder develop the first thick specimen SEM at RCA labs

Vladimir Zworykin

TV!

slide29

1943 – James Hillier develops the concept for electron probe microanalysis – the use of a focused electrons impinging on a specimen and their utility in chemical characterization.

1949-1951 Raimond Castaing develops the concept for electron-probe, X-ray microanalysis (using characteristic X-rays for chemical analysis), and builds the first electron microprobe in Paris

This becomes the basis for the first commercial instrument, introduced by Cameca in 1956

slide30

1965 – First commercial SEM is offered by Cambridge Instruments

(The first commercial TEM had been introduced by Philips Electron Optics in 1949)

Many commercial SEMs today:

JEOL (Japan Electron Optics Lab)

Hitachi

Carl Zeiss

Cambridge Instruments + Wild Leitz = Leica (1990)

Carl Zeiss + Leica = LEO (1995)

LEO integrated into Carl Zeiss (2004)

Carl Zeiss acquires ALIS (2006)

FEI

FEI and Philips Electron Optics merge 1997

FEI acquires Micrion 1999

Tescan

Camscan

Topcon / ISI

ALIS

slide31

1960s brought expansion of electron microprobe technology and commercial availability:

Cameca

JEOL

Cambridge Instruments

Advanced Metals Research

Applied Research Laboratories

Elion Instruments

Materials Analysis Company

Hitachi

Only Cameca and JEOL offer dedicated electron microprobes today

slide32

SEM technology today:

Ultra-high resolution

(now to 0.4-0.5nm, Hitachi S-5500)

Cold field emission

Schottky emission

Variable pressure

slide33

SEM technology today:

Extreme high resolution

Sub nm image resolution for full voltage range

Analytical current capability

(FEI Magellan)

Energy filtered Schottky emission

slide34

STEM / SEM

Ti barrier

Sidewall spacer

Poly Si

W contact

Al line
