  1. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at do if pi go be we me of at be do go hi if me no of pi we

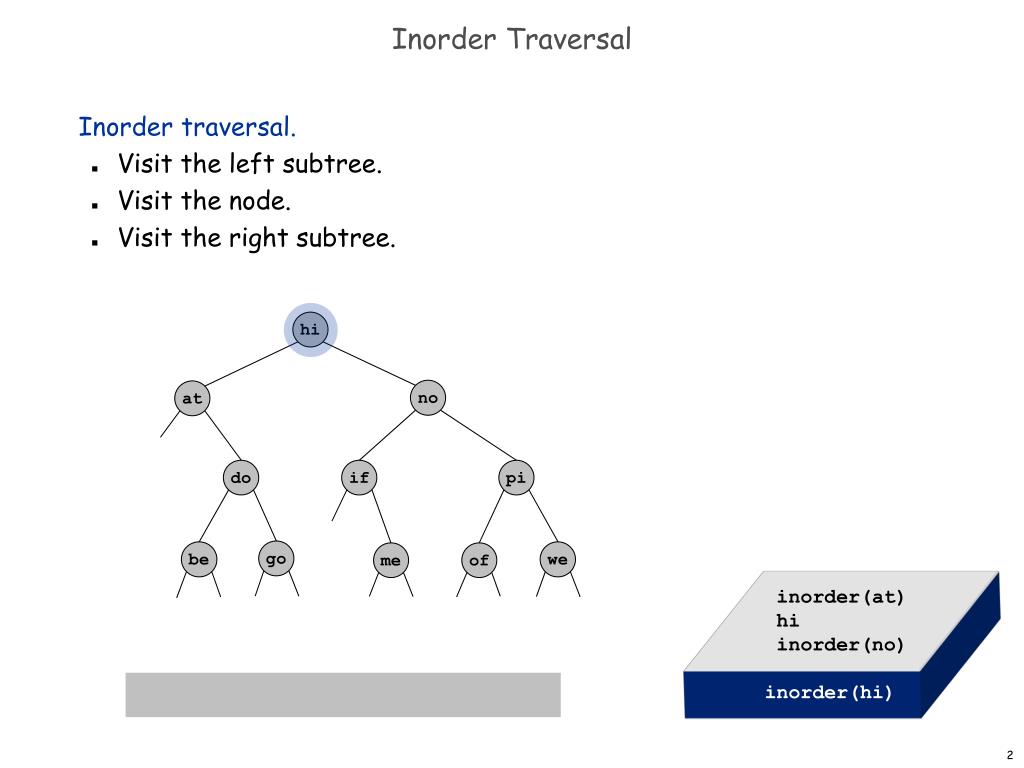

  2. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

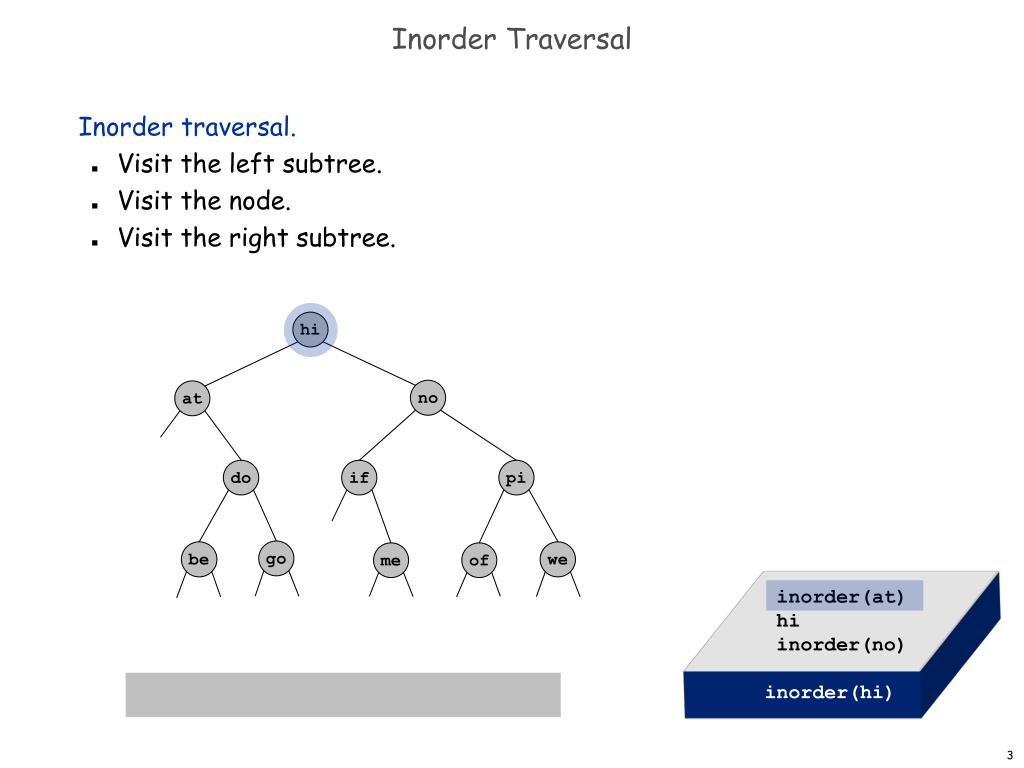

  3. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  4. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  5. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  6. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  7. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  8. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  9. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  10. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)be inorder(null) inorder(be) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

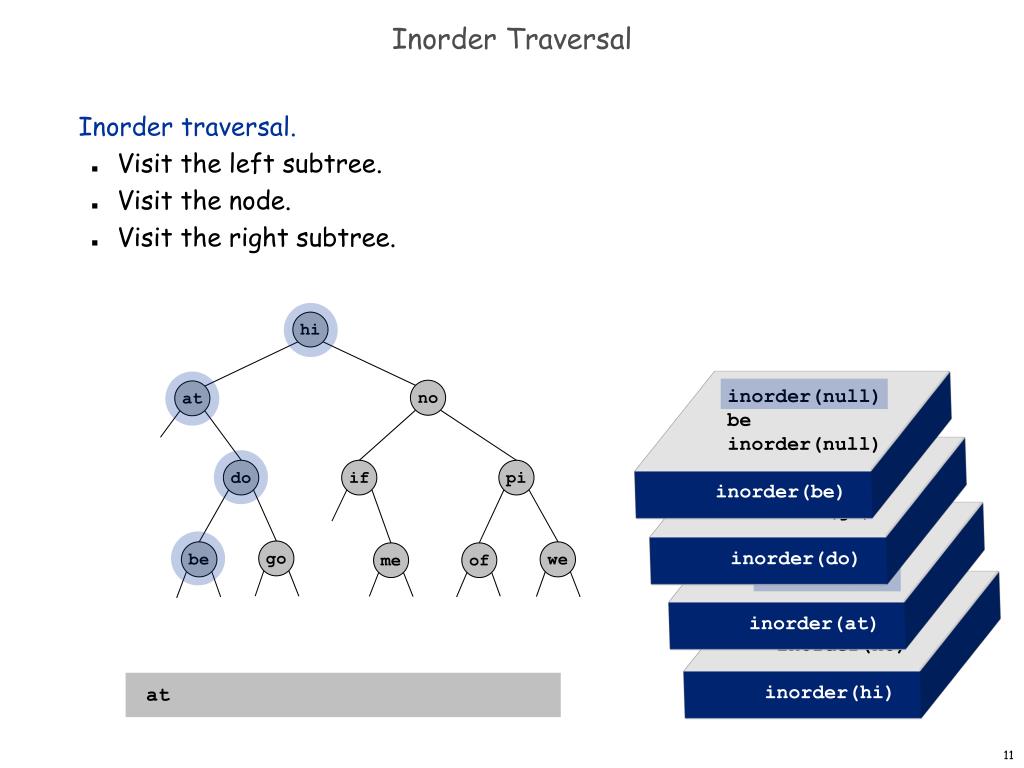

  11. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)be inorder(null) inorder(be) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  12. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)be inorder(null) inorder(be) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  13. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)be inorder(null) inorder(be) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  14. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

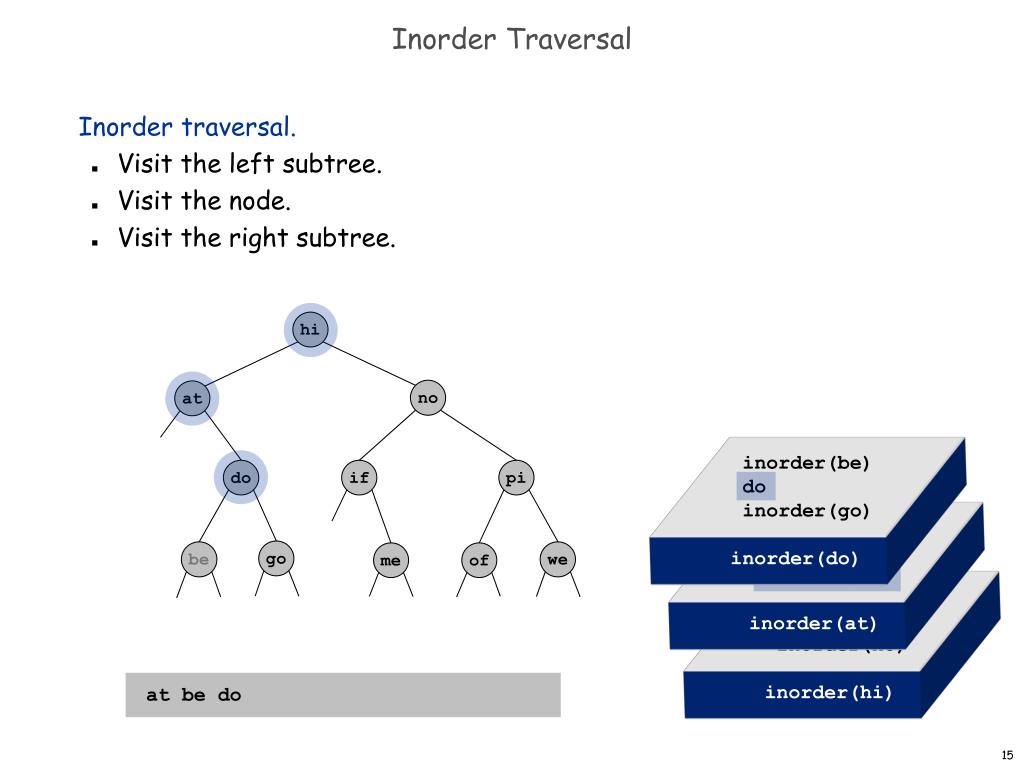

  15. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  16. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

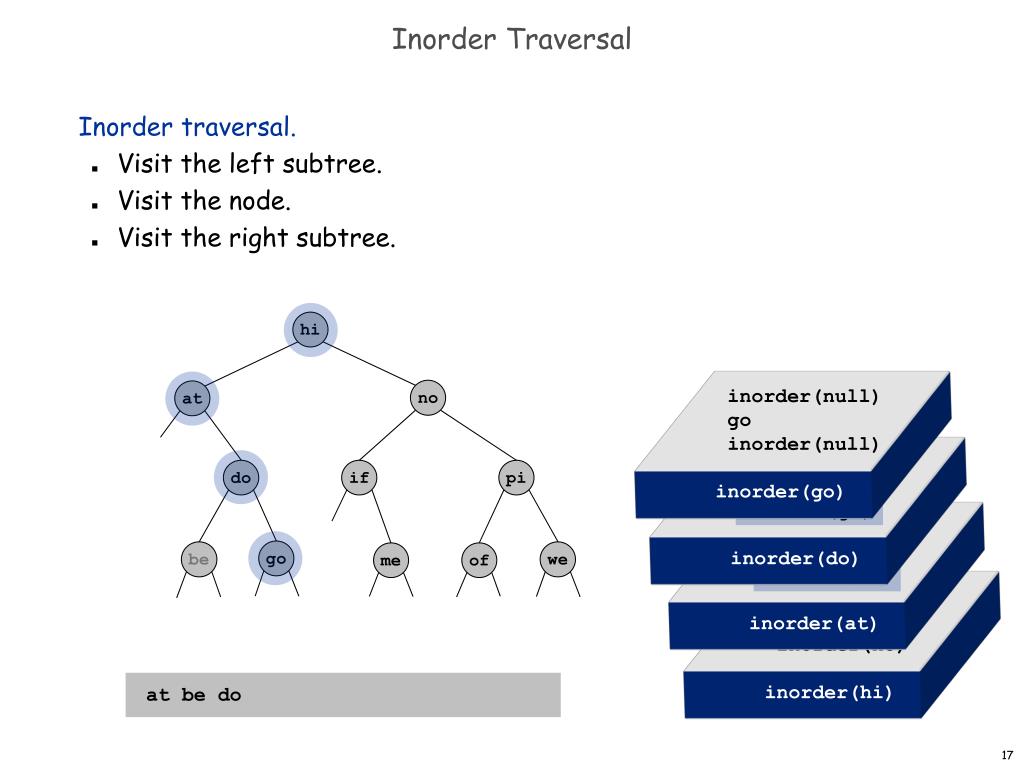

  17. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)go inorder(null) inorder(go) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  18. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)go inorder(null) inorder(go) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  19. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)go inorder(null) inorder(go) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  20. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)go inorder(null) inorder(go) hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  21. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(be)do inorder(go) inorder(do) no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  22. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(null)at inorder(do) inorder(at) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  23. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  24. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

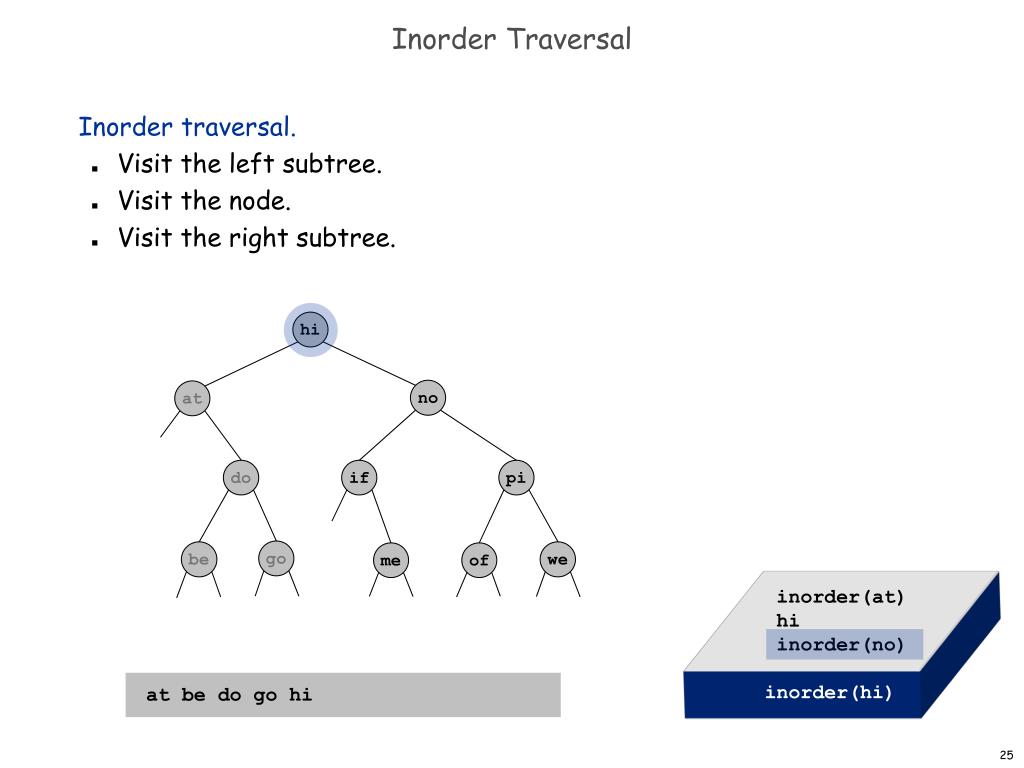

  25. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

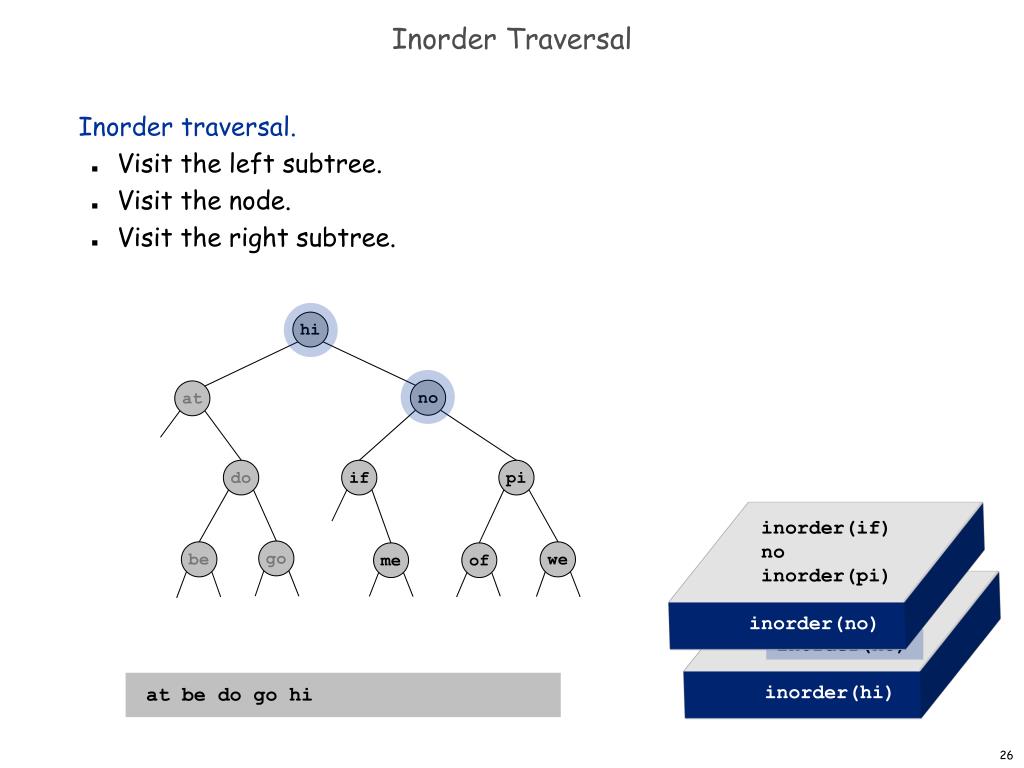

  26. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  27. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  28. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  29. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  30. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  31. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  32. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)me inorder(null) inorder(me) hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  33. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)me inorder(null) inorder(me) hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  34. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)me inorder(null) inorder(me) hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  35. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)me inorder(null) inorder(me) hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  36. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(null)if inorder(me) inorder(if) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  37. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

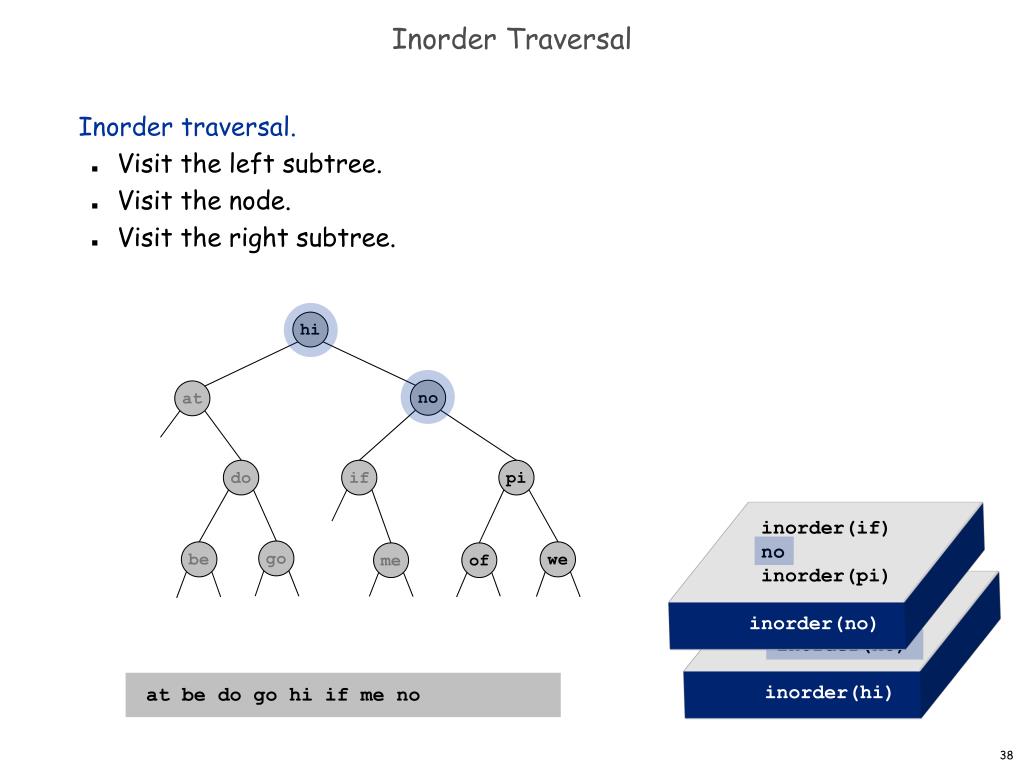

  38. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

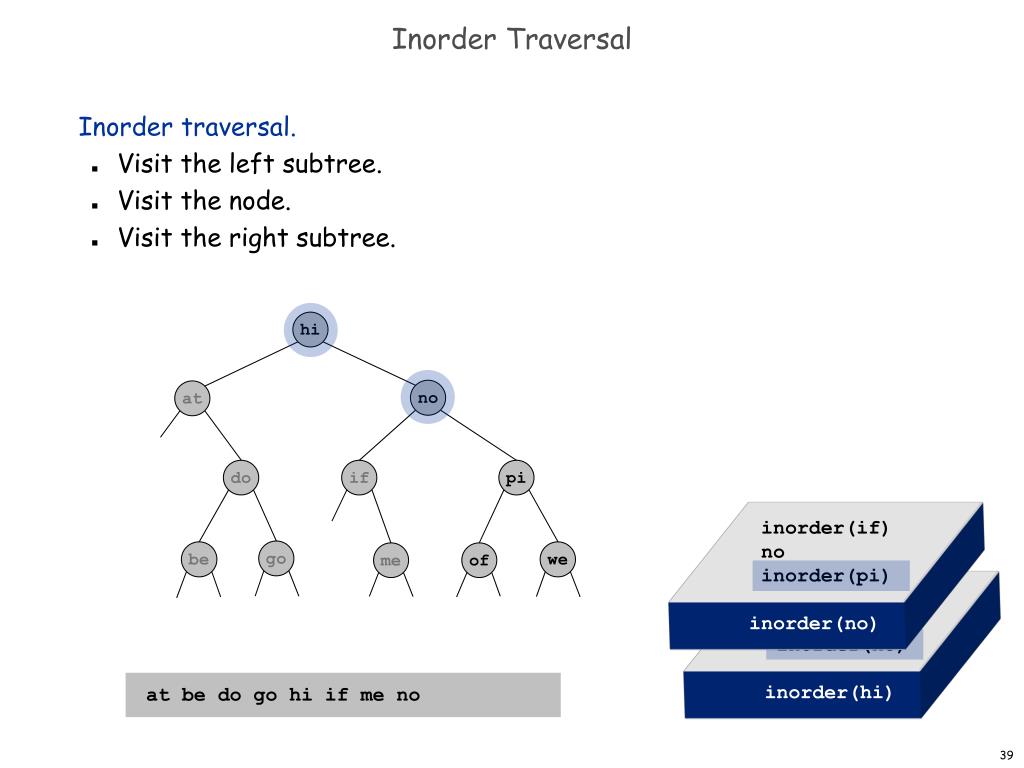

  39. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  40. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  41. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  42. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)of inorder(null) inorder(of) hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  43. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)of inorder(null) inorder(of) hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  44. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)of inorder(null) inorder(of) hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

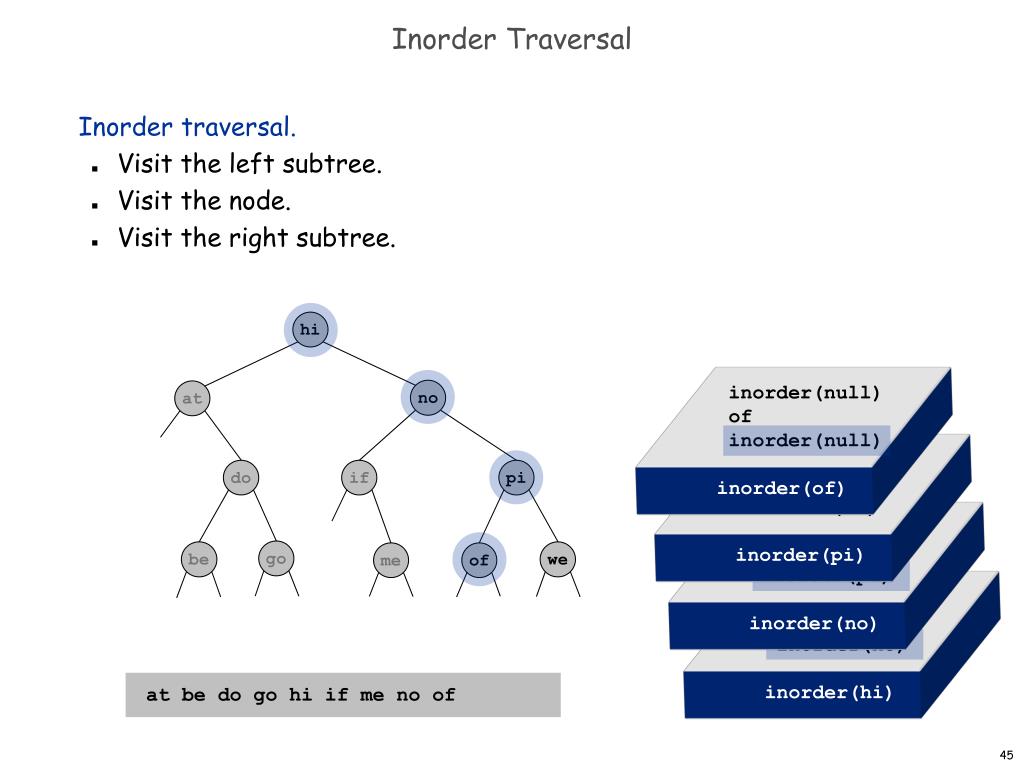

  45. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)of inorder(null) inorder(of) hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  46. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

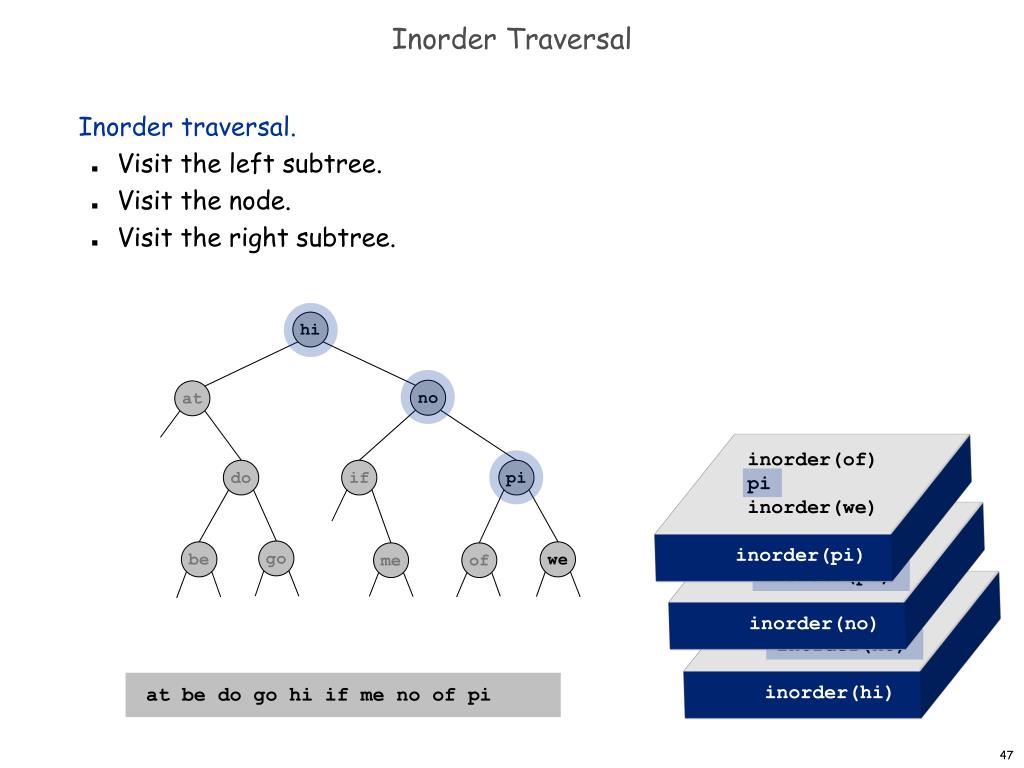

  47. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

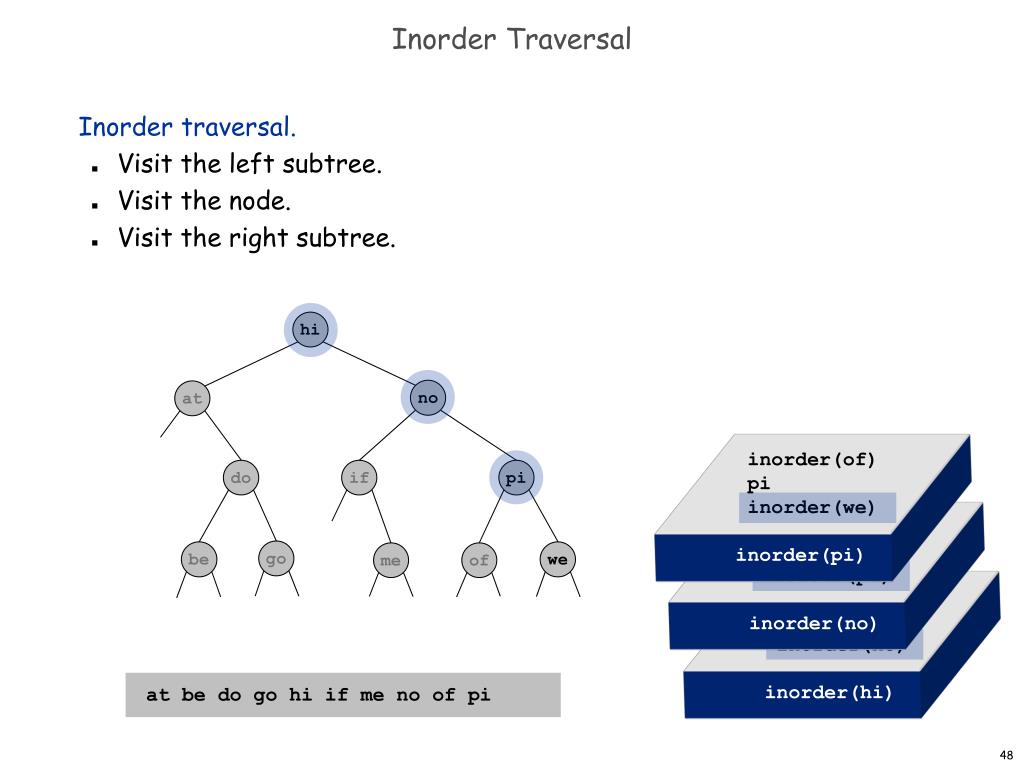

  48. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  49. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)we inorder(null) inorder(we) hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we

  50. Inorder Traversal • Inorder traversal. • Visit the left subtree. • Visit the node. • Visit the right subtree. inorder(null)we inorder(null) inorder(we) hi inorder(of)pi inorder(we) inorder(pi) no at inorder(if)no inorder(pi) inorder(no) do if pi inorder(at)hi inorder(no) inorder(hi) go be we me of at be do go hi if me no of pi we
