qualnet

QualNet

Installation, advance wireless module and evaluation

outline

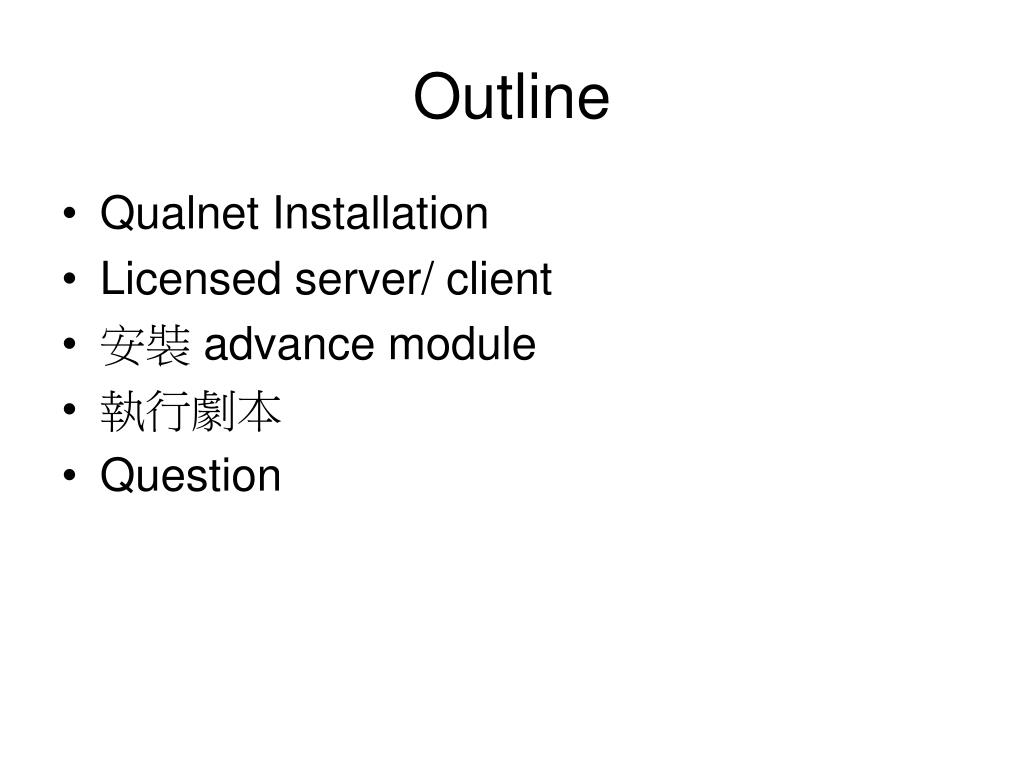

Outline
  • Qualnet Installation
  • Licensed server/ client
  • 安裝 advance module
  • 執行劇本
  • Question
installation
installation
  • 作業平台和硬體需求
  • License server 安裝
  • QualNet User安裝
  • 安裝單機版
  • Advance wireless tool- wimax module
slide4
作業平台和硬體需求
  • 作業系統
    • Linux, XP, vista, sun apple (建議XP 方便性與錯誤率較少)
  • 系統環境
    • Java SDK 1.4.2以上版本
  • Complier
    • XP
      • Microsoft Visual C++ 2002 或之後版本
    • Linux
      • 搭配作業系統下的GCC complier
license server
安裝license server
  • License server 安裝
    • 執行qlm-windowsnt.exe
    • 將資料解壓縮到C:\qlm
    • 執行C:\qlm\windows\lmtools.exe
    • 將server license file (qualnetuniv-XXX.lic)複製到C:\qlm。
      • 單機版的話用自己電腦IP即可
      • 網卡卡號要改 001D7DAD0463
      • 將系統時間改到2009/June 改了以後切記不要連上網路 但要接上hub確保網路卡被啟動 (因為license過期 而廠商業務尚未開通 所以避免上網被偵測到有改過系統時間)
license server1
確認license server成功安裝
  • 執行imtools.exe,並選取Start/Stop/Reread
  • 1.點選Start Serer,確認底下資訊欄顯示成功
  • 2.點選ReRead License File,確認授權成功
qualnet client
Qualnet client 安裝
  • 若要在QualNet 中編譯程式,則需要安裝Microsoft Visual C++ 2002 or later,必須設於path 上且設定下列環境變數(視實際環境而定)
    • 設定變數的目的, 主要是為了使用cl.exe與nmake.exe。
    • EX:
      • Path (變數名稱):C:\Program Files\Microsoft Visual Studio .NET 2003\Vc7\bin;C:\Program Files\Microsoft Visual Studio .NET 2003\Common7\IDE (變數值)
      • Include (變數名稱) :C:\Program Files\Microsoft Visual Studio .NET 2003\Vc7\include;C:\Program Files\Microsoft Visual Studio .NET 2003\Vc7\PlatformSDK\Include (變數值)
      • LIB (變數名稱) :C:\Program Files\Microsoft Visual Studio .NET 2003\Vc7\lib;C:\Program Files\Microsoft Visual Studio .NET 2003\Vc7\PlatformSDK\lib (變數值)
client license file

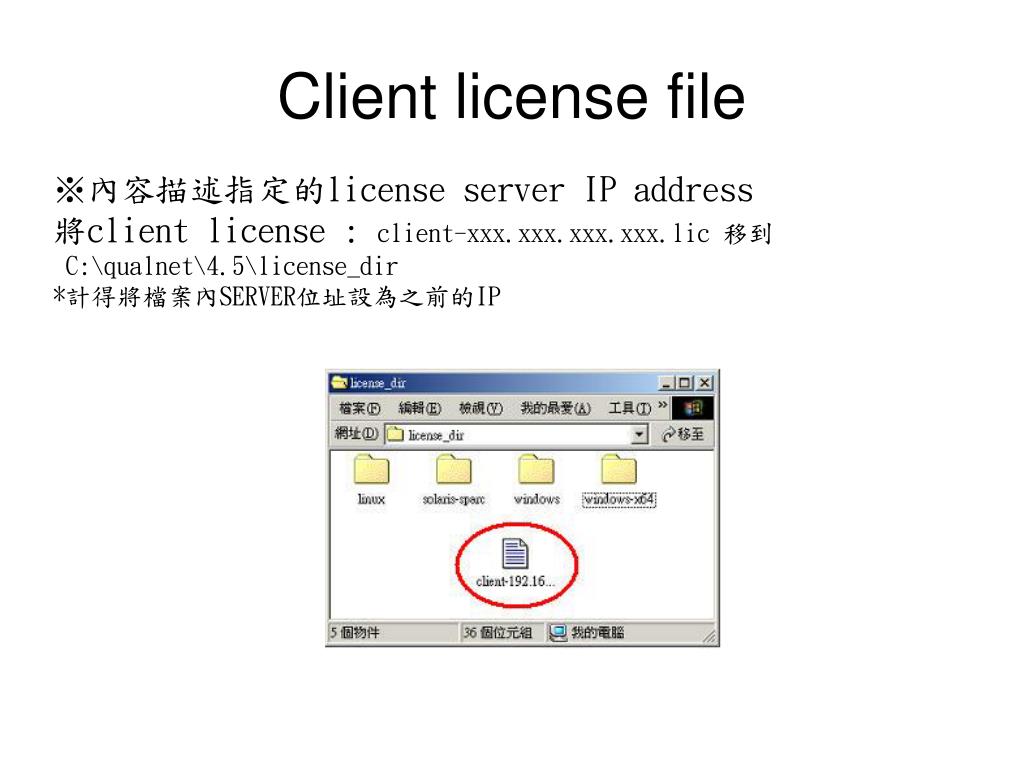

Client license file

※內容描述指定的license server IP address

將client license : client-xxx.xxx.xxx.xxx.lic 移到

C:\qualnet\4.5\license_dir

*計得將檔案內SERVER位址設為之前的IP

advance wireless
安裝advance wireless
  • 先安裝advance wireless模組
    • 直接執行安裝檔案
    • 開啟檔案
      • C:\qualnet\4.5\main\Makefile-addons-windows
    • 修改Makefile-addons-windows檔案
    • 重新Compile Qualnet (參考QualNet-4.5-InstallationGuide的18、19頁)
wimax module
執行WiMAX module
  • 點選advanced_wireless
  • Import multicell-high-mobility
import
Import 成功的畫面
  • 25個host
  • 6個subnet
  • 執行功能列
    • RUN
  • 執行前確保

License server

開啟

slide22

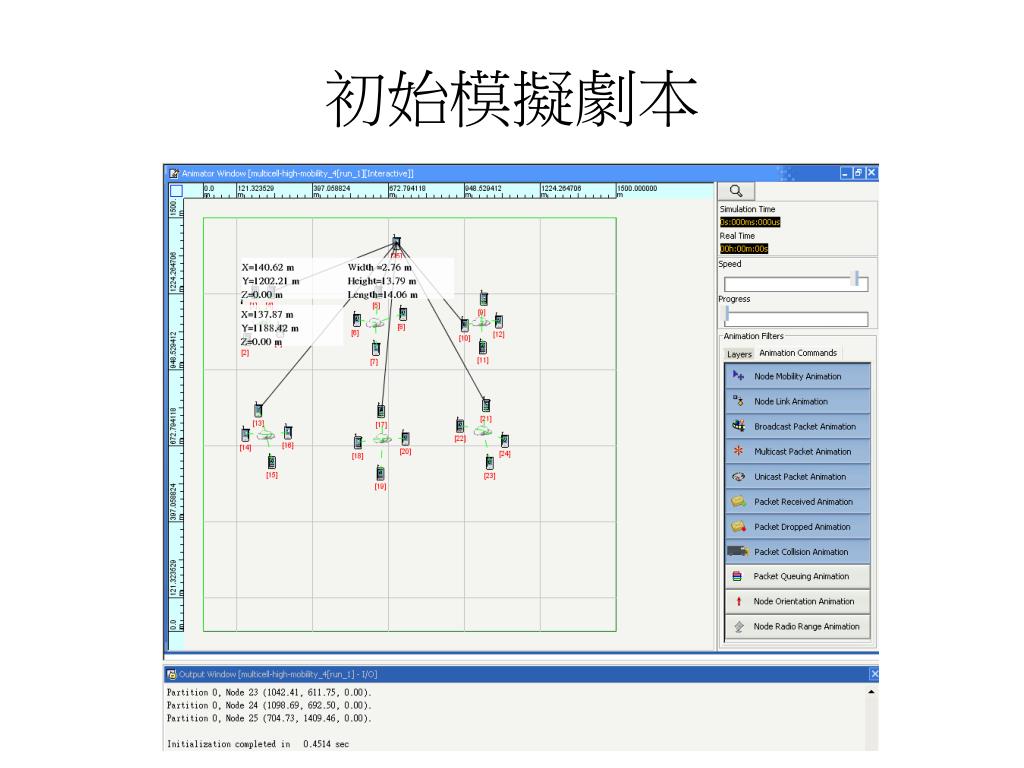

執行模擬(功能列play 按鈕)
  • 執行劇本
  • 右邊功能列可以控制速度
  • 模擬進度至100%(共200sec)
slide23
完成模擬劇本
  • 完成整個模擬之後,可以analysis 劇本
reference
Reference
  • QualNet-4.5-InstallationGuide
    • 2.5 Compiling and Testing
    • 2.6.1 Installing Addons
  • 皮托科技安裝手冊
