Presentation Transcript

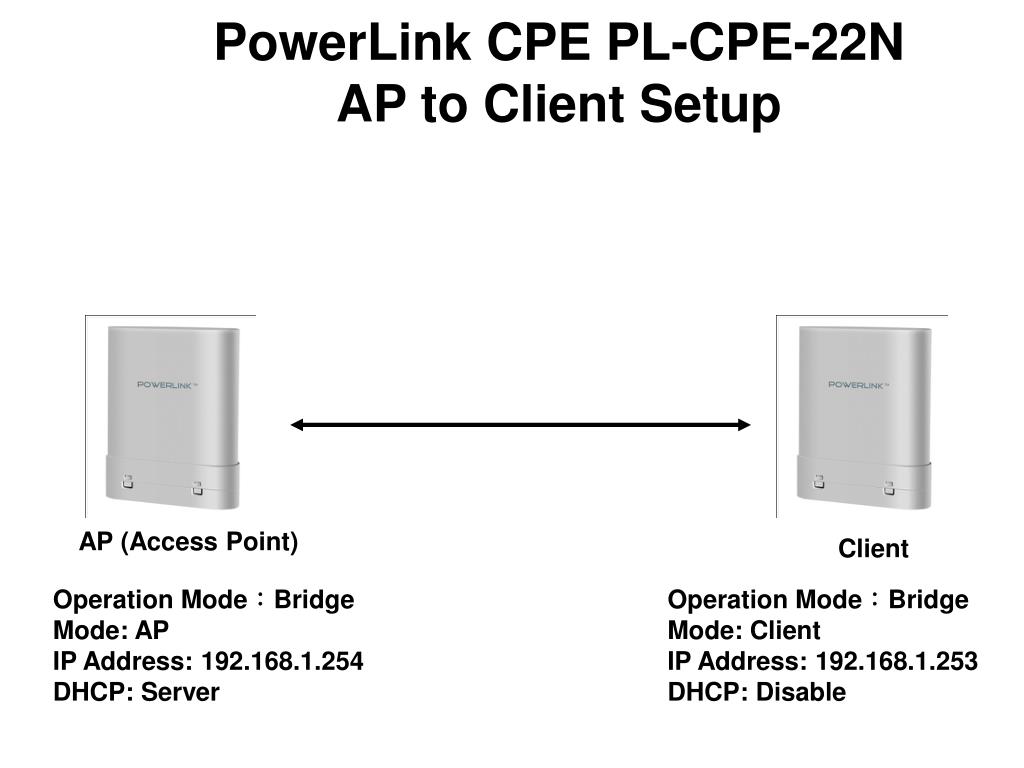

  1. PowerLink CPE PL-CPE-22NAP to Client Setup AP (Access Point) Client Operation Mode：Bridge Mode: AP IP Address: 192.168.1.254 DHCP: Server Operation Mode：Bridge Mode: Client IP Address: 192.168.1.253 DHCP: Disable

  2. AP setup 1. 2. 3.

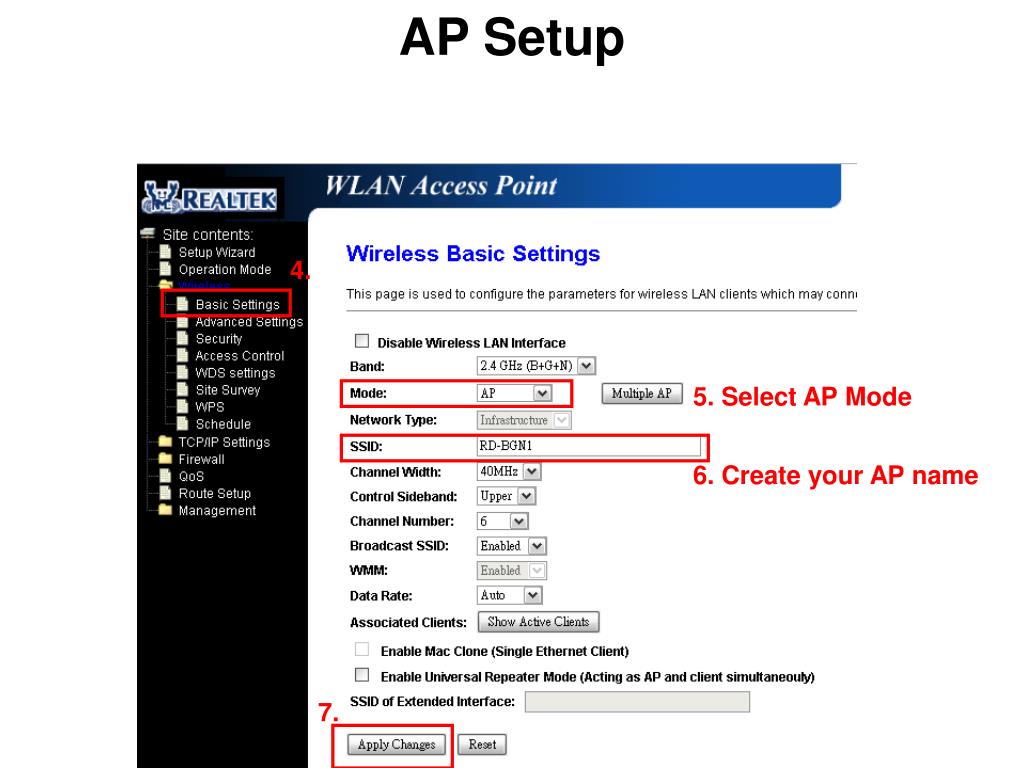

  3. AP Setup 4. 5. Select AP Mode 6. Create your AP name 7.

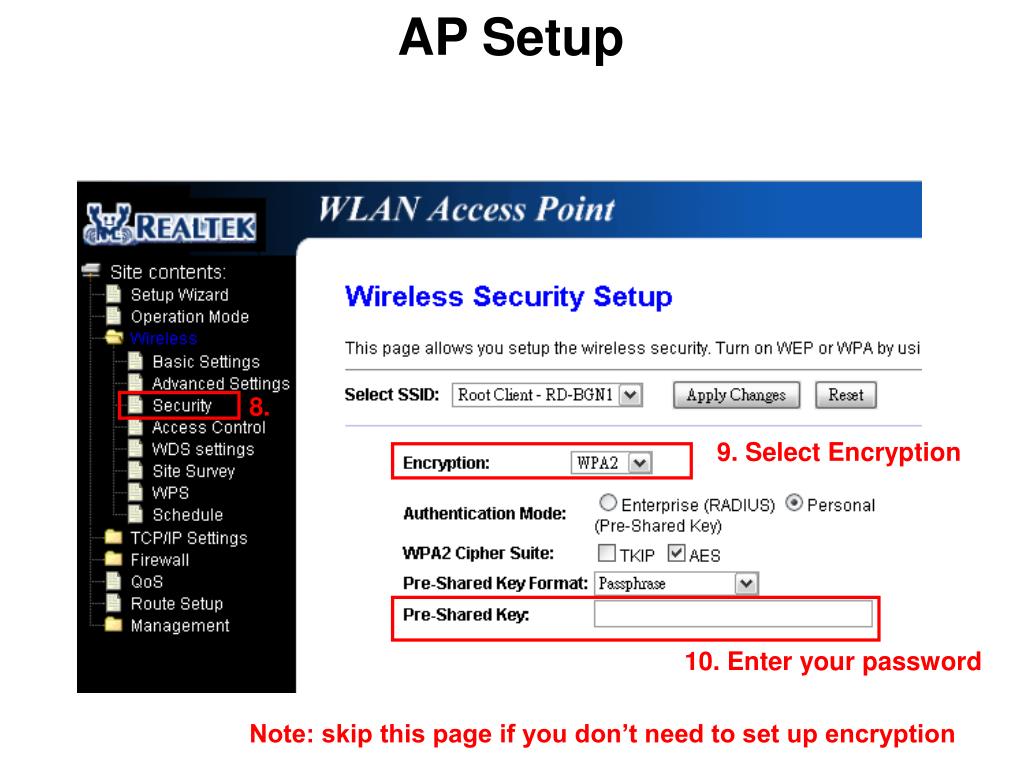

  4. APSetup 8. 9. Select Encryption 10. Enter your password Note: skip this page if you don’t need to set up encryption

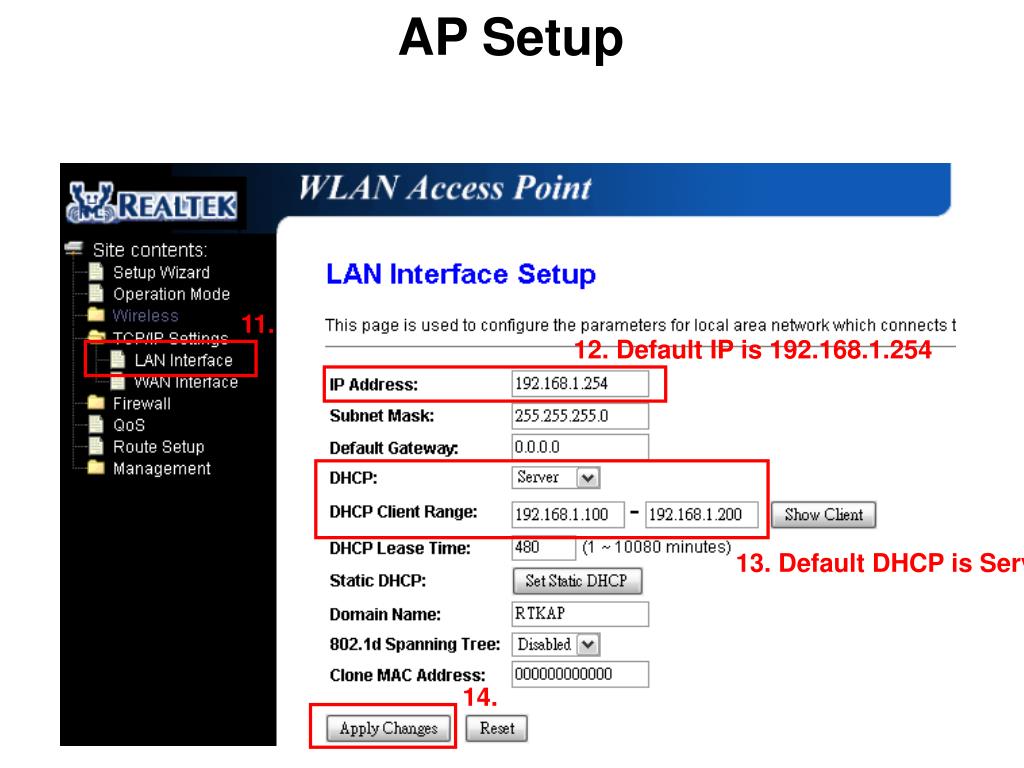

  5. APSetup 11. 12. Default IP is 192.168.1.254 13. Default DHCP is Server 14.

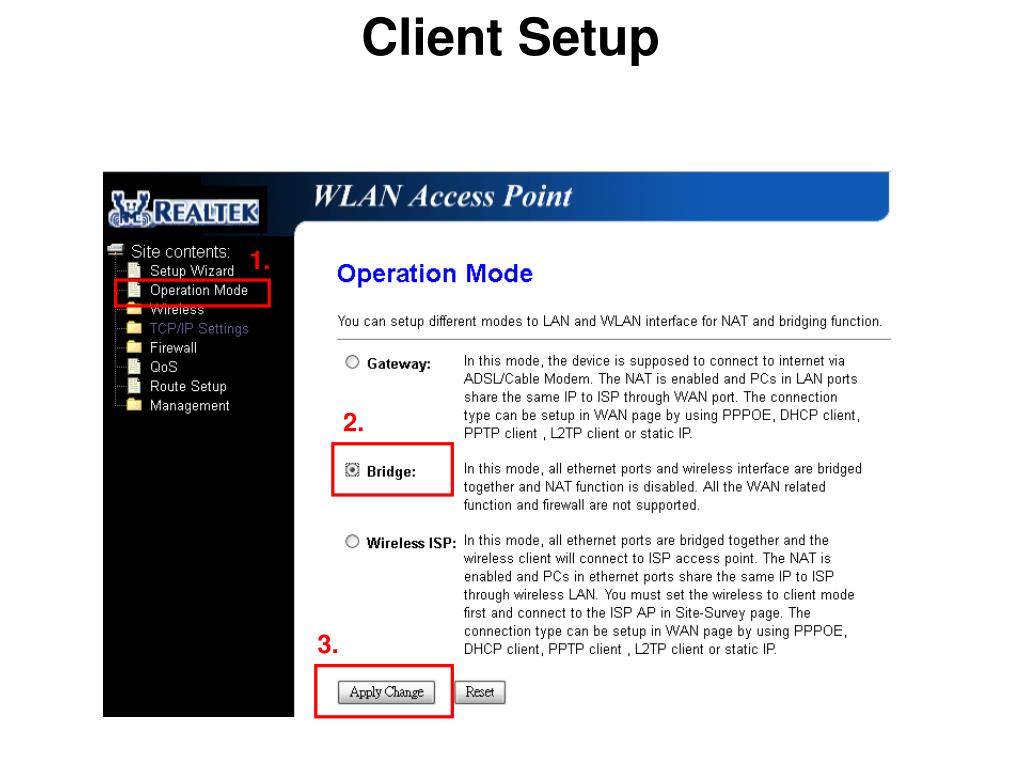

  6. Client Setup 1. 2. 3.

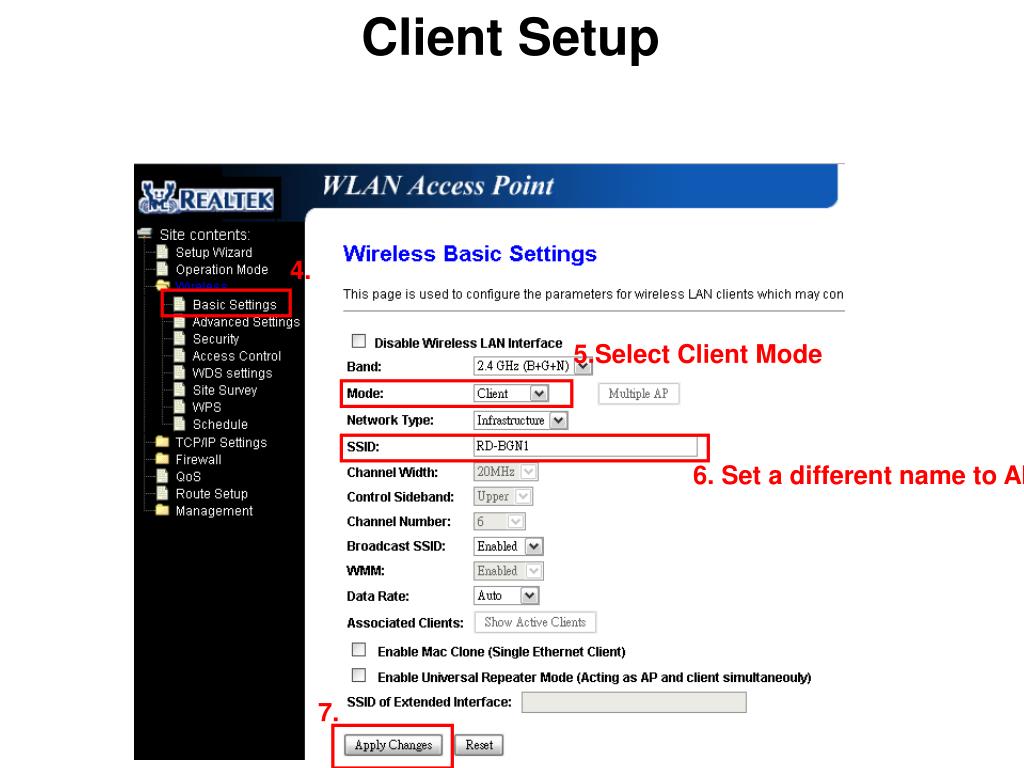

  7. Client Setup 4. 5.Select Client Mode 6. Set a different name to AP 7.

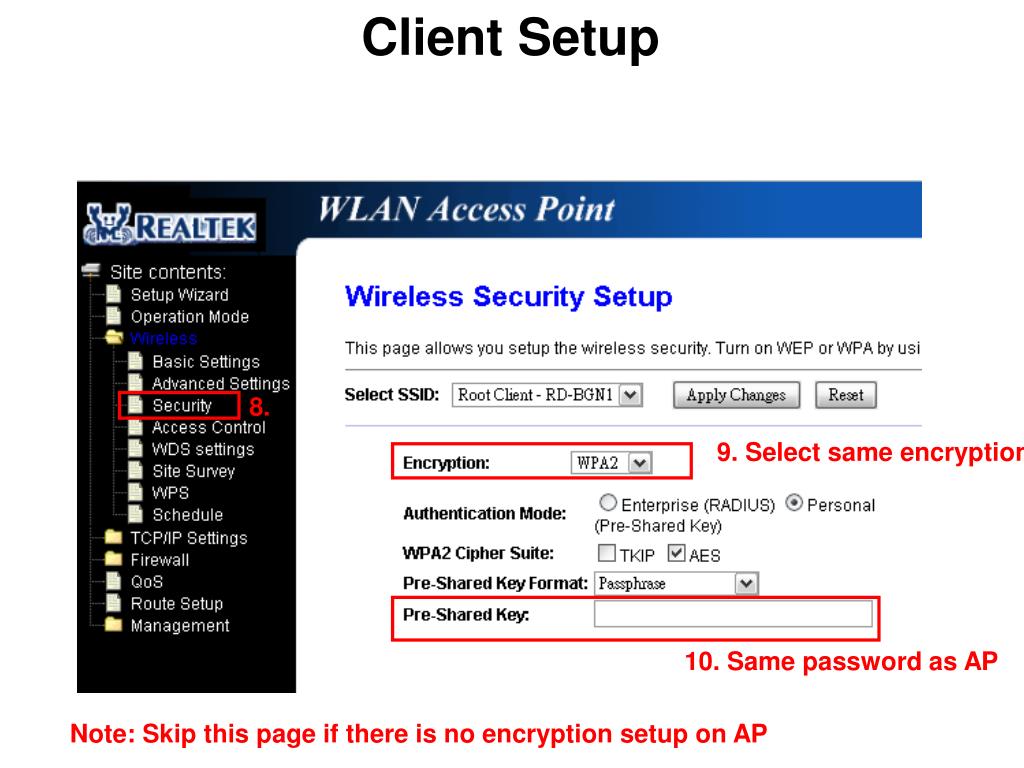

  8. Client Setup 8. 9. Select same encryption as AP 10. Same password as AP Note: Skip this page if there is no encryption setup on AP

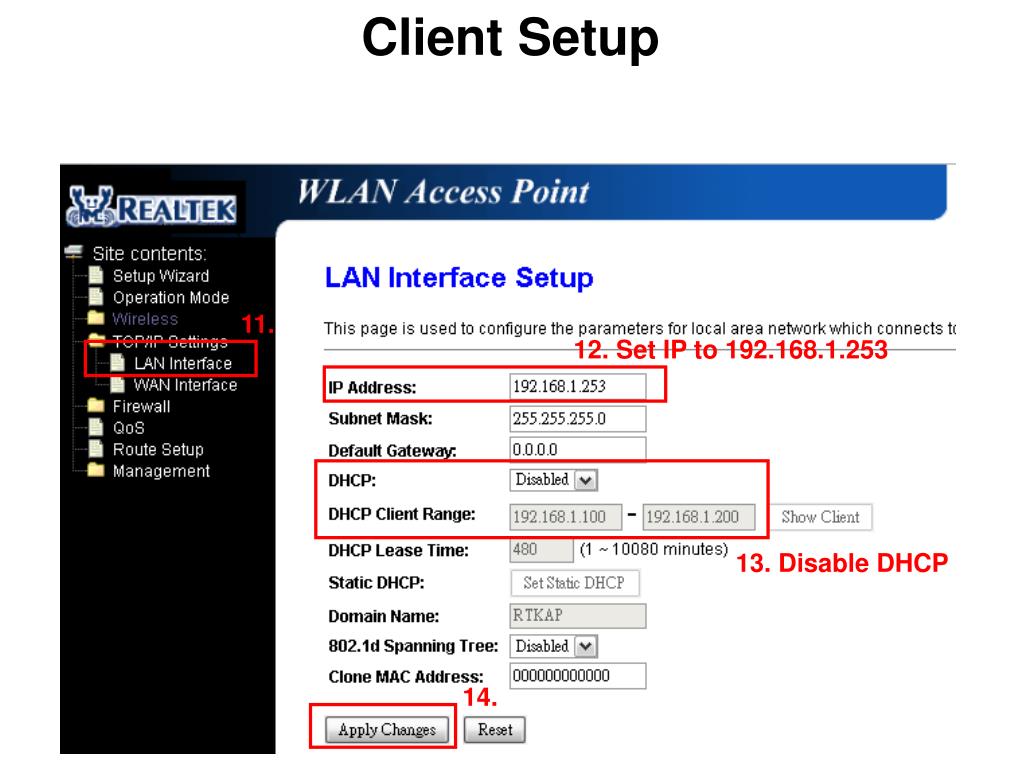

  9. ClientSetup 11. 12. Set IP to 192.168.1.253 13. Disable DHCP 14.

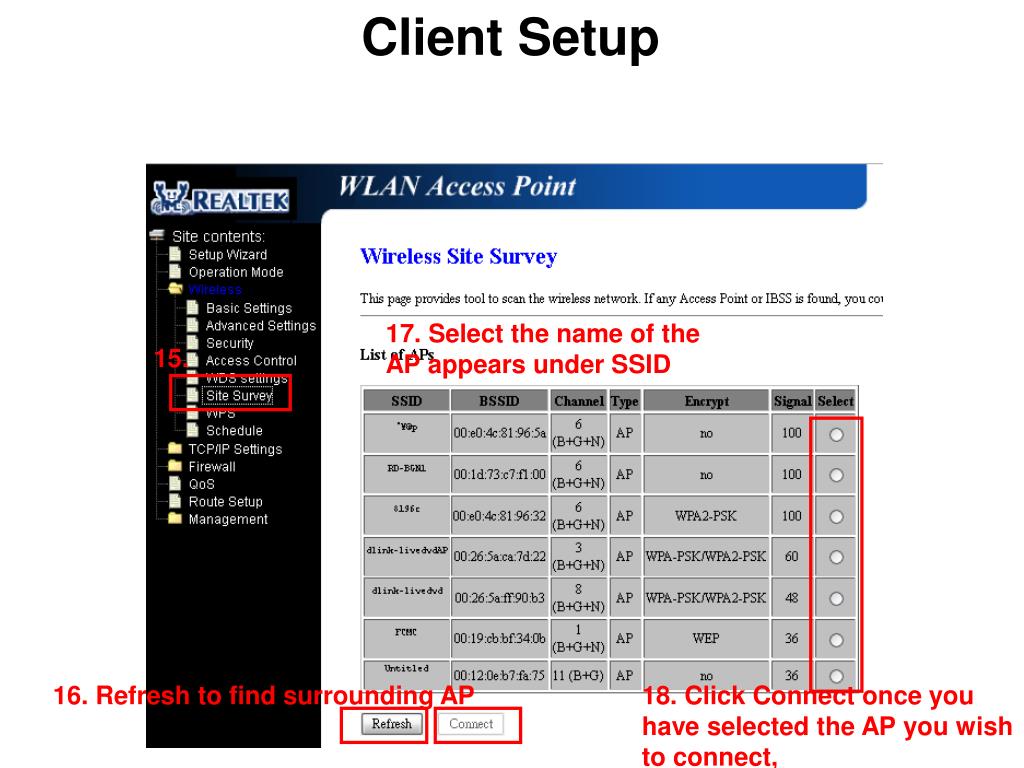

  10. Client Setup 17. Select the name of the AP appears under SSID 15. 16. Refresh to find surrounding AP 18. Click Connect once you have selected the AP you wish to connect,
