  1. PERTEMAUAN 10 – 11 AC Bridges dan APLIKASINYA

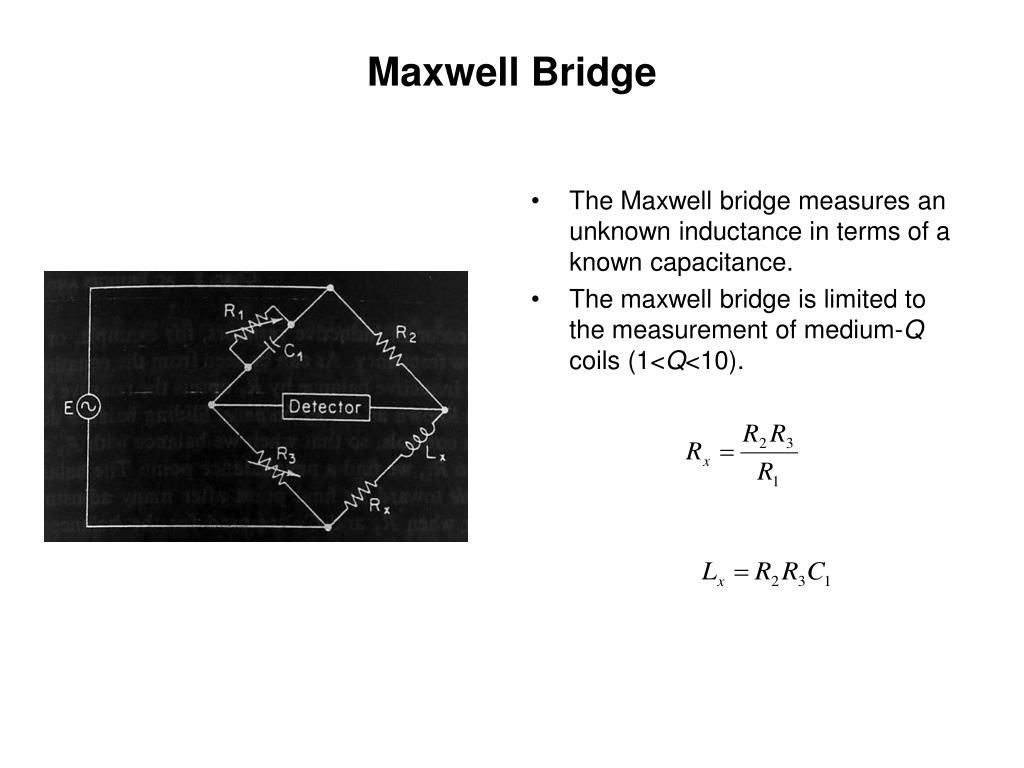

  2. Maxwell Bridge • The Maxwell bridge measures an unknown inductance in terms of a known capacitance. • The maxwell bridge is limited to the measurement of medium-Q coils (1<Q<10).

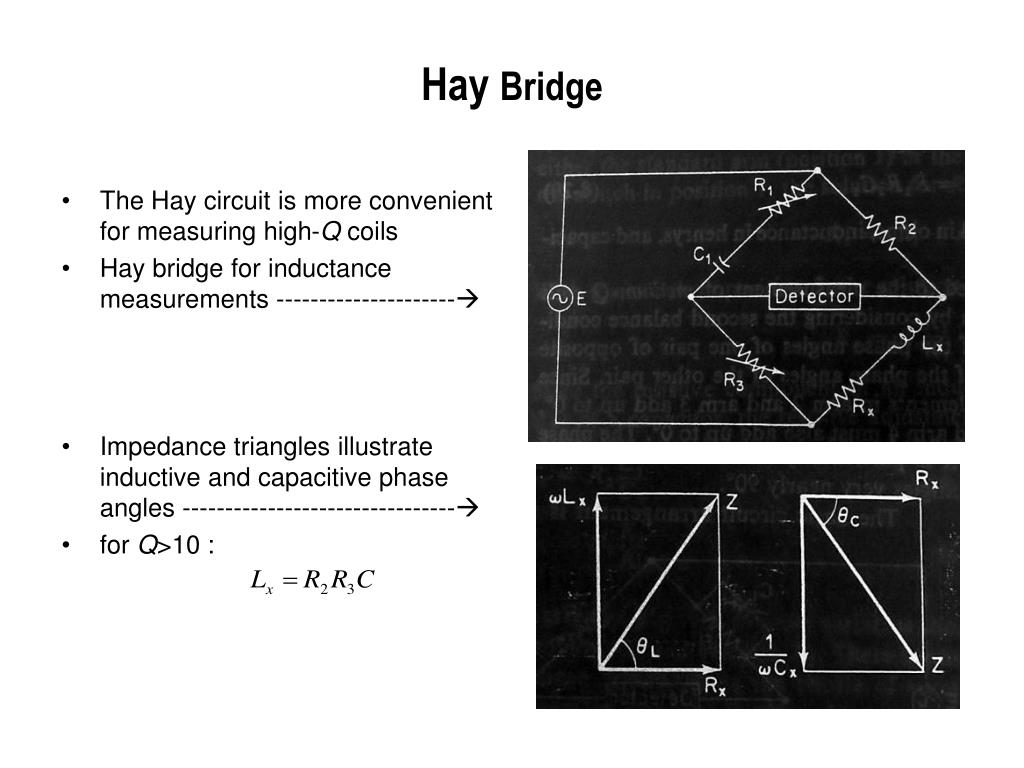

  3. Hay Bridge • The Hay circuit is more convenient for measuring high-Q coils • Hay bridge for inductance measurements --------------------- • Impedance triangles illustrate inductive and capacitive phase angles -------------------------------- • for Q>10 :

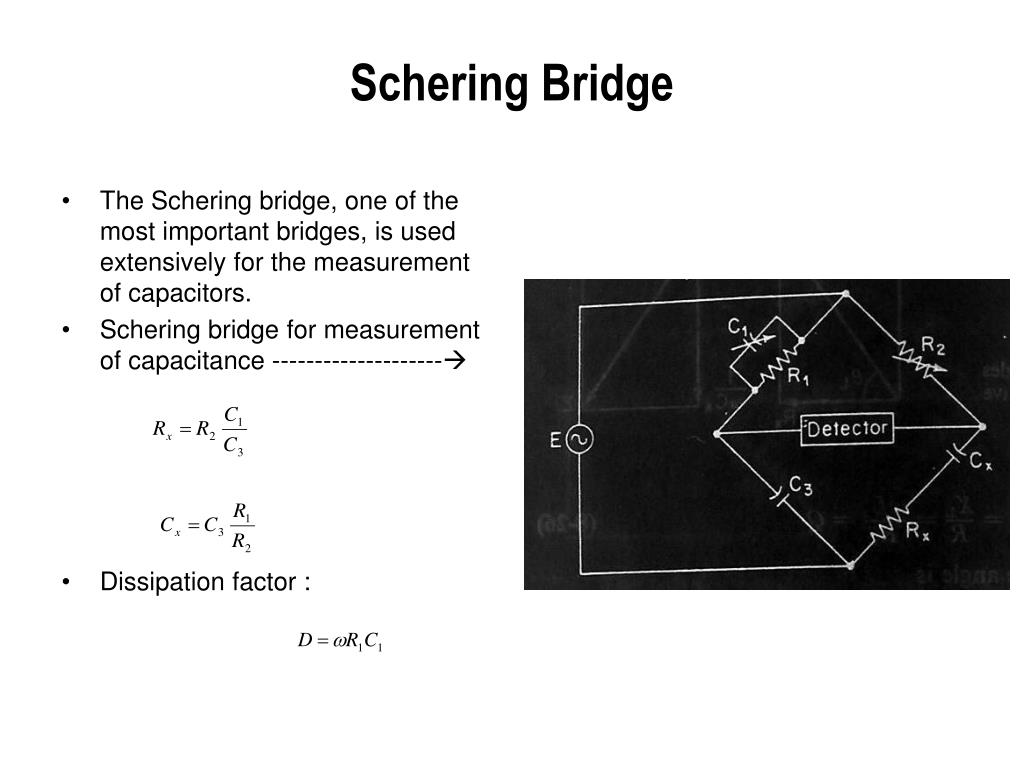

  4. Schering Bridge • The Schering bridge, one of the most important bridges, is used extensively for the measurement of capacitors. • Schering bridge for measurement of capacitance -------------------- • Dissipation factor :

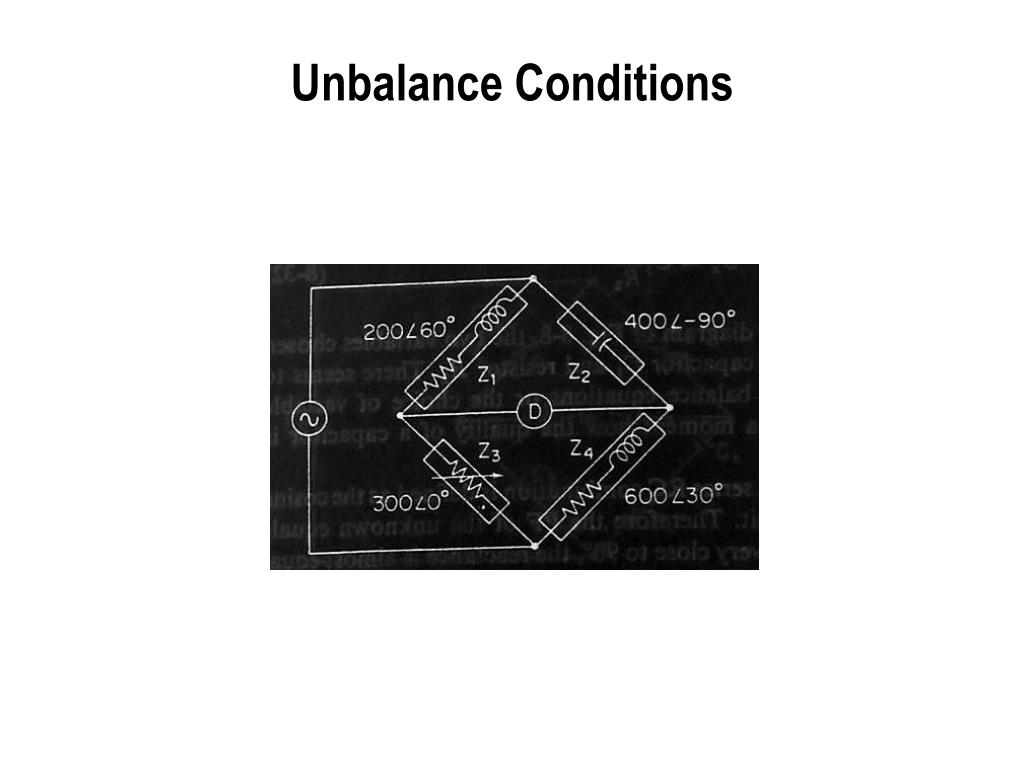

  5. Unbalance Conditions

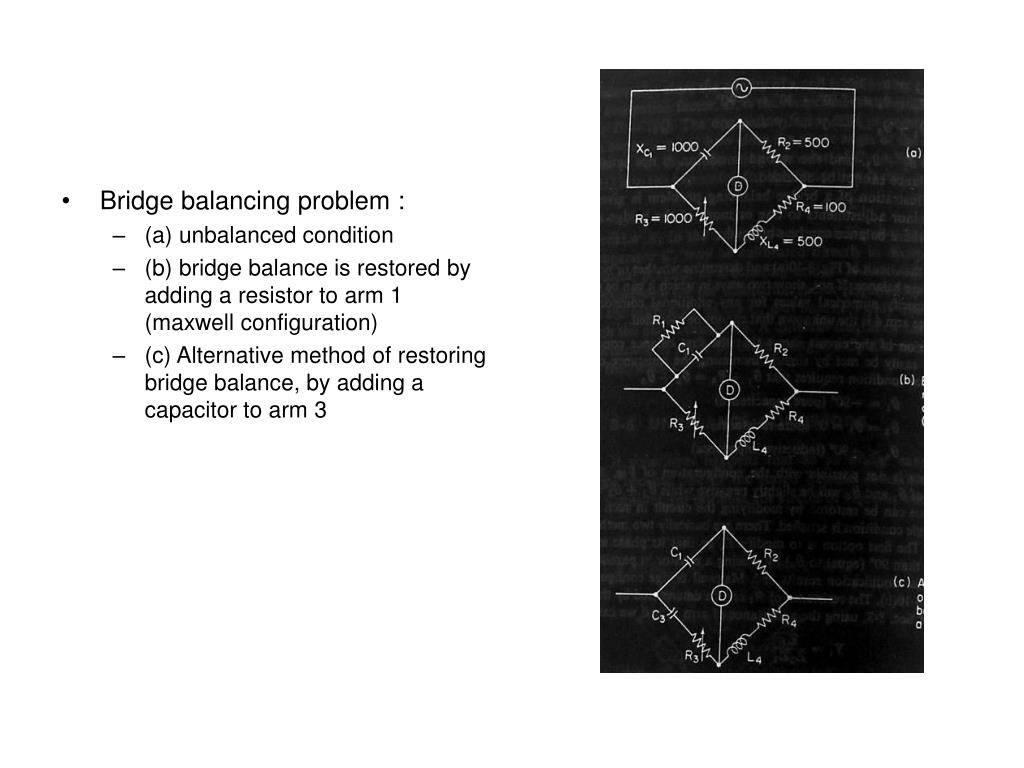

  6. Bridge balancing problem : • (a) unbalanced condition • (b) bridge balance is restored by adding a resistor to arm 1 (maxwell configuration) • (c) Alternative method of restoring bridge balance, by adding a capacitor to arm 3

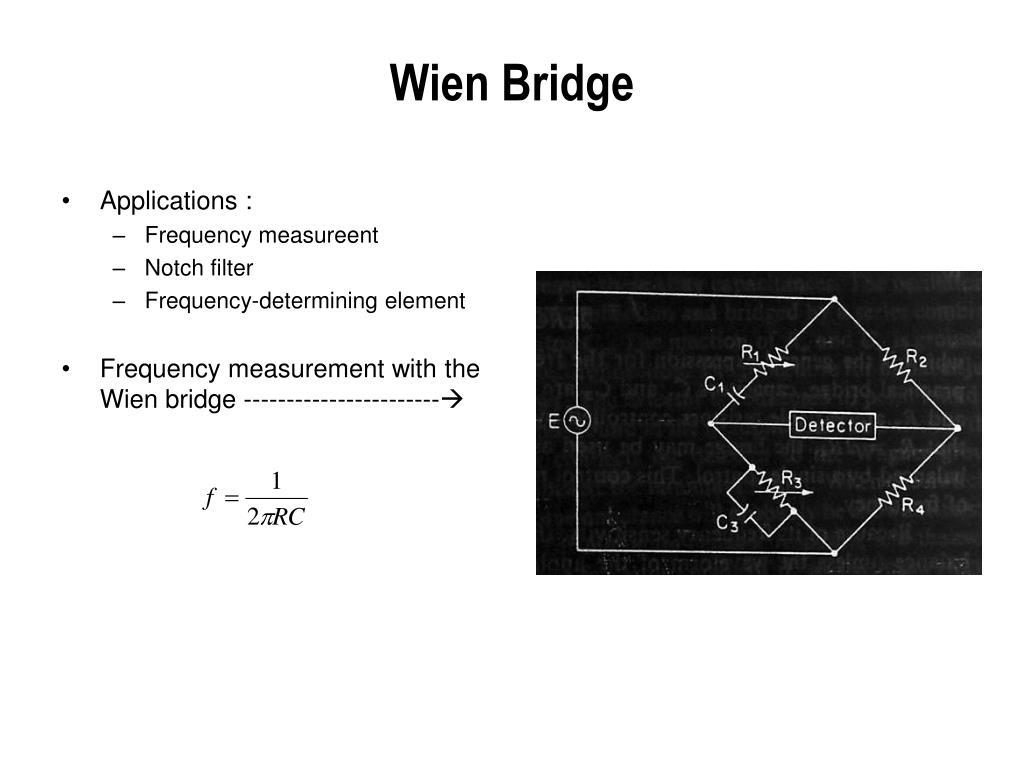

  7. Wien Bridge • Applications : • Frequency measureent • Notch filter • Frequency-determining element • Frequency measurement with the Wien bridge -----------------------

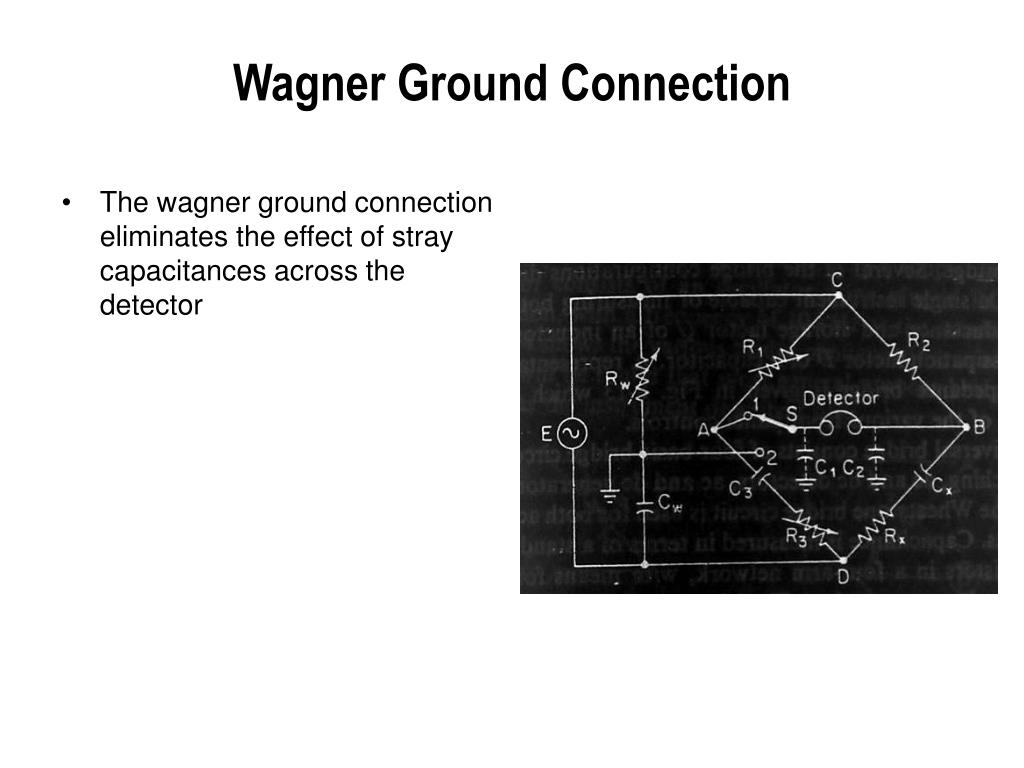

  8. Wagner Ground Connection • The wagner ground connection eliminates the effect of stray capacitances across the detector

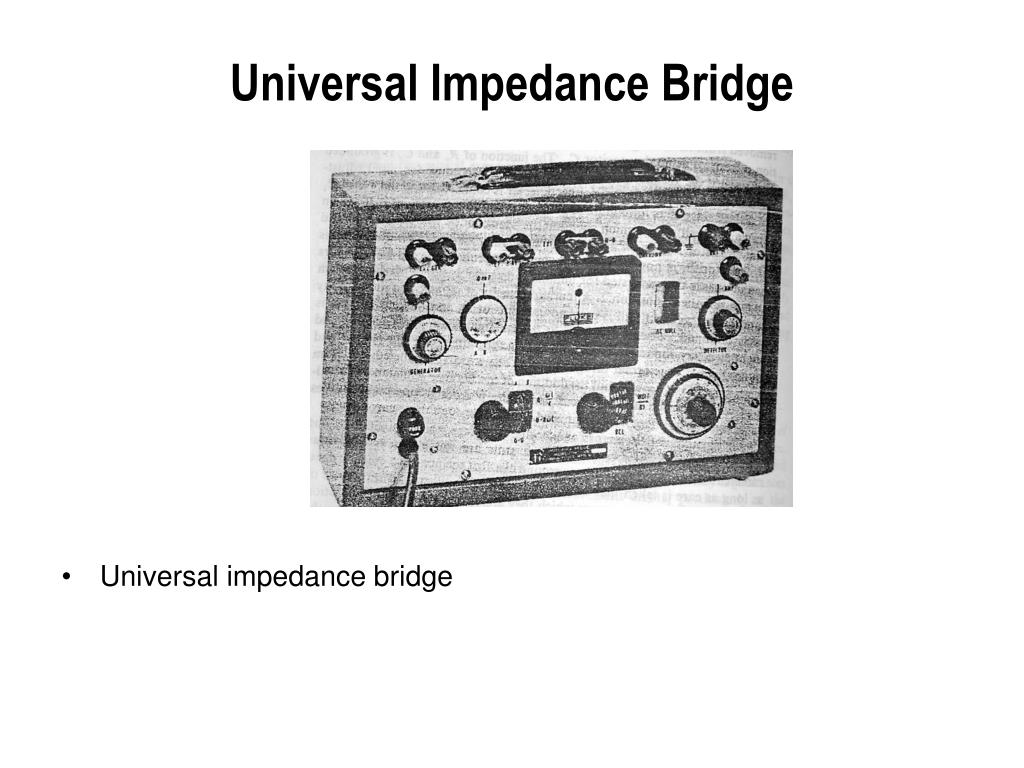

  9. Universal Impedance Bridge • Universal impedance bridge

  10. Bridge configurations of the universal impedance bridge
