  1. C63.19 Round Robin Test Plan (by Jim Turner; further editing by Steve Julstrom – 11/20/2009)

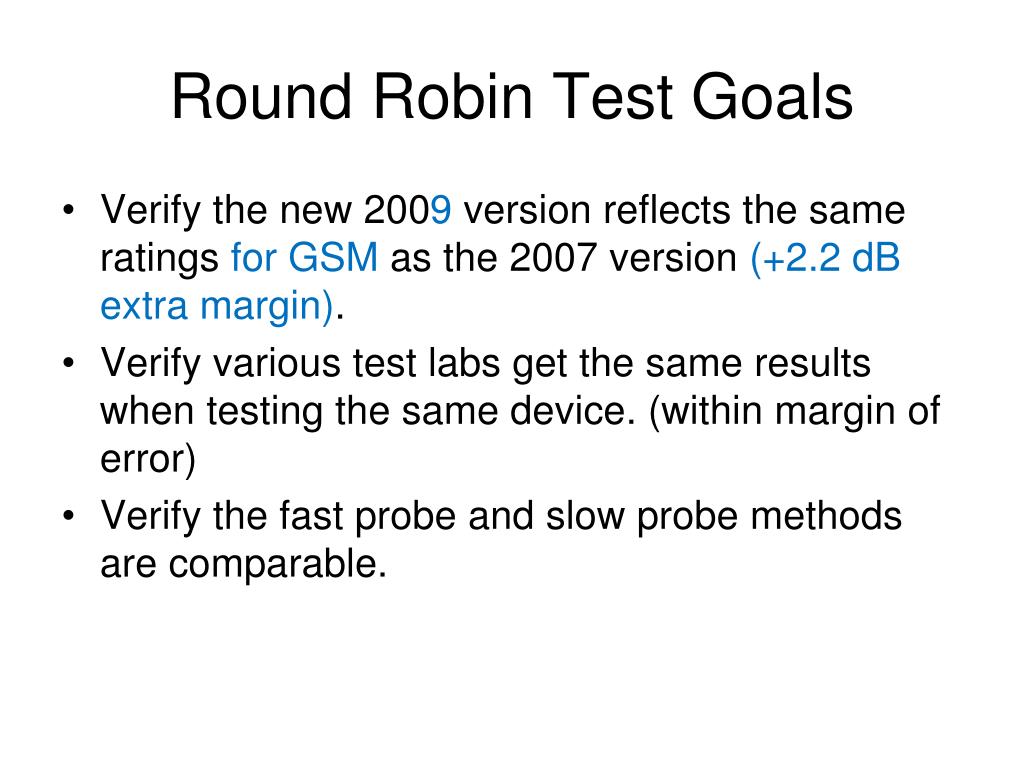

  2. Round Robin Test Goals • Verify the new 2009 version reflects the same ratings for GSM as the 2007 version (+2.2 dB extra margin). • Verify various test labs get the same results when testing the same device. (within margin of error) • Verify the fast probe and slow probe methods are comparable.

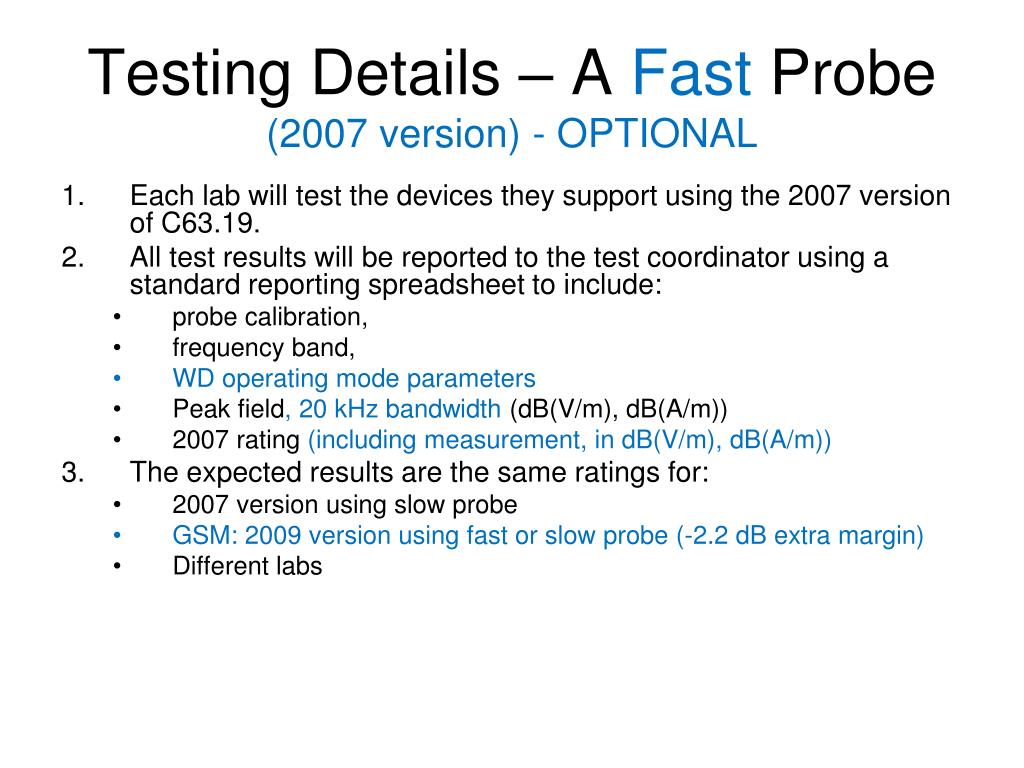

  3. Testing Details – A Fast Probe(2007 version) - OPTIONAL • Each lab will test the devices they support using the 2007 version of C63.19. • All test results will be reported to the test coordinator using a standard reporting spreadsheet to include: • probe calibration, • frequency band, • WD operating mode parameters • Peak field, 20 kHz bandwidth (dB(V/m), dB(A/m)) • 2007 rating (including measurement, in dB(V/m), dB(A/m)) • The expected results are the same ratings for: • 2007 version using slow probe • GSM: 2009 version using fast or slow probe(-2.2 dB extra margin) • Different labs

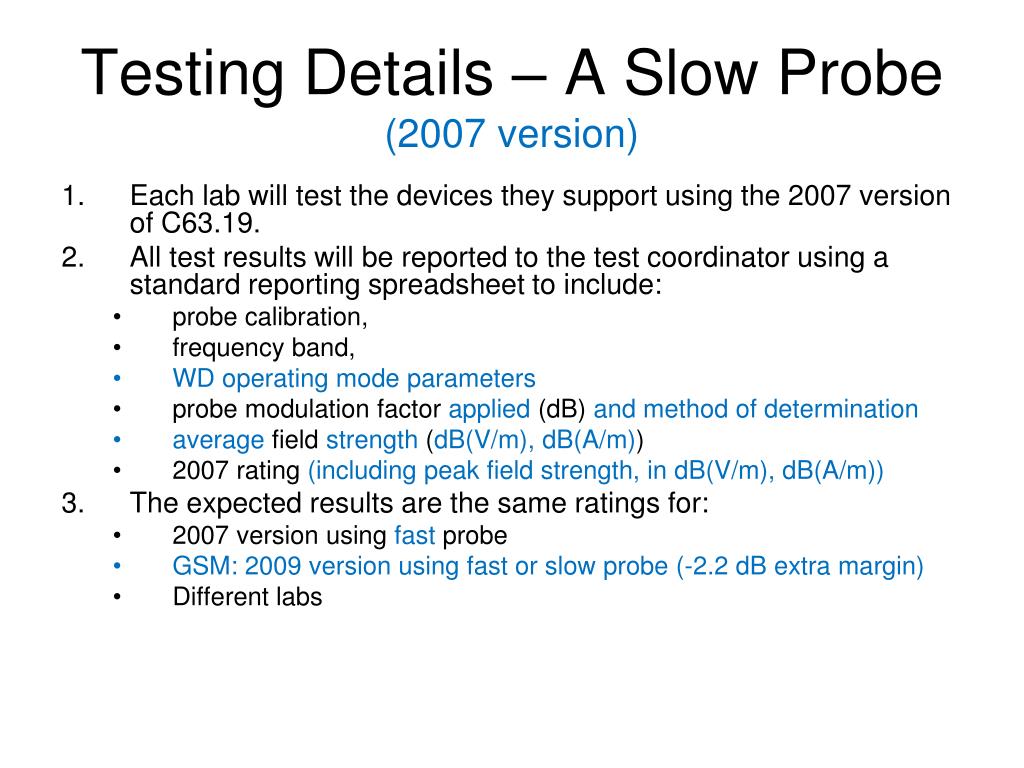

  4. Testing Details – A Slow Probe(2007 version) • Each lab will test the devices they support using the 2007 version of C63.19. • All test results will be reported to the test coordinator using a standard reporting spreadsheet to include: • probe calibration, • frequency band, • WD operating mode parameters • probe modulation factor applied (dB) and method of determination • average field strength (dB(V/m), dB(A/m)) • 2007 rating (including peak field strength, in dB(V/m), dB(A/m)) • The expected results are the same ratings for: • 2007 version using fast probe • GSM: 2009 version using fast or slow probe(-2.2 dB extra margin) • Different labs

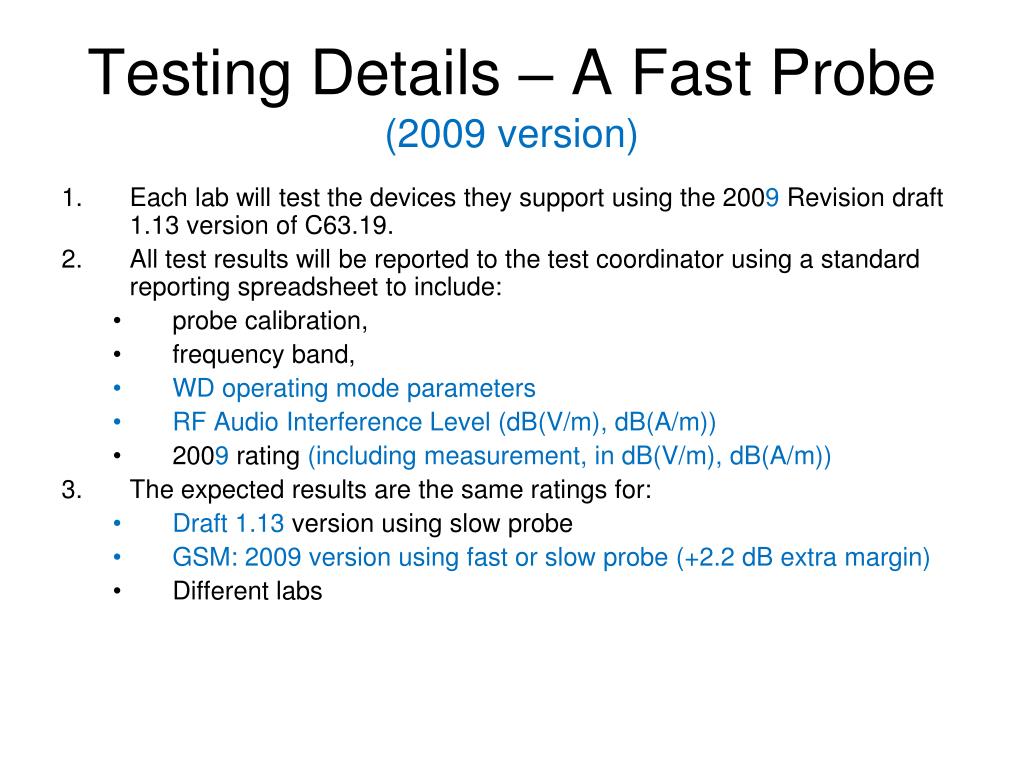

  5. Testing Details – A Fast Probe(2009 version) • Each lab will test the devices they support using the 2009 Revision draft 1.13 version of C63.19. • All test results will be reported to the test coordinator using a standard reporting spreadsheet to include: • probe calibration, • frequency band, • WD operating mode parameters • RF Audio Interference Level (dB(V/m), dB(A/m)) • 2009 rating (including measurement, in dB(V/m), dB(A/m)) • The expected results are the same ratings for: • Draft 1.13 version using slow probe • GSM: 2009 version using fast or slow probe(+2.2 dB extra margin) • Different labs

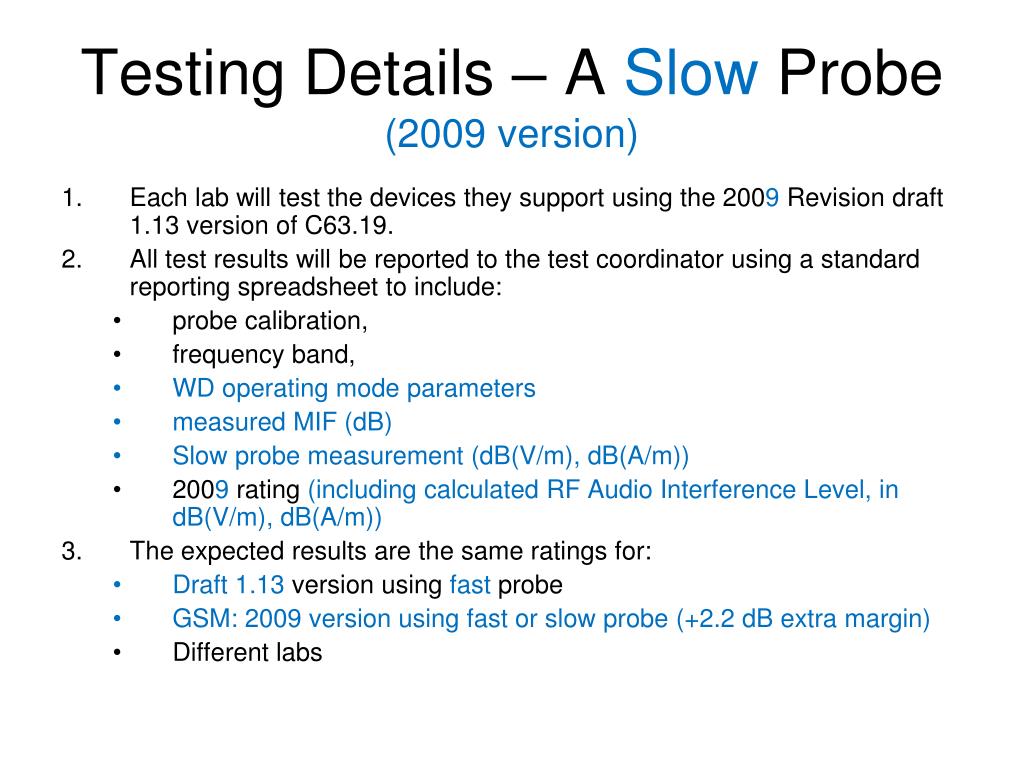

  6. Testing Details – A Slow Probe(2009 version) • Each lab will test the devices they support using the 2009 Revision draft 1.13 version of C63.19. • All test results will be reported to the test coordinator using a standard reporting spreadsheet to include: • probe calibration, • frequency band, • WD operating mode parameters • measured MIF (dB) • Slow probe measurement (dB(V/m), dB(A/m)) • 2009 rating (including calculated RF Audio Interference Level, in dB(V/m), dB(A/m)) • The expected results are the same ratings for: • Draft 1.13 version using fast probe • GSM: 2009 version using fast or slow probe(+2.2 dB extra margin) • Different labs

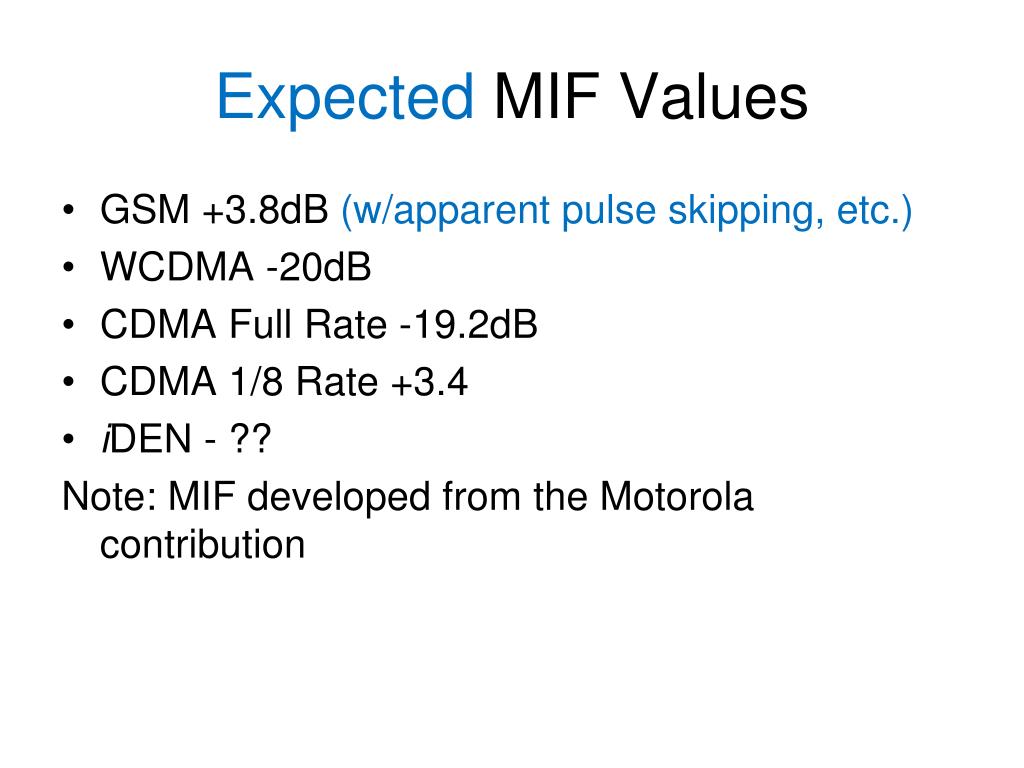

  7. Expected MIF Values • GSM +3.8dB (w/apparent pulse skipping, etc.) • WCDMA -20dB • CDMA Full Rate -19.2dB • CDMA 1/8 Rate +3.4 • iDEN - ?? Note: MIF developed from the Motorola contribution

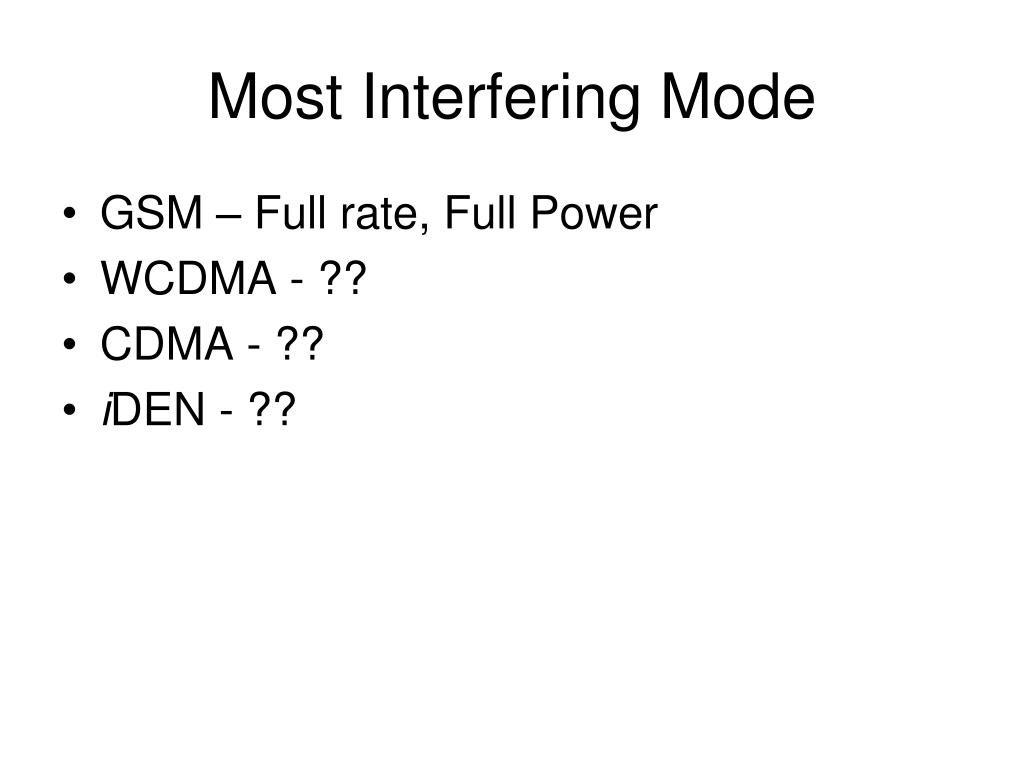

  8. Most Interfering Mode • GSM – Full rate, Full Power • WCDMA - ?? • CDMA - ?? • iDEN - ??
