INDIANA MINE RESCUE CONTEST JUNE 3, 2010

1. INDIANA MINE RESCUE CONTEST JUNE 3, 2010

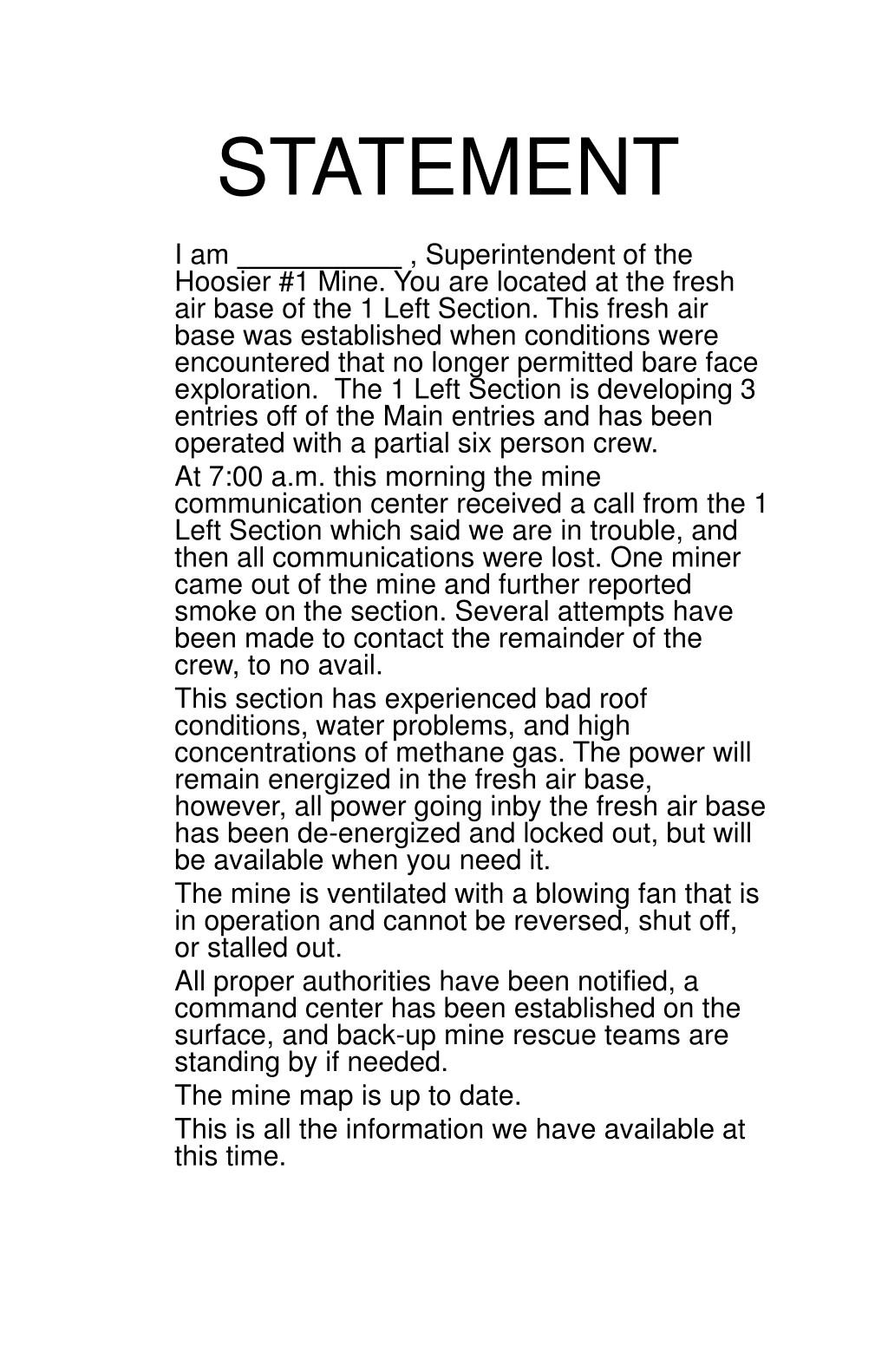

2. STATEMENT I am , Superintendent of the Hoosier #1 Mine. You are located at the fresh air base of the 1 Left Section. This fresh air base was established when conditions were encountered that no longer permitted bare face exploration. The 1 Left Section is developing 3 entries off of the Main entries and has been operated with a partial six person crew. At 7:00 a.m. this morning the mine communication center received a call from the 1 Left Section which said we are in trouble, and then all communications were lost. One miner came out of the mine and further reported smoke on the section. Several attempts have been made to contact the remainder of the crew, to no avail. This section has experienced bad roof conditions, water problems, and high concentrations of methane gas. The power will remain energized in the fresh air base, however, all power going inby the fresh air base has been de-energized and locked out, but will be available when you need it. The mine is ventilated with a blowing fan that is in operation and cannot be reversed, shut off, or stalled out. All proper authorities have been notified, a command center has been established on the surface, and back-up mine rescue teams are standing by if needed. The mine map is up to date. This is all the information we have available at this time.

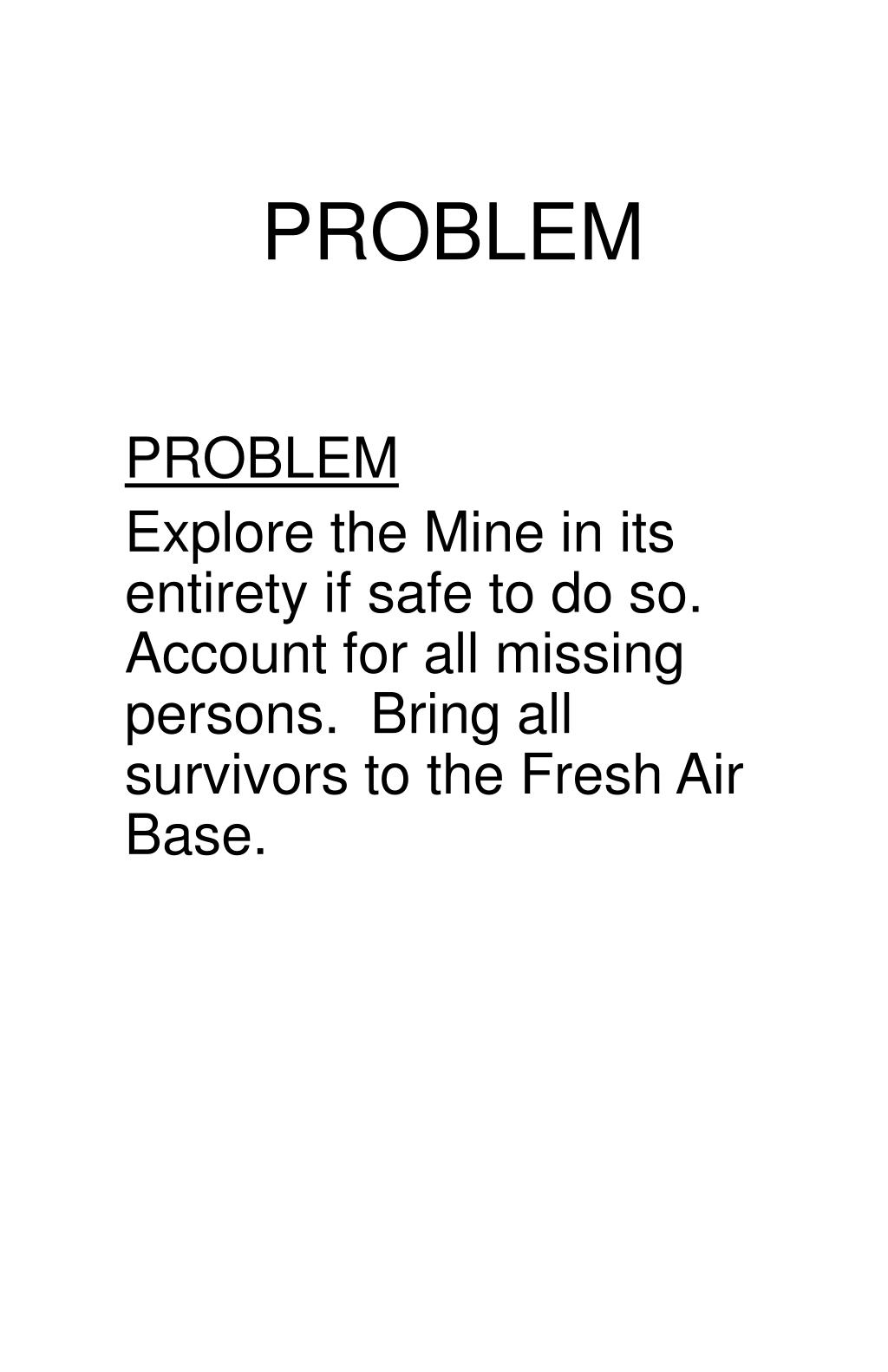

3. PROBLEM PROBLEM Explore the Mine in its entirety if safe to do so. Account for all missing persons. Bring all survivors to the Fresh Air Base.

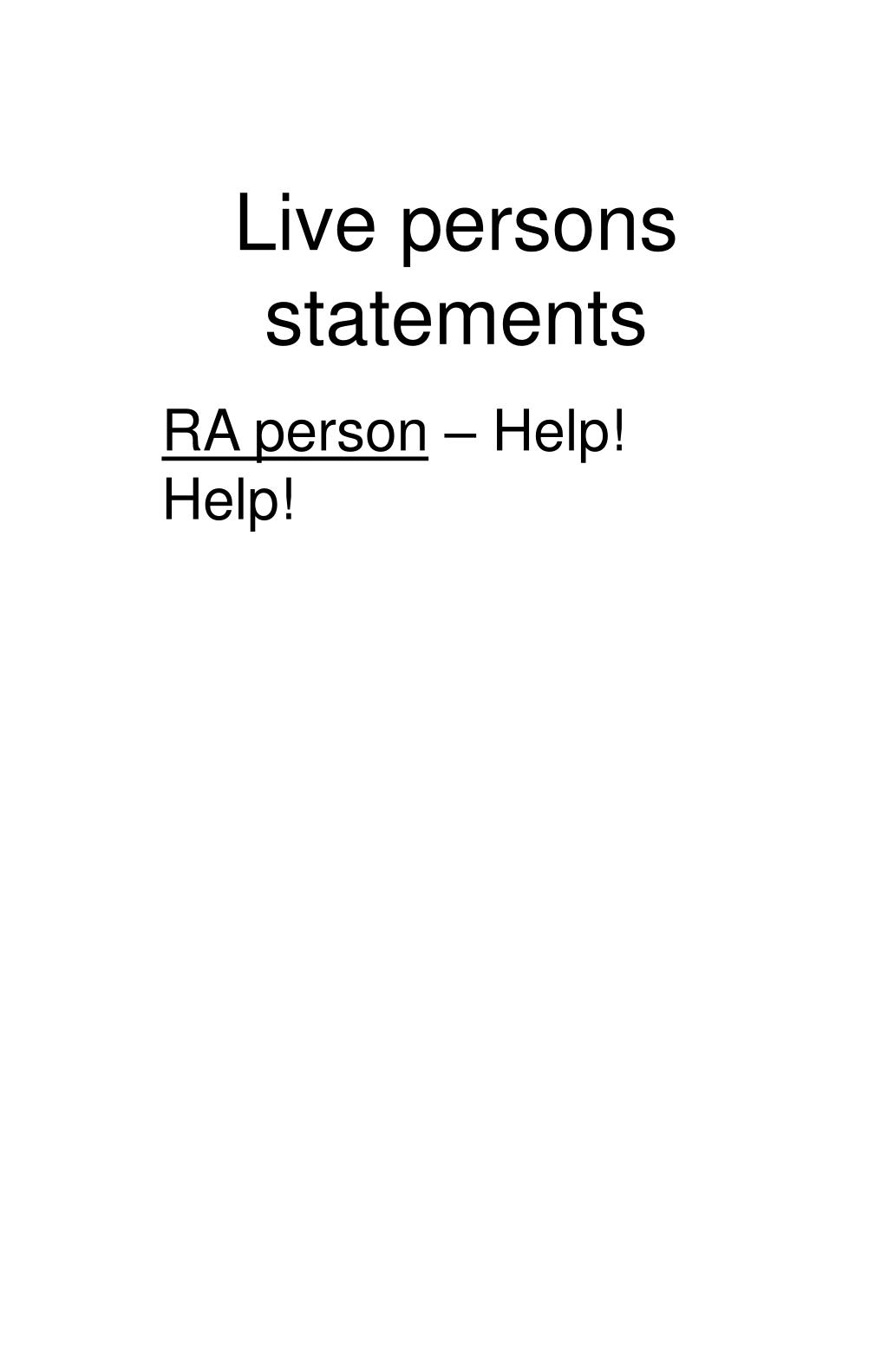

4. Live persons statements RA person – Help! Help!

5. Live persons statements Barricade person – Help! There is an unconscious miner here with me. There is a solid AIRTIGHT face behind me! It is hard to breathe!

6. 2010 INDIANA STATE MINE RESCUE CONTEST Team No.____ Field No. ____ 1”= 10’

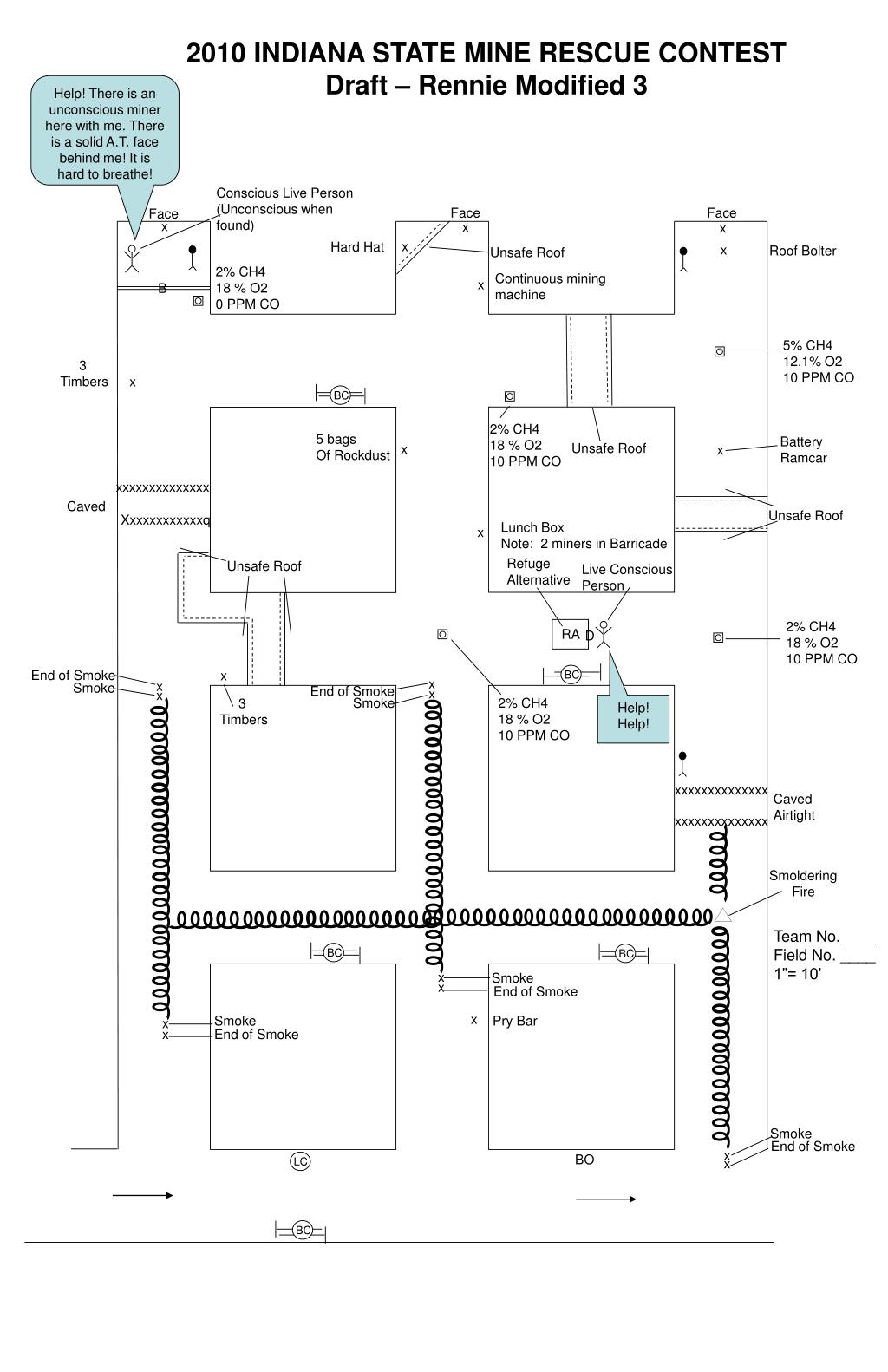

7. RA B BC BC BC BC LC BC 2010 INDIANA STATE MINE RESCUE CONTEST Draft – Rennie Modified 3 Help! There is an unconscious miner here with me. There is a solid A.T. face behind me! It is hard to breathe! Conscious Live Person (Unconscious when found) Face Face Face x x x x Hard Hat x Roof Bolter Unsafe Roof 2% CH4 18 % O2 0 PPM CO Continuous mining machine x 5% CH4 12.1% O2 10 PPM CO 3 Timbers x 2% CH4 18 % O2 10 PPM CO 5 bags Of Rockdust Battery Ramcar Unsafe Roof x x xxxxxxxxxxxxxx Caved Unsafe Roof Xxxxxxxxxxxxq Lunch Box Note: 2 miners in Barricade x Refuge Alternative Unsafe Roof Live Conscious Person 2% CH4 18 % O2 10 PPM CO D End of Smoke x x x Smoke End of Smoke x x Smoke 2% CH4 18 % O2 10 PPM CO 3 Timbers Help! Help! xxxxxxxxxxxxxx Caved Airtight xxxxxxxxxxxxxx Smoldering Fire Team No.____ Field No. ____ 1”= 10’ x Smoke x End of Smoke x Smoke Pry Bar x x End of Smoke Smoke End of Smoke x BO x

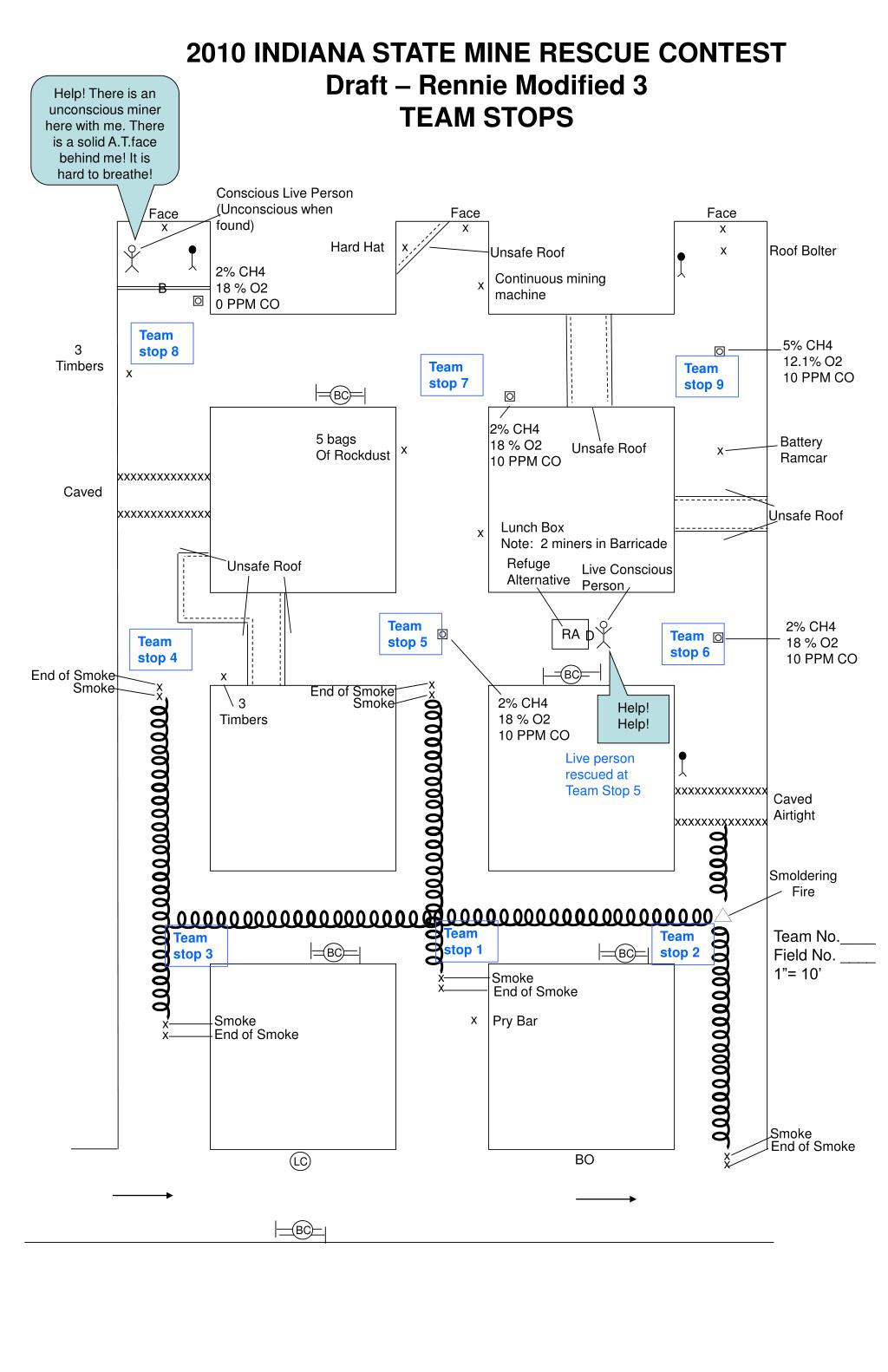

8. RA B BC BC BC LC BC BC 2010 INDIANA STATE MINE RESCUE CONTEST Draft – Rennie Modified 3 TEAM STOPS Help! There is an unconscious miner here with me. There is a solid A.T.face behind me! It is hard to breathe! Conscious Live Person (Unconscious when found) Face Face Face x x x x Hard Hat x Roof Bolter Unsafe Roof 2% CH4 18 % O2 0 PPM CO Continuous mining machine x Team stop 8 5% CH4 12.1% O2 10 PPM CO 3 Timbers Team stop 7 Team stop 9 x 2% CH4 18 % O2 10 PPM CO 5 bags Of Rockdust Battery Ramcar Unsafe Roof x x xxxxxxxxxxxxxx Caved xxxxxxxxxxxxxx Unsafe Roof Lunch Box Note: 2 miners in Barricade x Refuge Alternative Unsafe Roof Live Conscious Person Team stop 5 2% CH4 18 % O2 10 PPM CO D Team stop 6 Team stop 4 End of Smoke x x x Smoke End of Smoke x x Smoke 2% CH4 18 % O2 10 PPM CO 3 Timbers Help! Help! Live person rescued at Team Stop 5 xxxxxxxxxxxxxx Caved Airtight xxxxxxxxxxxxxx Smoldering Fire Team stop 1 Team No.____ Field No. ____ 1”= 10’ Team stop 2 Team stop 3 x Smoke x End of Smoke x Smoke Pry Bar x x End of Smoke Smoke End of Smoke x BO x

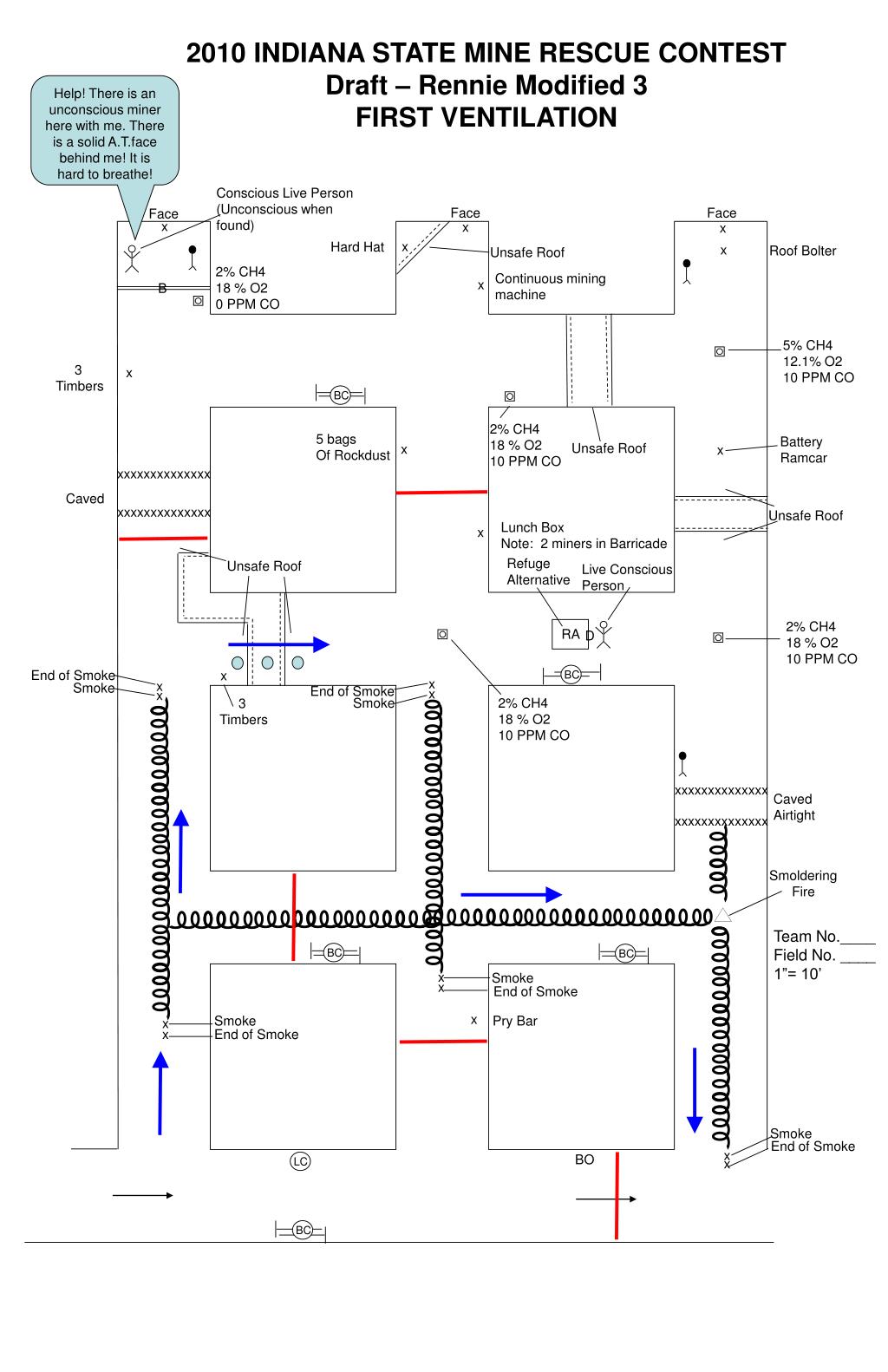

9. RA B BC LC BC BC BC BC 2010 INDIANA STATE MINE RESCUE CONTEST Draft – Rennie Modified 3 FIRST VENTILATION Help! There is an unconscious miner here with me. There is a solid A.T.face behind me! It is hard to breathe! Conscious Live Person (Unconscious when found) Face Face Face x x x x Hard Hat x Roof Bolter Unsafe Roof 2% CH4 18 % O2 0 PPM CO Continuous mining machine x 5% CH4 12.1% O2 10 PPM CO 3 Timbers x 2% CH4 18 % O2 10 PPM CO 5 bags Of Rockdust Battery Ramcar Unsafe Roof x x xxxxxxxxxxxxxx Caved xxxxxxxxxxxxxx Unsafe Roof Lunch Box Note: 2 miners in Barricade x Refuge Alternative Unsafe Roof Live Conscious Person 2% CH4 18 % O2 10 PPM CO D End of Smoke x x x Smoke End of Smoke x x Smoke 2% CH4 18 % O2 10 PPM CO 3 Timbers xxxxxxxxxxxxxx Caved Airtight xxxxxxxxxxxxxx Smoldering Fire Team No.____ Field No. ____ 1”= 10’ x Smoke x End of Smoke x Smoke Pry Bar x x End of Smoke Smoke End of Smoke x BO x

10. RA B BC BC BC LC BC BC 2010 INDIANA STATE MINE RESCUE CONTEST Draft – Rennie Modified 3 SECOND VENTILATION Help! There is an unconscious miner here with me. There is a solid A.T. face behind me! It is hard to breathe! Conscious Live Person (Unconscious when found) Face Face Face x x x x Hard Hat x Roof Bolter Unsafe Roof 2% CH4 18 % O2 0 PPM CO Continuous mining machine x WING 5% CH4 12.1% O2 10 PPM CO 3 Timbers x 2% CH4 18 % O2 10 PPM CO 5 bags Of Rockdust Battery Ramcar Unsafe Roof x x xxxxxxxxxxxxxx Caved xxxxxxxxxxxxxx Unsafe Roof Lunch Box Note: 2 miners in Barricade x Refuge Alternative Unsafe Roof Live Conscious Person 2% CH4 18 % O2 10 PPM CO D x Smoke CLEARED 2% CH4 18 % O2 10 PPM CO 3 Timbers Smoke CLEARED xxxxxxxxxxxxxx Caved Airtight xxxxxxxxxxxxxx Smoldering Fire Team No.____ Field No. ____ 1”= 10’ Smoke CLEARED x Smoke CLEARED Pry Bar BO

11. 2010 INDIANA STATE MINE RESCUE CONTEST FINAL VENTILATION MAP Team No.____ Field No. ____ 1”= 10’ CAPTAIN’S INITIALS ____________ CHAIRMAN OF JUDGES’ INITIALS _______________
