  1. Translating Orc Features into Petri Nets and the Join Calculus Hernán Melgratti IMT Lucca Institute for Advance Studies Joint Work with Roberto Bruni and Emilio Tuosto

  2. Aims • To distill Orc primitives • Orc is an orchestration language • It is a process calculus • It does not provide any explicit mechanism for name creation Hernán Melgratti@IMTLucca

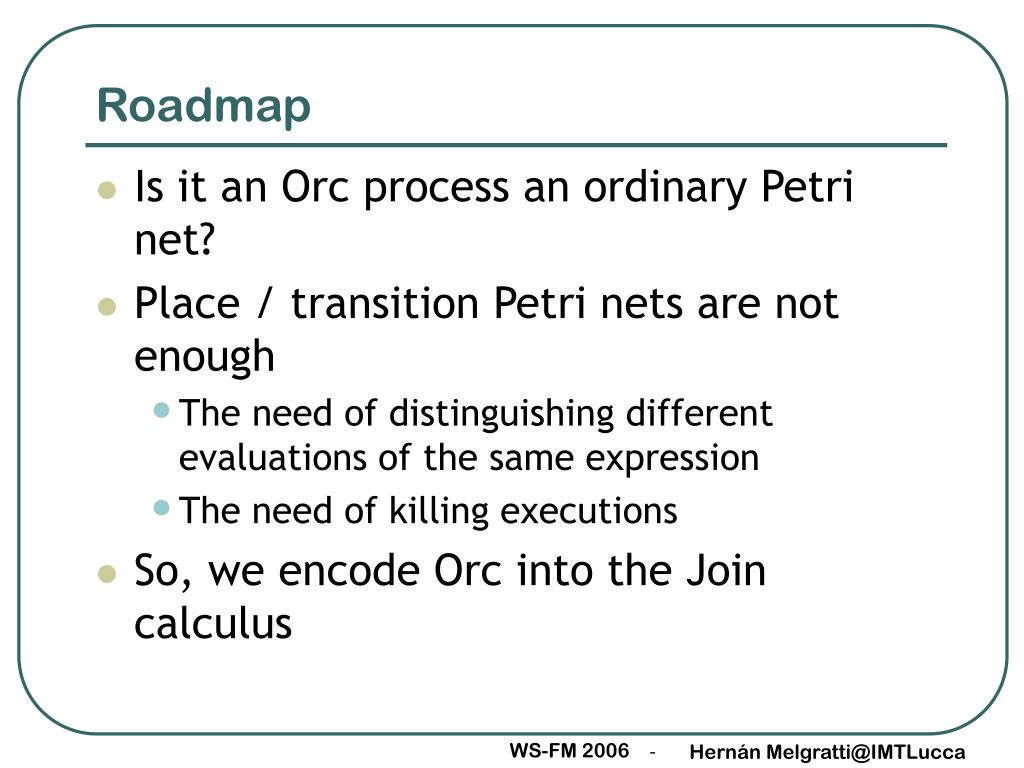

  3. Roadmap • Is it an Orc process an ordinary Petri net? • Place / transition Petri nets are not enough • The need of distinguishing different evaluations of the same expression • The need of killing executions • So, we encode Orc into the Join calculus Hernán Melgratti@IMTLucca

  4. Orc in one slide • Basic services or sites: M,M1,M2,… • Providing functionalities • Site call: M(p0,…,pn) • Return at most one result • Pipeline: f>x>g • Sequential composition (x occurs bound in g) • Symmetric Parallelism: f|g • Independent computation • Asymmetric Parallelism: g where x:f • x occurs bound in f • Recussion: E(q0,…,qn) f, and E occurs in f Hernán Melgratti@IMTLucca

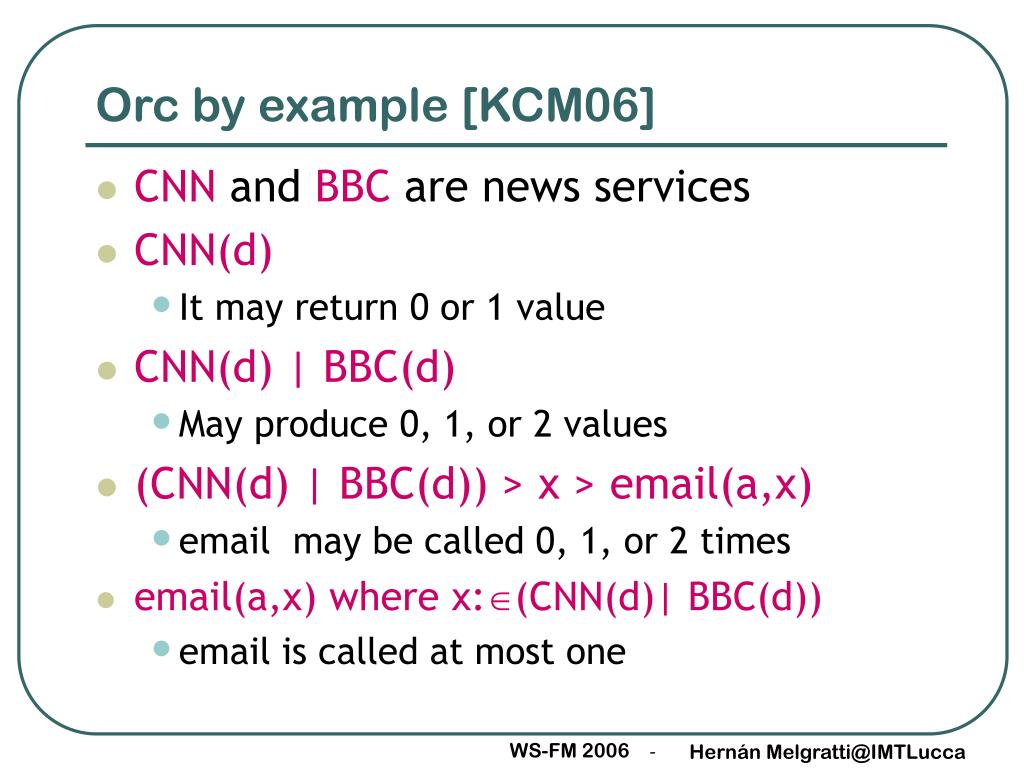

  5. Orc by example [KCM06] • CNN and BBC are news services • CNN(d) • It may return 0 or 1 value • CNN(d) | BBC(d) • May produce 0, 1, or 2 values • (CNN(d) | BBC(d)) > x > email(a,x) • email may be called 0, 1, or 2 times • email(a,x) where x:(CNN(d)| BBC(d)) • email is called at most one Hernán Melgratti@IMTLucca

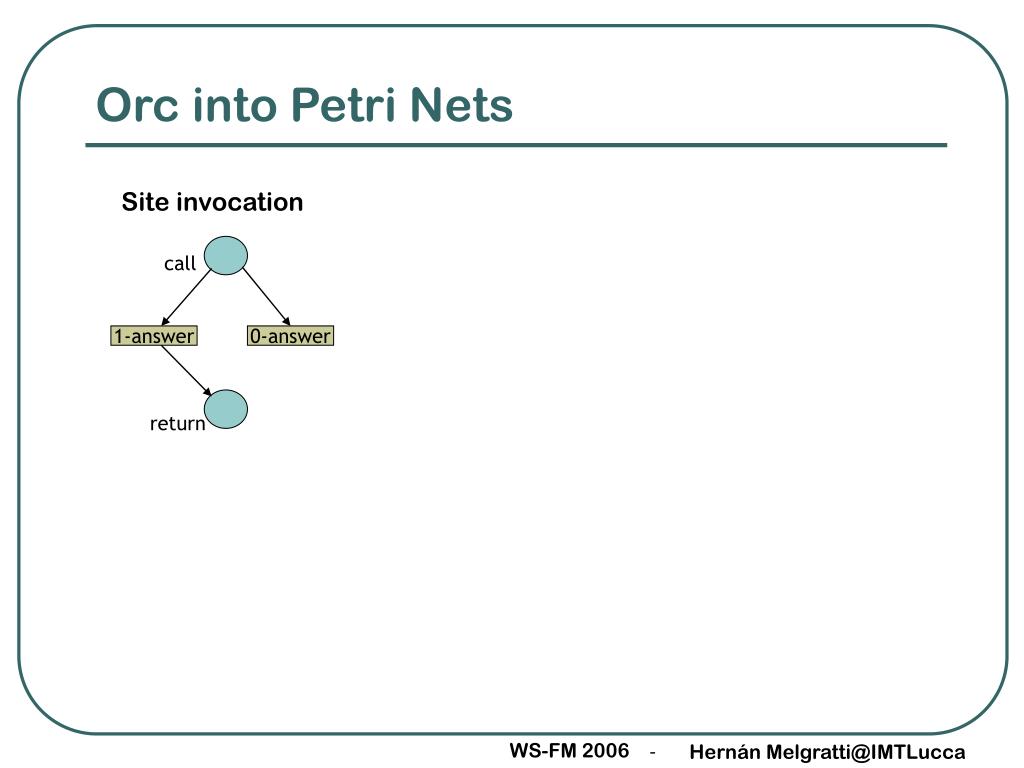

  6. Site invocation call 1-answer 0-answer return Orc into Petri Nets Hernán Melgratti@IMTLucca

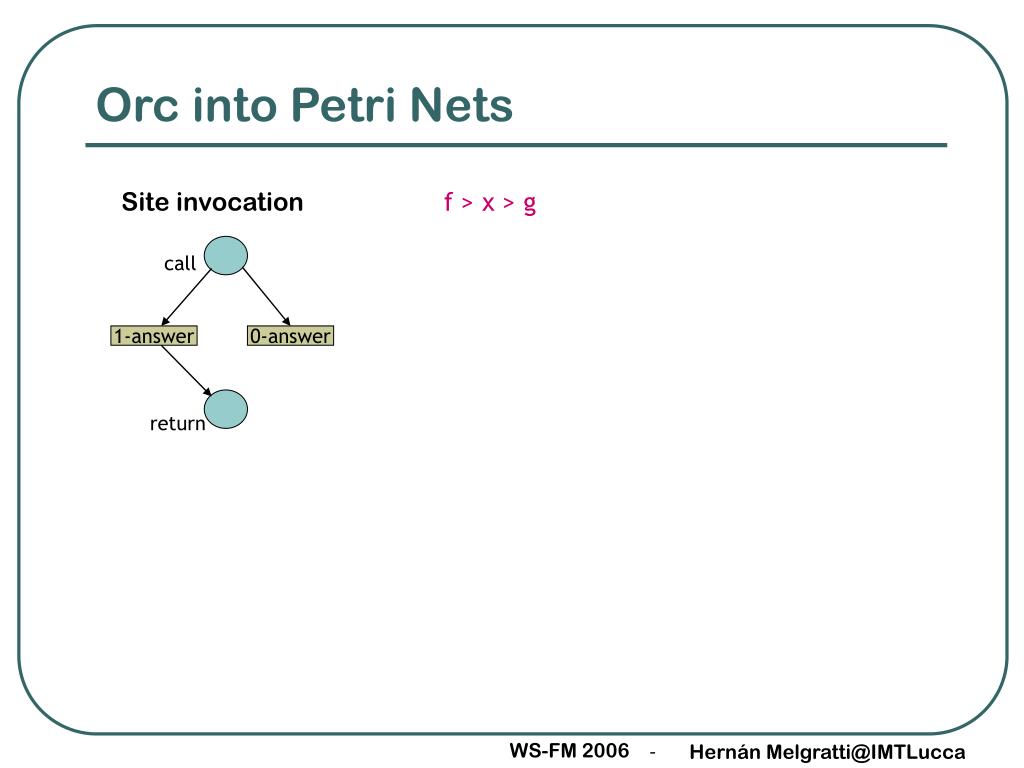

  7. call 1-answer 0-answer return Orc into Petri Nets Site invocation f > x > g Hernán Melgratti@IMTLucca

  8. call 1-answer 0-answer return g Orc into Petri Nets Site invocation f > x > g f Hernán Melgratti@IMTLucca

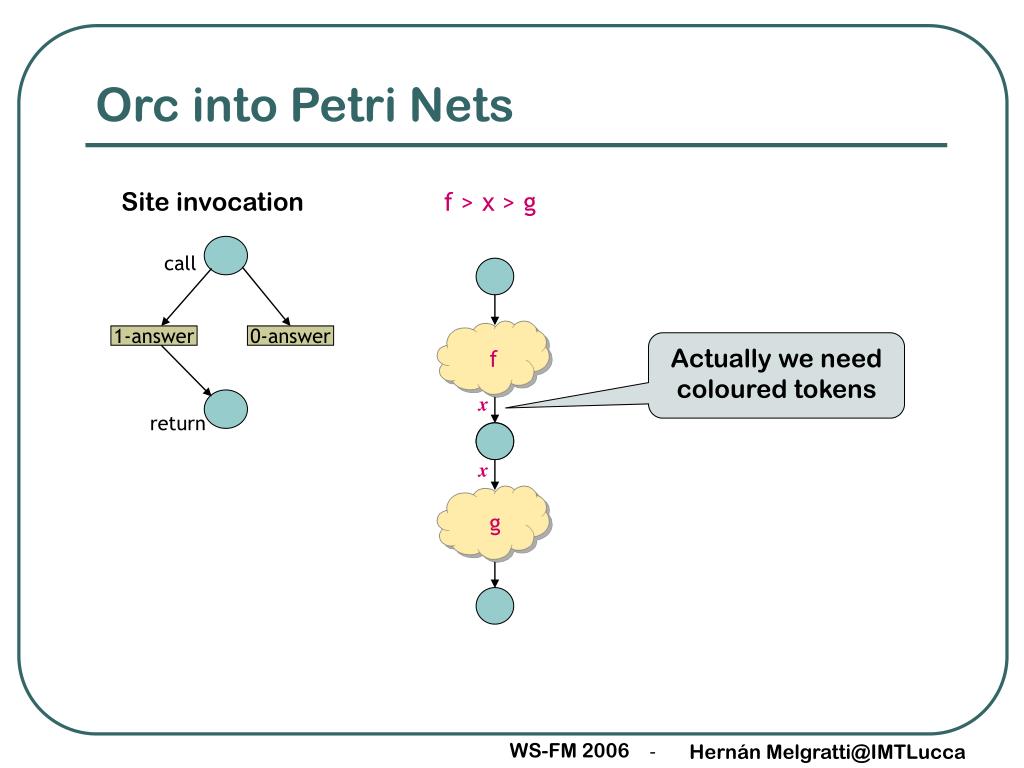

  9. call 1-answer 0-answer return Orc into Petri Nets Site invocation f > x > g Actually we need coloured tokens f x x g Hernán Melgratti@IMTLucca

  10. call 1-answer 0-answer return Orc into Petri Nets Site invocation f > x > g f | g f g Hernán Melgratti@IMTLucca

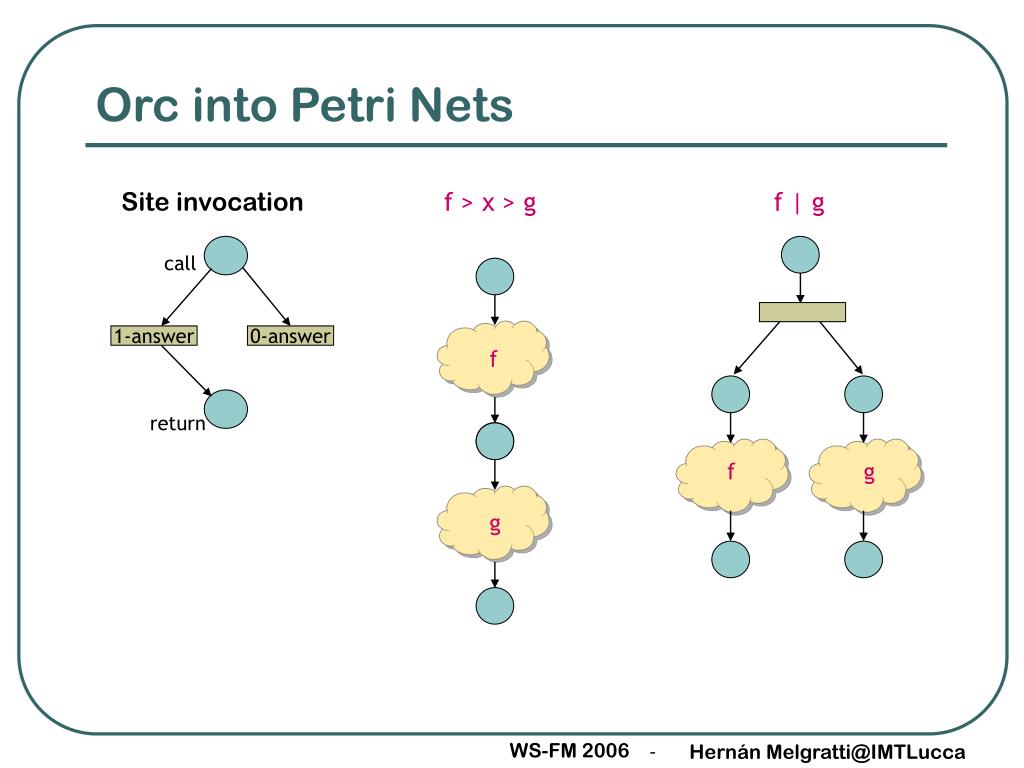

  11. call 1-answer 0-answer return Orc into Petri Nets Site invocation f > x > g f | g f f g g Hernán Melgratti@IMTLucca

  12. call 1-answer 0-answer return Orc into Petri Nets Site invocation f > x > g f | g f f g g Hernán Melgratti@IMTLucca

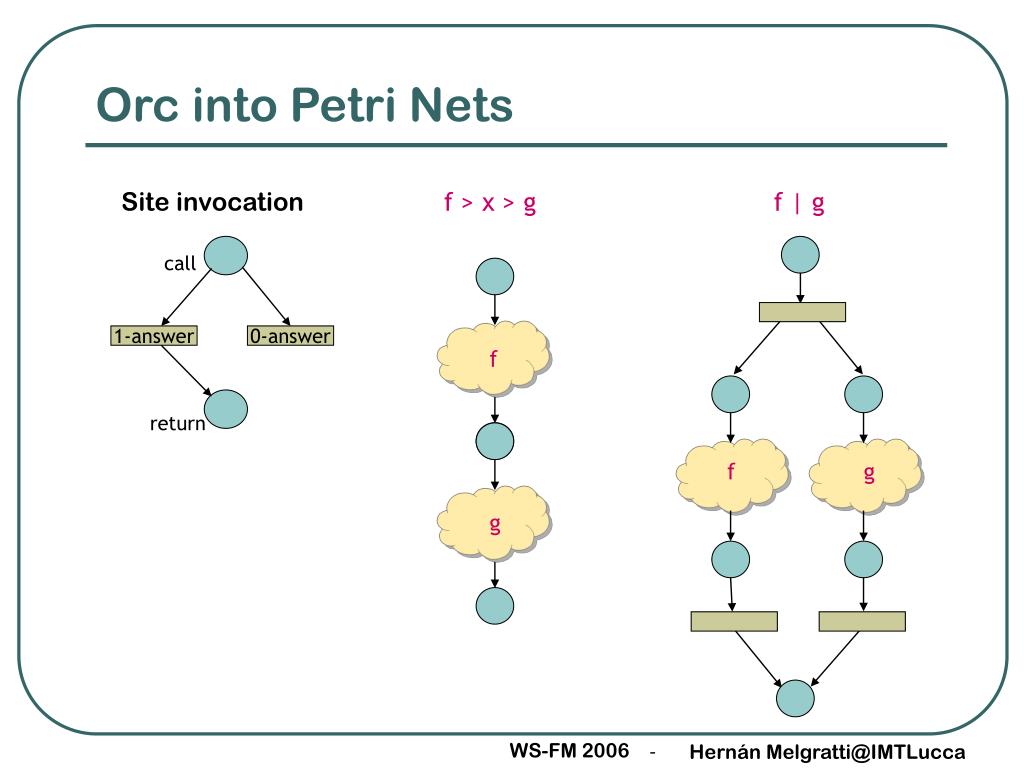

  13. call 1-answer 0-answer return Orc into Petri Nets Site invocation f > x > g f | g f f g g Hernán Melgratti@IMTLucca

  14. An Orc Process as a PN (CNN(d) | BBC(d))> x > email(a,x) Hernán Melgratti@IMTLucca

  15. An Orc Process as a PN (CNN(d) | BBC(d))> x > email(a,x) Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Hernán Melgratti@IMTLucca

  16. An Orc Process as a PN (CNN(d) | BBC(d))> x > email(a,x) Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN Return_BBC Hernán Melgratti@IMTLucca

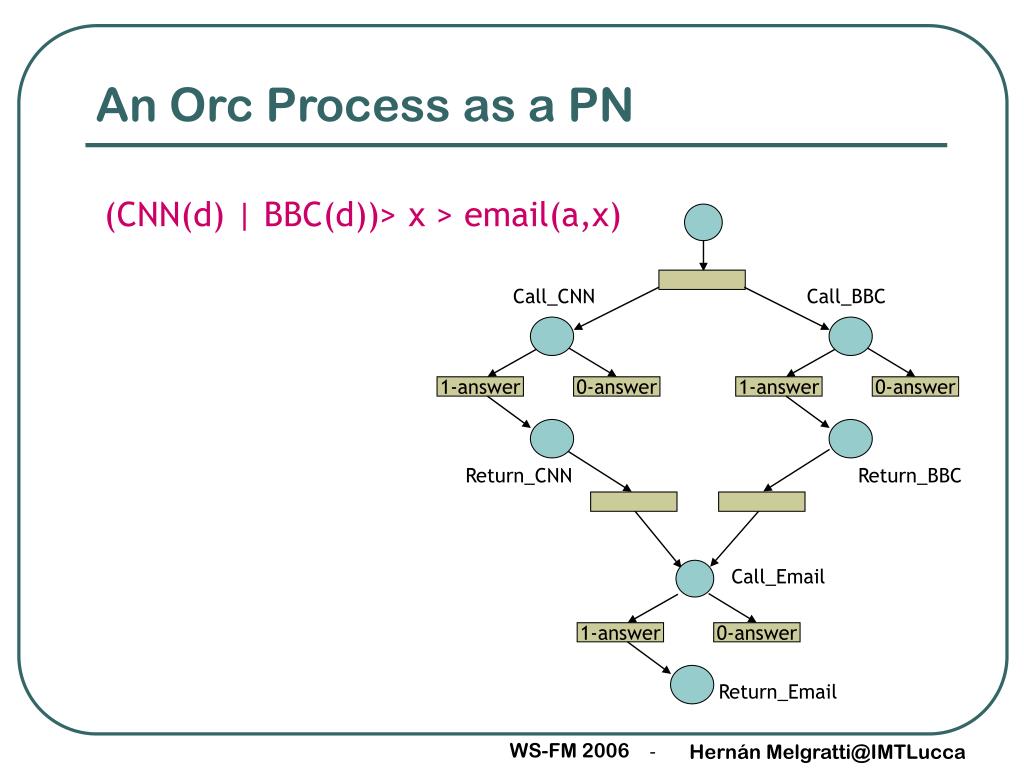

  17. An Orc Process as a PN (CNN(d) | BBC(d))> x > email(a,x) Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN Return_BBC Call_Email 1-answer 0-answer Return_Email Hernán Melgratti@IMTLucca

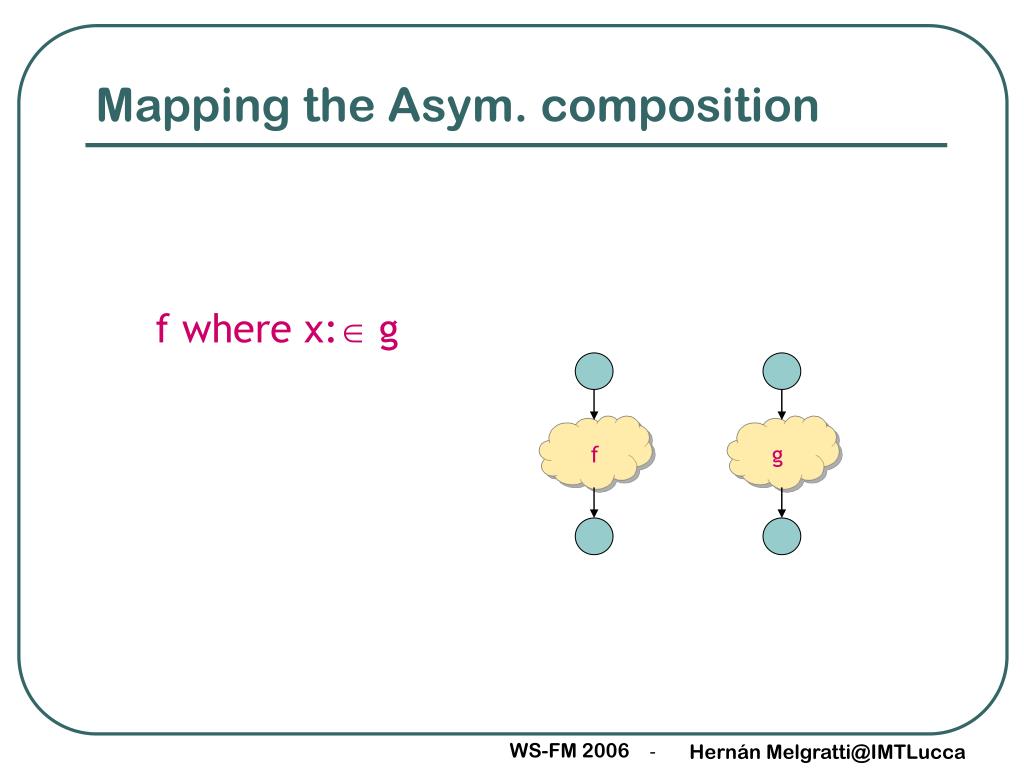

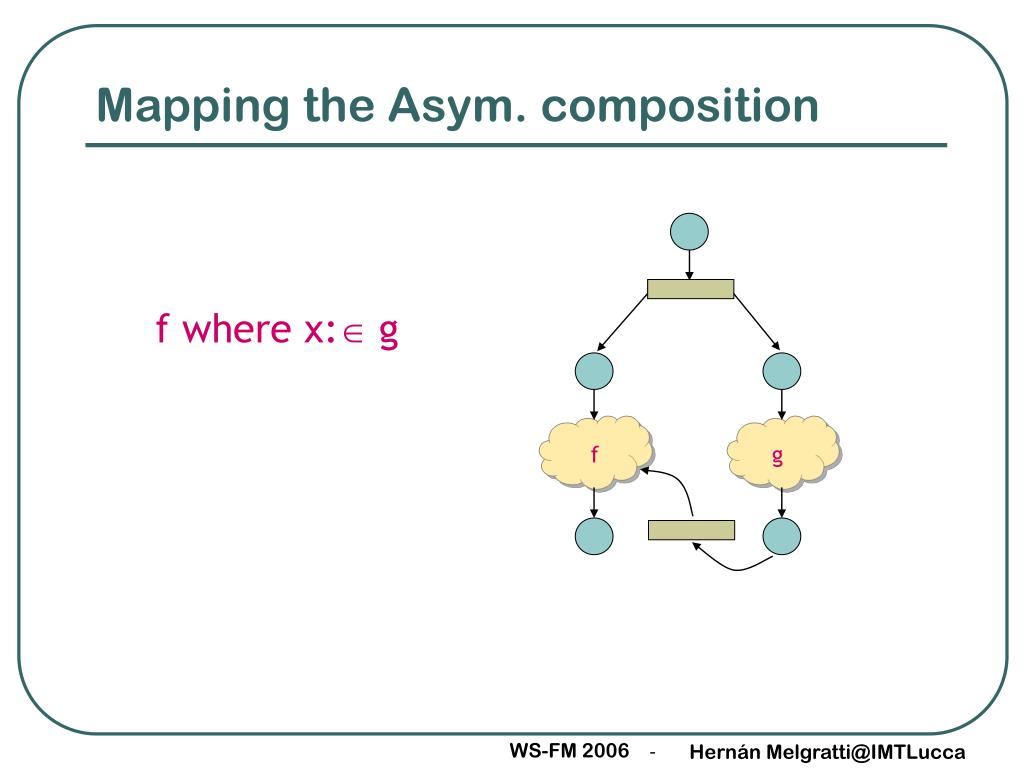

  18. Mapping the Asym. composition f where x: g f g Hernán Melgratti@IMTLucca

  19. Mapping the Asym. composition f where x: g f g Hernán Melgratti@IMTLucca

  20. Mapping the Asym. composition f where x: g f g Hernán Melgratti@IMTLucca

  21. Mapping the Asym. composition email(a,x) where x:(CNN(d)| BBC(d)) Hernán Melgratti@IMTLucca

  22. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN Mapping the Asym. composition email(a,x) where x:(CNN(d)| BBC(d)) Call_Email 1-answer 0-answer Return_Email Return_BBC Hernán Melgratti@IMTLucca

  23. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN Mapping the Asym. composition email(a,x) where x:(CNN(d)| BBC(d)) Call_Email 1-answer 0-answer Return_Email Return_BBC Hernán Melgratti@IMTLucca

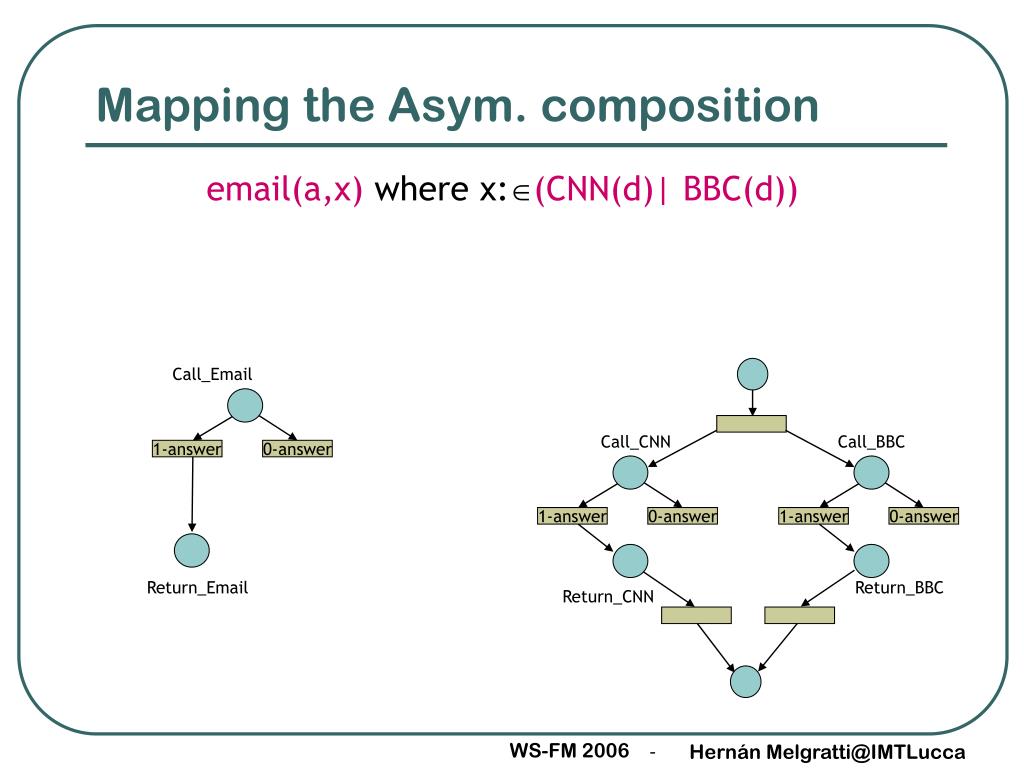

  24. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN Mapping the Asym. composition email(a,x) where x:(CNN(d)| BBC(d)) Call_Email 1-answer 0-answer Return_Email Return_BBC Hernán Melgratti@IMTLucca

  25. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN Mapping the Asym. composition email(a,x) where x:(CNN(d)| BBC(d)) Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

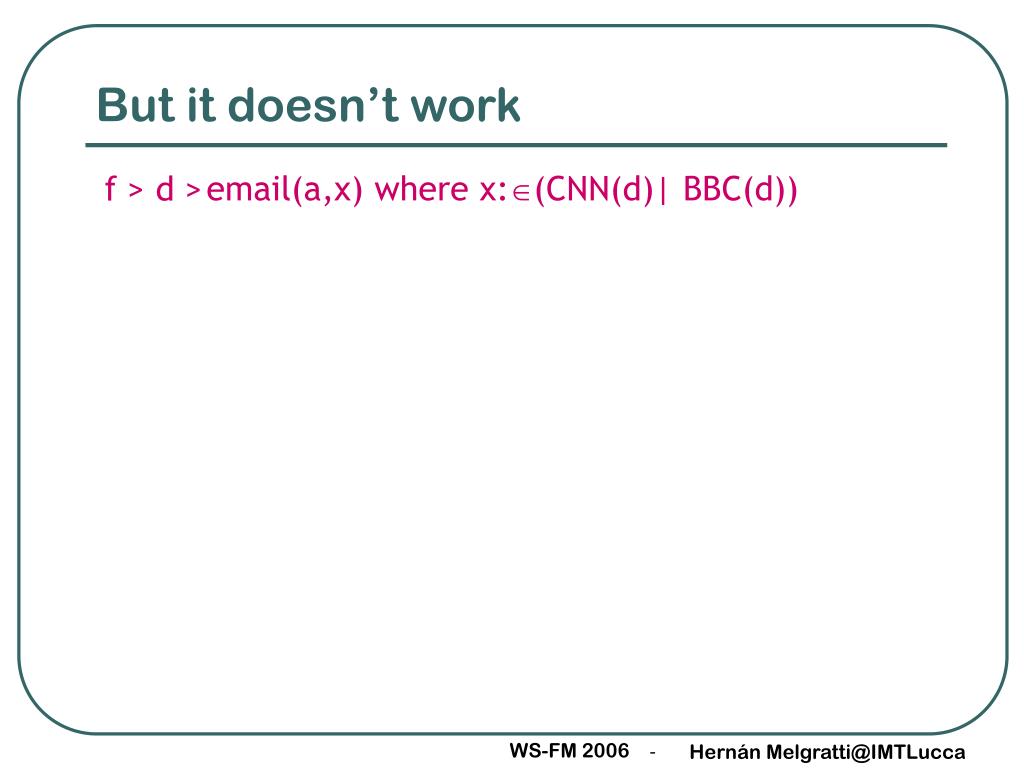

  26. email(a,x) where x:(CNN(d)| BBC(d)) f > d > But it doesn’t work Hernán Melgratti@IMTLucca

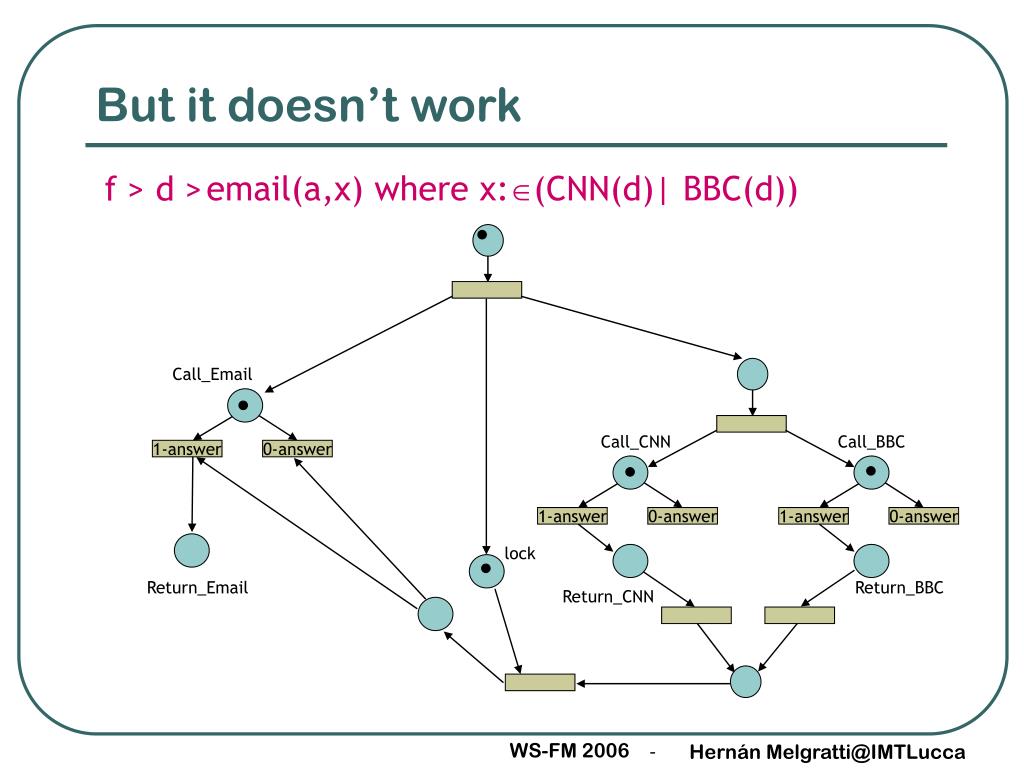

  27. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN But it doesn’t work email(a,x) where x:(CNN(d)| BBC(d)) f > d > Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

  28. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN But it doesn’t work email(a,x) where x:(CNN(d)| BBC(d)) f > d > Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

  29. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN But it doesn’t work email(a,x) where x:(CNN(d)| BBC(d)) f > d > Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

  30. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN But it doesn’t work email(a,x) where x:(CNN(d)| BBC(d)) f > d > Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

  31. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN But it doesn’t work email(a,x) where x:(CNN(d)| BBC(d)) f > d > Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

  32. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN But it doesn’t work email(a,x) where x:(CNN(d)| BBC(d)) f > d > Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

  33. Call_CNN Call_BBC 1-answer 0-answer 1-answer 0-answer Return_CNN But it doesn’t work email(a,x) where x:(CNN(d)| BBC(d)) f > d > • In any case we sequentialise several evaluations of the same expression • We should kill the running computation (i.e., remove tokens from the net). • This can be done by using inhibitor or reset arcs Call_Email 1-answer 0-answer lock Return_Email Return_BBC Hernán Melgratti@IMTLucca

  34. Join • Join processes can be seen as dynamic and reconfigurable, coloured nets Hernán Melgratti@IMTLucca

  35. Join • Join processes can be seen as dynamic and reconfigurable, coloured nets a x b x ax xb Hernán Melgratti@IMTLucca

  36. a a a c c b b b x x b b x x def ax xb def ax xb   in aa | cb in ab | cb Join • Join processes can be seen as dynamic and reconfigurable, coloured nets a a c x b x def ax xb in aa | ac Hernán Melgratti@IMTLucca

  37. a x c c y y x ax def cy yx incc Join • Join processes can be seen as dynamic and reconfigurable, coloured nets Hernán Melgratti@IMTLucca

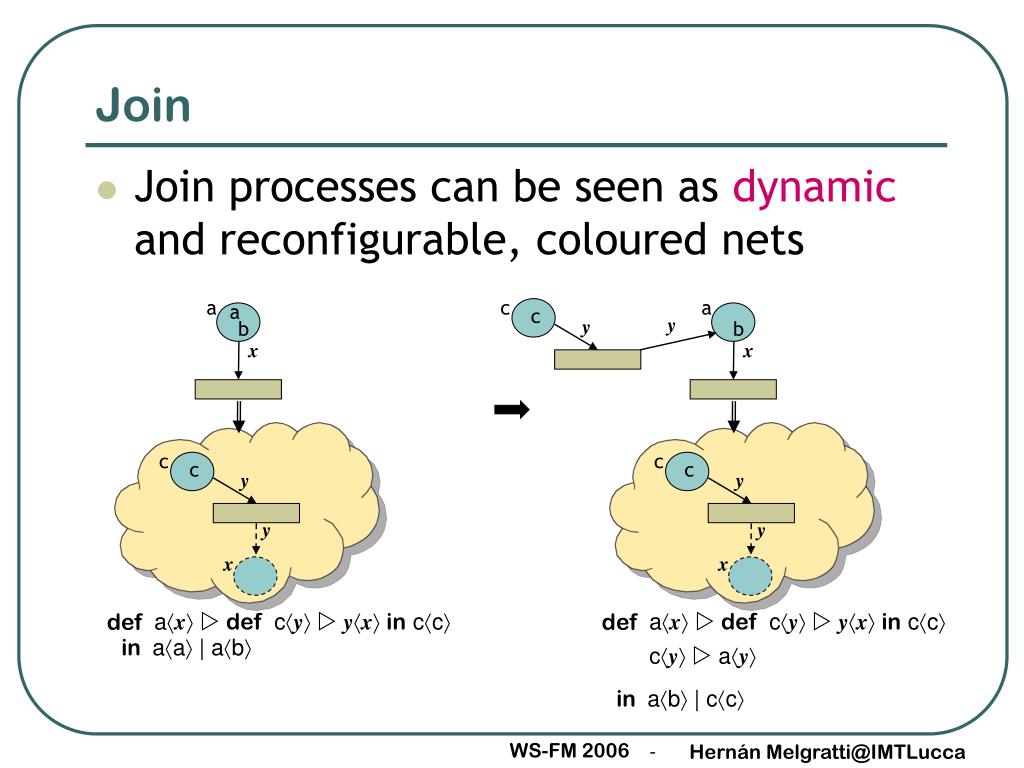

  38. c a c y y b x c c y y x def ax def cy yx incc cy ay in ab | cc Join • Join processes can be seen as dynamic and reconfigurable, coloured nets a a b x c c y y x def ax def cy yx incc in aa | ab Hernán Melgratti@IMTLucca

  39. f w v Any evaluation of g is done on a fresh copy of the net g z def wv  {g}z in {f}w Orc into Join { f > x > g }z Hernán Melgratti@IMTLucca

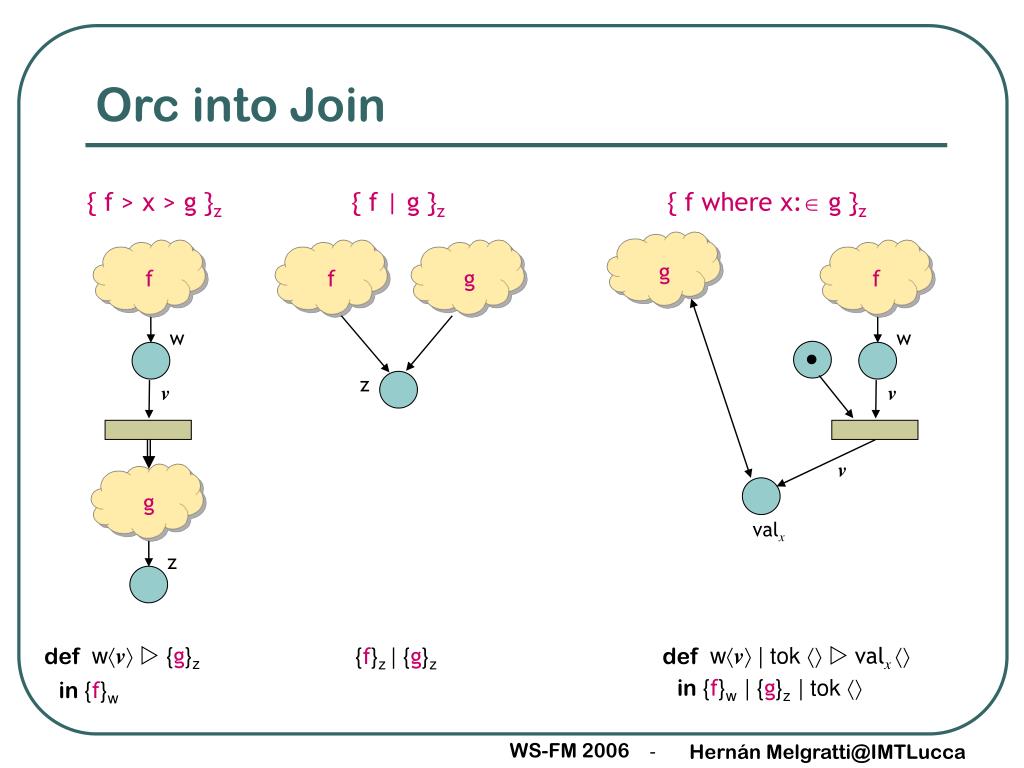

  40. { f | g }z { f where x: g }z g f g f w z v v valx def wv | tok  valx  {f}z | {g}z in {f}w| {g}z| tok  Orc into Join { f > x > g }z f w v g z def wv  {g}z in {f}w Hernán Melgratti@IMTLucca

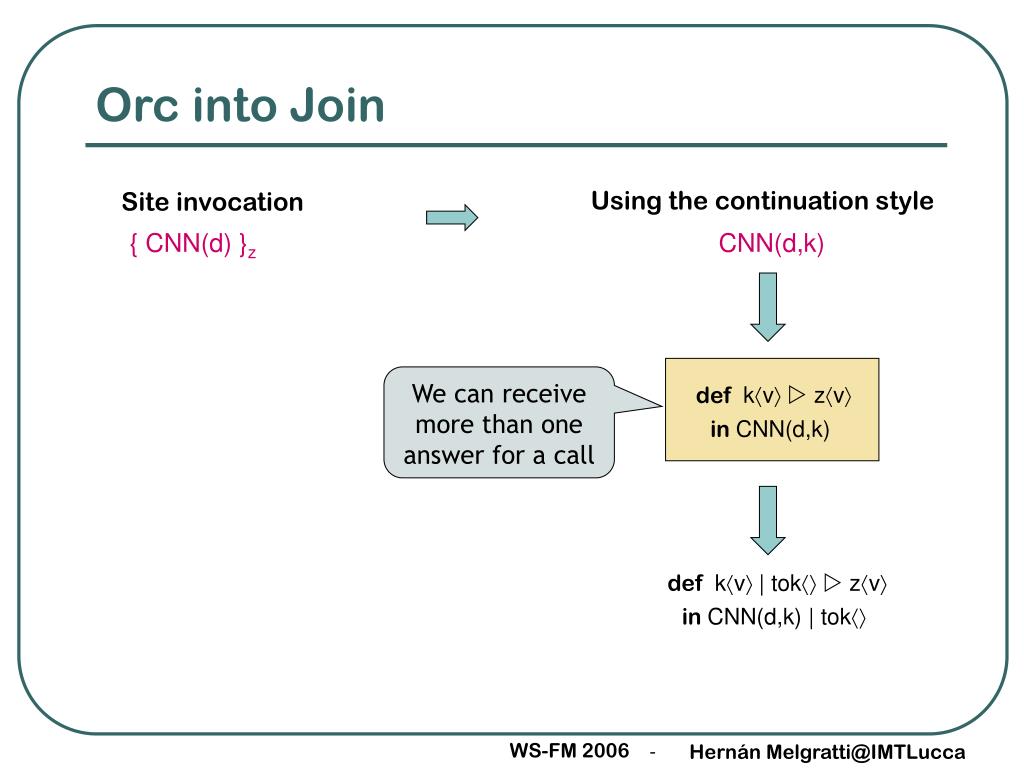

  41. def kv  zv in CNN(d,k) def kv | tok  zv in CNN(d,k) | tok Orc into Join Using the continuation style Site invocation { CNN(d) }z CNN(d,k) We can receive more than one answer for a call Hernán Melgratti@IMTLucca

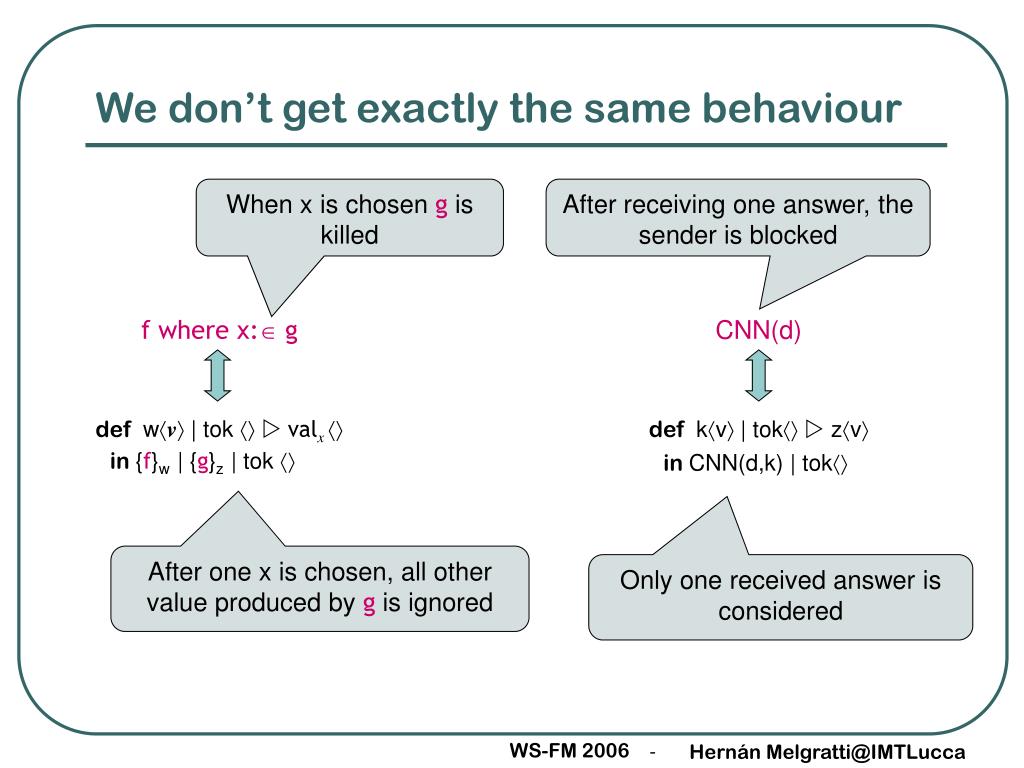

  42. f where x: g CNN(d) def wv | tok  valx  def kv | tok  zv in {f}w| {g}z| tok  in CNN(d,k) | tok We don’t get exactly the same behaviour When x is chosen g is killed After receiving one answer, the sender is blocked After one x is chosen, all other value produced by g is ignored Only one received answer is considered Hernán Melgratti@IMTLucca

  43. Correspondence • Theorem: Let O be an Orc Program and {O} its encoding in Join. Then, O  {O} when considering the non killing asymmetric composition. Hernán Melgratti@IMTLucca

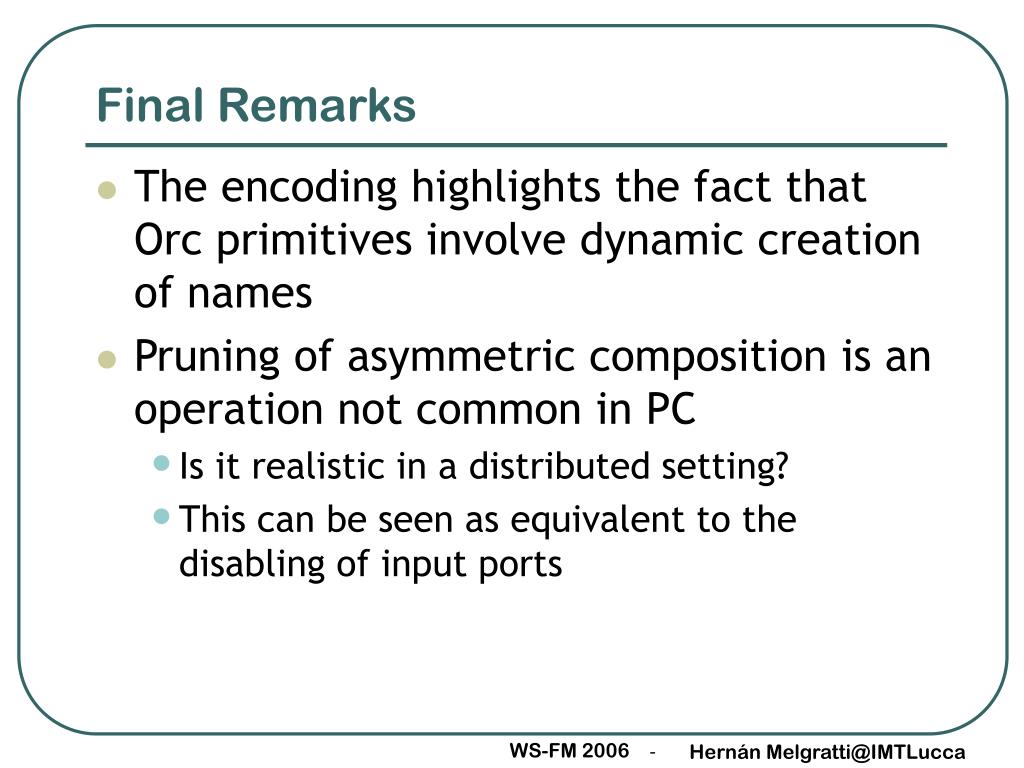

  44. Final Remarks • The encoding highlights the fact that Orc primitives involve dynamic creation of names • Pruning of asymmetric composition is an operation not common in PC • Is it realistic in a distributed setting? • This can be seen as equivalent to the disabling of input ports Hernán Melgratti@IMTLucca
