  1. Wet Areas

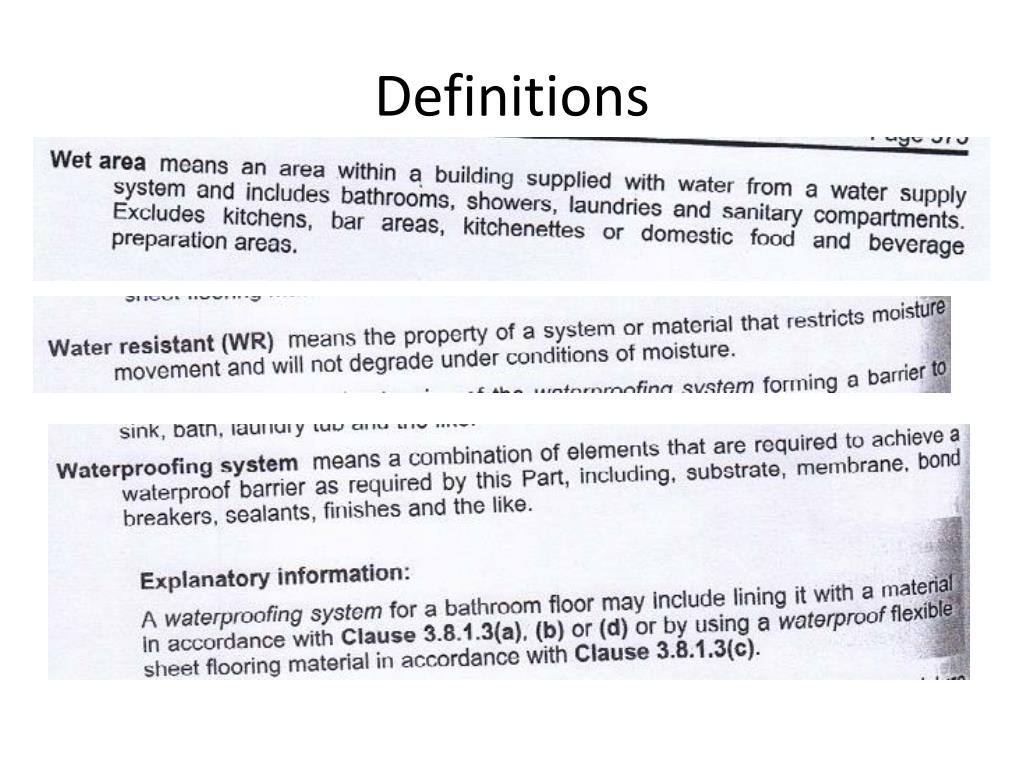

  2. Definitions

  3. Risk Potential For Wet AreasAS 3740 • High Risk – Shower Recesses • Medium Risk – Rest of Bathroom & Laundry • Low Risk – WC Room & immediate area around a kitchen sink, bar or similar

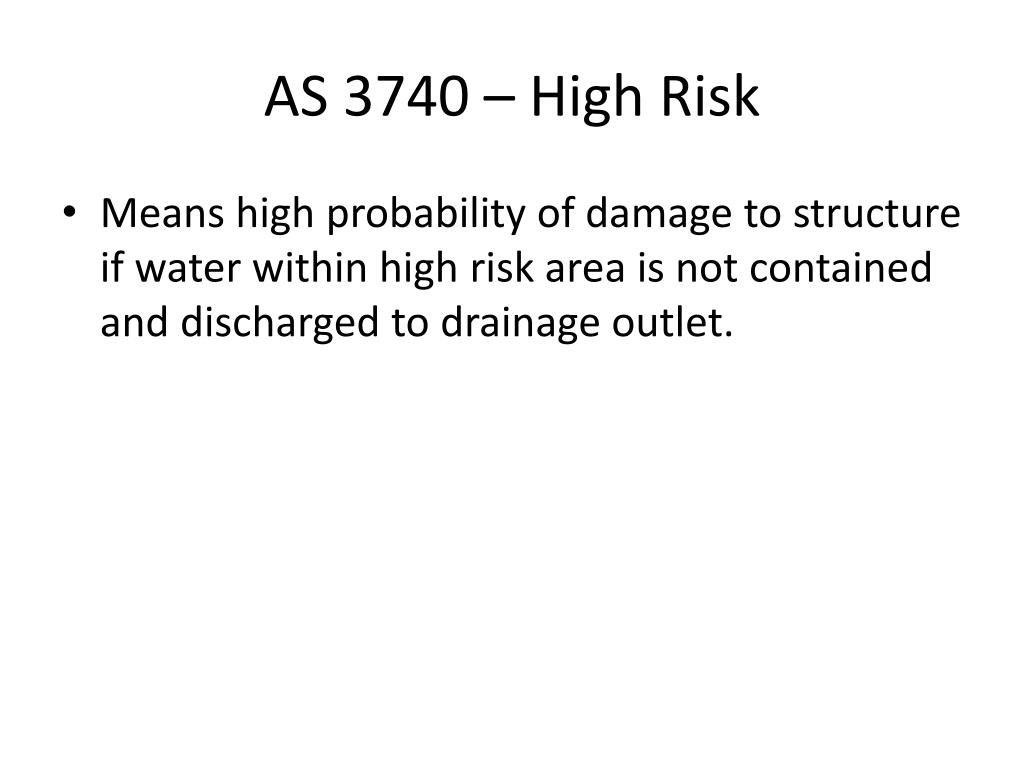

  4. AS 3740 – High Risk • Means high probability of damage to structure if water within high risk area is not contained and discharged to drainage outlet.

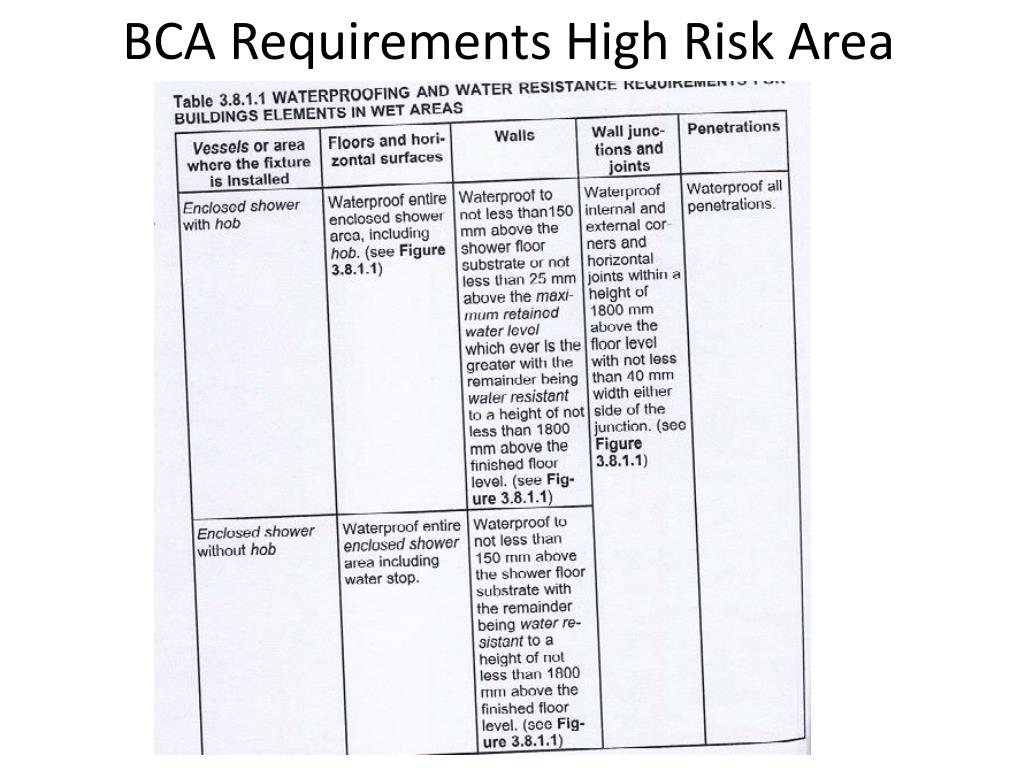

  5. BCA Requirements High Risk Area

  6. BCA Requirements High Risk Area

  7. AS 3740 – Medium Risk • Accidental spillage must be contained to with in the room. • It is imperative that water not be allowed to pass into concealed spaces or to adjoining rooms • Drainage not neccessary

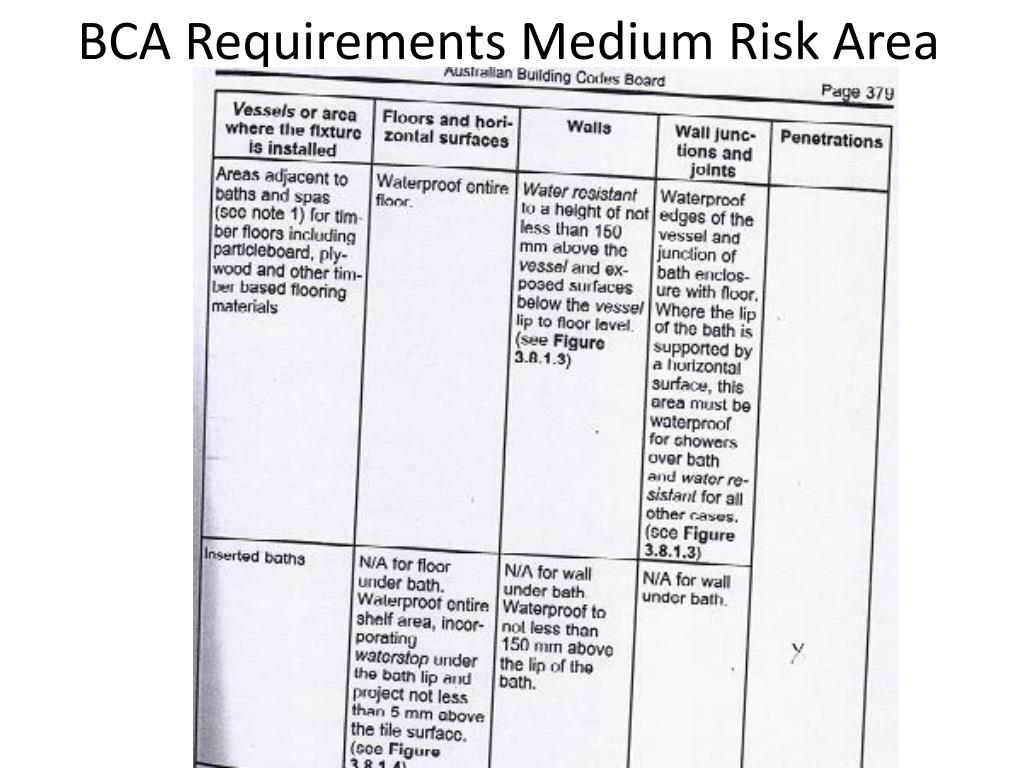

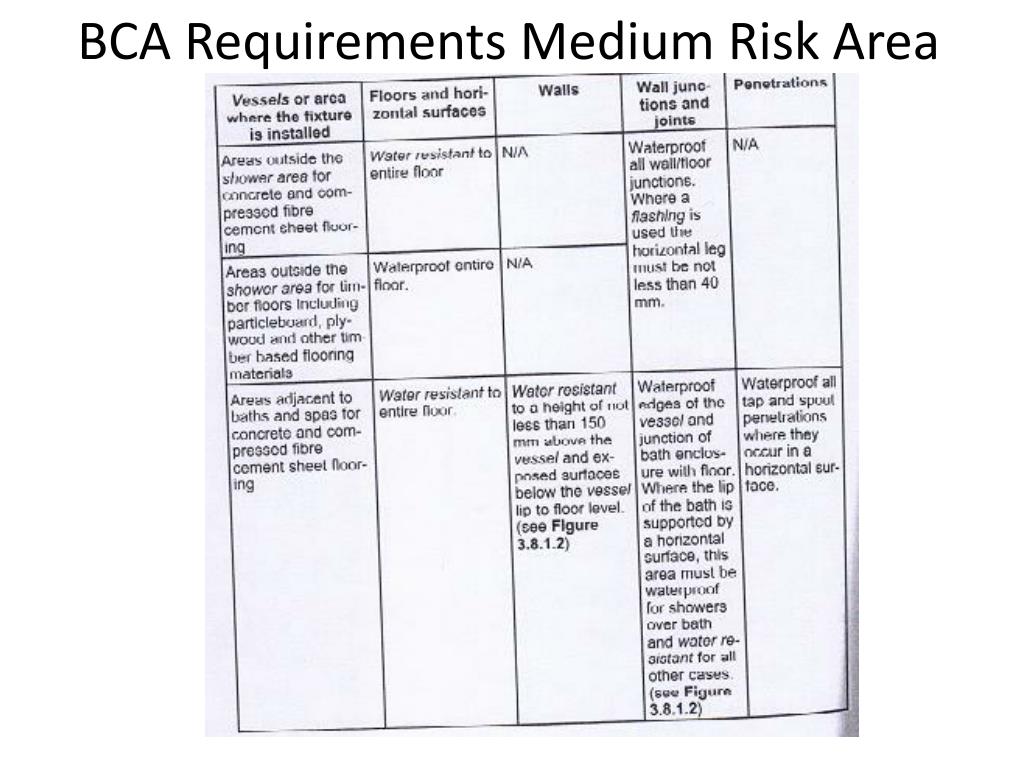

  8. BCA Requirements Medium Risk Area

  9. BCA Requirements Medium Risk Area

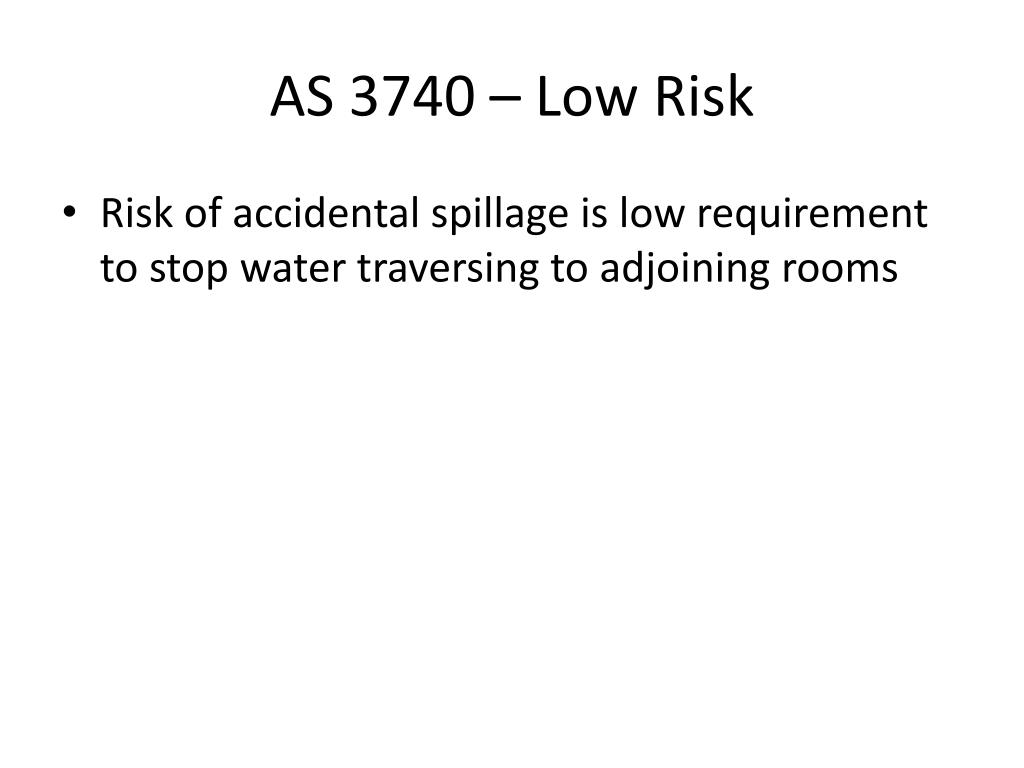

  10. AS 3740 – Low Risk • Risk of accidental spillage is low requirement to stop water traversing to adjoining rooms

  11. BCA Requirements Low Risk

  12. High Risk Area

  13. High Risk Area

  14. Preformed Shower Bases

  15. Preformed Shower Bases • Must be fully supported • Recessed Into Walls

  16. Preformed Shower Bases

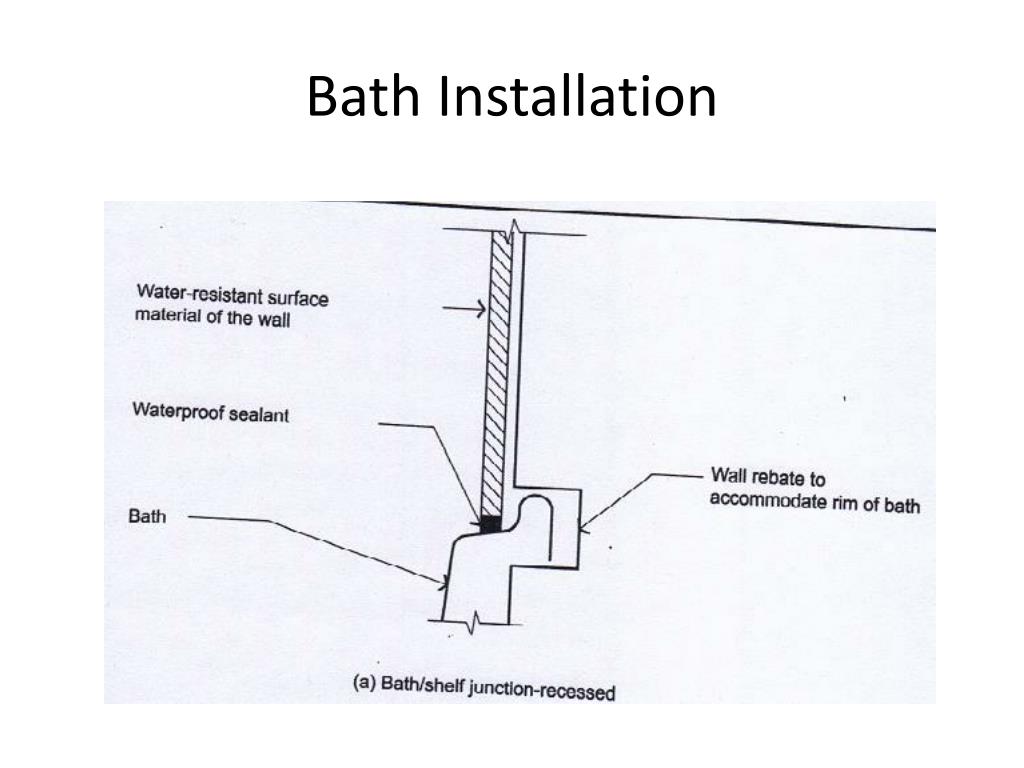

  17. Bath Installation

  18. Bath Installation

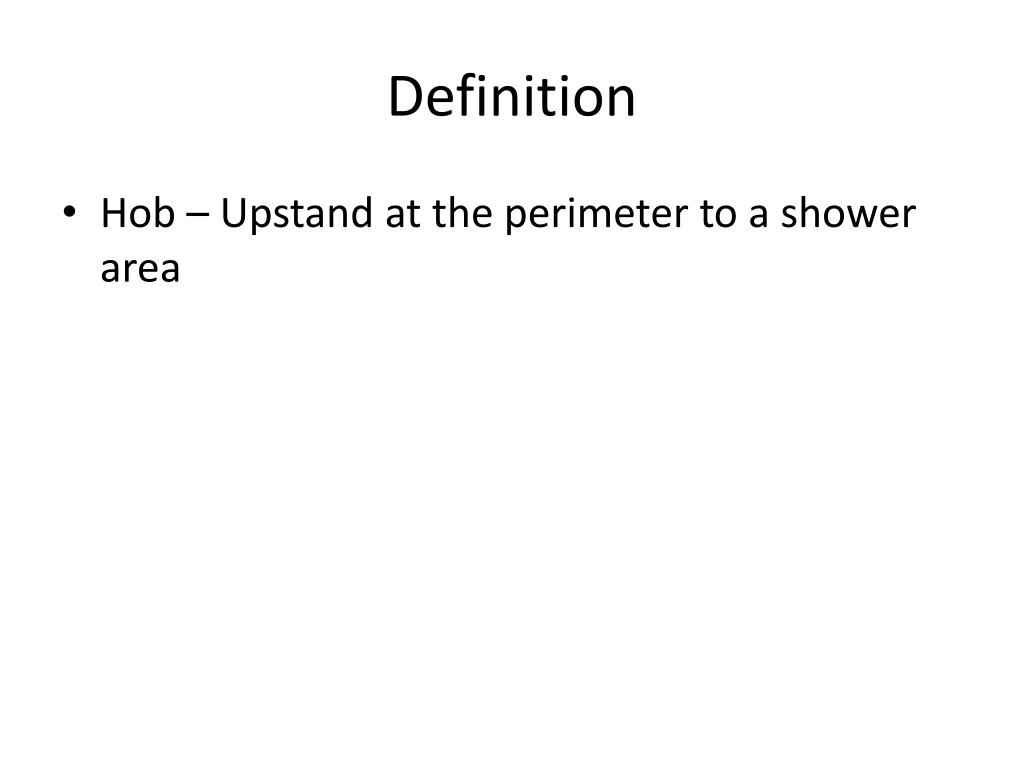

  19. Definition • Hob – Upstand at the perimeter to a shower area

  20. Hob Requirements BCA

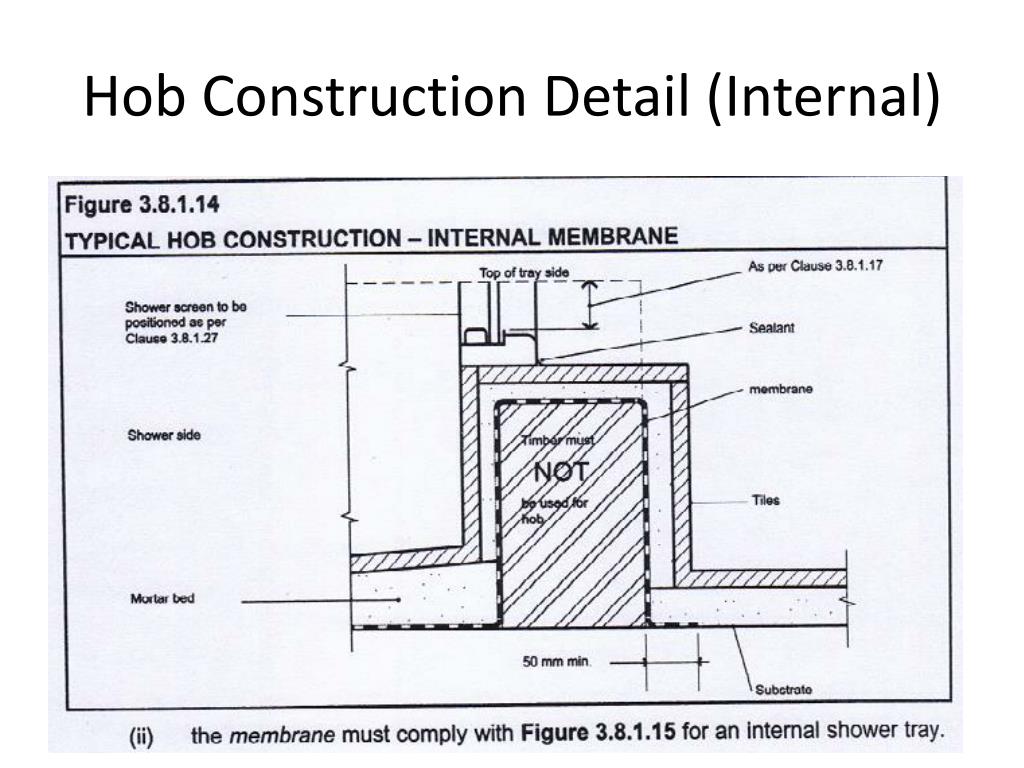

  21. Hob Construction Detail (Internal)

  22. Hob Construction Detail (External)
