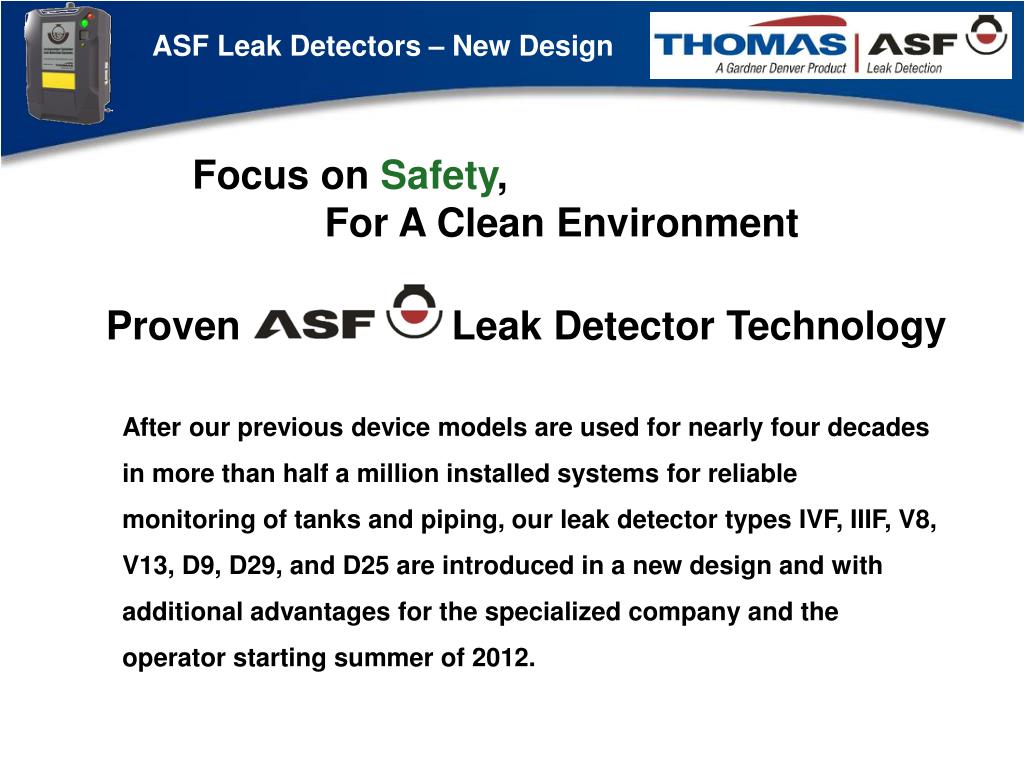

  1. Proven ASF Leak Detector Technology Focus on Safety, For A Clean Environment After our previous device models are used for nearly four decades in more than half a million installed systems for reliable monitoring of tanks and piping, our leak detector types IVF, IIIF, V8, V13, D9, D29, and D25 are introduced in a new design and with additional advantages for the specialized company and the operator starting summer of 2012. Weiter  Klicken Präsentation neuer LAG Newsletter.ppt

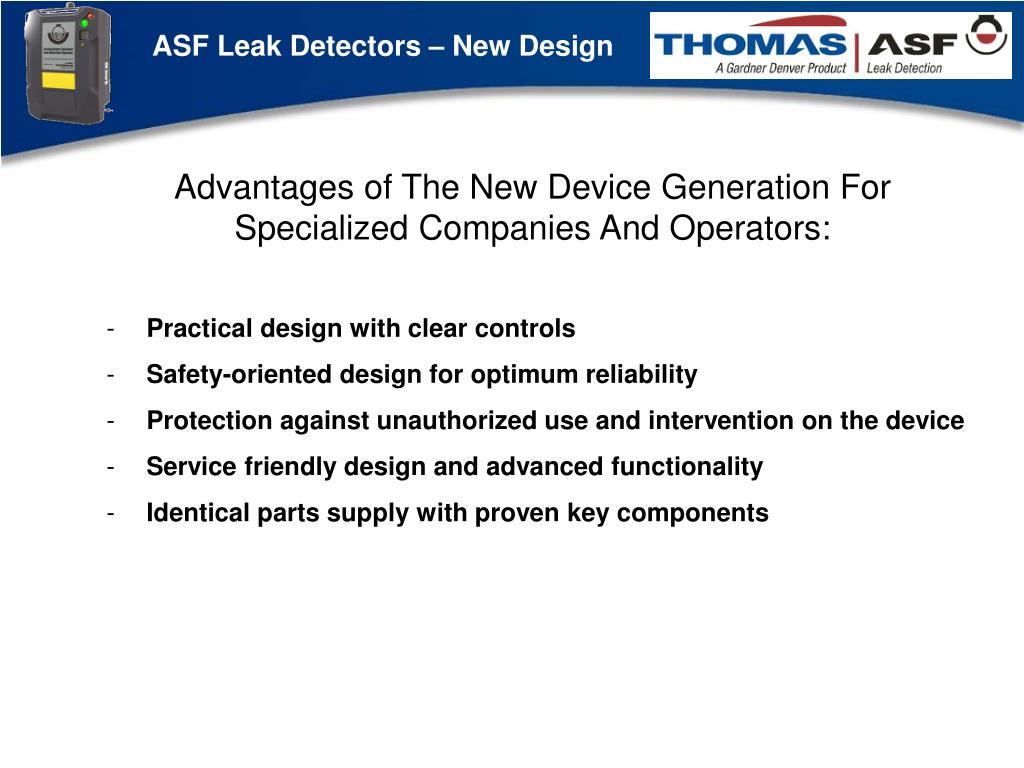

  2. Advantages of The New Device Generation For Specialized Companies And Operators: • Practical design with clear controls • Safety-oriented design for optimum reliability • Protection against unauthorized use and intervention on the device • Service friendly design and advanced functionality • Identical parts supply with proven key components Weiter  Klicken Präsentation neuer LAG Newsletter.ppt

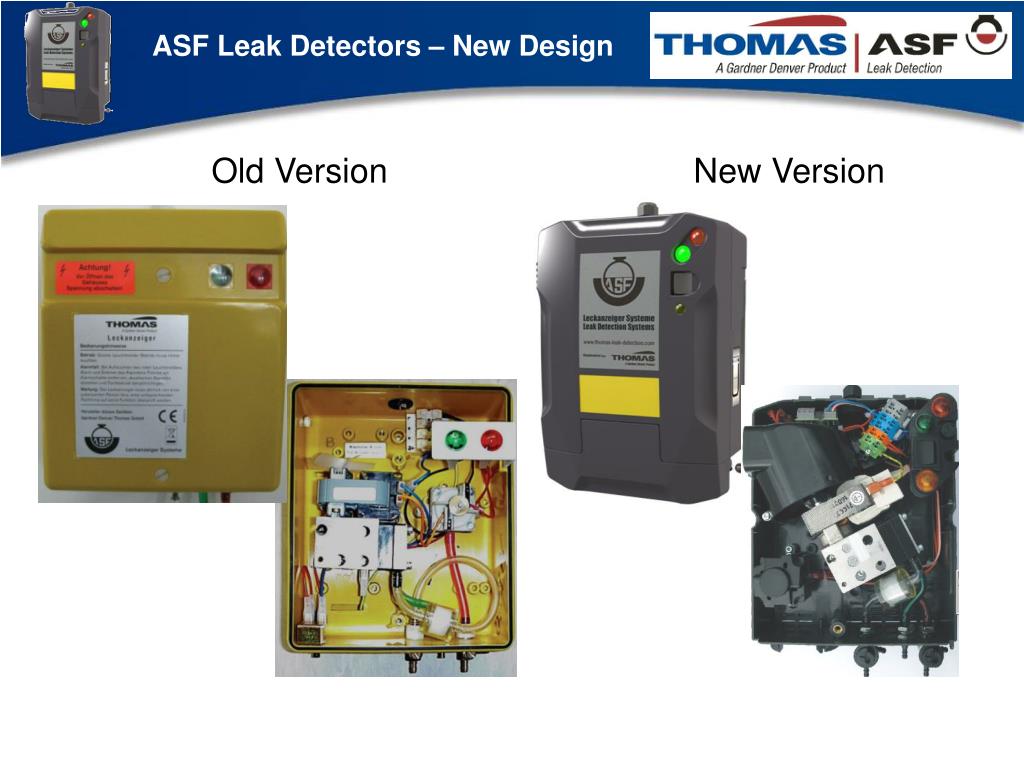

  3. Old Version New Version Weiter  Klicken Präsentation neuer LAG Newsletter.ppt

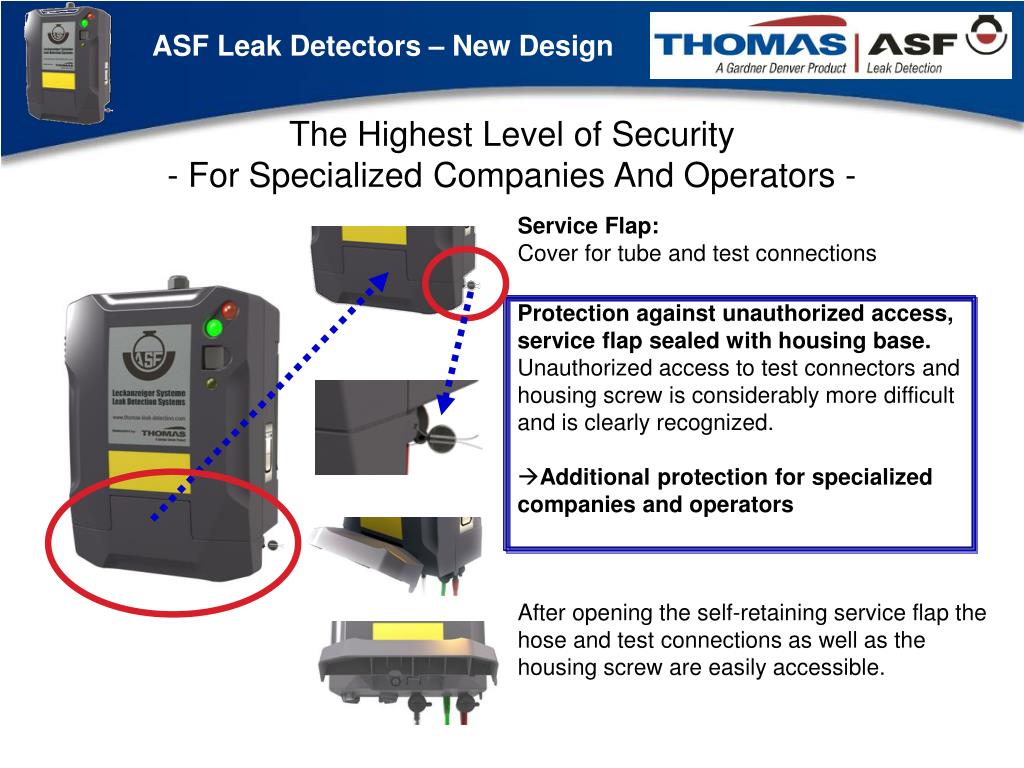

  4. The Highest Level of Security- For Specialized Companies And Operators - Service Flap: Cover for tube and test connections • Protection against unauthorized access, service flap sealed with housing base.Unauthorized access to test connectors and housing screw is considerably more difficult and is clearly recognized. • Additional protection for specialized companies and operators After opening the self-retaining service flap the hose and test connections as well as the housing screw are easily accessible. Weiter  Klicken Präsentation neuer LAG Newsletter.ppt

  5. Service Friendly Design 3-way test valves:Robust test valves for simple and time-saving test. Safety-oriented design:Known 3-way test valves have the disadvantage that an unintentional false setting of the test valve separates the interstitial space to the pressure transducer.A pressure drop in the interstitial space is not reliably detected in each case, a correct alarm output is thus not ensured. The design of the new ASF leak detectors allows to close the service door completely only when both test valves are in proper operating position. After completion of the work the service flap is sealed to the housing base. Weiter  Klicken Präsentation neuer LAG Newsletter.ppt

  6. Clear, easy-view instructions, display and controls Red alarm light Green operation light Alarm buzzer switchBuzzer disabled indicated by yellow light Concise and clearly understandable operating instructions Insert compartment for installation and operating manual Reference to previous device types by color coding (e.g. IVF yellow, D9 red) Custom service and address information possible Weiter  Klicken Präsentation neuer LAG Newsletter.ppt

  7. Proven and reliable internal components Simple device replacement  Same position of the screw holes and the electrical connection Electrical connection  Well accessible, front-side terminal block, - on the top are 2 more passage openings available Potential free contact  used in many device types as standard, and easy to retrofit Optimal spare parts supply  Reuse of proven major components allows the same kind of spare parts supply to the specialized companies. This applies to: Lamps, Pumps, Pressure Switch, Filters Integrated heating  For applications in the freezing range an optional heating with thermostat control can also be integrated. An additional heating, for example in the protective housing, therefore is no longer required. Further optimization: - Improved air circulation and cooling of the pump - Pressure switch with protective cover - Protection of the pump Weiter  Klicken - Simple exchange of lighting Präsentation neuer LAG Newsletter.ppt

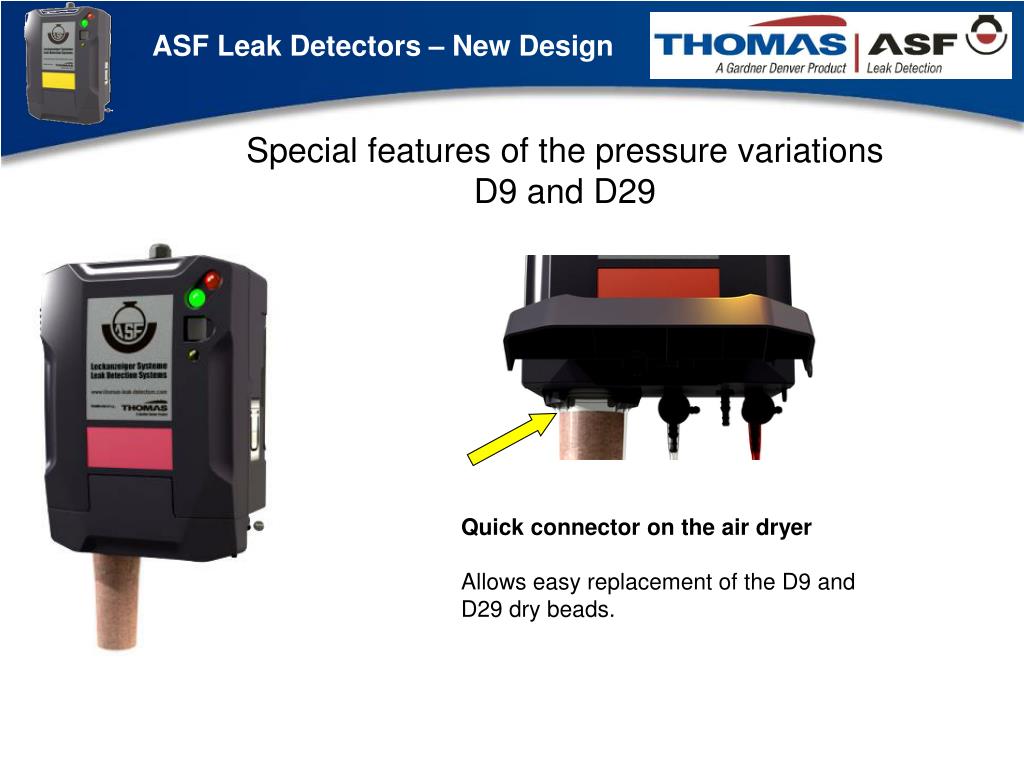

  8. Special features of the pressure variations D9 and D29 Quick connector on the air dryerAllows easy replacement of the D9 and D29 dry beads. Weiter  Klicken Präsentation neuer LAG Newsletter.ppt

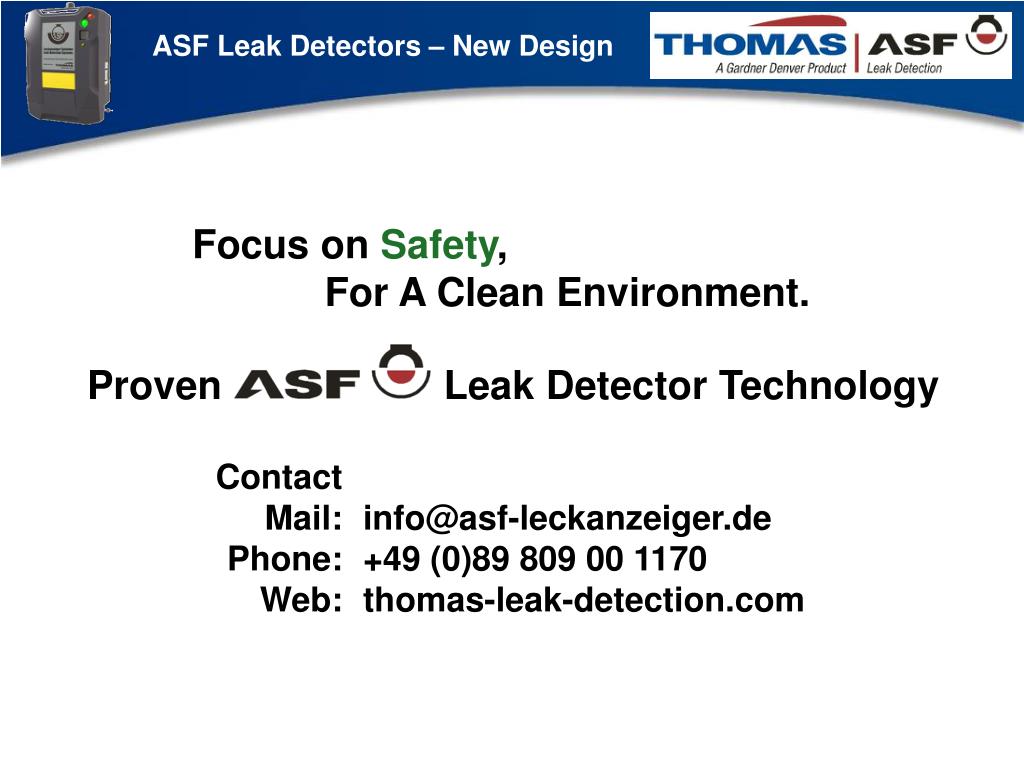

  9. Proven ASF Leak Detector Technology Focus on Safety, For A Clean Environment. Contact Mail: info@asf-leckanzeiger.de Phone: +49 (0)89 809 00 1170 Web: thomas-leak-detection.com Präsentation neuer LAG Newsletter.ppt
