Bit-Splitting method for regular expression

1. Bit-Splitting method for regular expression Presented by Tamer Abuhmed Information Security Research Laboratory http://seclab.inha.ac.kr/

2. Contents • Introduction • Applying the Bit-split method on the Aho-Corasick Algorithm. • The efficiency of bit-splitting. • Applying bit-splitting on regular expression • Examples about bit-splitting on Reg.Ex. • Analysis • Discussion

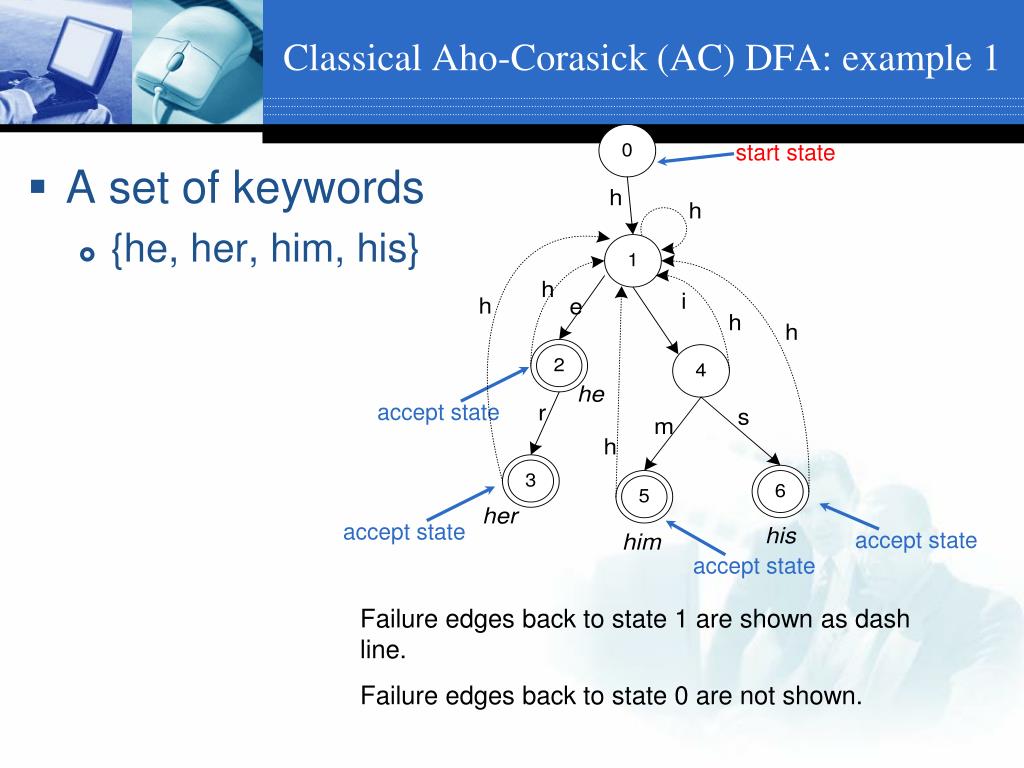

3. start state accept state accept state accept state accept state Classical Aho-Corasick (AC) DFA: example 1 • A set of keywords • {he, her, him, his} Failure edges back to state 1 are shown as dash line. Failure edges back to state 0 are not shown.

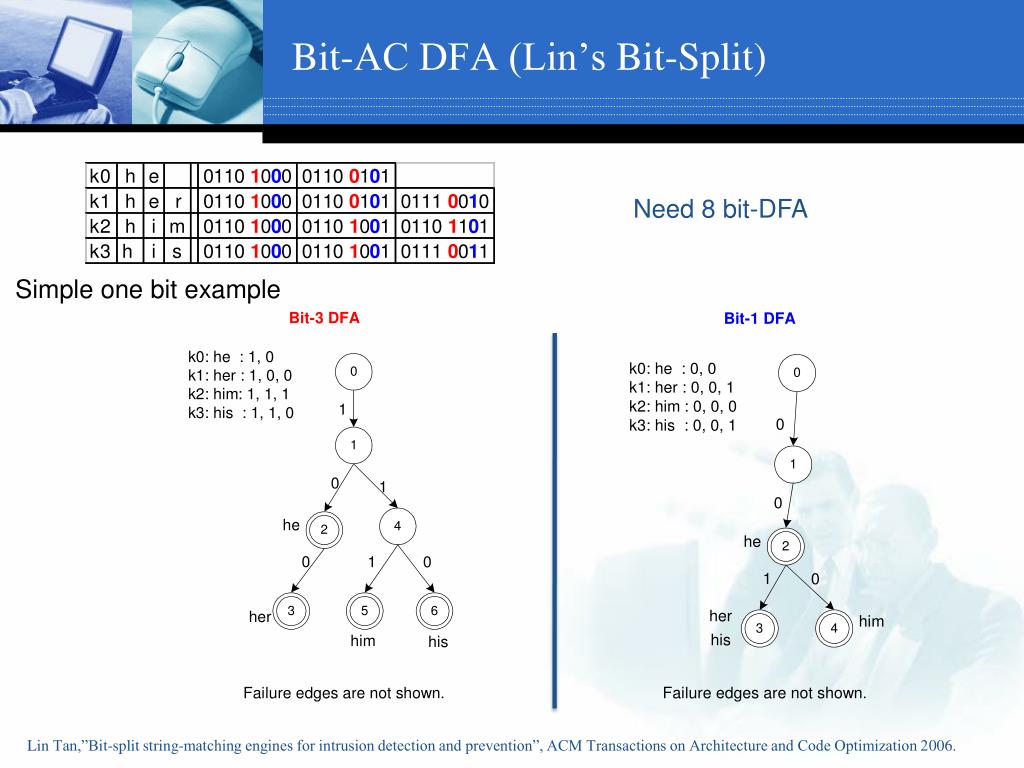

4. Bit-AC DFA (Lin’s Bit-Split) Need 8 bit-DFA Simple one bit example Lin Tan,”Bit-split string-matching engines for intrusion detection and prevention”, ACM Transactions on Architecture and Code Optimization 2006.

5. Bit-AC DFA (Lin’s Bit-Split) Con't 4th5th Bits - DFA

7. Comparison AHO-Memory Implementation AHO-(bit split) Memory Implementation

8. Benefits of Bit-split method • Eliminate the non-output states so the result binary tree has less number of states than the original DFA. • Reduce the next stat pointer size(15bit-9bit) • Reduce the transition records from 27000 to 300

9. Regular Expression Types DFA: Reg. Exp ^ABCD(Explicit ) DFA: Reg. Exp ^AB.*CD (with wildcards .* ) ASCII CHAR. Fang Yu,Fast and Memory-Efficient Regular Expression Matching for Deep Packet Inspection, ACM, ANCS 2006

10. Regular Expression Types Con't • At least RE  AB.{2+}CD • At mostRE  AB.{0,2}CD

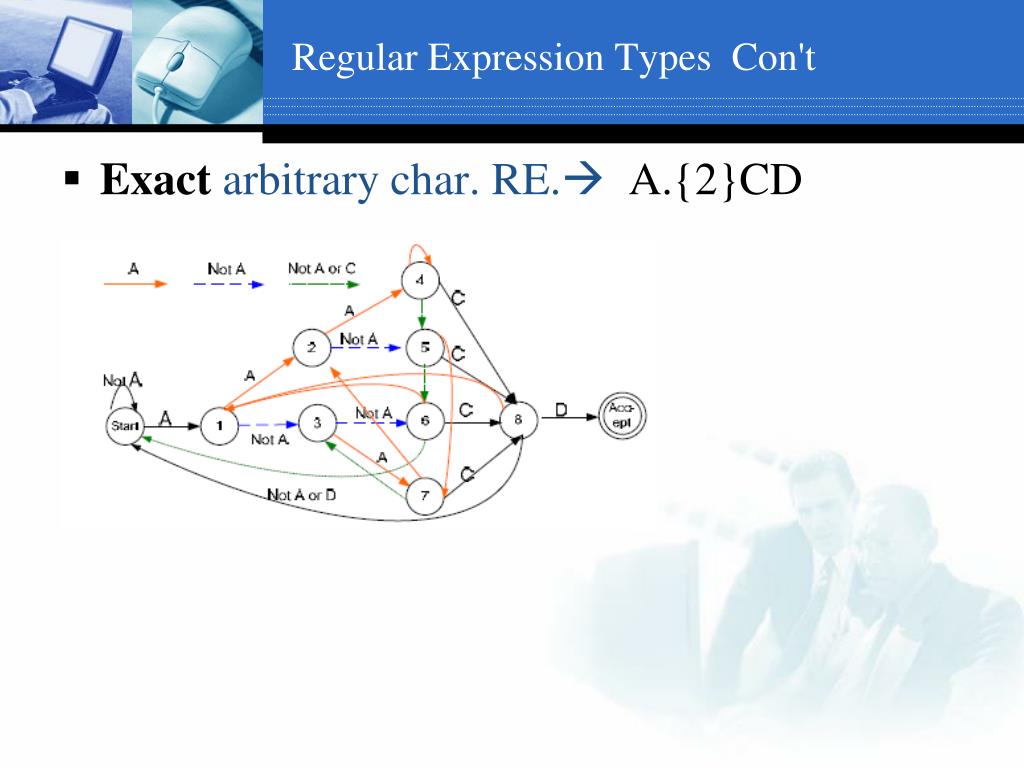

11. Regular Expression Types Con't • Exact arbitrary char. RE.A.{2}CD

12. Statistics Sailesh Kumar,Algorithms to accelerate multiple regular expressions matching for deep packet inspection. SIGCOMM 2006
