face recognition using pca eigenfaces and lda fisherfaces

Face Recognition using PCA (Eigenfaces) and LDA (Fisherfaces)

Pradeep Buddharaju

COSC 6397

U of H

principal component analysis
Principal Component Analysis
  • A N x N pixel image of a face, represented as a vector occupies a single point in N2-dimensional image space.
  • Images of faces being similar in overall configuration, will not be randomly distributed in this huge image space.
  • Therefore, they can be described by a low dimensional subspace.
  • Main idea of PCA (cutler96):
    • To find vectors that best account for variation of face images in entire image space.
    • These vectors are called eigen vectors.
    • Construct a face space and project the images into this face space (eigenfaces).
image representation
Image Representation
  • Training set of images of size N*N are represented by vectors of size N2

1,2,3,…,M

Example

average image and difference images
Average Image and Difference Images
  • The average training set is defined by

Ψ = (1/M) ∑Mi=1i

  • Each face differs from the average by vector

Φi = Γi – Ψ

covariance matrix
Covariance Matrix
  • A covariance matrix is constructed as:

C = AAT, where A=[Φ1,…,ΦM] of size N2x N2

  • Finding eigenvectors of N2x N2 matrix is intractable. Hence, use the matrix ATA of size M x M and find eigenvectors of this small matrix.

Size of this matrix is N2 x N2

Size of this matrix is M*M

eigenvalues and eigenvectors definition
Eigenvalues and Eigenvectors - Definition
  • If v is a nonzero vector and λ is a number such that

Av = λv, then

v is said to be an eigenvector of A with eigenvalue λ.

Example

l

(eigenvalues)

(eigenvectors)

A

v

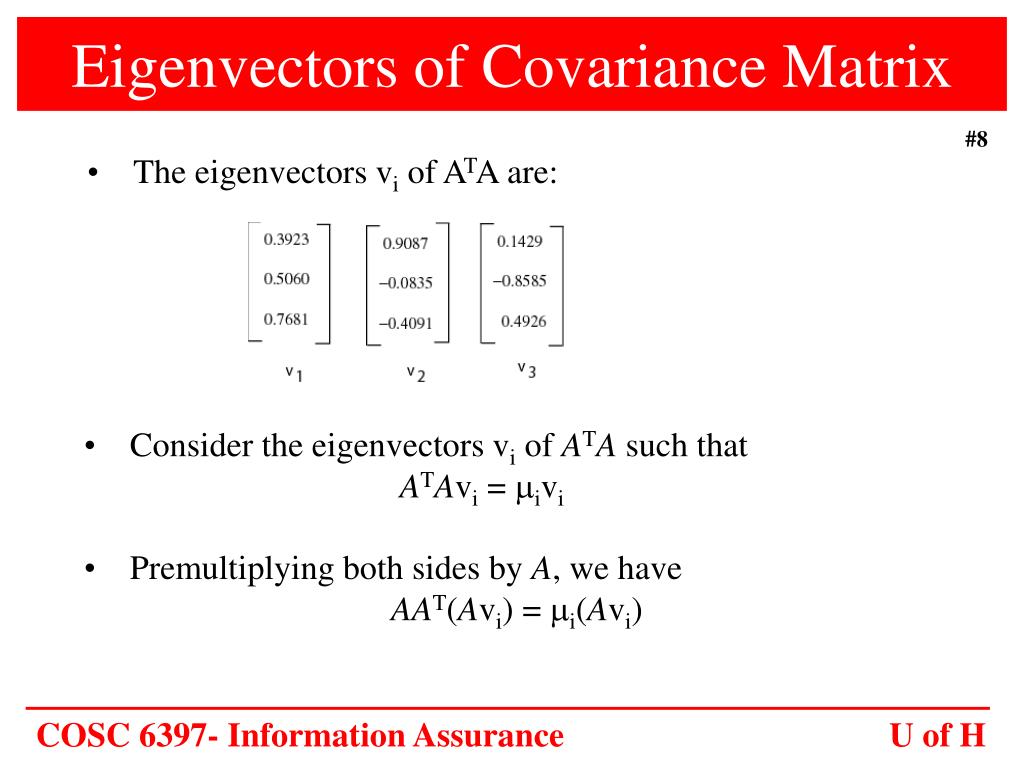

eigenvectors of covariance matrix
Eigenvectors of Covariance Matrix
  • The eigenvectors vi of ATA are:
  • Consider the eigenvectors vi of ATA such that
  • ATAvi = ivi
  • Premultiplying both sides by A, we have
  • AAT(Avi) = i(Avi)
face space
Face Space
  • The eigenvectors of covariance matrix are

ui = Avi

Face Space

  • ui resemble facial images which look ghostly, hence called eigenfaces
projection into face space
Projection into Face Space
  • A face image can be projected into this face space by

Ωk = UT(Γk – Ψ); k=1,…,M

Projection of Image1

recognition
Recognition
  • The test image, Γ, is projected into the face space to obtain a vector, Ω:

Ω = UT(Γ – Ψ)

  • The distance of Ω to each face class is defined by

Єk2 = ||Ω-Ωk||2; k = 1,…,M

  • A distance threshold,Өc, is half the largest distance between any two face images:

Өc = ½ maxj,k {||Ωj-Ωk||}; j,k = 1,…,M

recognition12
Recognition
  • Find the distance, Є , between the original image, Γ, and its reconstructed image from the eigenface space, Γf,

Є2 = || Γ – Γf ||2 , where Γf = U * Ω + Ψ

  • Recognition process:
    • IF Є≥Өcthen input image is not a face image;
    • IF Є<ӨcAND Єk≥Өc for all k then input image contains an unknown face;
    • IF Є<Өc AND Єk*=mink{ Єk} < Өcthen input image contains the face of individual k*

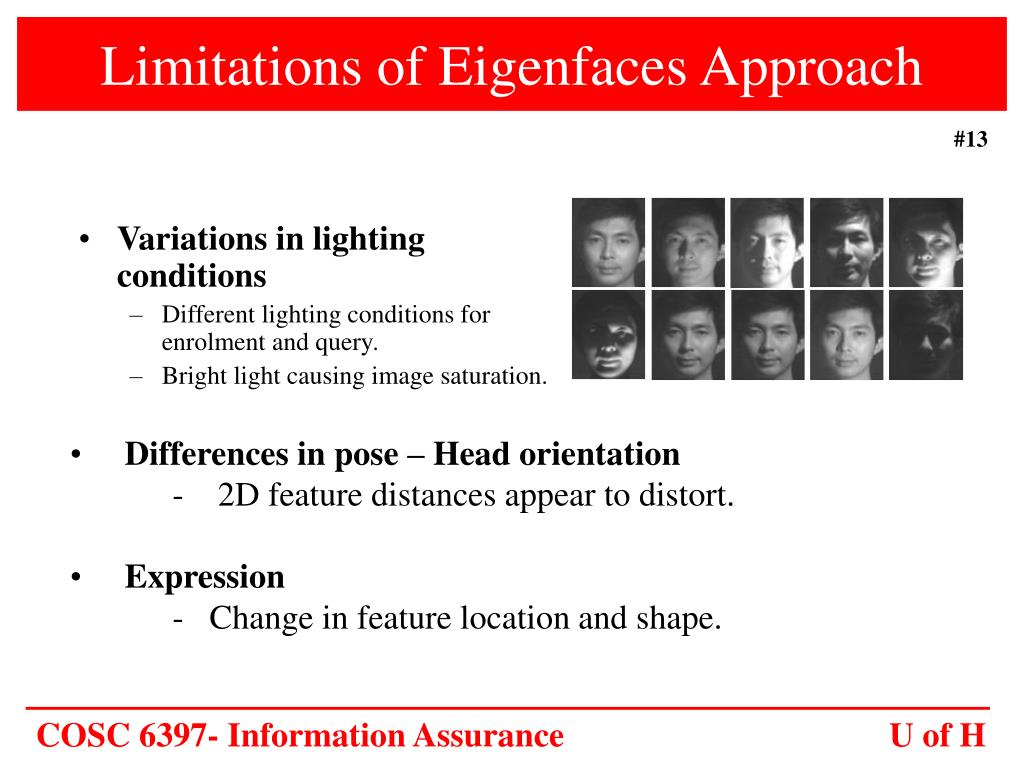

limitations of eigenfaces approach
Limitations of Eigenfaces Approach
  • Variations in lighting conditions
    • Different lighting conditions for enrolment and query.
    • Bright light causing image saturation.
  • Differences in pose – Head orientation
    • - 2D feature distances appear to distort.
  • Expression
    • - Change in feature location and shape.
linear discriminant analysis
Linear Discriminant Analysis
  • PCA does not use class information
    • PCA projections are optimal for reconstruction from a low dimensional basis, they may not be optimal from a discrimination standpoint.
  • LDA is an enhancement to PCA
    • Constructs a discriminant subspace that minimizes the scatter between images of same class and maximizes the scatter between different class images
mean images
Mean Images
  • Let X1, X2,…, Xc be the face classes in the database and let each face class Xi, i = 1,2,…,c has k facial images xj, j=1,2,…,k.
  • We compute the mean image i of each class Xi as:
  • Now, the mean image  of all the classes in the database can be calculated as:
scatter matrices
Scatter Matrices
  • We calculate within-class scatter matrix as:
  • We calculate the between-class scatter matrix as:
projection
Projection
  • We find the product of SW-1 and SB and then compute the Eigen vectors of this product (SW-1. SB).
  • Use same technique as eigenfaces approach to reduce the dimensionality of scatter matrix to compute eigenvectors.
  • Form a matrix U that represents all eigenvectors of SW-1. SB by placing each eigenvector ui as each column in that matrix.
  • Each face image xj Xi can be projected into this face space by the operation

Ωi = UT(xj – )

testing
Testing
  • Same as Eigenfaces Approach
references
References
  • Turk, M., Pentland, A.: Eigenfaces for recognition. J. Cognitive Neuroscience 3 (1991) 71–86
  • Belhumeur, P., P.Hespanha, J., Kriegman, D.: Eigenfaces vs. fisherfaces: recognition using class specific linear projection. IEEE Transactions on Pattern Analysis and Machine Intelligence 19 (1997) 711–720
