Presentation Transcript
what is a bug

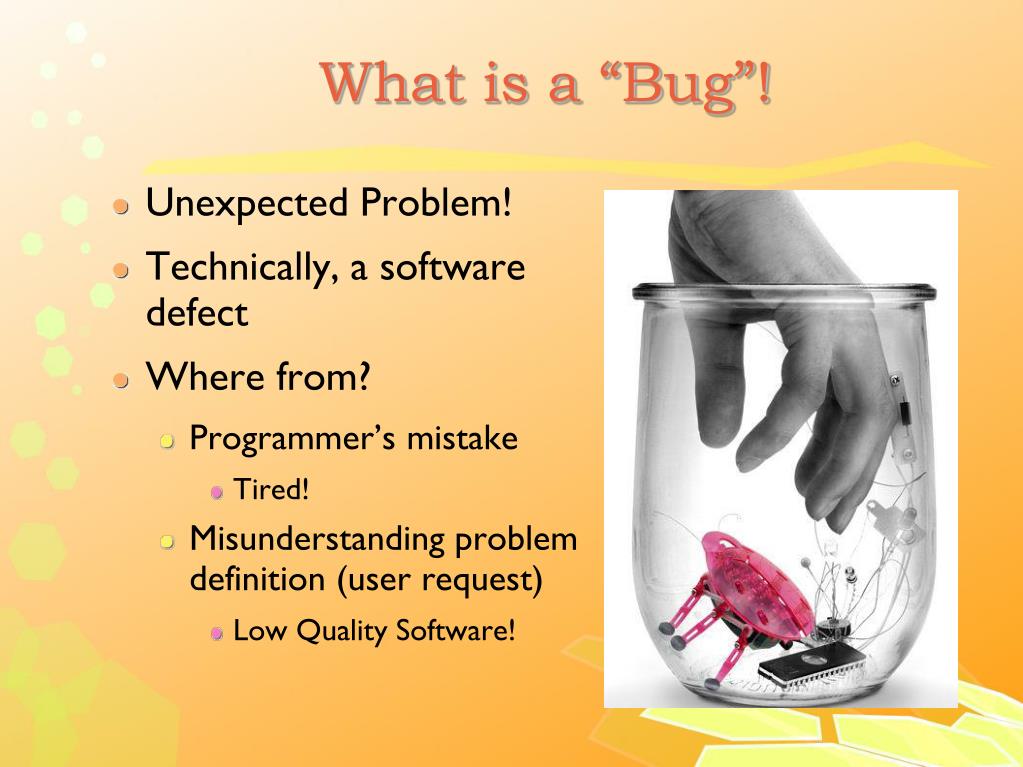

What is a “Bug”!
  • Unexpected Problem!
    • Technically, a software defect
  • Where from?
    • Programmer’s mistake
      • Tired!
    • Misunderstanding problem definition (user request)
      • Low Quality Software!
how a bug is found

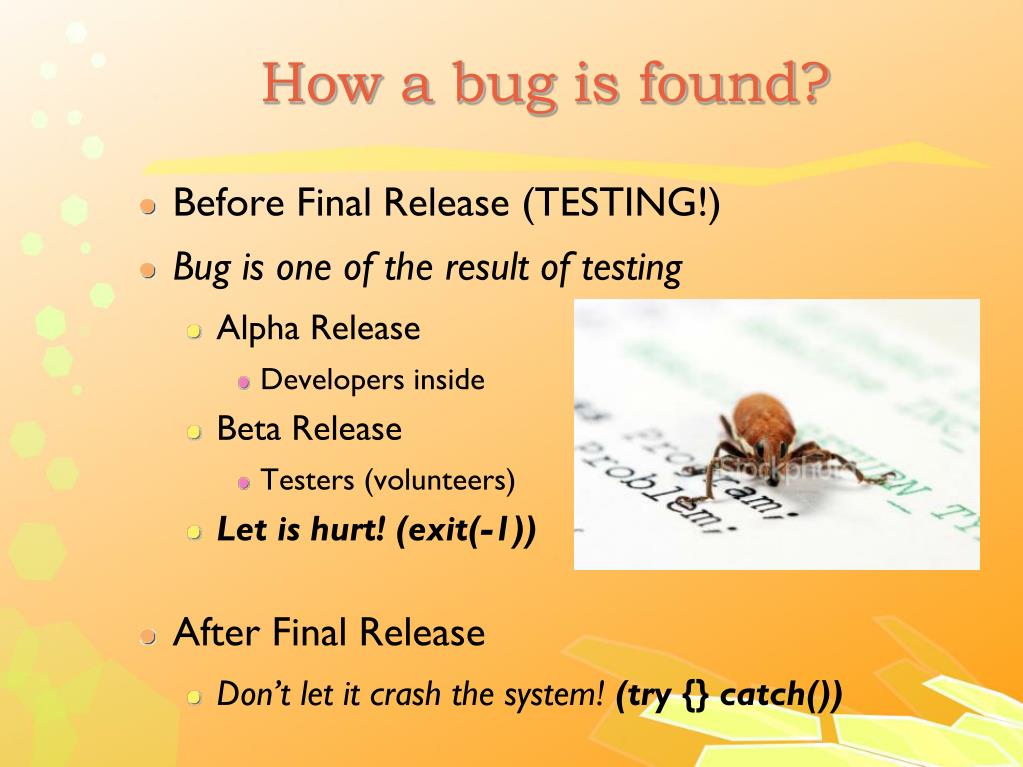

How a bug is found?
  • Before Final Release (TESTING!)
  • Bug is one of the result of testing
    • Alpha Release
      • Developers inside
    • Beta Release
      • Testers (volunteers)
    • Let is hurt! (exit(-1))
  • After Final Release
    • Don’t let it crash the system! (try {} catch())
how to report a bug
How to report a bug?
  • Traditionally
    • Manual – see developer in the street and tell him or SMS him when he is at cinema!
    • Face to face Communication
      • Result: No Recording
    • Official report : (
    • Email, email group
      • Not formatted, Not traceable, Not referable (lose of the topic in gmail-thread!)
developer s unclear response
Developer’s unclear Response
  • Feel uncomfortable, even angry!
  • Why don’t you try to write some codes?
  • I don’t believe you can do better than me.
  • QA or Tester is trouble maker
  • No one will use my system in this way
  • Can you speak English?
  • I will response to User directly, no QA

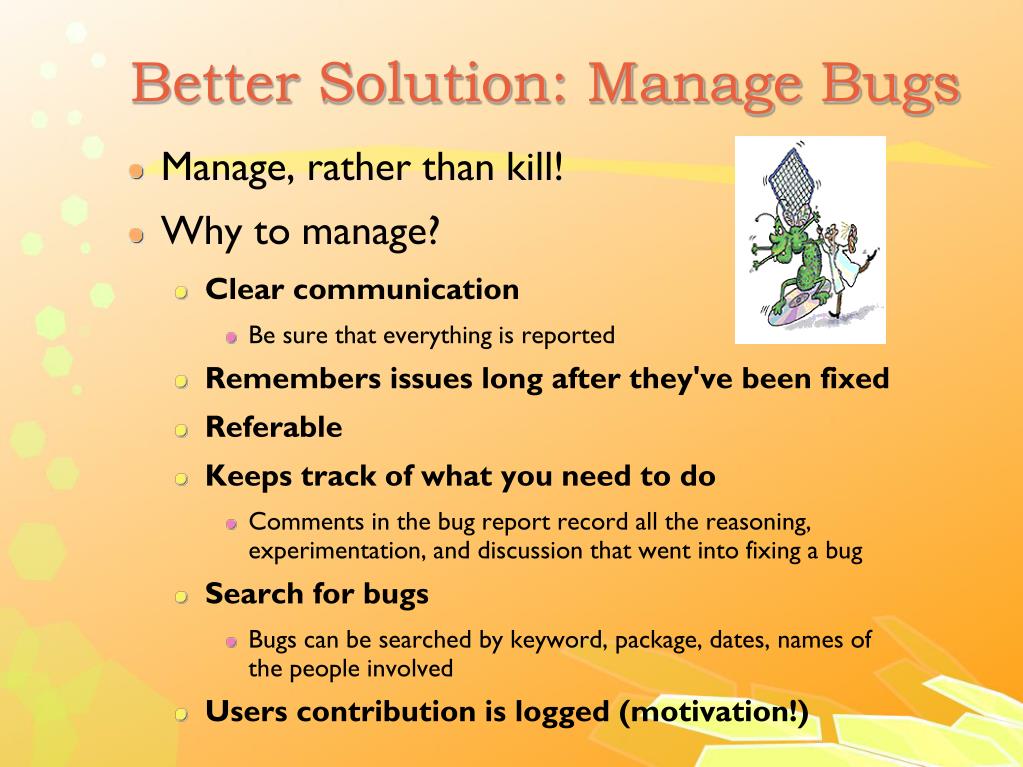

better solution manage bugs
Better Solution: Manage Bugs
  • Manage, rather than kill!
  • Why to manage?
    • Clear communication
      • Be sure that everything is reported
    • Remembers issues long after they've been fixed
    • Referable
    • Keeps track of what you need to do
      • Comments in the bug report record all the reasoning, experimentation, and discussion that went into fixing a bug
    • Search for bugs
      • Bugs can be searched by keyword, package, dates, names of the people involved
    • Users contribution is logged (motivation!)
a world s pick bugmanager
A World’s Pick BugManager
  • Bugzilla!
  • Web (http) interface (CGI and Perl)
  • Free & open source
  • MySQL back end
  • Used by many major projects
    • Mozilla, Linux kernel, Gentoo, Apache, many others: http://bugzilla.org/installation-list/
    • bugzilla can also track enhancements, todo items, etc.
what is bugzilla
What is Bugzilla?

Bugzilla is a “defect tracking system” that allows individuals or groups of developers to keep track of outstanding bugs in their product effectively.

It was developed using free open source tools and is itself free.

Despite being free, Bugzilla has many features its expensive counterparts lack.

Currently in use by Mozilla, Gnome, Open Office, Apache, Eclipse, Red Hat, Nasa, AMD and many more!

more of bugzilla users

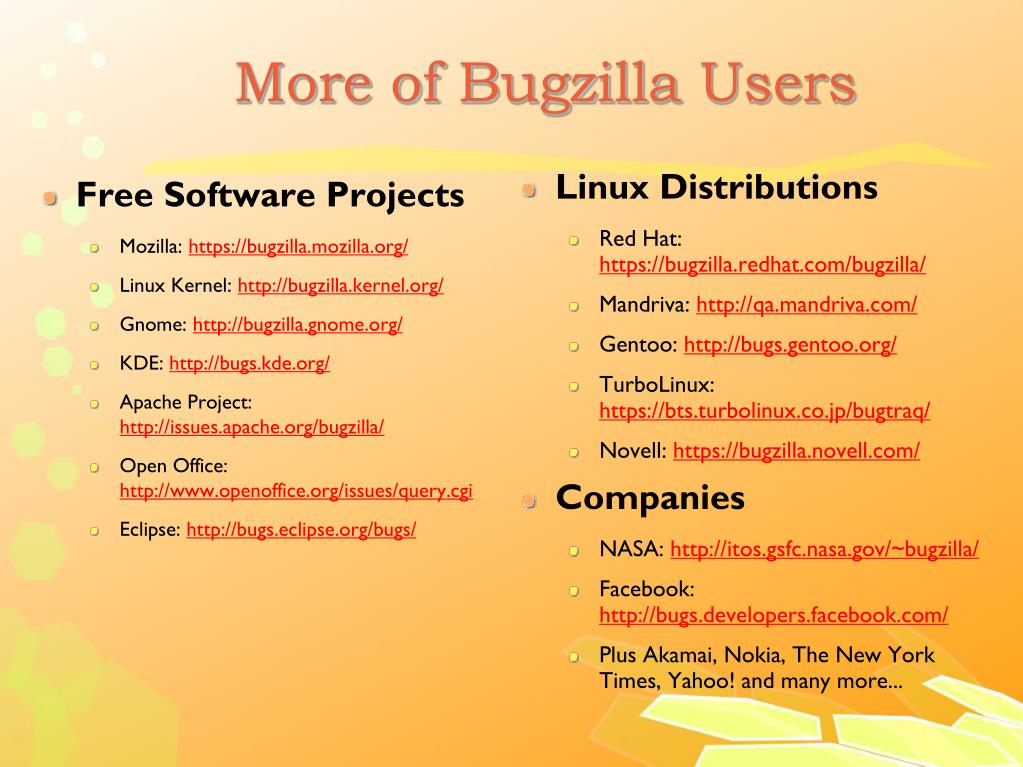

More of Bugzilla Users
  • Free Software Projects
    • Mozilla: https://bugzilla.mozilla.org/
    • Linux Kernel: http://bugzilla.kernel.org/
    • Gnome: http://bugzilla.gnome.org/
    • KDE: http://bugs.kde.org/
    • Apache Project: http://issues.apache.org/bugzilla/
    • Open Office: http://www.openoffice.org/issues/query.cgi
    • Eclipse: http://bugs.eclipse.org/bugs/
  • Linux Distributions
    • Red Hat: https://bugzilla.redhat.com/bugzilla/
    • Mandriva: http://qa.mandriva.com/
    • Gentoo: http://bugs.gentoo.org/
    • TurboLinux: https://bts.turbolinux.co.jp/bugtraq/
    • Novell: https://bugzilla.novell.com/
  • Companies
    • NASA: http://itos.gsfc.nasa.gov/~bugzilla/
    • Facebook: http://bugs.developers.facebook.com/
    • Plus Akamai, Nokia, The New York Times, Yahoo! and many more...
what does bugzilla do
What does Bugzilla do?

Track bugs and code changes.

Communication with teammates.

Submit and review patches.

Manage quality assurance.

“Bugzilla can help you get a handle on the software development process. Successful projects often are the result of successful organization and communication. Bugzilla is a powerful tool that will help your team get organized and communicate effectively.”

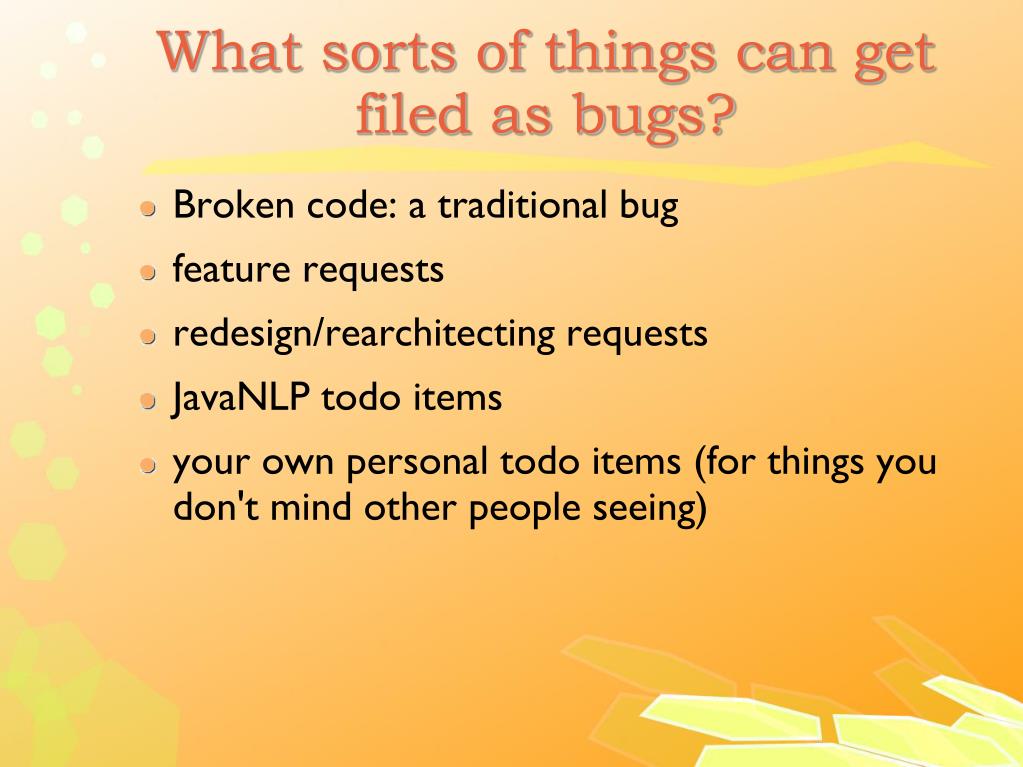

what sorts of things can get filed as bugs
What sorts of things can get filed as bugs?
  • Broken code: a traditional bug
  • feature requests
  • redesign/rearchitecting requests
  • JavaNLP todo items
  • your own personal todo items (for things you don't mind other people seeing)
features
Features

Advanced Search Capabilities- New users can use a simple Google-like search for bugs while more advanced users can filter searched for very specific queries.

Email Notifications- Users can choose to be notified by email about any changes made to any bugs in bugzilla.

File/Modify Bugs By Email - Users can send Bugzilla an email that will create a new bug, or will modify an existing bug.

Time Tracking- Users can display the time they think they will need to fix a bug, time spent on a bug, and deadline to fix the bug.

features continued

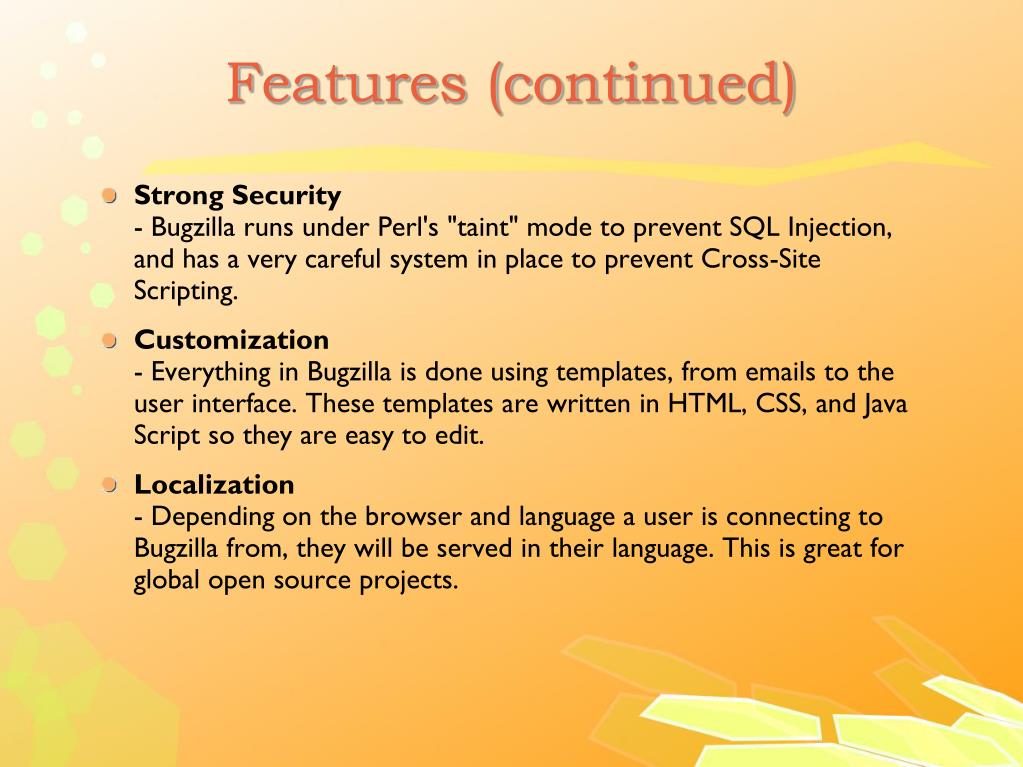

Features (continued)‏

Strong Security- Bugzilla runs under Perl's "taint" mode to prevent SQL Injection, and has a very careful system in place to prevent Cross-Site Scripting.

Customization- Everything in Bugzilla is done using templates, from emails to the user interface. These templates are written in HTML, CSS, and Java Script so they are easy to edit.

Localization- Depending on the browser and language a user is connecting to Bugzilla from, they will be served in their language. This is great for global open source projects.

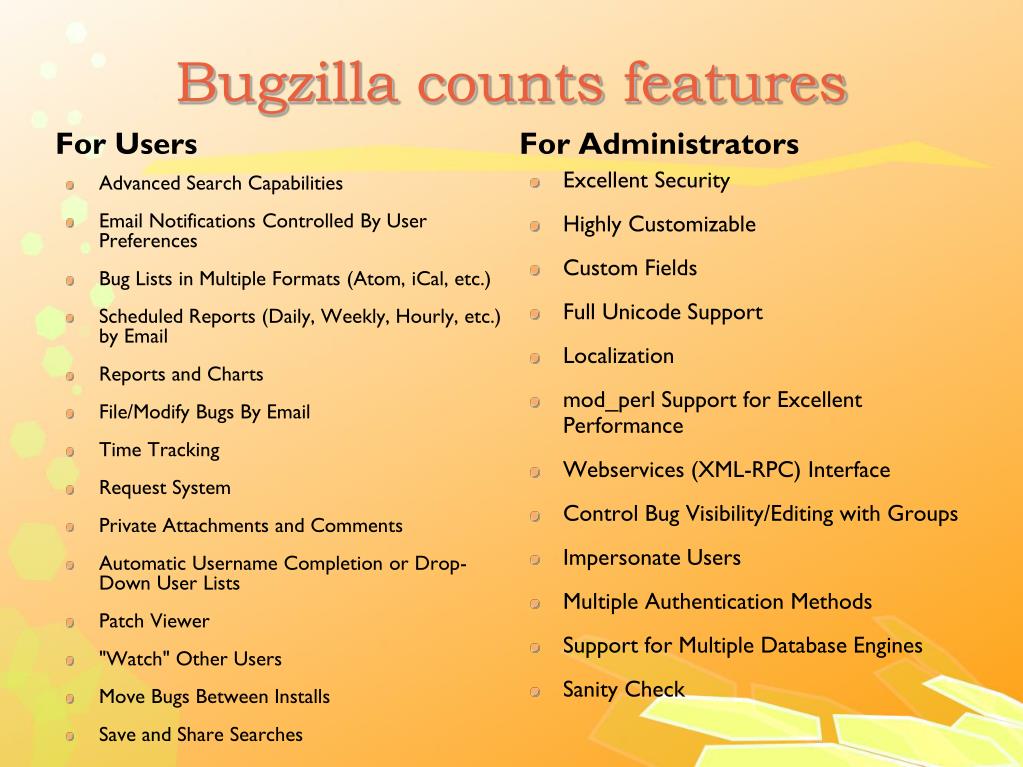

bugzilla counts features
Bugzilla counts features

For Users

For Administrators

Excellent Security

Highly Customizable

Custom Fields

Full Unicode Support

Localization

mod_perl Support for Excellent Performance

Webservices (XML-RPC) Interface

Control Bug Visibility/Editing with Groups

Impersonate Users

Multiple Authentication Methods

Support for Multiple Database Engines

Sanity Check

  • Advanced Search Capabilities
  • Email Notifications Controlled By User Preferences
  • Bug Lists in Multiple Formats (Atom, iCal, etc.)
  • Scheduled Reports (Daily, Weekly, Hourly, etc.) by Email
  • Reports and Charts
  • File/Modify Bugs By Email
  • Time Tracking
  • Request System
  • Private Attachments and Comments
  • Automatic Username Completion or Drop-Down User Lists
  • Patch Viewer
  • "Watch" Other Users
  • Move Bugs Between Installs
  • Save and Share Searches
is bugzilla better than sourceforge net trackers
Is Bugzilla better than SourceForge.Net Trackers?
  • SourceForge.Net is often slow
  • Bugzilla on our own server offers:
    • More customization
    • More control of database
    • Ability to make corrections
  • Many other benefits

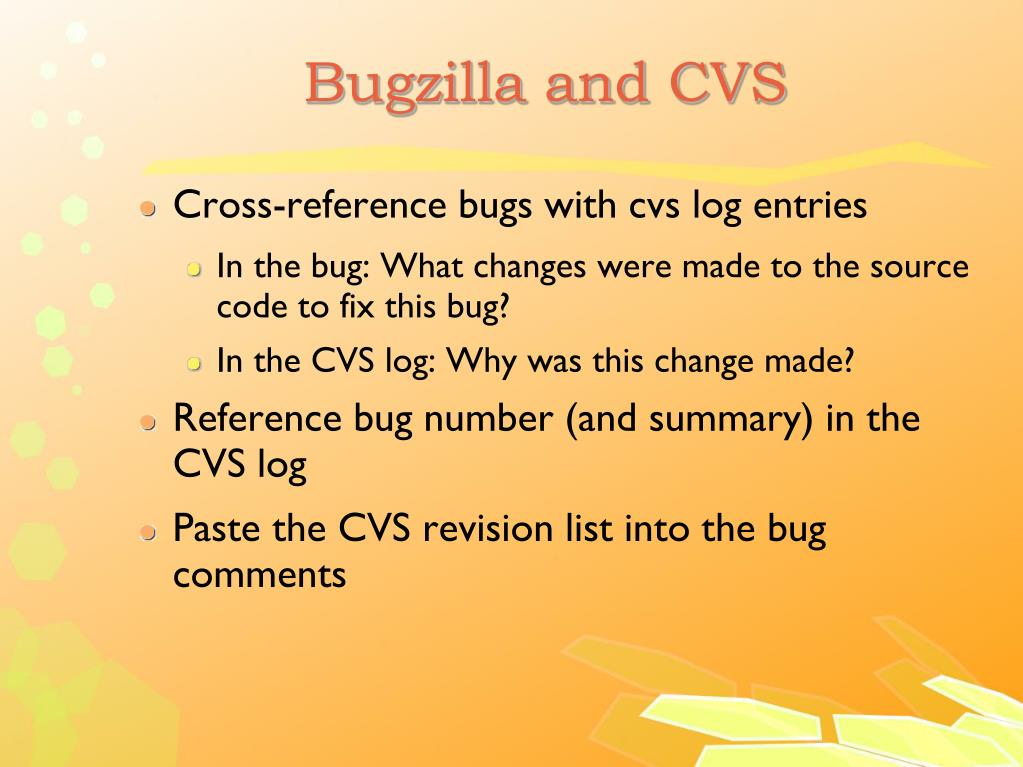

bugzilla and cvs
Bugzilla and CVS
  • Cross-reference bugs with cvs log entries
    • In the bug: What changes were made to the source code to fix this bug?
    • In the CVS log: Why was this change made?
  • Reference bug number (and summary) in the CVS log
  • Paste the CVS revision list into the bug comments
a bugs life by bugzilla 3 023
A Bugs Life by Bugzilla 3.0
  • NEW
  • ASSIGNED (ACCEPTED)
    • Dev. Accept bug
    • Dev. Lead assigned to some Dev.
  • RESOLVED
    • FIXEDINVALID WONTFIX LATER
    • REMIND DUPLICATE WORKFORME
  • VERIFIED
a bugs life by bugzilla 3 024
A Bugs Life by Bugzilla 3.0
  • FIXED
    • A fix for this bug is checked into the tree and tested.
  • INVALID
    • The problem described is not a bug
  • WONTFIX
    • The problem described is a bug which will never be fixed.
  • LATER
    • The problem described is a bug which will not be fixed in this version of the product.

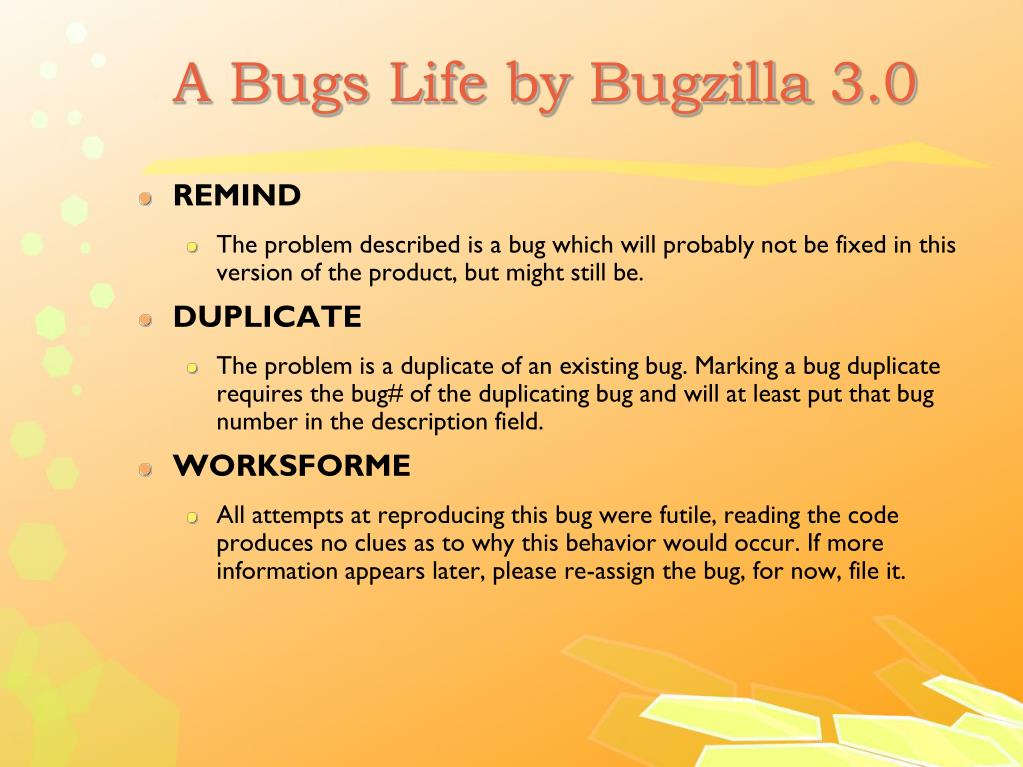

a bugs life by bugzilla 3 025
A Bugs Life by Bugzilla 3.0
  • REMIND
    • The problem described is a bug which will probably not be fixed in this version of the product, but might still be.
  • DUPLICATE
    • The problem is a duplicate of an existing bug. Marking a bug duplicate requires the bug# of the duplicating bug and will at least put that bug number in the description field.
  • WORKSFORME
    • All attempts at reproducing this bug were futile, reading the code produces no clues as to why this behavior would occur. If more information appears later, please re-assign the bug, for now, file it.

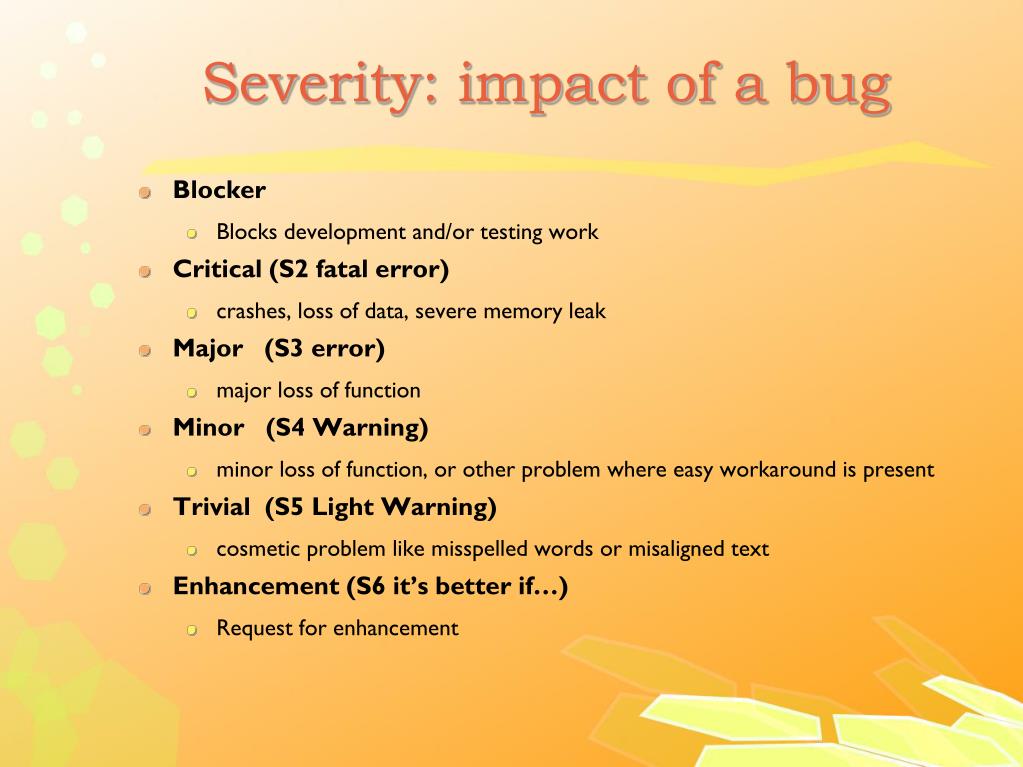

severity impact of a bug
Severity: impact of a bug
  • Blocker
    • Blocks development and/or testing work
  • Critical (S2 fatal error)
    • crashes, loss of data, severe memory leak
  • Major (S3 error)
    • major loss of function
  • Minor (S4 Warning)
    • minor loss of function, or other problem where easy workaround is present
  • Trivial (S5 Light Warning)
    • cosmetic problem like misspelled words or misaligned text
  • Enhancement (S6 it’s better if…)
    • Request for enhancement
any question
Any Question?
  • Thanks for your attention!
