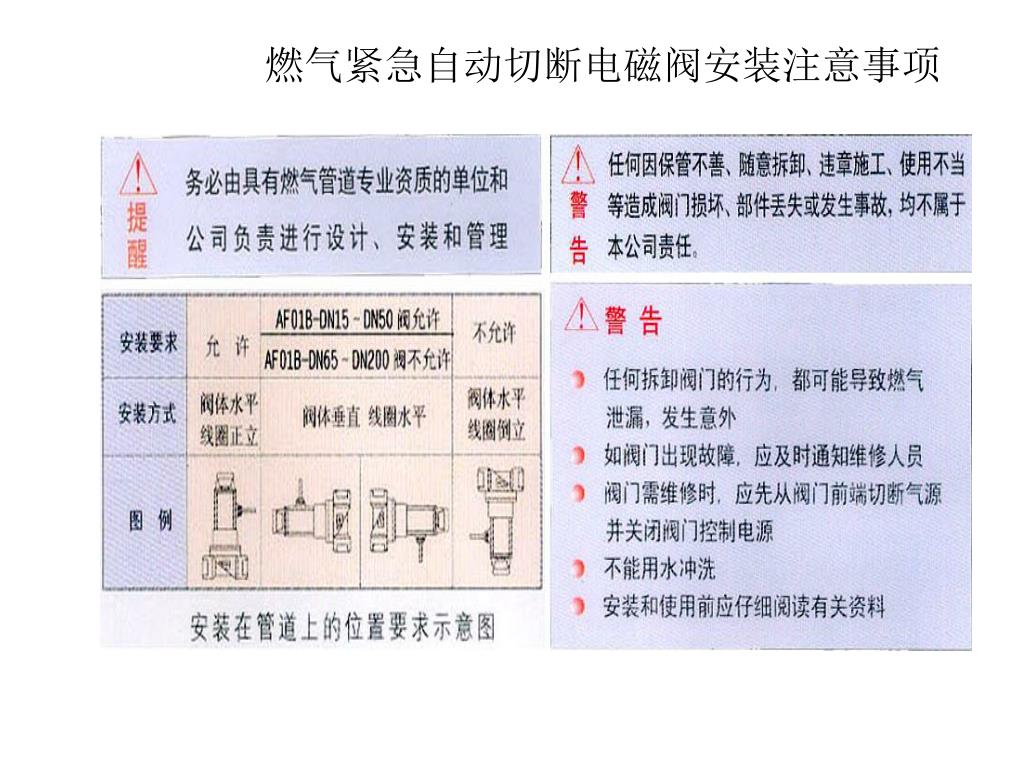

  1. 　　燃气紧急自动切断电磁阀安装注意事项

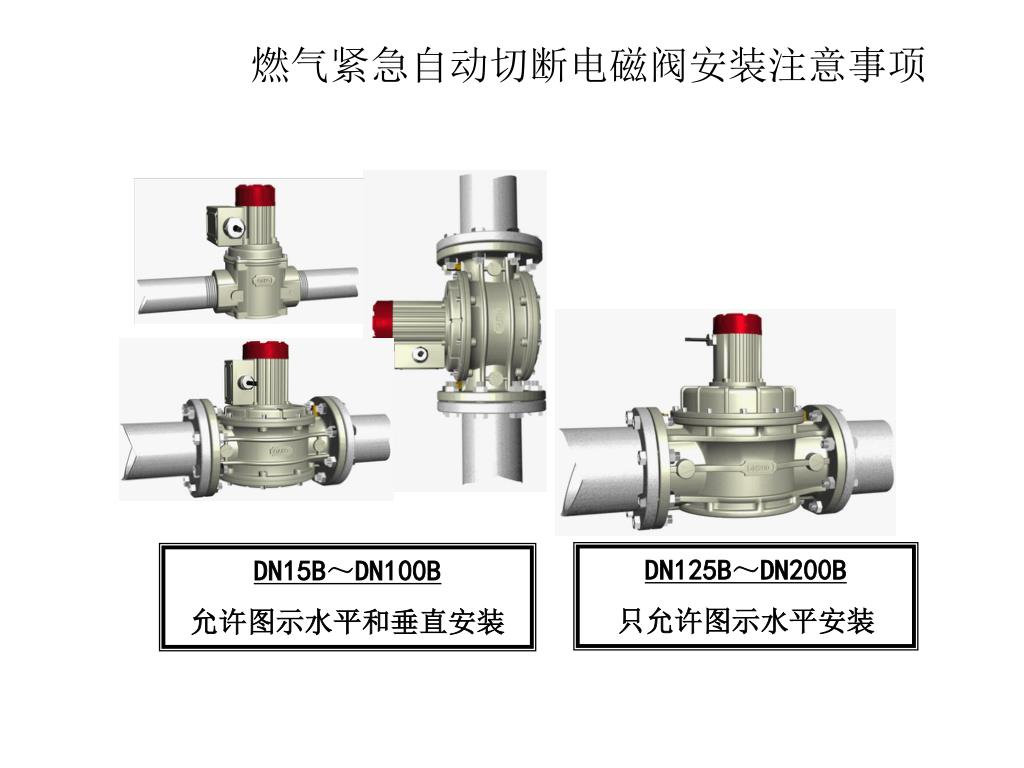

  2. 　燃气紧急自动切断电磁阀安装注意事项 DN125B～DN200B 只允许图示水平安装 DN15B～DN100B 允许图示水平和垂直安装

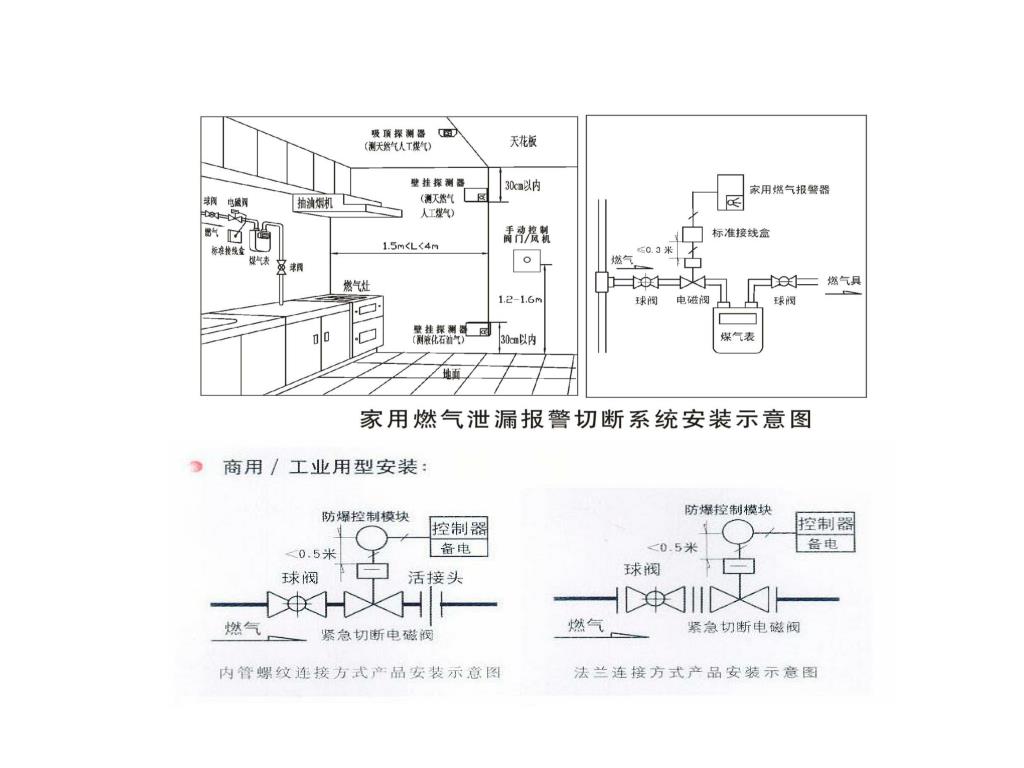

  3. 　燃气紧急自动切断电磁阀安装

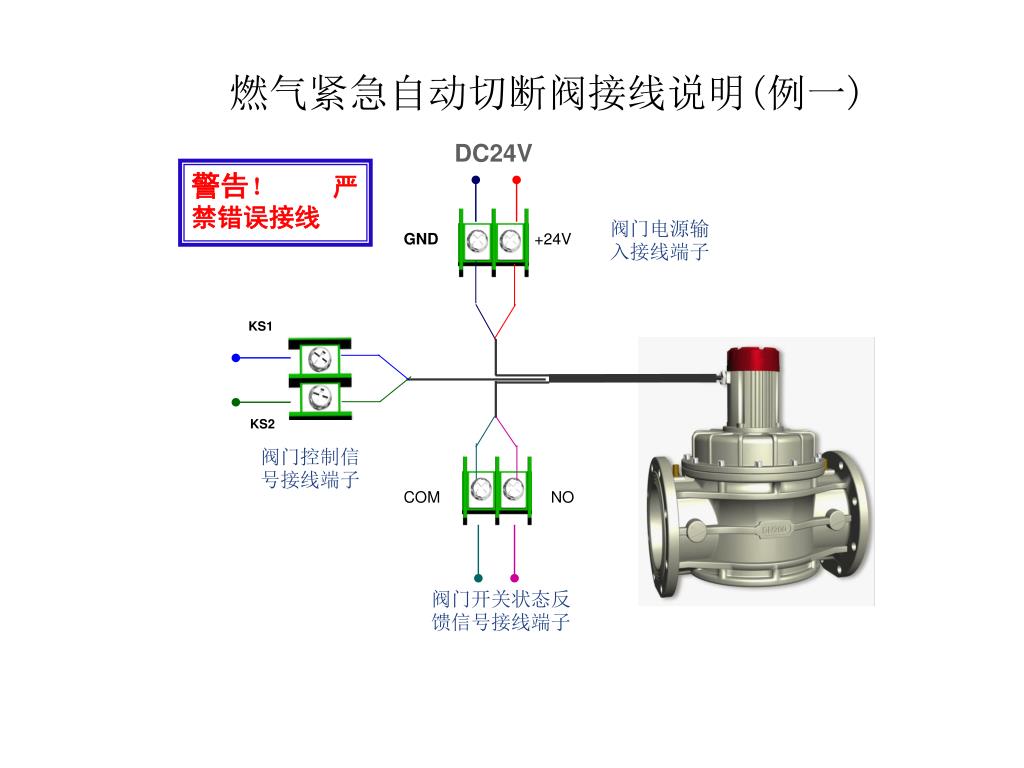

  4. 　燃气紧急自动切断阀接线说明(例一) DC24V 警告！严禁错误接线 阀门电源输入接线端子 GND +24V KS1 KS2 阀门控制信号接线端子 COM NO 阀门开关状态反馈信号接线端子

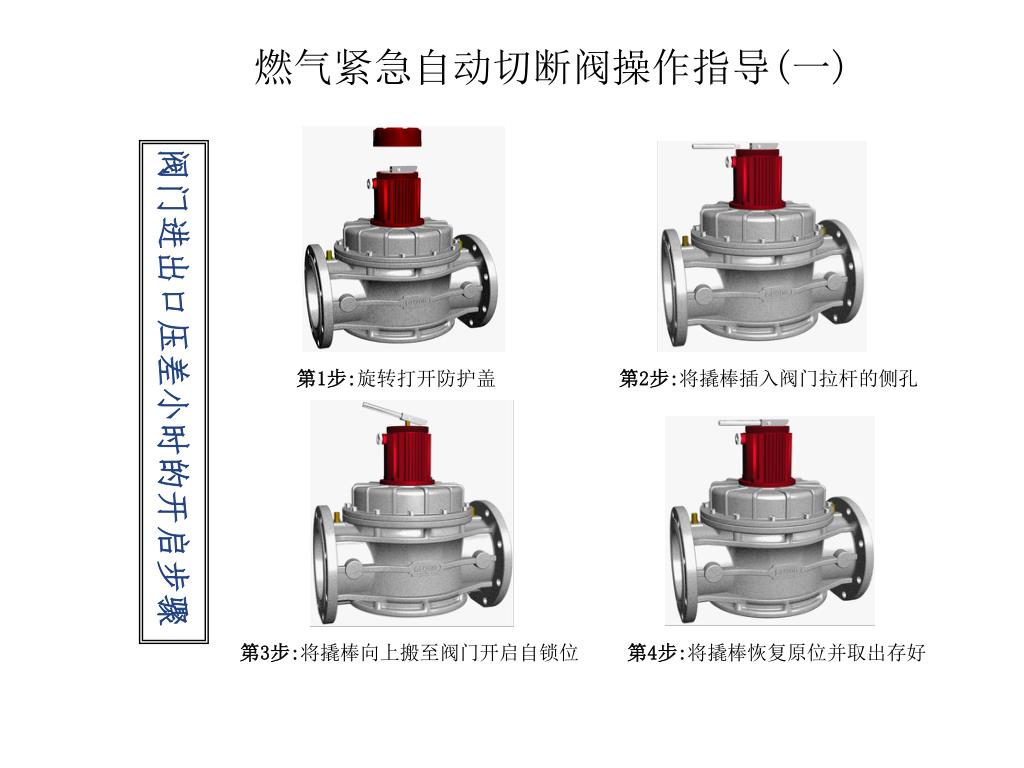

  5. 阀门进出口压差小时的开启步骤 第1步:旋转打开防护盖 第2步:将撬棒插入阀门拉杆的侧孔 第3步:将撬棒向上搬至阀门开启自锁位 第4步:将撬棒恢复原位并取出存好 　燃气紧急自动切断阀操作指导(一) 第2步:将撬棒插入阀门拉杆的侧孔

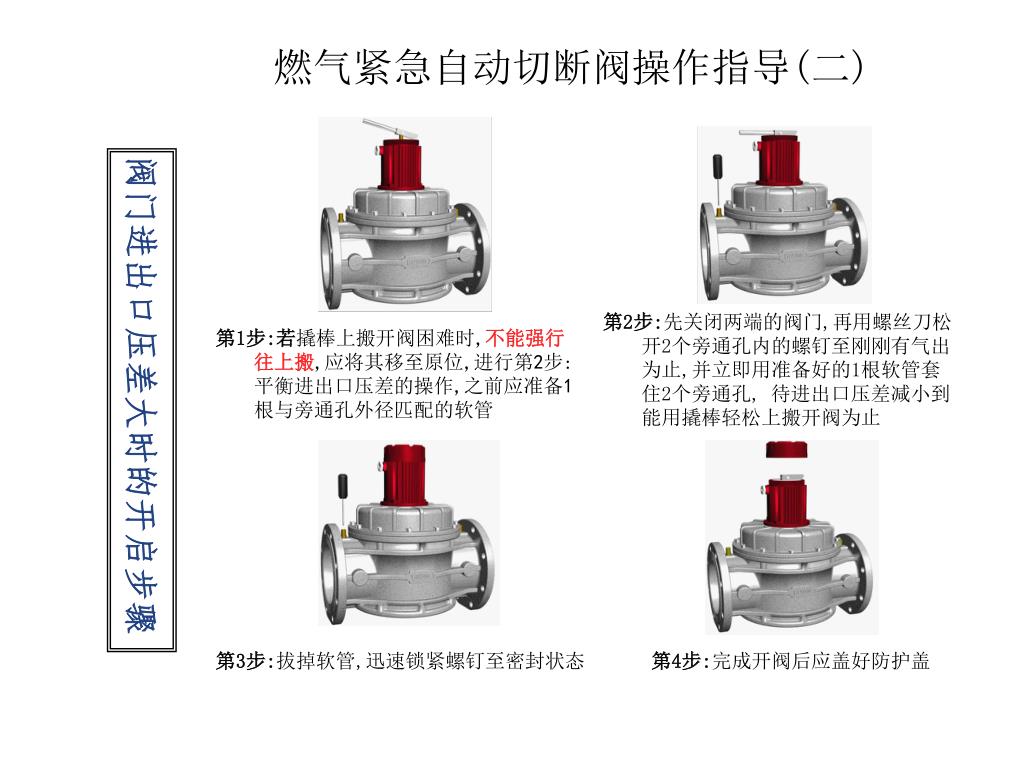

  6. 阀门进出口压差大时的开启步骤 第2步:先关闭两端的阀门,再用螺丝刀松开2个旁通孔内的螺钉至刚刚有气出为止,并立即用准备好的1根软管套住2个旁通孔, 待进出口压差减小到能用撬棒轻松上搬开阀为止 第1步:若撬棒上搬开阀困难时,不能强行往上搬,应将其移至原位,进行第2步:平衡进出口压差的操作,之前应准备1根与旁通孔外径匹配的软管 第3步:拔掉软管,迅速锁紧螺钉至密封状态 第4步:完成开阀后应盖好防护盖 　燃气紧急自动切断阀操作指导(二)
