1 / 11

802.16& 問題解決

802.16& 問題解決. 高永安 老師 報告人：吳林達 報告日期： 2005/8/31. Outline. Down-sampling Up-sampling Capacity 上限 11&16a 比較 802.16 規格. F.T 相關式. Down-sampling(1). Down-sampling(2). Down-sampling(3). Up-samping(1). Capacity 上限 (1). Capacity 上限 (2). 11&16a 比較. IEEE802.16 規格.

gregory-bernard
Download Presentation

802.16& 問題解決

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 802.16&問題解決 高永安老師 報告人：吳林達 報告日期：2005/8/31

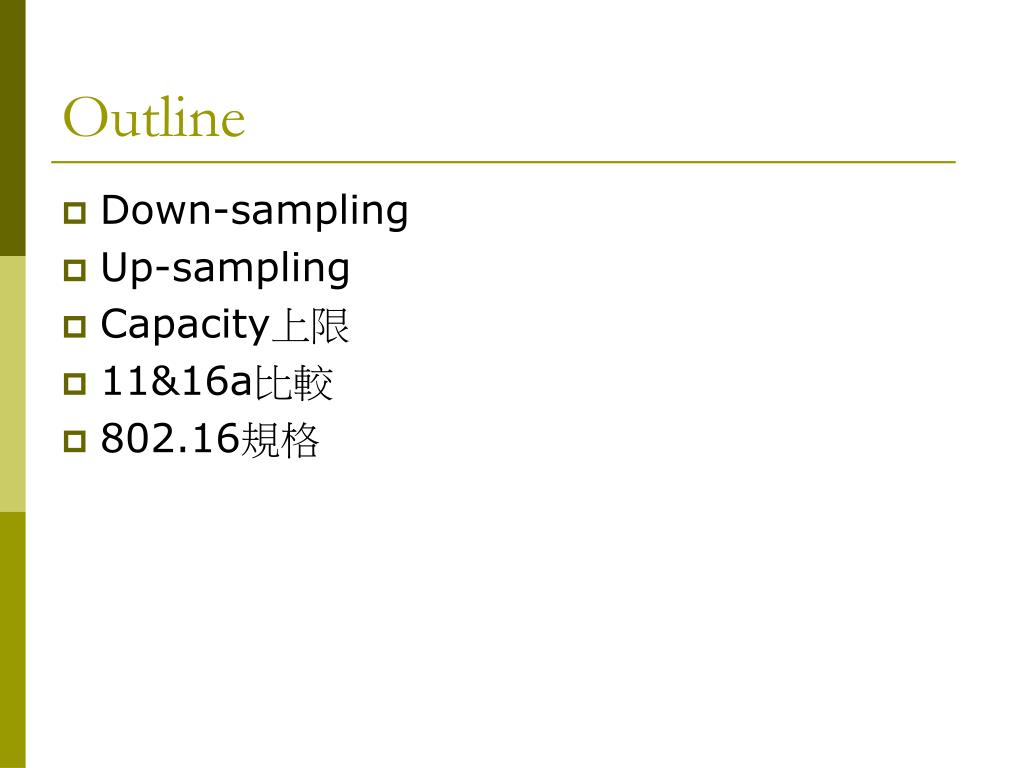

  2. Outline • Down-sampling • Up-sampling • Capacity上限 • 11&16a比較 • 802.16規格

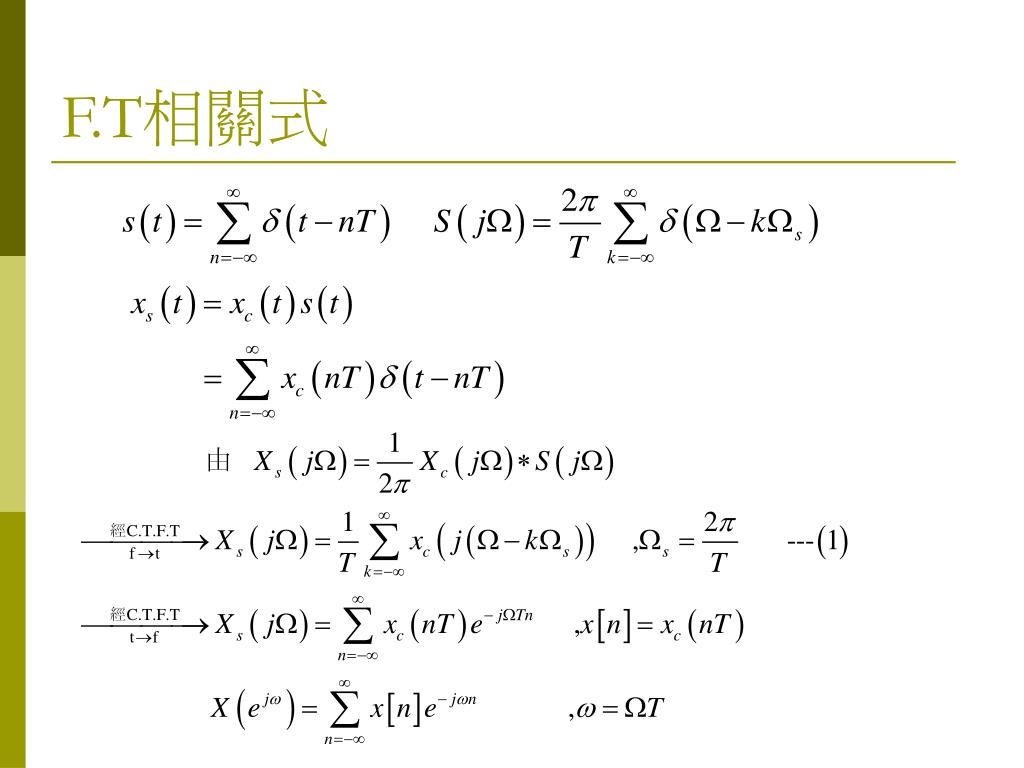

  3. F.T相關式

  4. Down-sampling(1)

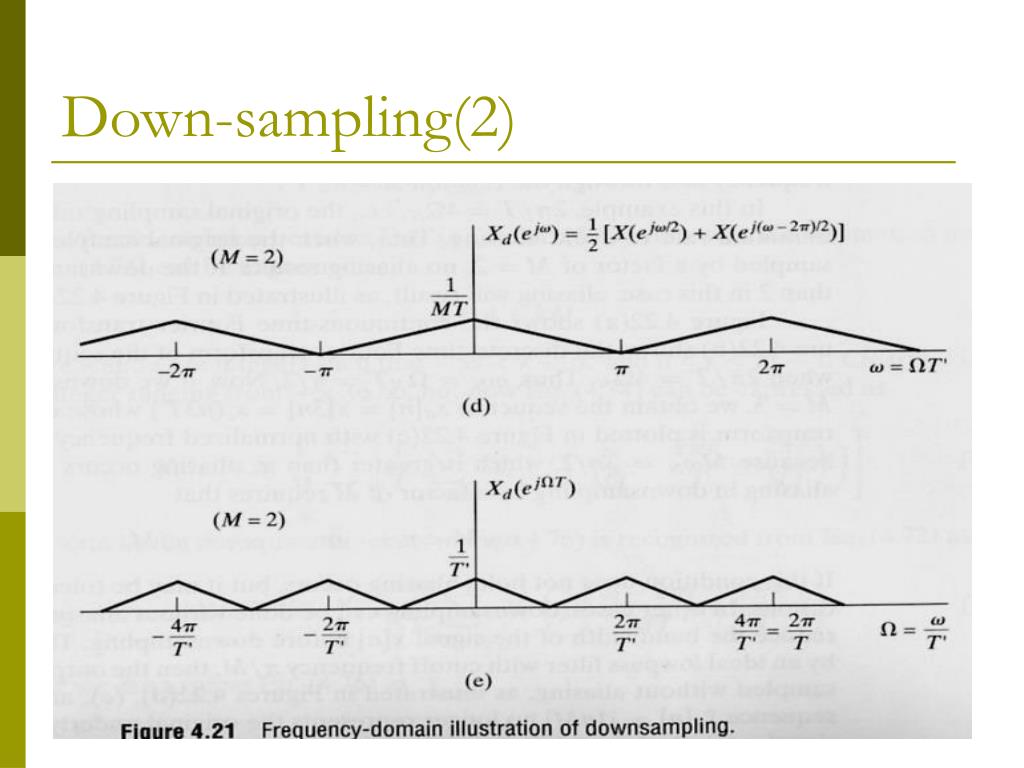

  5. Down-sampling(2)

  6. Down-sampling(3)

  7. Up-samping(1)

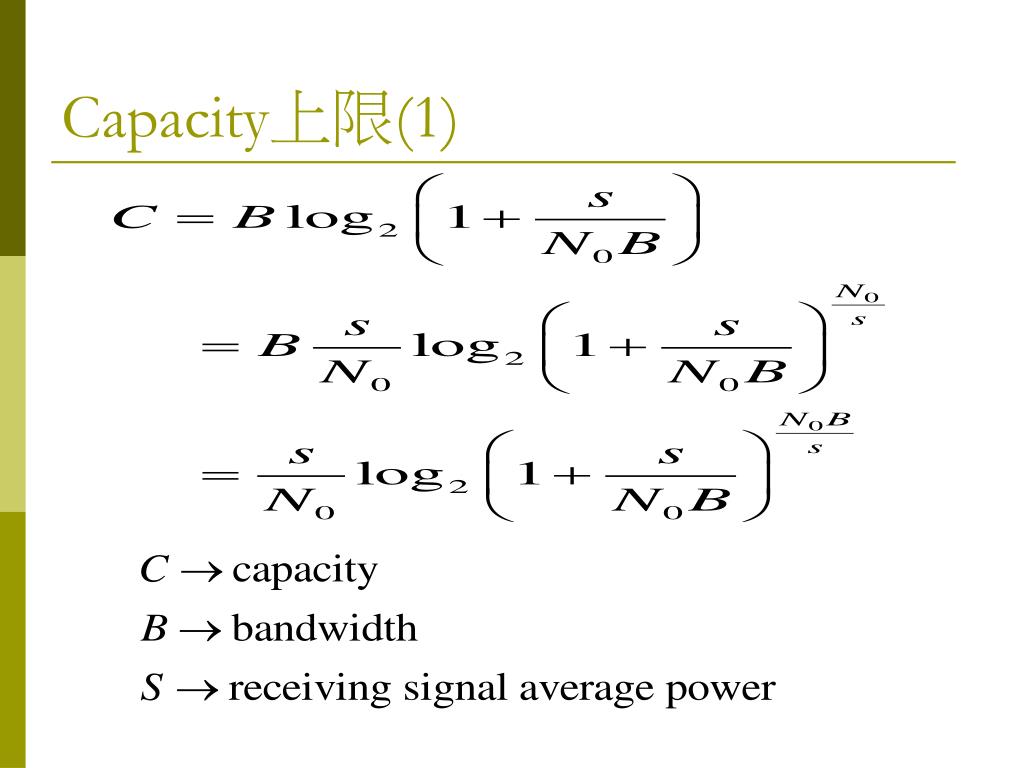

  8. Capacity上限(1)

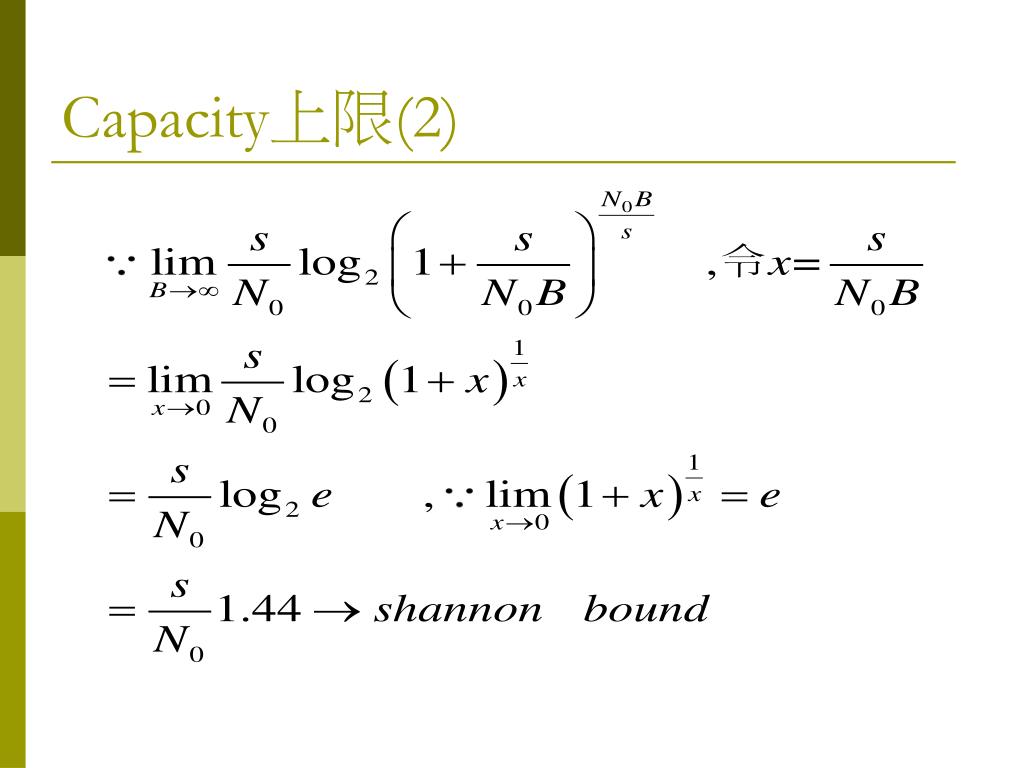

  9. Capacity上限(2)

  10. 11&16a比較

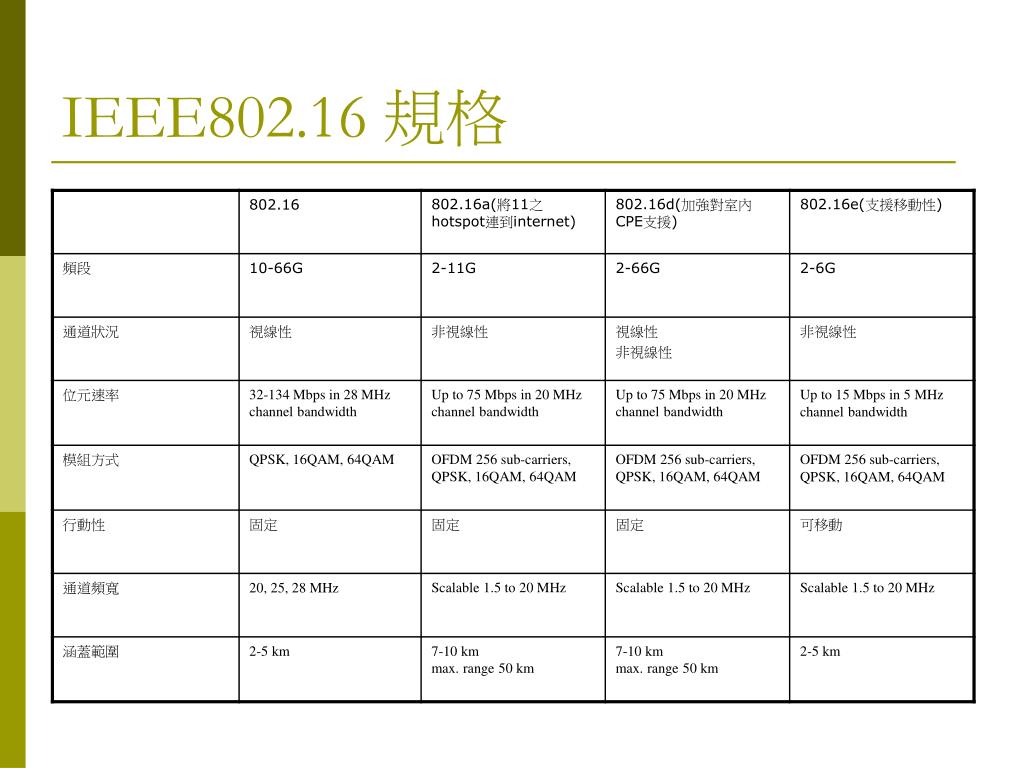

  11. IEEE802.16 規格
