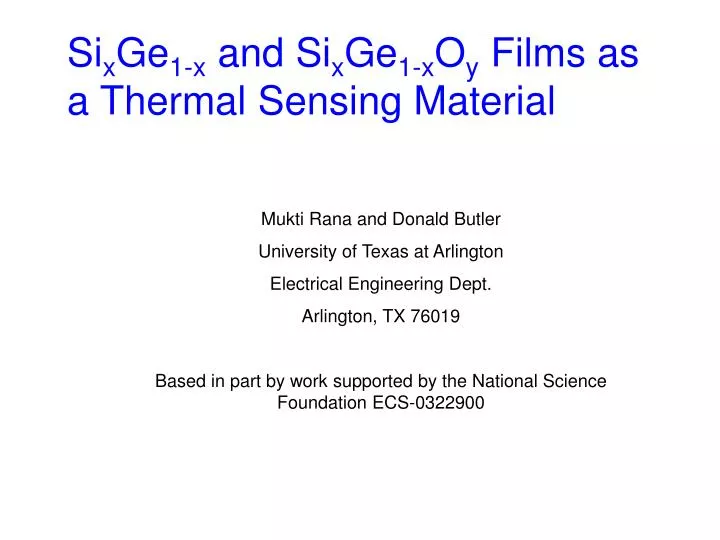

  1. SixGe1-x and SixGe1-xOyFilms as a Thermal Sensing Material Mukti Rana and Donald Butler University of Texas at Arlington Electrical Engineering Dept. Arlington, TX 76019 Based in part by work supported by the National Science Foundation ECS-0322900

  2. SixGe1-x and SixGe1-xOyFilms as Sensing Material • Both SixGe1-x and SixGe1-xOy are conventional semiconductors • High TCR (~-5%/K) can be obtained with moderate resistivity value (~104 ohm-cm) from a suitable combination of SixGe1-xOy • Iborra et. al (2002) reported a TCR of -4.21%/K from RF Sputtered SixGe1-xOy • García et. al (2004) reported a TCR of -5.1%/K from PECVD a-Si1-xGex:H,F.

  3. Deposition: SixGe1-x and SixGe1-xOy Films • Cosputtering from Ge + Si regions target. • RF magnetron Sputtering at 160 W and 10 mTorr pressure. • SixGe1-x deposited in Ar environment. • SixGe1-xOy deposited in Ar:O environment.

  4. Resistivity: SixGe1-x

  5. TCR and Activation Energy (Ea)


  6. TCR and Activation Energy: SixGe1-x

  7. Optical Bandgap: SixGe1-x

  8. Resistivity: SixGe1-xOy

  9. Activation Energy:SixGe1-xOy

  10. TCR: SixGe1-xOy

  11. Noise PSD: Si0.15Ge0.85Oy @1.79 μA Bias Current

  12. Transmittance: Si0.15Ge0.85Oy

  13. Optical Bandgap: SixGe1-xOy

  14. X-ray Diffraction (XRD) Pattern for Si0.125Ge0.8365O0.039

  15. Energy Dispersive X-Ray Analysis of Si0.1188Ge0.8472O0.034 Film By Scanning Electron Microscope (SEM)

  16. Transmittance: SixGe1-x

  17. Transmittance: Glass Substrate used for Depositing SixGe1-xOy andSixGe1-xThin Films

  18. SixGe1-xOy andSixGe1-x : Normalized Hoogie Coefficient for 1/f-noise (αH/N) determined at 10 Hz frequency and other properties
