  1. Best Practices in Distributed Workflows and Web Services Rob Allan, Asif Akram, David Meredith CCLRC Daresbury Laboratory

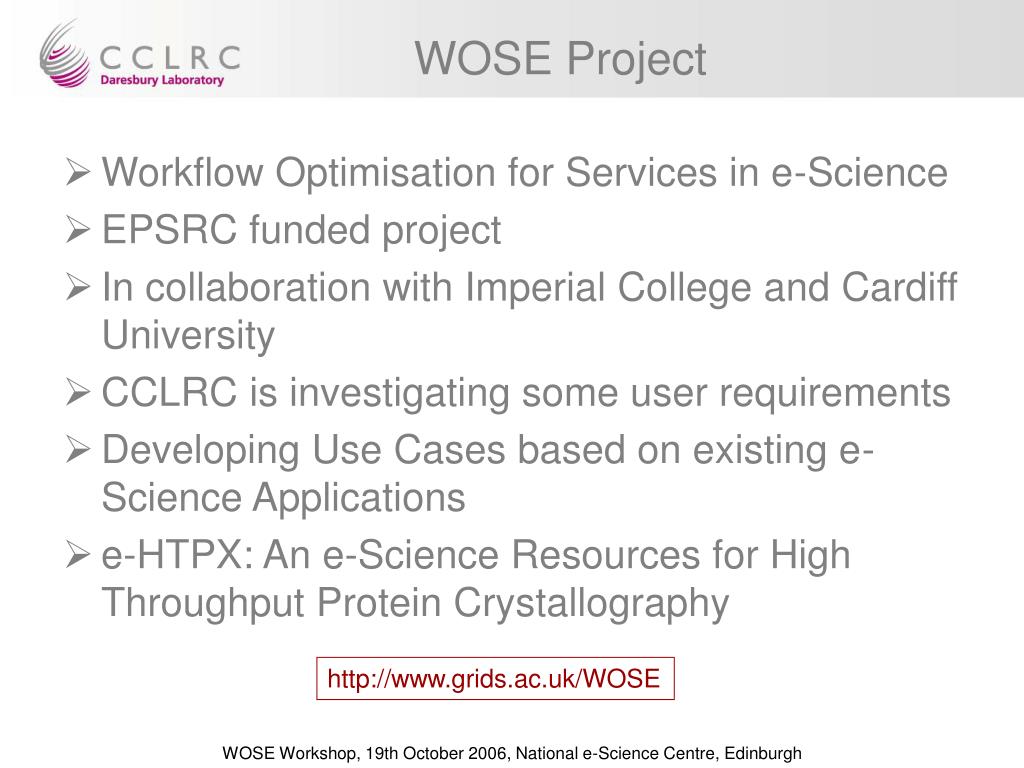

  2. WOSE Project • Workflow Optimisation for Services in e-Science • EPSRC funded project • In collaboration with Imperial College and Cardiff University • CCLRC is investigating some user requirements • Developing Use Cases based on existing e-Science Applications • e-HTPX: An e-Science Resources for High Throughput Protein Crystallography http://www.grids.ac.uk/WOSE

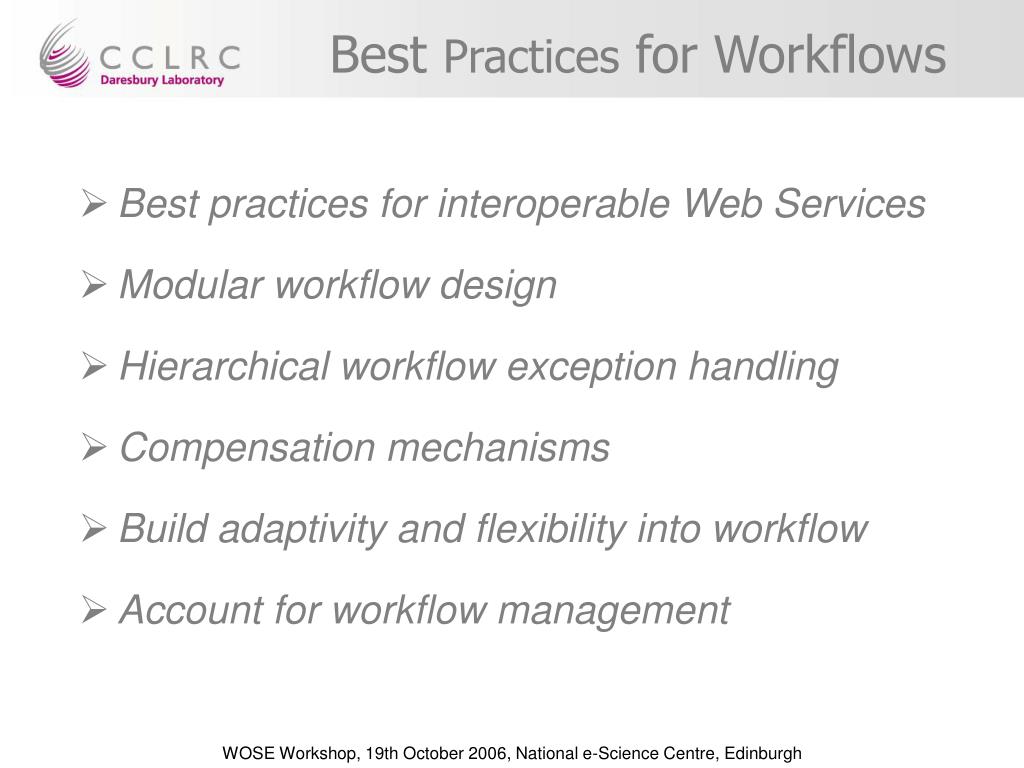

  3. Best Practices for Workflows • Best practices for interoperable Web Services • Modular workflow design • Hierarchical workflow exception handling • Compensation mechanisms • Build adaptivity and flexibility into workflow • Account for workflow management

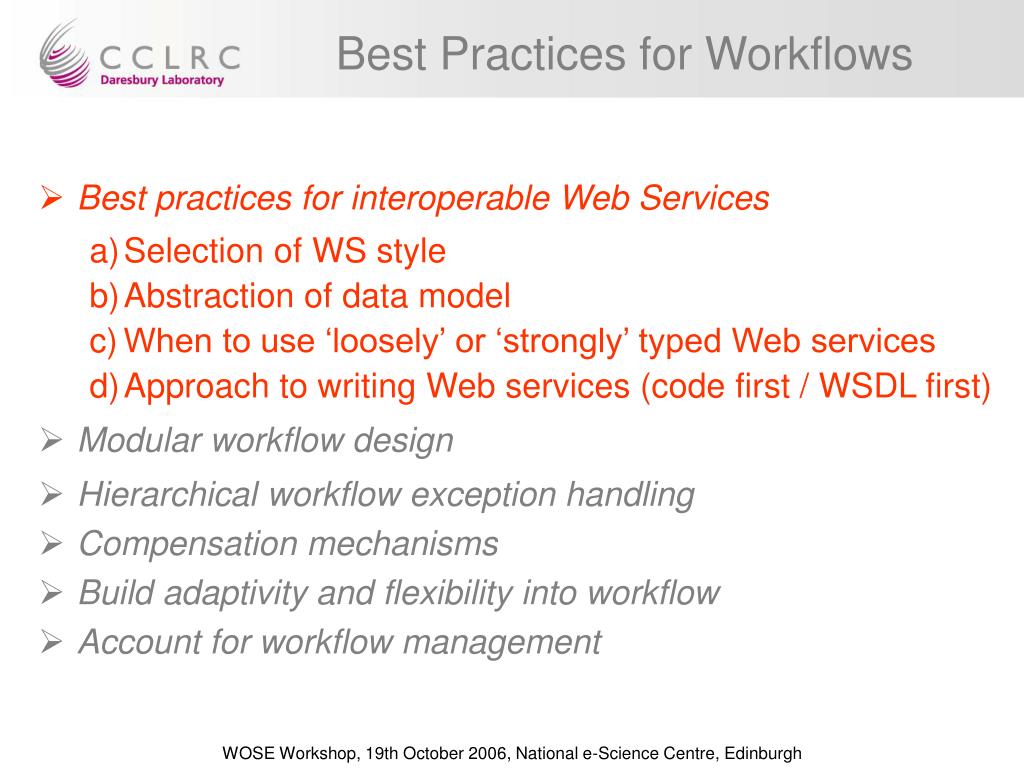

  4. Best Practices for Workflows • Best practices for interoperable Web Services • Selection of WS style • Abstraction of data model • When to use ‘loosely’ or ‘strongly’ typed Web services • Approach to writing Web services (code first / WSDL first) • Modular workflow design • Hierarchical workflow exception handling • Compensation mechanisms • Build adaptivity and flexibility into workflow • Account for workflow management

  5. a)Selectionof WS style • RPC/ encoded: (depreciated – only use is for legacy purposes) • RPC/ literal: WS-I compliant but has limitations for validation of complex data (due to namespace issues) • Document/ literal (wrapped) style is best (100% WS-I compliant). Supports modelling and validation of complex data from different namespaces in plain XML instance documents.

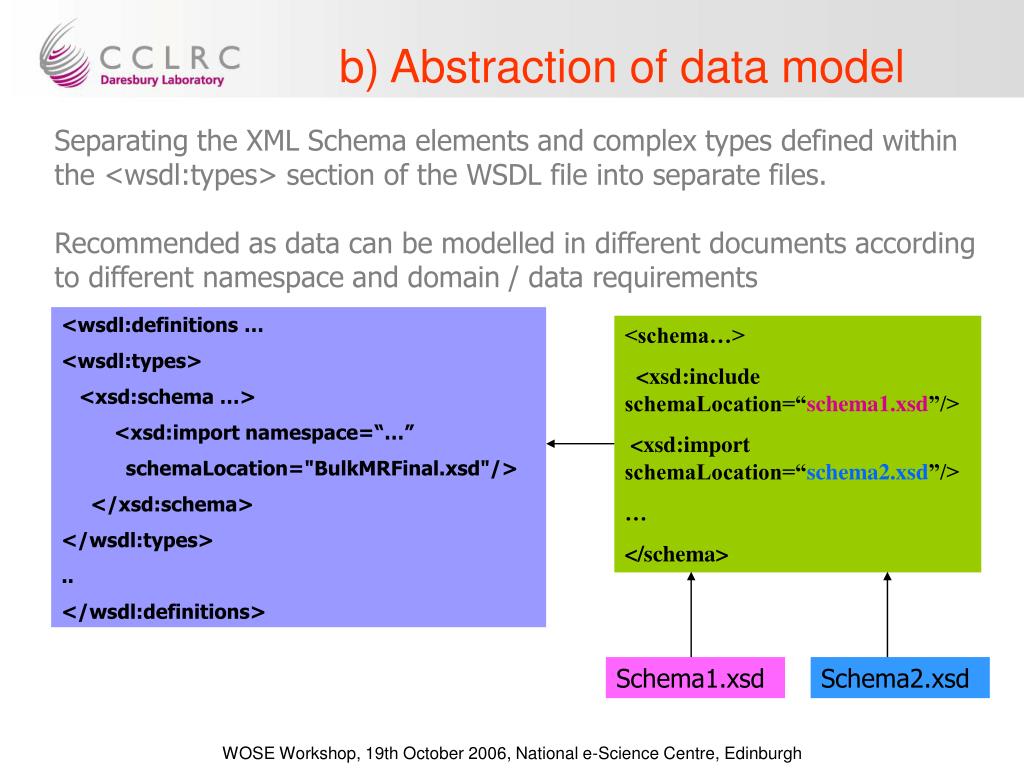

  6. b) Abstraction of data model Separating the XML Schema elements and complex types defined within the <wsdl:types> section of the WSDL file into separate files. Recommended as data can be modelled in different documents according to different namespace and domain / data requirements <wsdl:definitions … <wsdl:types> <xsd:schema …> <xsd:import namespace=“…” schemaLocation="BulkMRFinal.xsd"/> </xsd:schema> </wsdl:types> .. </wsdl:definitions> <schema…> <xsd:include schemaLocation=“schema1.xsd”/> <xsd:import schemaLocation=“schema2.xsd”/> … </schema> Schema1.xsd Schema2.xsd

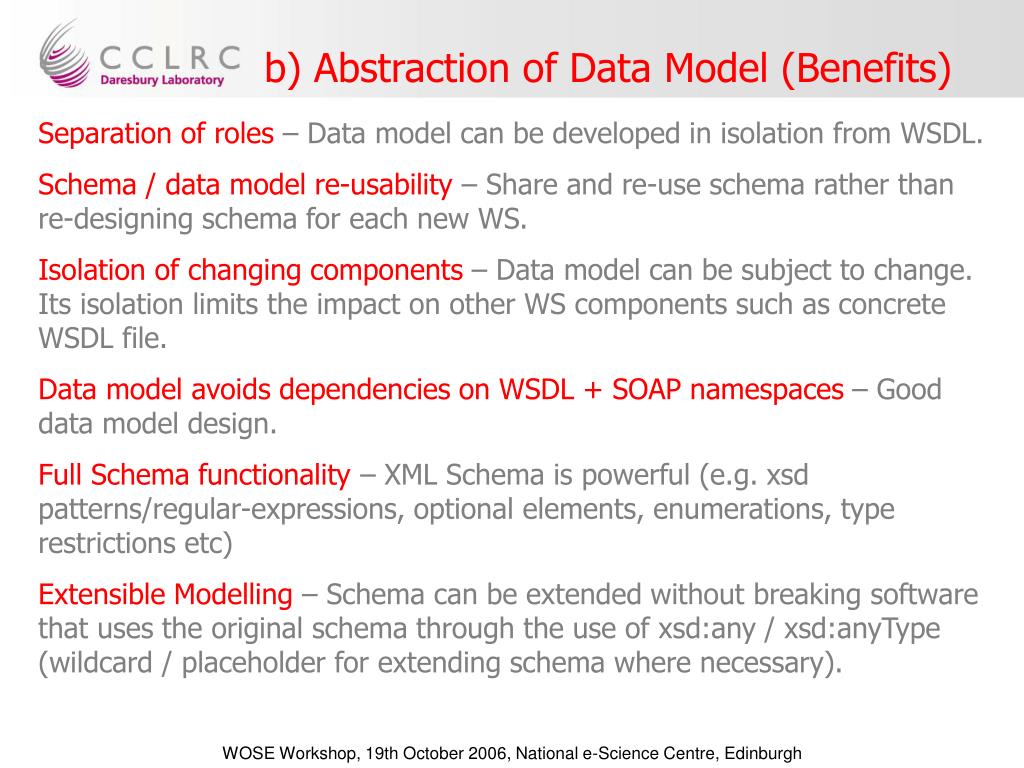

  7. b) Abstraction of Data Model (Benefits) Separation of roles– Data model can be developed in isolation from WSDL. Schema / data model re-usability– Share and re-use schema rather than re-designing schema for each new WS. Isolation of changing components– Data model can be subject to change. Its isolation limits the impact on other WS components such as concrete WSDL file. Data model avoids dependencies on WSDL + SOAP namespaces – Good data model design. Full Schema functionality – XML Schema is powerful (e.g. xsd patterns/regular-expressions, optional elements, enumerations, type restrictions etc) Extensible Modelling – Schema can be extended without breaking software that uses the original schema through the use of xsd:any / xsd:anyType (wildcard / placeholder for extending schema where necessary).

  8. b) Abstraction of Data Model • Abstract the XML Schema(s) used in the <wsdl:types> section of the WSDL file into separate files. • Model data logically in separate schema files with different namespaces as required by the data model. • Combine separate Schema files as required using <xsd:include> and <xsd:import> • Import the schema file(s) into the WSDL file. • Reduces the size + complexity of the WSDL file.

  9. c) When to use ‘loose’ or ‘strong’ typing • A strongly typed WS: • Defines a WSDL with a complete definition of a WS operation’s input and output messages in XML schema with tight constraints on the allowed values. • xsd:patterns, xsd:restrictions, xsd:enumerations, xsd:sequences etc • Advantages: • Well defined service interface – all info necessary to invoke the service is encapsulated within the WSDL (client and automation friendly) • Strong control on the data that enters the business logic of the service • Disadvantages: • Requires a working knowledge of XML Schema • Resistive to change in data model

  10. c) When to use ‘loose’ or ‘strong’ typing • A loosely typed WS: • Uses generic data types in the WSDL which are used to ‘wrap’ data of other formats: • String – can wrap markup fragments (e.g. xml, name-value pairs, SQL) • xsd:any / xsd:anyType - placeholders for embedding arbitrary XML • SOAP attachments (used to send data of any format, e.g binary) • Advantages: • Flexible – single WS can handle multiple types of message + message data • Easy to develop • Disadvantages: • Incomplete WSDL interface - Requires manual negotiation between client and service to establish format of data wrapped by loose type. • Prone to message exceptions (requires WS to be v.tolerant in what it accepts)

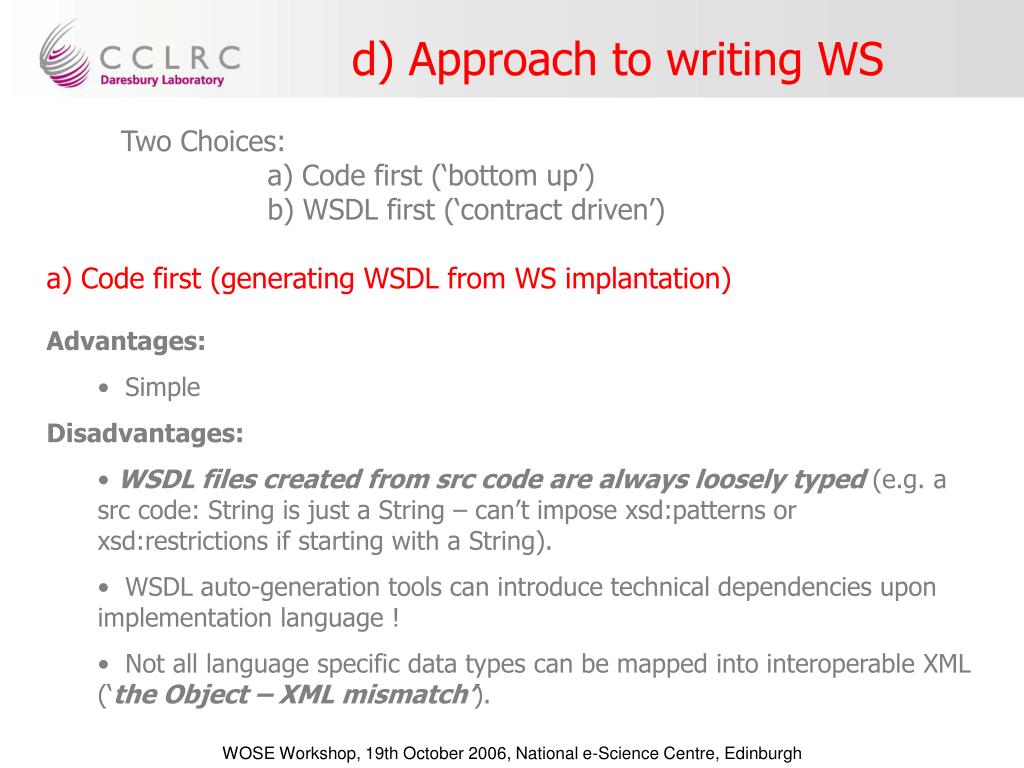

  11. d) Approach to writing WS • Two Choices: • a) Code first (‘bottom up’) • b) WSDL first (‘contract driven’) a) Code first (generating WSDL from WS implantation) • Advantages: • Simple • Disadvantages: • WSDL files created from src code are always loosely typed (e.g. a src code: String is just a String – can’t impose xsd:patterns or xsd:restrictions if starting with a String). • WSDL auto-generation tools can introduce technical dependencies upon implementation language ! • Not all language specific data types can be mapped into interoperable XML (‘the Object – XML mismatch’).

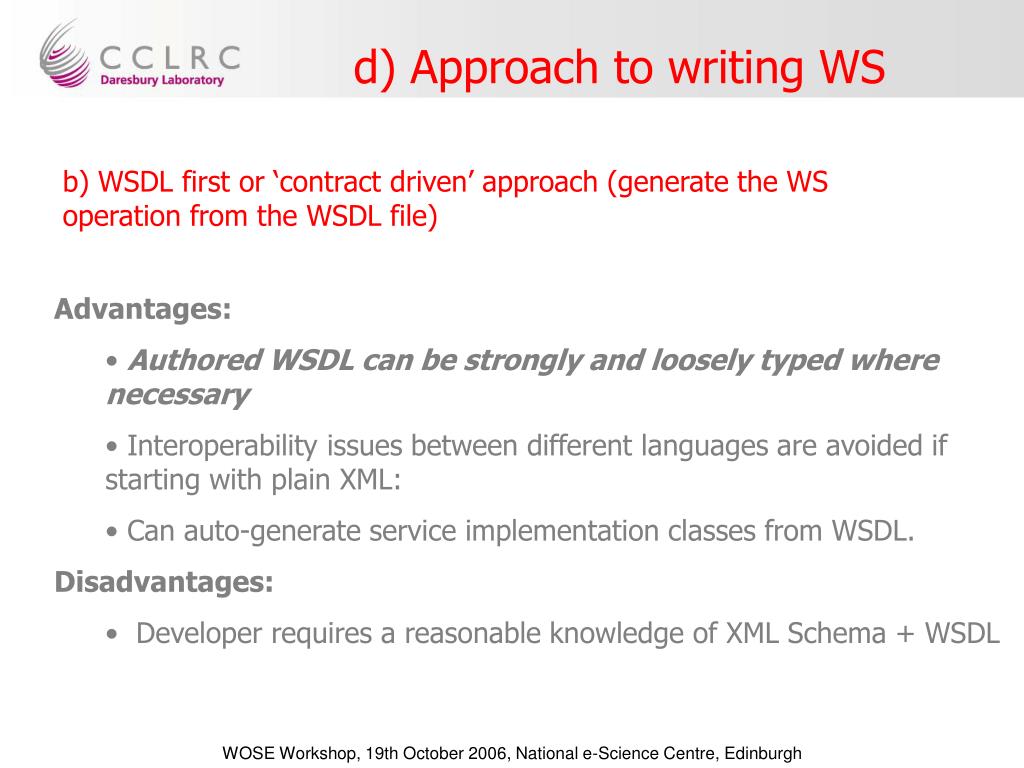

  12. d) Approach to writing WS b) WSDL first or ‘contract driven’ approach (generate the WS operation from the WSDL file) • Advantages: • Authored WSDL can be strongly and loosely typed where necessary • Interoperability issues between different languages are avoided if starting with plain XML: • Can auto-generate service implementation classes from WSDL. • Disadvantages: • Developer requires a reasonable knowledge of XML Schema + WSDL

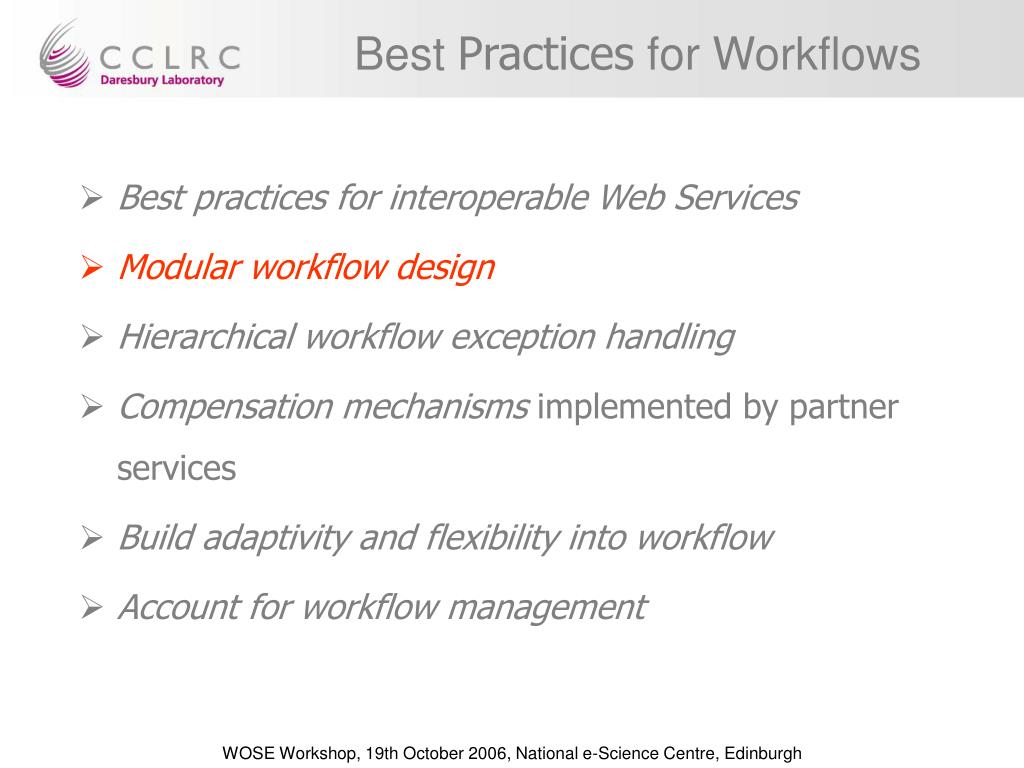

  13. Best Practices for Workflows • Best practices for interoperable Web Services • Modular workflow design • Hierarchical workflow exception handling • Compensation mechanisms implemented by partner services • Build adaptivity and flexibility into workflow • Account for workflow management

  14. Modular Design • Modules operate as “object oriented black boxes” in the overall workflow, with their • own variables, • computational logic, • dependency constraints, • event handlers. • Group similar or related activities • Module components should be scalable and replaceable (to serve as repeatable units)

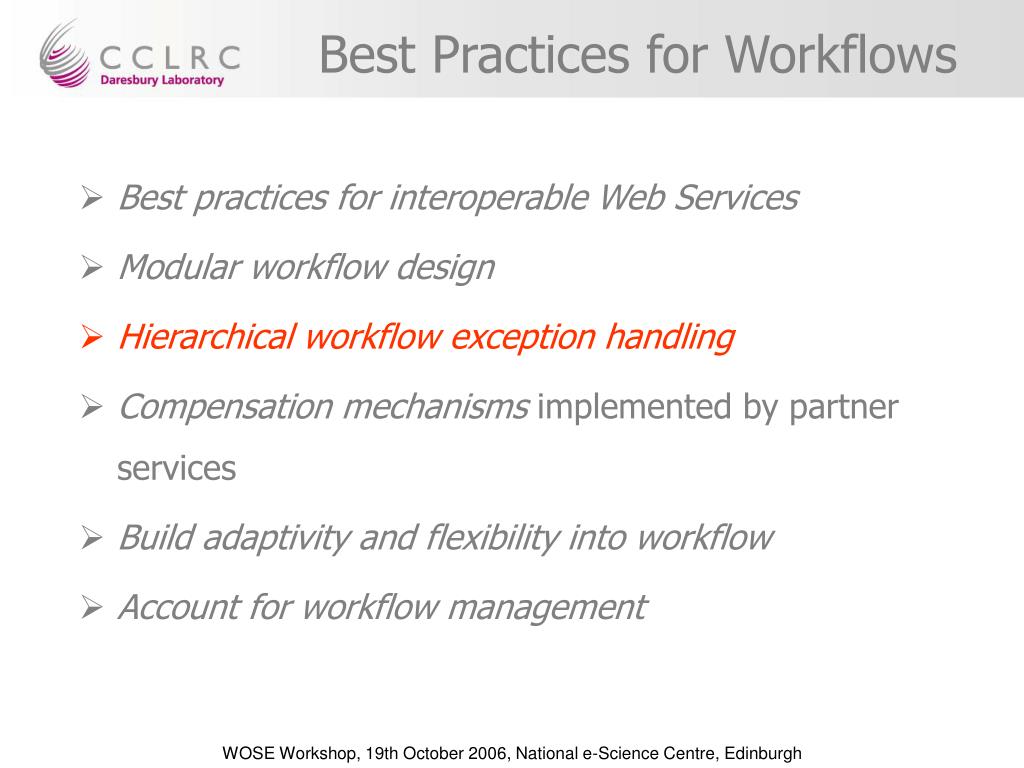

  15. Best Practices for Workflows • Best practices for interoperable Web Services • Modular workflow design • Hierarchical workflow exception handling • Compensation mechanisms implemented by partner services • Build adaptivity and flexibility into workflow • Account for workflow management

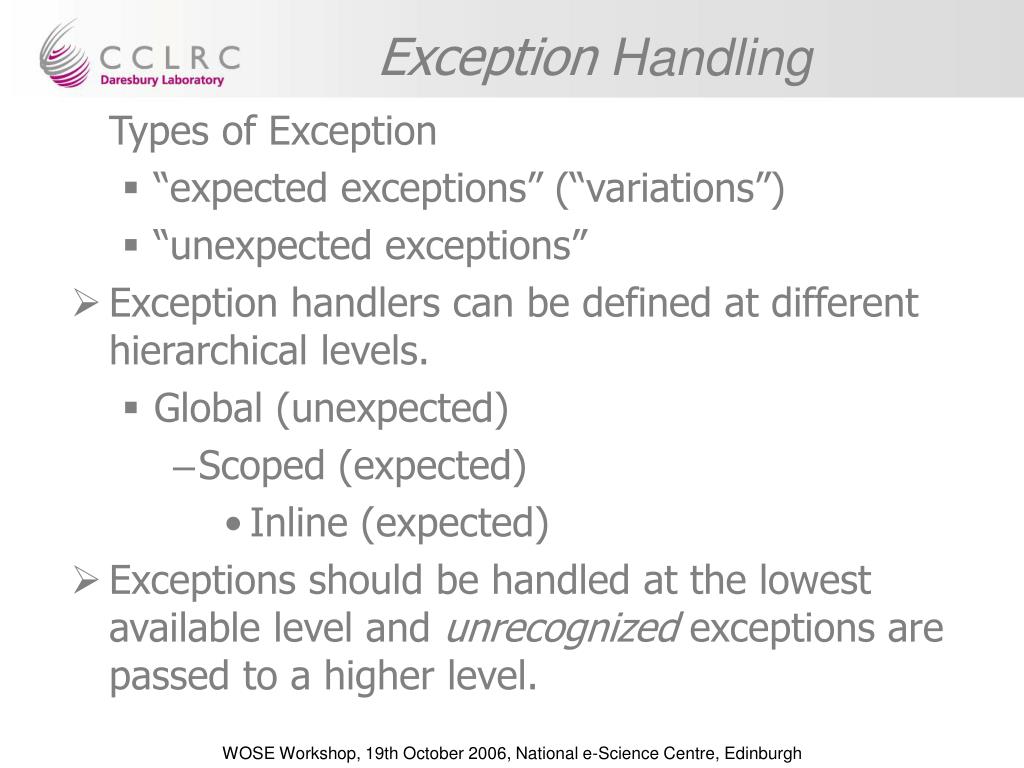

  16. Exception Handling Types of Exception • “expected exceptions” (“variations”) • “unexpected exceptions” • Exception handlers can be defined at different hierarchical levels. • Global (unexpected) • Scoped (expected) • Inline (expected) • Exceptions should be handled at the lowest available level and unrecognized exceptions are passed to a higher level.

  17. process fault handler catch global fault handlers catch scope fault handler catch scoped fault handlers catch invoke catch inline fault handlers catch Exception Handling

  18. Best Practices for Workflows • Best practices for interoperable Web Services • Modular workflow design • Hierarchical workflow exception handling • Compensation mechanisms provided by partner services • Build adaptivity and flexibility into workflow • Account for workflow management

  19. CompensationMechanism • “undoing steps that have already completed successfully” • Reversing the effects of successful activities in the abandoned workflow • A+B+C, if C fails may need to roll back to A • Provision of compensation is responsibility of the service. • Long running processes require some sort of compensation.

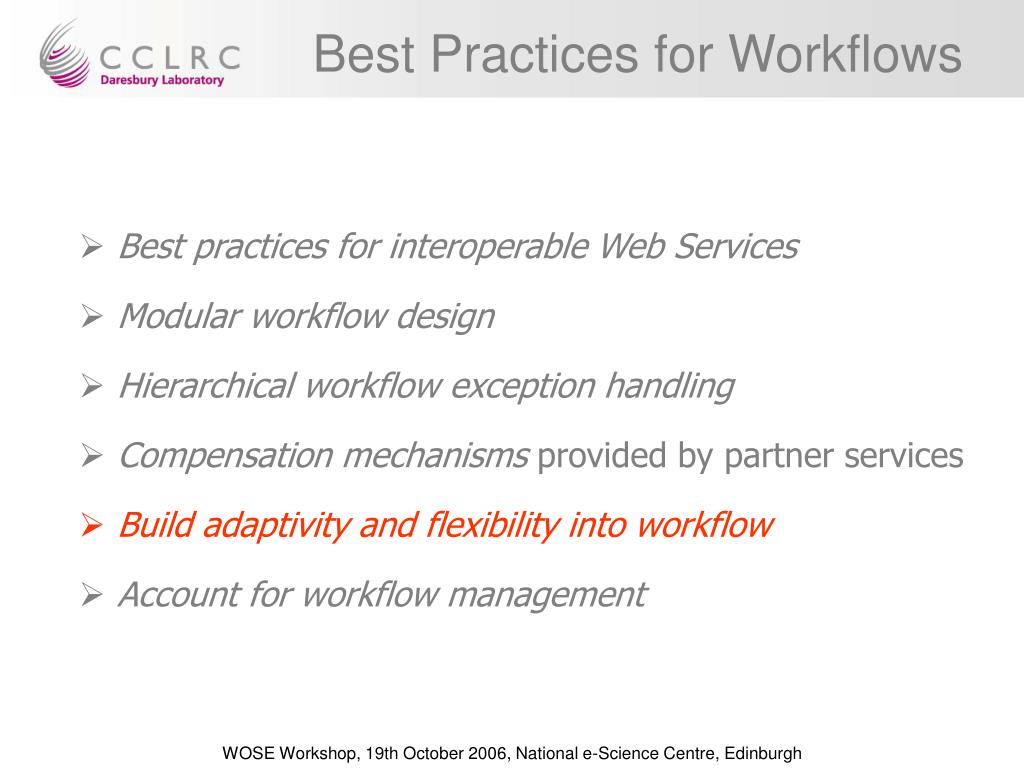

  20. Best Practices for Workflows • Best practices for interoperable Web Services • Modular workflow design • Hierarchical workflow exception handling • Compensation mechanisms provided by partner services • Build adaptivity and flexibility into workflow • Account for workflow management

  21. Adaptive Workflow • Workflow can be static or dynamic depending on whether changes are accommodated at design time or runtime. • Adaptivity and flexibility cater for adjustments/ modifications without breaking a workflow. • Provide “place holders” for future extensions e.g. replaceable “empty activities” • Externalizing changeable data e.g. partner service endpoints specified in configuration files. • Use generic/ loose data types (rather than strongly typed data).

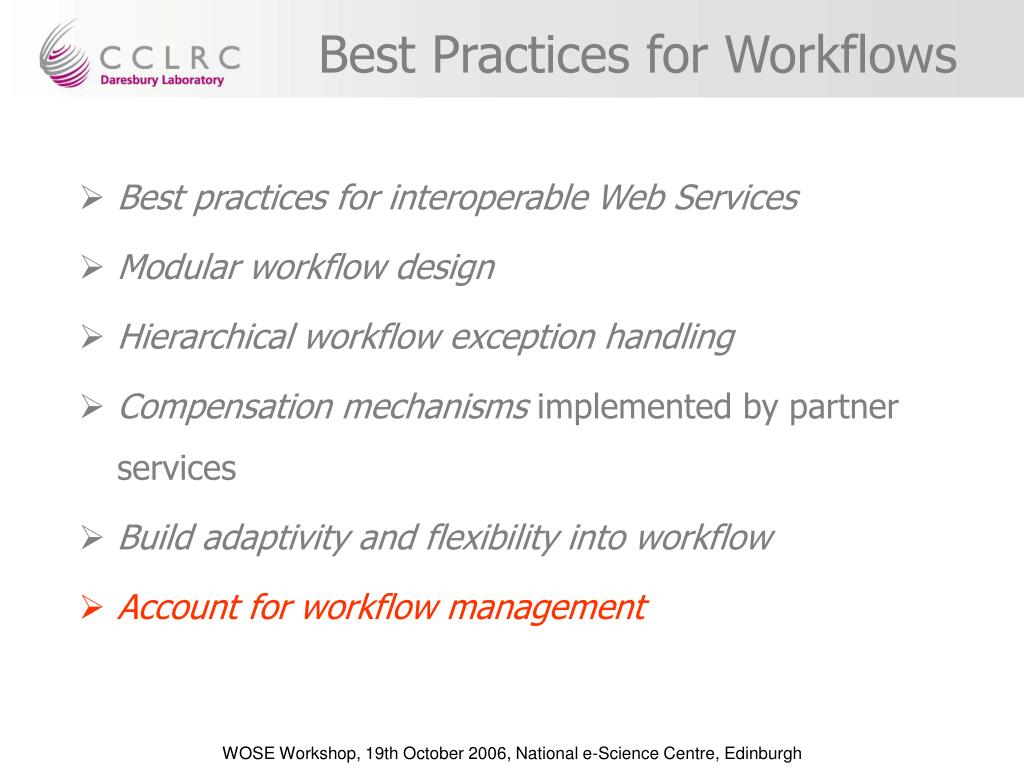

  22. Best Practices for Workflows • Best practices for interoperable Web Services • Modular workflow design • Hierarchical workflow exception handling • Compensation mechanisms implemented by partner services • Build adaptivity and flexibility into workflow • Account for workflow management

  23. Management of Workflow • Workflow management involves • Breakpoints: arbitrary location crucial to the process • Steering points: e.g. reset, re-schedule, restart, undo, abort, complete, recover, ignore or jump operations. • Persistence: state recorded at break+steering points (allows re-execution of workflow from prior state, recording/ inspection of prior state data values)

  24. References • A. Akram WS-RF Tutorials. Simplified version to be published by IBM Developer Works http://www.grids.ac.uk/WOSE/tutorials • A. Akram Requirements and expectations from Workflow • A. Akram, D. Meredith, R.J. Allan Best practices in web service style, data binding and validation for use in data-centric scientific applications Proc. All Hands Meeting 2006, Nottingham, paper 621 • A. Akram, D. Chohan, D. Meredith, R.J. Allan CCLRC Portal Infrastructure to support Research Facilities Concurrency and Computation: Practice and Experience (2006) • A, Akram, J. Kewley, R.J. Allan Data Centric approach for Workflows Proc. The Tenth IEEE International Enterprise Distributed Object Computing Conference (EDOC 2006), Hong Kong • A, Akram, J. Kewley, R.J. Allan Modelling WS-RF based Enterprise Applications Proc. The Tenth IEEE International Enterprise Distributed Object Computing Conference (EDOC 2006) • L. Huang, A, Akram, D.W. Walker, R.J. Allan, O.F. Rana, Y. Haung. A workflow portal supporting multi-language interoperation and optimisation Concurrency and Computation: Practice and Experience (2005) • A, Akram, D. Chohan, D. Meredith, X.D. Wang, R.J. Allan CCLRC Portal infrastructure to support research facilities Global Grid Forum 14, USA, 2006 • A, Akram, D. Meredith, R.J. Allan Evaluation of BPEL for Scientific Workflows 6th IEEE International Symposium on Cluster Computing and the Grid, CCGrid 2006, Singapore
