Comparative Analysis of Noise Data from 3PG Module and Sector Temperature in 3PG Test

This study compares noise data from the 3PG module against sector temperature (top and bottom) in 3PG tests minus SCTDAQ warm reference temperatures. It analyzes noise levels in B3, B4, B5, and B6 sectors, plotting noise differences. The study also examines noise variations across barrel/LMT positions and average differences in ENC levels. Furthermore, it evaluates noise comparisons against macroassembly and reception data, including B3 reception, B5 Oxford assembly, B4 Oxford warm tests, and B6 Oxford assembly.

grace-travis
Download Presentation

Comparative Analysis of Noise Data from 3PG Module and Sector Temperature in 3PG Test

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

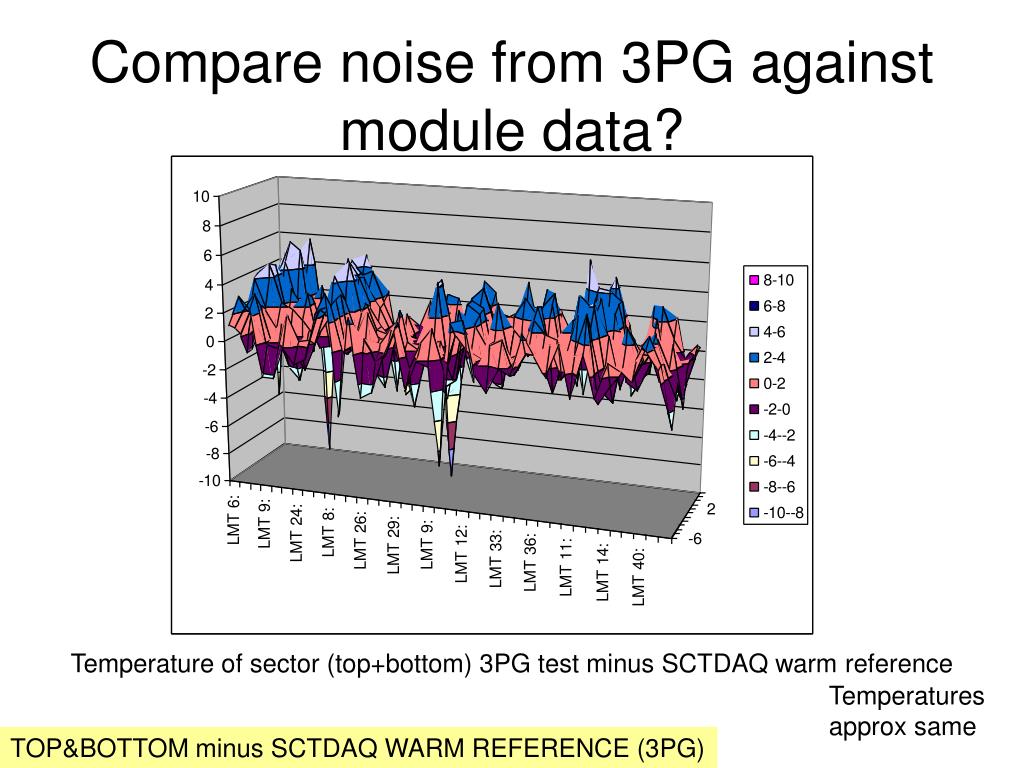

  1. Compare noise from 3PG against module data? Temperature of sector (top+bottom) 3PG test minus SCTDAQ warm reference Temperatures approx same TOP&BOTTOM minus SCTDAQ WARM REFERENCE (3PG)

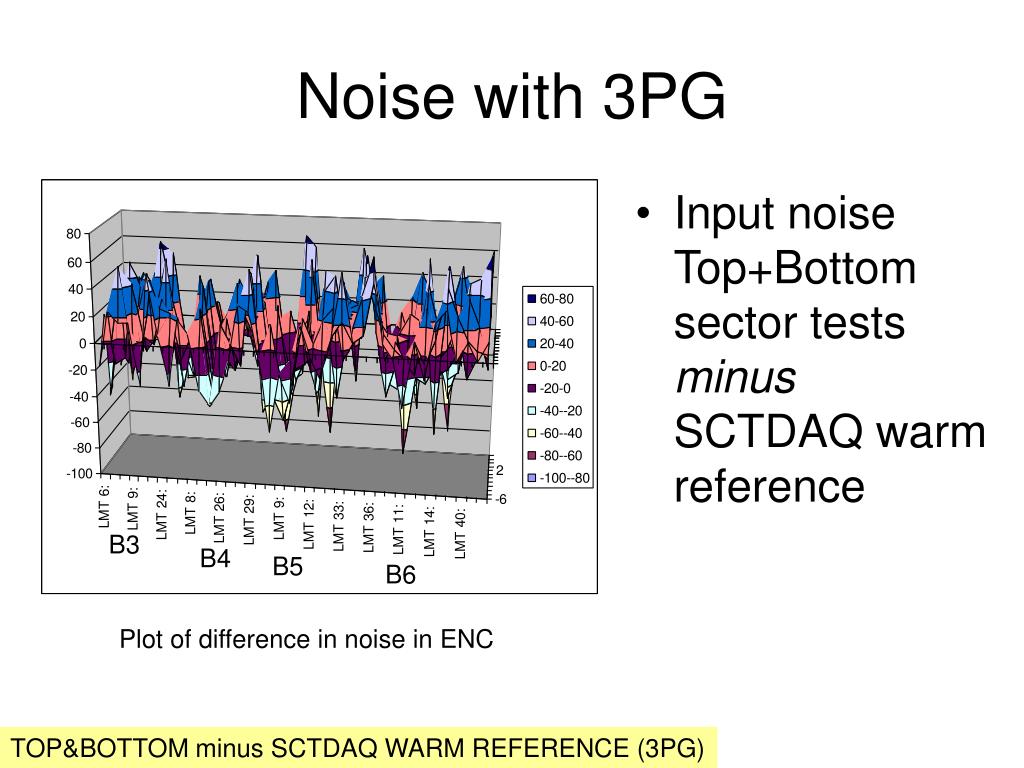

  2. Noise with 3PG • Input noise Top+Bottom sector tests minus SCTDAQ warm reference B3 B4 B5 B6 Plot of difference in noise in ENC TOP&BOTTOM minus SCTDAQ WARM REFERENCE (3PG)

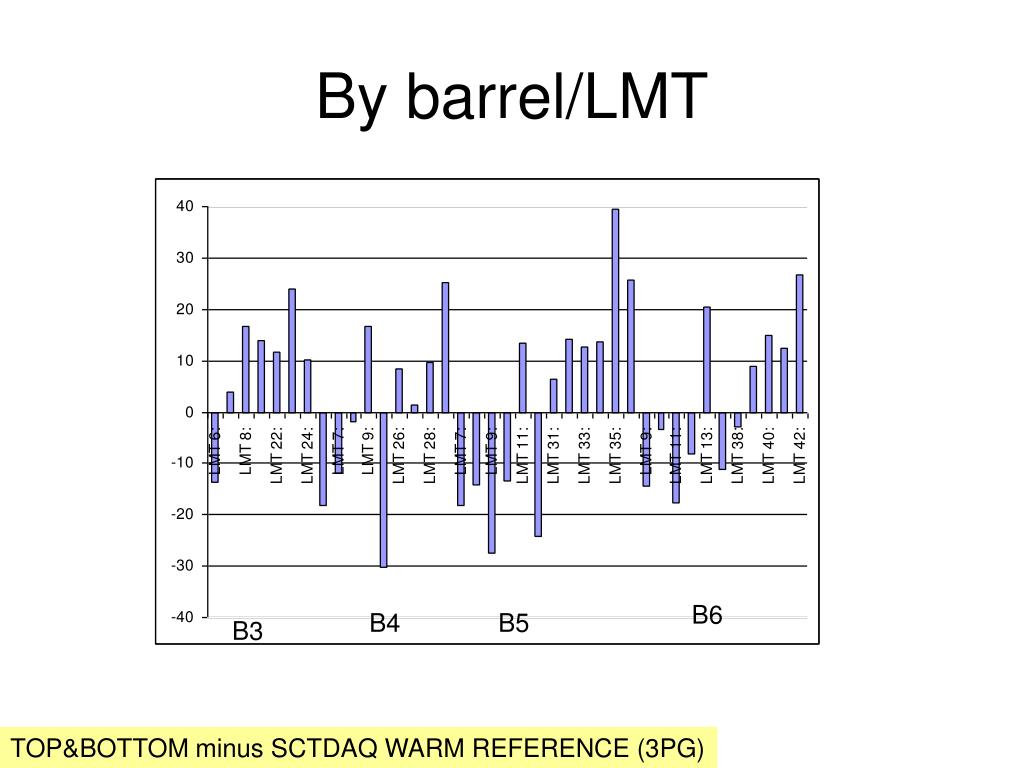

  3. By barrel/LMT B6 B4 B5 B3 TOP&BOTTOM minus SCTDAQ WARM REFERENCE (3PG)

  4. Noise difference vs position Average of barrels, phi rows. Difference in ENC (Barrels – SCTDAQ reference) 3 electrons difference TOP&BOTTOM minus SCTDAQ WARM REFERENCE (3PG)

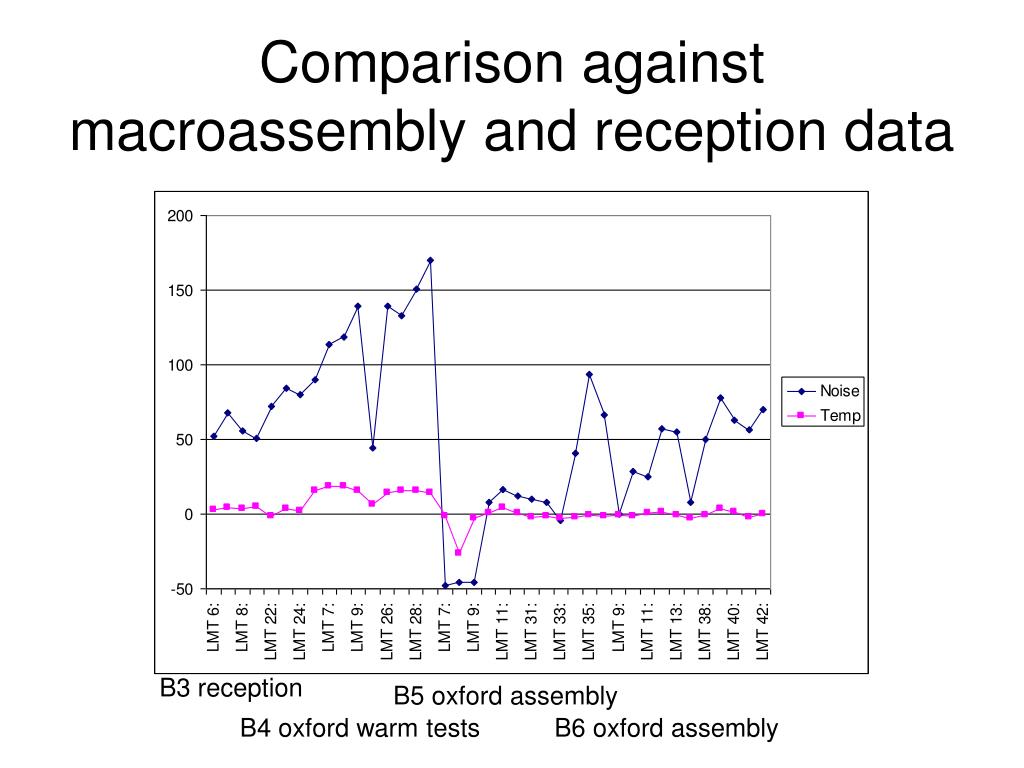

  5. Comparison against macroassembly and reception data B3 reception B5 oxford assembly B4 oxford warm tests B6 oxford assembly
