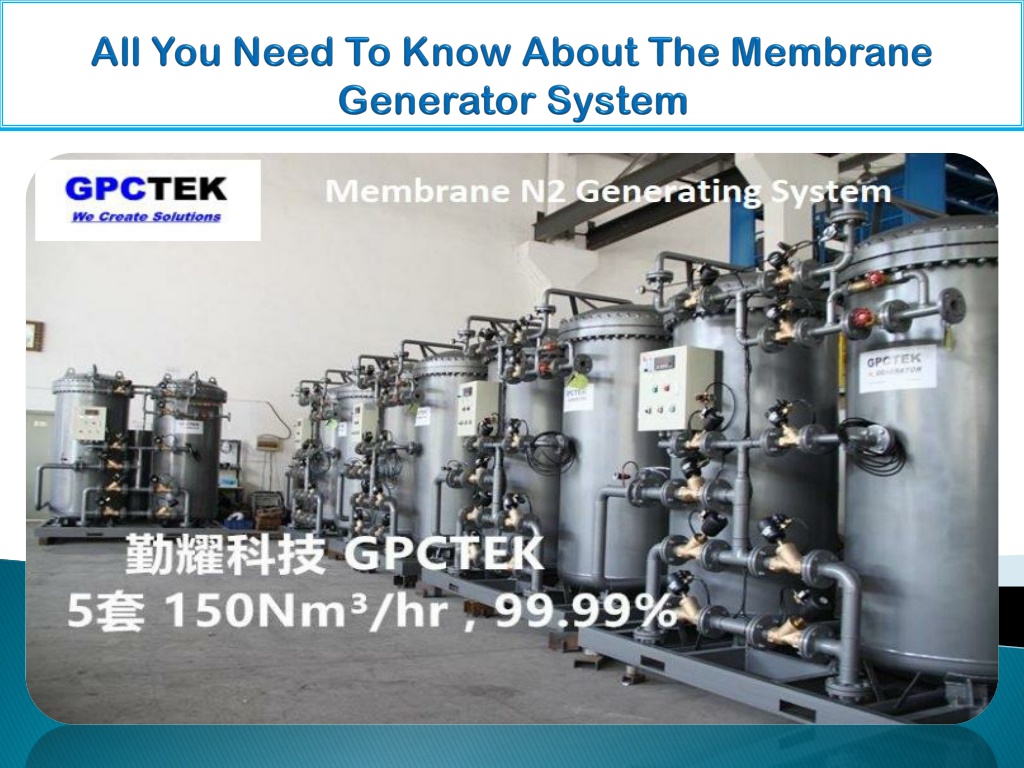

  1. All You Need To Know About The Membrane Generator System

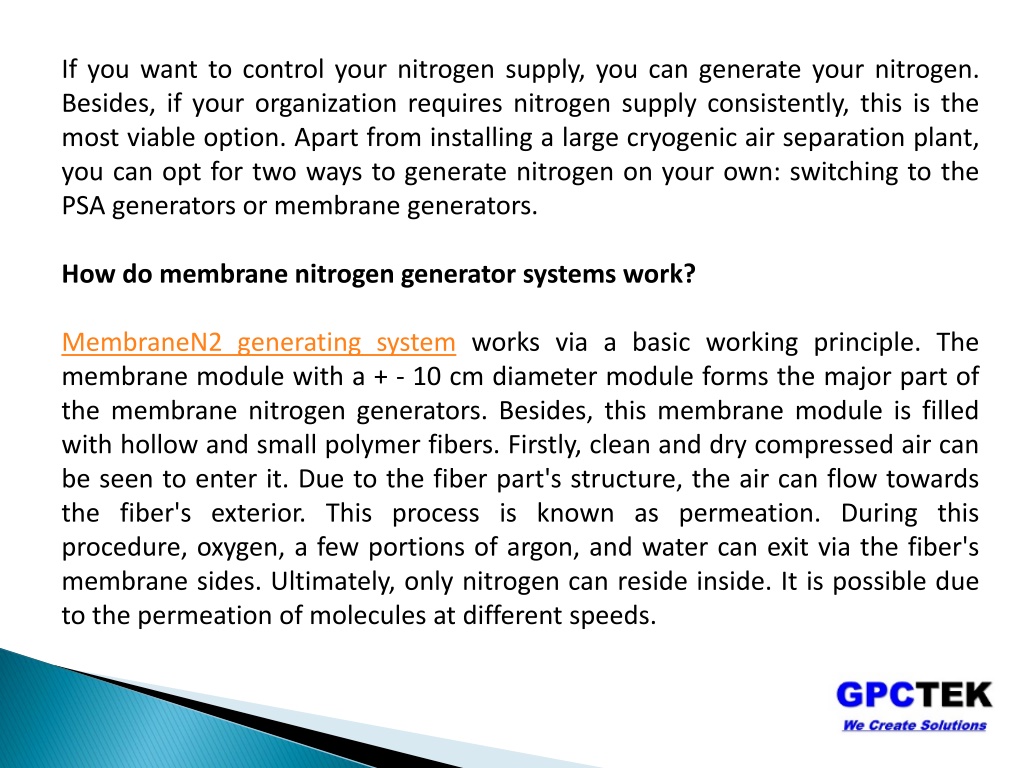

  2. If you want to control your nitrogen supply, you can generate your nitrogen. Besides, if your organization requires nitrogen supply consistently, this is the most viable option. Apart from installing a large cryogenic air separation plant, you can opt for two ways to generate nitrogen on your own: switching to the PSA generators or membrane generators. How do membrane nitrogen generator systems work? MembraneN2 generating system works via a basic working principle. The membrane module with a + - 10 cm diameter module forms the major part of the membrane nitrogen generators. Besides, this membrane module is filled with hollow and small polymer fibers. Firstly, clean and dry compressed air can be seen to enter it. Due to the fiber part's structure, the air can flow towards the fiber's exterior. This process is known as permeation. During this procedure, oxygen, a few portions of argon, and water can exit via the fiber's membrane sides. Ultimately, only nitrogen can reside inside. It is possible due to the permeation of molecules at different speeds.

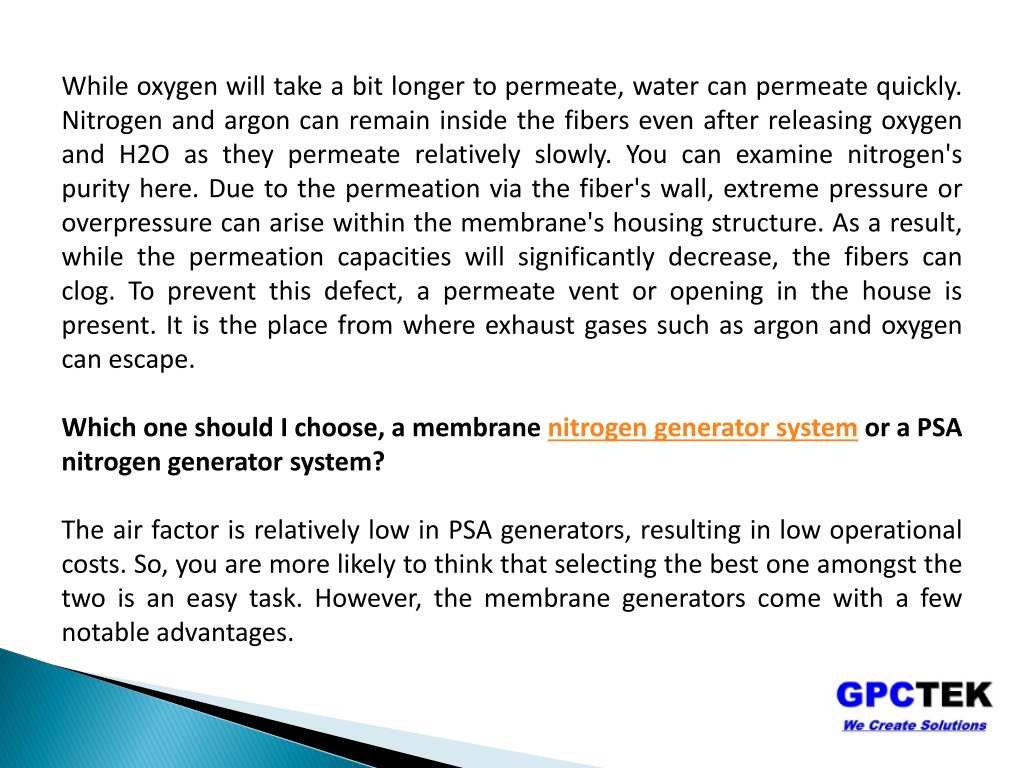

  3. While oxygen will take a bit longer to permeate, water can permeate quickly. Nitrogen and argon can remain inside the fibers even after releasing oxygen and H2O as they permeate relatively slowly. You can examine nitrogen's purity here. Due to the permeation via the fiber's wall, extreme pressure or overpressure can arise within the membrane's housing structure. As a result, while the permeation capacities will significantly decrease, the fibers can clog. To prevent this defect, a permeate vent or opening in the house is present. It is the place from where exhaust gases such as argon and oxygen can escape. Which one should I choose, a membrane nitrogen generator system or a PSA nitrogen generator system? The air factor is relatively low in PSA generators, resulting in low operational costs. So, you are more likely to think that selecting the best one amongst the two is an easy task. However, the membrane generators come with a few notable advantages.

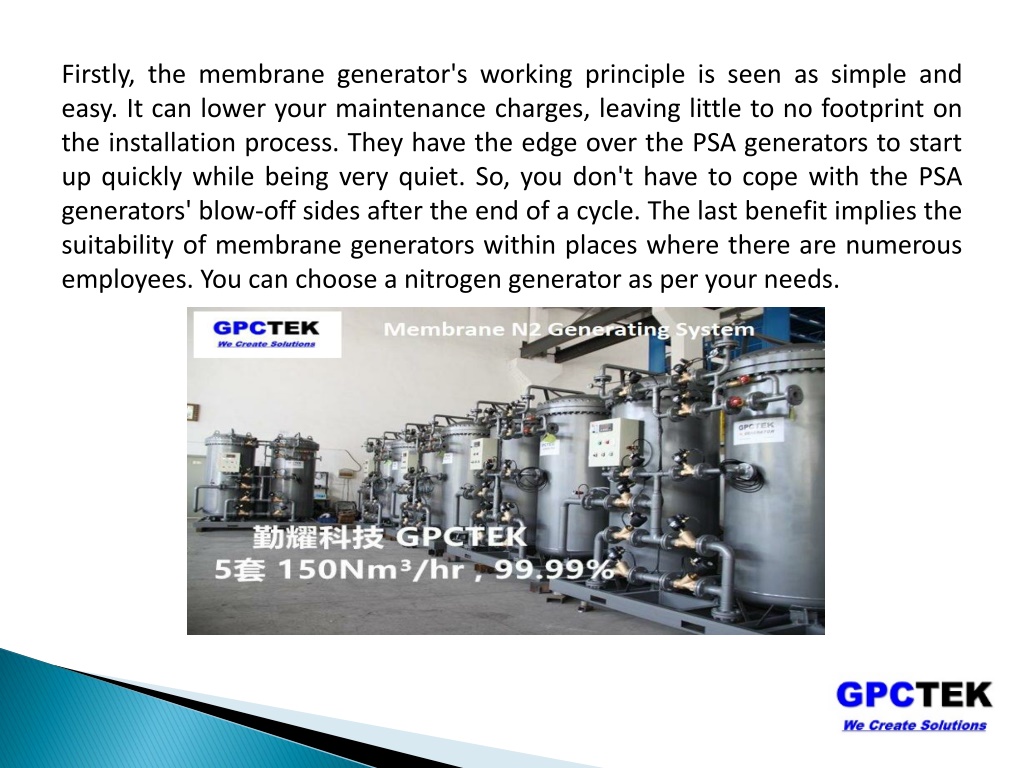

  4. Firstly, the membrane generator's working principle is seen as simple and easy. It can lower your maintenance charges, leaving little to no footprint on the installation process. They have the edge over the PSA generators to start up quickly while being very quiet. So, you don't have to cope with the PSA generators' blow-off sides after the end of a cycle. The last benefit implies the suitability of membrane generators within places where there are numerous employees. You can choose a nitrogen generator as per your needs.

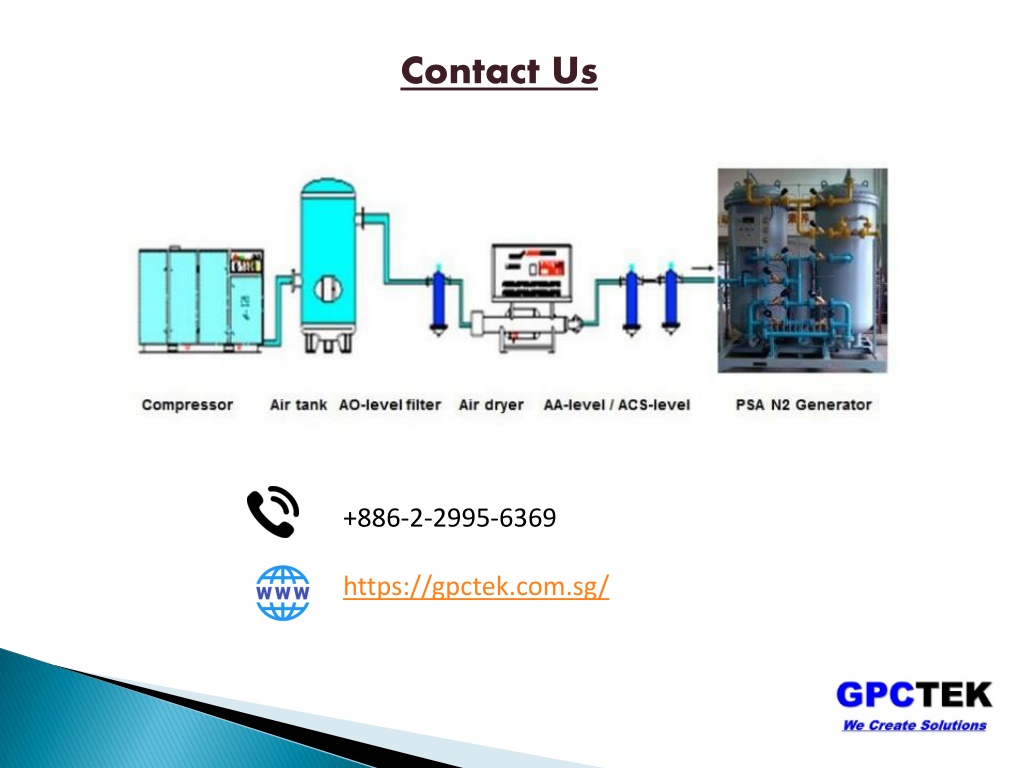

  5. Contact Us +886-2-2995-6369 https://gpctek.com.sg/
