  1. Interstellar molecules in the protostellar environment Recent results from Spitzer David Neufeld Johns Hopkins University

  2. Molecules in the protostellar environment • Introduction • The astrophysical environment of protostars • Molecular astrophysics with the Spitzer Space Telescope • New results from Spitzer • Interstellar carbon dioxide: probing grain destruction • Molecular hydrogen: a fossil record of the thermal history of the interstellar gas • Hydrogen deuteride: measuring the gas density and the deuterium abundance

  3. Molecules in the protostellar environment • Introduction • The astrophysical environment of protostars • Molecular astrophysics with the Spitzer Space Telescope • New results from Spitzer • Interstellar carbon dioxide: probing grain destruction • Molecular hydrogen: a fossil record of the thermal history of the interstellar gas • Hydrogen deuteride: measuring the gas density and the deuterium abundance

  4. Protostars and the interstellar gas • Protostars have two principal effects on the interstellar material that surrounds them • They are sources of luminosity that heat the surrounding gas and dust • They emit supersonic jets that drive shock waves into the ambient medium • Protostars wreak profound physical and chemical changes on the interstellar medium

  5. Radiative heating by protostars • Protostars can be prodigious sources of luminosity, with L = few – few x 104 L, depending upon the mass • In the early stages of evolution, the radiation is typically absorbed by interstellar dust and reradiated in the infrared • Yields “hot cores” with gas and dust temperatures of 100 – few x 100 K and unusual chemical composition

  6. Chemistry in hot cores • Hot core regions  enhanced abundances of water vapor, methanol, deuterated species, sulphur-containing species, large saturated molecules Attributed to non-equilibrium chemistry, driven by ice mantle evaporation (recall yesterday’s talks by Malcolm, Cecilia, Xander)

  7. Absorption line spectroscopy of gaseous and solid H2O toward massive protostars(Boonman & van Dishoeck 2003) • Observed water vapor abundances in hot cores n(H2O)/n(H2) ~ 5 x 10–6 to 6 x 10–5 …. a factor of 102 – 104 greater than those measured in cold molecular cloud cores where protostars are absent

  8. Analogous results for CO2(Boonman et al. 2003) Observed carbon dioxide abundances in hot cores n(CO2)/n(H2) ~ 7 x 10–8 to 3 x 10–7 (from absorption line observations of n2 Q-branch at 14.97 mm)

  9. Effects of shocks • Physical effects: shocks heat, accelerate and compress the interstellar medium, elevating gas temperatures to a few x 102 to a few x 103 K at substantial distances from the protostar • Chemical effects: • Shocks can drive chemical reactions with activation energy barriers • Shocks can sputter grain mantles, releasing material into the gas phase • Fast shocks can dissociate molecules, ionize the resultant atoms, and even destroy refractory grain cores

  10. The Herbig-Haro objects HH1–2 HH2 HH1 Source VLA1 HST/WFPC2 image from Hester et al. 1998, AJ (red = [SII], green = Ha, blue = [OIII])

  11. The Herbig-Haro objects HH7–11 Khanzadyan et al. 2003, MNRAS H2 v = 1– 0 S(1) 2.12 mm

  12. Molecules in the protostellar environment • Introduction • The astrophysical environment of protostars • Molecular astrophysics with the Spitzer Space Telescope • New results from Spitzer • Interstellar carbon dioxide: probing grain destruction • Molecular hydrogen: a fossil record of the thermal history of the interstellar gas • Hydrogen deuteride: measuring the gas density and the deuterium abundance

  13. Mid- and far-infrared spectroscopy • Mid and far-IR spectroscopy is a key tool for studying of the molecular environment of protostars • Infrared Space Observatory (1995 – 1998) provided complete coverage of the 2.5 – 197 micron region: Results reviewed in 2004 ARA&A article by van Dishoeck, “ISO SPECTROSCOPY OF GAS AND DUST: From Molecular Clouds to Protoplanetary Disks”

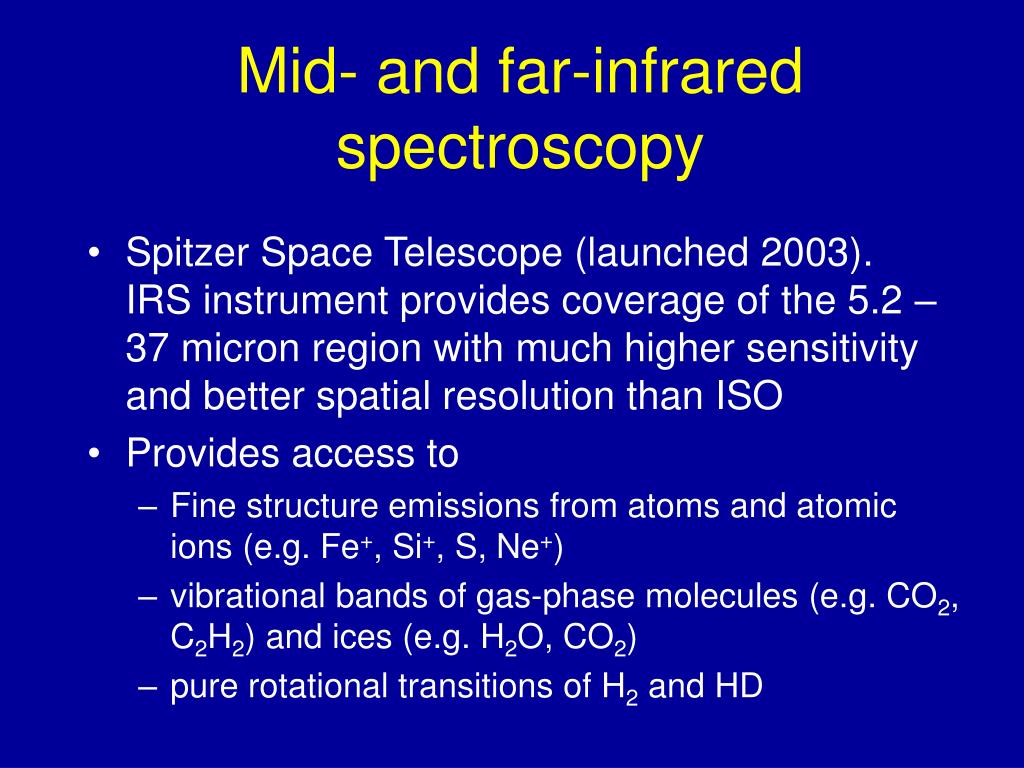

  14. Mid- and far-infrared spectroscopy • Spitzer Space Telescope (launched 2003). IRS instrument provides coverage of the 5.2 – 37 micron region with much higher sensitivity and better spatial resolution than ISO • Provides access to • Fine structure emissions from atoms and atomic ions (e.g. Fe+, Si+, S, Ne+) • vibrational bands of gas-phase molecules (e.g. CO2, C2H2) and ices (e.g. H2O, CO2) • pure rotational transitions of H2 and HD

  15. Molecules in the protostellar environment • Introduction • The astrophysical environment of protostars • Molecular astrophysics with the Spitzer Space Telescope • New results from Spitzer • Interstellar carbon dioxide: probing grain mantle vaporization • Molecular hydrogen: a fossil record of the thermal history of the interstellar gas • Hydrogen deuteride: measuring the gas density and the deuterium abundance

  16. Gaseous carbon dioxide • CO2 was one of three interstellar molecules detected for the first time with ISO • CO2, in both the solid and gas phases, has been observed toward several massive protostars (e.g. Boonman et al. 2003), mainly in absorption toward the protostar • Spitzer allows us to map weak CO2emission in the vicinity of massive protostars • Study of Cepheus A East led by Paule Sonnentrucker

  17. Spitzer observations of Cepheus A East (Sonnentrucker et al. 2006): warm H2 (in J=4)

  18. Spitzer observations of Cepheus A East (Sonnentrucker et al. 2006): ionized neon, Ne+

  19. Spitzer observations of Cepheus A East (Sonnentrucker et al. 2006): gaseous CO2

  20. Carbon dioxide in Cepheus A East CO2 is fluorescently pumped by 15 mm continuum radiation from the protostar HW2. Column density estimates (from Eduardo Gonzalez-Alfonso) reach N(CO2 gas) ~ 1016 cm–3and appear to be correlated with those of warm H2 Derived CO2 column density

  21. Origin of the CO2 mapped in Cepheus A East • Spatial distribution of gaseous CO2 suggests that it associated with slow shocks (like warm H2) • Probably the result of grain mantle sputtering in shocks of velocity 15 – 30 km/s • Absorption by solid CO2 also widely detected against the extended IR continuum with N(CO2 ice)/nH ~ 10–5 • N(CO2 gas)/N(CO2 ice) reaches a maximum of roughly 0.04  up to 4% of the material along a given sight-line is subject to grain mantle sputtering in shocks

  22. Molecules in the protostellar environment • Introduction • The astrophysical environment of protostars • Molecular astrophysics with the Spitzer Space Telescope • New results from Spitzer • Interstellar carbon dioxide: probing grain destruction • Molecular hydrogen: a fossil record of the thermal history of the interstellar gas • Hydrogen deuteride: measuring the gas density and the deuterium abundance

  23. Molecular hydrogen • The most abundant molecule in the Universe, discovered by UV spectroscopy in 1970 • Transitions • Electronic: Dipole-allowed Lyman and Werner bands observable in the far-UV in absorption and fluorescent emission • Vibrational: quadrupole transitions in near-IR • Rotational: quadrupole transitions in mid-IR

  24. H2 rotational structure Absence of dipole moment  DJ = 2 selection rule J = 4 S(2) J = 3 S(1) J = 2 S(0) J = 1 J = 0 Molecular hydrogen

  25. H2 rotational structure The hydrogen nuclei are two identical spin-1/2 fermions  wavefunction must be antisymmetric with respect to interchange of those nuclei For the total spin = 1 state (ortho-H2): the rotational part of the wavefunction must be antisymmetric  J is odd For the total spin = 0 state (para-H2): the rotational part of the wavefunction must be symmetric  J is even

  26. H2 rotational structure Absence of dipole moment  DJ = 2 selection rule J = 4 S(2) J = 3 S(1) J = 2 S(0) J = 1 J = 0 Molecular hydrogen

  27. H2 rotational structure Absence of dipole moment  DJ = 2 selection rule J = 4 S(2) J = 3 S(1) J = 2 S(0) J = 1 J = 0 Para-hydrogen Nuclear spin, I = 0 Ortho-hydrogen Nuclear spin, I = 1

  28. Ortho-to-para ratio in equilibrium High temperature: Ortho-H2/para-H2 = 3, the ratio of the nuclear spin degeneracies Low temperature: Ortho-H2/para-H2 = nJ=1 / nJ=0 = 9 exp (171 K /T )

  29. Ortho-para conversion is extremely slow Not only are DJ = ±1 transitions radiatively forbidden, they are negligible in non-reactive inelastic collisions Reason: a change from even  odd J must be accompanied by a change in nuclear spin Implication: ortho-to-para conversion is extremely slow

  30. A well known effect in the industrial production and storage of LH2 Straightforward refrigeration of H2 leads to liquid H2 with the ortho/para ratio initially “frozen in” at 3

  31. Ortho-to-para ratio in equilibrium Room temperature: Ortho-H2/para-H2 = 3 LH2 temperature: Ortho-H2/para-H2 = 0.01 Room temperature Boiling point

  32. A well known effect in the industrial production and storage of LH2 Straightforward refrigeration of H2 leads to liquid H2 with the ortho/para ratio initially “frozen in” at 3 Ortho-para conversion proceeds slowly, with a timescale ~ 6.5 days, releasing heat as it occurs

  33. A similar effect has also been observed with astrophysical H2 Infrared Space Observatory (ISO/SWS) observations of HH54, a Herbig-Haro object in which molecular gas is shocked by a protostellar outflow  detection of S(1) through S(5) pure rotational lines (Neufeld et al. 1998, ApJL)

  34. HH54 rotational diagram Zigzag behavior  ortho-para ratio out of equilibrium Slope  Tgas = 650 K Ortho-para ratio = 1.2  Top = 90 K

  35. Interpretation of the non-equilibrium ortho/para ratio The gas is currently warm, T ~ 650 K The gas was previously cold, T  90 K The gas not been warm long enough to establish an equilibrium ortho/para ratio

  36. Para-to-ortho conversion • Possible conversion processes • Reactive collisions: • para-H2 + H ↔ H + ortho-H2 • para-H2 + H+ ↔ H+ + ortho-H2 • para-H2 + H3+ ↔ H3+ + ortho-H2 • Grain-surface catalysis • Destruction followed by grain-catalysed reformation

  37. Para-to-ortho conversion • Possible conversion processes • Reactive collisions: • para-H2 + H ↔ H + ortho-H2 • para-H2 + H+ ↔ H+ + ortho-H2 • para-H2 + H3+ ↔ H3+ + ortho-H2 • Grain-surface catalysis • Destruction followed by grain-catalysed reformation • HH54 conditions suggest reaction with H will dominate: barrier ~ 4000 K Para-to-ortho conversion timescale is ~ 5000 yr at 650 K

  38. Shock heating suggested • Shock waves heat gas temporarily: cooling time is smaller than the ortho/para conversion time • Compared results with predictions based on detailed calculations of Timmerman (1996, ApJ) • Ortho/para ratio in HH54 consistent with models for shocks with velocity 10 – 20 km/s

  39. Spitzer observations • The great sensitivity of Spitzer allows the S(0) to S(7) pure rotational transitions of H2 to be mapped at 3 – 10′′ resolution • Results on HH7 –11 and HH54 reported by Neufeld et al. (2006, ApJ, in press; also astro-ph/0606232) • Team members: Joel Green, Kyounghee Kim, Dan Watson, Judy Pipher, Bill Forrest (University of Rochester); Paule Sonnentrucker (Johns Hopkins), Gary Melnick (CfA), Ted Bergin (Michigan)

  40. Spitzer observations of H2in HH54

  41. Map of column density of warm H2(states with J = 4 – 9)

  42. Maps of physical conditions:Gas temperature

  43. Maps of physical conditions:H2 ortho-to-para ratio

  44. Results from mapping • Mean gas temperature shows little variation from one sightline to the next: typical values are 600 – 1000 K • Mean ortho-to-para ratio varies substantially from ~ 0.5 to ~ 3

  45. Similar results obtained for HH7 – 11 Gas temperature Column density Ortho/para ratio

  46. H2 rotational diagrams for HH54 H2 S(3) [NeII]

  47. Fits to rotational diagrams • Curvature  multiple temperatures present • We typically get good agreement with a two-component fit that invokes a warm component at TW ~ 400 K and a hot component at TH ~ 1000 K • Consistent with admixture of shock velocities in the range 10 – 20 km/s • Zigzag behavior • H2 ortho-to-para ratio is smaller than 3 • Departures from LTE are greater for the lower temperature components

  48. H2 rotational diagrams for HH54 Fit parameters for position HH54E Warm component T = 424K N(H2) = 1019.84 OPR = 0.51 Hot component T = 1029 K N(H2) = 1019.20 OPR = 1.89

  49. Correlations between temperature and ortho-to-para ratio Orange curve: LTE ratio Green squares: warm Red squares: hot Black curve: 150 yr age with initial o/p ratio of 0.4 Cyan curves: detailed Wilgenbus et al. models for initial o/p ratio of 0.01

  50. Correlations between temperature and ortho-to-para ratio Orange curve: LTE ratio Green squares: warm Red squares: hot Red and green crosses: HH8/9 Black curve: 150 yr age with initial o/p ratio of 0.25 Cyan curves: detailed Wilgenbus et al. models for initial o/p ratio of 0.01
