  1. Crowdsourcing Urban Data with Smartphones Demetrios Zeinalipour-Yazti Data Management Systems Laboratory Department of Computer Science University of Cyprus http://www.cs.ucy.ac.cy/~dzeina/ Invited Talk at the Mining Urban Data (MUD) Workshop (with EDBT/ICDT), Athens, Greece, March 28, 2014 www.insight-ict.eu/mud

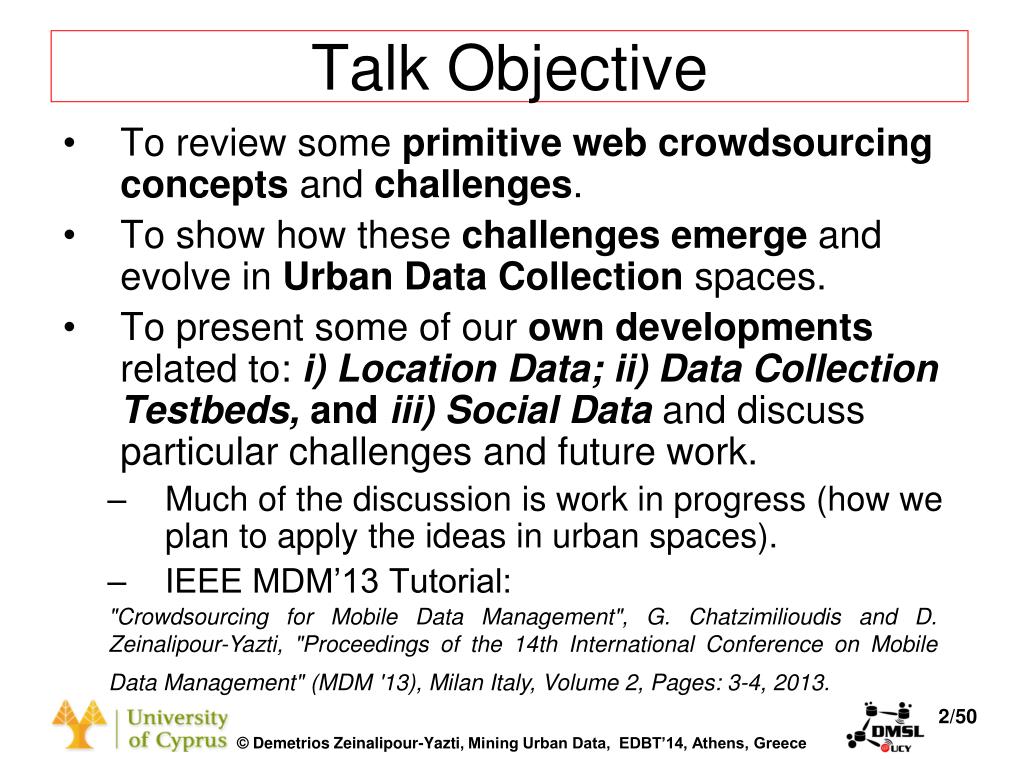

  2. Talk Objective • To review some primitive web crowdsourcing concepts and challenges. • To show how these challenges emerge and evolve in Urban Data Collection spaces. • To present some of our own developments related to: i) Location Data; ii) Data Collection Testbeds, and iii) Social Data and discuss particular challenges and future work. • Much of the discussion is work in progress (how we plan to apply the ideas in urban spaces). • IEEE MDM’13 Tutorial: • "Crowdsourcing for Mobile Data Management", G. Chatzimilioudis and D. Zeinalipour-Yazti, "Proceedings of the 14th International Conference on Mobile Data Management" (MDM '13), Milan Italy, Volume 2, Pages: 3-4, 2013.

  3. Crowdsourcing Definitions • Crowdsourcing = Crowd + Outsourcing • Jeff Howe (2006). "The Rise of Crowdsourcing". Wired. • From our recent work: • Crowdsourcing refers to a distributed problem-solving model in which a crowd of undefinedsize is engaged in the task of solving a complex problem through an open call for monetary or ethical benefit. “Crowdsourcing with Smartphones”, GeorgiosChatzimiloudis, Andreas Konstantinidis, Christos Laoudias, Demetrios Zeinalipour-Yazti, IEEE Internet Computing, Special Issue: Sep/Oct 2012 - Crowdsourcing, May 2012. IEEE Press, Volume 16, Pages: 36-44, 2012.

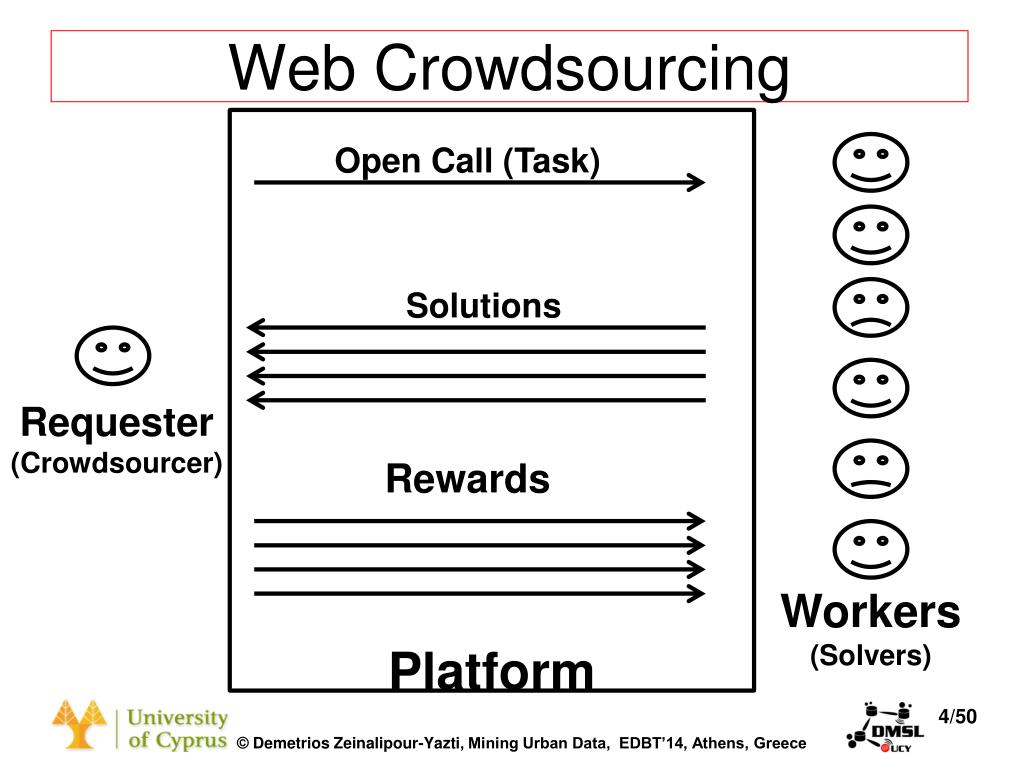

  4. Web Crowdsourcing Open Call (Task) Solutions Requester (Crowdsourcer) Rewards Workers (Solvers) Platform

  5. Web Crowdsourcing Microtasking Platform: Qualifications b) Redundancy: Each worker solves a Hit once (3-5 assignment per hit) to enable majority voting a) Reward

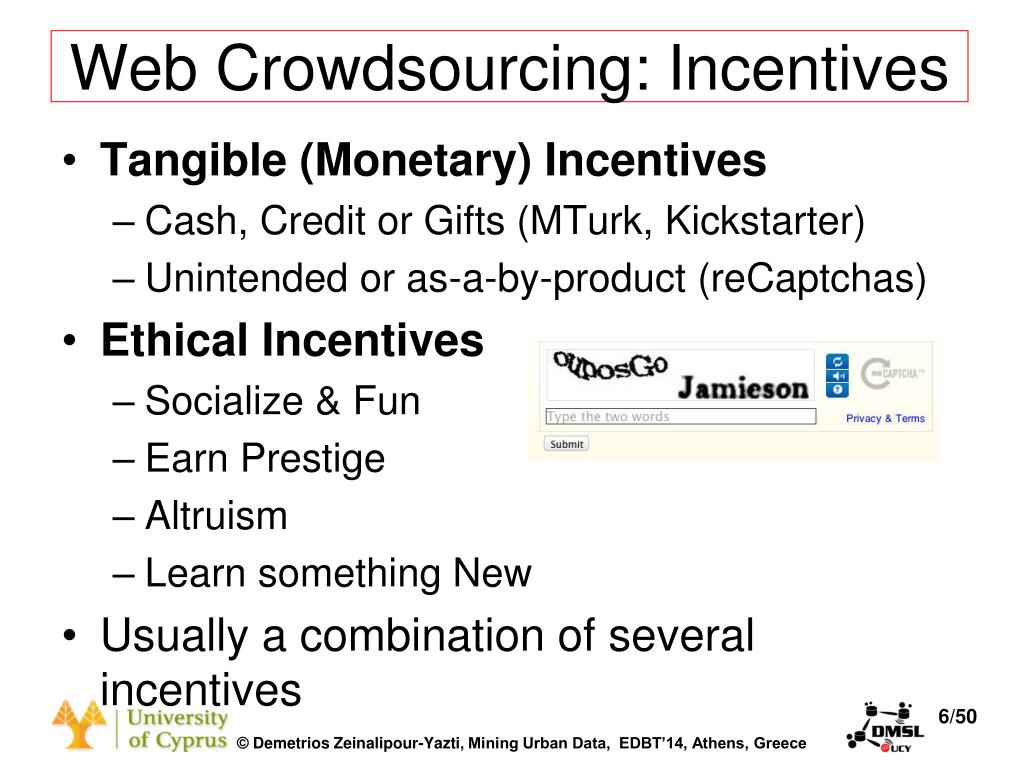

  6. Web Crowdsourcing: Incentives • Tangible (Monetary) Incentives • Cash, Credit or Gifts (MTurk, Kickstarter) • Unintended or as-a-by-product (reCaptchas) • Ethical Incentives • Socialize & Fun • Earn Prestige • Altruism • Learn something New • Usually a combination of several incentives

  7. Web Crowdsourcing: Challenges • How to Recruit Contributors (randomly, marketplaces?) / What the Contributors Can Do (qualifications, tests)? • How to Combine their Contributions? • How to Manage Abuse? • How To Scale/Manage Complex/Larger Tasks? • Openness / Quality? • Disclosure Issues (Privacy related to Tasks, NDAs?) • Minimum Wages & Social Contributions? Anhai Doan, Raghu Ramakrishnan, and Alon Y. Halevy. 2011. Crowdsourcing systems on the World-Wide Web. Commun. ACM 54, 4 (April 2011), 86-96.

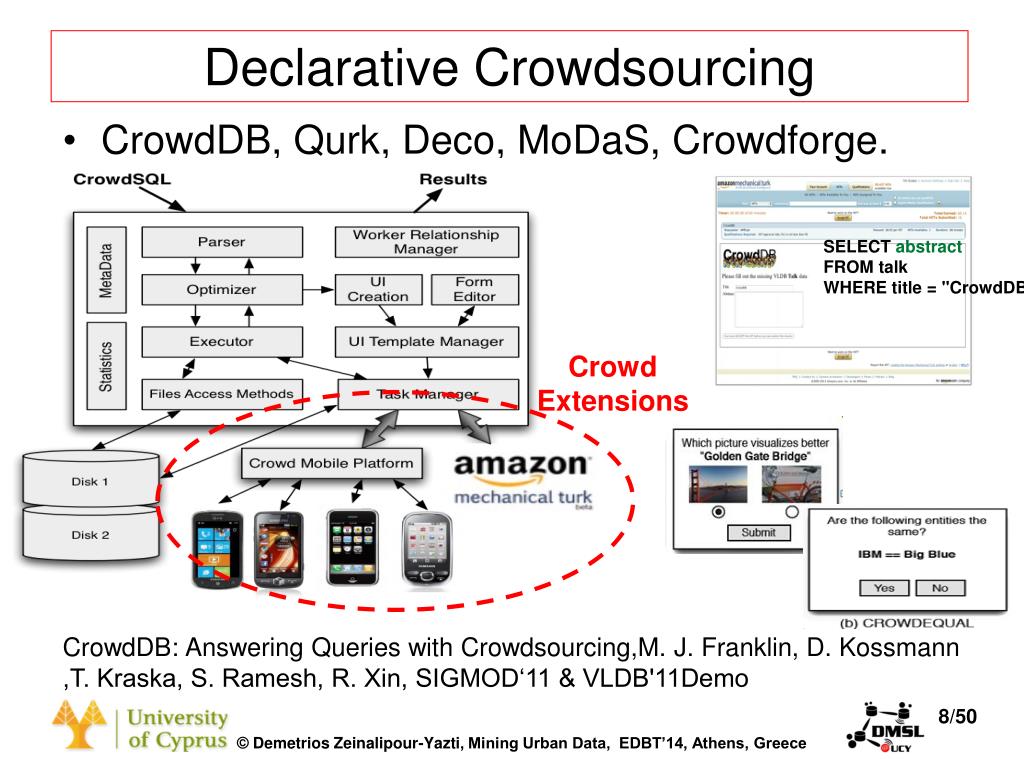

  8. Declarative Crowdsourcing • CrowdDB, Qurk, Deco, MoDaS, Crowdforge. • SELECT abstract • FROM talk • WHERE title = "CrowdDB"; Crowd Extensions CrowdDB: Answering Queries with Crowdsourcing,M. J. Franklin, D. Kossmann ,T. Kraska, S. Ramesh, R. Xin, SIGMOD‘11 & VLDB'11Demo

  9. Mobile Crowdsourcing • txtEagle (now JANA) founded by Nathan Eagle (PhD, MIT, 2005) a first-of-a-kind mobile CS system: • Requesters: can assign small tasks (translation, transcription and surveys) on their mobile phones. • Workers (today 3.48 Billion Workers in 102 countries!): : rewarded with airtime on their mobile subscriber accounts or MPESA (mobile money described next). txteagle: Mobile Crowdsourcing, Internationalization, Design and Global Development, LNCS Volume 5623, pp 447-456, 2009.

  10. Mobile Crowdsourcing • Another app txtEagle SMS Bloodbank : • Idea: to report blood levels of local hospitals centrally by nurses. • Initially, in the absence of an incentive, the system was a complete failure. • In summer 2007, automatic airtime credit was incorporated to award nurses for their contribution => then a huge success! • Other txtEagle SMS applications: • Transcription mentioned previously (global market $18B in 2010) • Software Localization (60 local languages in Kenya, txtEagle generated a cookbook • Citizen Journalism, Sentiment Analysis, Surveys

  11. The Smartphone Era April 2013: Beginning of Smartphone Era! • In April, 2013, for the first time in history the number of Worldwide Smartphone sales exceeded that of feature phones (according to IDC) • 51.6% were Smartphones (216M units) • 48.4% were Feature Phones (186M units) • The bulk of mobile phones are acquired in the developing world (e.g., China, India, Africa etc.) • Chinese manufactures (ZTE, Huawei) started building smartphones for the wide markets. More Smartphones Were Shipped in Q1 2013 Than Feature Phones, An Industry First According to IDC, 25 Apr 2013, http://www.idc.com/getdoc.jsp?containerId=prUS24085413

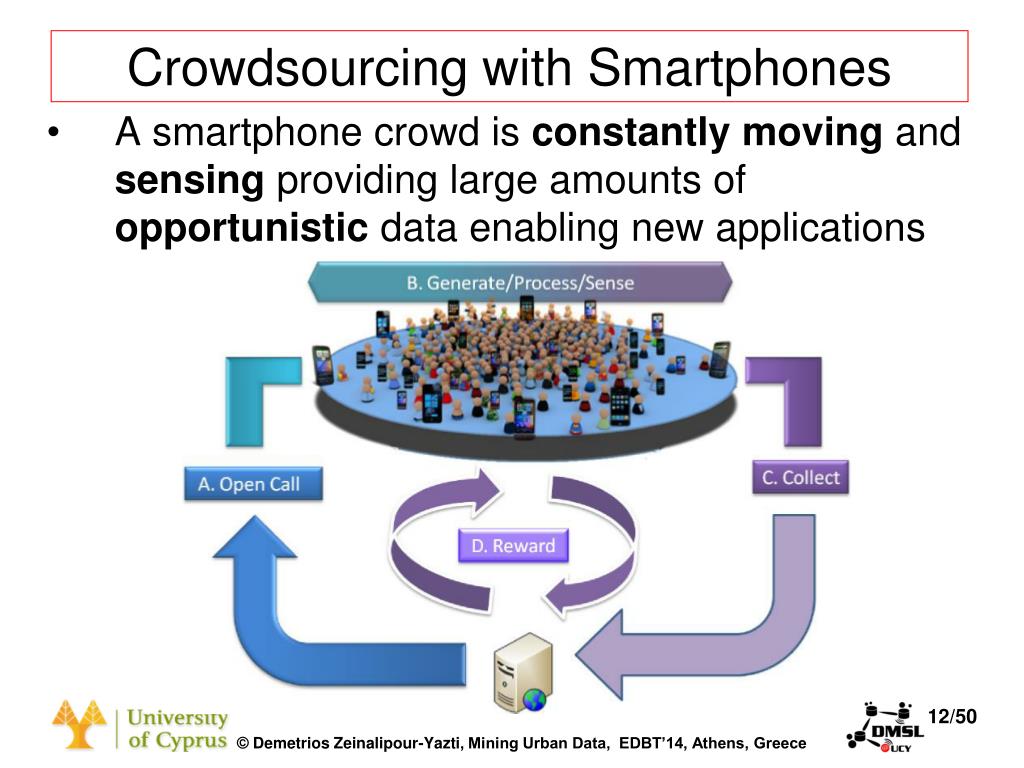

  12. Crowdsourcing with Smartphones • A smartphone crowd is constantly moving and sensing providing large amounts of opportunistic data enabling new applications

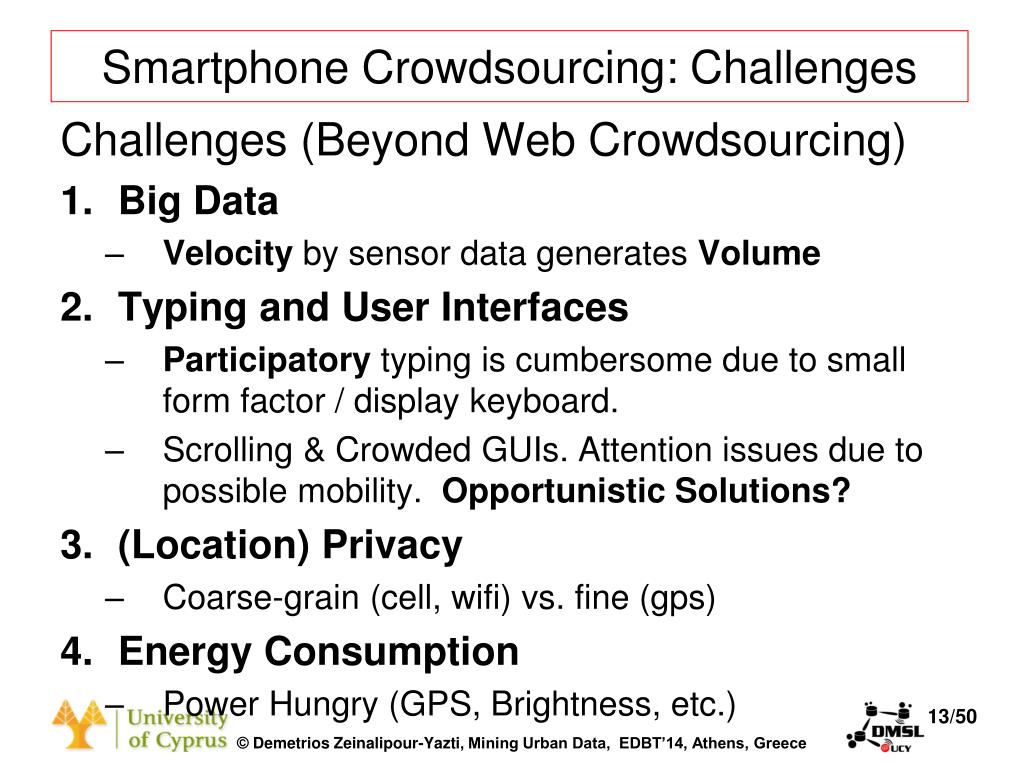

  13. Smartphone Crowdsourcing: Challenges Challenges (Beyond Web Crowdsourcing) • Big Data • Velocity by sensor data generates Volume • Typing and User Interfaces • Participatory typing is cumbersome due to small form factor / display keyboard. • Scrolling & Crowded GUIs. Attention issues due to possible mobility. Opportunistic Solutions? • (Location) Privacy • Coarse-grain (cell, wifi) vs. fine (gps) • Energy Consumption • Power Hungry (GPS, Brightness, etc.)

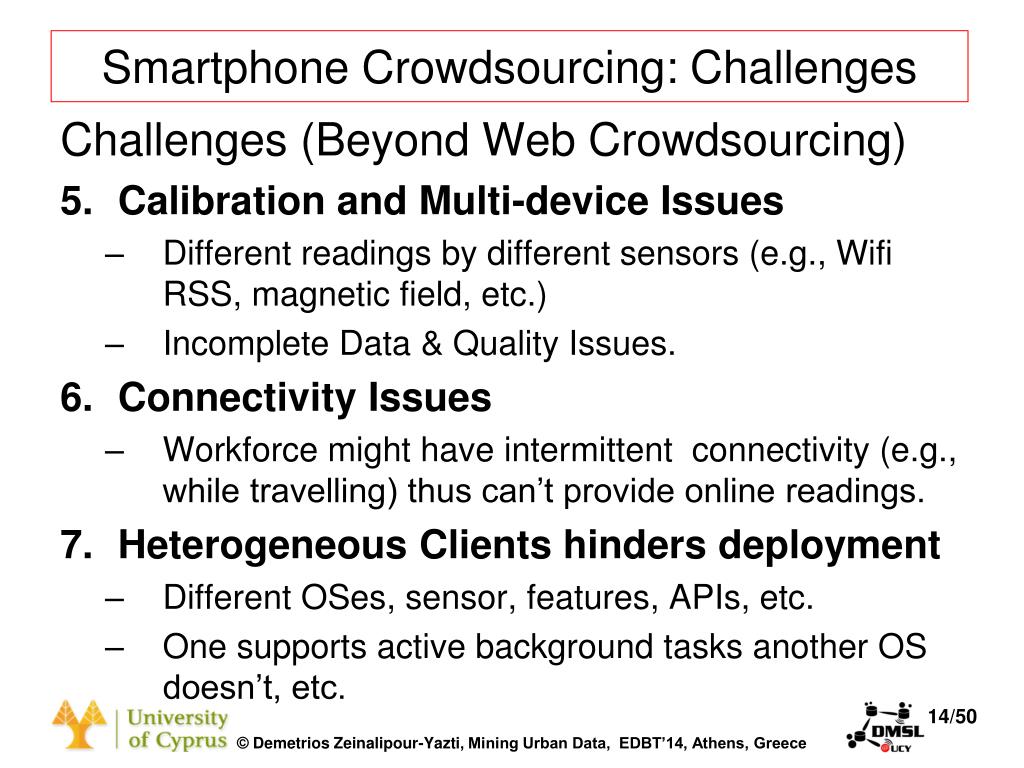

  14. Smartphone Crowdsourcing: Challenges Challenges (Beyond Web Crowdsourcing) • Calibration and Multi-device Issues • Different readings by different sensors (e.g., Wifi RSS, magnetic field, etc.) • Incomplete Data & Quality Issues. • Connectivity Issues • Workforce might have intermittent connectivity (e.g., while travelling) thus can’t provide online readings. • Heterogeneous Clients hinders deployment • Different OSes, sensor, features, APIs, etc. • One supports active background tasks another OS doesn’t, etc.

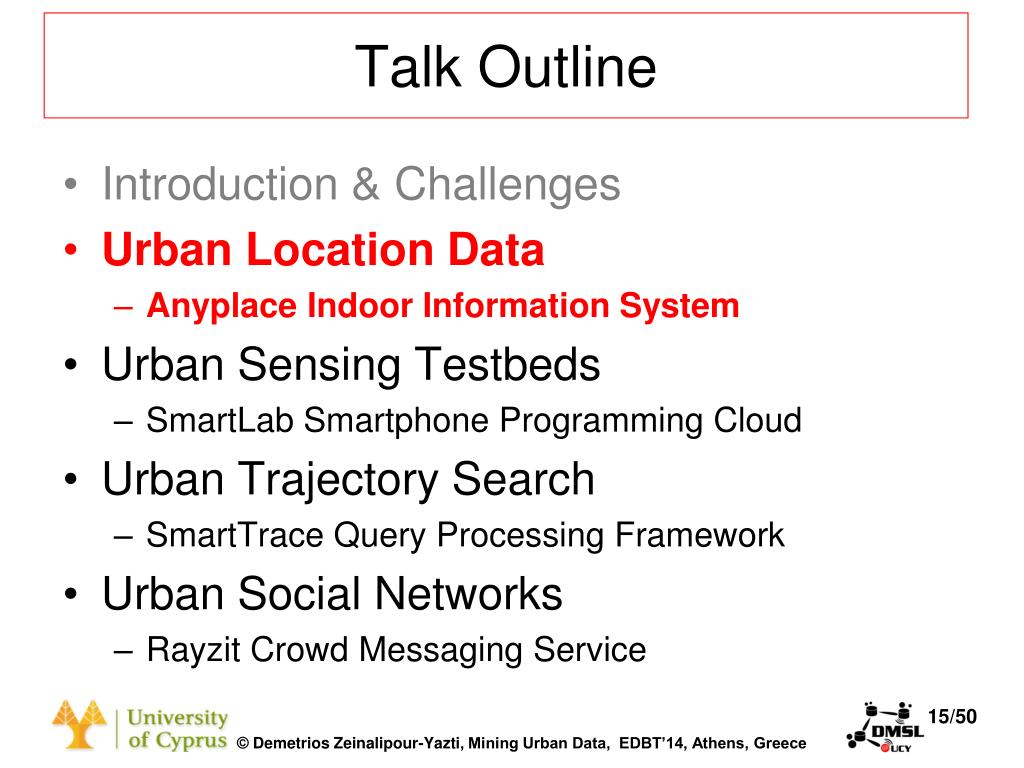

  15. Talk Outline • Introduction & Challenges • Urban Location Data • Anyplace Indoor Information System • Urban Sensing Testbeds • SmartLab Smartphone Programming Cloud • Urban Trajectory Search • SmartTrace Query Processing Framework • Urban Social Networks • Rayzit Crowd Messaging Service

  16. Urban Location Data • People spend 80-90% of their time inside buildings, while 70% of cellular calls and 80% of data connections originate from indoors. • GPS has low availability indoors due to the blockage or attenuation of the satellite signals but it is also very power hungry. • Smartphones can nowadays localize off-the-shelf with onboard sensors and WiFi signal fingerprints (coined Hybrid Localization) • New Applications: • In-building Navigation (Malls, Airports, Museums, Schools, etc.) • Asset Tracking and Inventory Management (Hospitals, etc) • Elderly support for Ambient and Assisted Living (AAL) • Augmented Reality (Firefighters), Social Networking, etc.

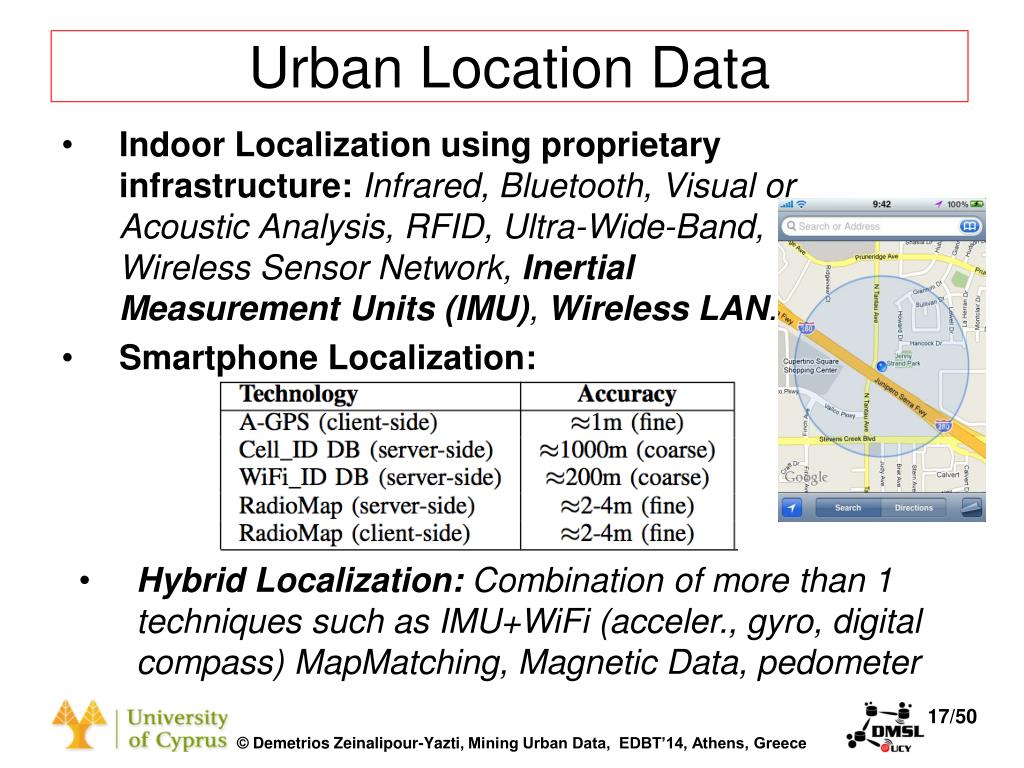

  17. Urban Location Data • Indoor Localization using proprietary infrastructure: Infrared, Bluetooth, Visual or Acoustic Analysis, RFID, Ultra-Wide-Band, Wireless Sensor Network, Inertial Measurement Units (IMU), Wireless LAN. • Smartphone Localization: • Hybrid Localization: Combination of more than 1 techniques such as IMU+WiFi (acceler., gyro, digital compass) MapMatching, Magnetic Data, pedometer

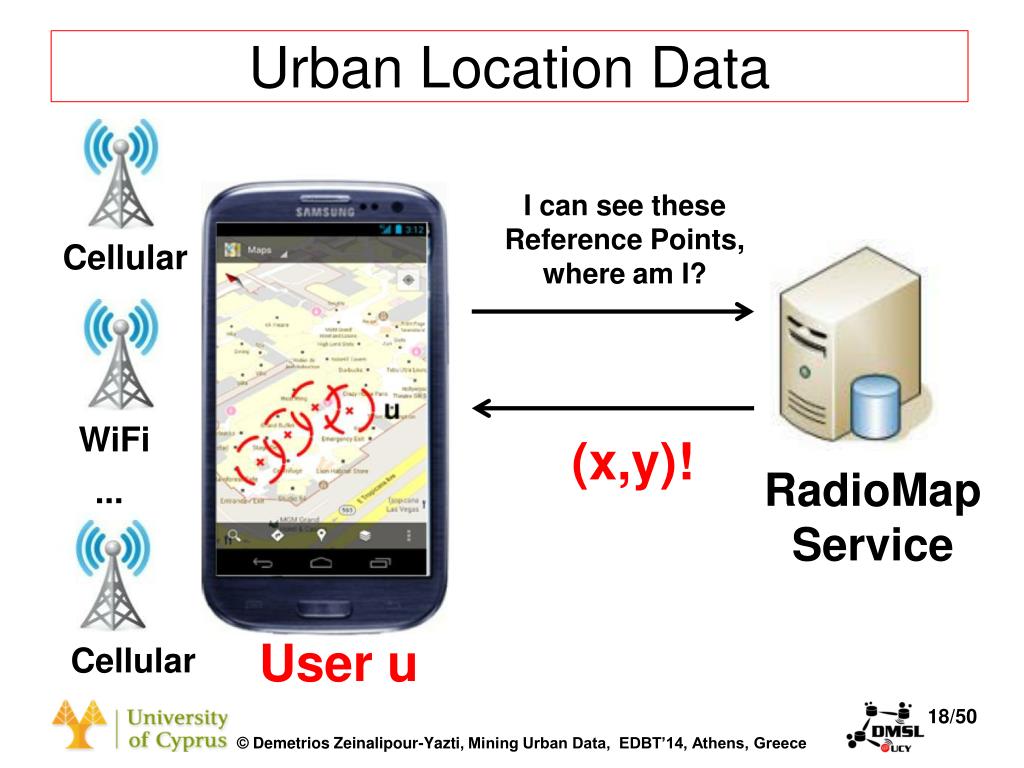

  18. Urban Location Data I can see these Reference Points, where am I? Cellular WiFi (x,y)! RadioMap Service ... User u Cellular

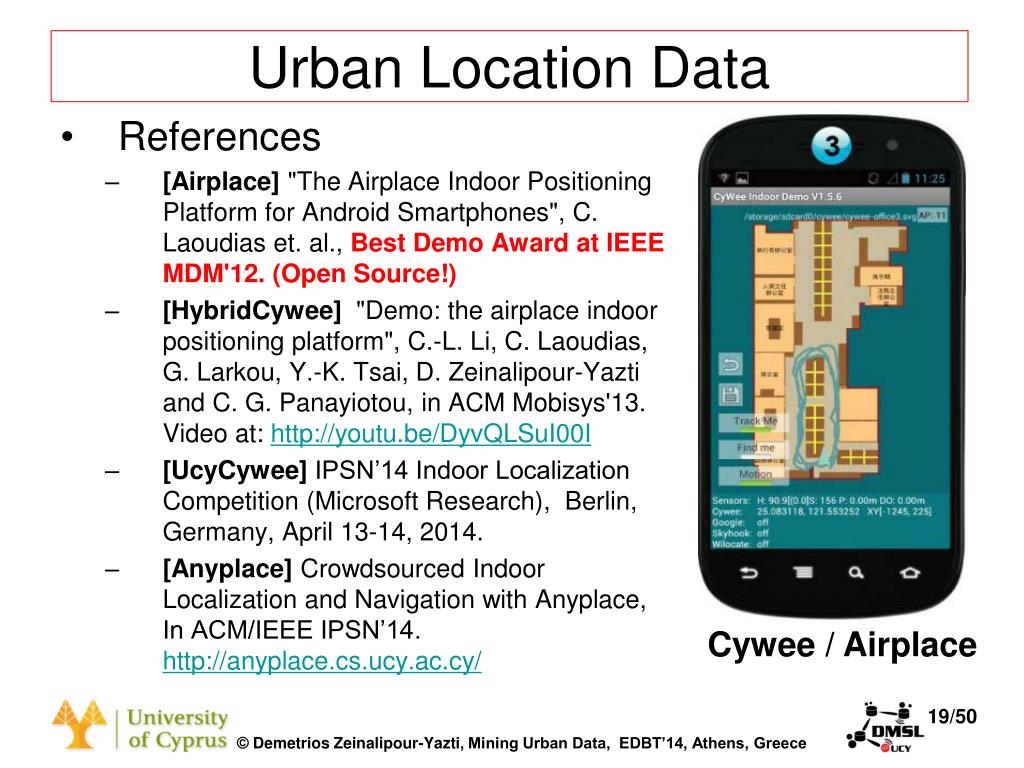

  19. Urban Location Data • References • [Airplace] "The Airplace Indoor Positioning Platform for Android Smartphones", C. Laoudias et. al., Best Demo Award at IEEE MDM'12. (Open Source!) • [HybridCywee] "Demo: the airplace indoor positioning platform", C.-L. Li, C. Laoudias, G. Larkou, Y.-K. Tsai, D. Zeinalipour-Yazti and C. G. Panayiotou, in ACM Mobisys'13. Video at: http://youtu.be/DyvQLSuI00I • [UcyCywee] IPSN’14 Indoor Localization Competition (Microsoft Research), Berlin, Germany, April 13-14, 2014. • [Anyplace] Crowdsourced Indoor Localization and Navigation with Anyplace, In ACM/IEEE IPSN’14. http://anyplace.cs.ucy.ac.cy/ Cywee / Airplace

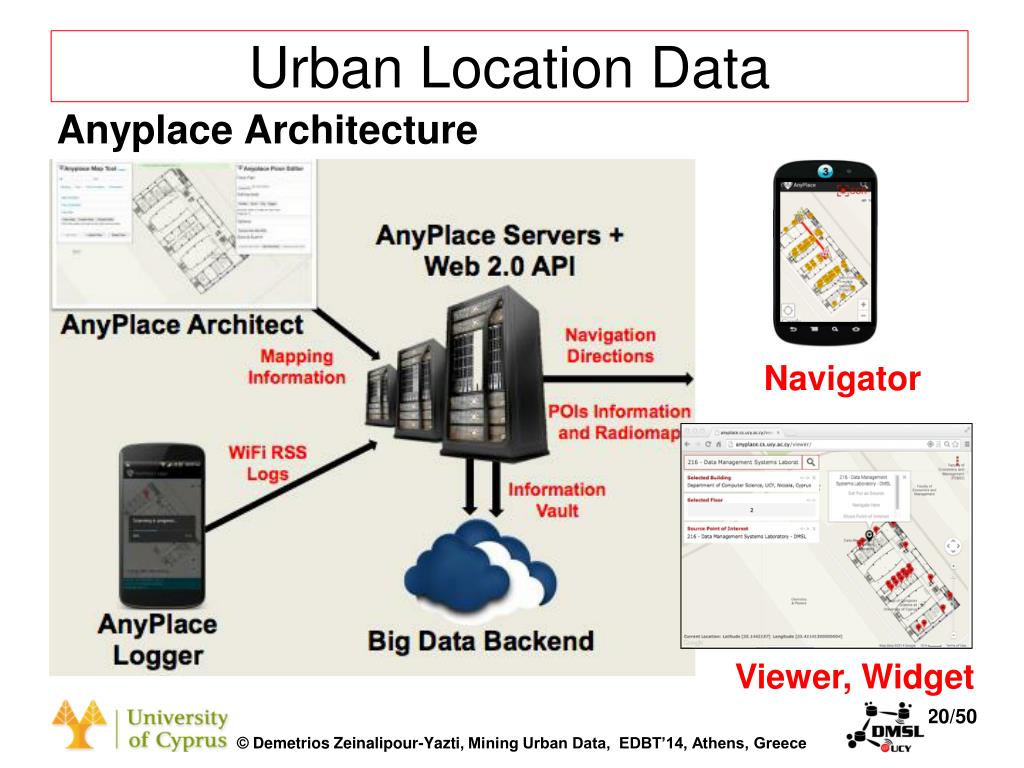

  20. Urban Location Data Anyplace Architecture Navigator Viewer, Widget

  21. Urban Location Data • Anyplace Indoor Information Service (IIS) http://anyplace.cs.ucy.ac.cy/ Live Demo!

  22. Anyplace Crowdsourcing Challenges • A) Big Data • Massively process RSS log traces to generate a valuable Radiomap • Utilized for KNN positioning • Processing current logs in Anyplace for a single building might take several minutes! • Challenges in MapReduce: • Spatio-temporal Analysis • Missing Values / Outliers / Quality / Multi-device Issues (see next)

  23. Anyplace Crowdsourcing Challenges • B) Quality: Unreliable Crowdsourcers, Multi-device Issues, Hardwar Outliers, Temporal Decay, etc. • Remark: There is a Linear Relation between RSS values of devices. • Challenge: Can we exploit this to align reported RSS values? "Crowdsourced Indoor Localization for Diverse Devices through Radiomap Fusion", C. Laoudias, D. Zeinalipour-Yazti and C. G. Panayiotou, "Proceedings of the 4th Intl. Conference on Indoor Positioning and Indoor Navigation" (IPIN '13), Montbeliard-Belfort France, 2013.

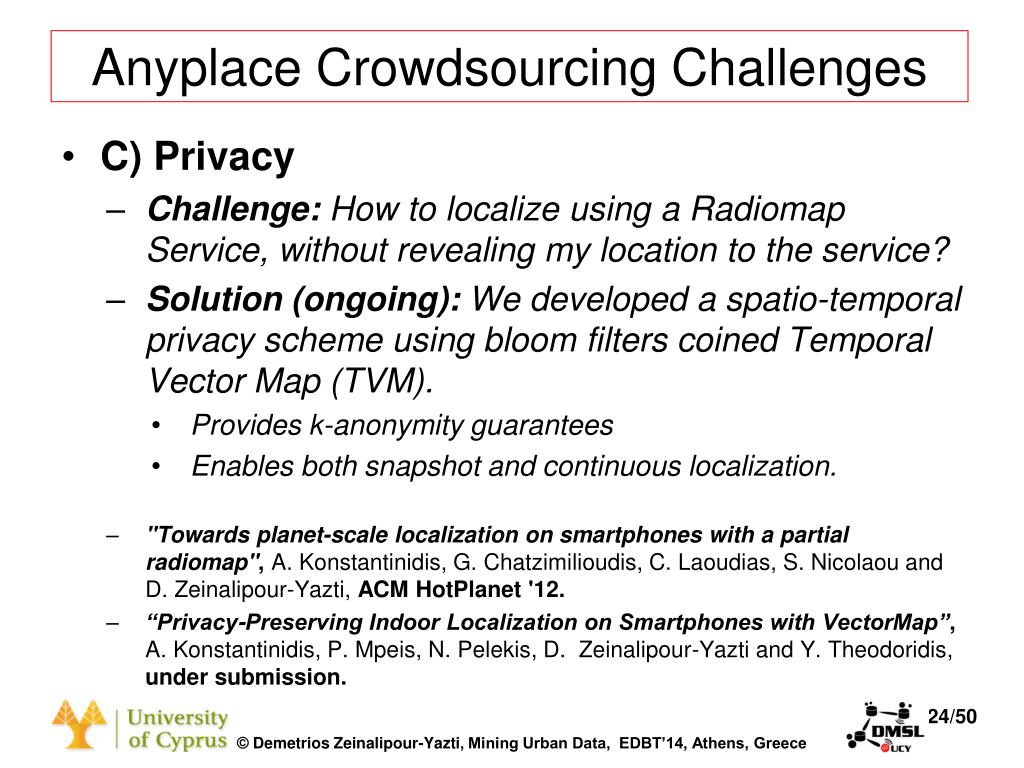

  24. Anyplace Crowdsourcing Challenges • C) Privacy • Challenge: How to localize using a Radiomap Service, without revealing my location to the service? • Solution (ongoing): We developed a spatio-temporal privacy scheme using bloom filters coined Temporal Vector Map (TVM). • Provides k-anonymity guarantees • Enables both snapshot and continuous localization. • "Towards planet-scale localization on smartphones with a partial radiomap", A. Konstantinidis, G. Chatzimilioudis, C. Laoudias, S. Nicolaou and D. Zeinalipour-Yazti, ACM HotPlanet '12. • “Privacy-Preserving Indoor Localization on Smartphones with VectorMap”, A. Konstantinidis, P. Mpeis, N. Pelekis, D. Zeinalipour-Yazti and Y. Theodoridis, under submission.

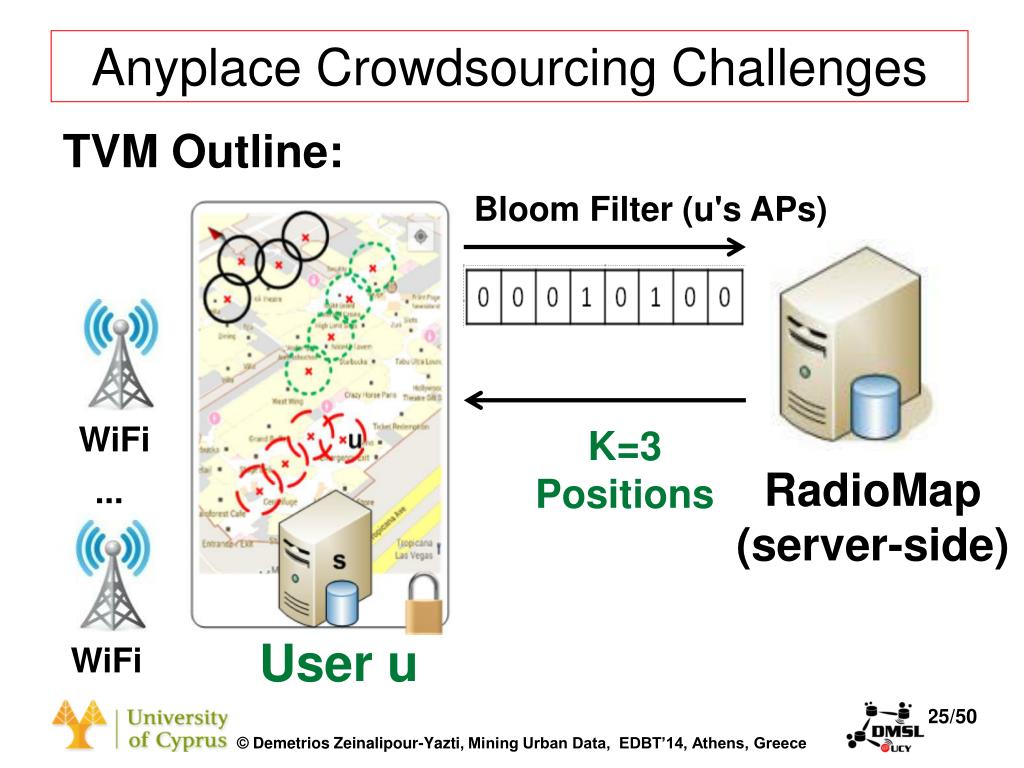

  25. Anyplace Crowdsourcing Challenges TVM Outline: Bloom Filter (u's APs) WiFi K=3 Positions RadioMap (server-side) ... User u WiFi

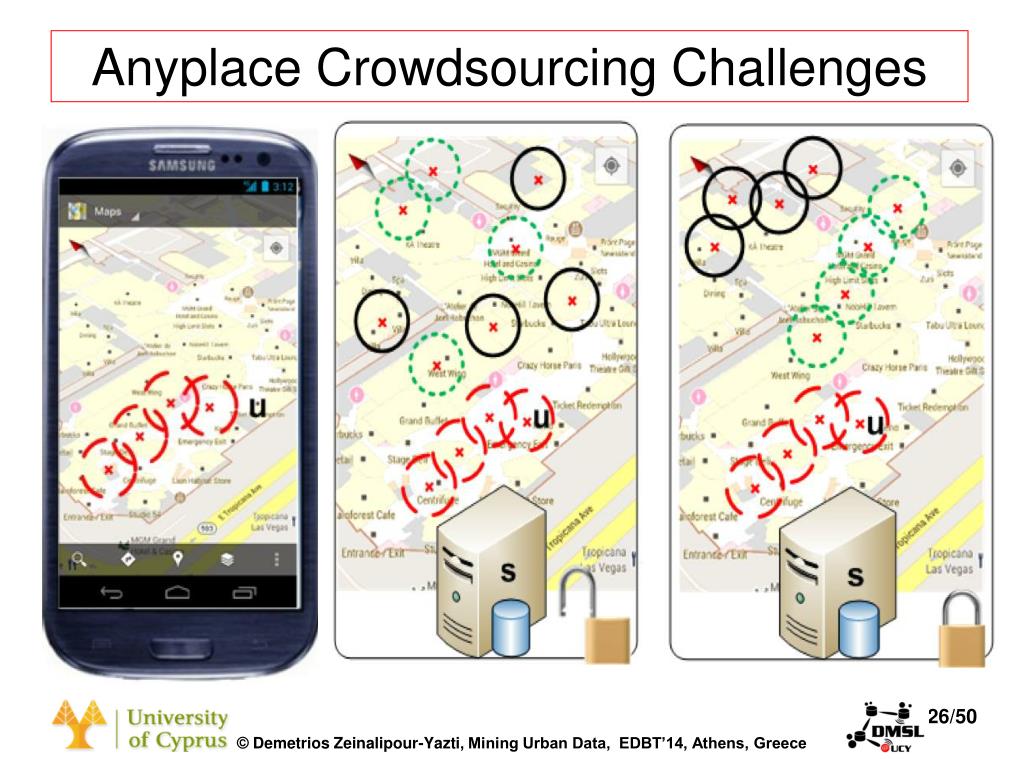

  26. Anyplace Crowdsourcing Challenges

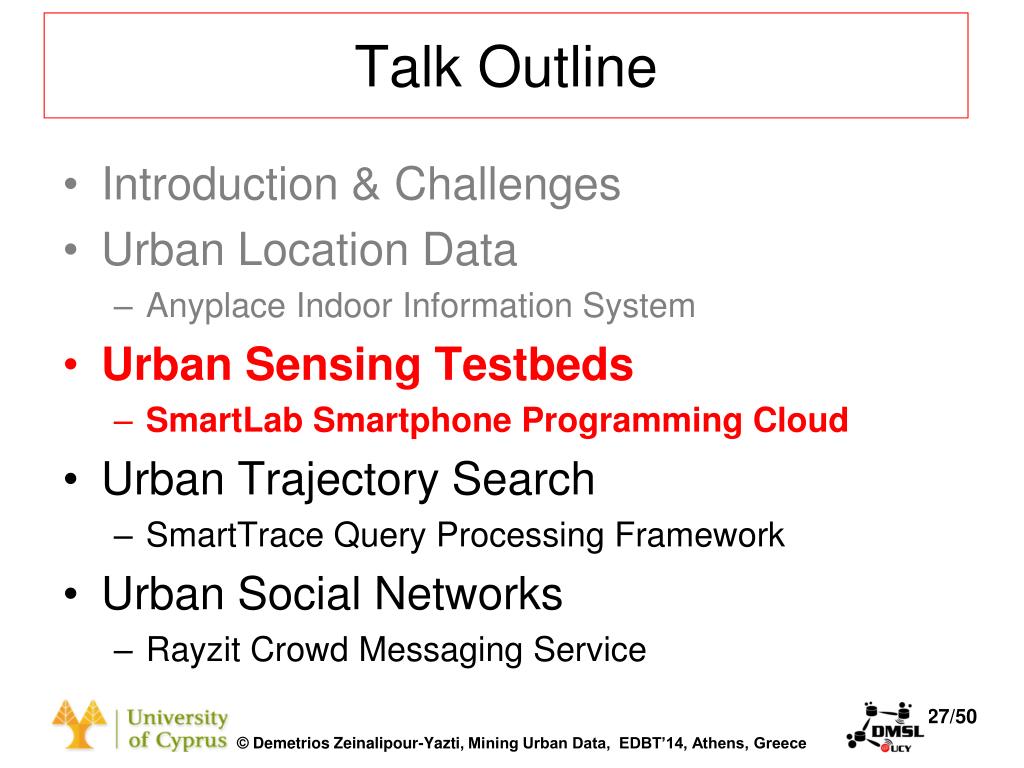

  27. Talk Outline • Introduction & Challenges • Urban Location Data • Anyplace Indoor Information System • Urban Sensing Testbeds • SmartLab Smartphone Programming Cloud • Urban Trajectory Search • SmartTrace Query Processing Framework • Urban Social Networks • Rayzit Crowd Messaging Service

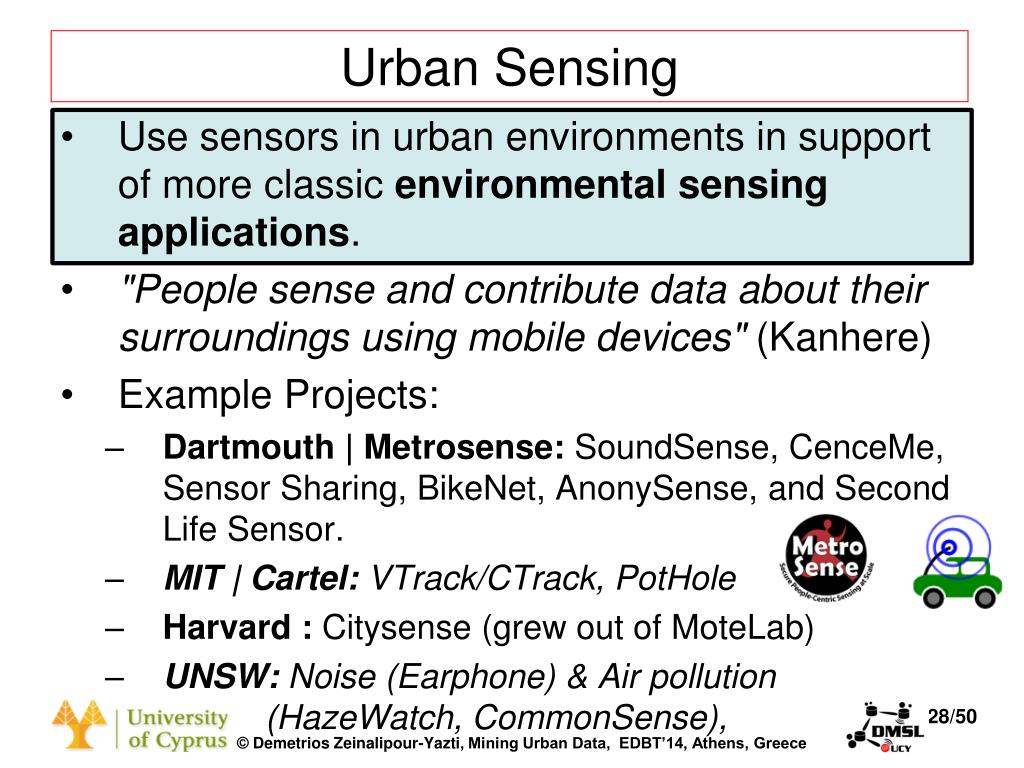

  28. Urban Sensing • Use sensors in urban environments in support of more classic environmental sensing applications. • "People sense and contribute data about their surroundings using mobile devices" (Kanhere) • Example Projects: • Dartmouth | Metrosense: SoundSense, CenceMe, Sensor Sharing, BikeNet, AnonySense, and Second Life Sensor. • MIT | Cartel: VTrack/CTrack, PotHole • Harvard : Citysense (grew out of MoteLab) • UNSW: Noise (Earphone) & Air pollution (HazeWatch, CommonSense),

  29. Urban Sensing • Monitoring Urban Spaces NoiseMap "Ear-Phone: An End-to-End Participatory Urban Noise Mapping System " Rajib Rana, Chun Tung Chou, Salil Kanhere, Nirupama Bulusu, and Wen Hu. In ACM/IEEE IPSN 10, SPOTS Track, Stockholm, Sweden, April 2010.

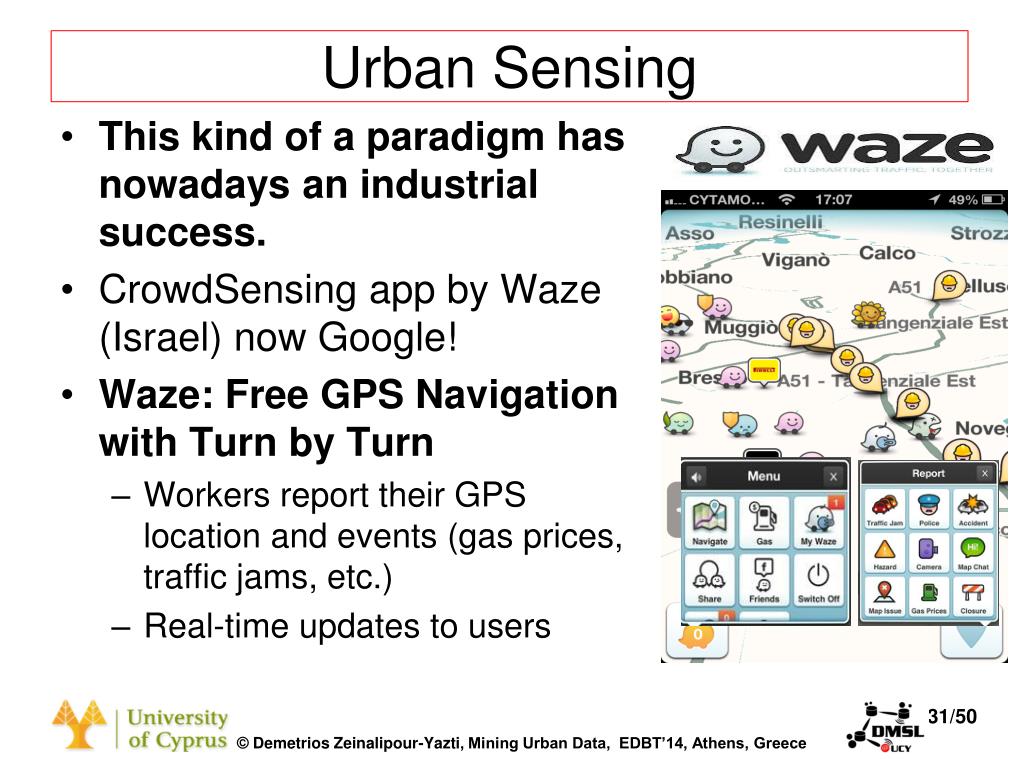

  30. Urban Sensing • This kind of a paradigm has nowadays an industrial success. • CrowdSensing app by Waze (Israel) now Google! • Waze: Free GPS Navigation with Turn by Turn • Workers report their GPS location and events (gas prices, traffic jams, etc.) • Real-time updates to users

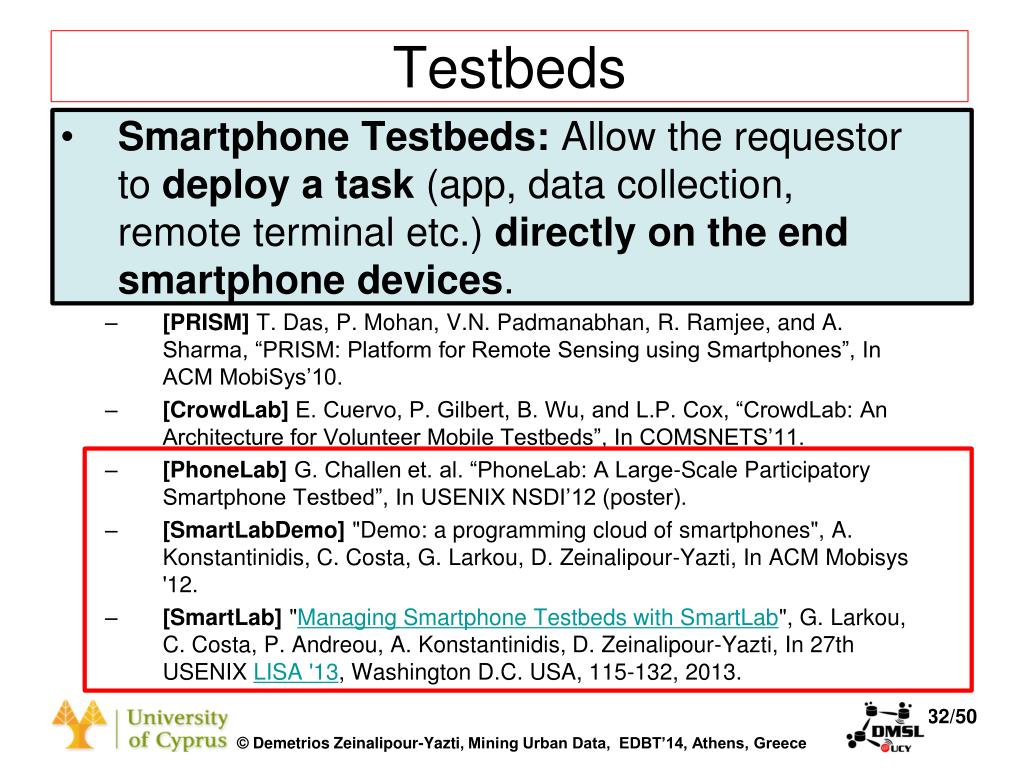

  31. Testbeds • Smartphone Testbeds: Allow the requestor to deploy a task (app, data collection, remote terminal etc.) directly on the end smartphone devices. • [PRISM] T. Das, P. Mohan, V.N. Padmanabhan, R. Ramjee, and A. Sharma, “PRISM: Platform for Remote Sensing using Smartphones”, In ACM MobiSys’10. • [CrowdLab] E. Cuervo, P. Gilbert, B. Wu, and L.P. Cox, “CrowdLab: An Architecture for Volunteer Mobile Testbeds”, In COMSNETS’11. • [PhoneLab] G. Challen et. al. “PhoneLab: A Large-Scale Participatory Smartphone Testbed”, In USENIX NSDI’12 (poster). • [SmartLabDemo] "Demo: a programming cloud of smartphones", A. Konstantinidis, C. Costa, G. Larkou, D. Zeinalipour-Yazti, In ACM Mobisys '12. • [SmartLab] "Managing Smartphone Testbeds with SmartLab", G. Larkou, C. Costa, P. Andreou, A. Konstantinidis, D. Zeinalipour-Yazti, In 27th USENIX LISA '13, Washington D.C. USA, 115-132, 2013.

  32. Urban Sensing TestBeds • PhoneLab: a Participatory SmartPhone Sensing Testbed (People-Centric Testbed) • 200 Nexus S 4G phones used by Students and Faculty Members at the Univ. of Buffalo • Incentive: Free Sprint Phone for 1st year. After that, only $44.23/month for an unlimited plan (claimed to be better than competition) • Targeted for Data Collection Scenarios (not fine-grain access like SmartLab) • Each Data Collection task need to undergo an Institutional Review Board process (similar to other projects touching ethical issues) • Data Collection: Workers (Students) have to bring in their smartphones to have the app installed + data collected. • [PhoneLab] G. Challen et. al. “PhoneLab: A Large-Scale Participatory Smartphone Testbed”, In USENIX NSDI’12 (poster).

  33. Urban Sensing Testbeds • We developed a comprehensive architecture for managing smartphones through a web browser. • SmartLab (http://smartlab.cs.ucy.ac.cy/): • 40+ Android Devices, Real Sensors, Real Computing Stack • Different Connection Modalities: 3G (unlimited 3G bancwidth by MTN Telecom), Wifi, Wired, Remote  Static Androids Mobile Androids

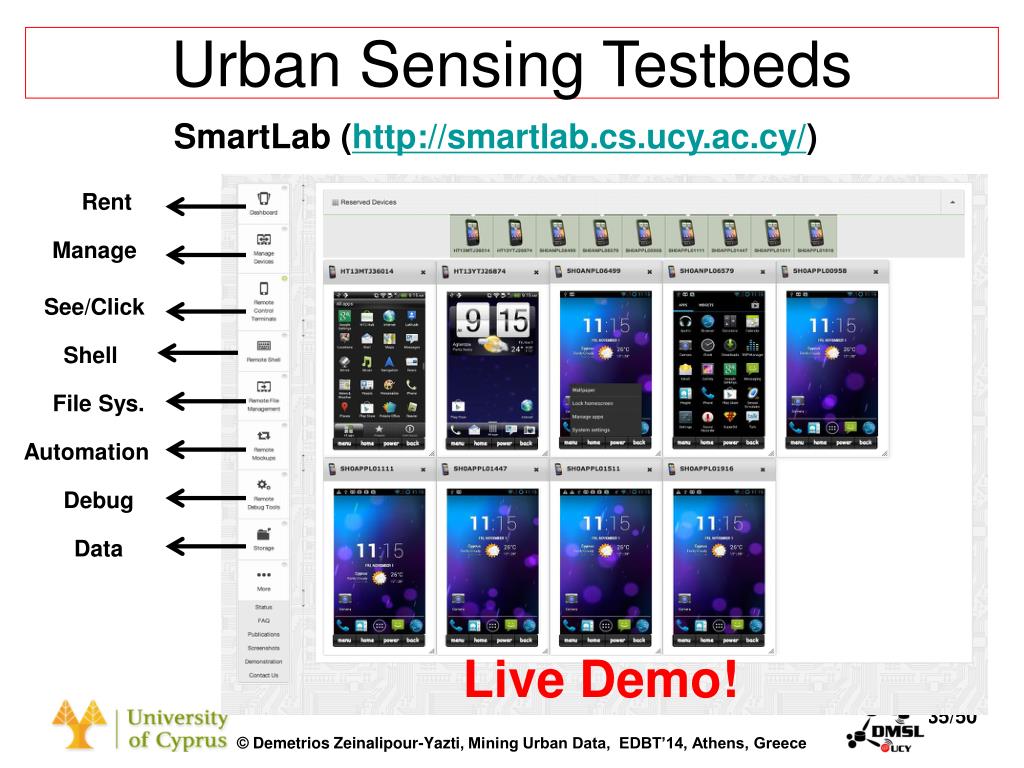

  34. Urban Sensing Testbeds SmartLab (http://smartlab.cs.ucy.ac.cy/) Rent Manage See/Click Shell File Sys. Automation Debug Data Live Demo!

  35. Urban Sensing Testbeds Scenario I: Data Collection in Smart Cities • How to handle a fleet of Android-powered entertainment equipment installed on 1000 buses? • How to manage a city-scale infrastructure comprising of low-power, low-value Android-oriented devices (installed on traffic lights, etc.) • How to manage a city-scale SETI-like computational cluster comprising of Smartphones. • We tend to change smartphones faster than PCs …

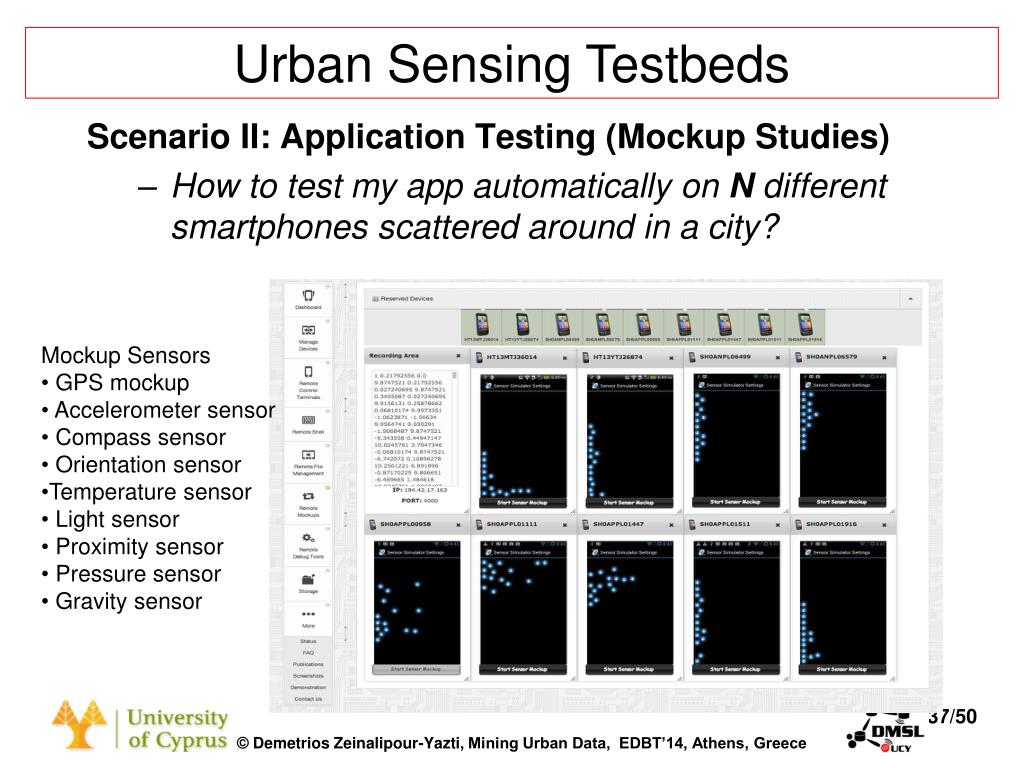

  36. Urban Sensing Testbeds Scenario II: Application Testing (Mockup Studies) • How to test my app automatically on N different smartphones scattered around in a city? • Mockup Sensors • GPS mockup • Accelerometer sensor • Compass sensor • Orientation sensor • Temperature sensor • Light sensor • Proximity sensor • Pressure sensor • Gravity sensor

  37. Urban Sensing Testbeds Scenario III: Personal Gadget Management • How to manage my personal gadgets at a fine-grain (i.e., clicks, file-transfer, update, etc.) Smart Watches SmartBooks Tablets Smart Home Phones eReaders Smart TVs Smart Glasses Rasperry PI

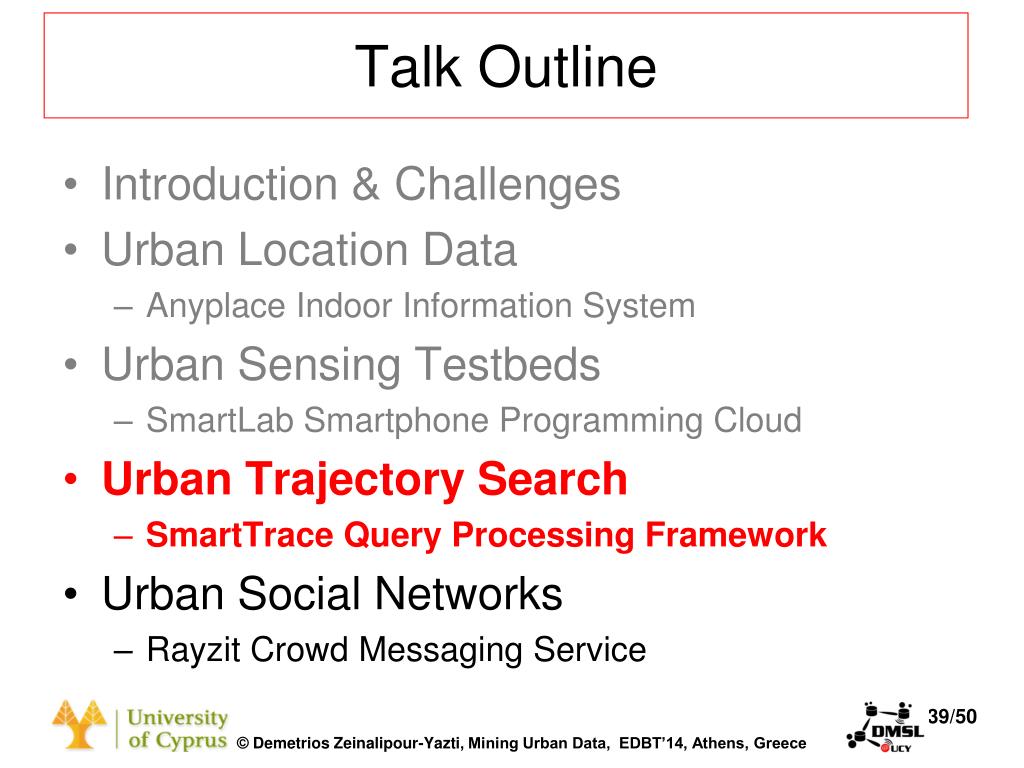

  38. Talk Outline • Introduction & Challenges • Urban Location Data • Anyplace Indoor Information System • Urban Sensing Testbeds • SmartLab Smartphone Programming Cloud • Urban Trajectory Search • SmartTrace Query Processing Framework • Urban Social Networks • Rayzit Crowd Messaging Service

  39. Urban Trajectory Search Fact: Smartphones can collect positional (x,y) in a power efficient manner (e.g., iPhone triangulated log file, Android Geolocation wardriving). Crowdsourcing Incentive: Contribute to the resolution of queries for Social Benefit (without revealing traces). Applications: • Intelligent Transportation Systems: “Find whether a new bus route is similar to the trajectories of K other users.” • Social Networks: “Find if there is an evening cycling route from MOMA to the Julliard” • GeoLife, GPS-Waypoints, Sharemyroutes, etc. offer centralized counterparts.

  40. Distance D = 7.3 D = 10.2 D = 11.8 D = 17 D = 22 Urban Trajectory Search • Problem: Compare a query with all distributed trajectories and return the k most similar trajectories to the query. • Similarity between two objects A, B is associated with a distance function. K ? Query

  41. Urban Trajectory Search • An intelligenttop-K processing algorithm for identifying the K most similar trajectories to Q in a distributed environment. • Step A: Conduct an inexpensive linear-time LCSS(MBEQ,Ai) computation on the smartphones to approximate the answer. • Step B: Exploit the approximation to identify the correct answer by iteratively asking specific nodes to conduct LCSS(Q, Ai). • "Crowdsourced Trace Similarity with Smartphones", Demetrios Zeinalipour-Yazti and Christos Laoudias and Constandinos Costa and Michail Vlachos and Maria I. Andreou and Dimitrios Gunopulos, IEEE TKDE, Vol. 25, 1240-1253, 2013. • "SmartTrace: Finding similar trajectories in smartphone networks without disclosing the traces", Costa et al., IEEE ICDE'11.

  42. Urban Trajectory Search SmartTrace for Android (open source)! http://smarttrace.cs.ucy.ac.cy/ Query Q Device B Device C

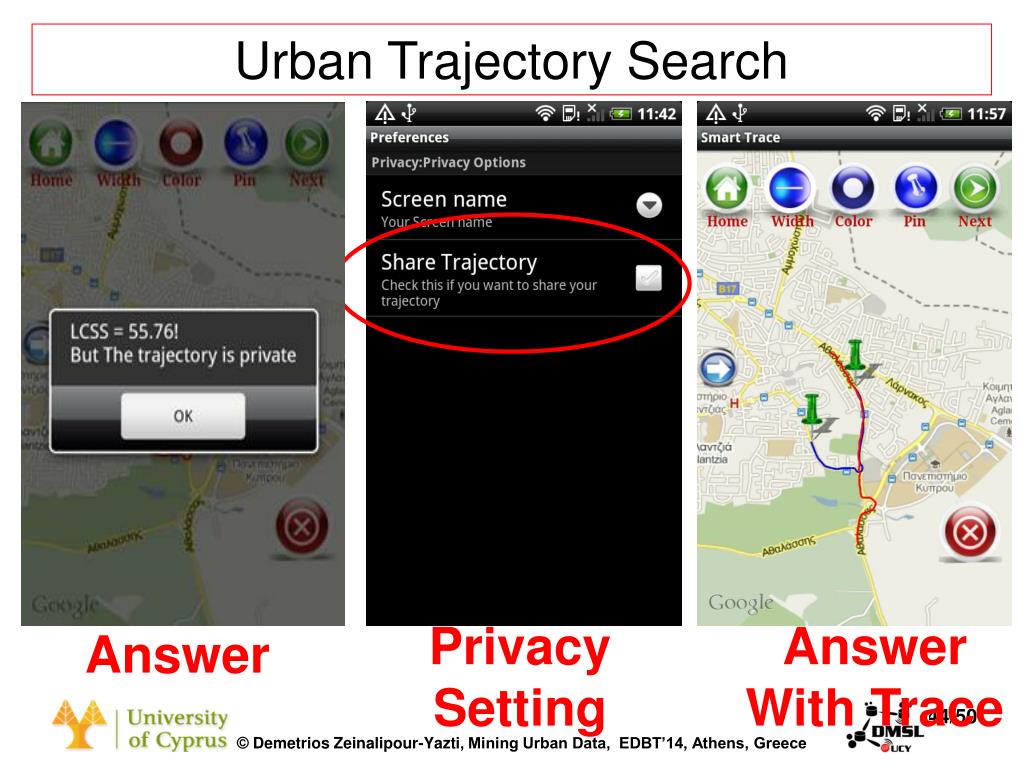

  43. Urban Trajectory Search Privacy Setting Answer With Trace Answer

  44. Talk Outline • Introduction & Challenges • Urban Location Data • Anyplace Indoor Information System • Urban Sensing Testbeds • SmartLab Smartphone Programming Cloud • Urban Trajectory Search • SmartTrace Query Processing Framework • Urban Social Networks • Rayzit Crowd Messaging Service

  45. Urban Social (Crowd) Networks • Social Media (Facebook, Linked-in, … ) utilize a Social Graph (friendship, follower, followee) to map the relationships between users. • Social Media in Urban Settings: Issues • Urban Applications many times require location-based rather than social-based interactions, e.g., • Inform my neighboring drivers about an accident (e.g., in Waze). • Inform people in a city about an event. • Location-based services suffer from bootstrapping • e.g., Check in to Foursquare and find nobody else there • Interacting with the Crowd, calls for stronger Privacy!

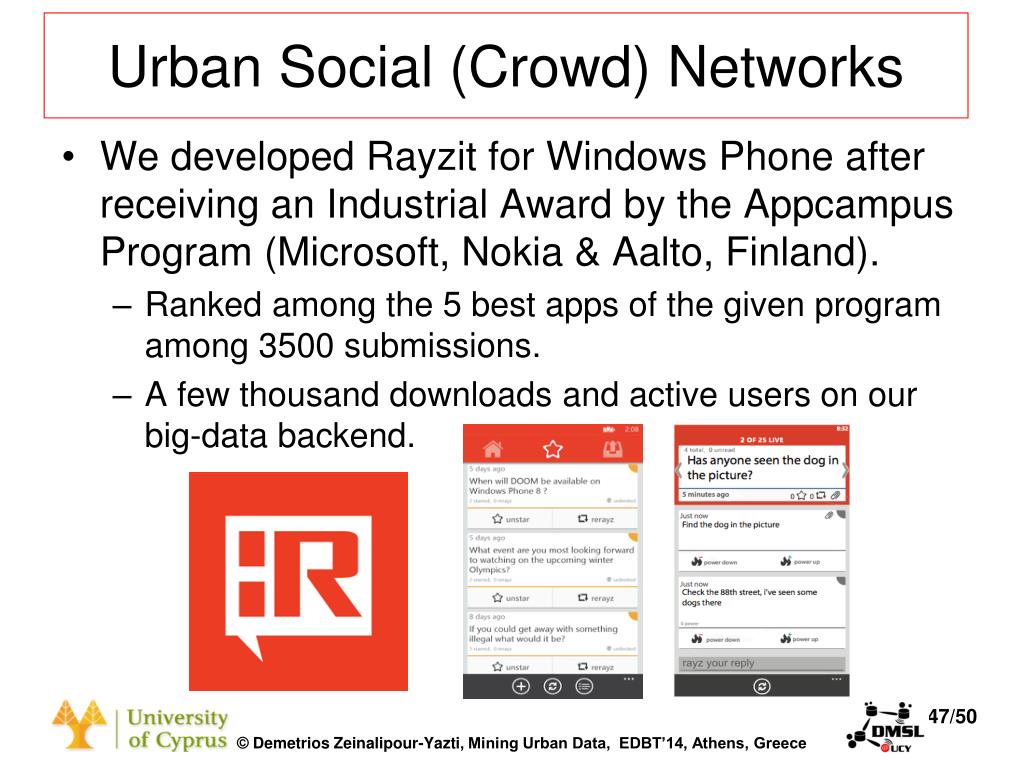

  46. Urban Social (Crowd) Networks • We developed Rayzit for Windows Phone after receiving an Industrial Award by the Appcampus Program (Microsoft, Nokia & Aalto, Finland). • Ranked among the 5 best apps of the given program among 3500 submissions. • A few thousand downloads and active users on our big-data backend.

  47. Urban Social (Crowd) Networks Find 2 Closest Neighbors for ALL User "Continuous all k-nearest neighbor querying in smartphone networks", Georgios Chatzimilioudis, Demetrios Zeinalipour-Yazti, Wang-Chien Lee, Marios D. Dikaiakos, In IEEE MDM'12.

  48. Crowdsourcing Urban Data with Smartphones Demetrios Zeinalipour-Yazti Data Management Systems Laboratory Department of Computer Science University of Cyprus http://www.cs.ucy.ac.cy/~dzeina/ Thanks! Questions? Invited Talk at the Mining Urban Data (MUD) Workshop (with EDBT/ICDT), Athens, Greece, March 28, 2014 www.insight-ict.eu/mud
