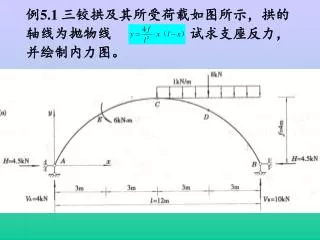

  1. 例5.1 三铰拱及其所受荷载如图所示，拱的轴线为抛物线 。试求支座反力，并绘制内力图。

  2. 解（1）求支座反力 (2)内力计算（以x=3m的截面E为例说明） A、截面E的几何参数

  3. B、截面E的内力

  4. 例5.2 试求图示对称三铰拱在均布荷载作用下 的合理拱轴线 MC0=ql2/8 H=ql2/8f M0=qlx/2-qx2 /2 =qx(l-x)/2 y=4fx(l-x)/l2 抛物线

  5. 思 考 题 三铰拱在均匀水压力作用下，三铰拱的合理轴线？ 三铰拱在填土重量作用下，三铰拱的合理轴线？
