  1. Discrete Event Simulation general principles

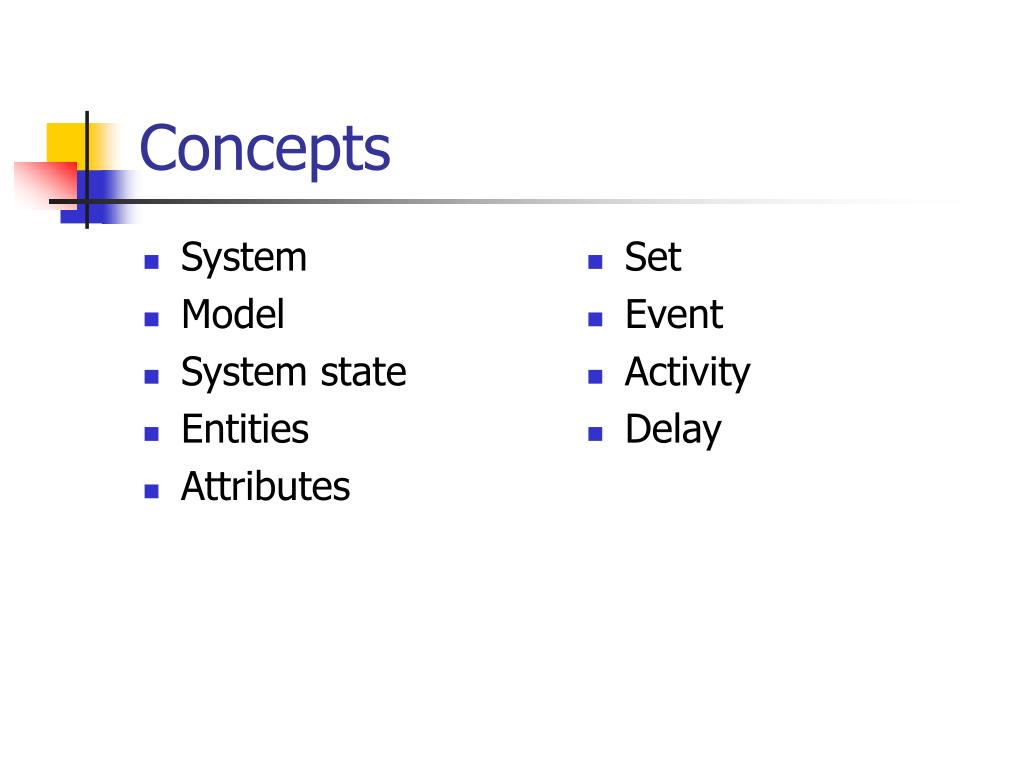

  2. System Model System state Entities Attributes Set Event Activity Delay Concepts

  3. Example- carhop system for fast food • System state: • Lq(t), the # of cars waiting to be served at time t • LA(t), 0 or 1 to indicate Able being ____ or ______ at time t • LB(t), o or 1 to indicate Baker being _____ or _______ at time t • Entities • Cars, Able, and Baker – related to system state • Events • Arrival event • Service completion time by Able • Service completion time by Baker • Activities • ___________ time, service time by Able, service time by Baker • Delay • The wait in _________ until Able or Baker becomes free

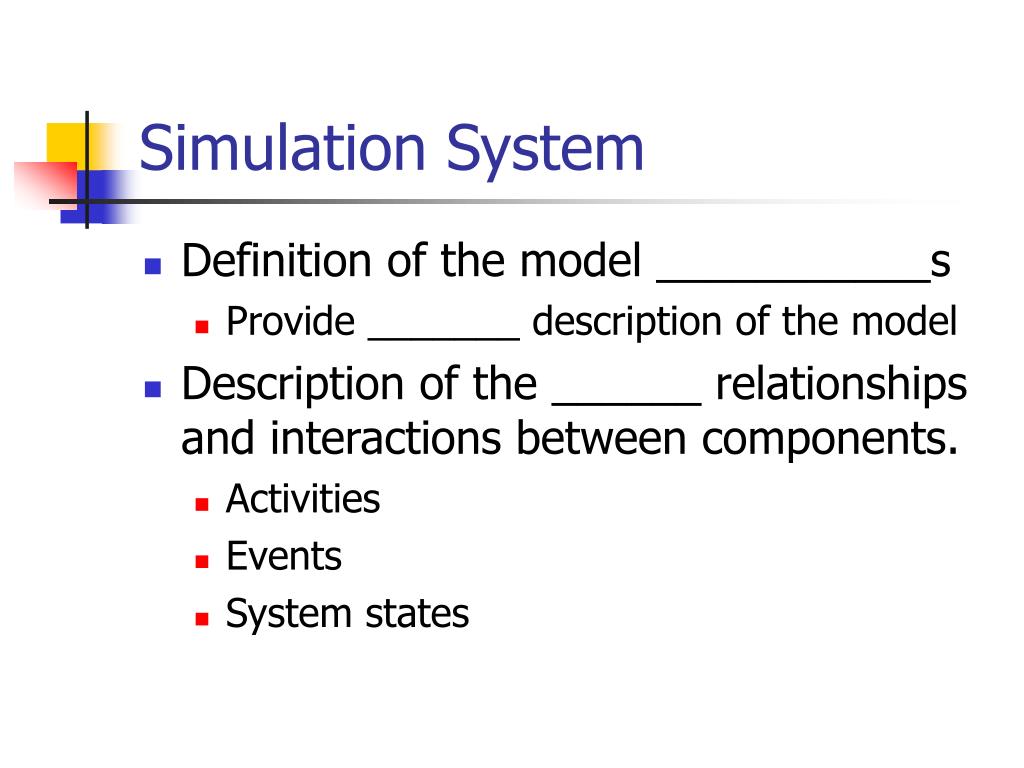

  4. Simulation System • Definition of the model ___________s • Provide _______ description of the model • Description of the ______ relationships and interactions between components. • Activities • Events • System states

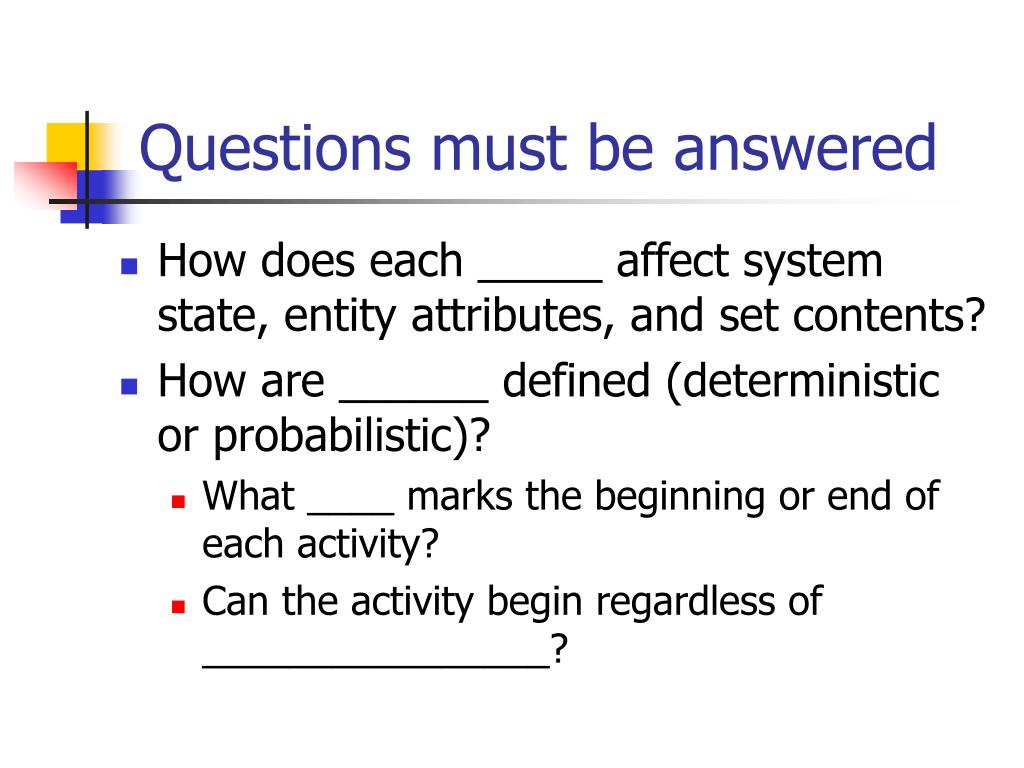

  5. Questions must be answered • How does each _____ affect system state, entity attributes, and set contents? • How are ______ defined (deterministic or probabilistic)? • What ____ marks the beginning or end of each activity? • Can the activity begin regardless of ________________?

  6. Questions must be answered (cont.) • Which events trigger the beginning (and end) of each type of ________? • What is the system state at time 0? • What events should be generated at time 0 to “_______” the model – i.e., to get the simulation started?

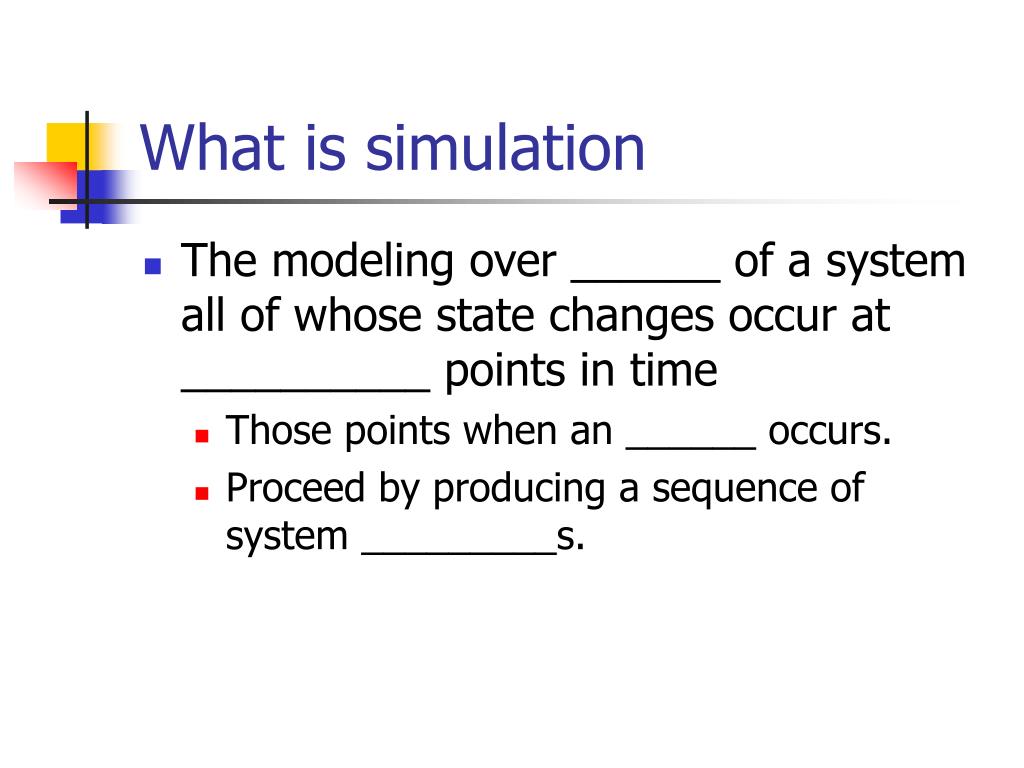

  7. What is simulation • The modeling over ______ of a system all of whose state changes occur at __________ points in time • Those points when an ______ occurs. • Proceed by producing a sequence of system _________s.

  8. System Snapshot Future event list guarantees that all events occur in correct ___________ order when simulation time is advanced.

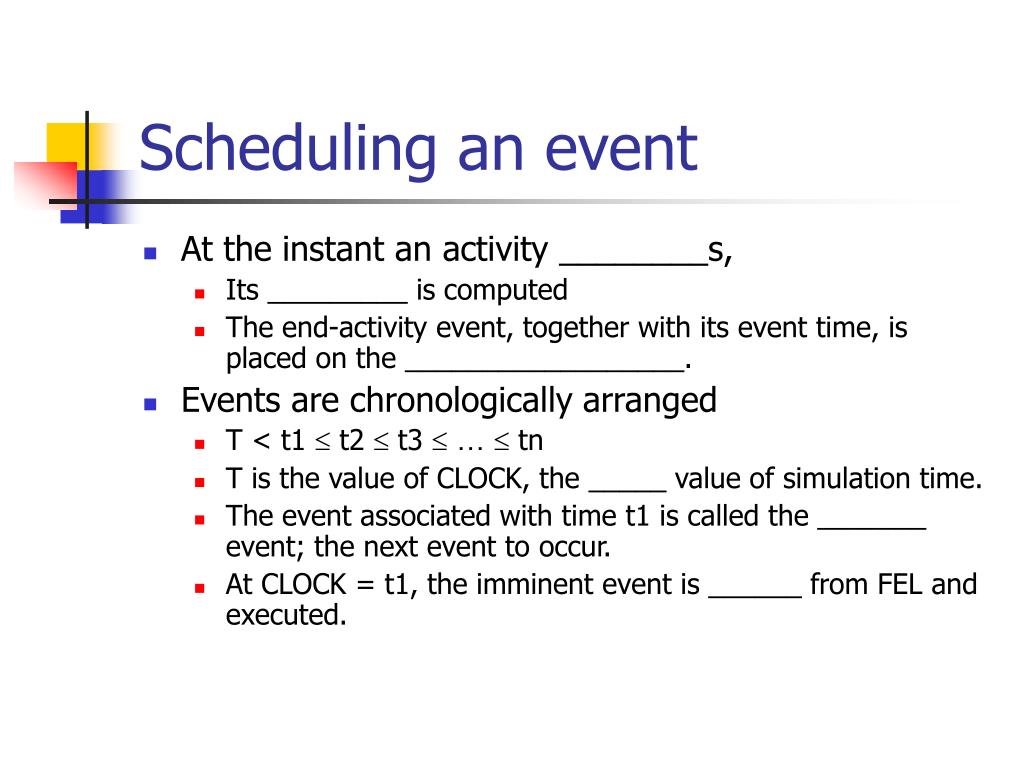

  9. Scheduling an event • At the instant an activity ________s, • Its _________ is computed • The end-activity event, together with its event time, is placed on the __________________. • Events are chronologically arranged • T < t1  t2 t3  …  tn • T is the value of CLOCK, the _____ value of simulation time. • The event associated with time t1 is called the _______ event; the next event to occur. • At CLOCK = t1, the imminent event is ______ from FEL and executed.

  10. Simulation run snapshot snapshot t1 t t2? New event may be __________ and insert to FEL. New snapshot is created based on snapshot at ___. CLOCK

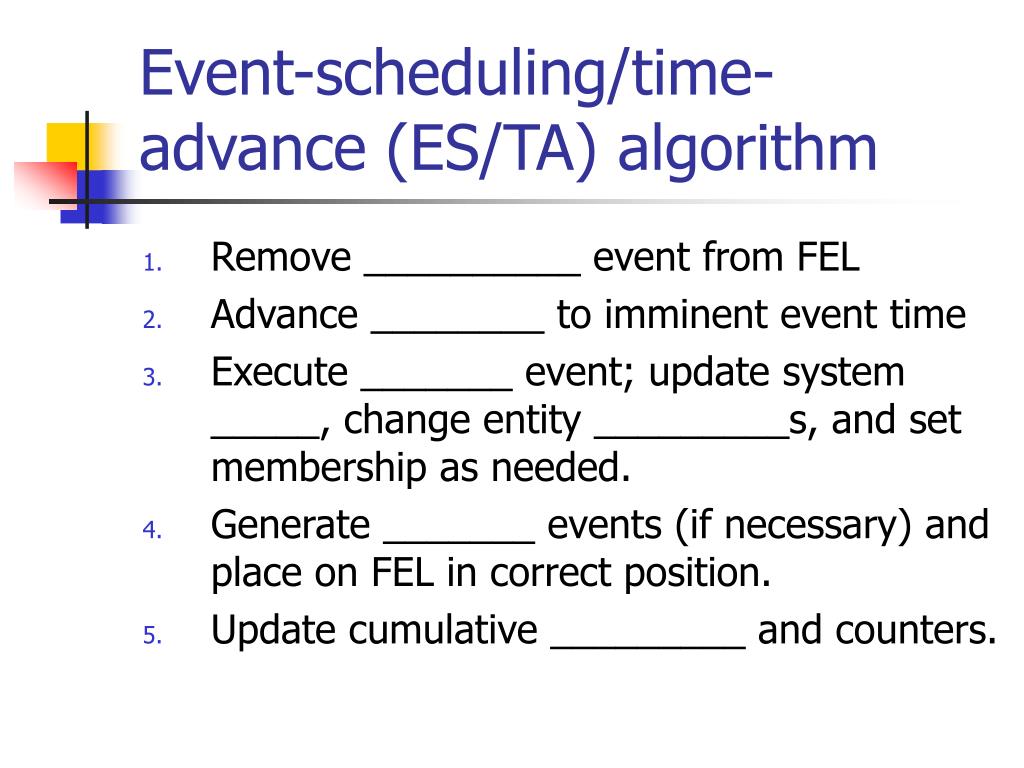

  11. Event-scheduling/time-advance (ES/TA) algorithm • Remove __________ event from FEL • Advance ________ to imminent event time • Execute _______ event; update system _____, change entity _________s, and set membership as needed. • Generate _______ events (if necessary) and place on FEL in correct position. • Update cumulative _________ and counters.

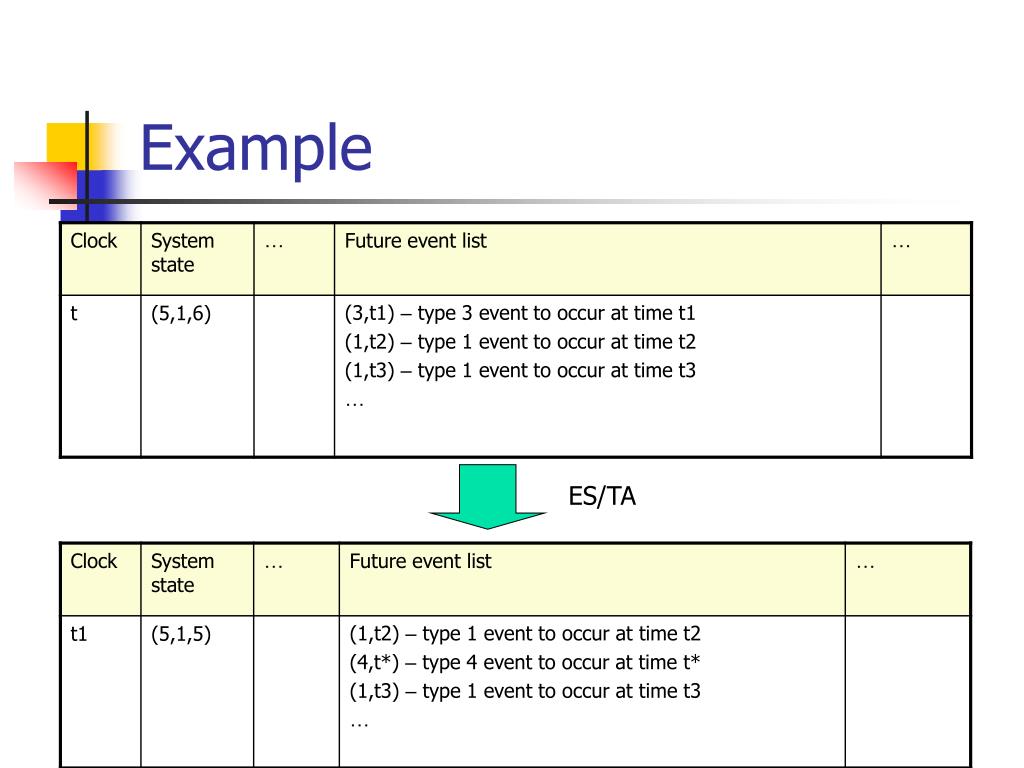

  12. Example ES/TA

  13. Efficiency of Simulation Program • Efficient management of ___ have a major impact on simulation efficiency. • A ___ processing • Removal of _____ event • Insertion of ______ • Cancellation of events • Efficient operation of ______ removal and addition. • List processing too.

  14. List operation • _______ list • Top-down search from the list head • Bottom-up search • ___________ list

  15. Initial condition • System snapshot at time __ • Defined by the _____ conditions and exogenous events. • E.g., • Initial condition (5, 1, 6) at time 0; • Generate arrival event at 0, and • By producing interarrival time a*, the next arrival is at a*, etc. • Generating external arrivals is called _________.

  16. N n+1 arrival ……… Time 0 3.7 4.1 7.4 Clock = t t* a* Bootstrapping by external arrival stream A simulated time t, assumed to be the Instant of the nth arrival, generate ________l time a*, compute _____ and Schedule future arrival on ___ to occur At future time t* Between successive arrival events, other Types of events may occur, causing System state to change

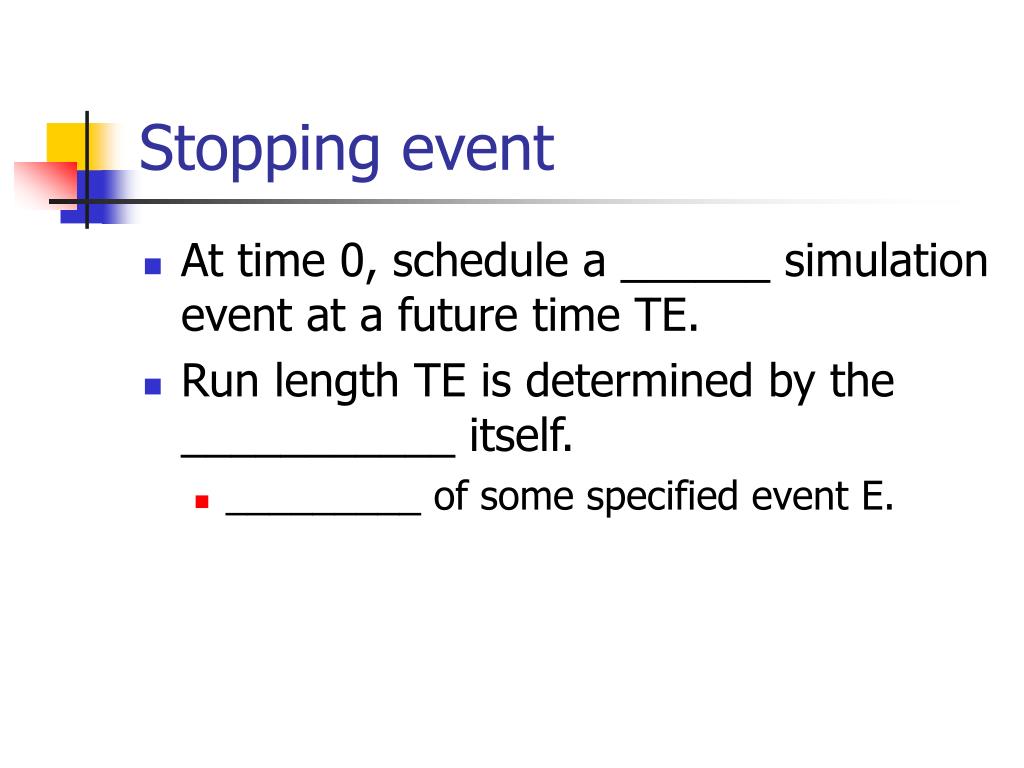

  17. Stopping event • At time 0, schedule a ______ simulation event at a future time TE. • Run length TE is determined by the ___________ itself. • _________ of some specified event E.

  18. Event-scheduling simulation- single channel queue • System state • (Lq(t), Ls(t)) • Entities: • server and customers • Events: • arrival (A), departure (D), stopping event (E). • Activities: • interarrival time and service time. • Delay: • customer time spent in waiting time.

  19. Arrival event Occurs at CLOCK=t No Is Ls(t)=1 ? Yes Increase ____ By 1 Set ______ Generate service time s*; Schedule new _________ Event at time t+s* Generate interarrival time a*; Schedule next ______ event at time t+a* Collect statistics Return control to Time-advance routine To continue simulation

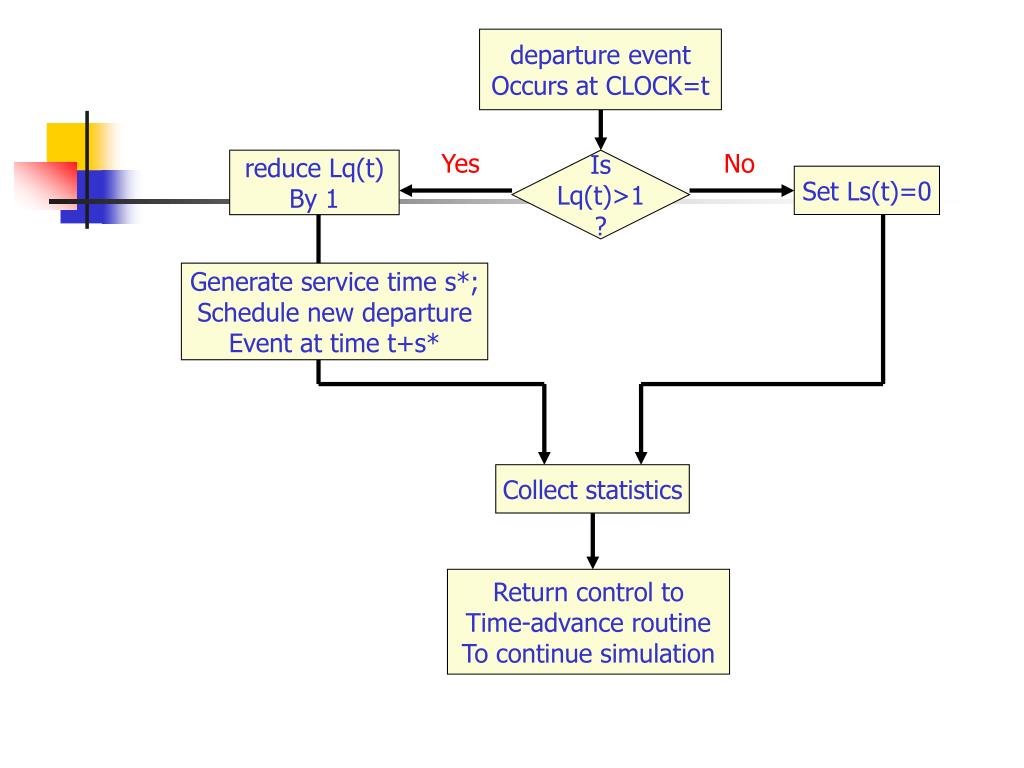

  20. departure event Occurs at CLOCK=t Yes No reduce Lq(t) By 1 Is Lq(t)>1 ? Set Ls(t)=0 Generate service time s*; Schedule new departure Event at time t+s* Collect statistics Return control to Time-advance routine To continue simulation
