Presentation Transcript
80486 microprocessor family

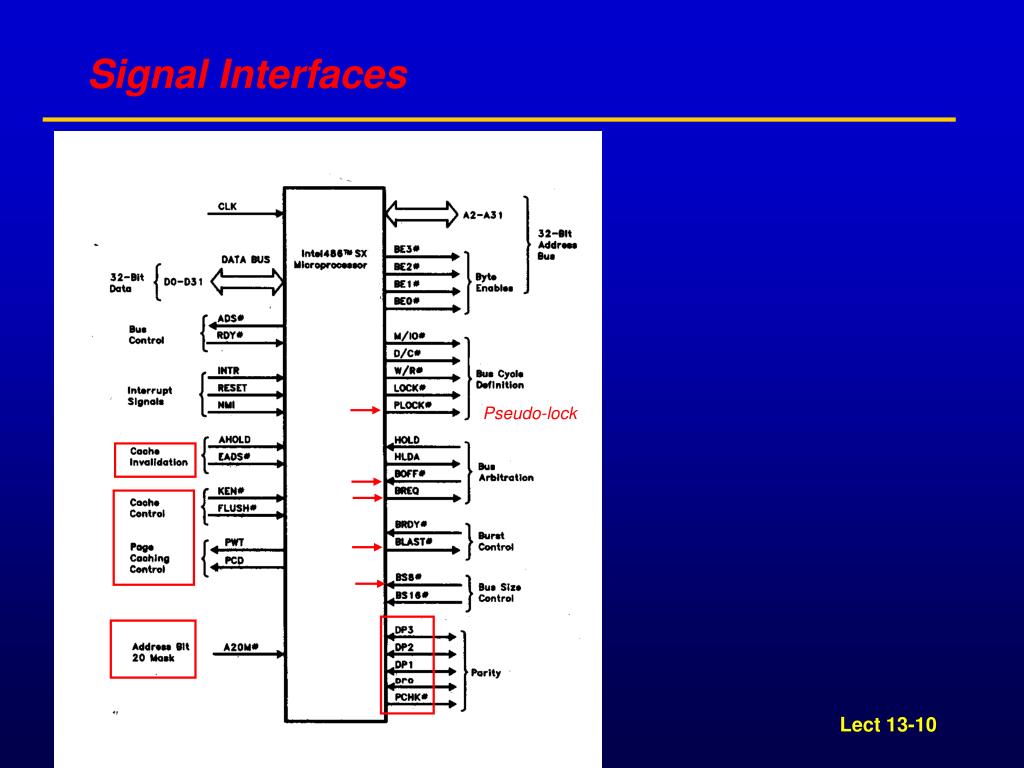

80486 Microprocessor Family
  • 80486 Microprocessor
    • Introduced in 1989
    • High Integration
      • On-chip 8K Code and Data cache
      • Floating Point Unit
      • Paged, Virtual Memory Management
    • 168-pin PGA package
    • Multiprocessor Support
      • Multiprocessor Instructions
      • Cache Consistency Protocols
internal architecture of the 80486
Internal Architecture of the 80486
  • Complex Reduced-Instruction-Set Computer (CRISC)
      • RISC integer core

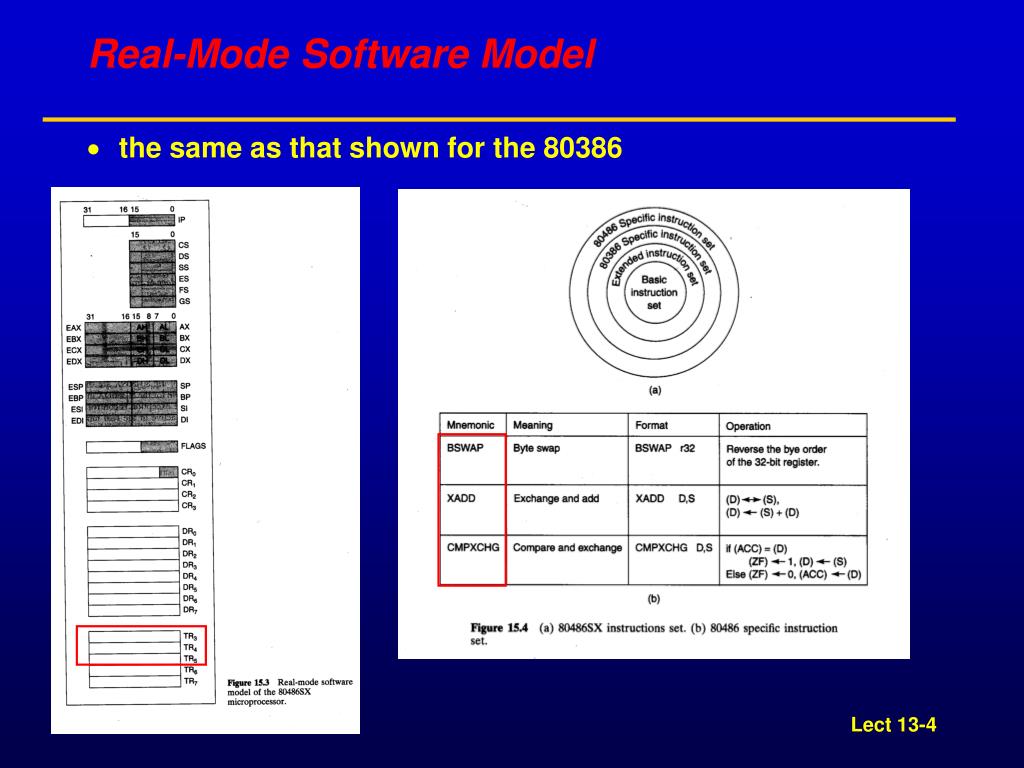

real mode software model
Real-Mode Software Model
  • the same as that shown for the 80386
protected mode software architecture
Protected-Mode Software Architecture

AC: Alignment-Check flag

When this bit is set, an alignment check is

performed during all memory accesses at

privilege level 3. If an unaligned access

takes place, exception 17 occurs.

control registers
Control Registers
  • AM : alignment mask -- If this is switched to 0, the alignment check is masked out.
  • NE : Numeric Error
  • CD : cache disable
  • NW : not write-through
  • WP : write protect

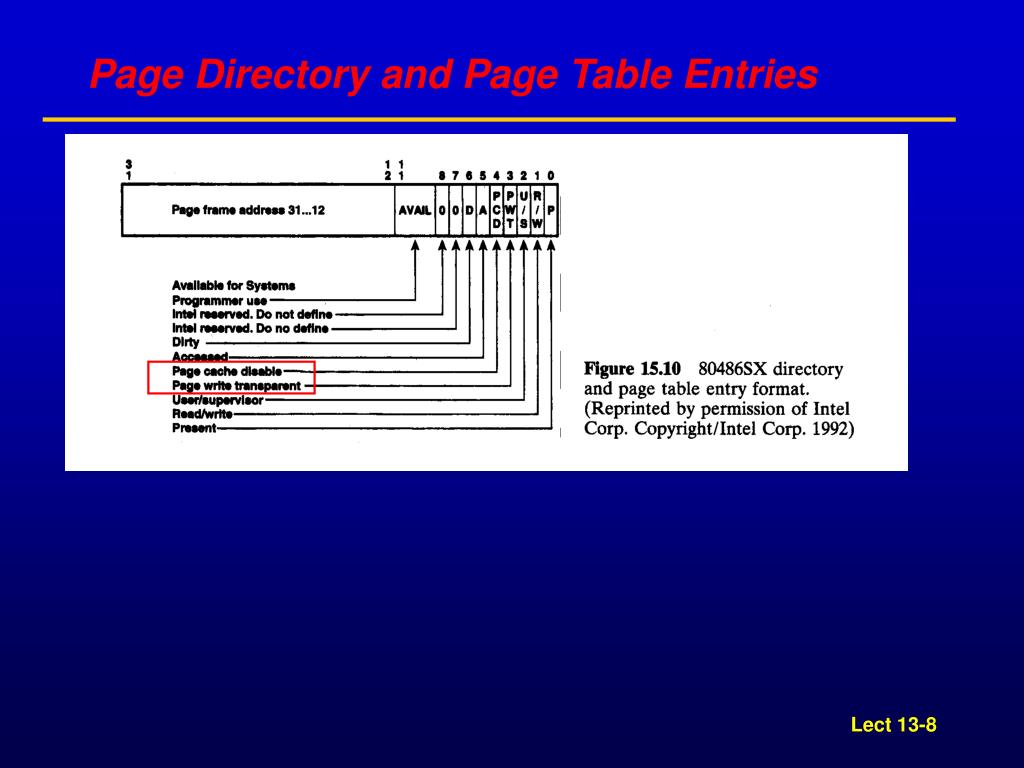

  • PCD : page-level cache disable
  • PWT : page-level write transparent
system control instruction set
System-Control Instruction Set

+ a flush bus cycle

+ a write-back bus cycle

pentium processor

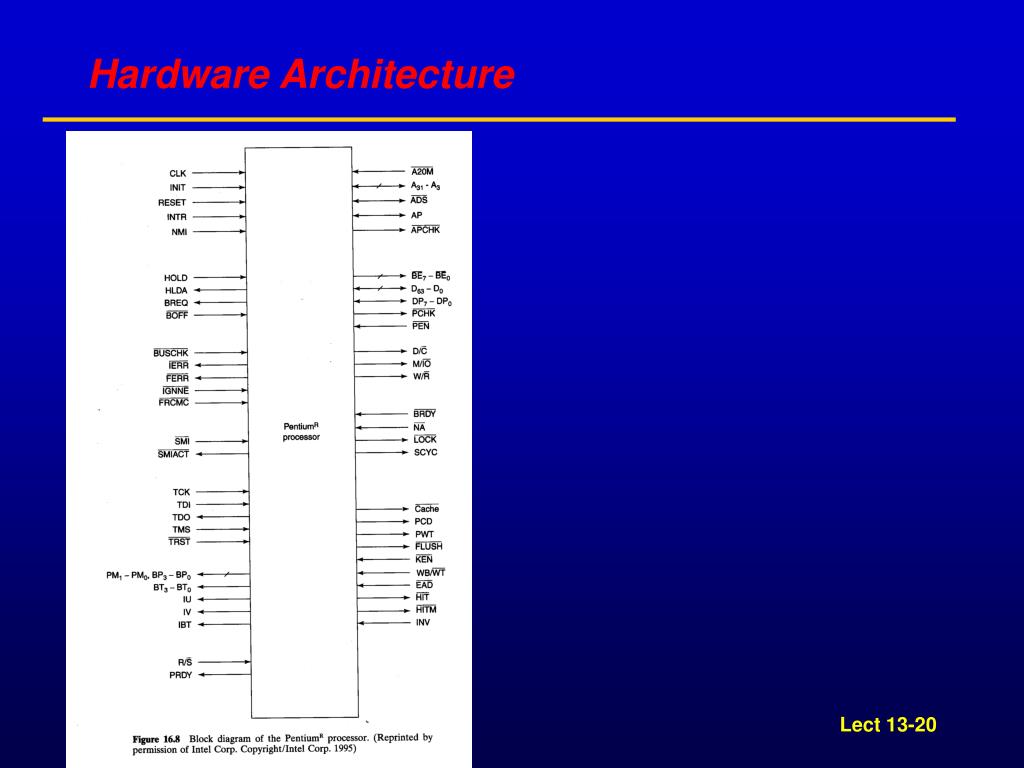

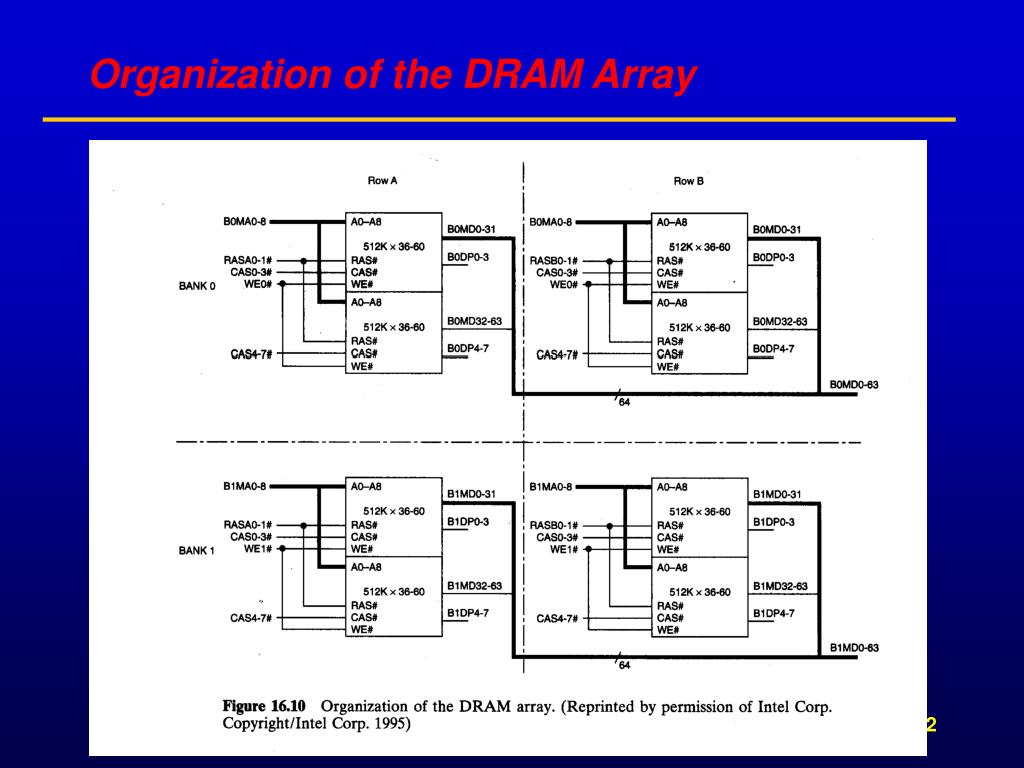

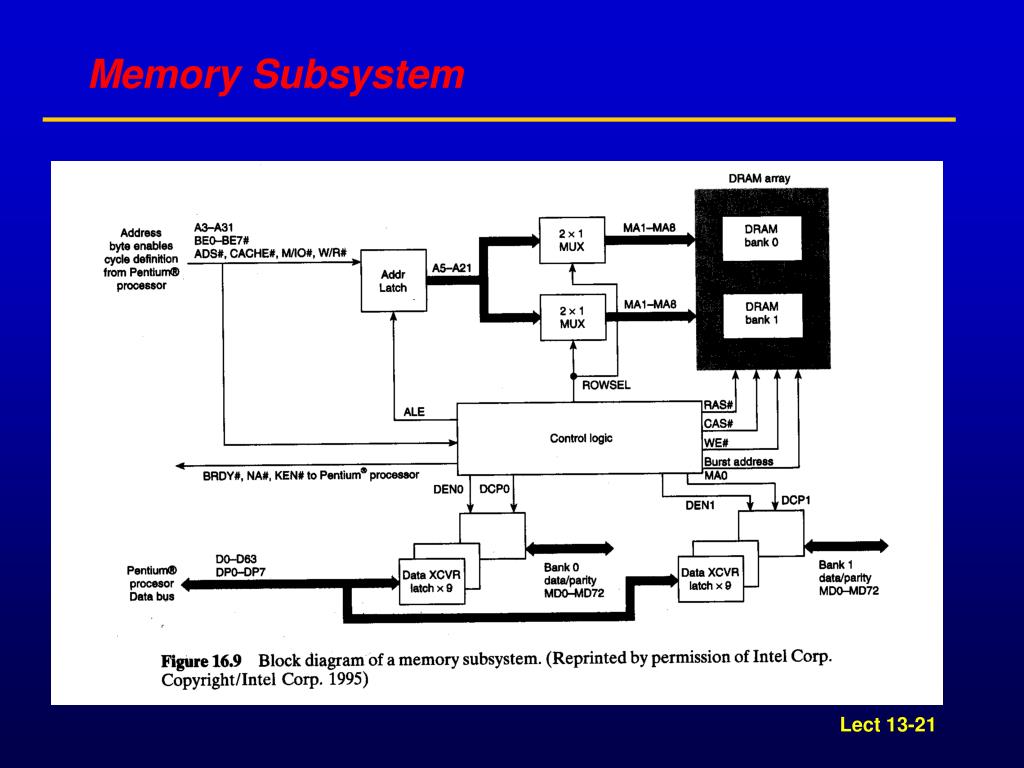

Pentium Processor

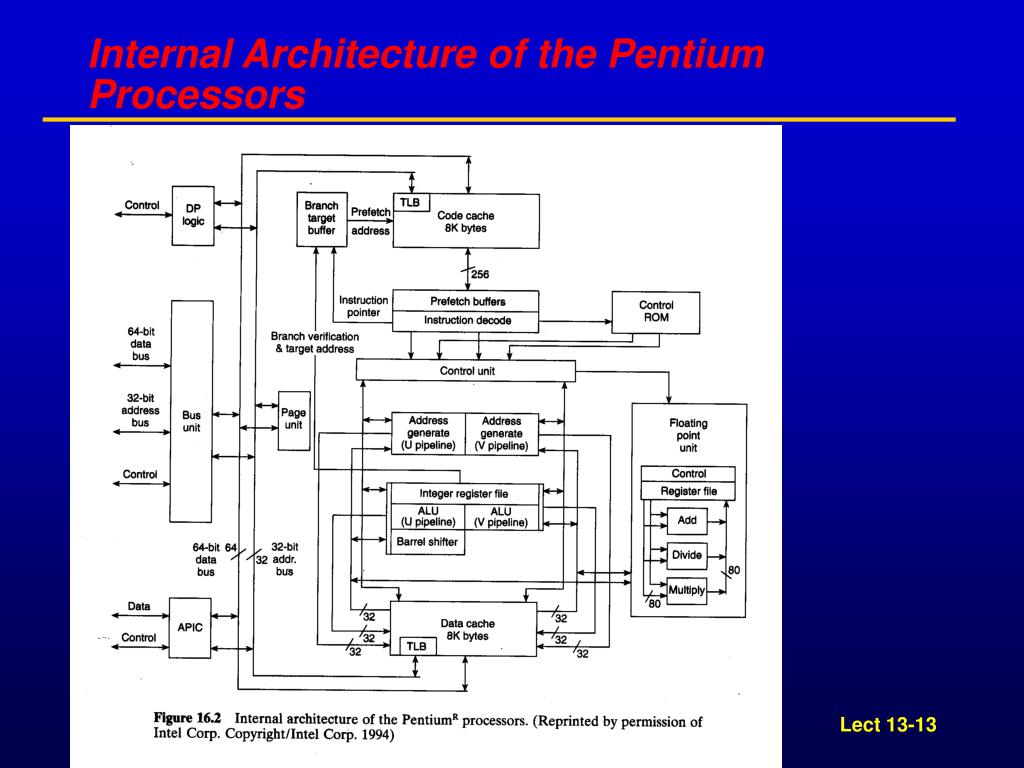

  • Pentium Processor
    • 32-bit Microprocessor
      • 32-bit addressing
      • 64-bit Data Bus
    • Superscalar architecture
      • Two pipelined integer units
      • Capable of under one clock per instruction
      • Pipelined Floating Point Unit
    • Separate Code and Data Caches
      • 8K Code, 8K Write Back Data
      • 2-way 32-byte line size
      • MESI cache consistency protocol
    • Advance Design Features
      • Branch Prediction
    • 237-pin PGA
pentium processor14

I1

I3

I5

I7

PF

I2

I4

I6

I8

I1

I3

I5

I7

D1

I2

I4

I6

I8

PF

I1

I2

I3

I4

I1

I3

I5

I7

D2

I2

I4

I6

I8

D1

I1

I2

I3

I4

I1

I3

I5

I7

D2

I1

I2

I3

I4

EX

I2

I4

I6

I8

I1

I2

I3

I4

I1

I3

I5

I7

EX

WB

I2

I4

I6

I8

I1

I2

I3

I4

WB

Pentium Processor
  • Pipeline and Instruction Flow
    • 5 stage pipeline

PF : prefetch

D1 : Instruction decode

D2 : Address Generation

EX : Execute -ALU and Cache Access

WB : Write Back

Intel 486 Pentium

pentium processor15
Pentium Processor
  • “U”, “V” pipes - “pairing”
    • U : any instruction
    • V : ‘simple instructions” as defined in the ‘Pairing” rules

PF : instructions on chip cache or memory -> prefetch buffers

prefetch buffers - two independent pairs of line size(32 bytes)

D1 : two parallel decoders

D2 : address generation for operand fetch

EX : ALU operations and data cache access

WB : modify processor state ; complete execution

branch prediction
Branch Prediction
  • Branch Prediction
    • Branch Target Buffer
    • The processor accesses the BTB with the address of the instruction in the D1 stage

example)

inner_loop :

mov byte ptr flag[edx], al PF D1 D2 EX WB

add edx, ecx PF D1 D2 EX WB

cmp edx, FALSE PF D1 D2 EX WB

jle inner_loopPF

    • 486 : 6 clocks

Pentium : 2 clocks with branch prediction
