Experiment 5

EXPERIMENT 5

NODE VOLTAGE METHOD

Ertuğrul Eriş & Berrak Öztürk


Rroteus objectives
RROTEUS OBJECTIVES

  • HOW TO INSERT DEPENDENT SOURCES TO CIRCUIT SHEMATIC

  • HOW TO FIND OUT ELEMENTS’ VOLTAGES IN TERMS OF NODE VOLTAGES (SUBSTRUCTION OPERATION)

Ertuğrul Eriş & Berrak Öztürk


Circuit to be analyased by proteus simulation
CIRCUIT TO BE ANALYASED BY PROTEUS SIMULATION

i2

i5

i4

i3

Ertuğrul Eriş & Berrak Öztürk


Adding resistor elements
ADDING «RESISTOR»ELEMENTS

Ertuğrul Eriş & Berrak Öztürk


Adding dc voltage source element
ADDING «DC VOLTAGE SOURCE» ELEMENT

Ertuğrul Eriş & Berrak Öztürk


Adding current controlled voltage source element ccvs
ADDING «CURRENT CONTROLLED VOLTAGE SOURCE ELEMENT» (CCVS)

  • Could give a name to the element by writing here

Ertuğrul Eriş & Berrak Öztürk


Topology
TOPOLOGY

CCVS has a 4 pin

Ertuğrul Eriş & Berrak Öztürk

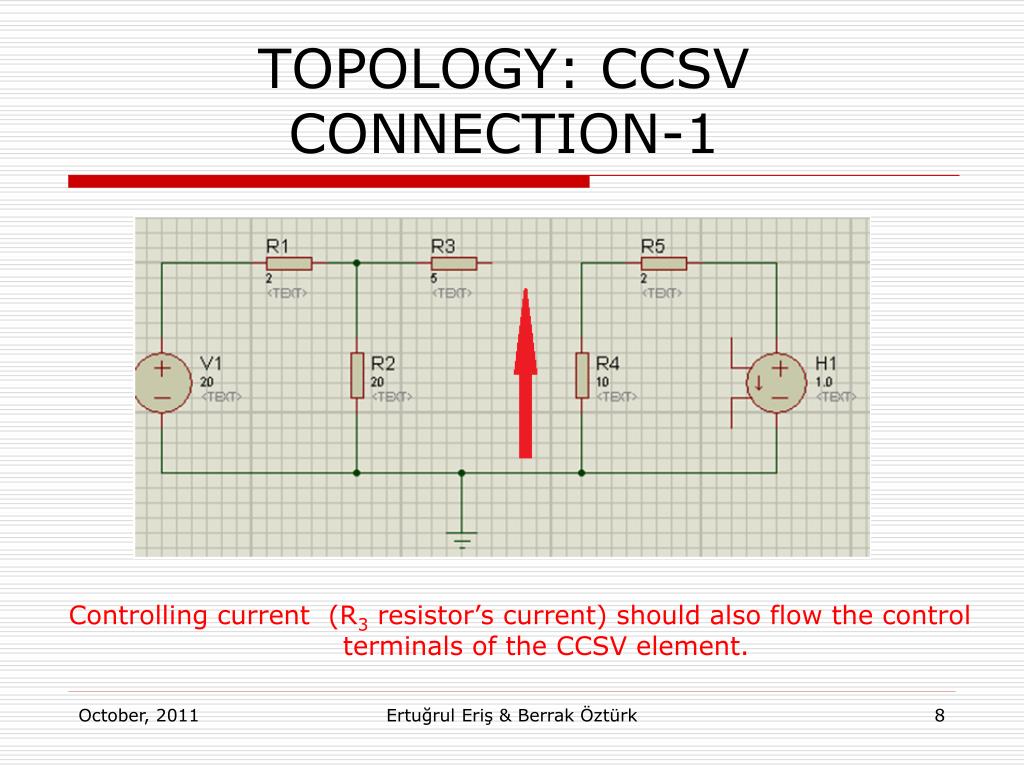

Topology ccsv connection 1
TOPOLOGY: CCSV CONNECTION-1

Controlling current (R3 resistor’s current) should also flow the control terminals of the CCSV element.

Ertuğrul Eriş & Berrak Öztürk


Topology ccsv connection 2
TOPOLOGY: CCSV CONNECTION-2

current flow reference of both R3 and CCVS elements should be in the same direction

Ertuğrul Eriş & Berrak Öztürk

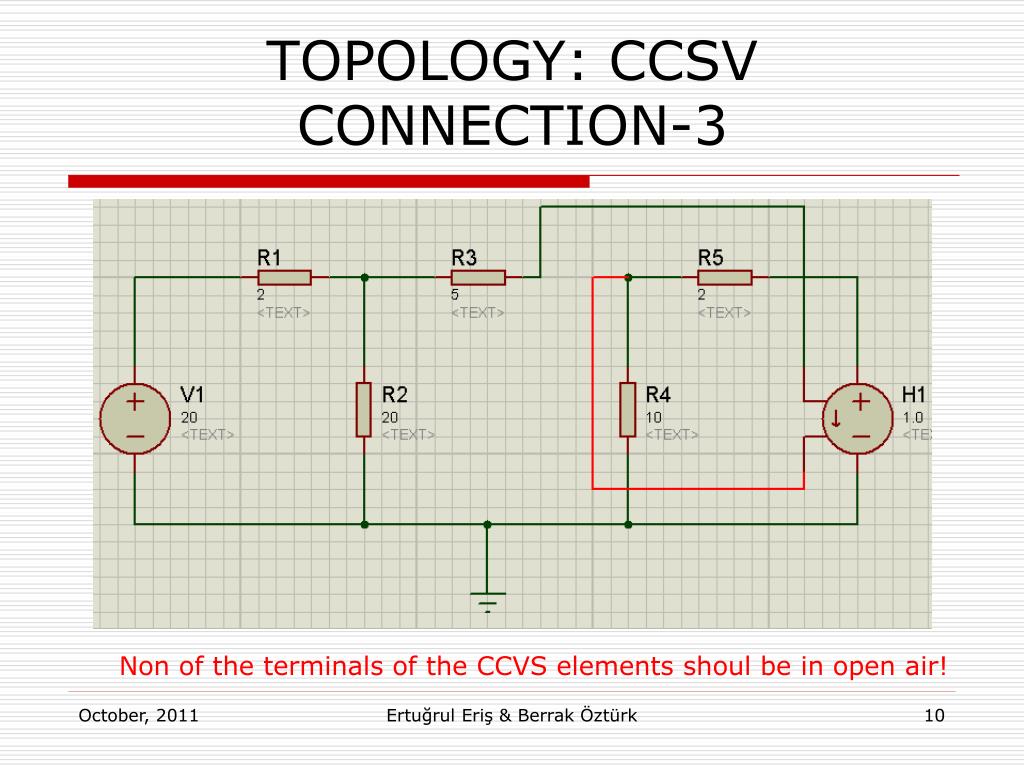

Topology ccsv connection 3
TOPOLOGY: CCSV CONNECTION-3

Non of the terminals of the CCVS elements shoul be in open air!

Ertuğrul Eriş & Berrak Öztürk


Topology editing ccvs element s properties
TOPOLOGY EDITING CCVS ELEMENT’S PROPERTIES

Ertuğrul Eriş & Berrak Öztürk


Outputs current probes
OUTPUTS: CURRENT PROBES

I1, I2, I3, I4, I5, Iphi and Iccvs

What happens if an element’s current flow reference

and probe current reference directions are opposite?

Ertuğrul Eriş & Berrak Öztürk


Outputs voltage probes
OUTPUTS:VOLTAGE PROBES

  • Voltage probe directly measures node voltages!

  • not the elements voltages (exceptions?)

  • How could find the element voltages?

Ertuğrul Eriş & Berrak Öztürk


Simulation type analog
SIMULATION TYPE: ANALOG

Ertuğrul Eriş & Berrak Öztürk


Adding currents and votages of which waveforms to be observed
ADDING CURRENTS AND VOTAGES OF WHICH WAVEFORMS TO BE OBSERVED

Add trace

How to choose

different

y-axis for the

voltages and

currents?

Ertuğrul Eriş & Berrak Öztürk


Finding element voltages from node voltages v r1 v 1 v 2
FINDING ELEMENT VOLTAGES FROM NODE VOLTAGES: V OBSERVED R1=V1-V2

Ertuğrul Eriş & Berrak Öztürk


Finding element voltages from node voltages v r2 v 2
FINDING ELEMENT VOLTAGES FROM NODE VOLTAGES: V OBSERVED R2=V2

Ertuğrul Eriş & Berrak Öztürk


Finding element voltages from node voltages
FINDING ELEMENT VOLTAGES FROM NODE VOLTAGES OBSERVED

Ertuğrul Eriş & Berrak Öztürk


Comparison proteus and matlab solutions
COMPARISON PROTEUS AND MATLAB SOLUTIONs OBSERVED

i2

i5

i4

i3

Ertuğrul Eriş & Berrak Öztürk
