Mars network scenario 2004 jan 25 to 2004 mar 10 charles h lee jet propulsion laboratory

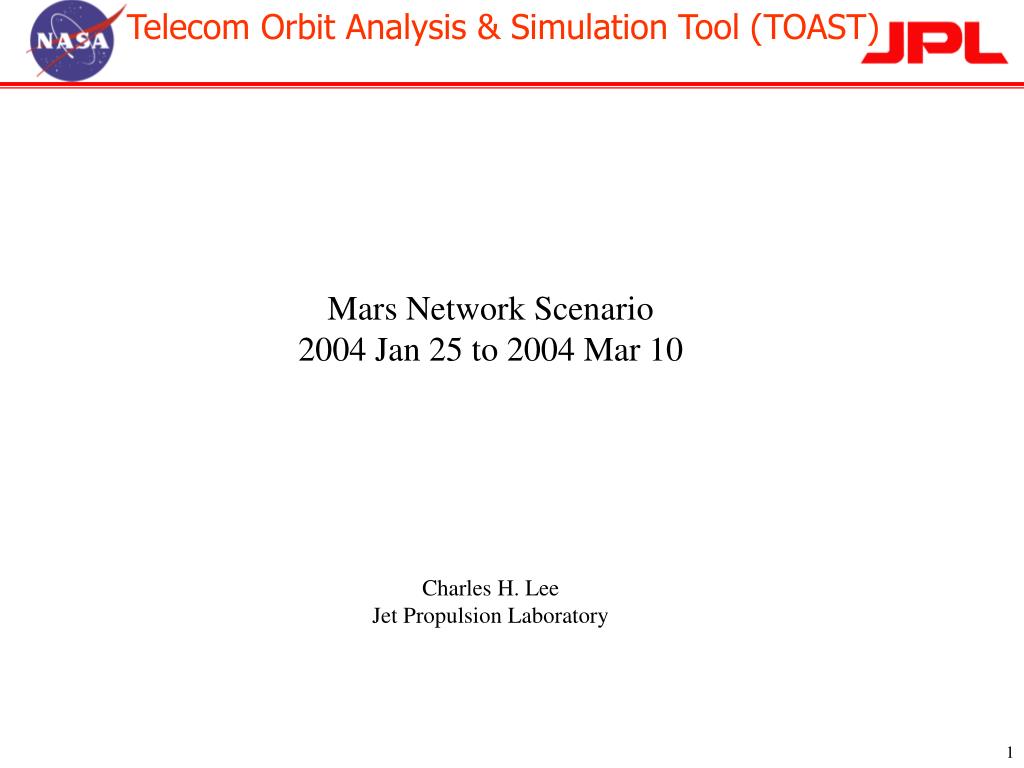

Mars Network Scenario

2004 Jan 25 to 2004 Mar 10

Charles H. Lee

Jet Propulsion Laboratory


Simulation assumptions output files

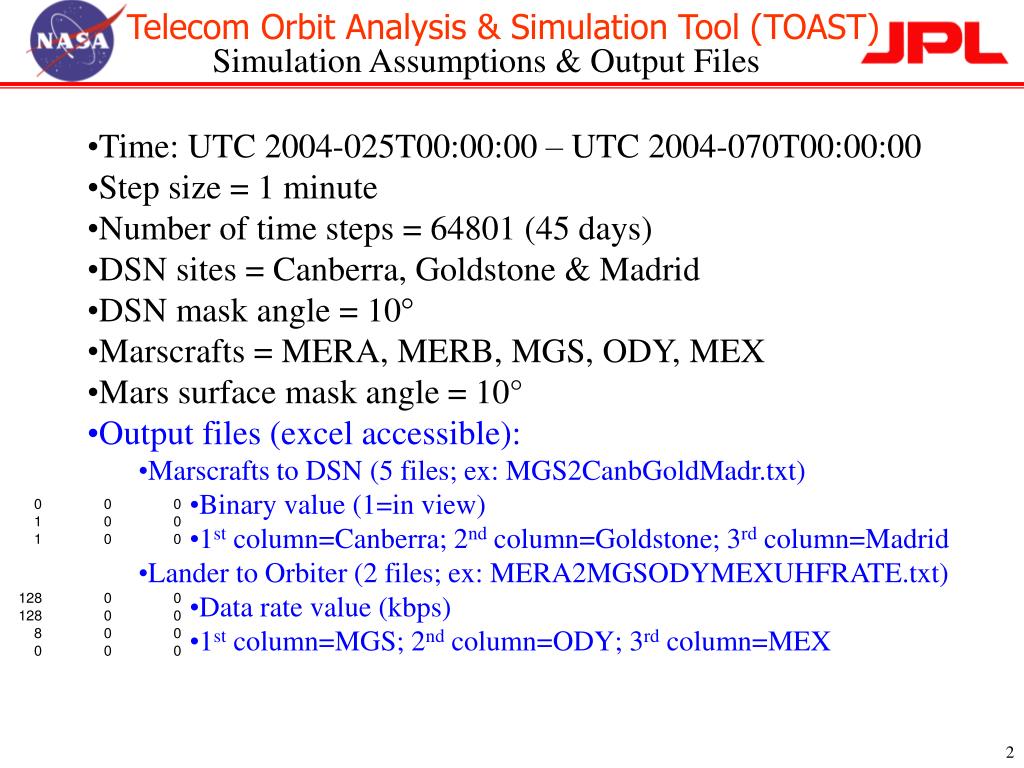

Simulation Assumptions & Output Files

  • Time: UTC 2004-025T00:00:00 – UTC 2004-070T00:00:00

  • Step size = 1 minute

  • Number of time steps = 64801 (45 days)

  • DSN sites = Canberra, Goldstone & Madrid

  • DSN mask angle = 10°

  • Marscrafts = MERA, MERB, MGS, ODY, MEX

  • Mars surface mask angle = 10°

  • Output files (excel accessible):

    • Marscrafts to DSN (5 files; ex: MGS2CanbGoldMadr.txt)

      • Binary value (1=in view)

      • 1st column=Canberra; 2nd column=Goldstone; 3rd column=Madrid

    • Lander to Orbiter (2 files; ex: MERA2MGSODYMEXUHFRATE.txt)

      • Data rate value (kbps)

      • 1st column=MGS; 2nd column=ODY; 3rd column=MEX


Mer s telecom assumptions

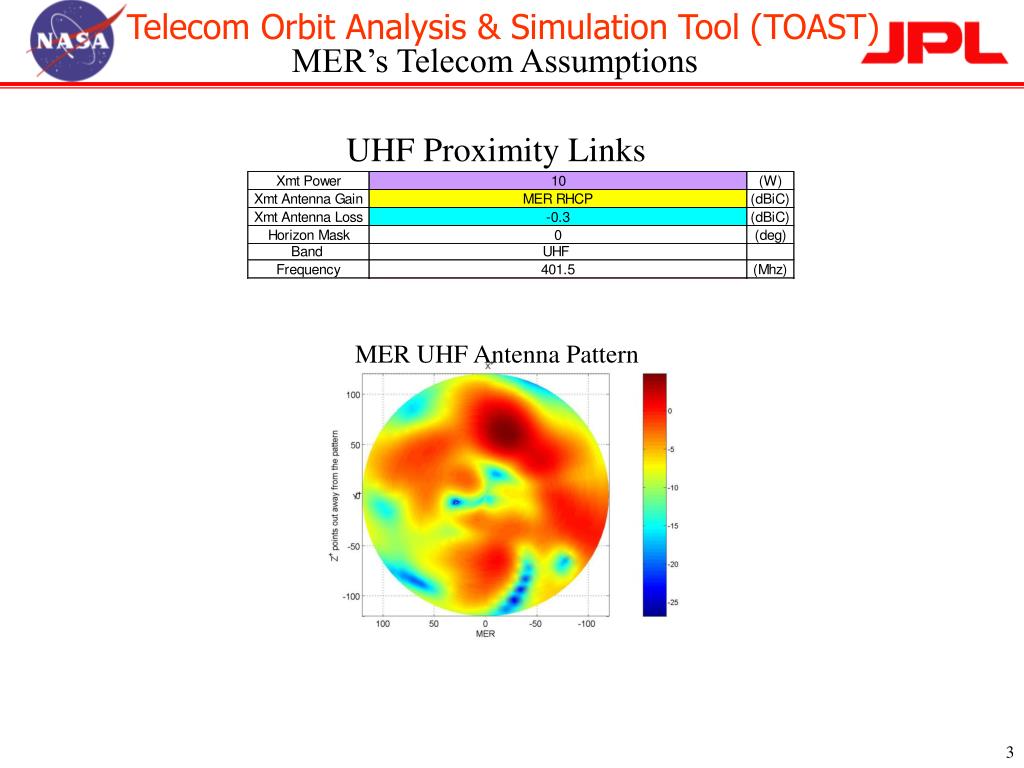

MER’s Telecom Assumptions

MER UHF Antenna Pattern

UHF Proximity Links


Orbiters uhf assumptions for mer
Orbiters’ UHF Assumptions for MER

ODY’s UHF Pattern

MEX’s UHF Pattern

MGS’s UHF Pattern
