Innovative Microwave Oven Presentation for Built-In Ventilation Solution

Explore a cutting-edge microwave oven with built-in ventilation system that enhances air circulation. Learn about left and right turbines, damper shutter, combined or traditional cooking modes, door lock feature, and more. Detailed schematic diagrams and power card measurement tests included.

gitel
Download Presentation

Innovative Microwave Oven Presentation for Built-In Ventilation Solution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ME645ME655 Microwave ovenMOBI

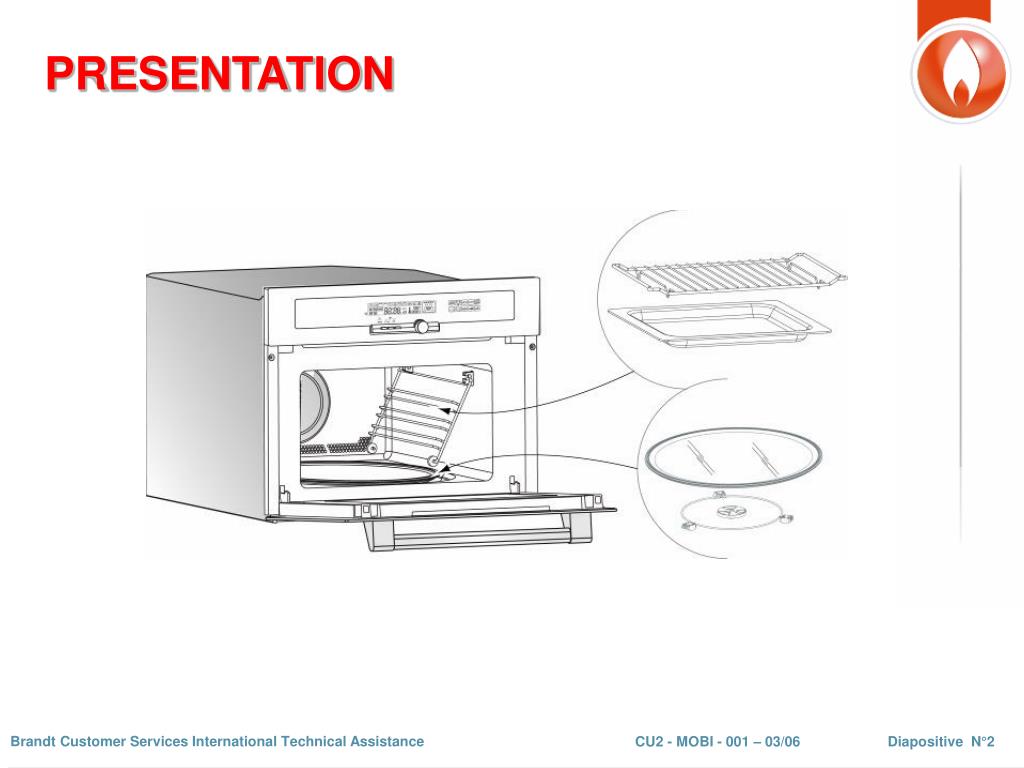

  2. PRESENTATION

  3. BUILT-IN

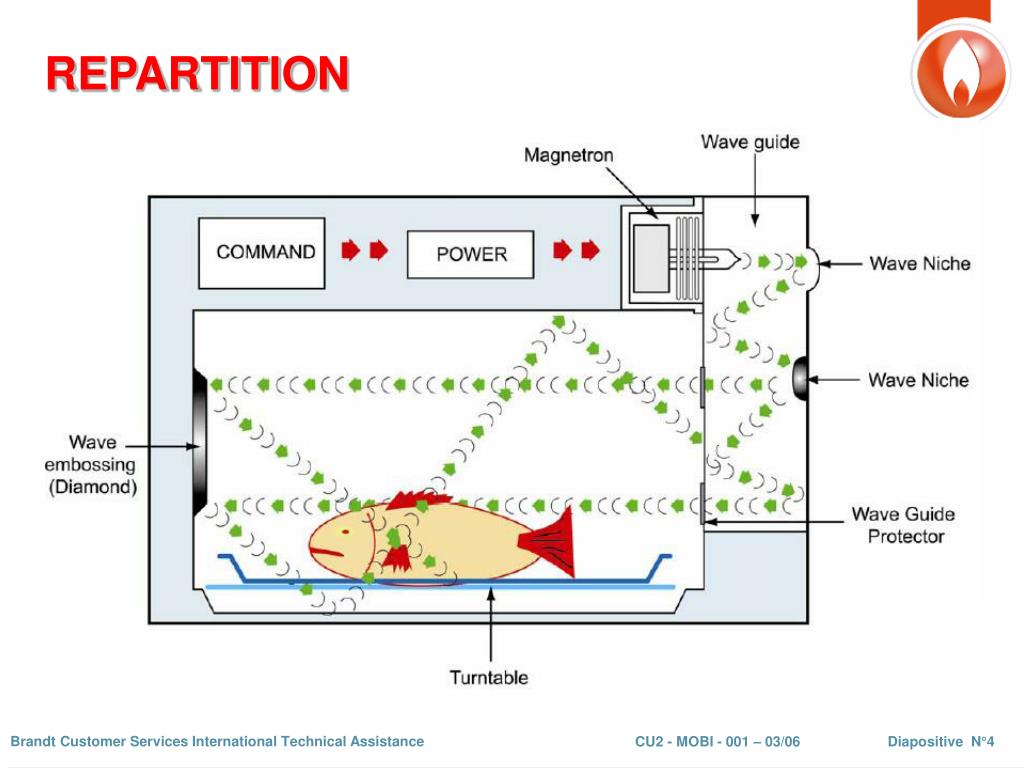

  4. REPARTITION

  5. VENTILATION Air inlet Air oulet

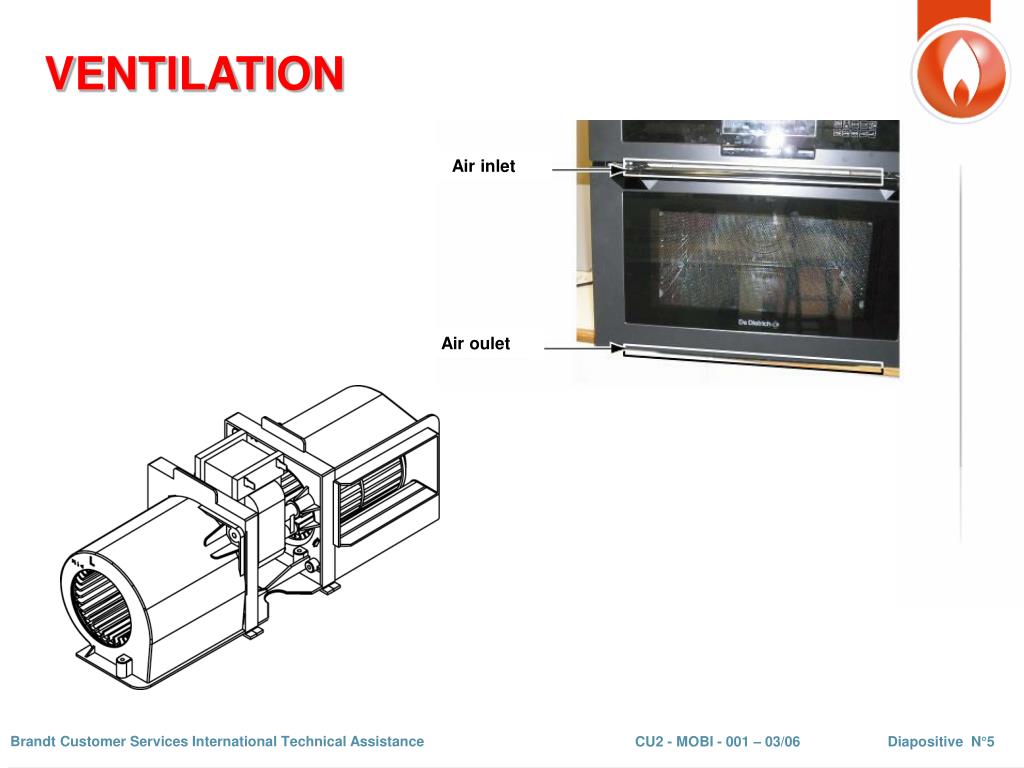

  6. VENTILATION

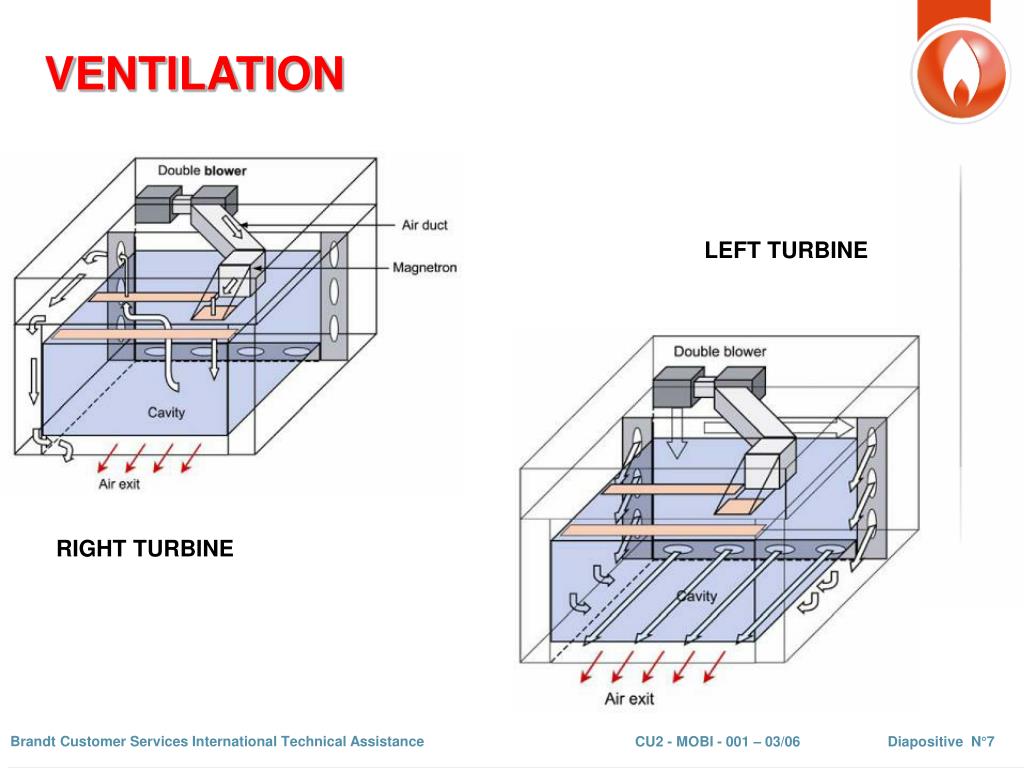

  7. VENTILATION LEFT TURBINE RIGHT TURBINE

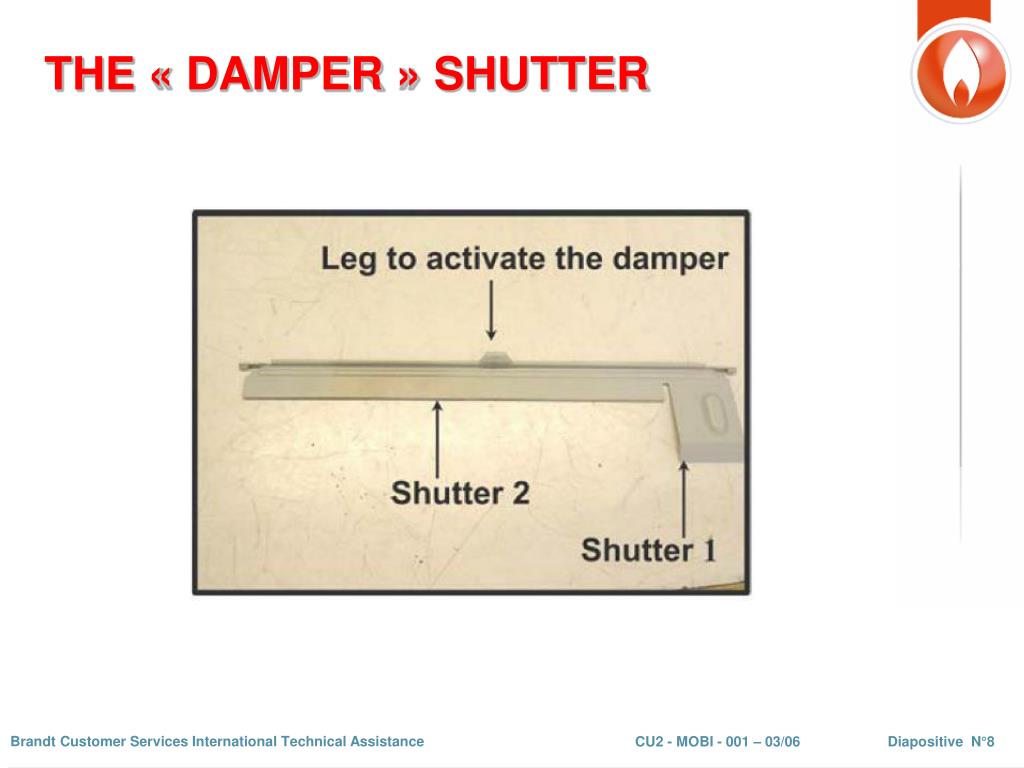

  8. THE « DAMPER » SHUTTER

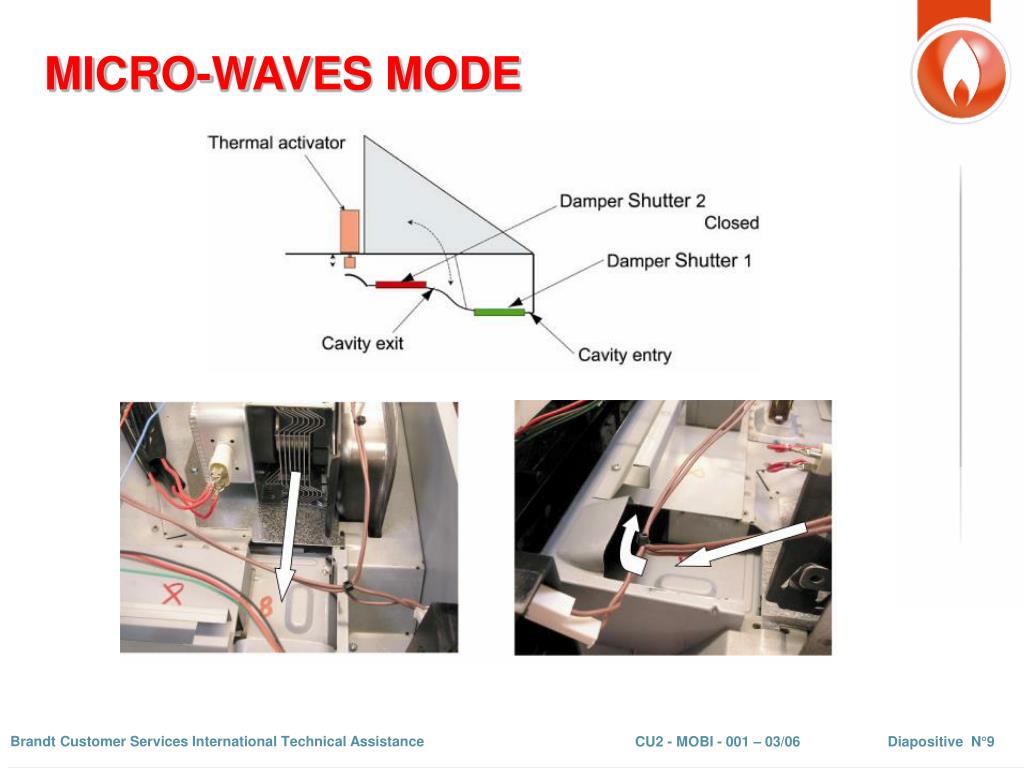

  9. MICRO-WAVES MODE

  10. COMBINED OR TRADITIONAL MODES

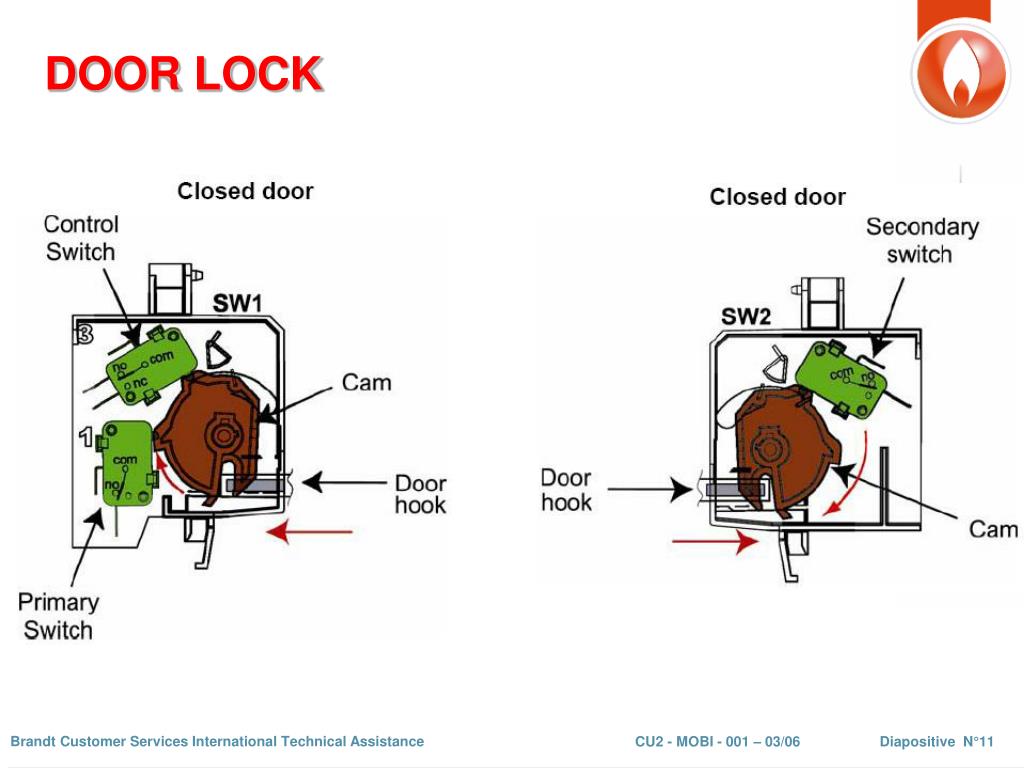

  11. DOOR LOCK

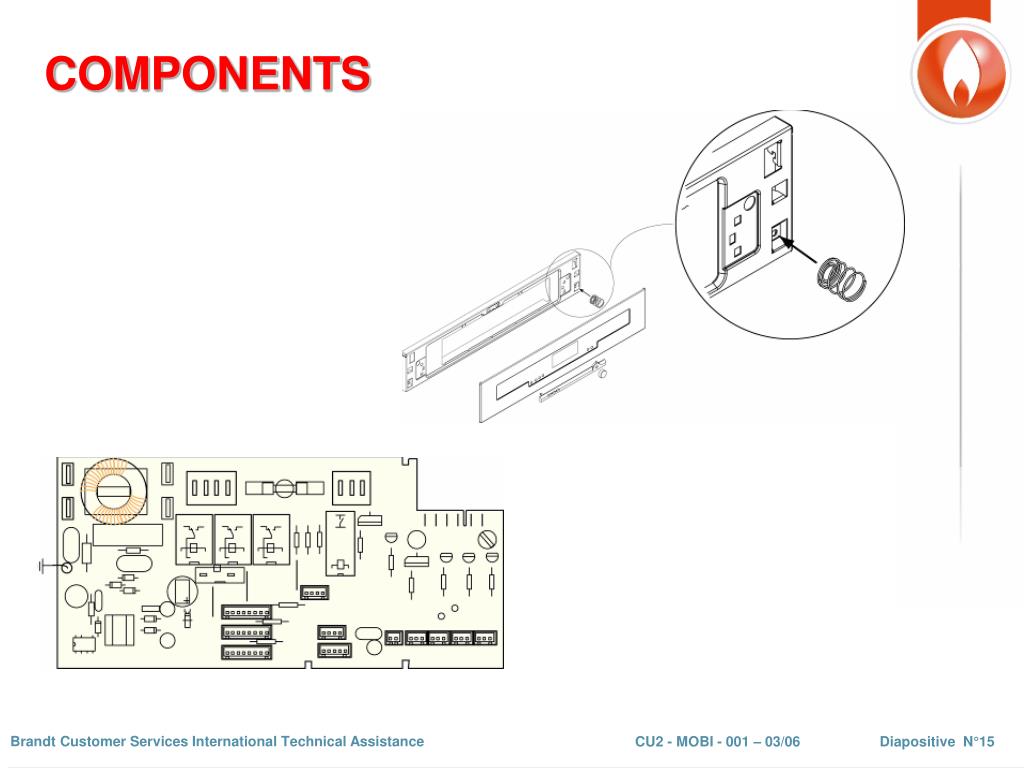

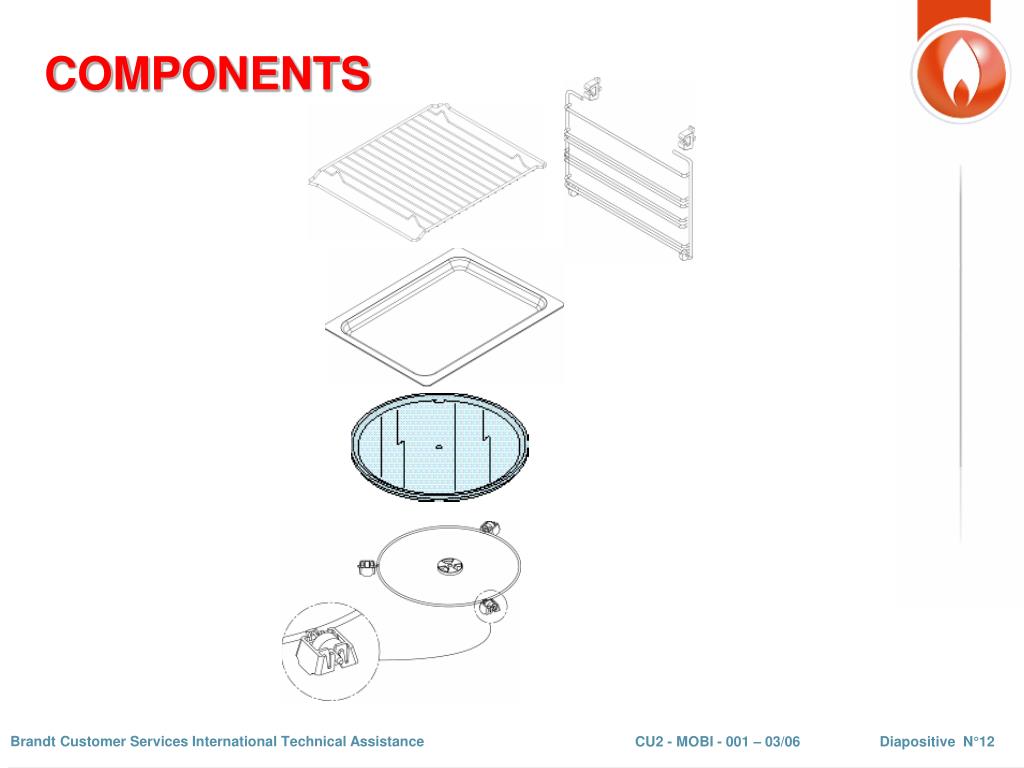

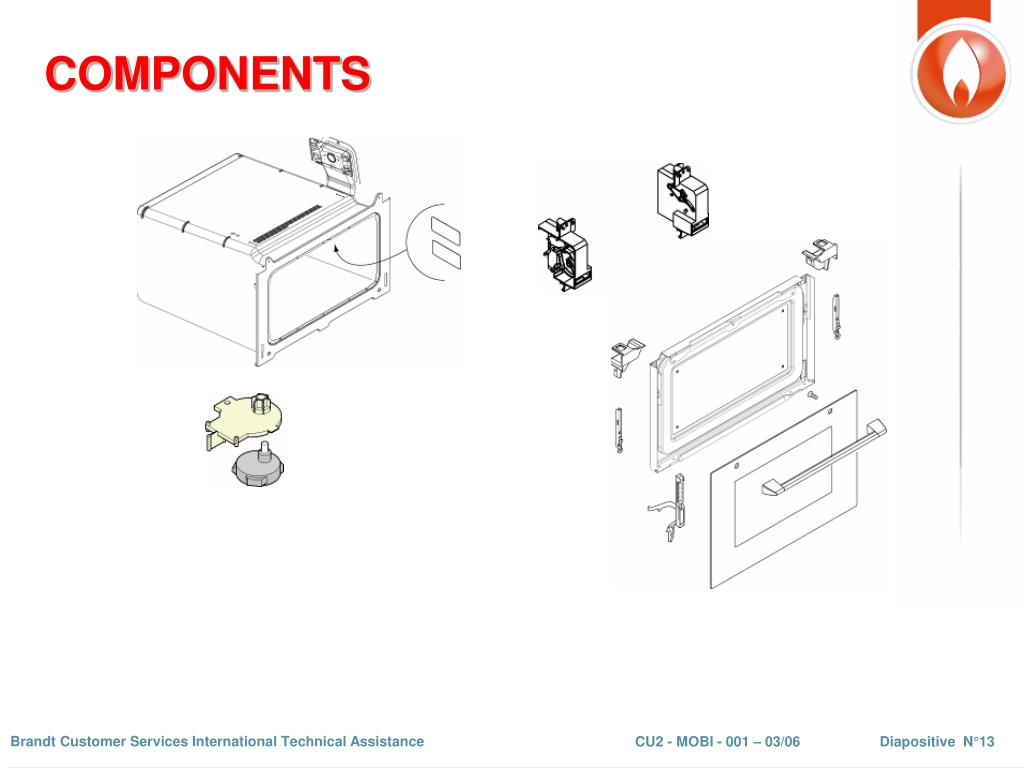

  12. COMPONENTS

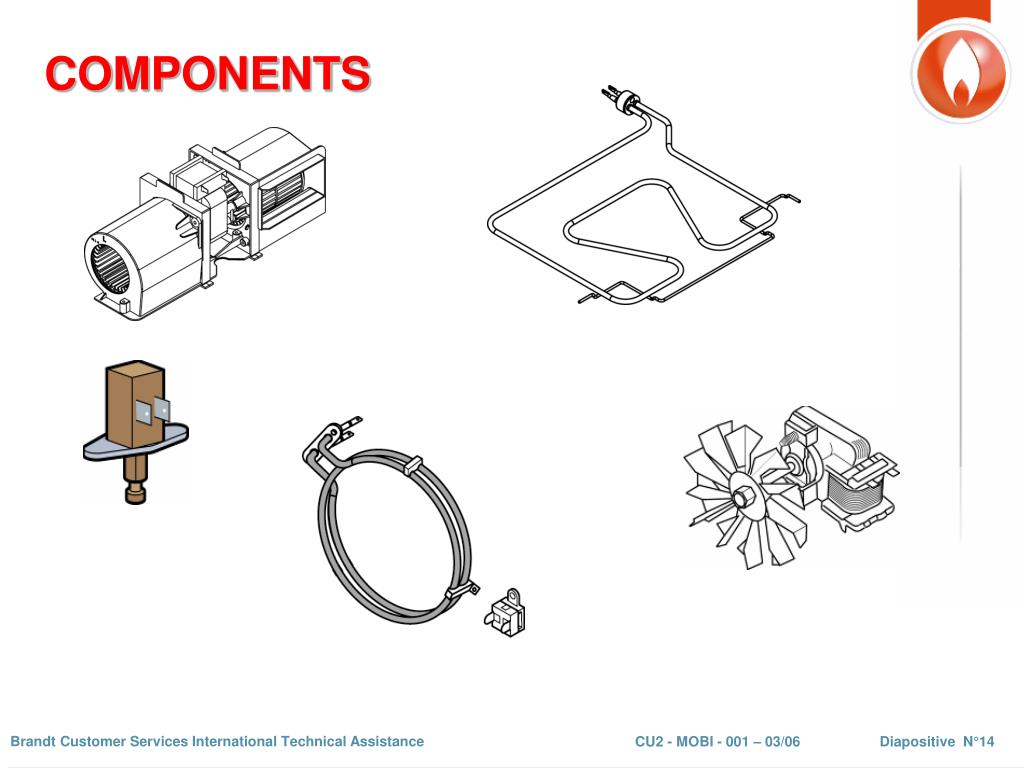

  13. COMPONENTS

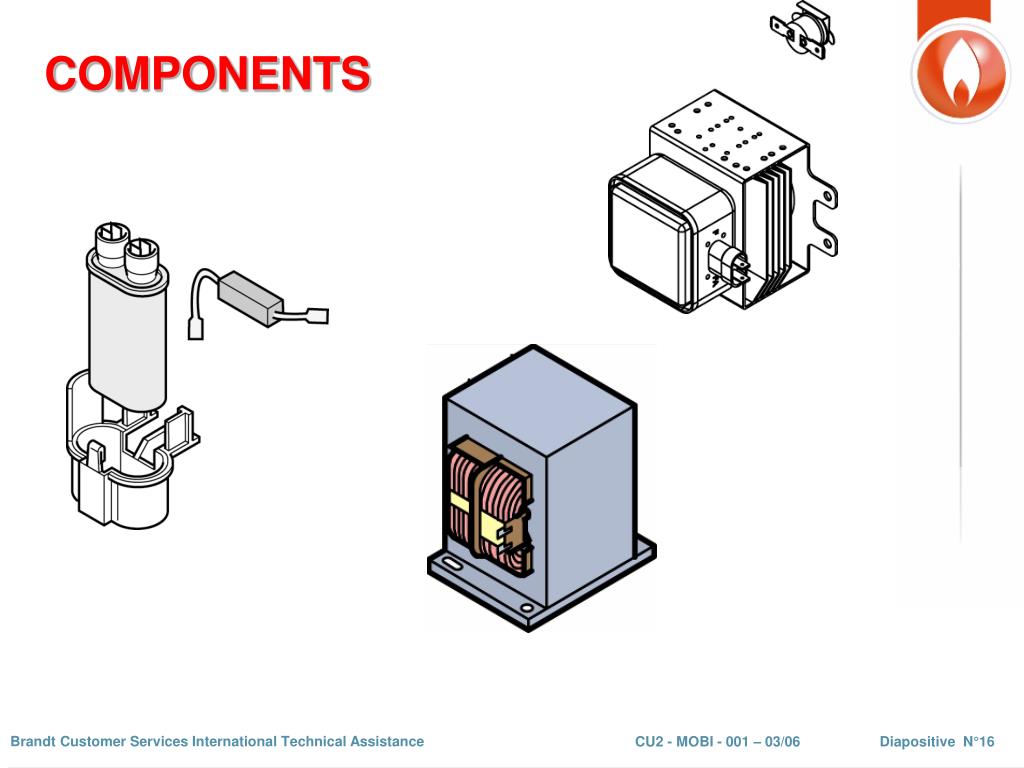

  14. COMPONENTS

  15. COMPONENTS

  16. COMPONENTS

  17. MICROWAVESCHEMATICDIAGRAM

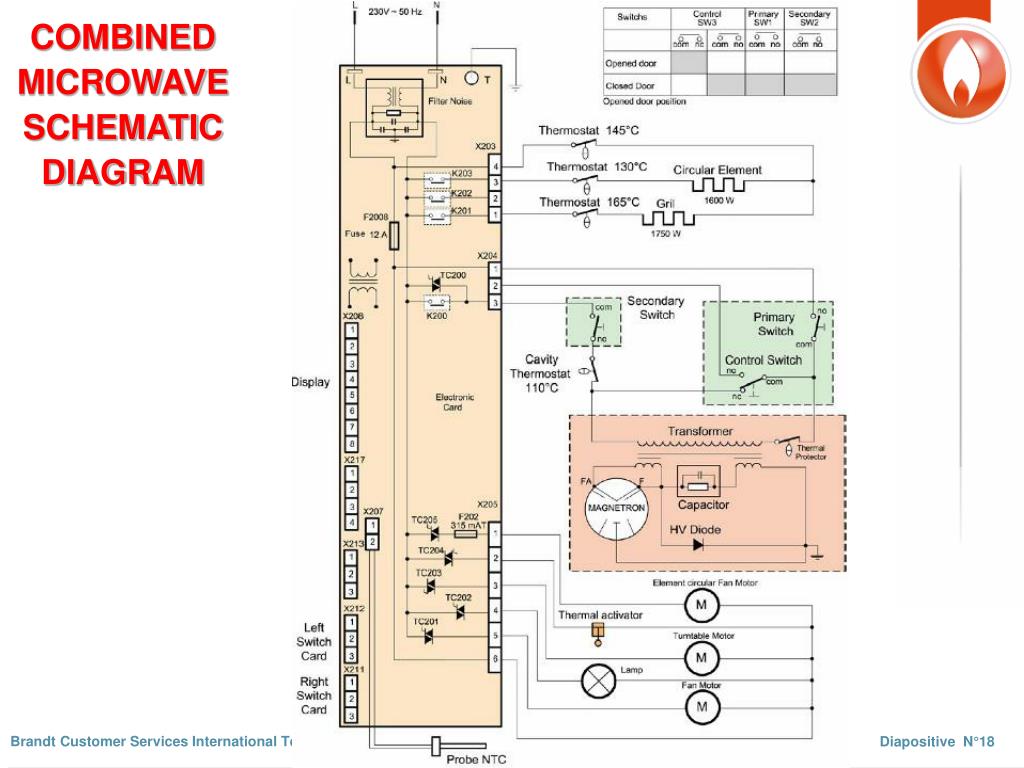

  18. COMBINEDMICROWAVESCHEMATICDIAGRAM

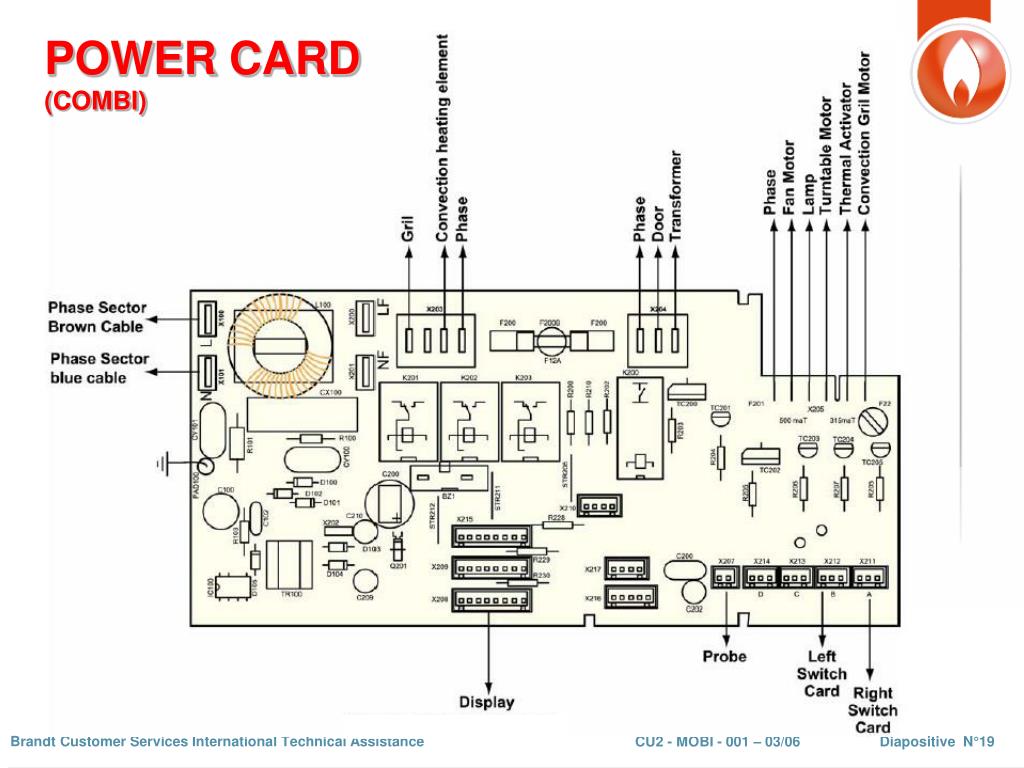

  19. POWER CARD(COMBI)

  20. POWER CARDMeasurement tests
