  1. CS 241 Section(10/28/10)

  2. MP6

  3. MP6 • This MP is simple: • Create a ‘make’ utility.

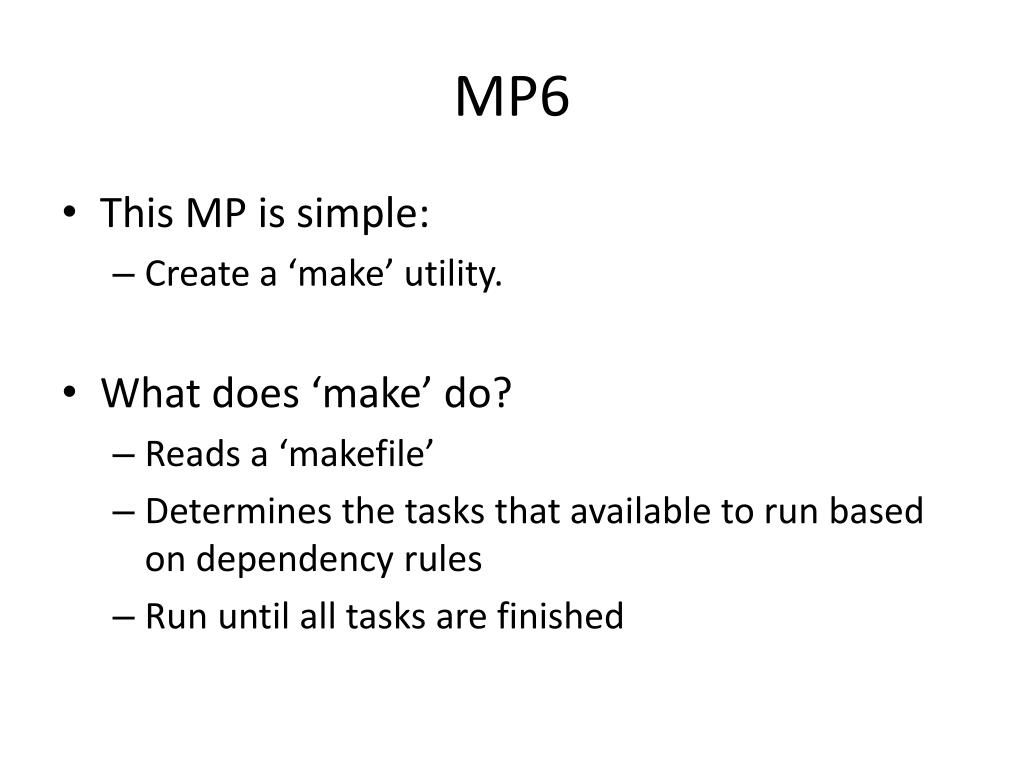

  4. MP6 • This MP is simple: • Create a ‘make’ utility. • What does ‘make’ do? • Reads a ‘makefile’ • Determines the tasks that available to run based on dependency rules • Run until all tasks are finished

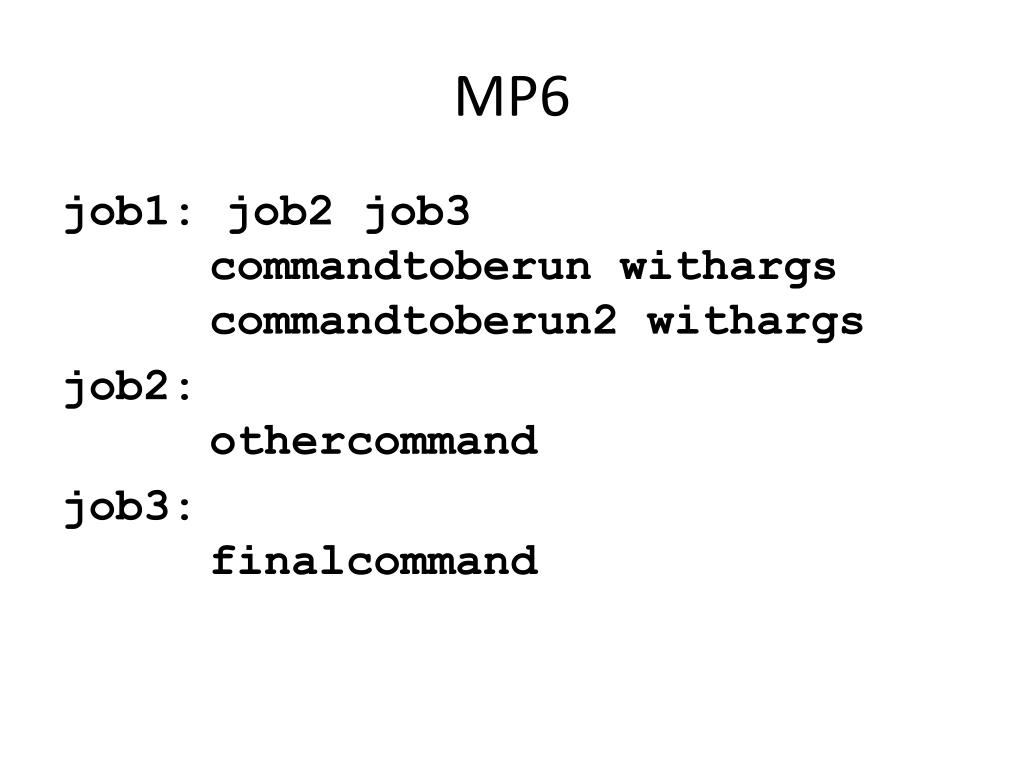

  5. MP6 job1: job2 job3    commandtoberun withargs    commandtoberun2 withargs job2:    othercommand job3:    finalcommand

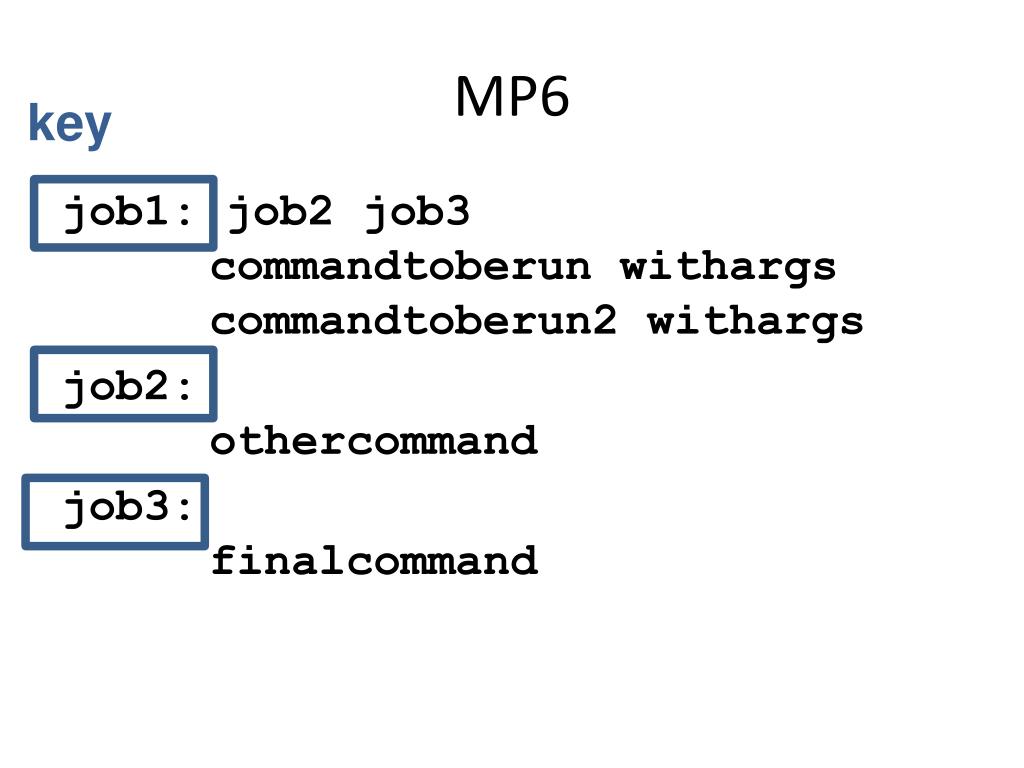

  6. MP6 key job1: job2 job3    commandtoberun withargs    commandtoberun2 withargs job2:    othercommand job3:    finalcommand

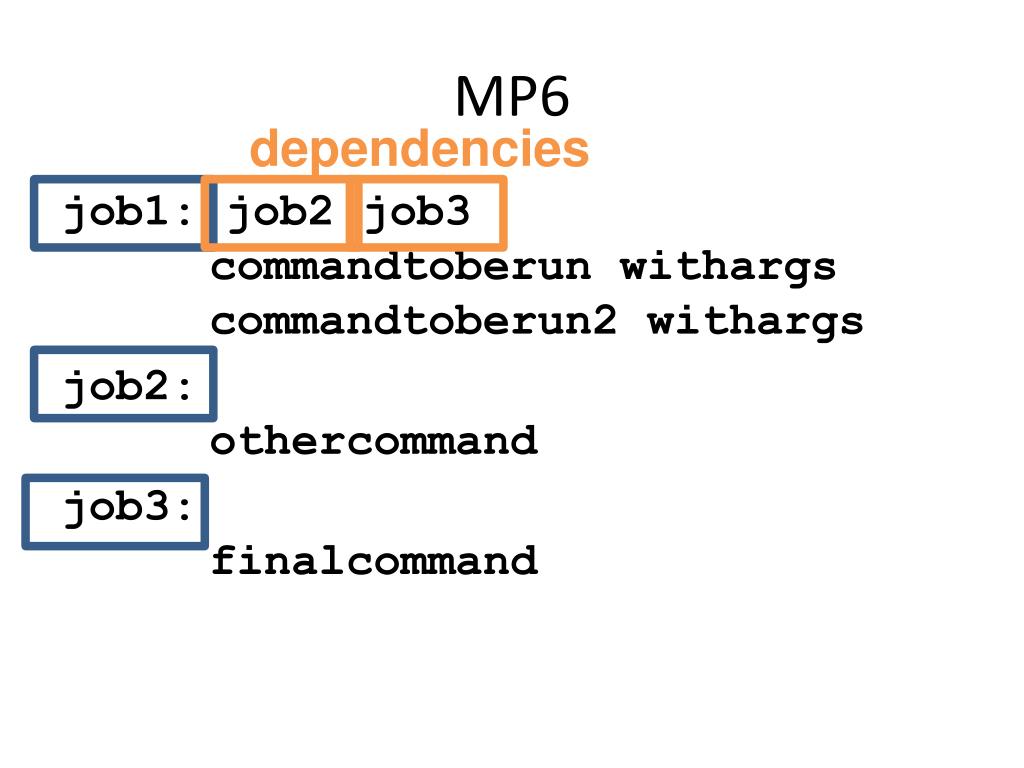

  7. MP6 dependencies job1: job2 job3    commandtoberun withargs    commandtoberun2 withargs job2:    othercommand job3:    finalcommand

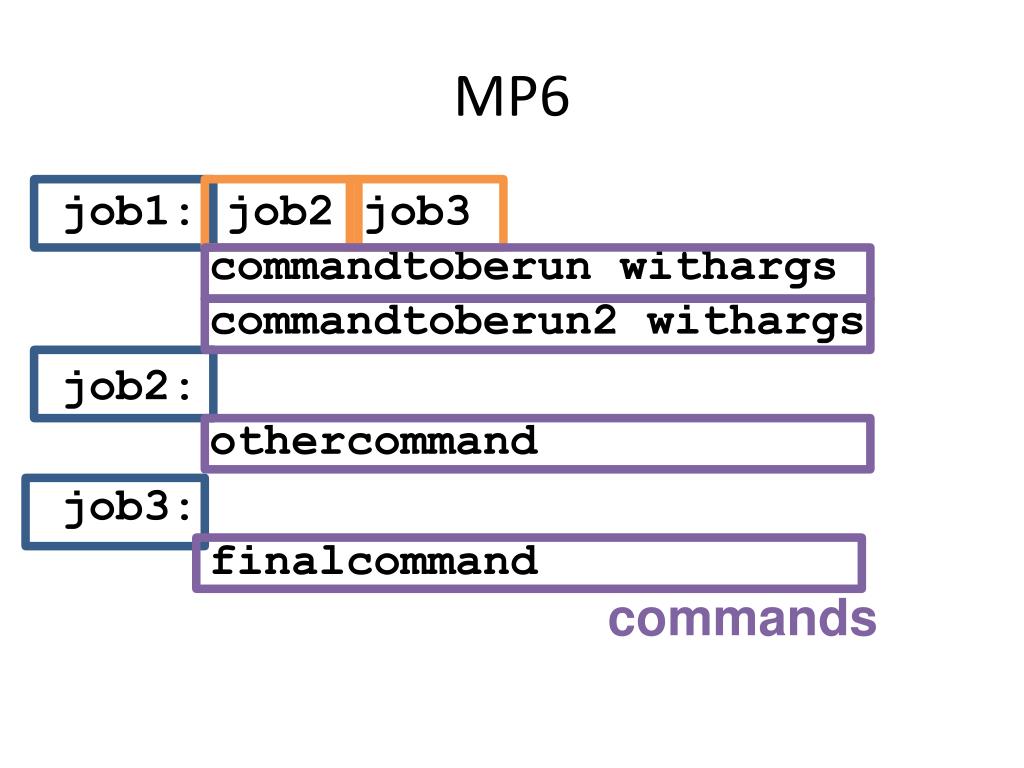

  8. MP6 job1: job2 job3    commandtoberun withargs    commandtoberun2 withargs job2:    othercommand job3:    finalcommand commands

  9. MP6 • We can show this graphically: …job1 depends on job2 and job3 being done. job2 job1 job3

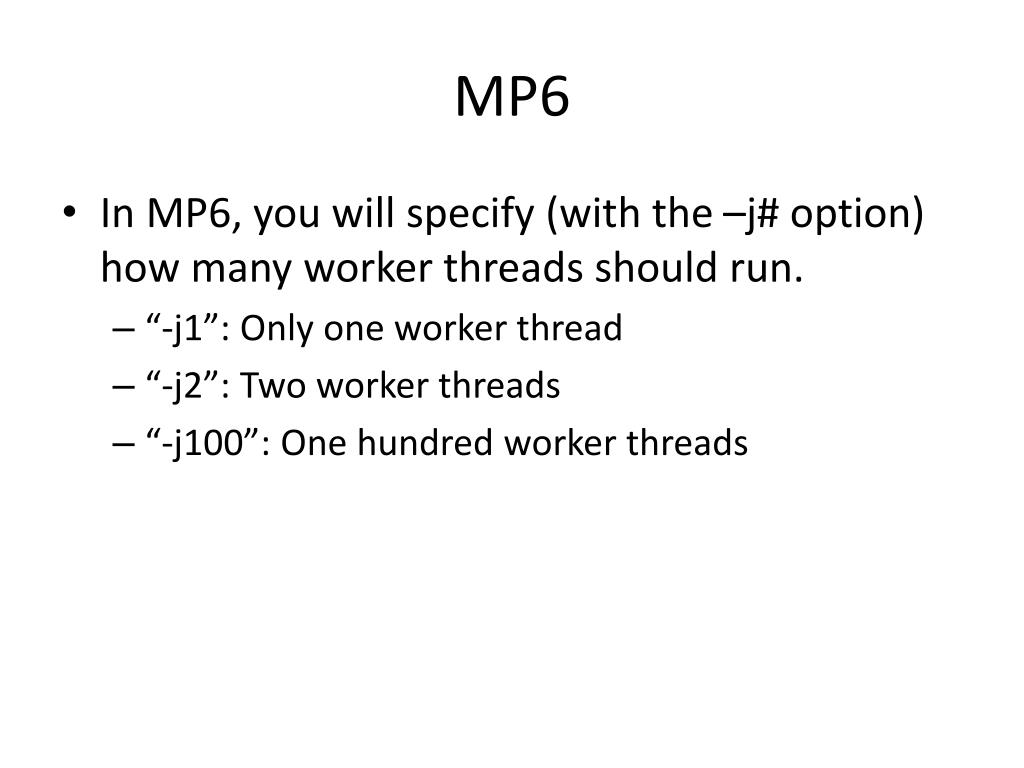

  10. MP6 • In MP6, you will specify (with the –j# option) how many worker threads should run. • “-j1”: Only one worker thread • “-j2”: Two worker threads • “-j100”: One hundred worker threads

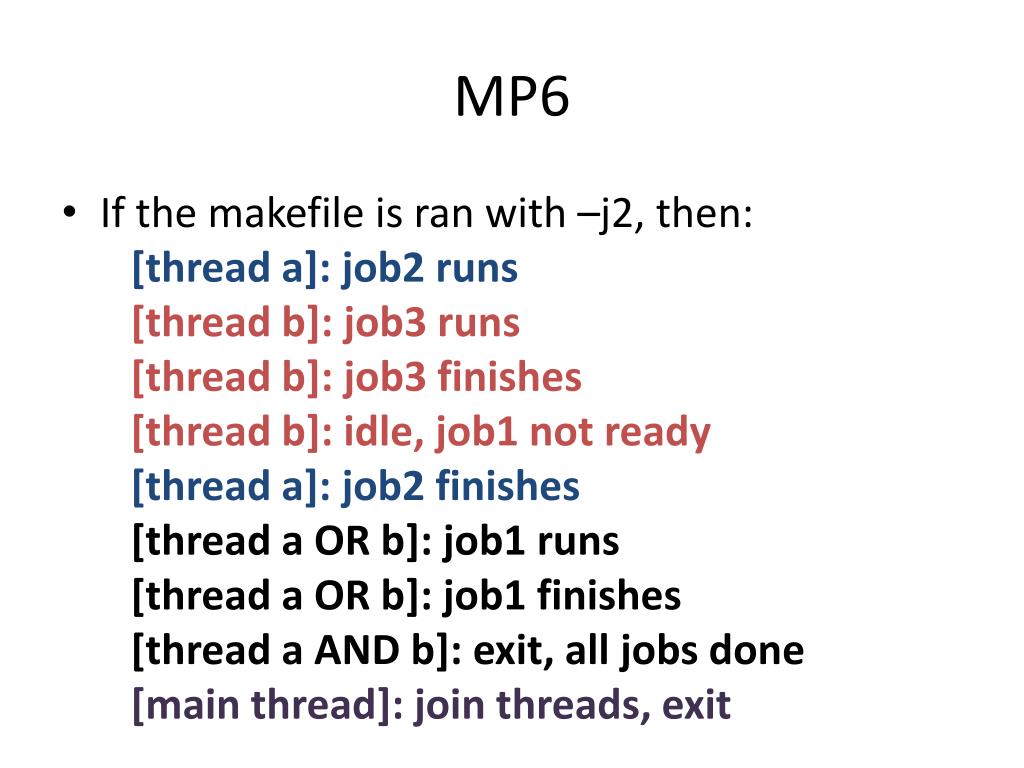

  11. MP6 • If the makefile is ran with –j2, then: [thread a]: job2 runs [thread b]: job3 runs [thread b]: job3 finishes [thread b]: idle, job1 not ready[thread a]: job2 finishes [thread a OR b]: job1 runs [thread a OR b]: job1 finishes [thread a AND b]: exit, all jobs done [main thread]: join threads, exit

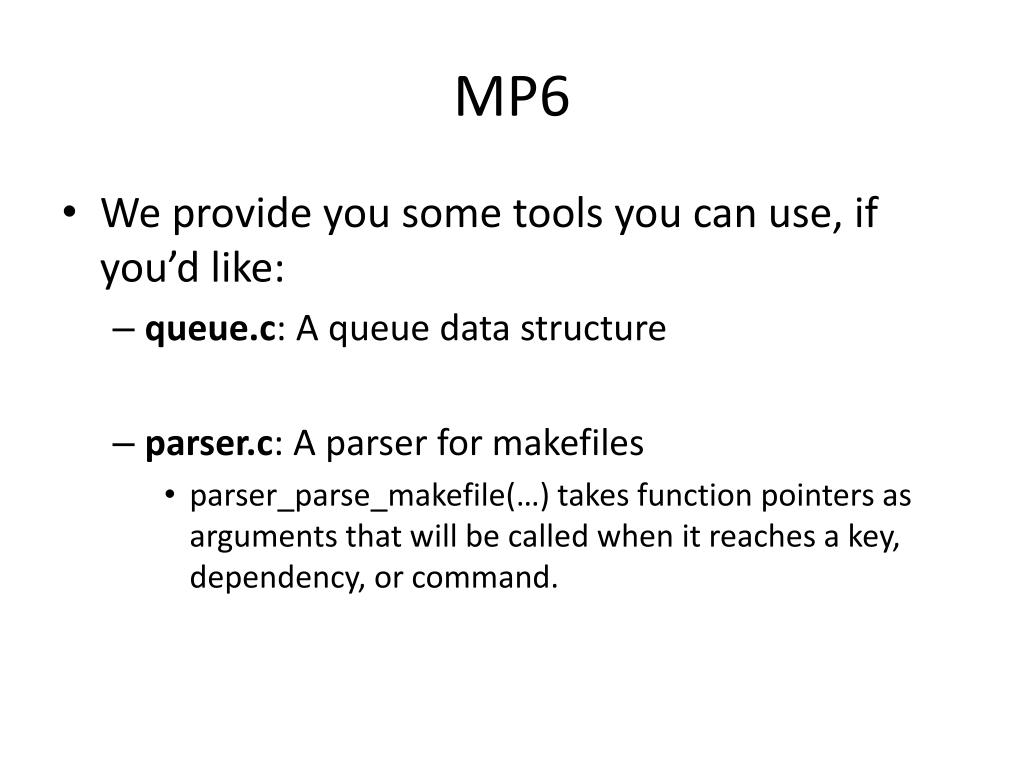

  12. MP6 • We provide you some tools you can use, if you’d like: • queue.c: A queue data structure • parser.c: A parser for makefiles • parser_parse_makefile(…) takes function pointers as arguments that will be called when it reaches a key, dependency, or command.

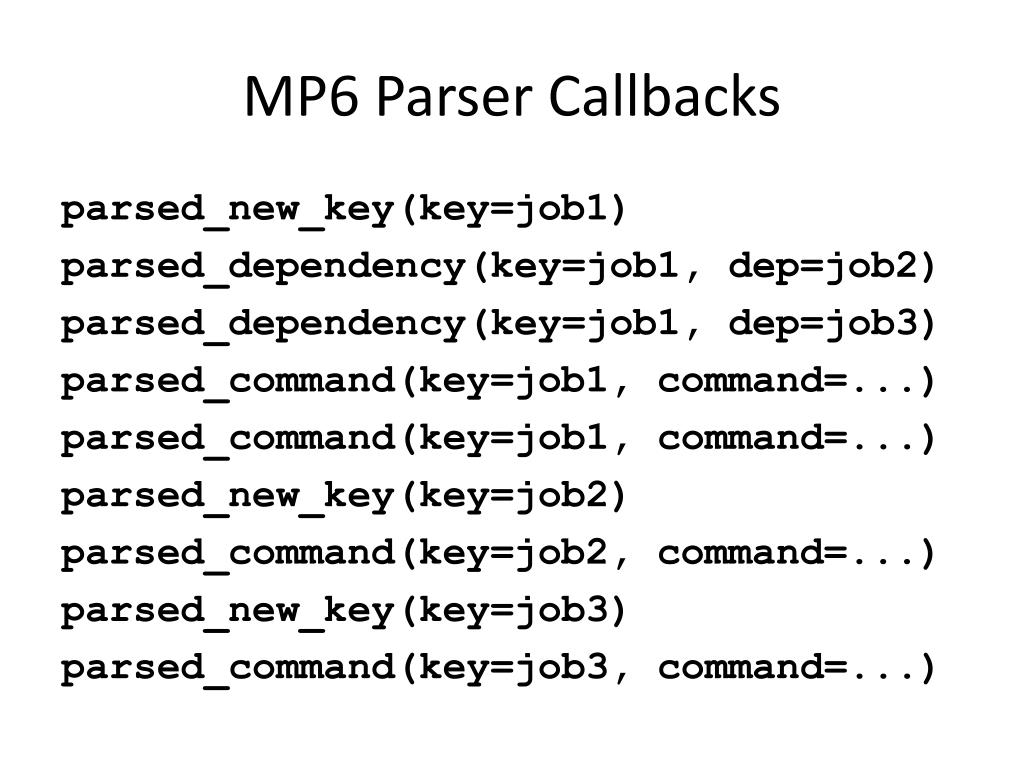

  13. MP6 Parser Callbacks parsed_new_key(key=job1) parsed_dependency(key=job1, dep=job2) parsed_dependency(key=job1, dep=job3) parsed_command(key=job1, command=...) parsed_command(key=job1, command=...) parsed_new_key(key=job2) parsed_command(key=job2, command=...) parsed_new_key(key=job3) parsed_command(key=job3, command=...)

  14. MP6 • Some useful functions: • pthread_create(), pthread_join() • sem_init(), sem_wait(), sem_post(), sem_destroy() • system() • Does fork(), exec(), and wait() for you in one command! • Remember to check return values! You may find some weird things going on with semaphores if you don’t… Good luck!

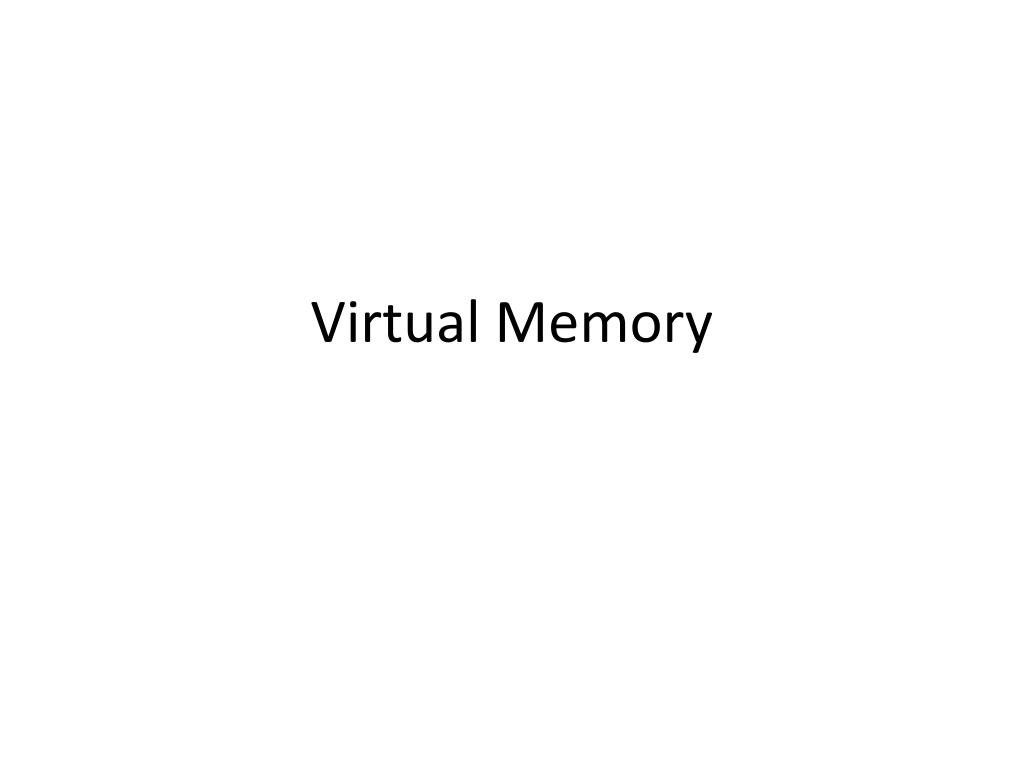

  15. Virtual Memory

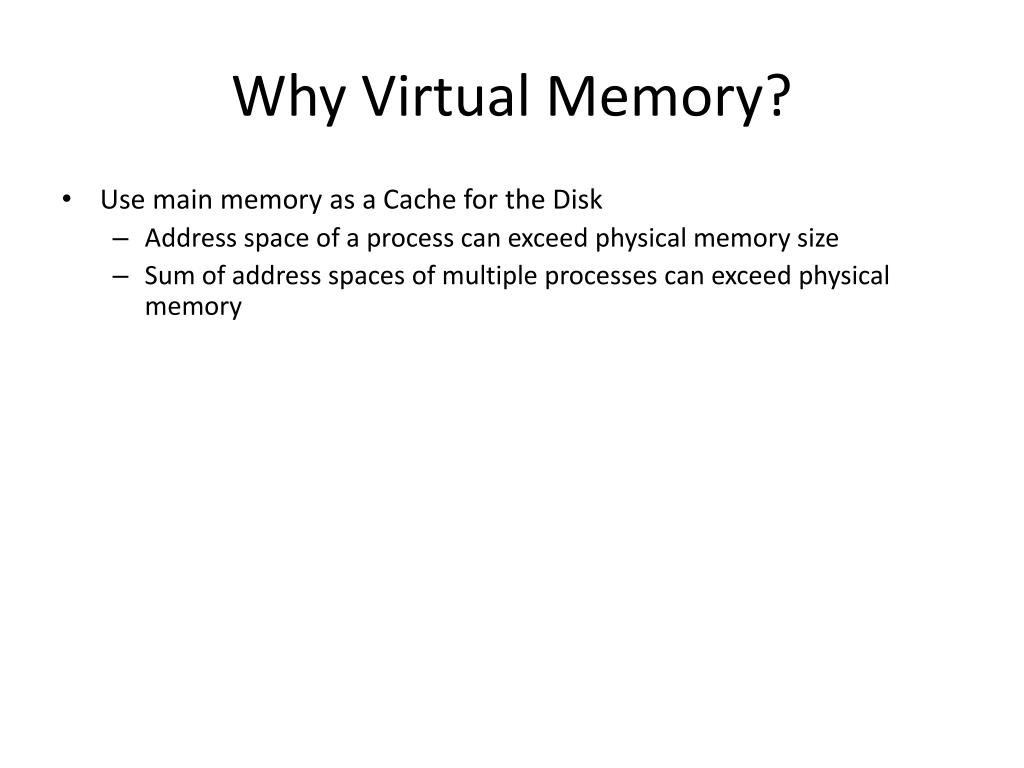

  16. Why Virtual Memory? • Use main memory as a Cache for the Disk • Address space of a process can exceed physical memory size • Sum of address spaces of multiple processes can exceed physical memory

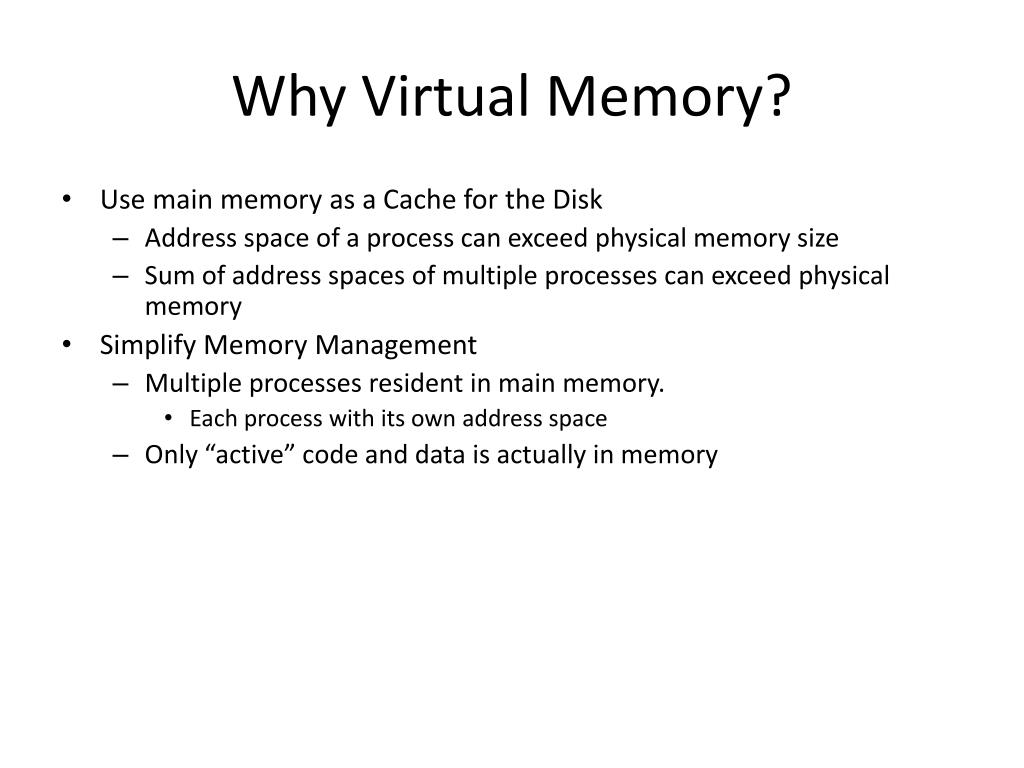

  17. Why Virtual Memory? • Use main memory as a Cache for the Disk • Address space of a process can exceed physical memory size • Sum of address spaces of multiple processes can exceed physical memory • Simplify Memory Management • Multiple processes resident in main memory. • Each process with its own address space • Only “active” code and data is actually in memory

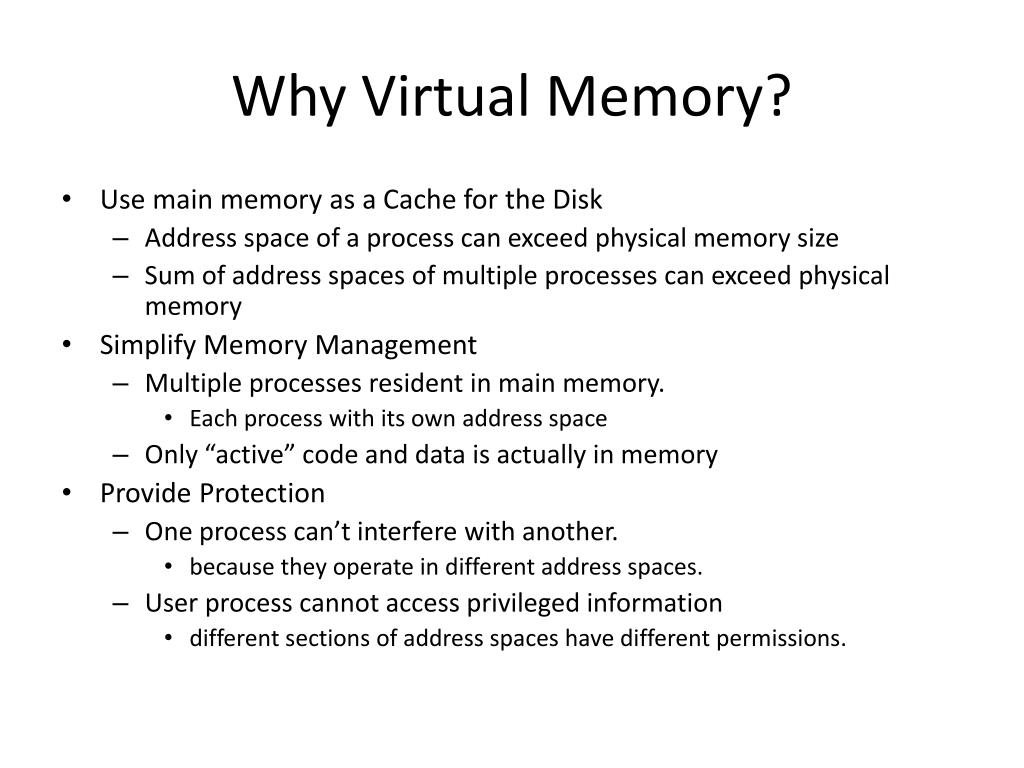

  18. Why Virtual Memory? • Use main memory as a Cache for the Disk • Address space of a process can exceed physical memory size • Sum of address spaces of multiple processes can exceed physical memory • Simplify Memory Management • Multiple processes resident in main memory. • Each process with its own address space • Only “active” code and data is actually in memory • Provide Protection • One process can’t interfere with another. • because they operate in different address spaces. • User process cannot access privileged information • different sections of address spaces have different permissions.

  19. Principle of Locality • Program and data references within a process tend to cluster

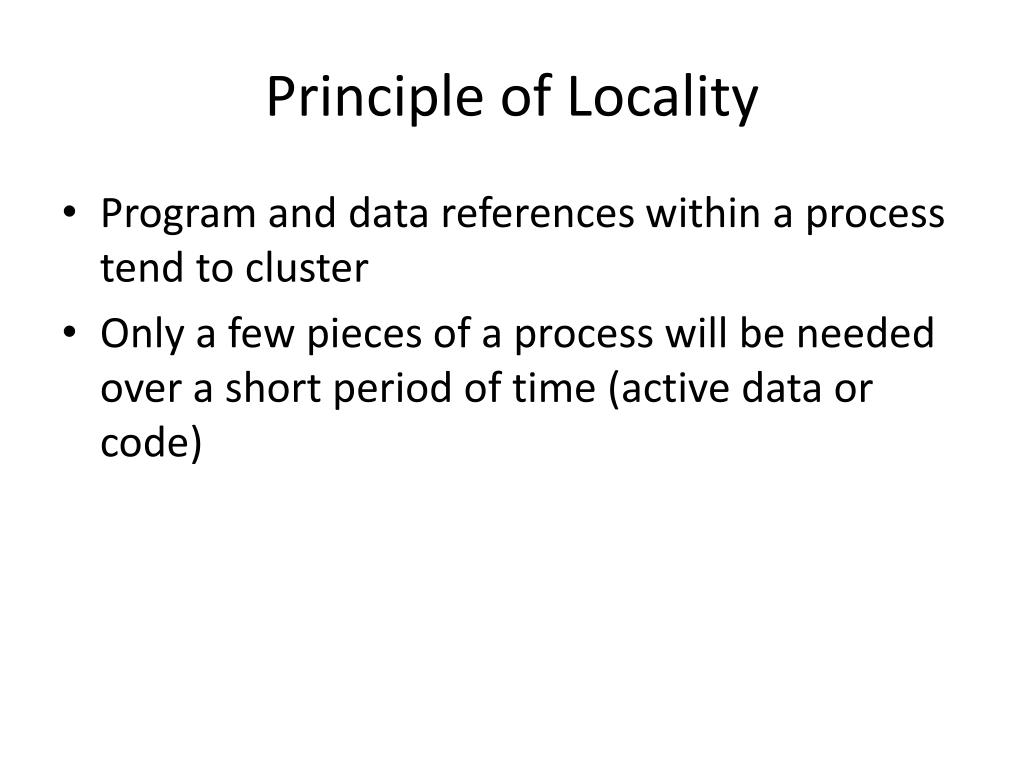

  20. Principle of Locality • Program and data references within a process tend to cluster • Only a few pieces of a process will be needed over a short period of time (active data or code)

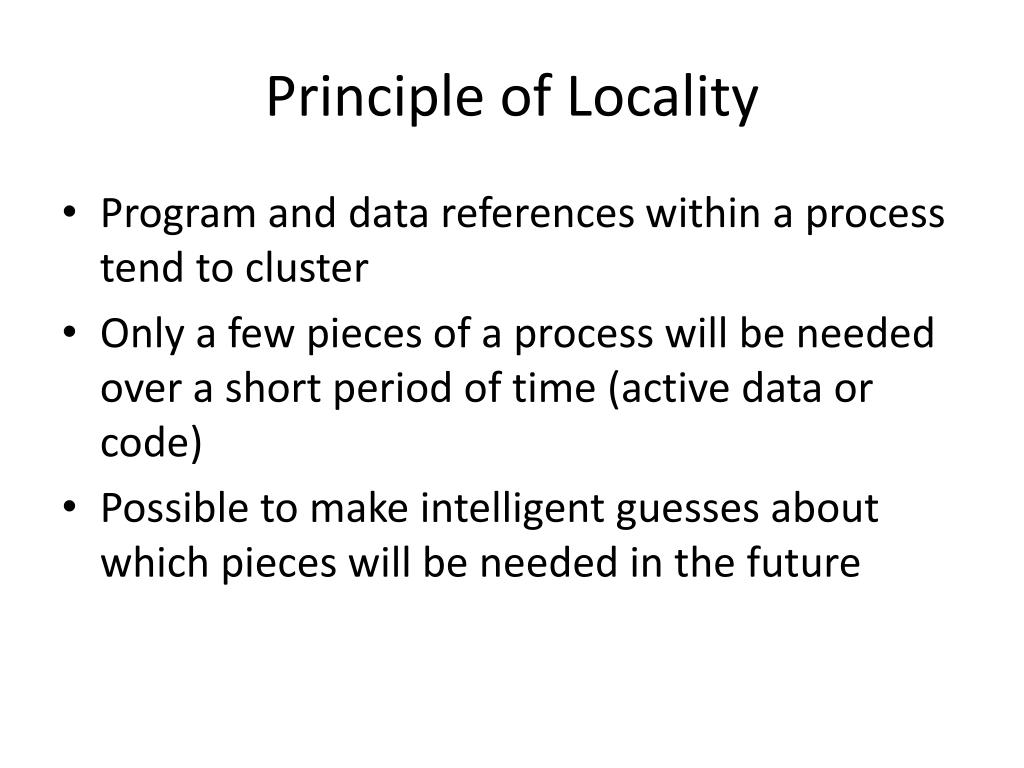

  21. Principle of Locality • Program and data references within a process tend to cluster • Only a few pieces of a process will be needed over a short period of time (active data or code) • Possible to make intelligent guesses about which pieces will be needed in the future

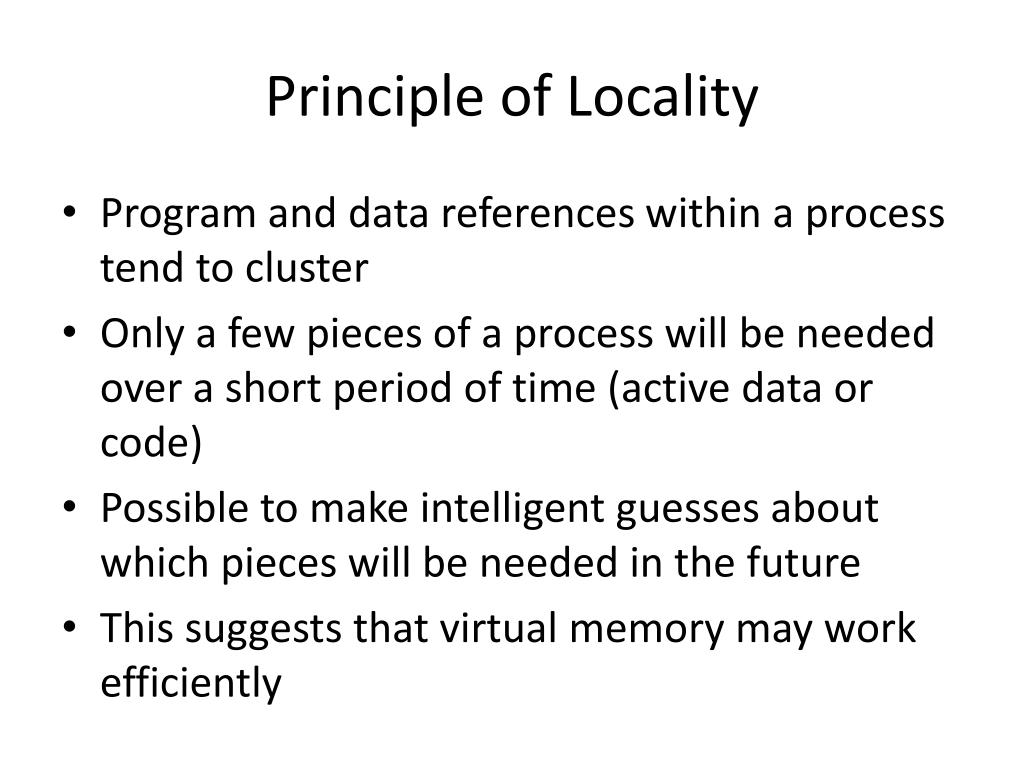

  22. Principle of Locality • Program and data references within a process tend to cluster • Only a few pieces of a process will be needed over a short period of time (active data or code) • Possible to make intelligent guesses about which pieces will be needed in the future • This suggests that virtual memory may work efficiently

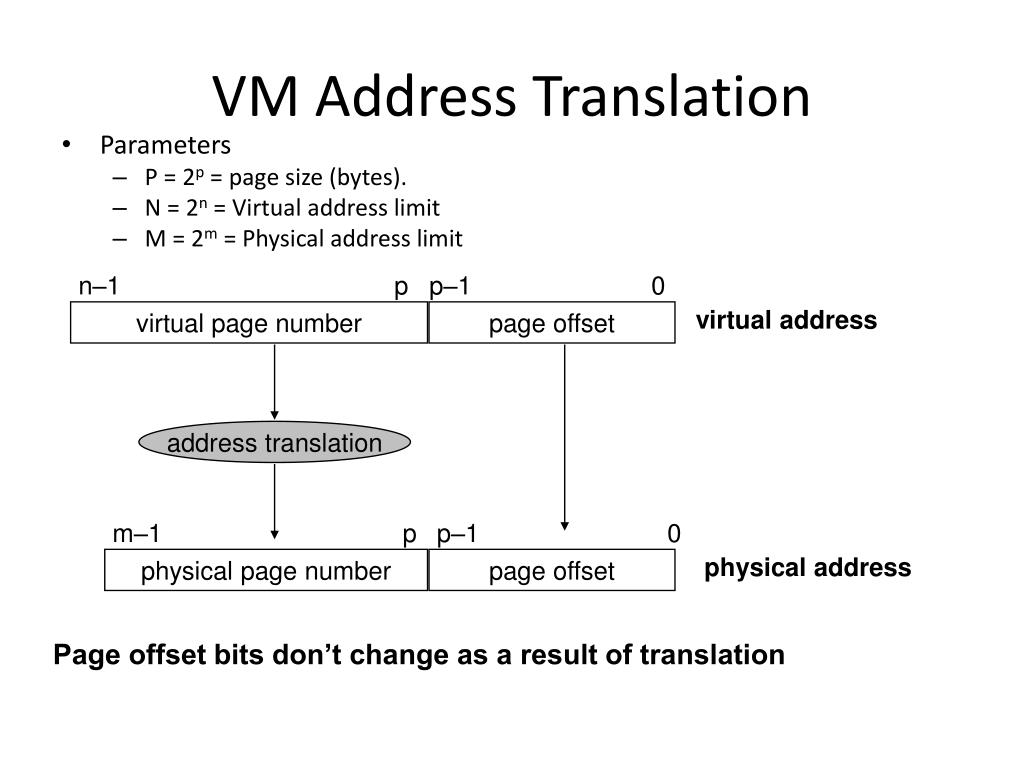

  23. n–1 p p–1 0 virtual address virtual page number page offset address translation m–1 p p–1 0 physical address physical page number page offset Page offset bits don’t change as a result of translation VM Address Translation • Parameters • P = 2p = page size (bytes). • N = 2n = Virtual address limit • M = 2m = Physical address limit

  24. Page Table • Keeps track of what pages are in memory

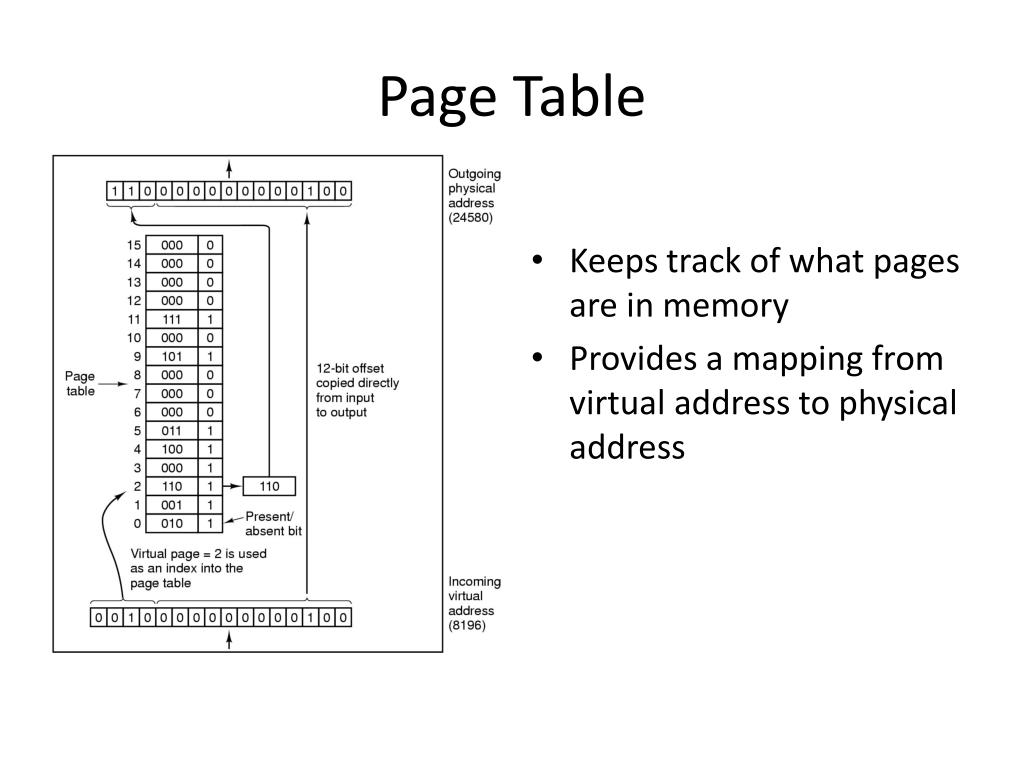

  25. Page Table • Keeps track of what pages are in memory • Provides a mapping from virtual address to physical address

  26. Handling a Page Fault • Page fault • Look for an empty page in RAM • May need to write a page to disk and free it

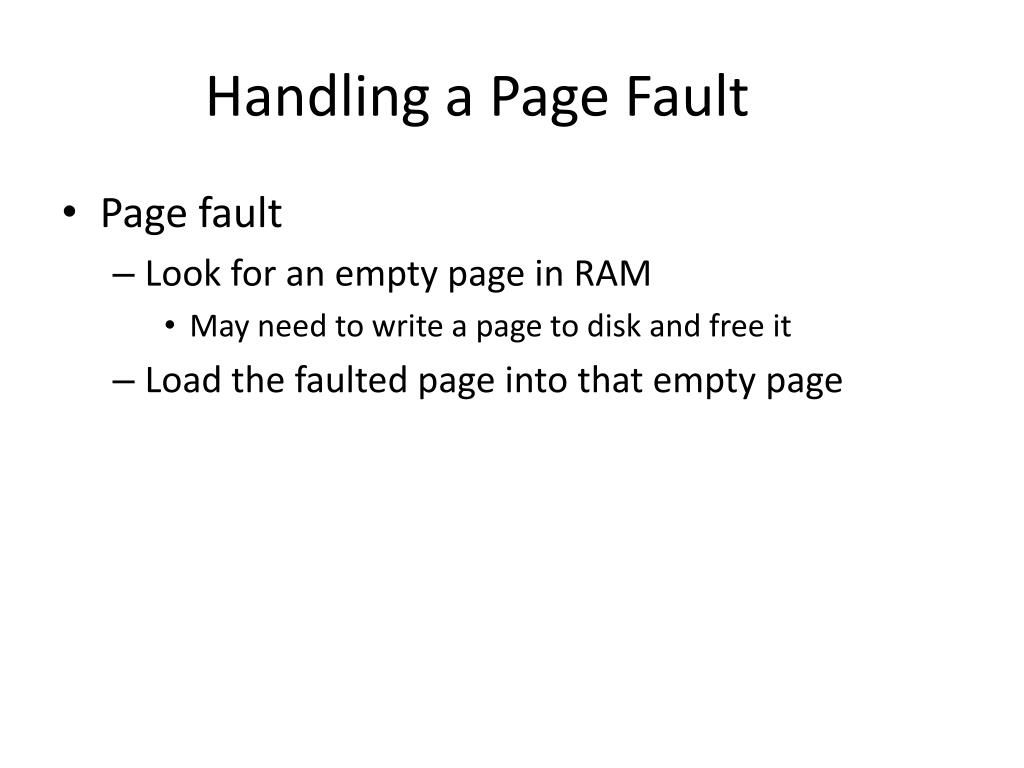

  27. Handling a Page Fault • Page fault • Look for an empty page in RAM • May need to write a page to disk and free it • Load the faulted page into that empty page

  28. Handling a Page Fault • Page fault • Look for an empty page in RAM • May need to write a page to disk and free it • Load the faulted page into that empty page • Modify the page table

  29. Handling a Page Fault • What is there’s not an empty page? • Replace a page using some Page Replacement Policy • FIFO • Least Recently Used (LRU) • Least Frequently Used (LFU) • Not Recently Used (NRU), approximation of LRU • Working Set, approximation of memory usage

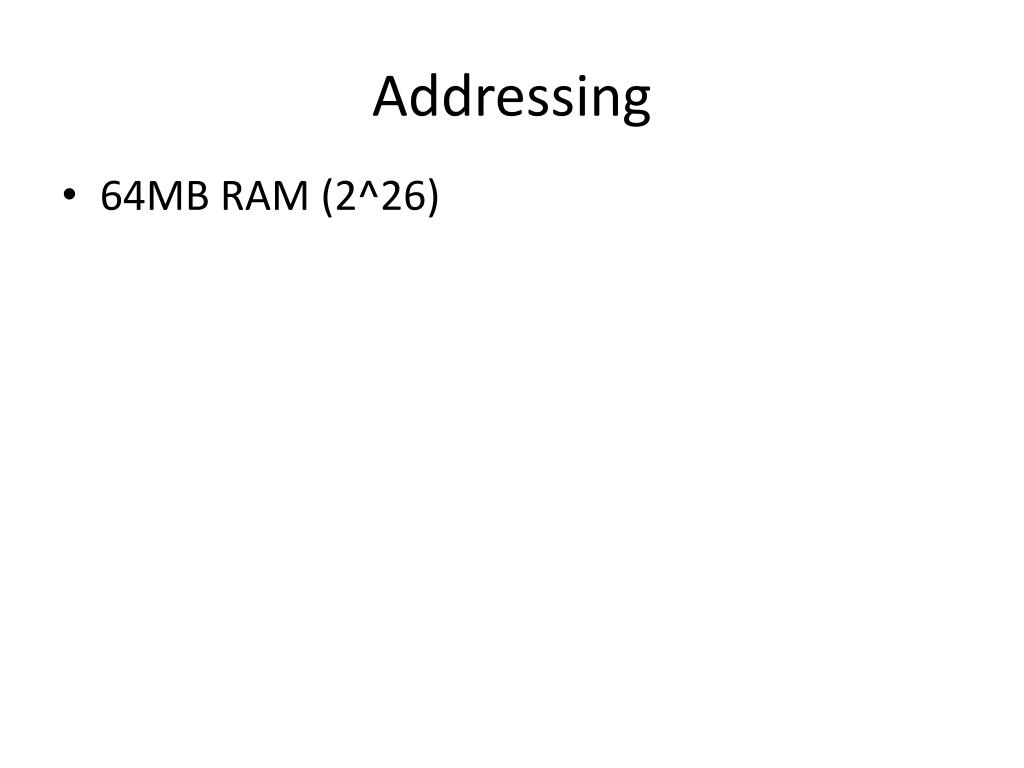

  30. Addressing • 64MB RAM (2^26)

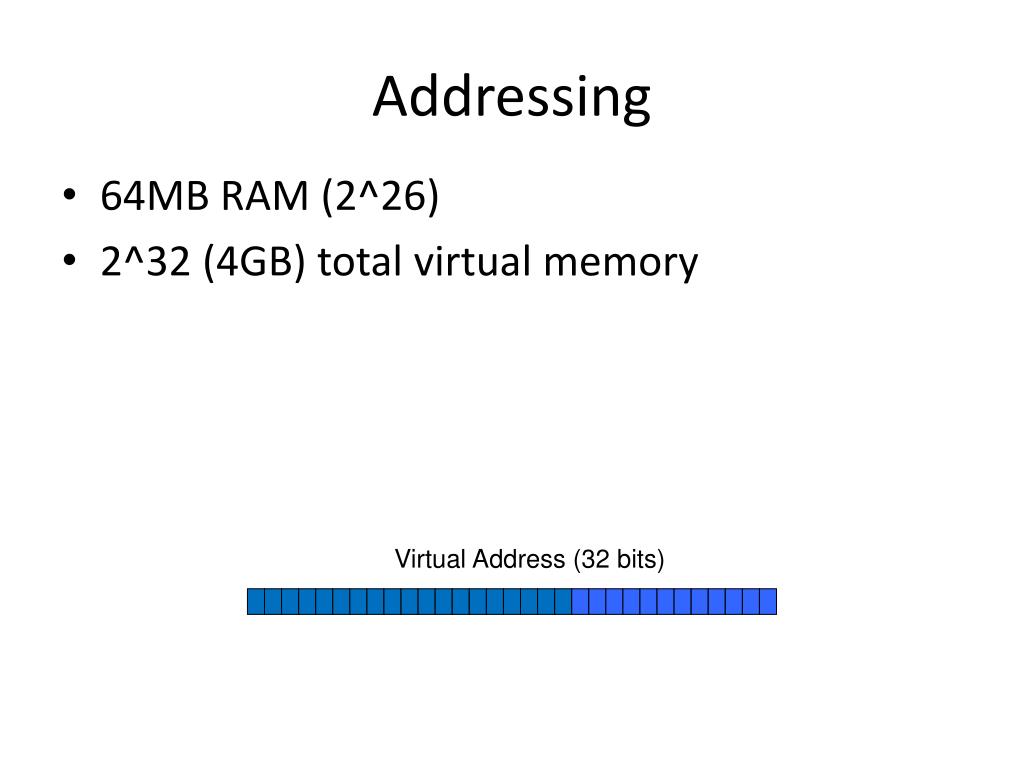

  31. Addressing • 64MB RAM (2^26) • 2^32 (4GB) total virtual memory Virtual Address (32 bits)

  32. Addressing • 64MB RAM (2^26) • 2^32 (4GB) total virtual memory • 4KB page size (2^12) Virtual Address (32 bits)

  33. Addressing • 64MB RAM (2^26) • 2^32 (4GB) total virtual memory • 4KB page size (2^12) • So we need 2^12 for the offset, we can use the remainder bits for the page Virtual Address (32 bits) Virtual Page number (20 bits) Page offset (12 bits)

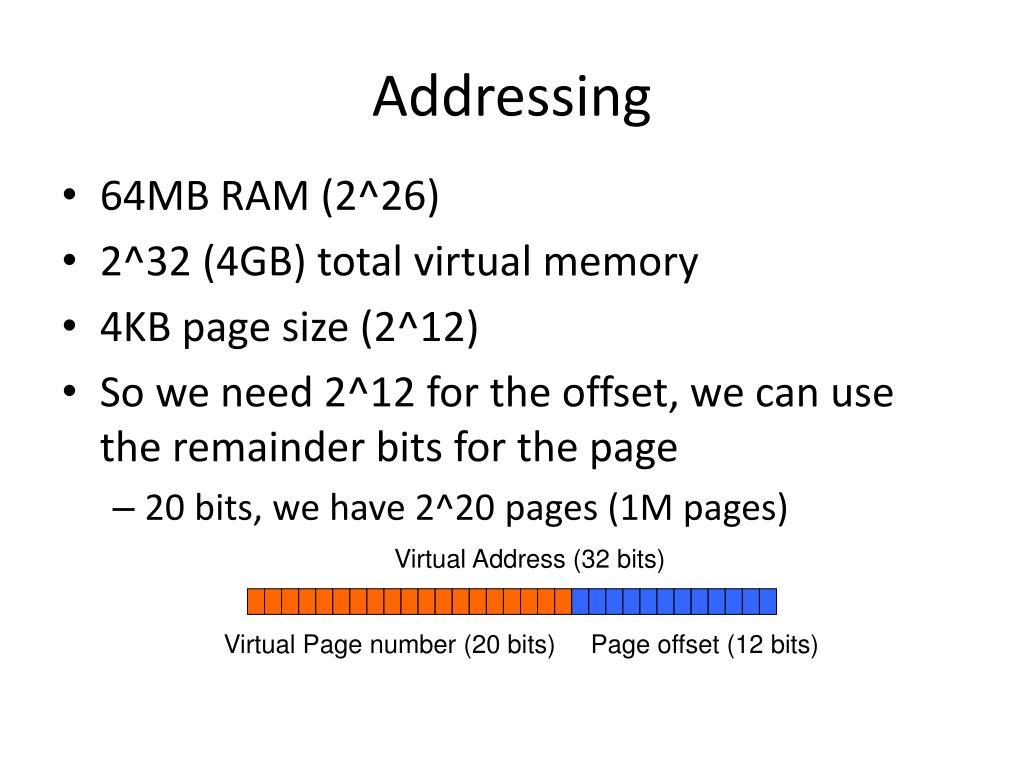

  34. Addressing • 64MB RAM (2^26) • 2^32 (4GB) total virtual memory • 4KB page size (2^12) • So we need 2^12 for the offset, we can use the remainder bits for the page • 20 bits, we have 2^20 pages (1M pages) Virtual Address (32 bits) Virtual Page number (20 bits) Page offset (12 bits)

  35. Problems

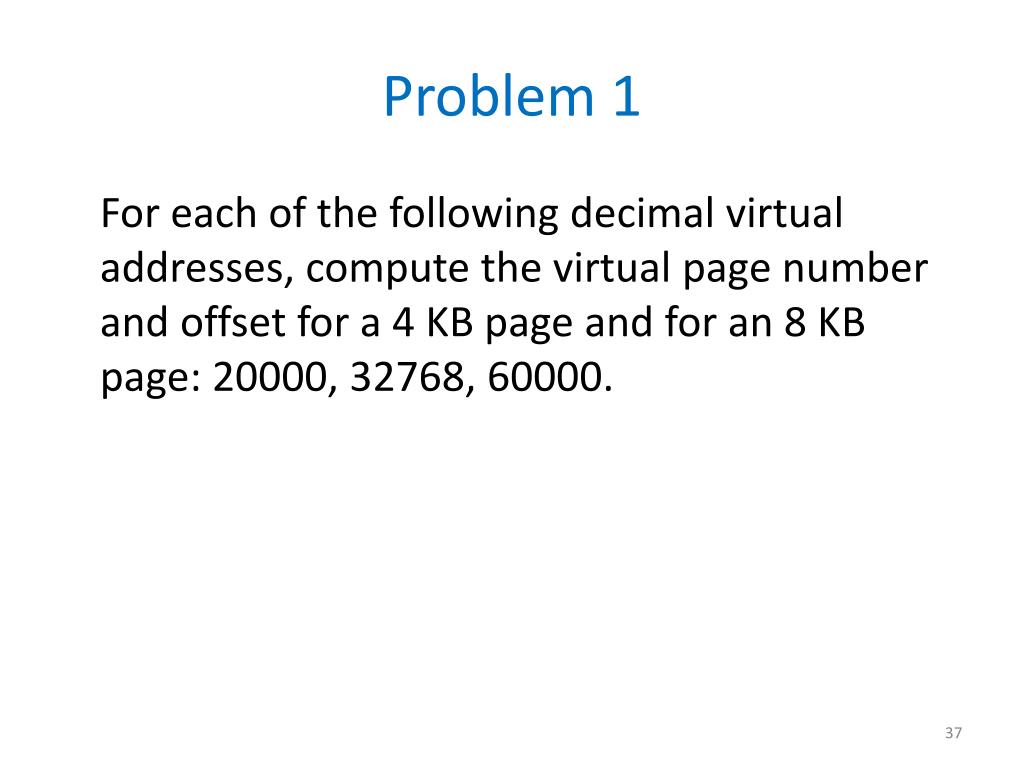

  36. Problem 1 For each of the following decimal virtual addresses, compute the virtual page number and offset for a 4 KB page and for an 8 KB page: 20000, 32768, 60000. 37

  37. Problem 1 Solution

  38. Problem 2 Consider the page table of the figure. Give the physical address corresponding to each of the following virtual addresses: • 29 • 4100 • 8300 39

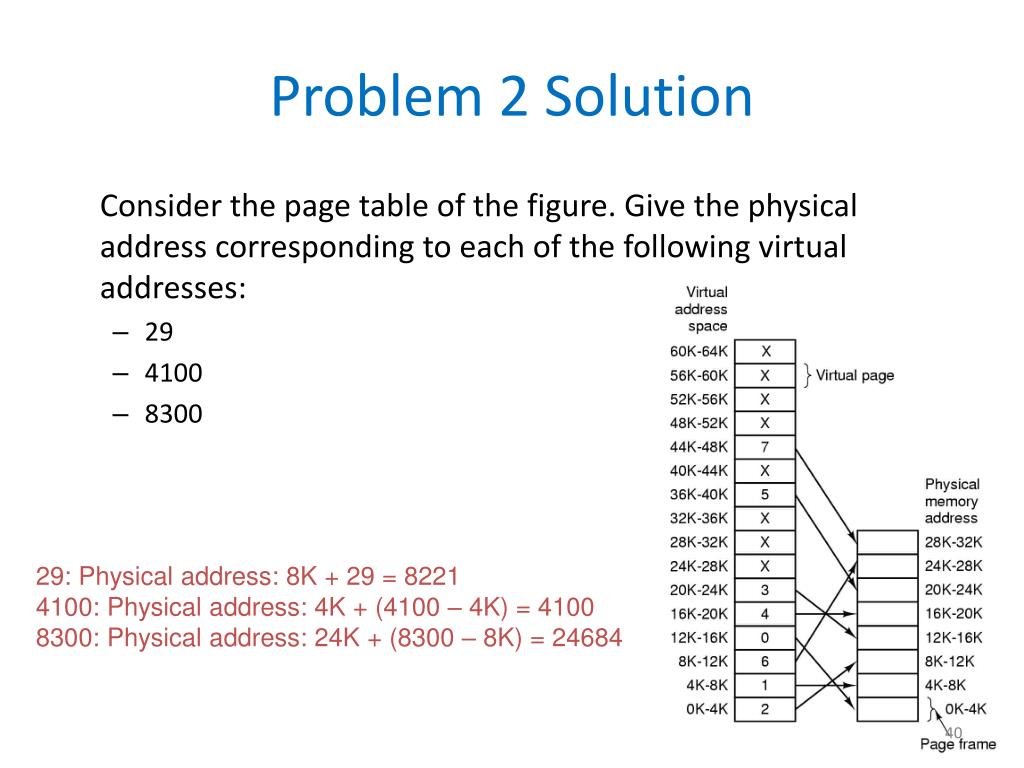

  39. Problem 2 Solution 29: Physical address: 8K + 29 = 8221 4100: Physical address: 4K + (4100 – 4K) = 4100 8300: Physical address: 24K + (8300 – 8K) = 24684 Consider the page table of the figure. Give the physical address corresponding to each of the following virtual addresses: • 29 • 4100 • 8300 40

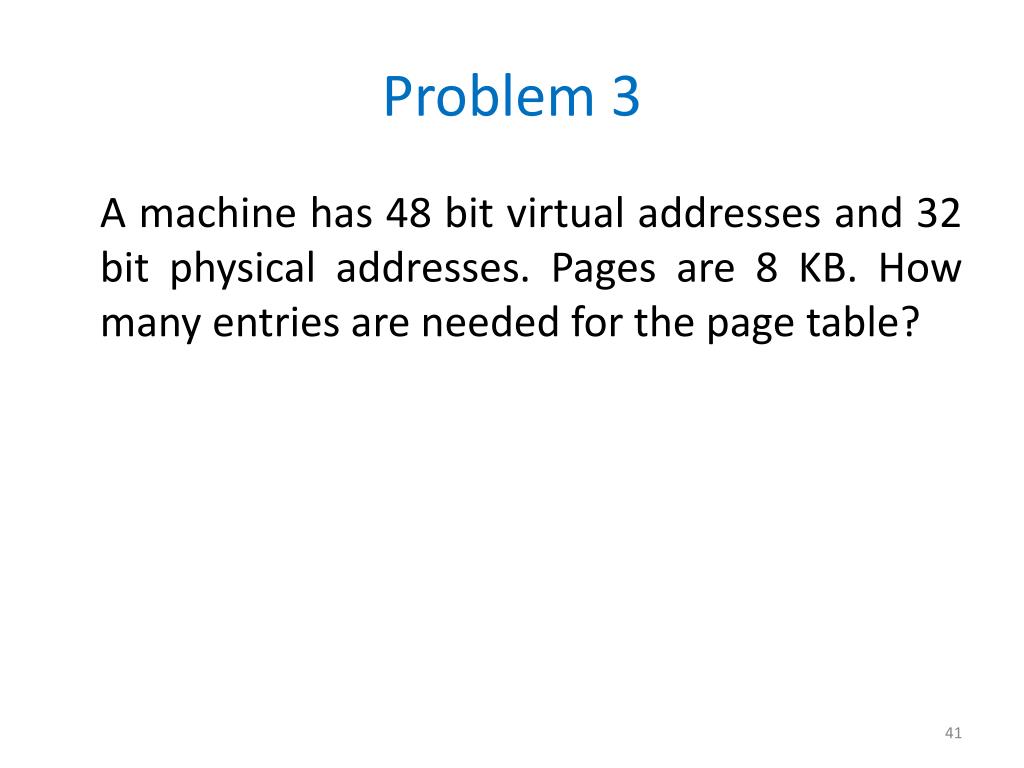

  40. Problem 3 A machine has 48 bit virtual addresses and 32 bit physical addresses. Pages are 8 KB. How many entries are needed for the page table? 41

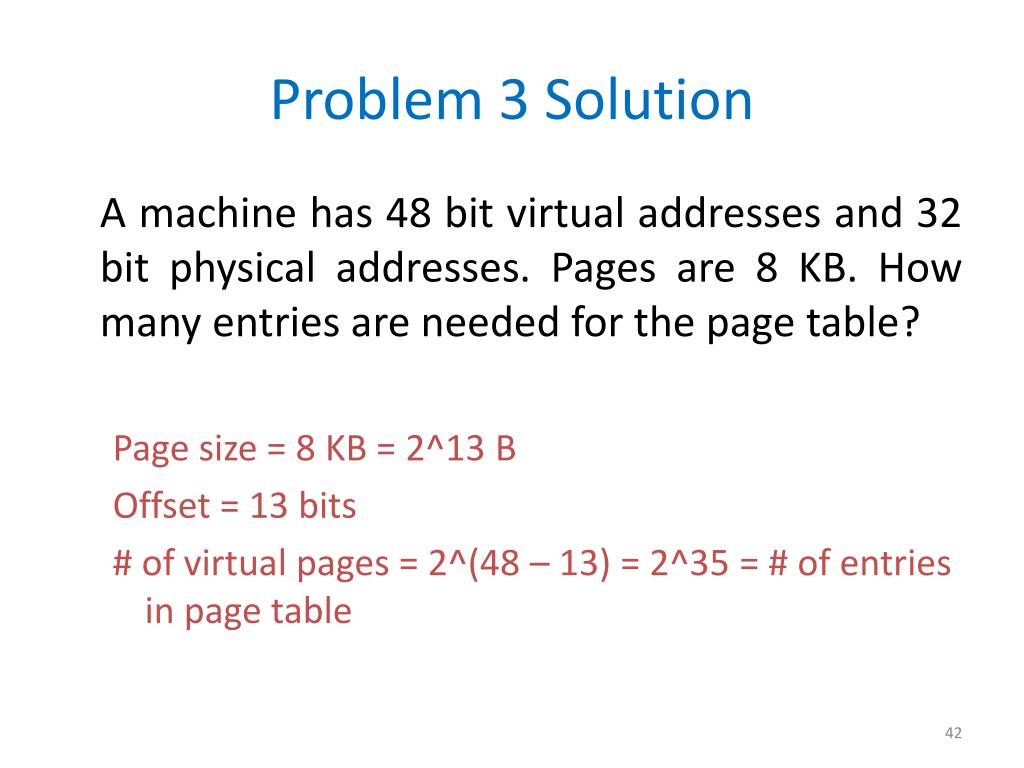

  41. Problem 3 Solution A machine has 48 bit virtual addresses and 32 bit physical addresses. Pages are 8 KB. How many entries are needed for the page table? Page size = 8 KB = 2^13 B Offset = 13 bits # of virtual pages = 2^(48 – 13) = 2^35 = # of entries in page table 42

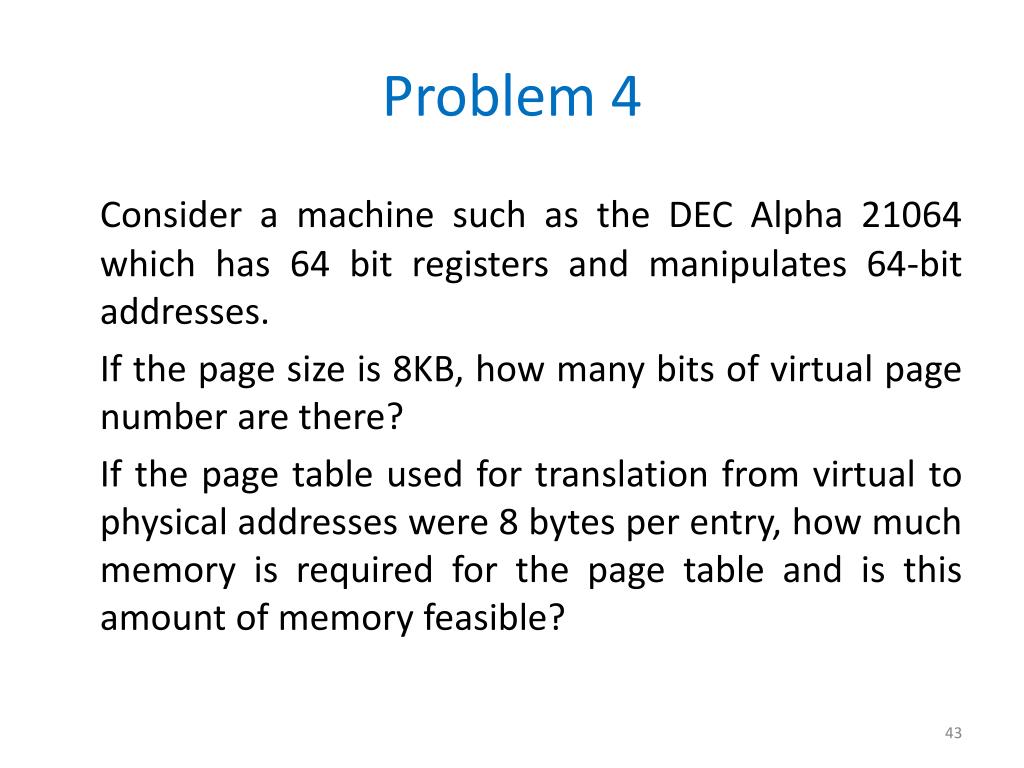

  42. Problem 4 Consider a machine such as the DEC Alpha 21064 which has 64 bit registers and manipulates 64-bit addresses. If the page size is 8KB, how many bits of virtual page number are there? If the page table used for translation from virtual to physical addresses were 8 bytes per entry, how much memory is required for the page table and is this amount of memory feasible? 43

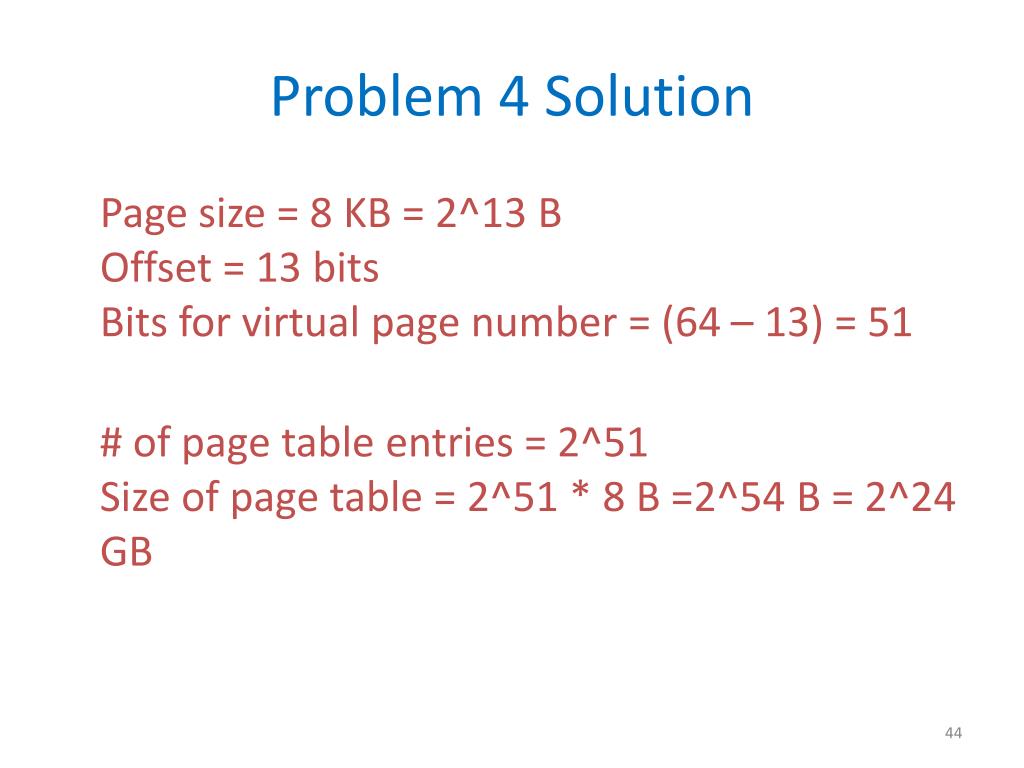

  43. Problem 4 Solution Page size = 8 KB = 2^13 BOffset = 13 bitsBits for virtual page number = (64 – 13) = 51 # of page table entries = 2^51Size of page table = 2^51 * 8 B =2^54 B = 2^24 GB 44

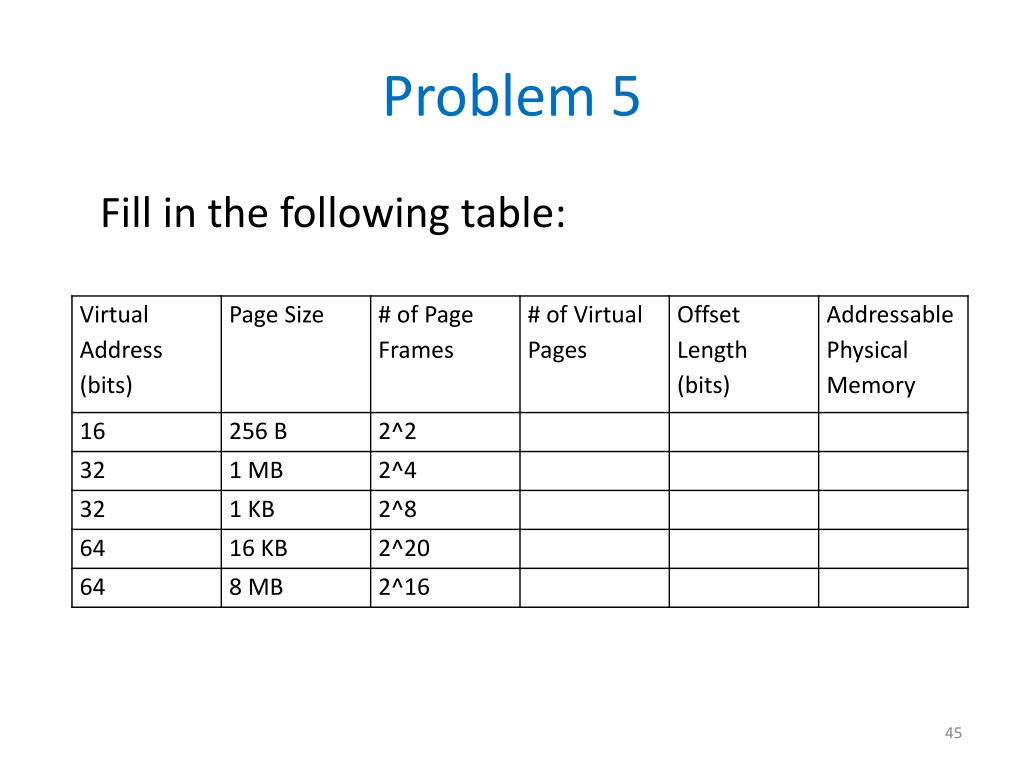

  44. Problem 5 Fill in the following table: 45

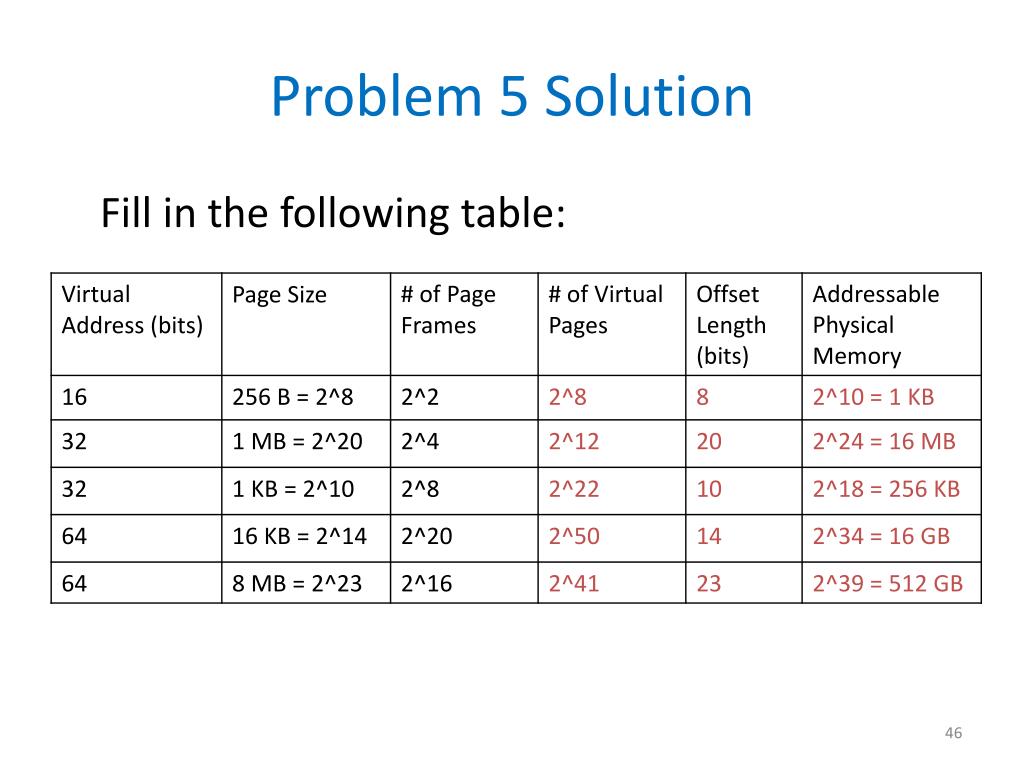

  45. Problem 5 Solution Fill in the following table: 46

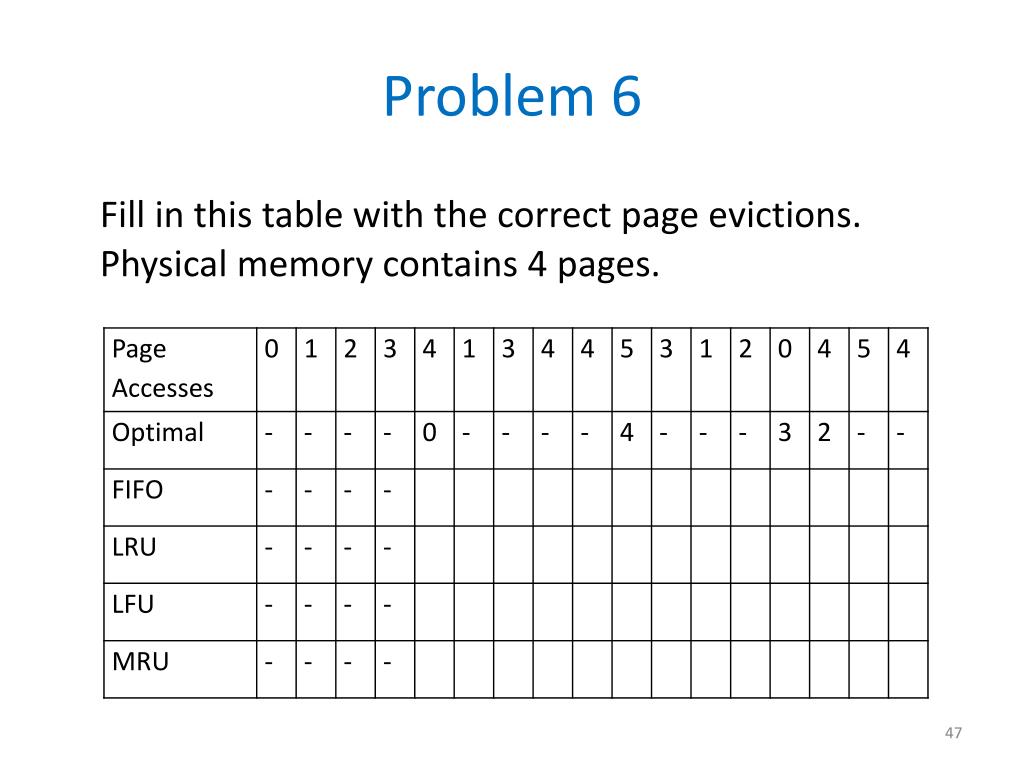

  46. Problem 6 • Fill in this table with the correct page evictions. Physical memory contains 4 pages. 47

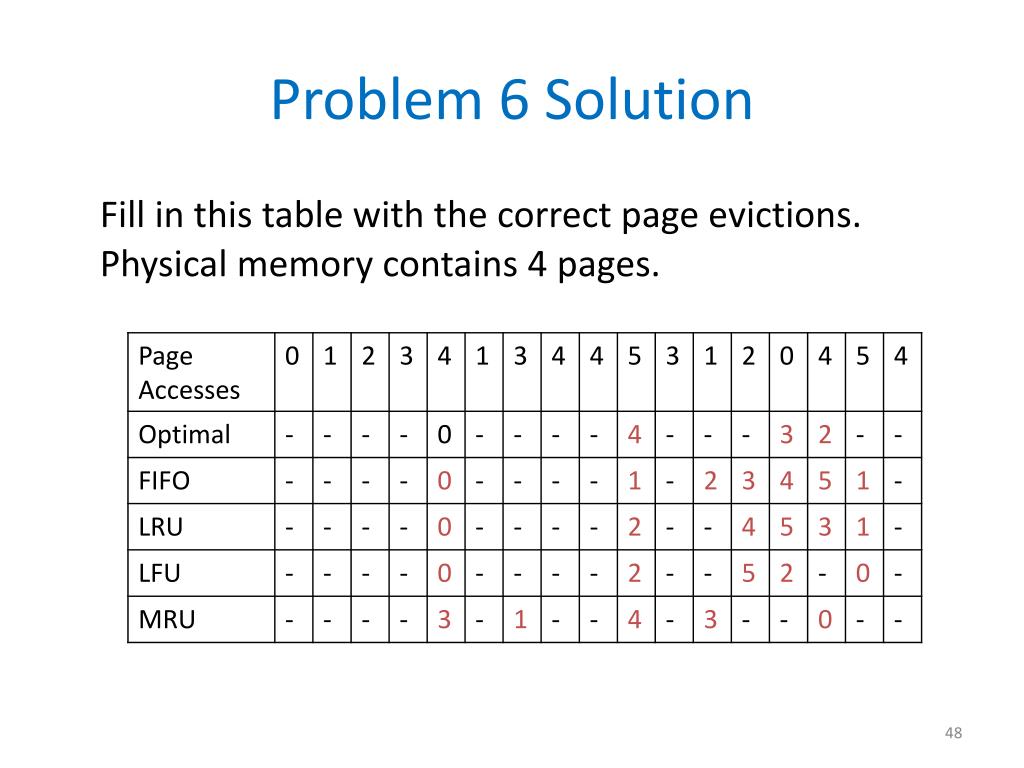

  47. Problem 6 Solution • Fill in this table with the correct page evictions. Physical memory contains 4 pages. 48
