Tower 7 – X17 anomaly. MRB Meeting – 22 July 2005. Description and reference documentation. Description of nonconformance Noise anomalies in tower7-layer X17 Detected at Tower7 TVAC test, mainly at high temperature Suspected Root cause

gisela-lancaster
Download Presentation

Tower 7 – X17 anomaly

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Tower 7 – X17 anomaly MRB Meeting – 22 July 2005

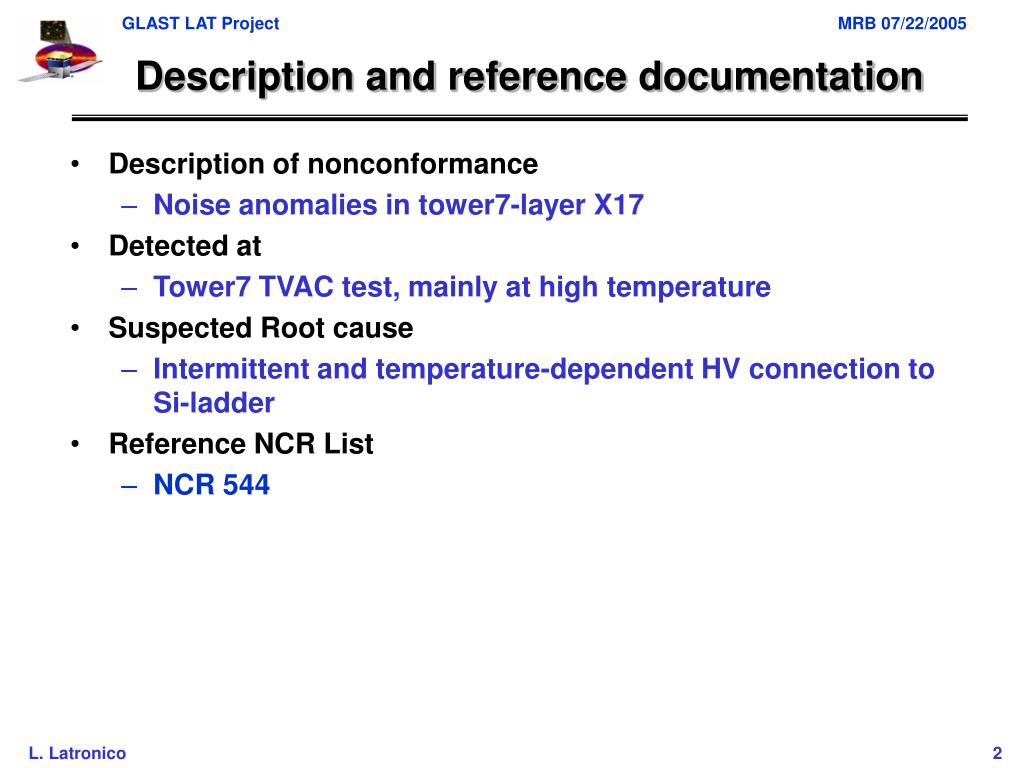

  2. Description and reference documentation • Description of nonconformance • Noise anomalies in tower7-layer X17 • Detected at • Tower7 TVAC test, mainly at high temperature • Suspected Root cause • Intermittent and temperature-dependent HV connection to Si-ladder • Reference NCR List • NCR 544

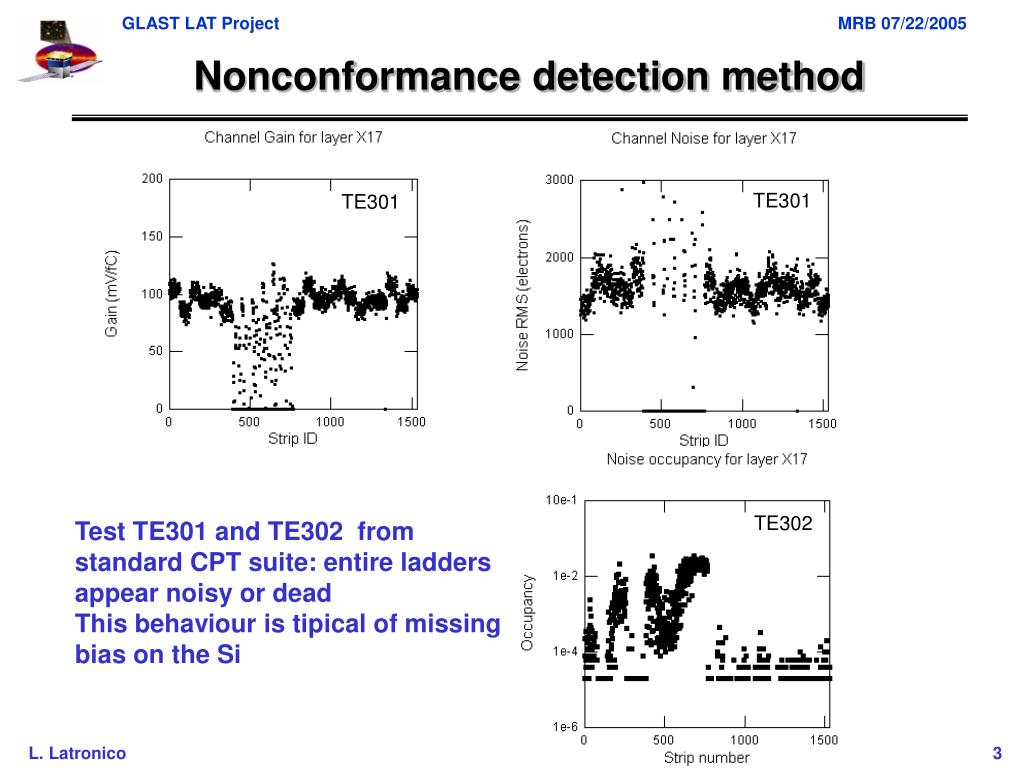

  3. Nonconformance detection method TE301 TE301 TE302 Test TE301 and TE302 from standard CPT suite: entire ladders appear noisy or dead This behaviour is tipical of missing bias on the Si

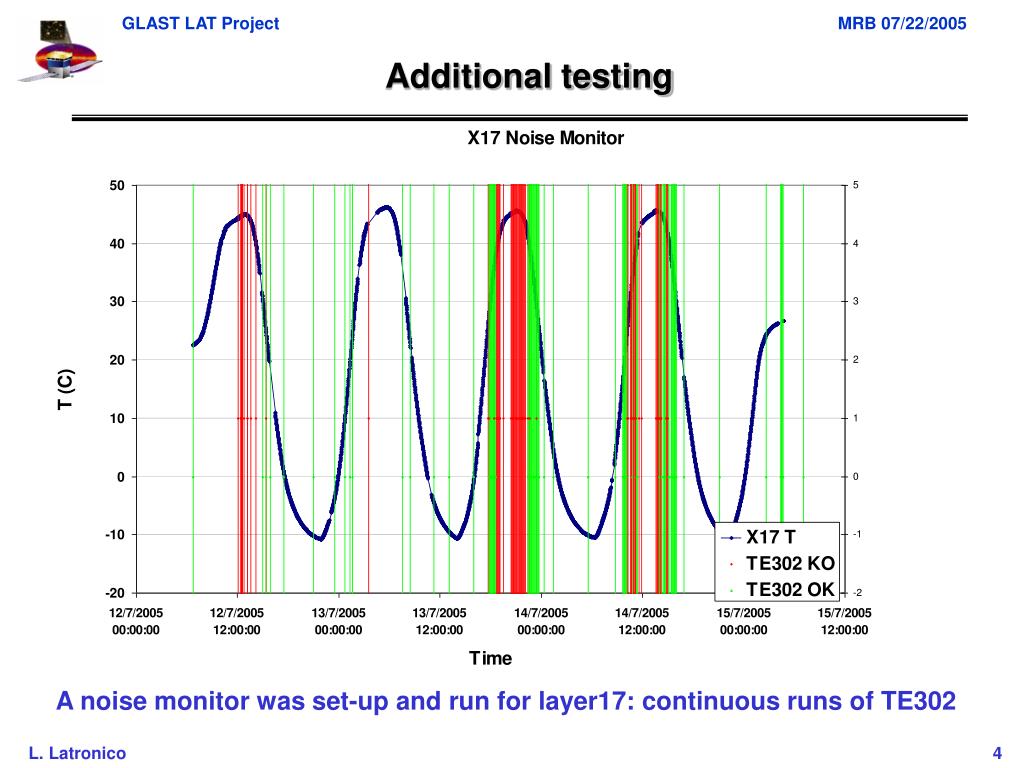

  4. Additional testing A noise monitor was set-up and run for layer17: continuous runs of TE302

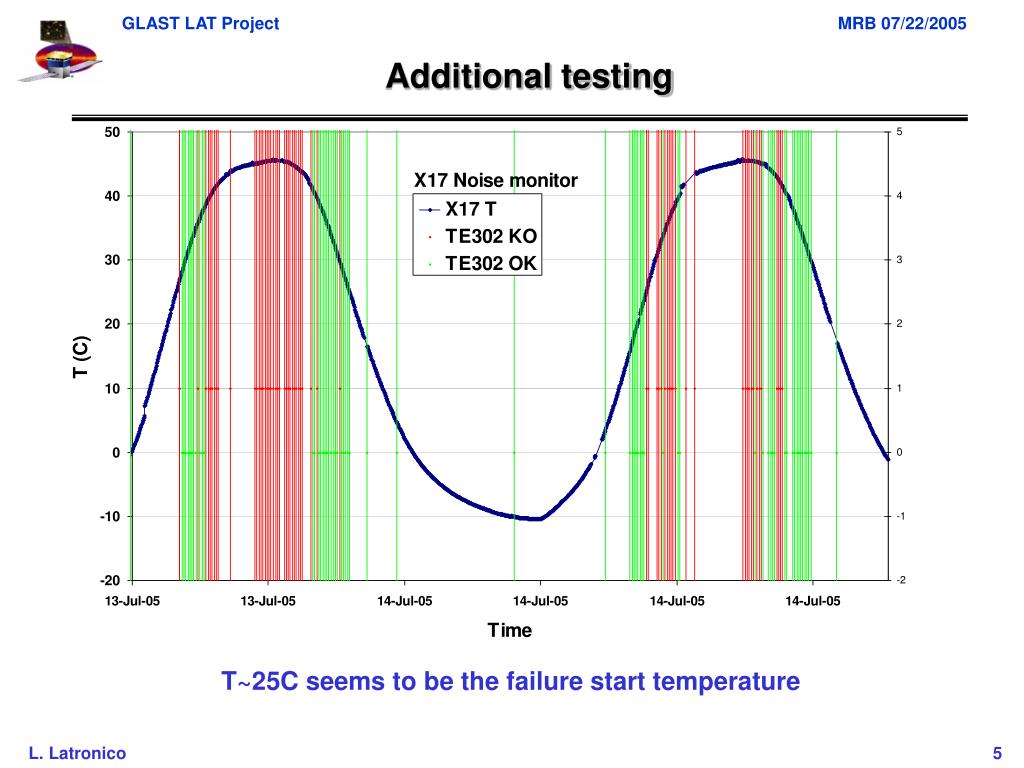

  5. Additional testing T~25C seems to be the failure start temperature

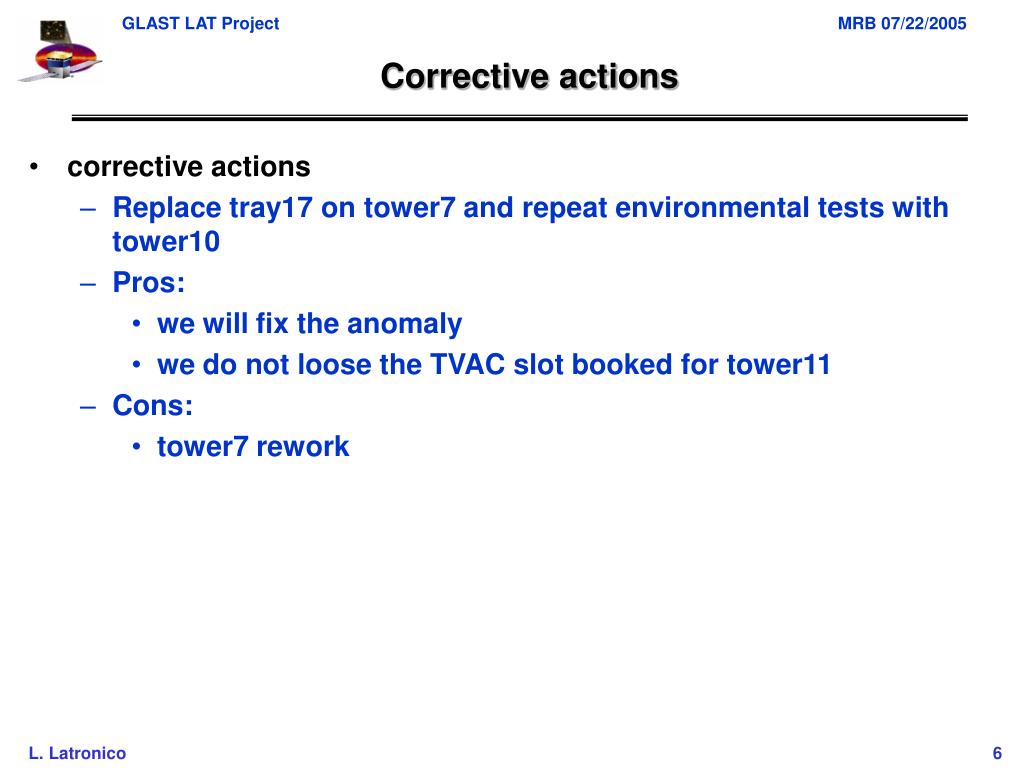

  6. Corrective actions • corrective actions • Replace tray17 on tower7 and repeat environmental tests with tower10 • Pros: • we will fix the anomaly • we do not loose the TVAC slot booked for tower11 • Cons: • tower7 rework
