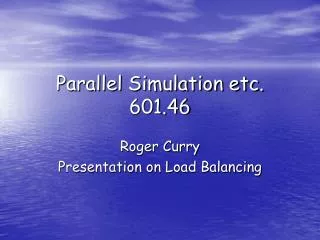

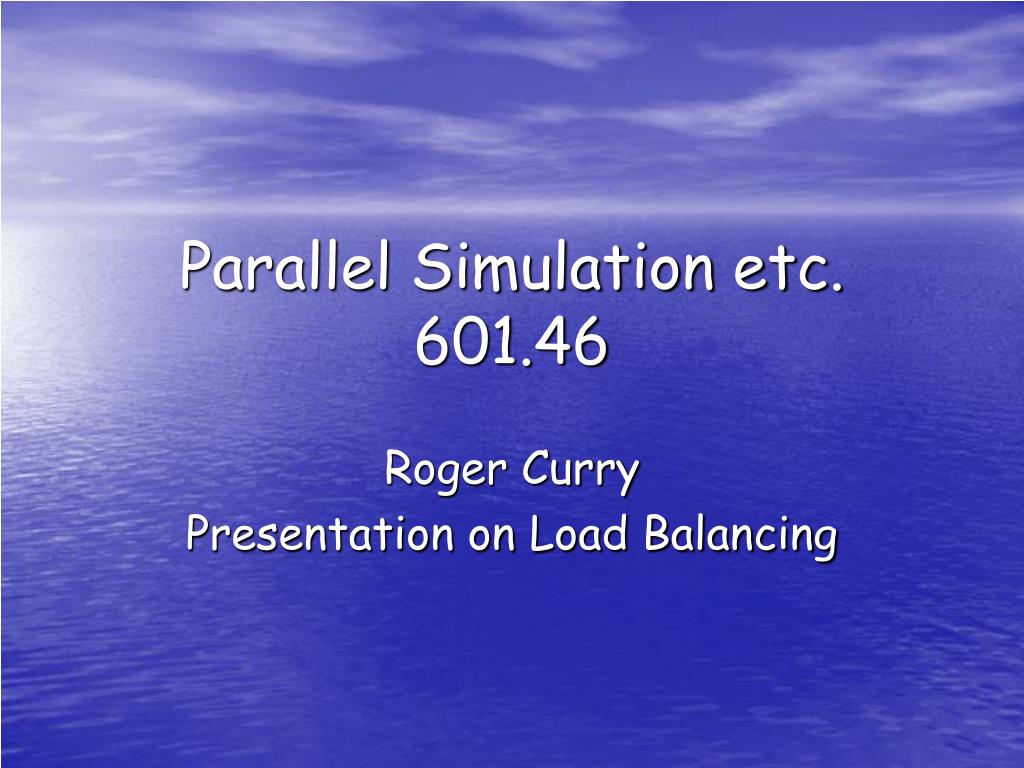

  1. Parallel Simulation etc.601.46 Roger Curry Presentation on Load Balancing

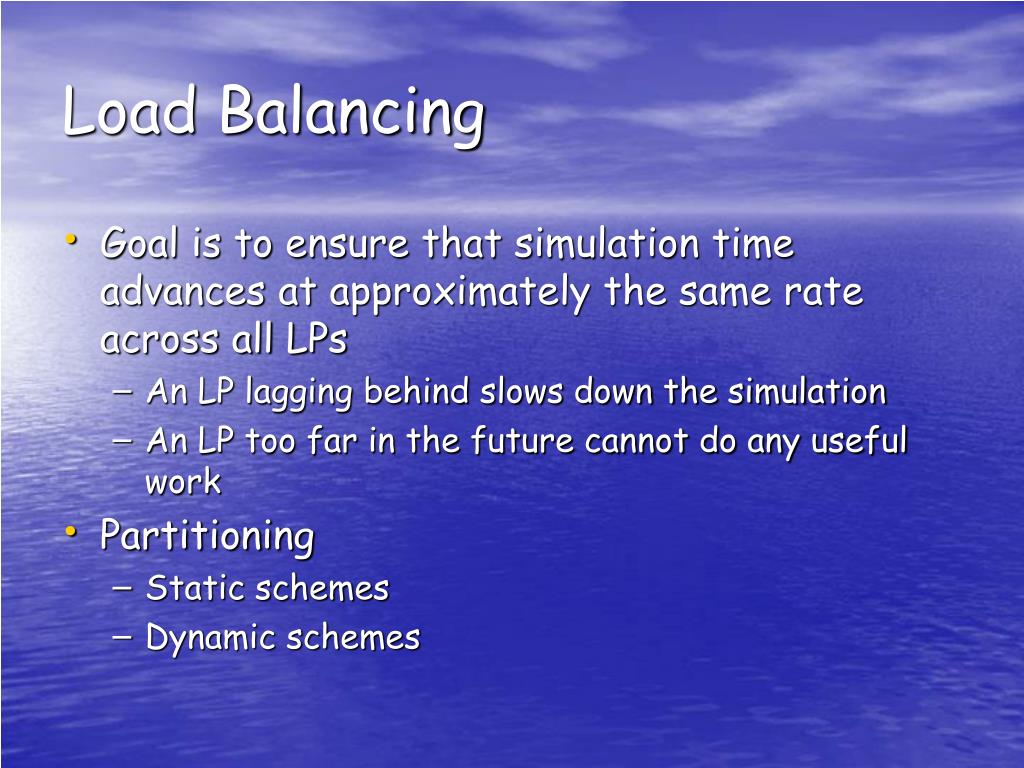

  2. Load Balancing • Goal is to ensure that simulation time advances at approximately the same rate across all LPs • An LP lagging behind slows down the simulation • An LP too far in the future cannot do any useful work • Partitioning • Static schemes • Dynamic schemes

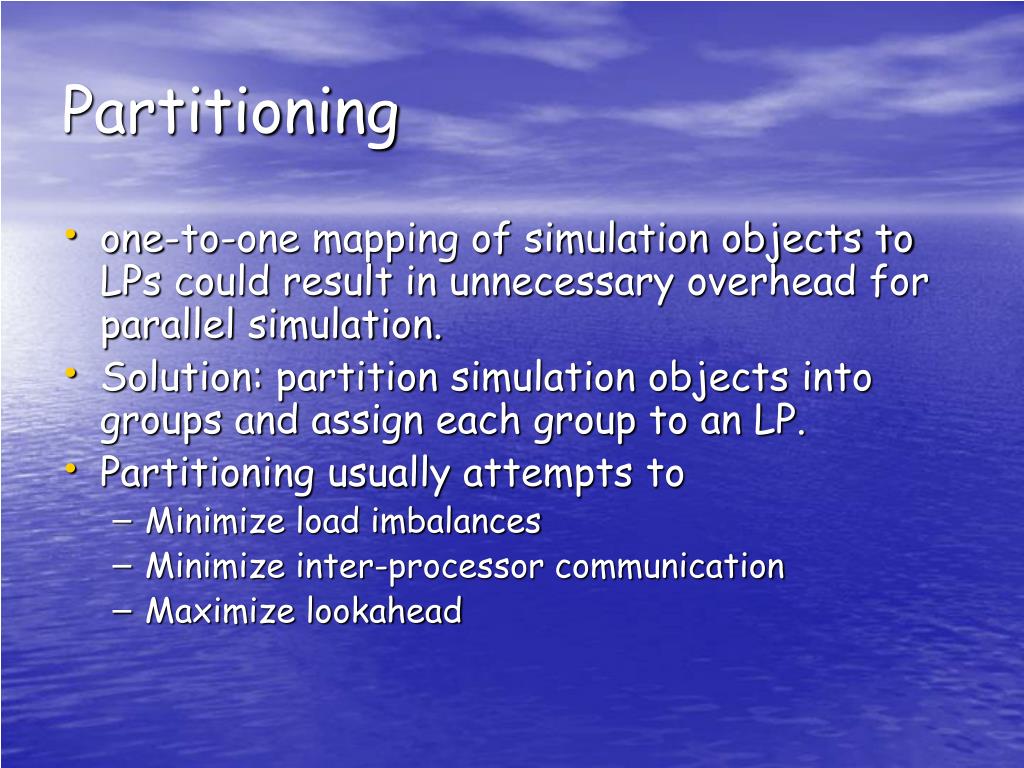

  3. Partitioning • one-to-one mapping of simulation objects to LPs could result in unnecessary overhead for parallel simulation. • Solution: partition simulation objects into groups and assign each group to an LP. • Partitioning usually attempts to • Minimize load imbalances • Minimize inter-processor communication • Maximize lookahead

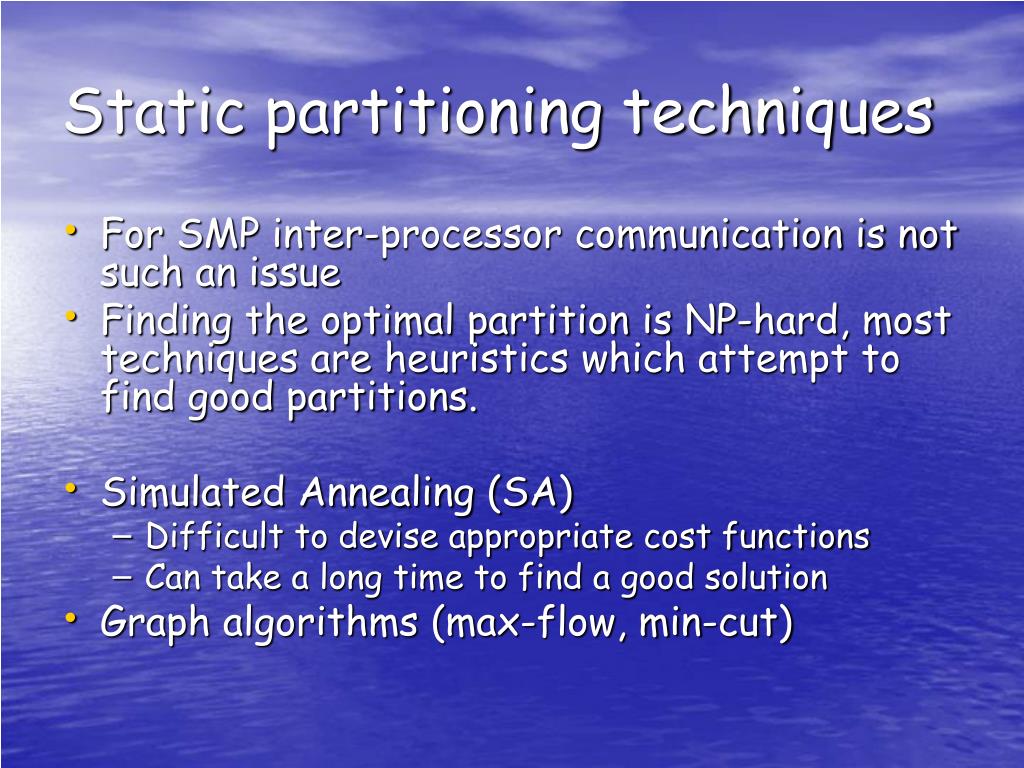

  4. Static partitioning techniques • For SMP inter-processor communication is not such an issue • Finding the optimal partition is NP-hard, most techniques are heuristics which attempt to find good partitions. • Simulated Annealing (SA) • Difficult to devise appropriate cost functions • Can take a long time to find a good solution • Graph algorithms (max-flow, min-cut)

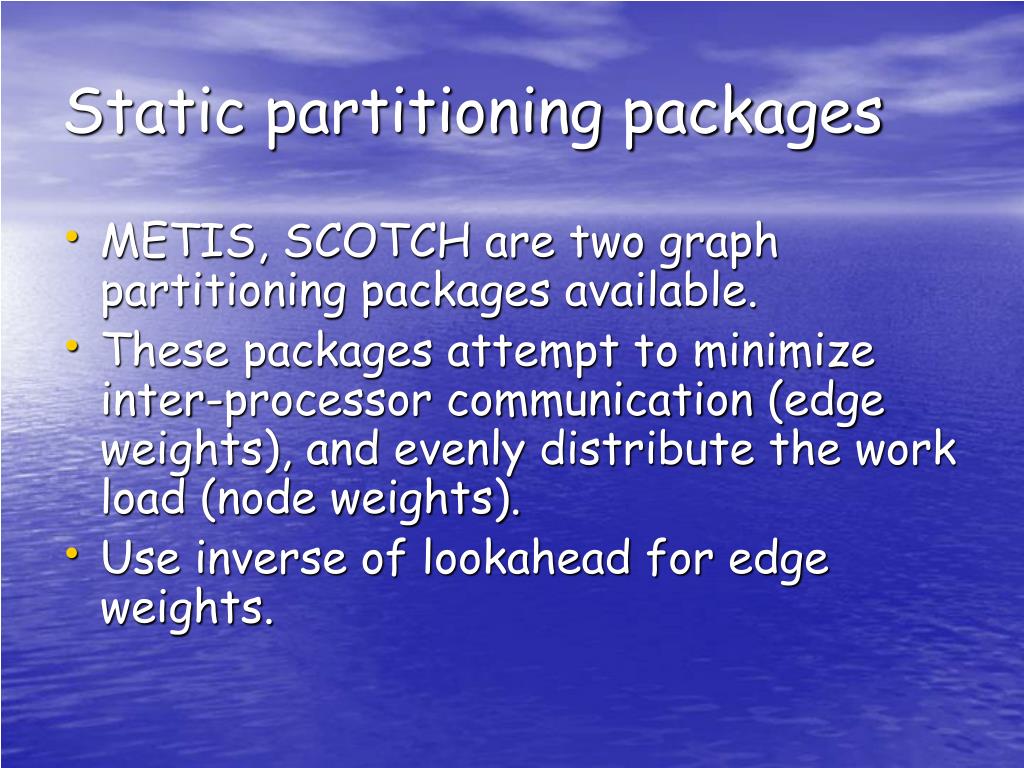

  5. Static partitioning packages • METIS, SCOTCH are two graph partitioning packages available. • These packages attempt to minimize inter-processor communication (edge weights), and evenly distribute the work load (node weights). • Use inverse of lookahead for edge weights.

  6. Static partitioning (cont. ) • Workload requirements are usually unknown prior to simulation. Solutions: • Pre-simulation • Load-estimation • IP-TN traffic load estimation For traffic T, where T=1,…,n and n is the number of traffics Let R be the route used by traffic T for every hop hi in R hi.wg = hi.wg + ( n * ( rate(T) / total_rate ) ) where hi.wg is the weight of host i, rate(T) is the rate of traffic T, and total_rate is the sum of all traffic rates endfor endfor

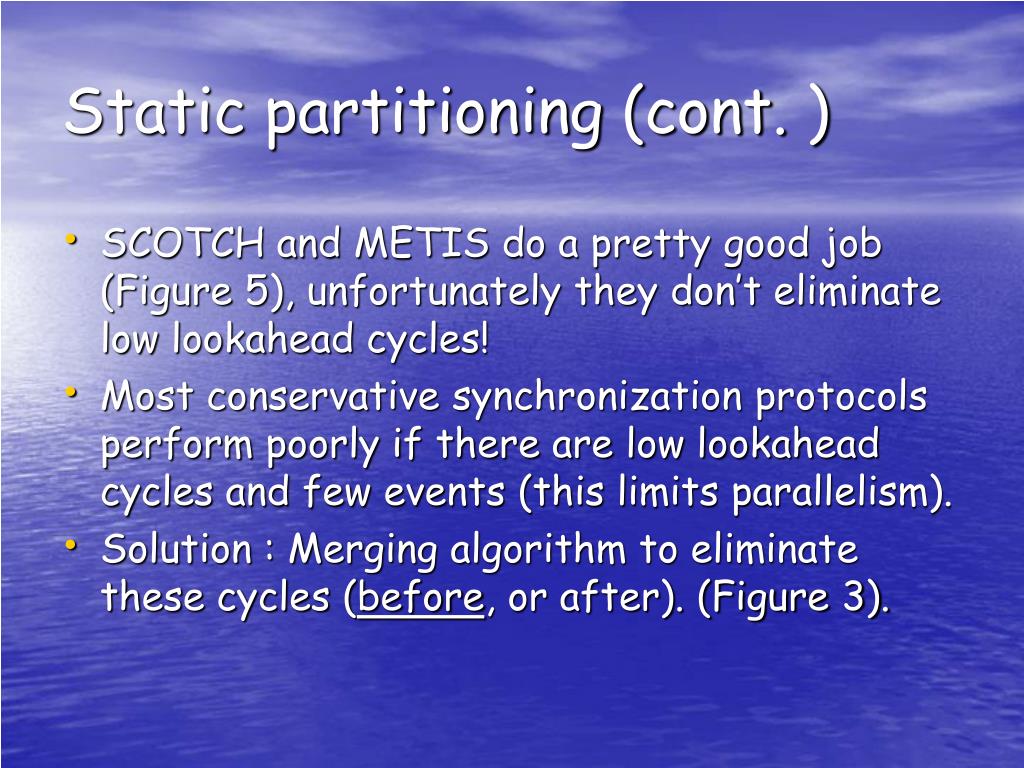

  7. Static partitioning (cont. ) • SCOTCH and METIS do a pretty good job (Figure 5), unfortunately they don’t eliminate low lookahead cycles! • Most conservative synchronization protocols perform poorly if there are low lookahead cycles and few events (this limits parallelism). • Solution : Merging algorithm to eliminate these cycles (before, or after). (Figure 3).

  8. Dynamic partitioning (structures) CMB – SMP, and others CCTKit, Taskit

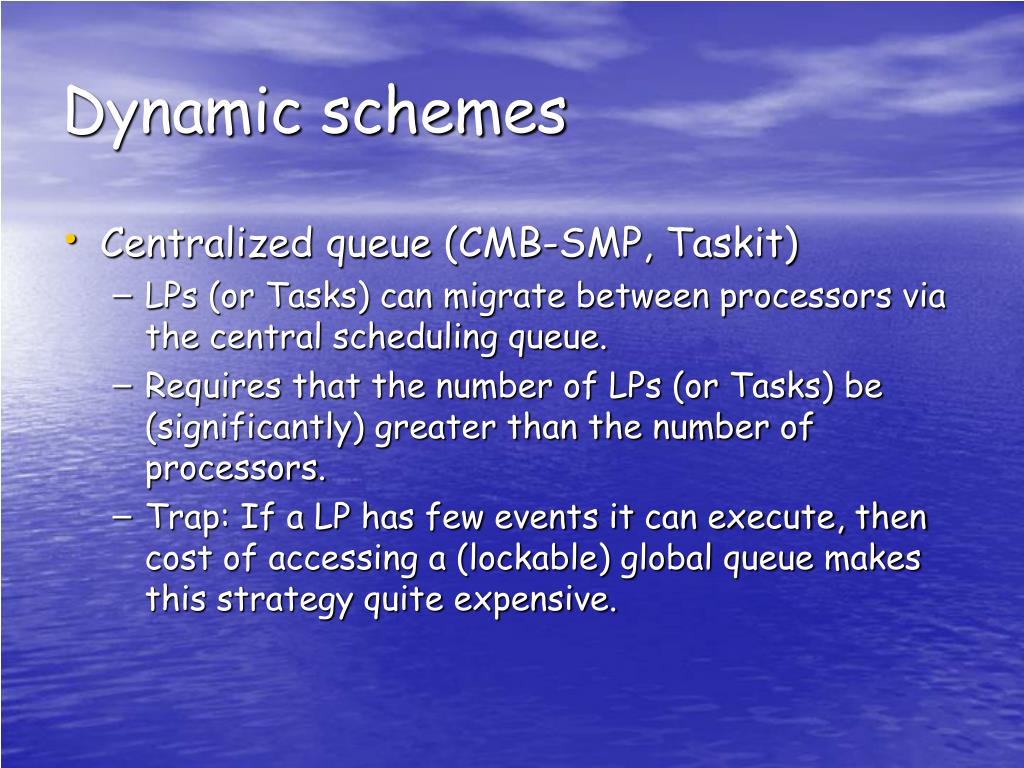

  9. Dynamic schemes • Centralized queue (CMB-SMP, Taskit) • LPs (or Tasks) can migrate between processors via the central scheduling queue. • Requires that the number of LPs (or Tasks) be (significantly) greater than the number of processors. • Trap: If a LP has few events it can execute, then cost of accessing a (lockable) global queue makes this strategy quite expensive.

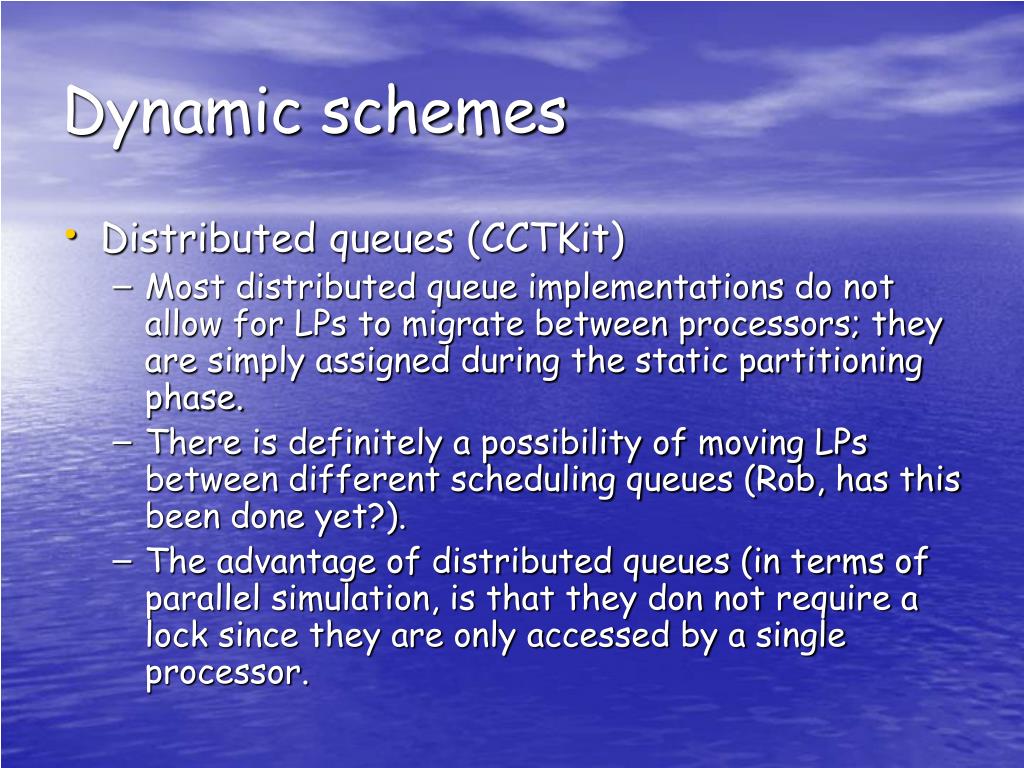

  10. Dynamic schemes • Distributed queues (CCTKit) • Most distributed queue implementations do not allow for LPs to migrate between processors; they are simply assigned during the static partitioning phase. • There is definitely a possibility of moving LPs between different scheduling queues (Rob, has this been done yet?). • The advantage of distributed queues (in terms of parallel simulation, is that they don not require a lock since they are only accessed by a single processor.

  11. Dynamic schemes • The synchronization protocol (or at least the scheduling algorithm) is tightly coupled with dynamic load balancing in general. • In CCTkit, only scheduling LPs (Tasks) that have work to do ensures that when a LP executes it will at least be able to advance its simulation time (not necessarily by a lot). • Naive synchronization protocols can end up scheduling LPs with nothing to do!

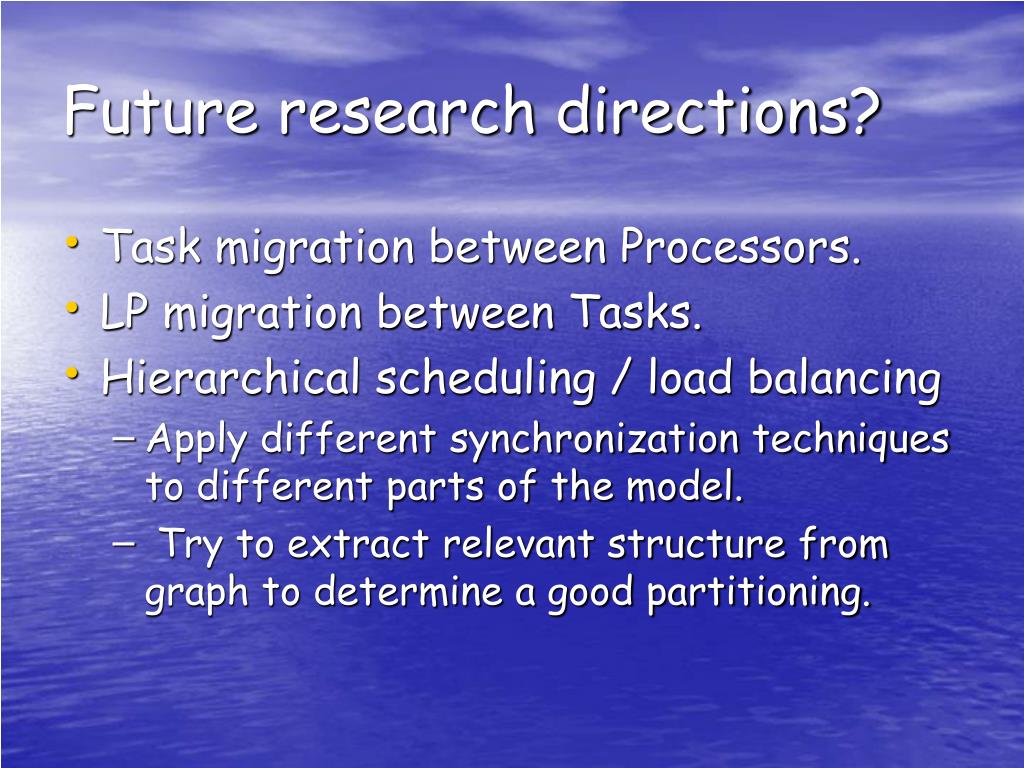

  12. Future research directions? • Task migration between Processors. • LP migration between Tasks. • Hierarchical scheduling / load balancing • Apply different synchronization techniques to different parts of the model. • Try to extract relevant structure from graph to determine a good partitioning.

  13. Conclusions • A load balancing strategy needs to take into account both static and dynamic solutions. • Determining an optimal number of Tasks or LPs may not be that important if we can obtain consistently good performance with a varying number of LPs.
