IEEE 802.15-43-0161-00-0mag PAR and CSD Review: March 2024 Session

Report on the review of PARs and CSDs submitted by Phil Beecher from Wi-SUN Alliance for the IEEE 802.15 Working Group's March 2024 plenary session. The document highlights comments and suggestions for various IEEE standards, particularly focusing on the amendments related to Wireless Personal Area Networks (WPANs) and wireless communication technologies. Key points include clarifications on project scopes, coexistence with other standards, and considerations for power transfer and energy harvesting technologies.

gisasola
Download Presentation

IEEE 802.15-43-0161-00-0mag PAR and CSD Review: March 2024 Session

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

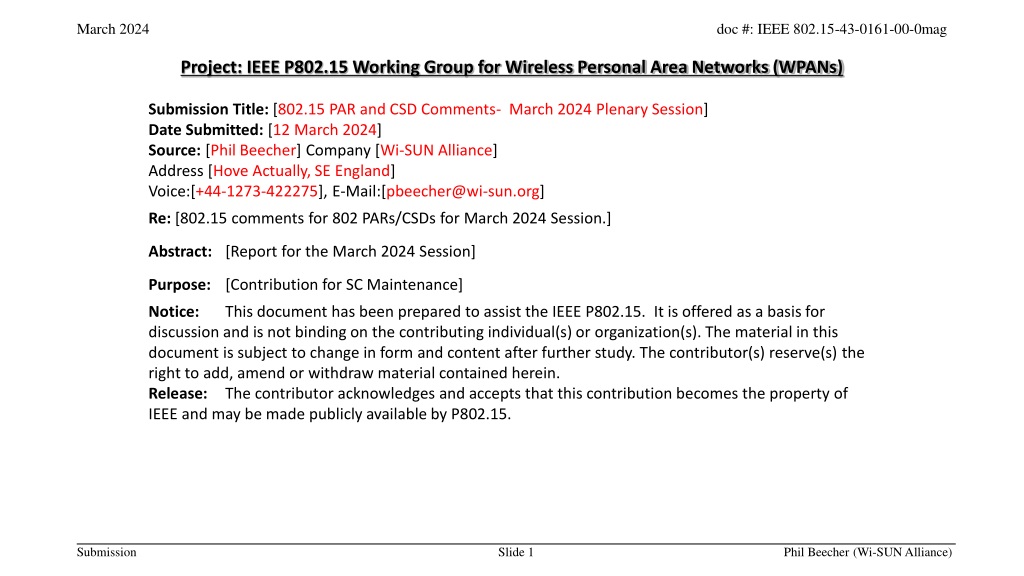

  1. March 2024 doc #: IEEE 802.15-43-0161-00-0mag Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [802.15 PAR and CSD Comments- March 2024 Plenary Session] Date Submitted: [12 March 2024] Source: [Phil Beecher] Company [Wi-SUN Alliance] Address [Hove Actually, SE England] Voice:[+44-1273-422275], E-Mail:[pbeecher@wi-sun.org] Re: [802.15 comments for 802 PARs/CSDs for March 2024 Session.] Abstract: [Report for the March 2024 Session] Purpose: [Contribution for SC Maintenance] Notice: discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. This document has been prepared to assist the IEEE P802.15. It is offered as a basis for Submission Slide 1 Phil Beecher (Wi-SUN Alliance)

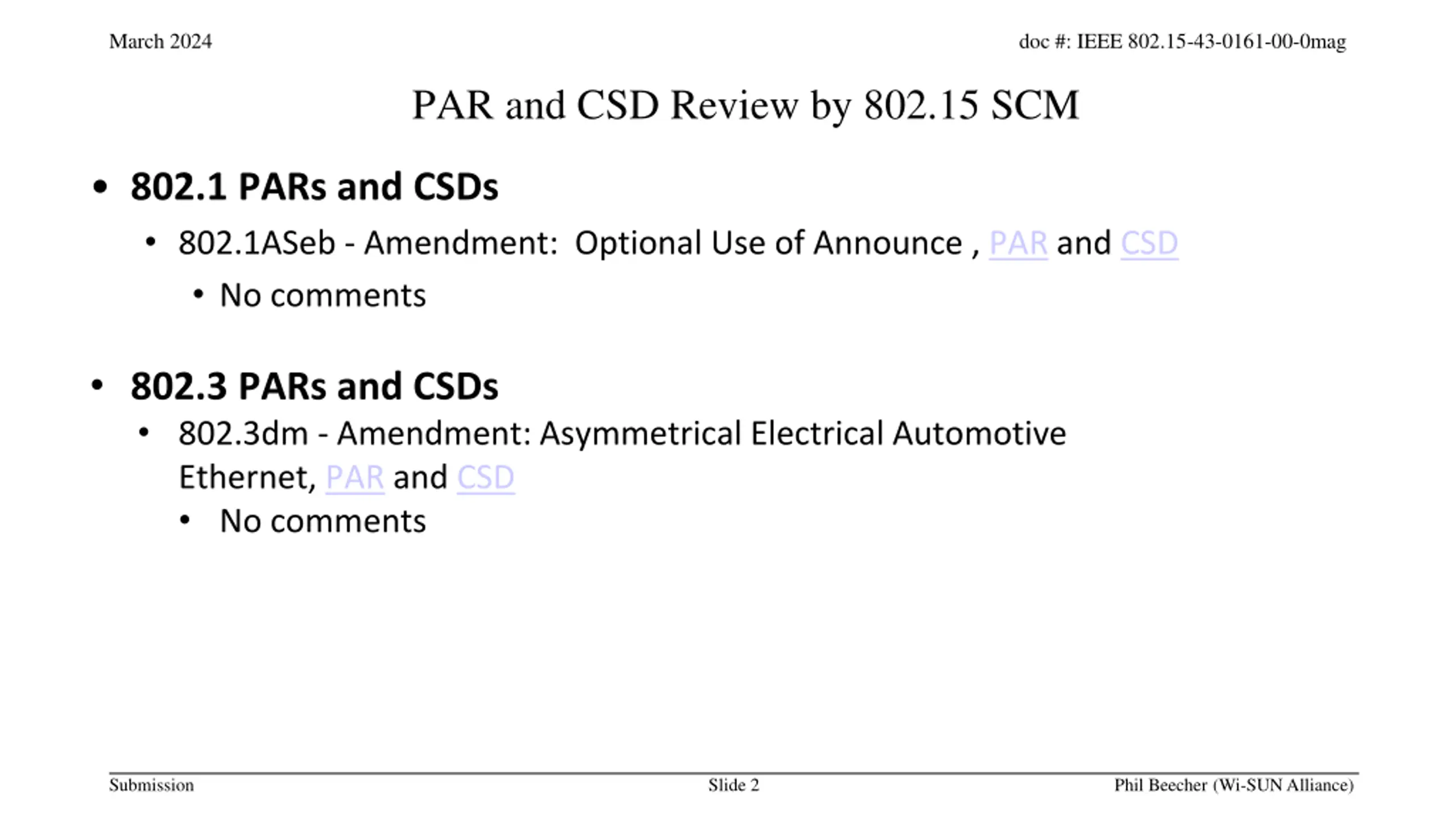

  2. March 2024 doc #: IEEE 802.15-43-0161-00-0mag PAR and CSD Review by 802.15 SCM • 802.1 PARs and CSDs • 802.1ASeb - Amendment: Optional Use of Announce , PAR and CSD • No comments • 802.3 PARs and CSDs • 802.3dm - Amendment: Asymmetrical Electrical Automotive Ethernet, PAR and CSD • No comments Submission Slide 2 Phil Beecher (Wi-SUN Alliance)

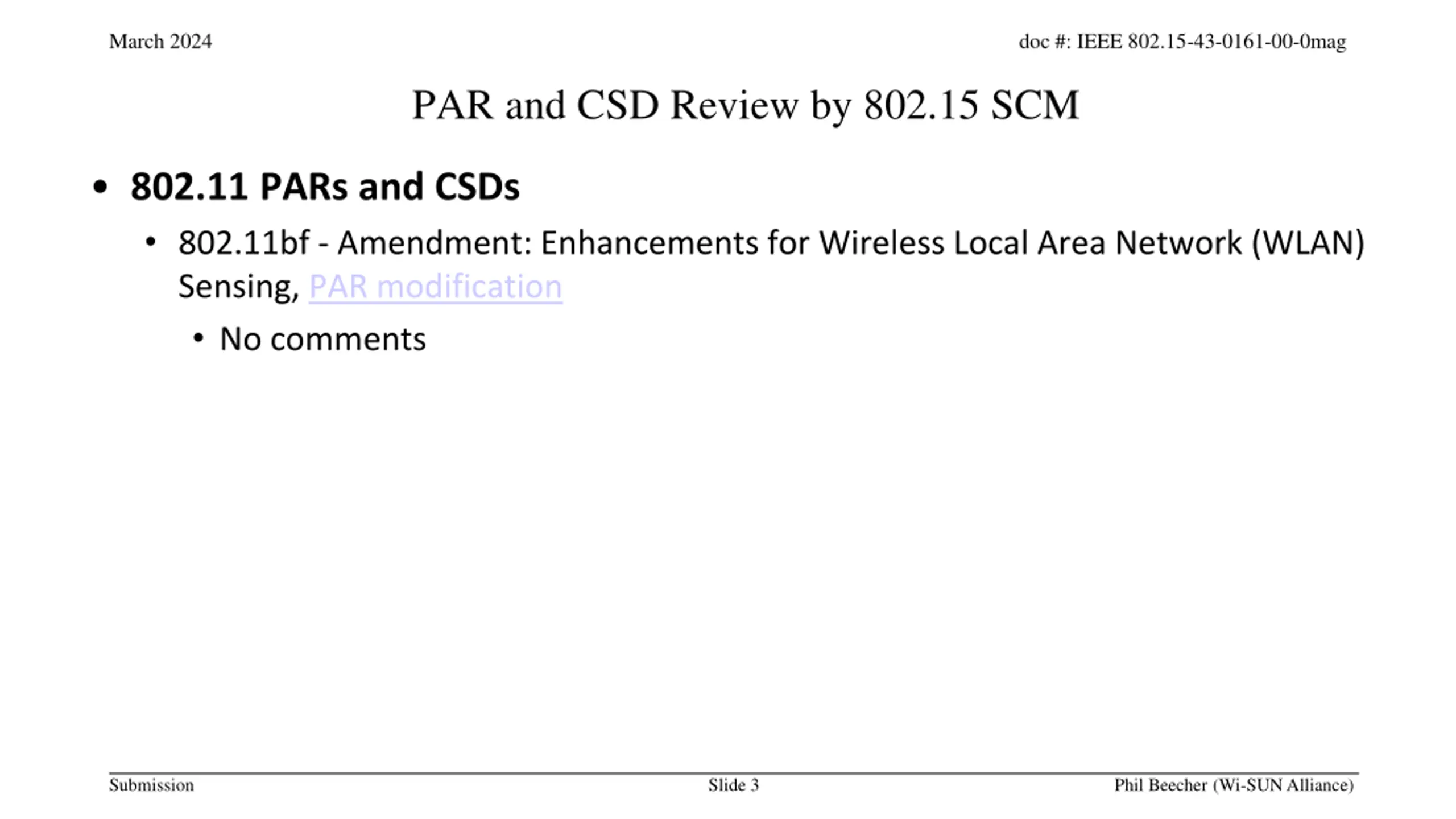

  3. March 2024 doc #: IEEE 802.15-43-0161-00-0mag PAR and CSD Review by 802.15 SCM • 802.11 PARs and CSDs • 802.11bf - Amendment: Enhancements for Wireless Local Area Network (WLAN) Sensing, PAR modification • No comments Submission Slide 3 Phil Beecher (Wi-SUN Alliance)

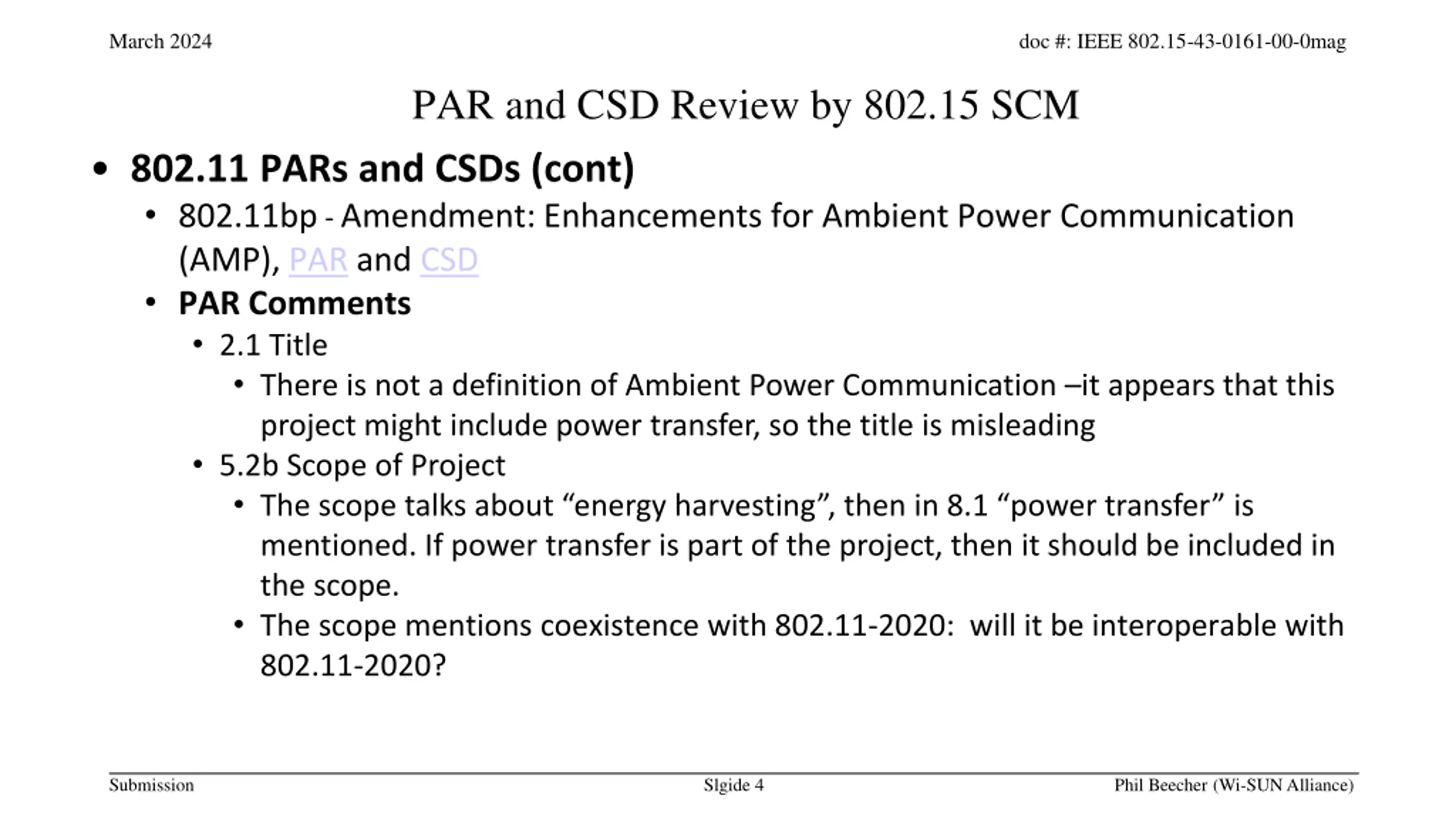

  4. March 2024 doc #: IEEE 802.15-43-0161-00-0mag PAR and CSD Review by 802.15 SCM • 802.11 PARs and CSDs (cont) • 802.11bp -Amendment: Enhancements for Ambient Power Communication (AMP), PAR and CSD • PAR Comments • 2.1 Title • There is not a definition of Ambient Power Communication –it appears that this project might include power transfer, so the title is misleading • 5.2b Scope of Project • The scope talks about “energy harvesting”, then in 8.1 “power transfer” is mentioned. If power transfer is part of the project, then it should be included in the scope. • The scope mentions coexistence with 802.11-2020: will it be interoperable with 802.11-2020? Submission Slgide 4 Phil Beecher (Wi-SUN Alliance)

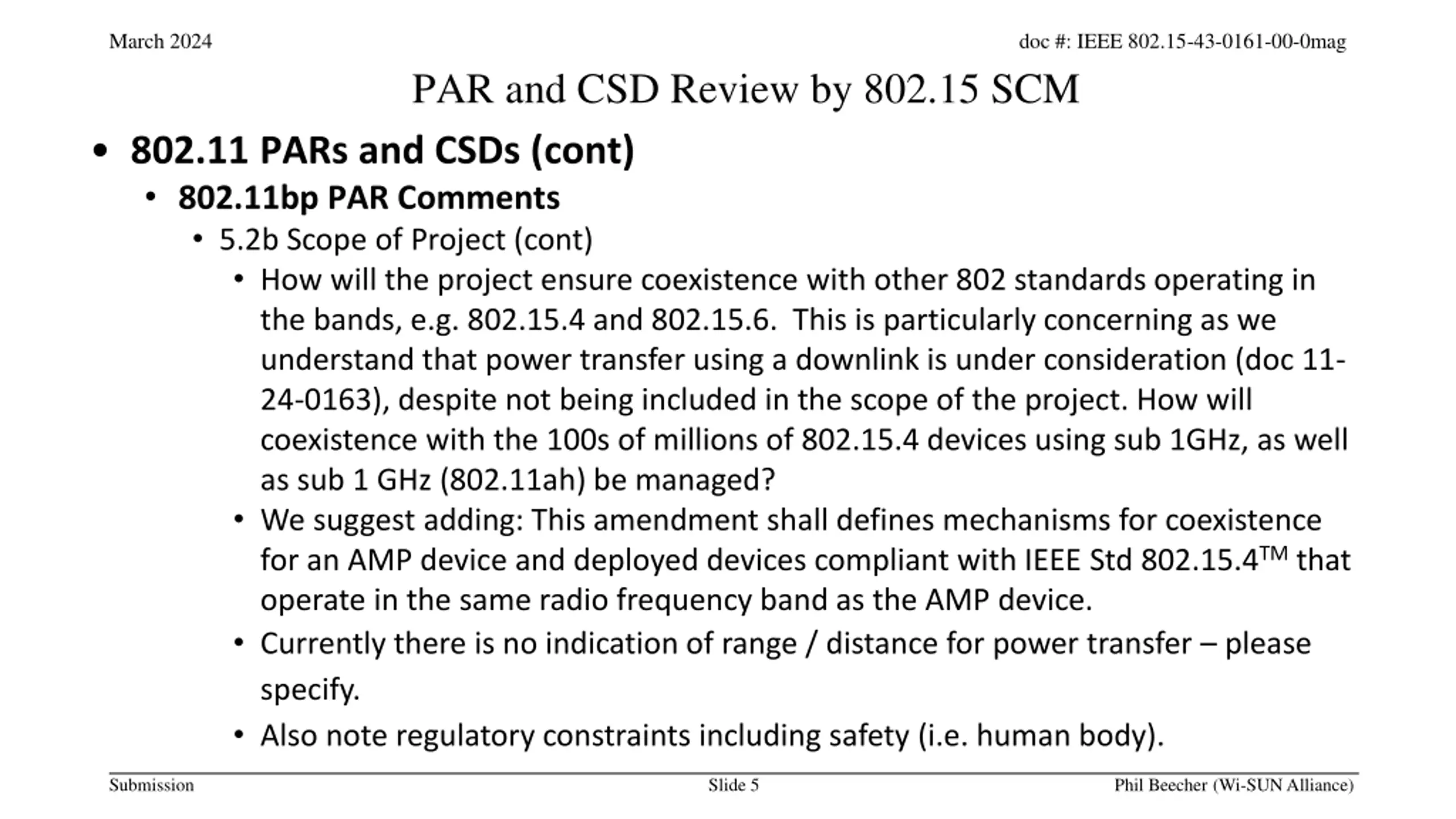

  5. March 2024 doc #: IEEE 802.15-43-0161-00-0mag PAR and CSD Review by 802.15 SCM • 802.11 PARs and CSDs (cont) • 802.11bp PAR Comments • 5.2b Scope of Project (cont) • How will the project ensure coexistence with other 802 standards operating in the bands, e.g. 802.15.4 and 802.15.6. This is particularly concerning as we understand that power transfer using a downlink is under consideration (doc 11- 24-0163), despite not being included in the scope of the project. How will coexistence with the 100s of millions of 802.15.4 devices using sub 1GHz, as well as sub 1 GHz (802.11ah) be managed? • We suggest adding: This amendment shall defines mechanisms for coexistence for an AMP device and deployed devices compliant with IEEE Std 802.15.4TMthat operate in the same radio frequency band as the AMP device. • Currently there is no indication of range / distance for power transfer – please specify. • Also note regulatory constraints including safety (i.e. human body). Submission Slide 5 Phil Beecher (Wi-SUN Alliance)

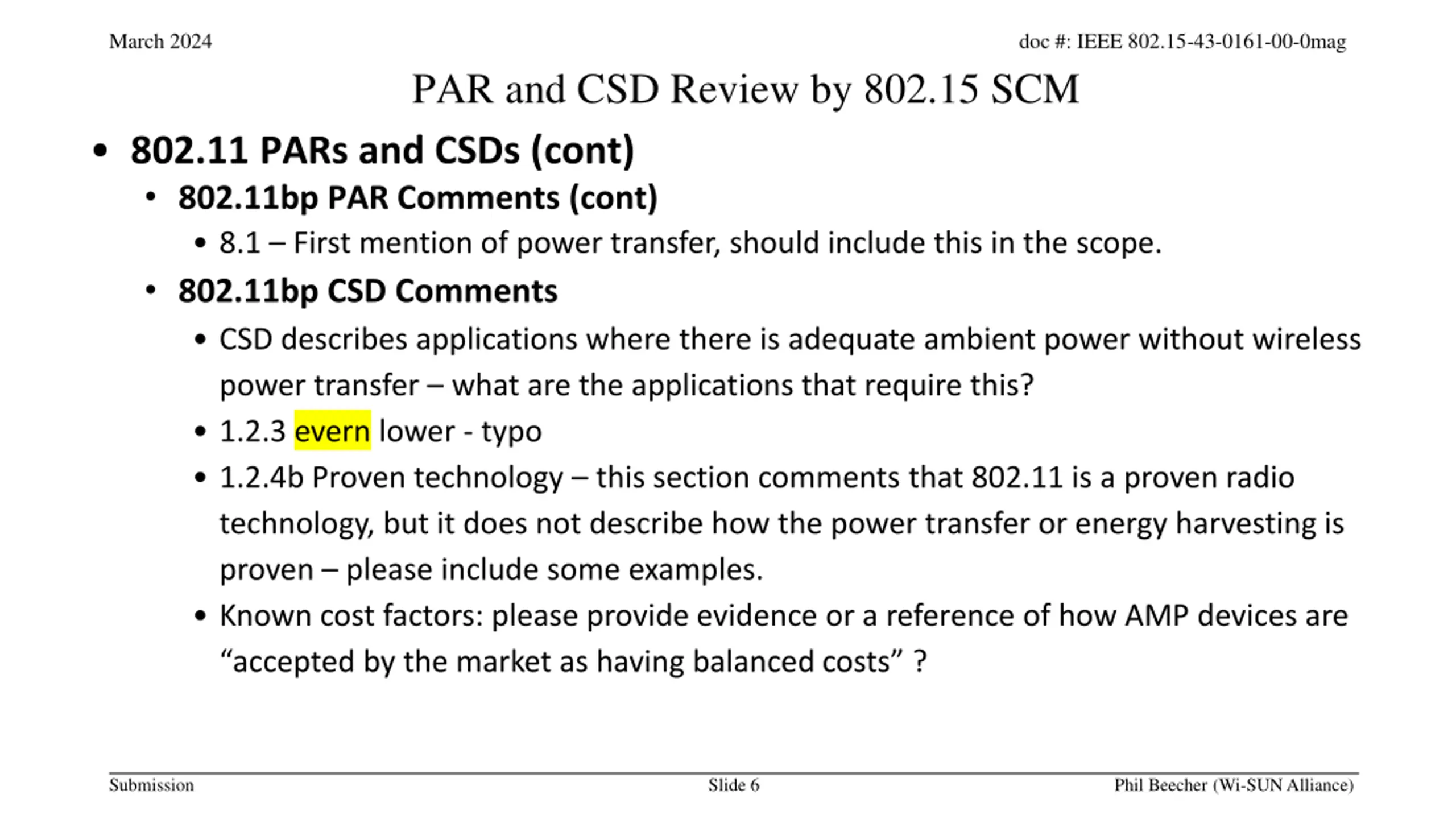

  6. March 2024 doc #: IEEE 802.15-43-0161-00-0mag PAR and CSD Review by 802.15 SCM • 802.11 PARs and CSDs (cont) • 802.11bp PAR Comments (cont) • 8.1 – First mention of power transfer, should include this in the scope. • 802.11bp CSD Comments • CSD describes applications where there is adequate ambient power without wireless power transfer – what are the applications that require this? • 1.2.3 evern lower - typo • 1.2.4b Proven technology – this section comments that 802.11 is a proven radio technology, but it does not describe how the power transfer or energy harvesting is proven – please include some examples. • Known cost factors: please provide evidence or a reference of how AMP devices are “accepted by the market as having balanced costs” ? Submission Slide 6 Phil Beecher (Wi-SUN Alliance)
