COST-STSM-IC0903-12676Behavioral Classification of Oystercatchers byCombining Interactive Visualization and Machine Learning Rudolf Netzel
Motivation • The classification of animal movement data is an important • Basis for many physiological, evolutionary, energetic (etc.) inferences • Labels are only obtained during observation • Huge amount of data • Only few labeled data • Currently statistical analyses dominate • Interactive visualization of spatio- temporal data • Support labeling • Evaluation of classification models Oystercatcher [Wiki Media]
STSM • 22.04.2013 – 26.04.2013 • Follow-up cooperation due to results of the Dagstuhlseminar • Host: Emiel van Loon, University of Amsterdam • Institute for Biodiversity and Ecosystem Dynamics • Ali Soleymani, University of Zürich • Signal processing background • Apply a segmentation • Modify feature vector with information form segmentation • Rudolf Netzel, University of Stuttgart • Similarity to thesis “Interactive Learning” • Creating a visualization for data labeling • Interactive
Data • GPS • at non observation time • ~ every 10 - 30 min, • at observation time • ~ every 15s – 60s • Accelerometer • 20 Hz over 3 seconds (up to 60 measures per gps fix) • Used to derive model parameter

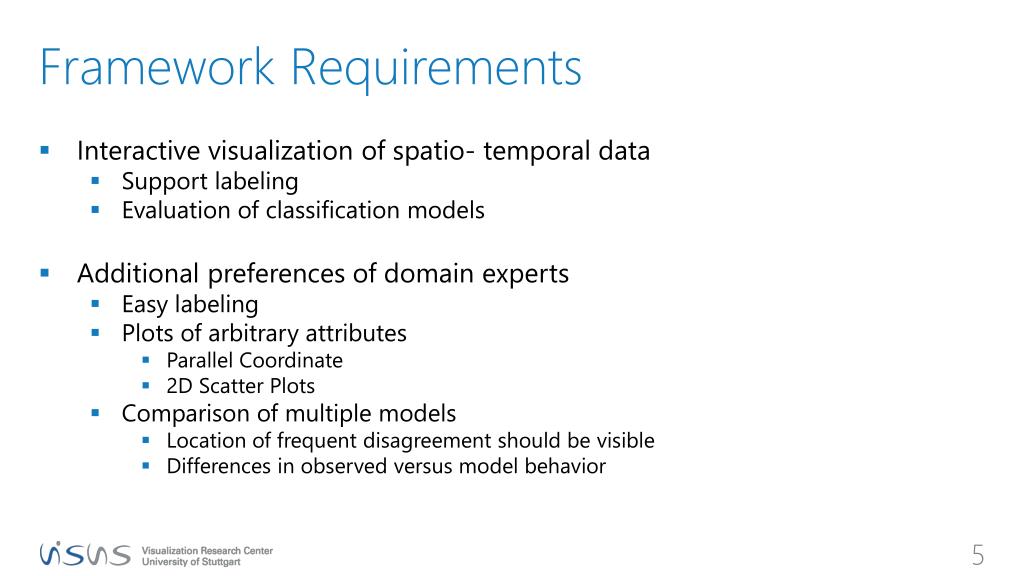

Framework Requirements • Interactive visualization of spatio- temporal data • Support labeling • Evaluation of classification models • Additional preferences of domain experts • Easy labeling • Plots of arbitrary attributes • Parallel Coordinate • 2D Scatter Plots • Comparison of multiple models • Location of frequent disagreement should be visible • Differences in observed versus model behavior

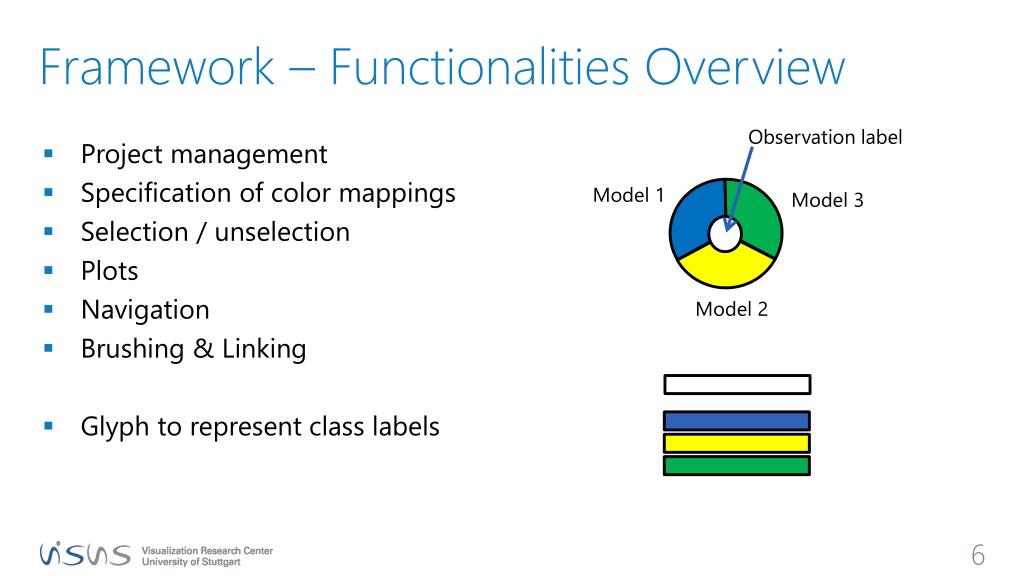

Framework – Functionalities Overview • Project management • Specification of color mappings • Selection / unselection • Plots • Navigation • Brushing & Linking • Glyph to represent class labels Observation label Model 1 Model 3 Model 2
Framework - Component Overview • GPS location map • Relabeling • 2D scatter plot • Parallel Coordinates
Data Selection • Single and area selection • Zooming • Panning

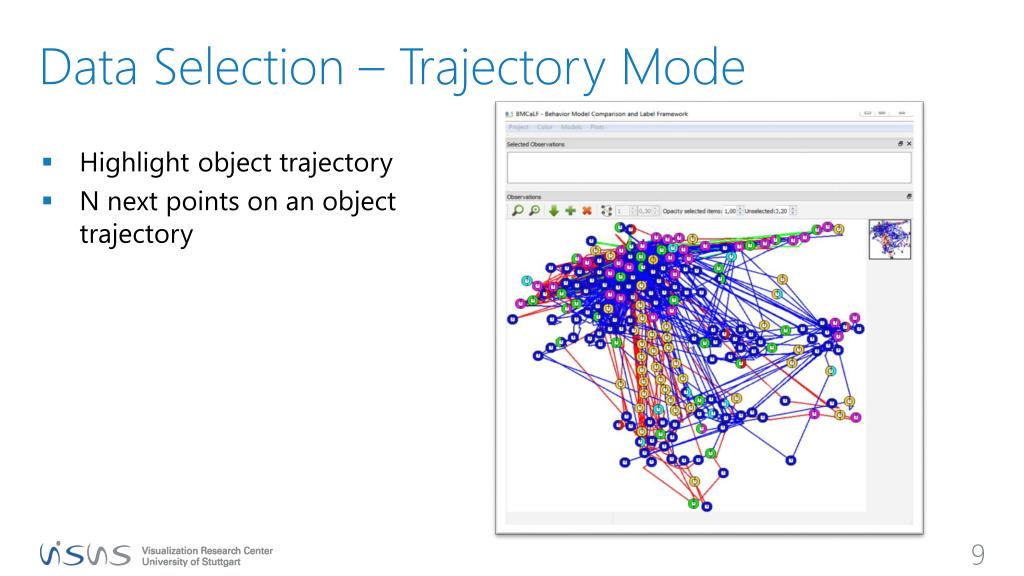

Data Selection – Trajectory Mode • Highlight object trajectory • N next points on an object trajectory
Labeling • Label selected gps positions • Update of gps map

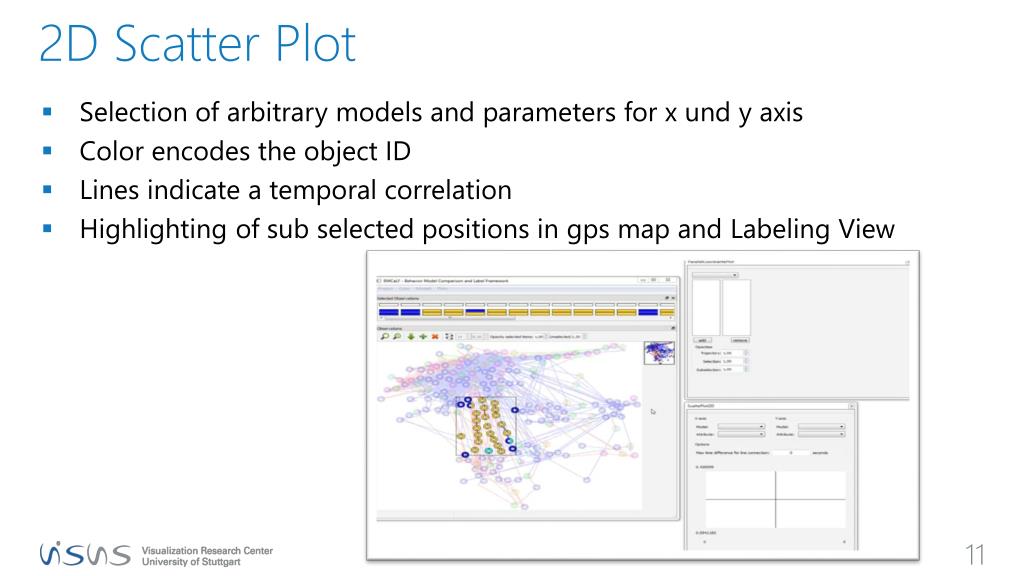

2D Scatter Plot • Selection of arbitrary models and parameters for x und y axis • Color encodes the object ID • Lines indicate a temporal correlation • Highlighting of sub selected positions in gps map and Labeling View
Parallel Coordinates • Selection of arbitrary parameters form models • Color encodes object ID
Conclusion • Behavior classification is important for inferences • Large difference between labeled and unlabeled data • Requirements of a framework that should support the labeling • Components of the framework so fare Additional Work • Classifier retraining • WEKA • Run external java code • Display density or a map of gps fixes • …
