Slab Model Magnetization

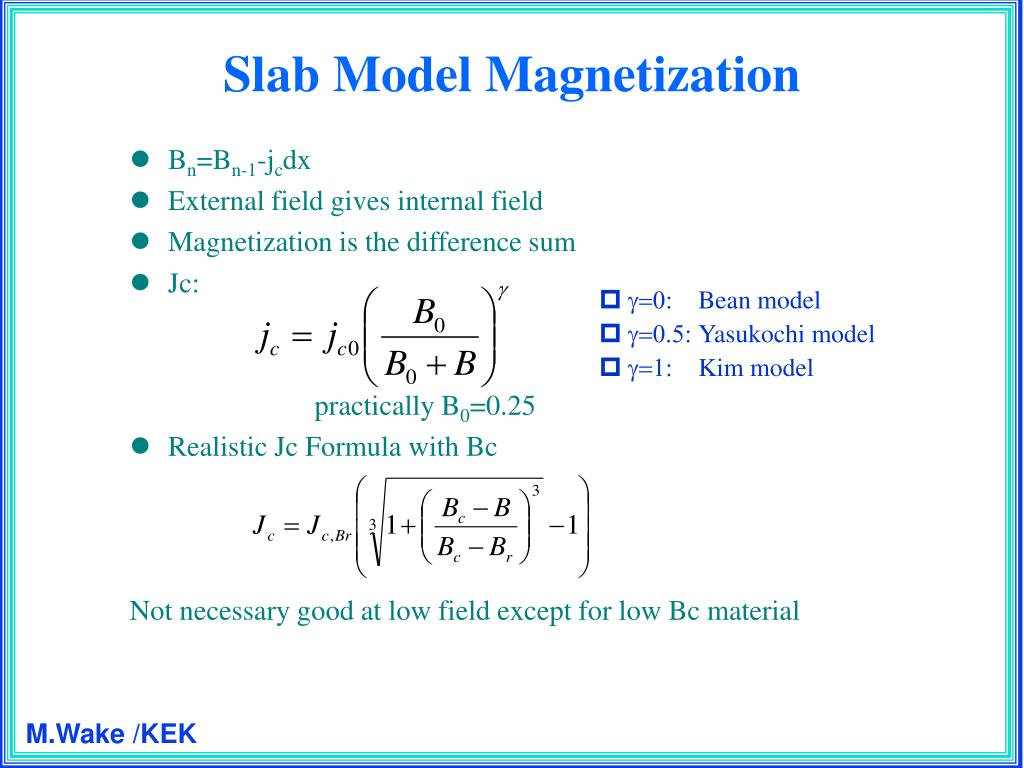

Slab Model Magnetization. B n =B n-1 -j c dx External field gives internal field Magnetization is the difference sum Jc: practically B 0 =0.25 Realistic Jc Formula with Bc Not necessary good at low field except for low Bc material. g=0: Bean model g=0.5: Yasukochi model

Download Presentation

Slab Model Magnetization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Slab Model Magnetization Bn=Bn-1-jcdx External field gives internal field Magnetization is the difference sum Jc: practically B0=0.25 Realistic Jc Formula with Bc Not necessary good at low field except for low Bc material • g=0: Bean model • g=0.5: Yasukochi model • g=1: Kim model

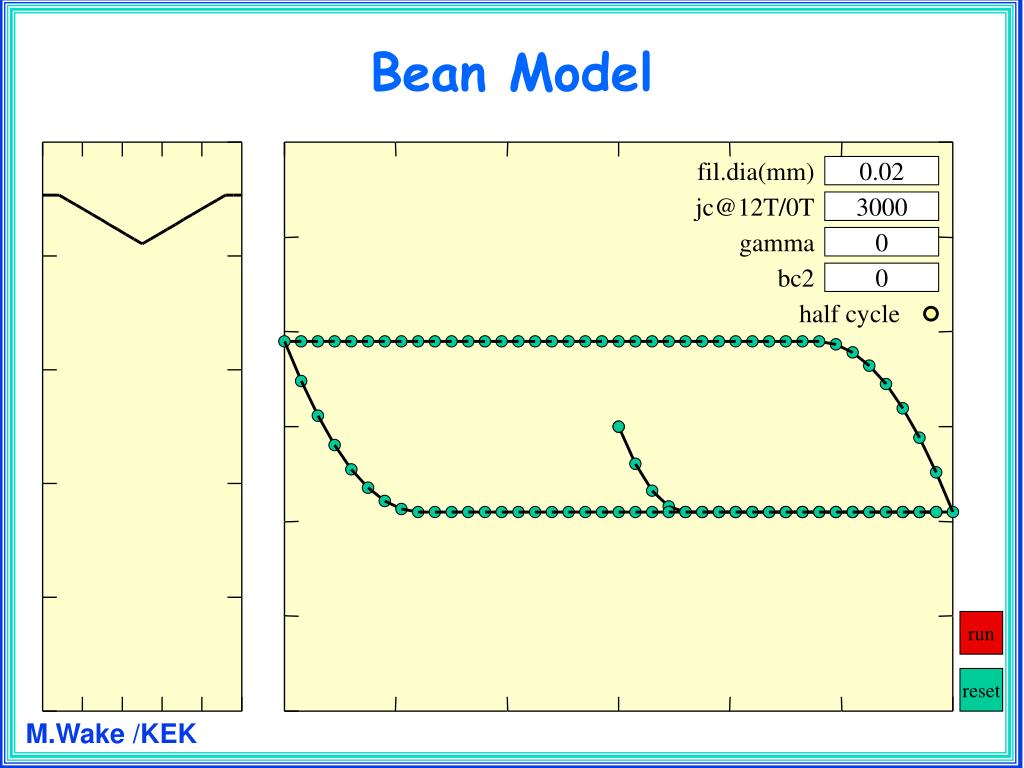

  2. Bean Model 4 52 55 255 fil.dia(mm) 0.02 jc@12T/0T 3000 gamma 0 bc2 0 half cycle run reset

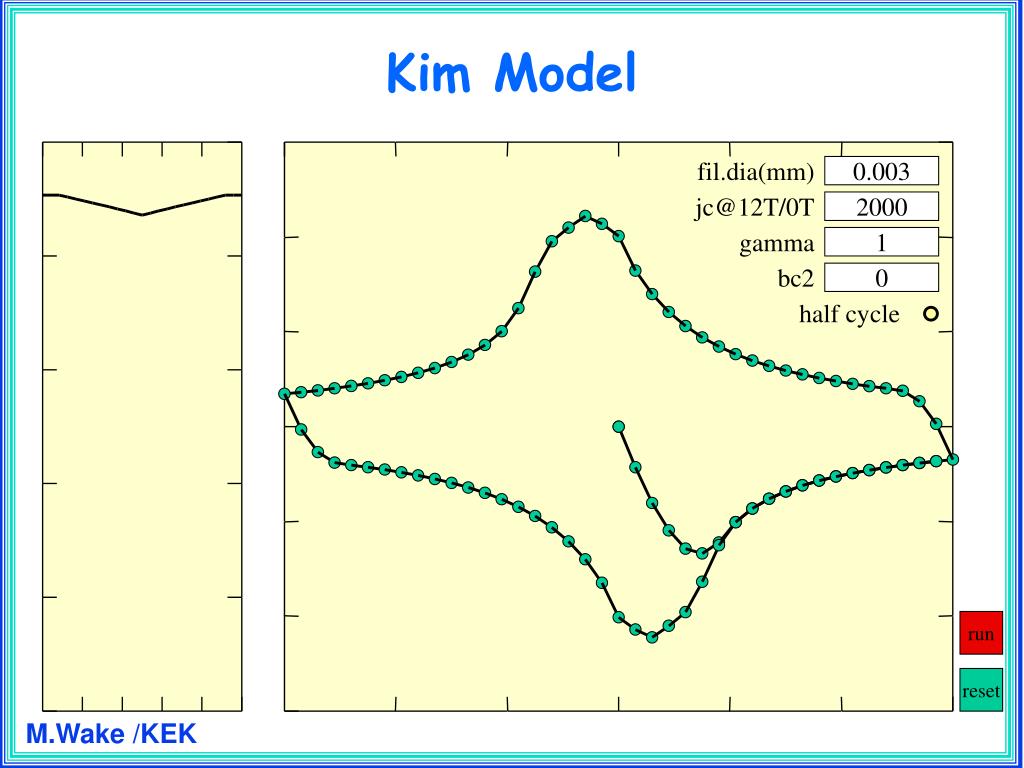

  3. Kim Model 4 52 55 255 fil.dia(mm) 0.003 jc@12T/0T 2000 gamma 1 bc2 0 half cycle run reset

  4. Conductor Model 4 52 55 255 fil.dia(mm) 0.003 jc@12T/0T 2000 gamma 0.8 bc2 0 half cycle run reset

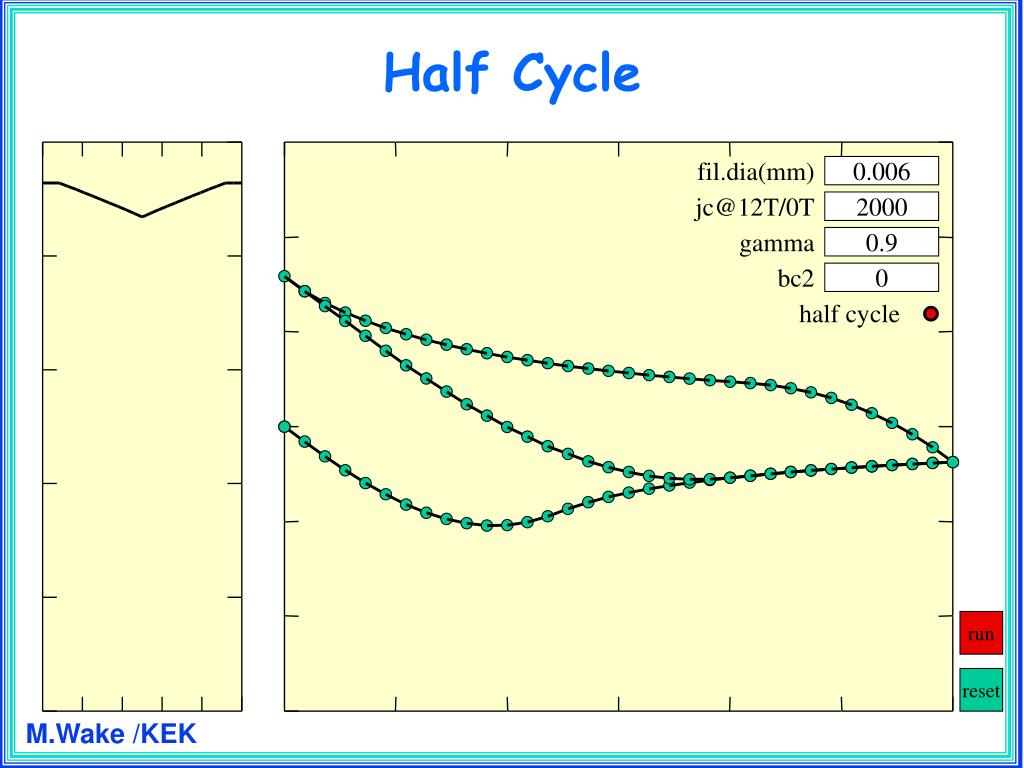

  5. Half Cycle 4 52 55 255 fil.dia(mm) 0.006 jc@12T/0T 2000 gamma 0.9 bc2 0 half cycle run reset

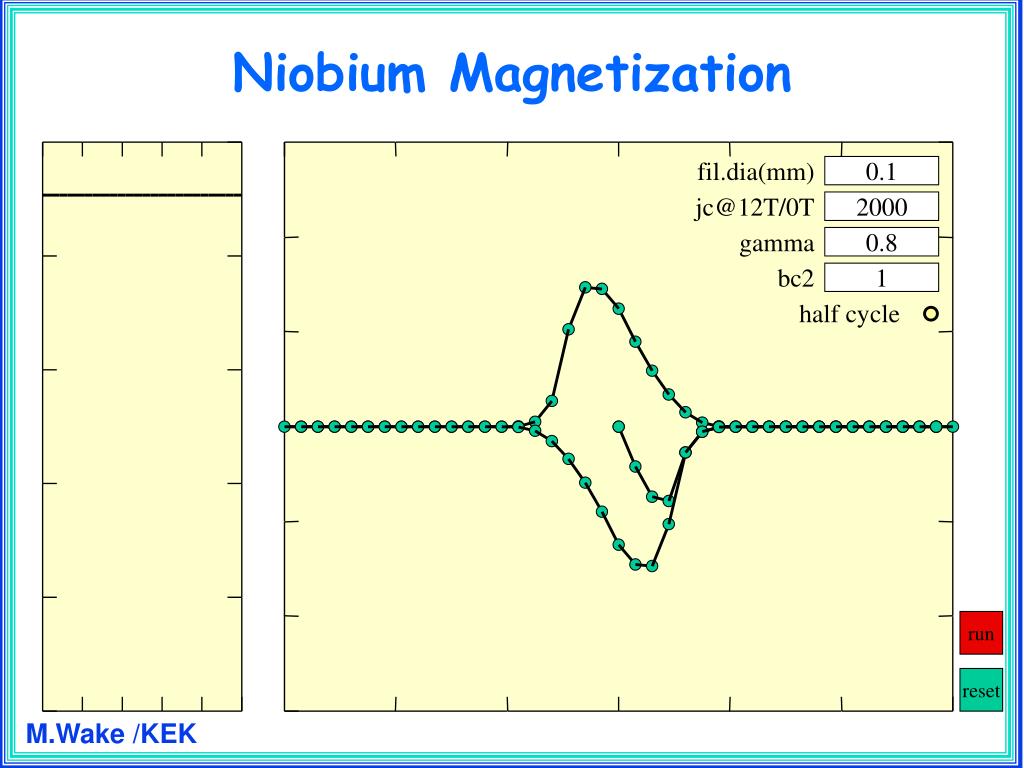

  6. Niobium Magnetization 4 52 55 255 fil.dia(mm) 0.1 jc@12T/0T 2000 gamma 0.8 bc2 1 half cycle run reset
