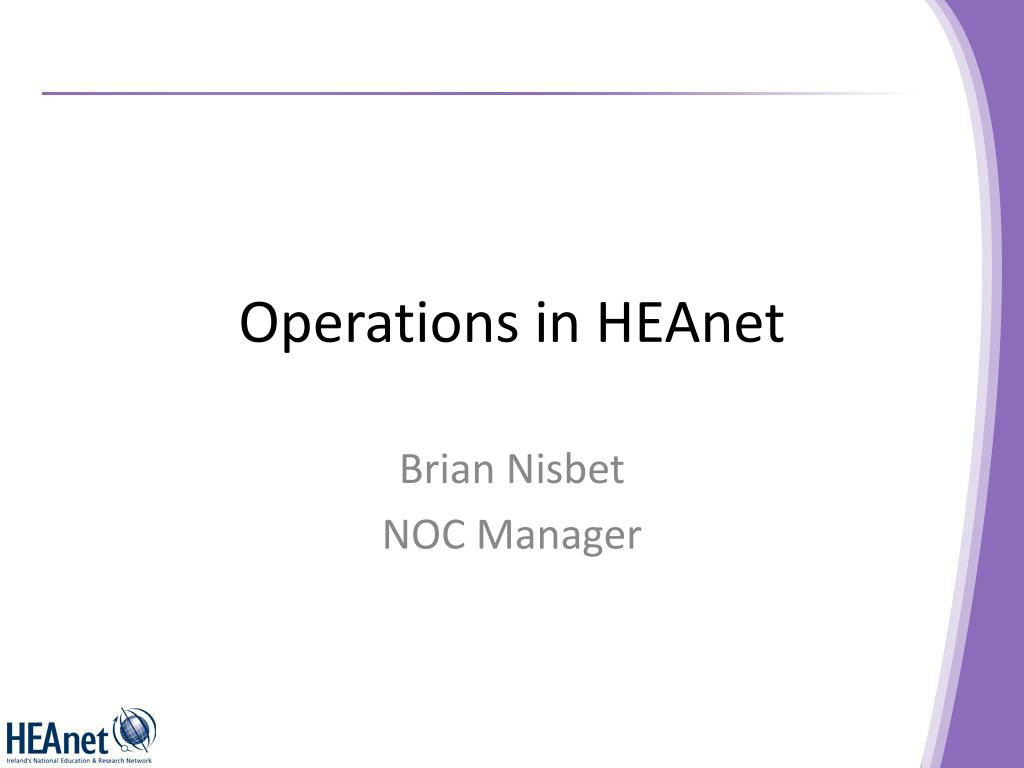

  1. Operations in HEAnet Brian Nisbet NOC Manager

  2. Operational Overview • 30+ Technical Staff. • 75% of whom participate in NOC Duty. • 60+ Clients. • Expanding Services Catalogue. • 400+ L2 P2P circuits. • 120+ iBGPpeerings, across 80+ physical circuits.

  3. What’s a service? • Everything is a service! • General Internet Service is the core HEAnet offering. • Many, many services on top of the network, more user interaction. • Increasing size has lead to increased need for automation across all services.

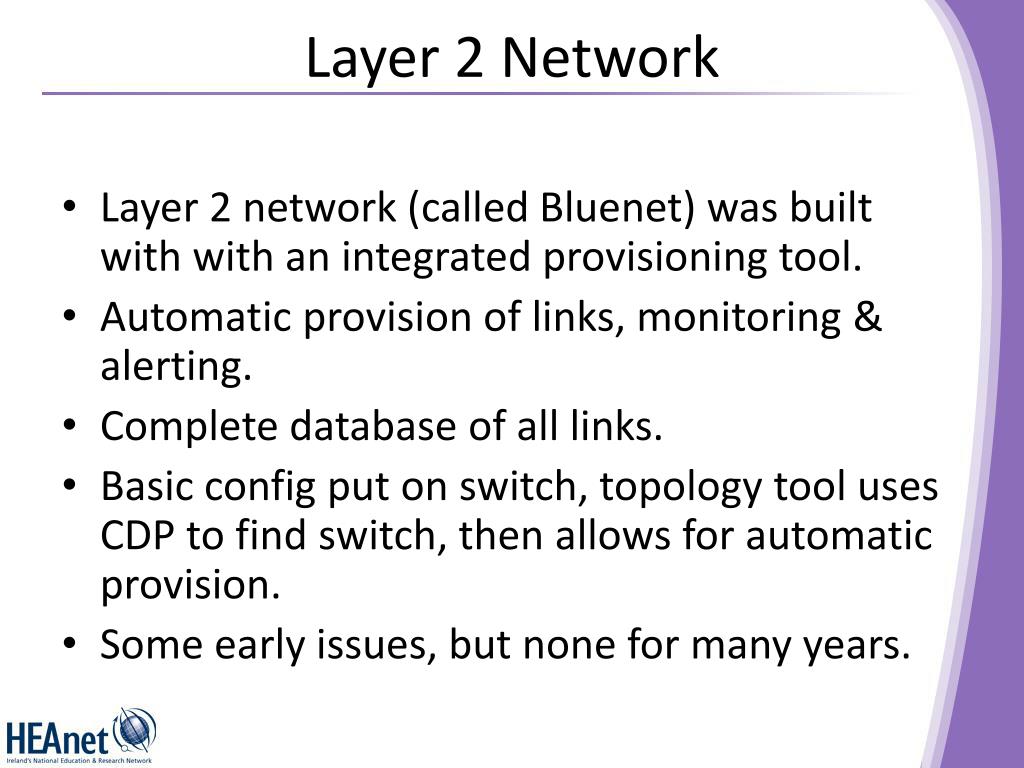

  4. Layer 2 Network • Layer 2 network (called Bluenet) was built with with an integrated provisioning tool. • Automatic provision of links, monitoring & alerting. • Complete database of all links. • Basic config put on switch, topology tool uses CDP to find switch, then allows for automatic provision. • Some early issues, but none for many years.

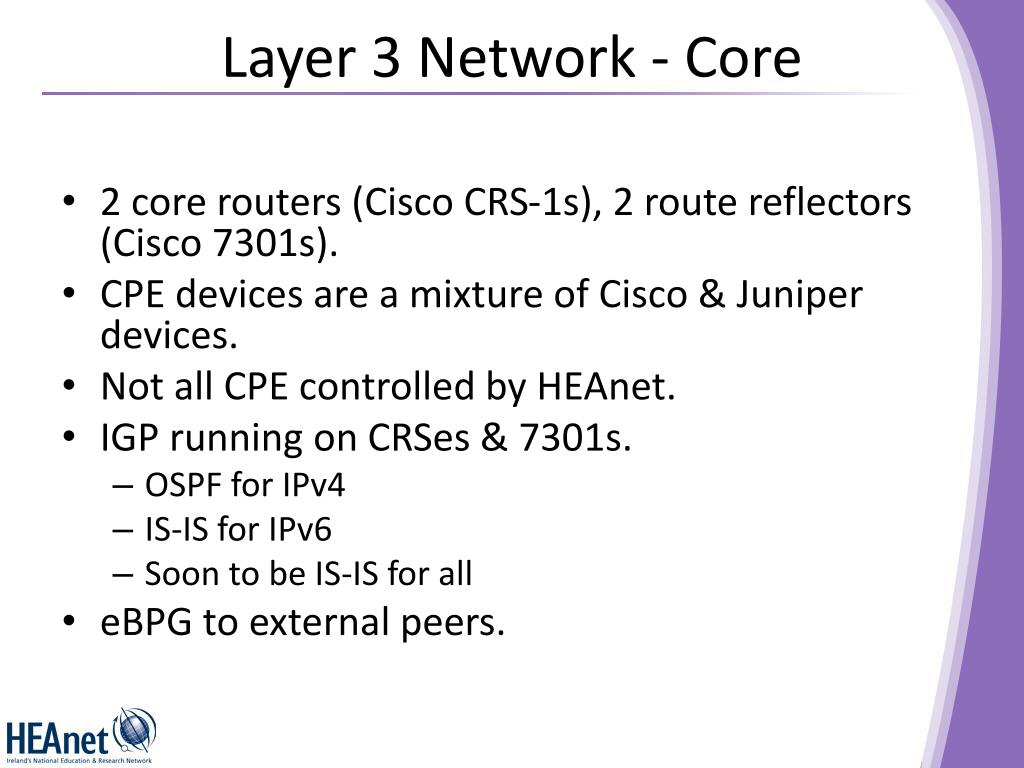

  5. Layer 3 Network - Core • 2 core routers (Cisco CRS-1s), 2 route reflectors (Cisco 7301s). • CPE devices are a mixture of Cisco & Juniper devices. • Not all CPE controlled by HEAnet. • IGP running on CRSes & 7301s. • OSPF for IPv4 • IS-IS for IPv6 • Soon to be IS-IS for all • eBPG to external peers.

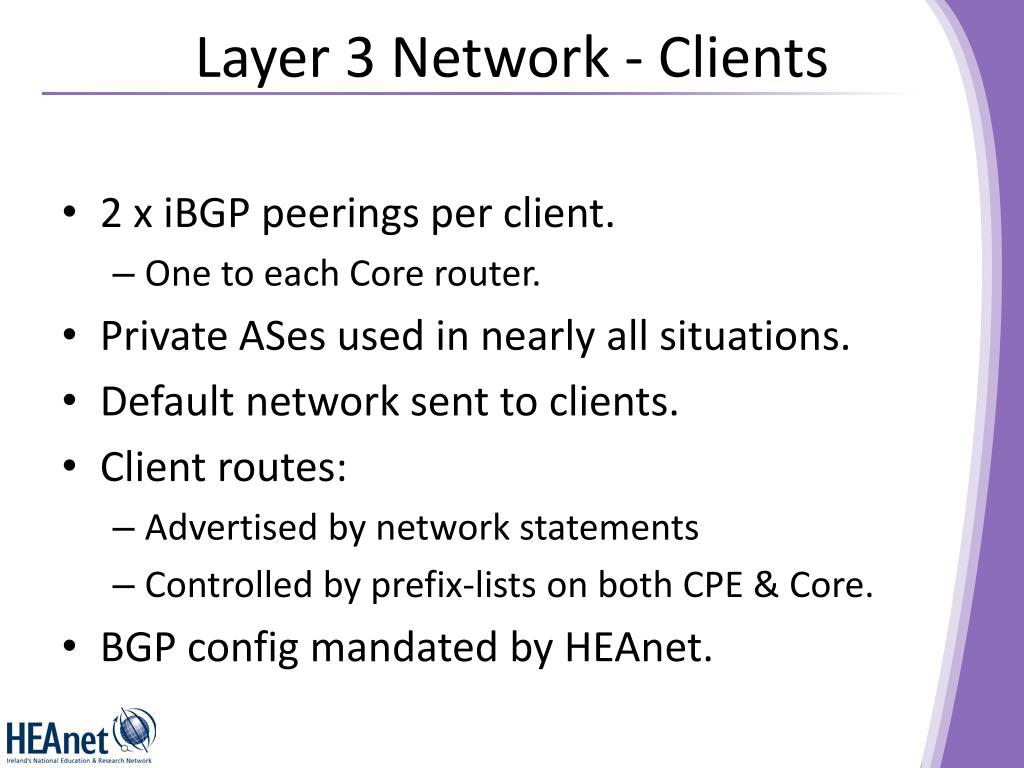

  6. Layer 3 Network - Clients • 2 x iBGPpeerings per client. • One to each Core router. • Private ASes used in nearly all situations. • Default network sent to clients. • Client routes: • Advertised by network statements • Controlled by prefix-lists on both CPE & Core. • BGP config mandated by HEAnet.

  7. Layer 3 General Internet Templates • Two links per client, different local prefs, different MEDs. • Link addresses pulled from predefined pool. • Templates used where possible (and by now, it’s possible everywhere). • https://wiki.heanet.ie/BGP_Design,_Customer • Conformity/mandating the BGP config has improved things greatly.

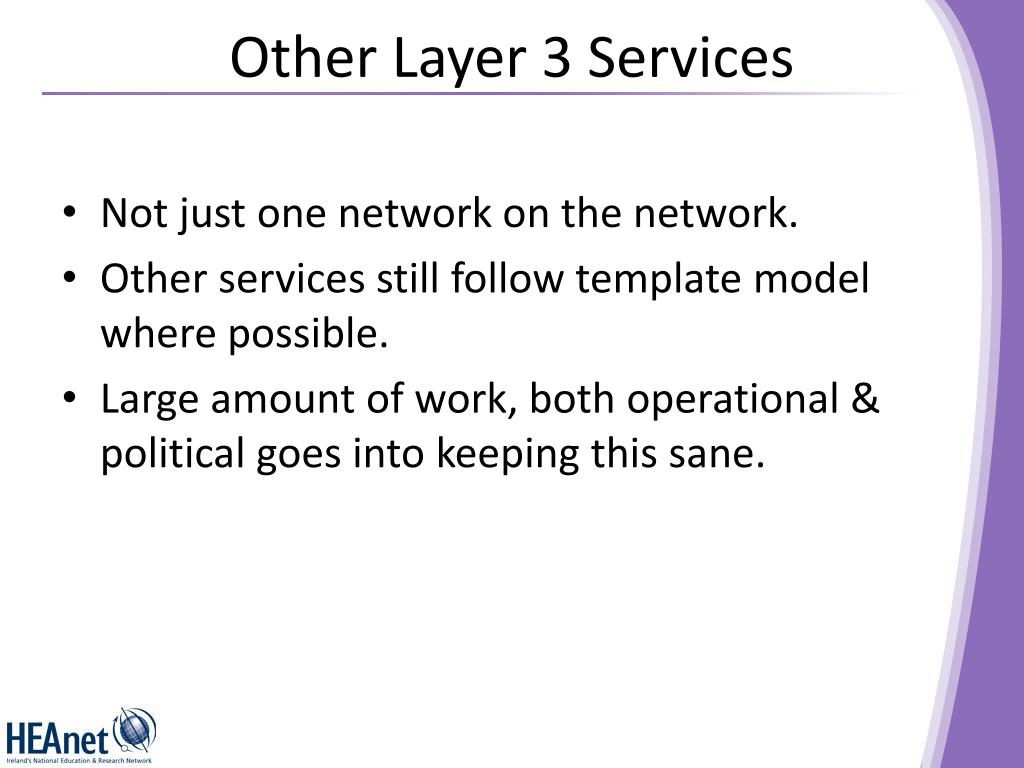

  8. Other Layer 3 Services • Not just one network on the network. • Other services still follow template model where possible. • Large amount of work, both operational & political goes into keeping this sane.

  9. Equipment • Over 80% of CPE supplied by HEAnet. • Unlikely to ever reach 100%. • Client needs, exceptional circumstances etc. • Templates need to be adaptable to major vendor code. • So far only IOS, IOS-XR & JUNOS.

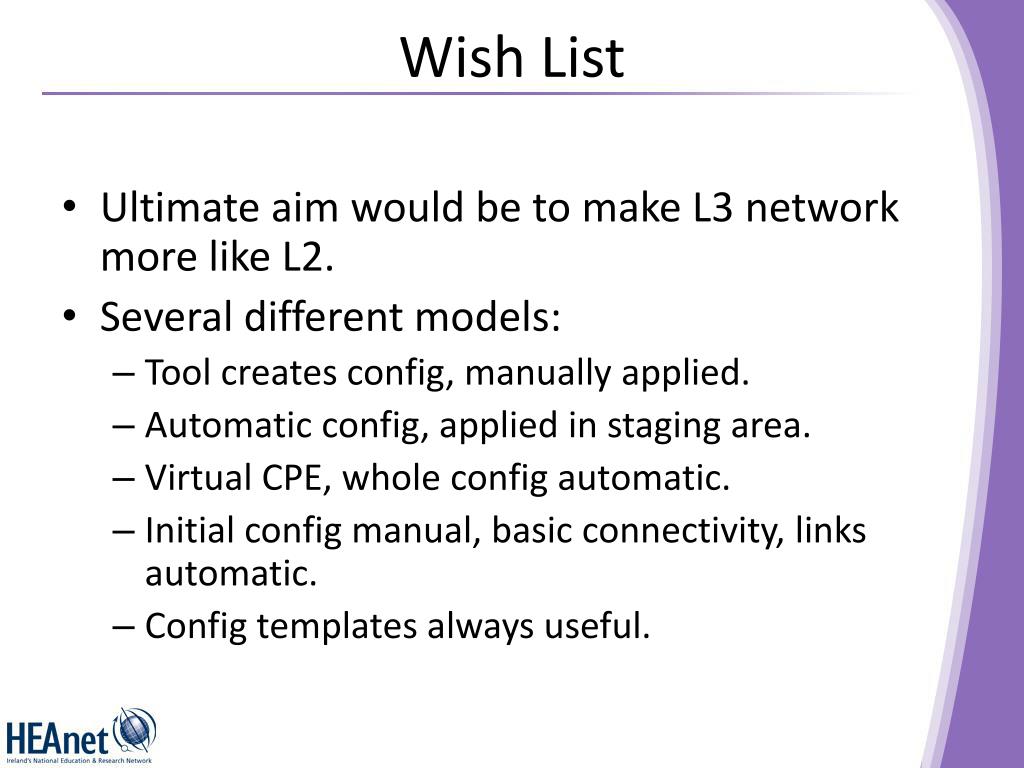

  10. Wish List • Ultimate aim would be to make L3 network more like L2. • Several different models: • Tool creates config, manually applied. • Automatic config, applied in staging area. • Virtual CPE, whole config automatic. • Initial config manual, basic connectivity, links automatic. • Config templates always useful.

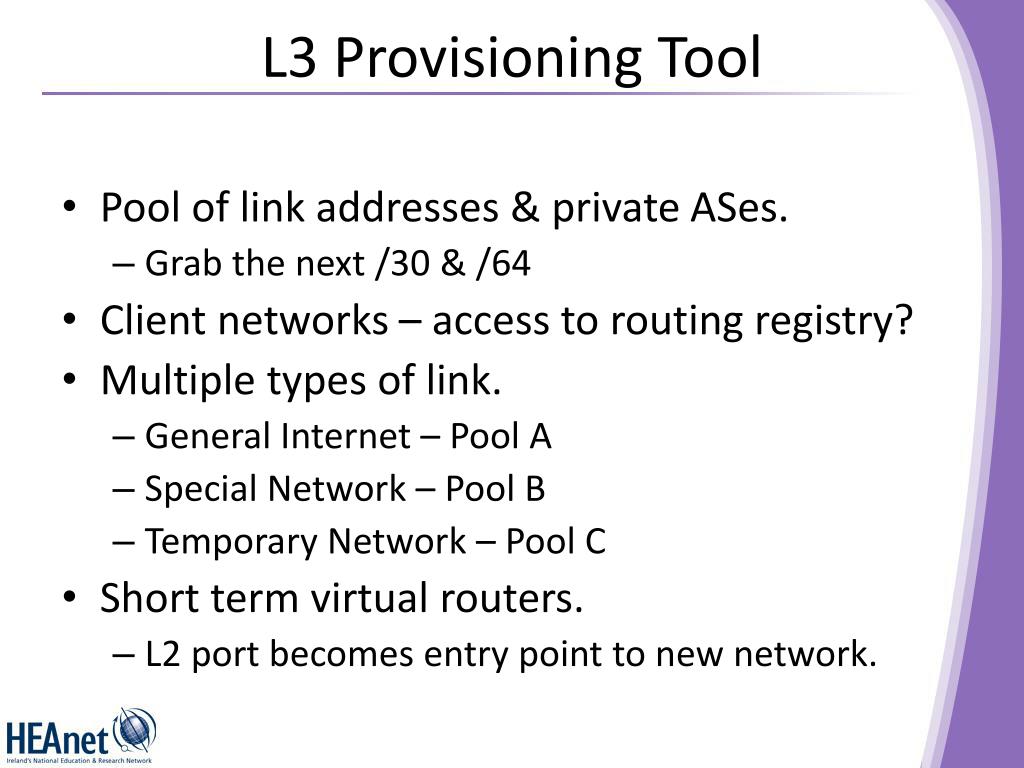

  11. L3 Provisioning Tool • Pool of link addresses & private ASes. • Grab the next /30 & /64 • Client networks – access to routing registry? • Multiple types of link. • General Internet – Pool A • Special Network – Pool B • Temporary Network – Pool C • Short term virtual routers. • L2 port becomes entry point to new network.

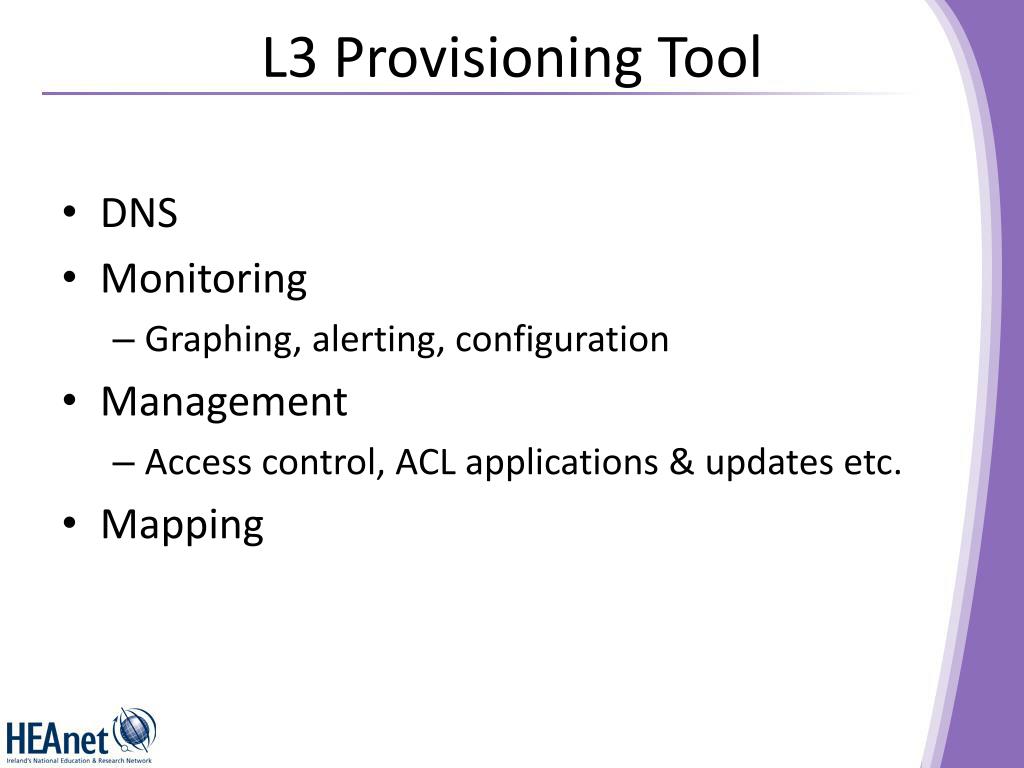

  12. L3 Provisioning Tool • DNS • Monitoring • Graphing, alerting, configuration • Management • Access control, ACL applications & updates etc. • Mapping
