  1. Authorization Use Cases Identity and Authorization Services Working Group (IAS-WG) April, 2010

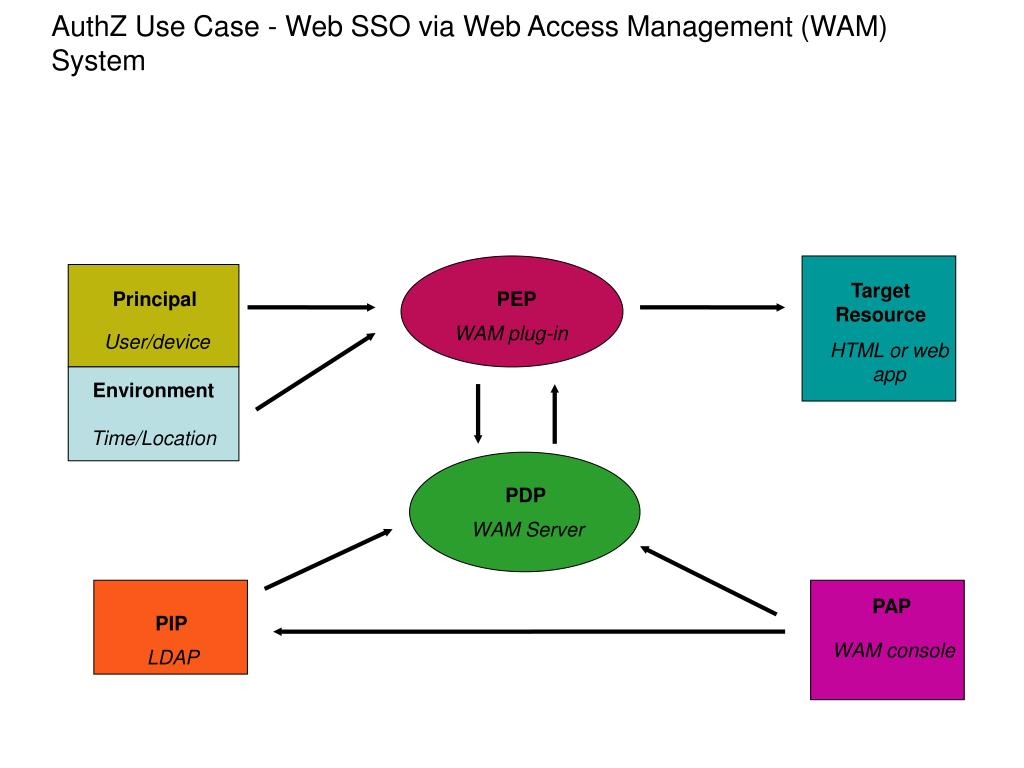

  2. AuthZ Use Case - Web SSO via Web Access Management (WAM) System Target Resource Principal PEP WAM plug-in User/device HTML or web app Environment Time/Location PDP WAM Server PAP PIP WAM console LDAP

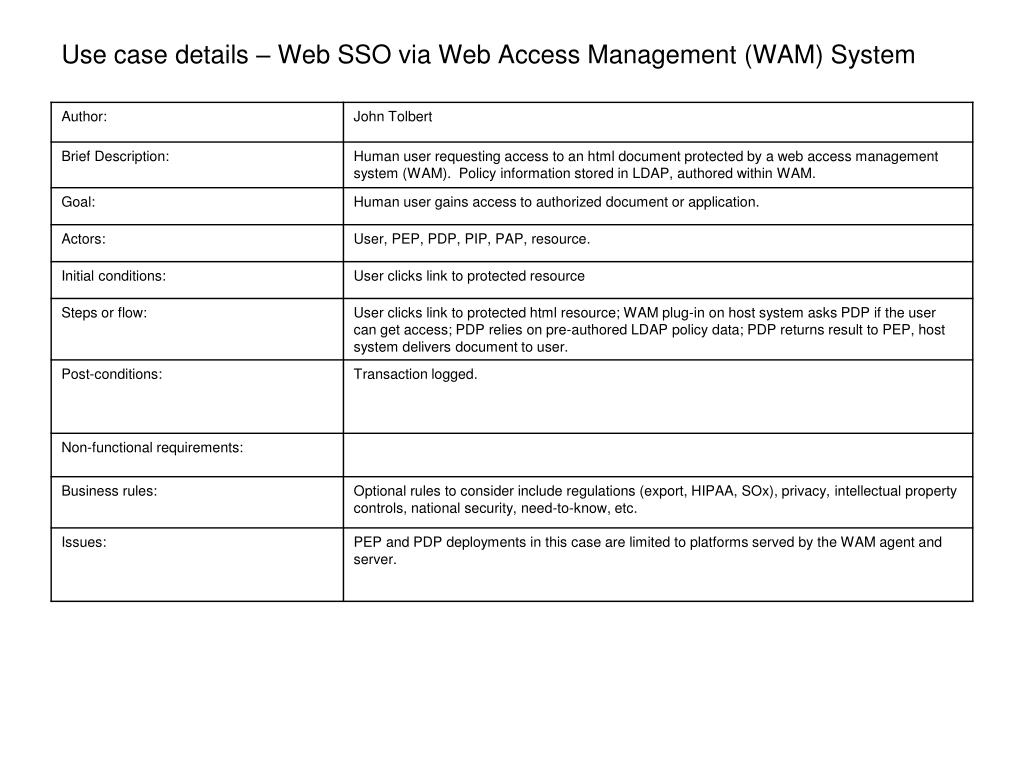

  3. Use case details – Web SSO via Web Access Management (WAM) System

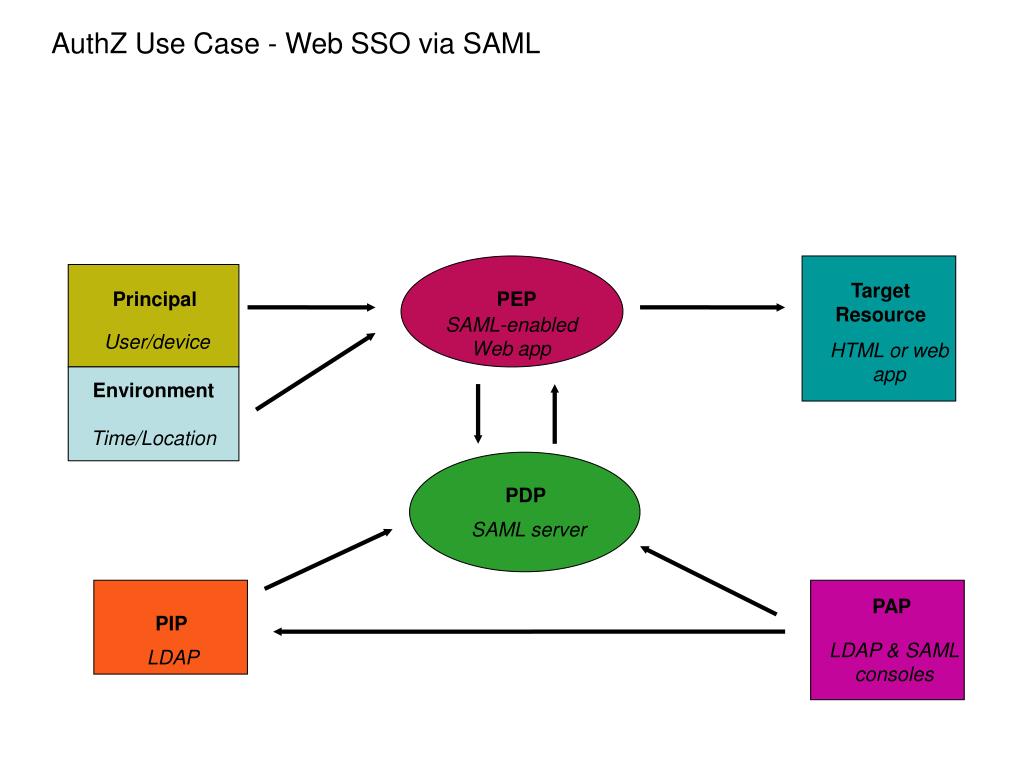

  4. AuthZ Use Case - Web SSO via SAML Target Resource Principal PEP SAML-enabled Web app User/device HTML or web app Environment Time/Location PDP SAML server PAP PIP LDAP & SAML consoles LDAP

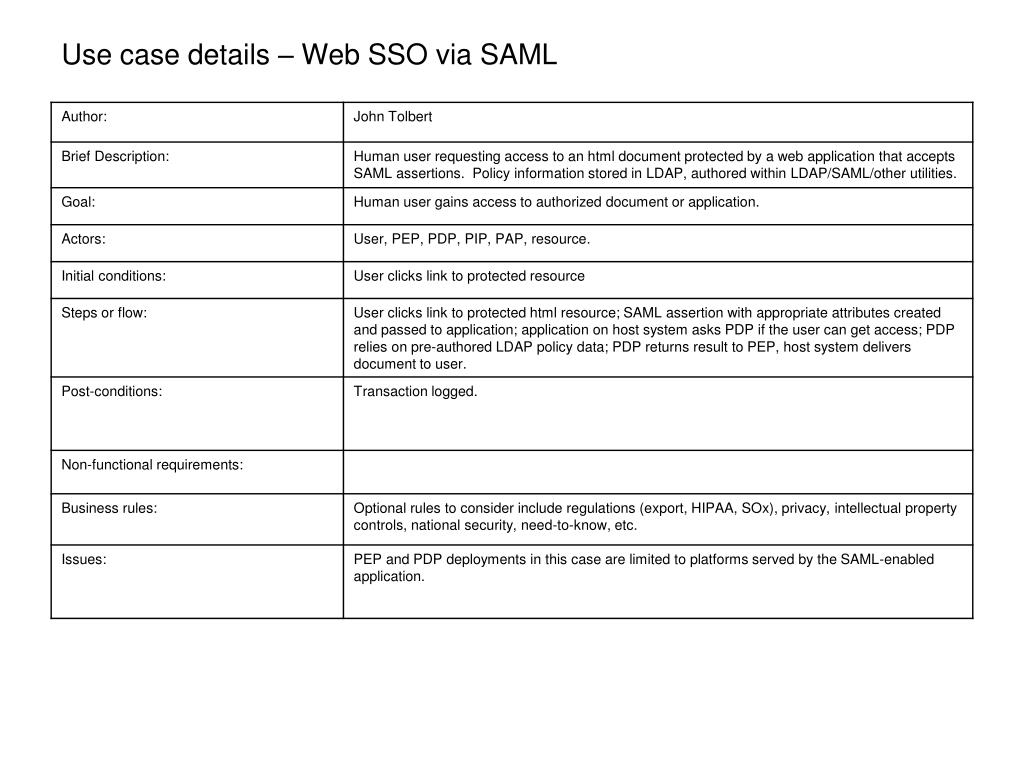

  5. Use case details – Web SSO via SAML

  6. AuthZ Use Case – File access mediated by operating system (OS) Target Resource Principal PEP OS User/device File Environment Time/Location PDP OS PAP PIP OS utilities OS

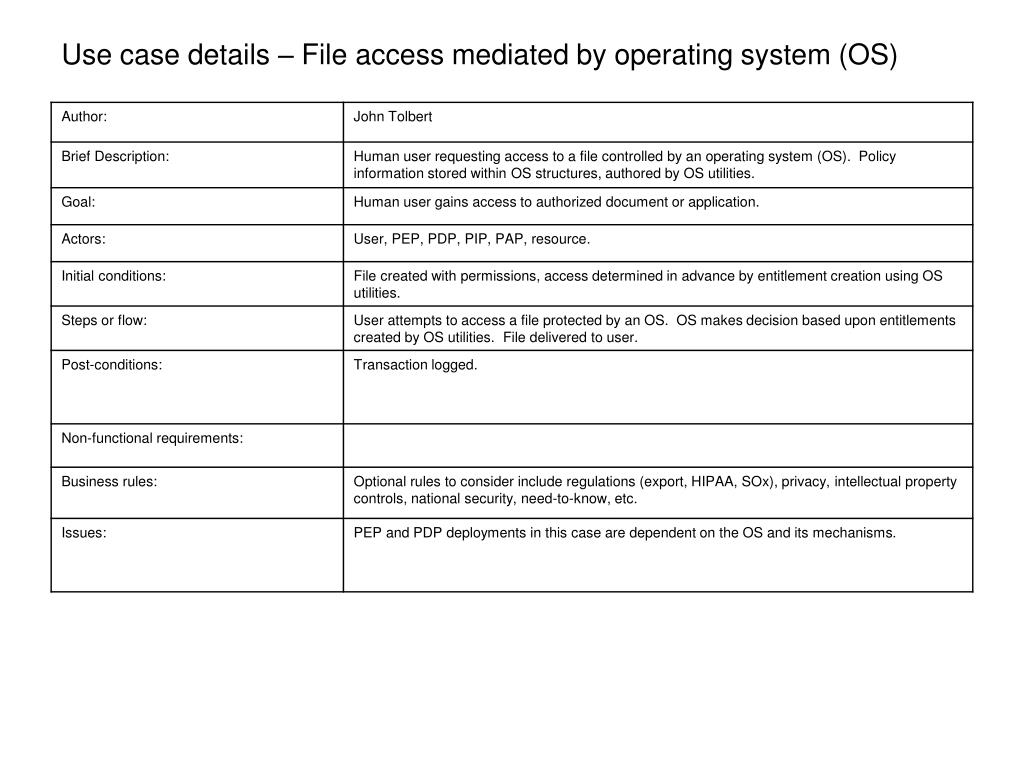

  7. Use case details – File access mediated by operating system (OS)

  8. AuthZ Use Case – remote network access to virtual private network (VPN) Target Resource Principal PEP VPN User/device Network Environment Time/Location PDP RADIUS PAP PIP RADIUS utilities RADIUS DB

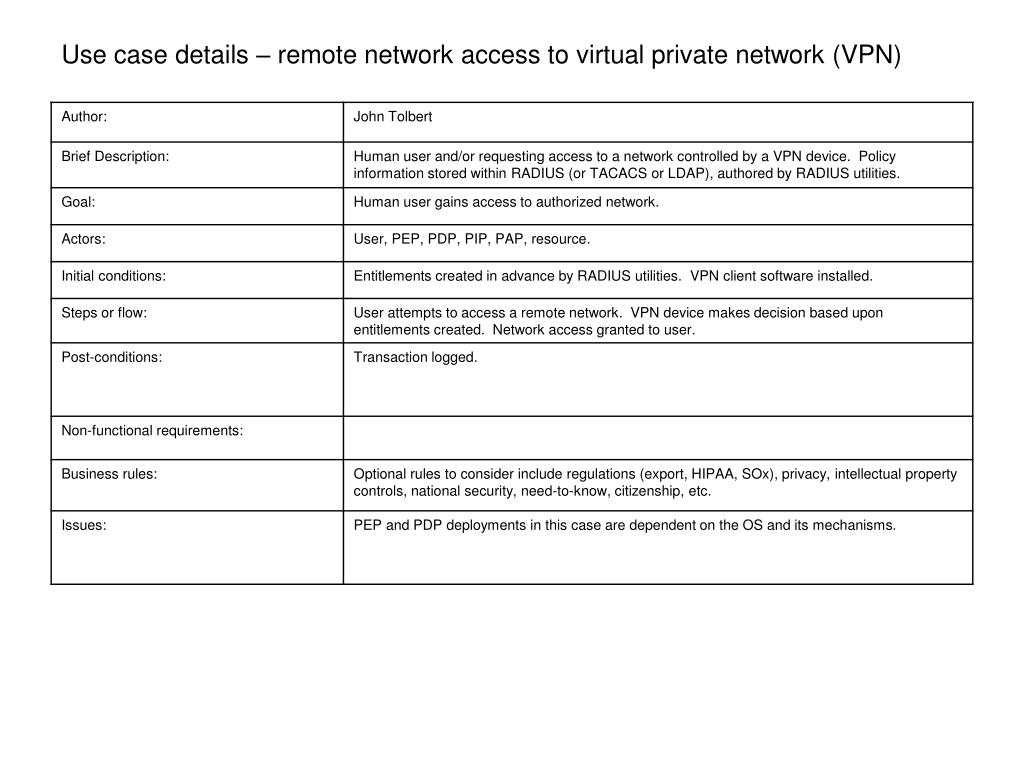

  9. Use case details – remote network access to virtual private network (VPN)

  10. AuthZ Use Case – Database access using local DB accounts Target Resource Principal PEP DB User/device Rows, columns, or tables Environment Time/Location PDP DB PIP PAP DB security tables DB utilities

  11. Use case details – Database access using local DB accounts

  12. AuthZ Use Case – Database access via web application Target Resource Principal PEP Web app/ Service account DB Rows, columns, or tables Environment Time/Location PDP DB PIP PAP DB security tables DB utilities

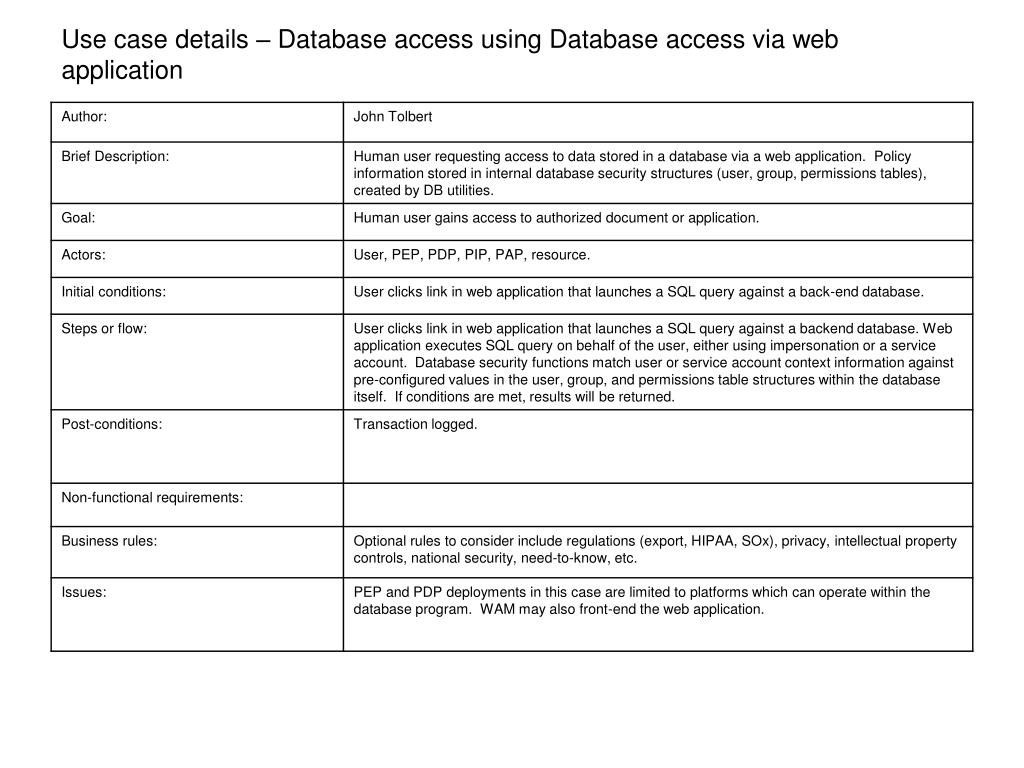

  13. Use case details – Database access using Database access via web application

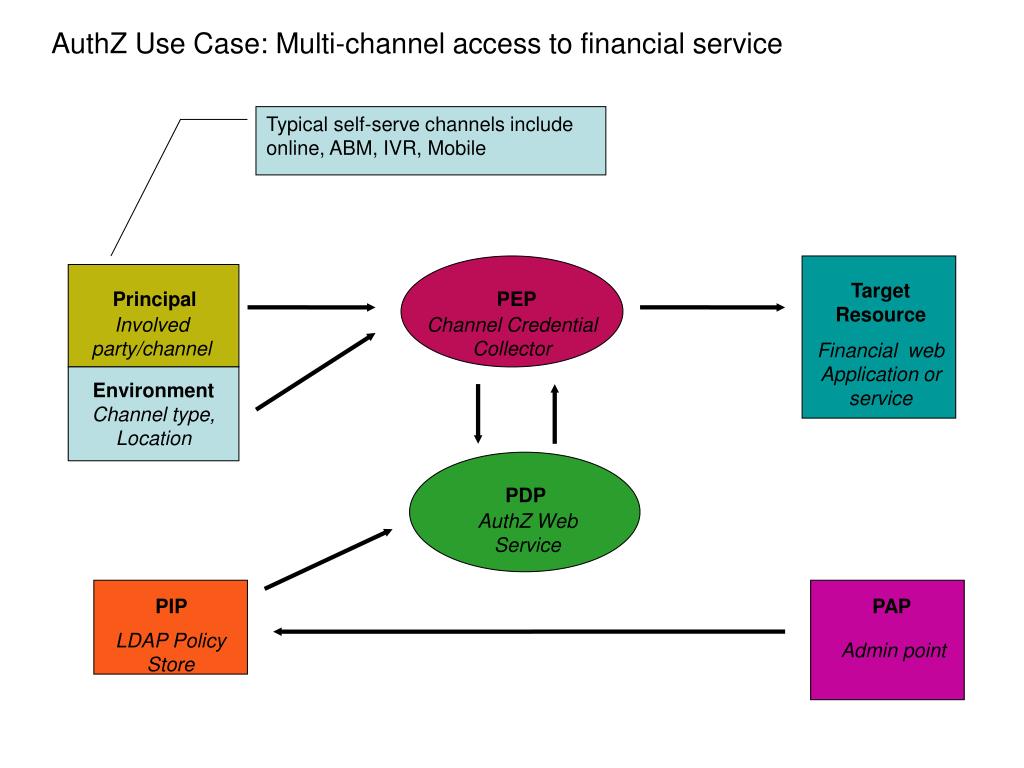

  14. AuthZ Use Case: Multi-channel access to financial service Typical self-serve channels include online, ABM, IVR, Mobile Target Resource Principal PEP Involved party/channel Channel Credential Collector Financial web Application or service Environment Channel type, Location PDP AuthZ Web Service PIP PAP LDAP Policy Store Admin point

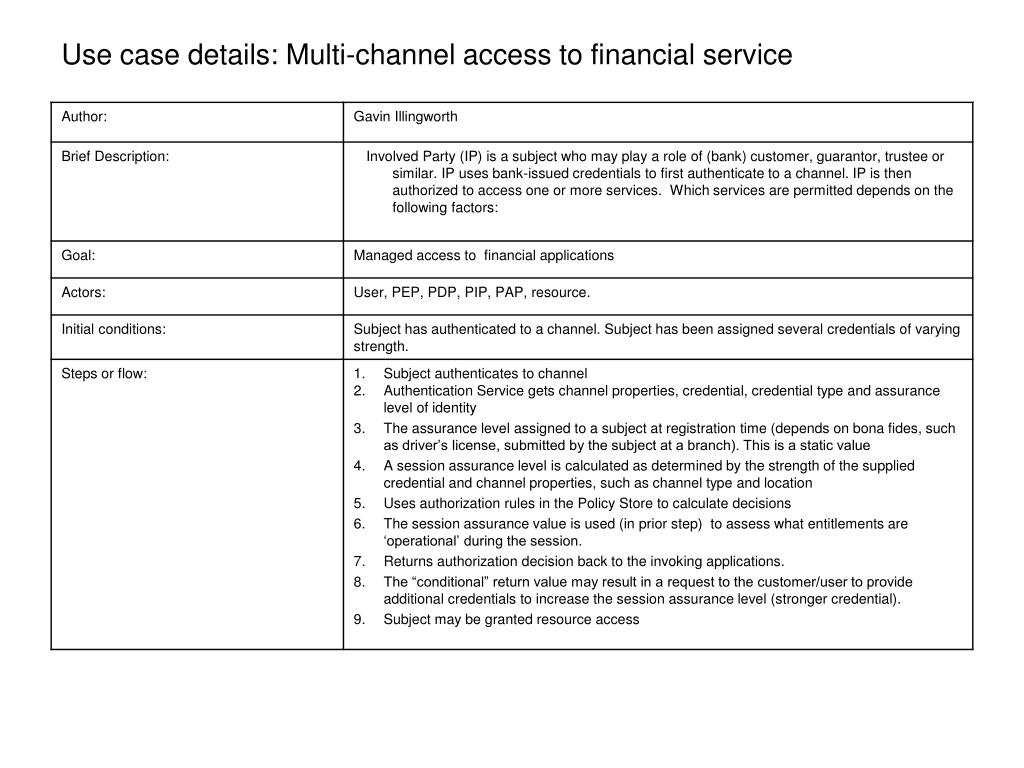

  15. Use case details: Multi-channel access to financial service

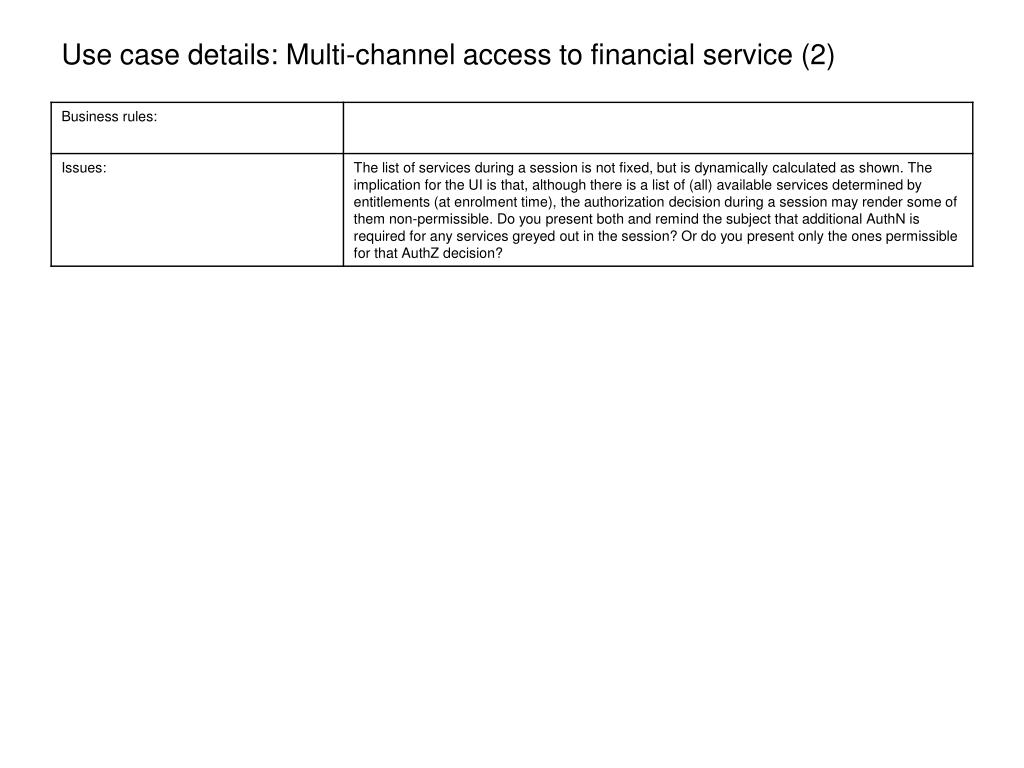

  16. Use case details: Multi-channel access to financial service (2)
