Dataset for Camera Algorithm

This dataset includes detailed performance characteristics of a line scan imaging sensor with 1x128 pixels and a 0-5 volts output for each pixel. It presents actual data captured on April 19th, showing the line intensity scan. The camera demonstrates two lines of output: yellow indicates the start of capture, green indicates the camera feed, and purple denotes the pulse used to obtain the 128x1 data. Additionally, it outlines the TAUS exposure delay settings (25, 75, and 125 ms) under bright lighting conditions and no light scenarios, revealing the sensor's efficiency during cycle runs.

gilead
Download Presentation

Dataset for Camera Algorithm

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Dataset for Camera Algorithm

  2. Linescan Imaging Sensor 1x128 pixels 0-5 volts output for each pixel One pixel returned for each clock pulse

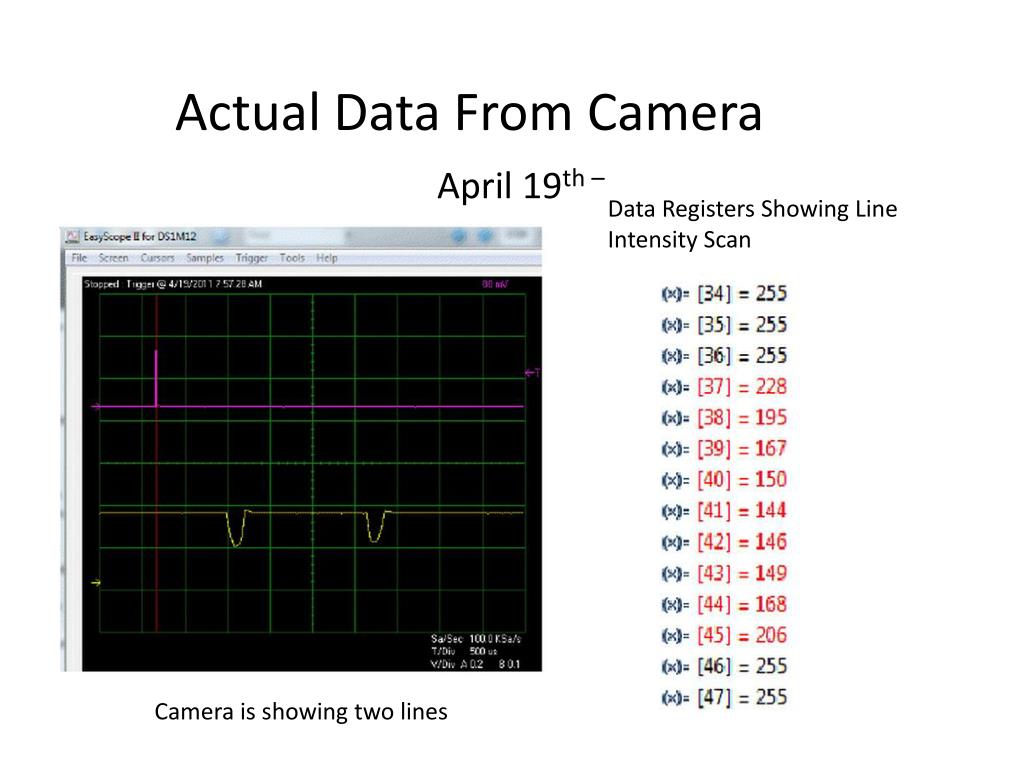

  3. Actual Data From CameraApril 19th – Data Registers Showing Line Intensity Scan Camera is showing two lines

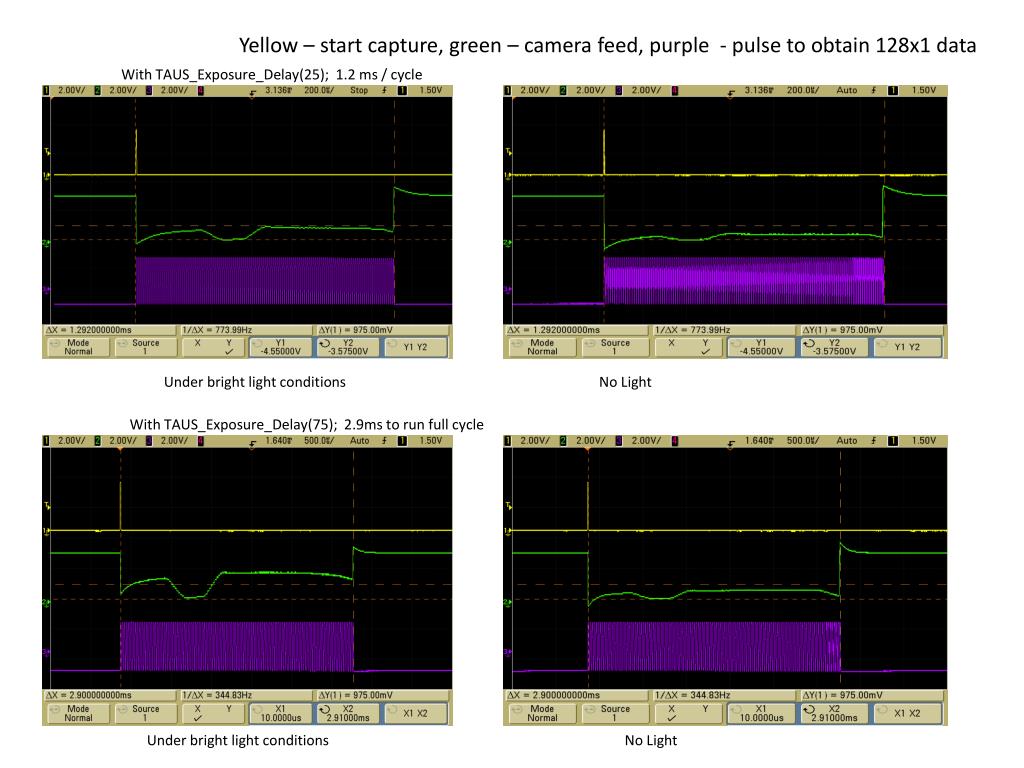

  4. Yellow – start capture, green – camera feed, purple - pulse to obtain 128x1 data With TAUS_Exposure_Delay(25); 1.2 ms / cycle Under bright light conditions No Light With TAUS_Exposure_Delay(75); 2.9ms to run full cycle Under bright light conditions No Light

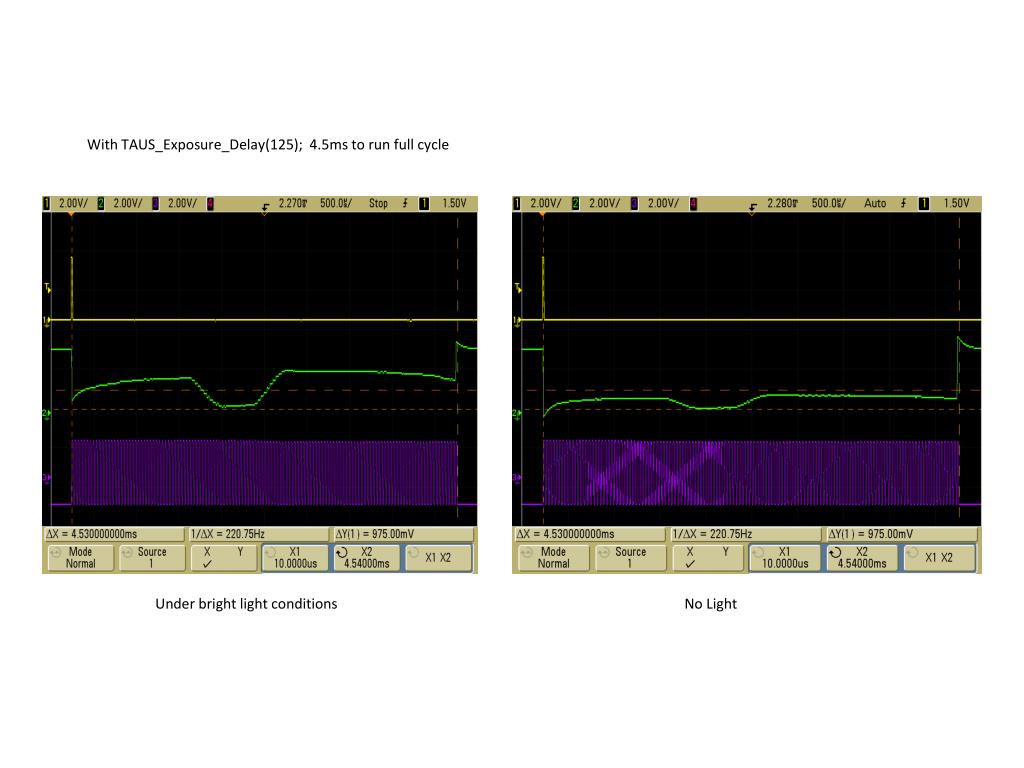

  5. With TAUS_Exposure_Delay(125); 4.5ms to run full cycle Under bright light conditions No Light
