Plate Tectonics

Plate Tectonics. 9 .1 Continental Drift. Evidence for Continental Drift Pangaea Alfred Wegener – proposed continental drift as a theory Continental Drift – continents have moved slowly to their current locations Pangaea – one large landmass that broke apart 200 million years ago.

gilda
Download Presentation

Plate Tectonics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Plate Tectonics 9.1 Continental Drift

  2. Evidence for Continental Drift • Pangaea • Alfred Wegener – proposed continental drift as a theory • Continental Drift – continents have moved slowly to their current locations • Pangaea – one large landmass that broke apart 200 million years ago. • Pangaea means “all land” • Continental drift was accepted long after Wegener’s death in 1930. • Fossil Clues • Mesosaurus found on both Africa and South America. • Glossopteris found on Africa, Australia, India, South America, and Antarctica.

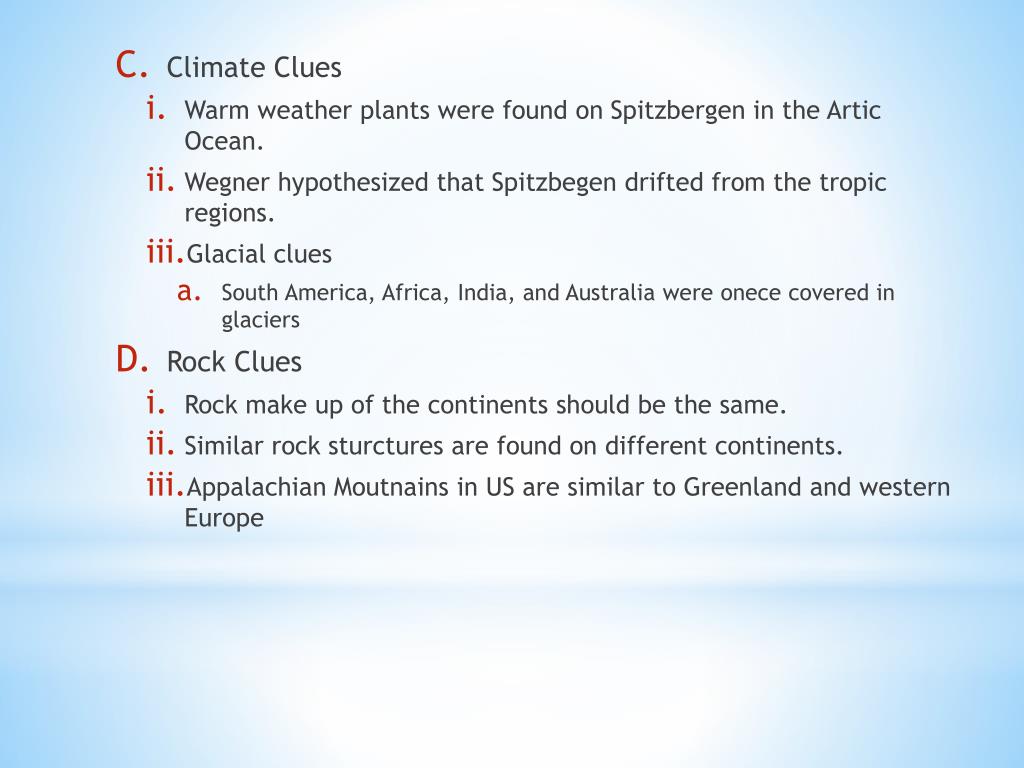

  3. Climate Clues • Warm weather plants were found on Spitzbergen in the Artic Ocean. • Wegner hypothesized that Spitzbegen drifted from the tropic regions. • Glacial clues • South America, Africa, India, and Australia were onece covered in glaciers • Rock Clues • Rock make up of the continents should be the same. • Similar rock sturctures are found on different continents. • Appalachian Moutnains in US are similar to Greenland and western Europe

  4. How could continents drift? • Although there was evidence, Wegener couldn’t explain how or why continental drift happened. • Continental drift was rejected. • After Wegner’s death, more clues were found. • Seafloor spreading helped explain how continental drift could occur. Pg 251 1-3

  5. Plate Tectonics 9.2 Seafloor Spreading

  6. Clues on the Ocean Floor • Little was known before 1950s • Has mountains and valleys • mid-ocean ridges form an underwater mountain range that stretches along the center

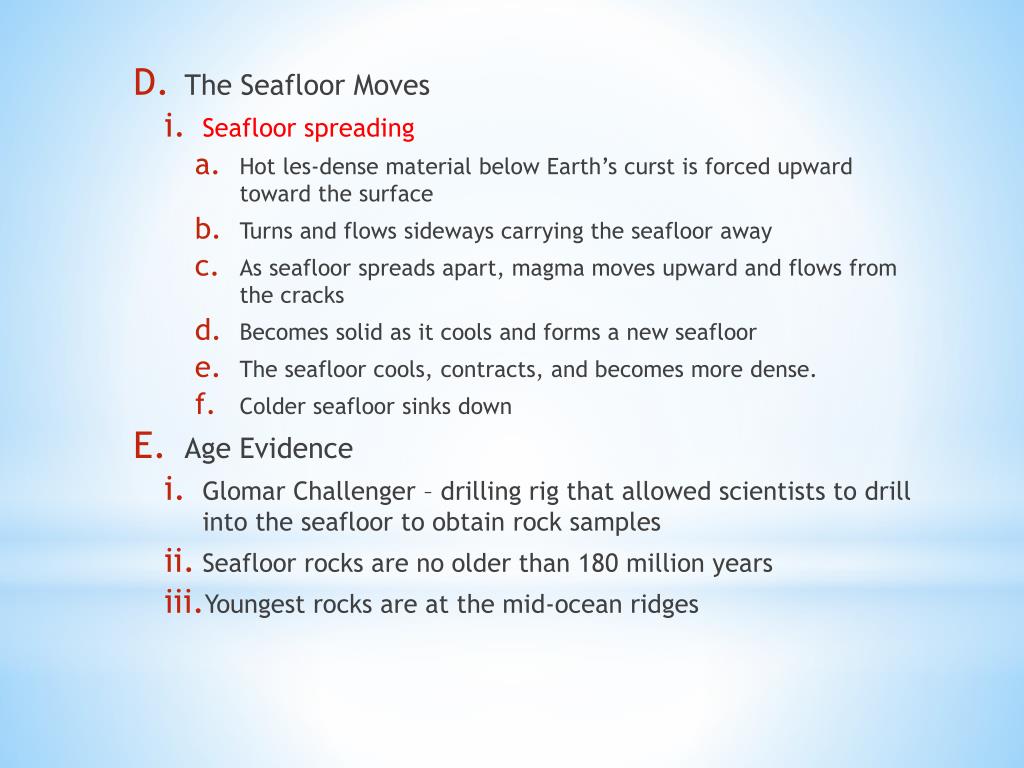

  7. The Seafloor Moves • Seafloor spreading • Hot les-dense material below Earth’s curst is forced upward toward the surface • Turns and flows sideways carrying the seafloor away • As seafloor spreads apart, magma moves upward and flows from the cracks • Becomes solid as it cools and forms a new seafloor • The seafloor cools, contracts, and becomes more dense. • Colder seafloor sinks down • Age Evidence • Glomar Challenger – drilling rig that allowed scientists to drill into the seafloor to obtain rock samples • Seafloor rocks are no older than 180 million years • Youngest rocks are at the mid-ocean ridges

  8. Magnetic Clues • Earth’s magnetic field has a north and a south pole • Magnetic lines leave Earth near the north pole and enter near the south pole • Magnetic reversal – magnetic forces run the opposite way • Earth’s magnetic field has reversed many times • Iron-bearing minerals show the reversal of magnetic field • Magnetic reversals form parallel strips to the mid-ocean ridges

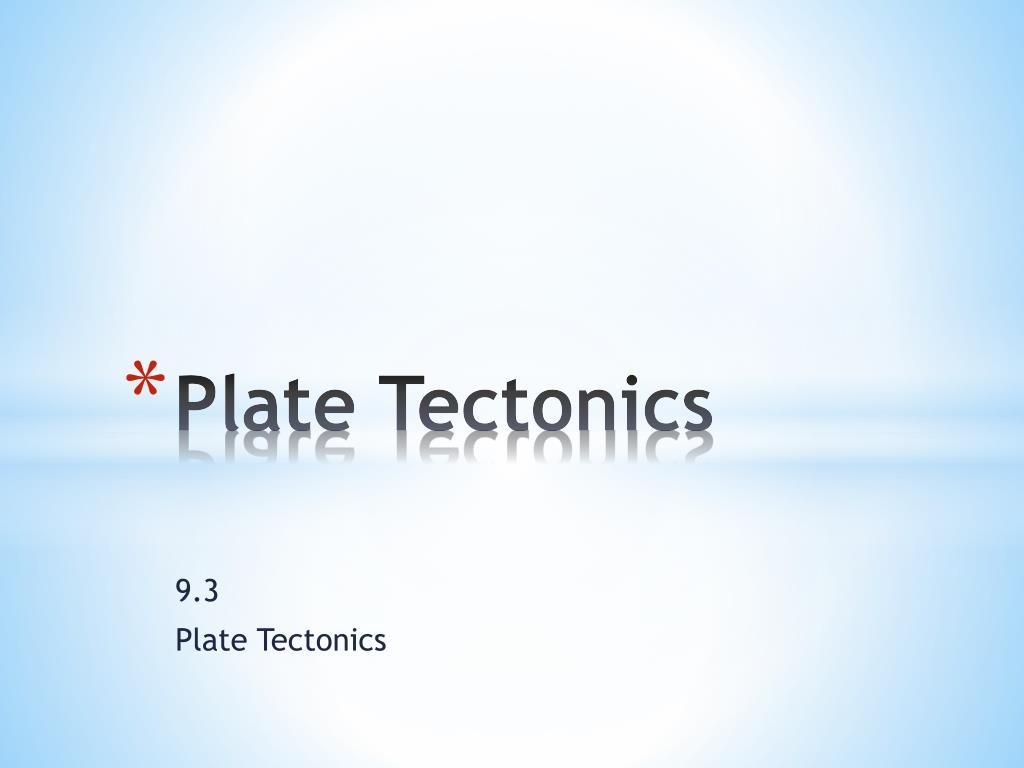

  9. Plate Tectonics 9.3 Plate Tectonics

  10. Plate Tectonics • Plate Movements • 1969s – combined continental drift and seafloor spreading. • Plate tectonics – Earth’s crust and upper mantle are in sections that move. • Plates – the sections of the Earth’s crust and upper mantle • Composition of Earth’s Plates • Lithosphere – crust and part of the upper mantle • Asthenosphere – plastic like layer below the lithosphere • Plates of the lithosphere “float” on the asthenosphere

  11. Plate Boundaries • Plates Moving Apart • Divergent boundary • Seafloor spreading • North American pate is moving away from the Eurasian and African plates – Mid-Atlantic Ridge • Great Rift Valley in eastern Africa • Plates Moving Together • Convergent boundary • 3 types • Subduction zone – oceanic plate forced under a continental plates and volcanoes form • Two seafloor plates collide, one sinks, new magma forms island arc of volcanoes • Two continental plates collide, forming mountain ranges. Earthquakes are common

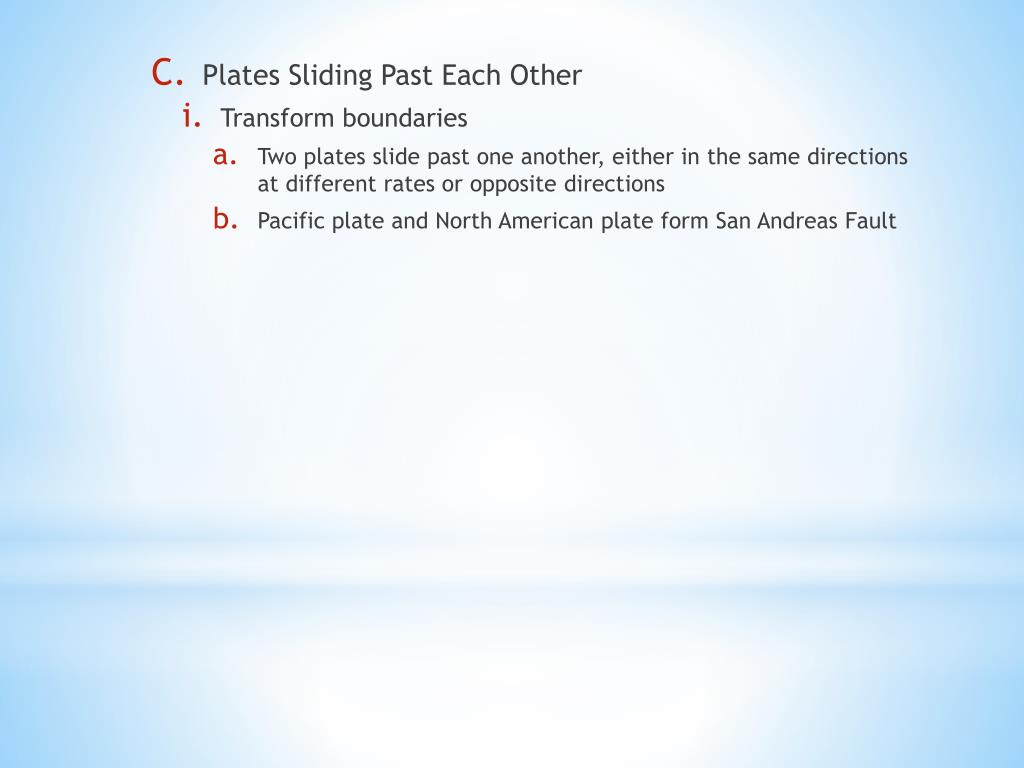

  12. Plates Sliding Past Each Other • Transform boundaries • Two plates slide past one another, either in the same directions at different rates or opposite directions • Pacific plate and North American plate form San Andreas Fault
