eecs 122 introduction to computer networks congestion control

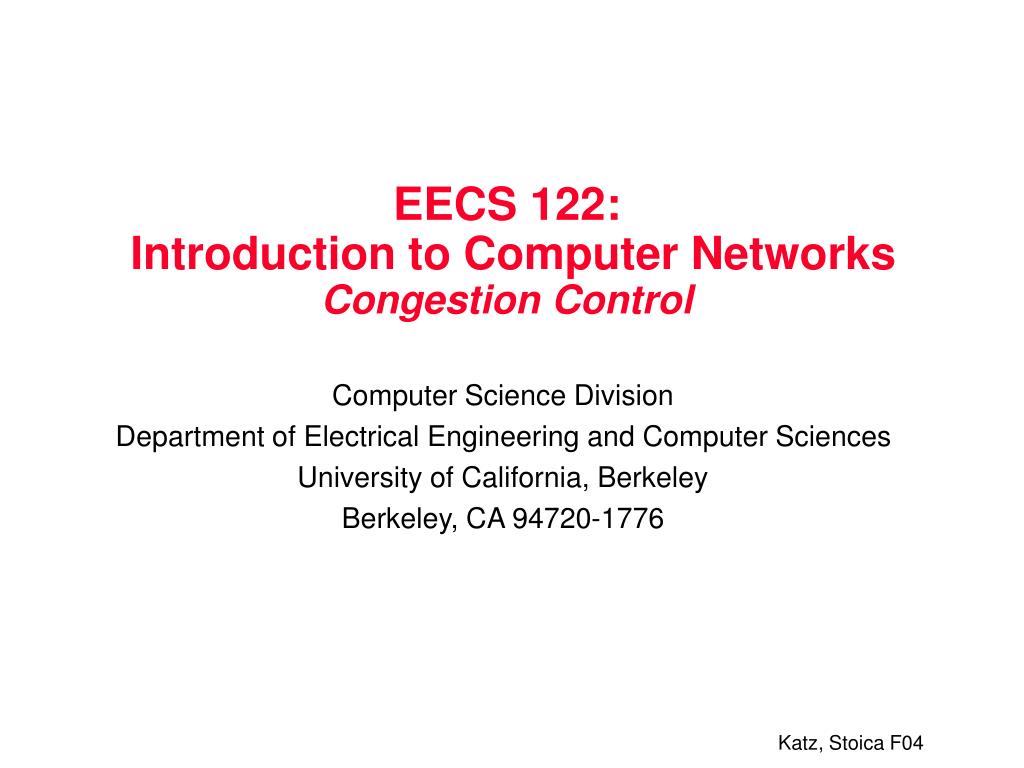

EECS 122: Introduction to Computer Networks Congestion Control

Computer Science Division

Department of Electrical Engineering and Computer Sciences

University of California, Berkeley

Berkeley, CA 94720-1776

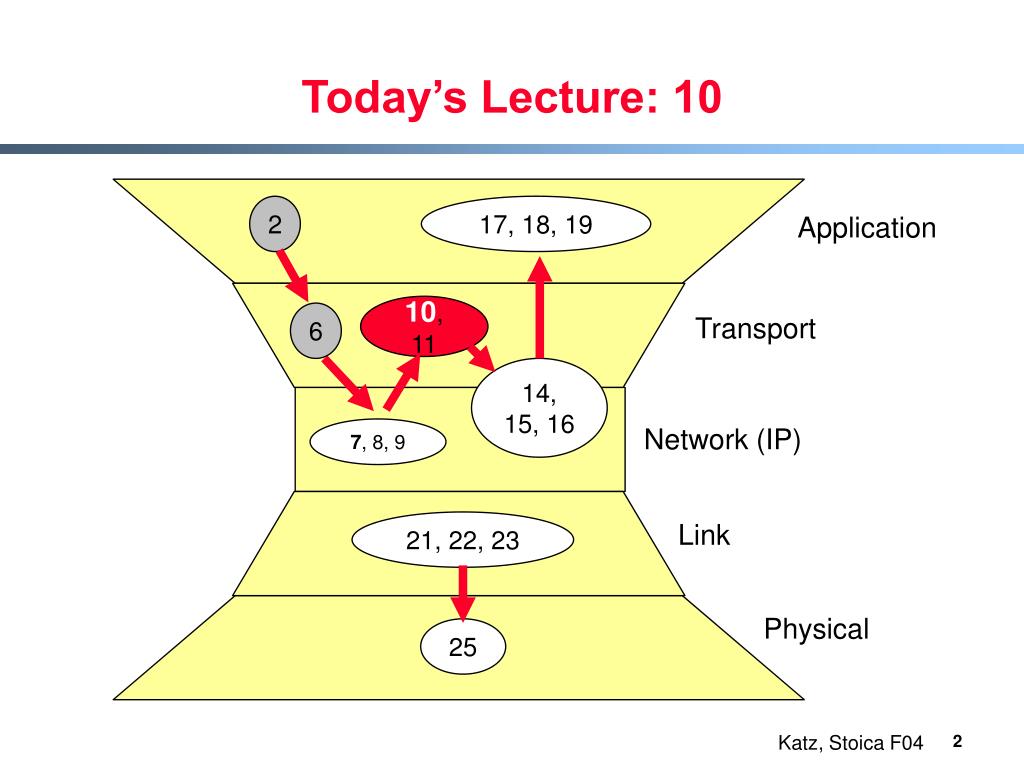

today s lecture 10
Today’s Lecture: 10

2

17, 18, 19

Application

10, 11

6

Transport

14, 15, 16

Network (IP)

7, 8, 9

21, 22, 23

Link

Physical

25

big picture

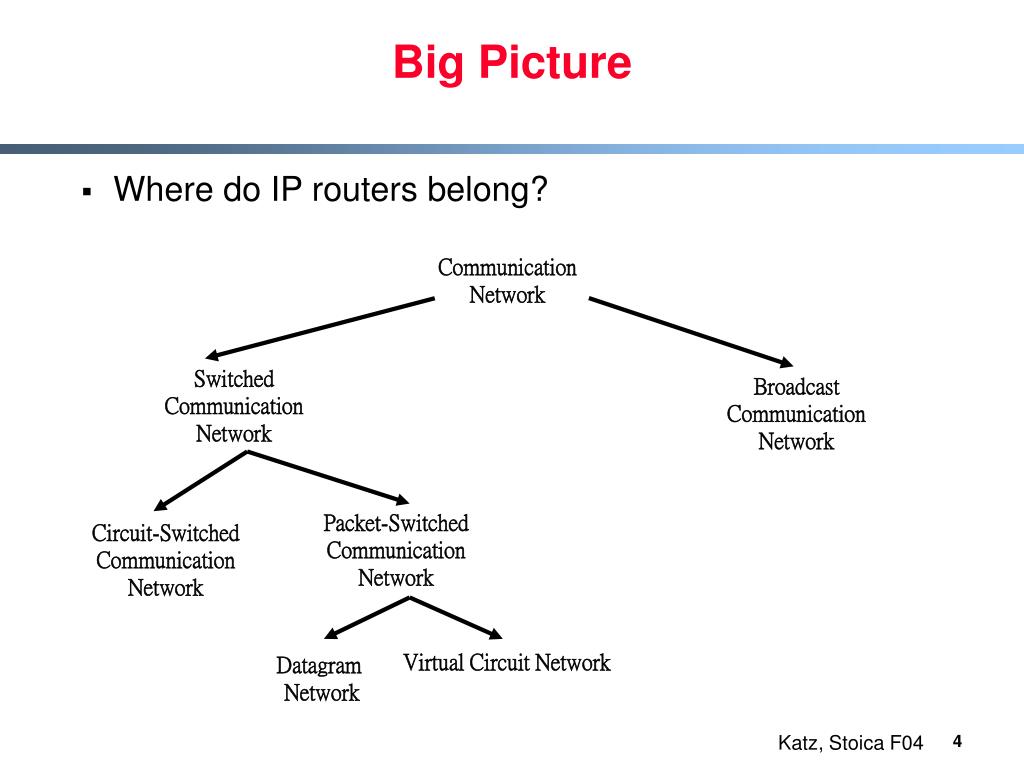

Big Picture
  • Where do IP routers belong?

Communication Network

SwitchedCommunication Network

BroadcastCommunication Network

Packet-SwitchedCommunication Network

Circuit-SwitchedCommunication Network

Virtual Circuit Network

Datagram Network

packet datagram switching properties

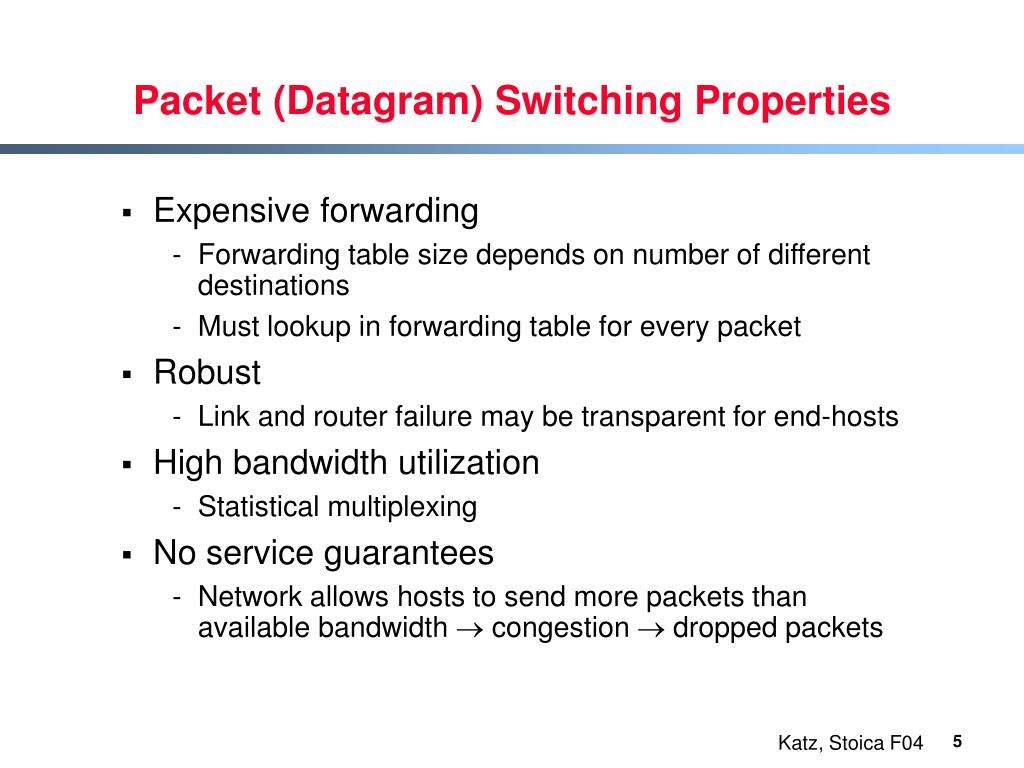

Packet (Datagram) Switching Properties
  • Expensive forwarding
    • Forwarding table size depends on number of different destinations
    • Must lookup in forwarding table for every packet
  • Robust
    • Link and router failure may be transparent for end-hosts
  • High bandwidth utilization
    • Statistical multiplexing
  • No service guarantees
    • Network allows hosts to send more packets than available bandwidth  congestion  dropped packets
virtual circuit vc switching

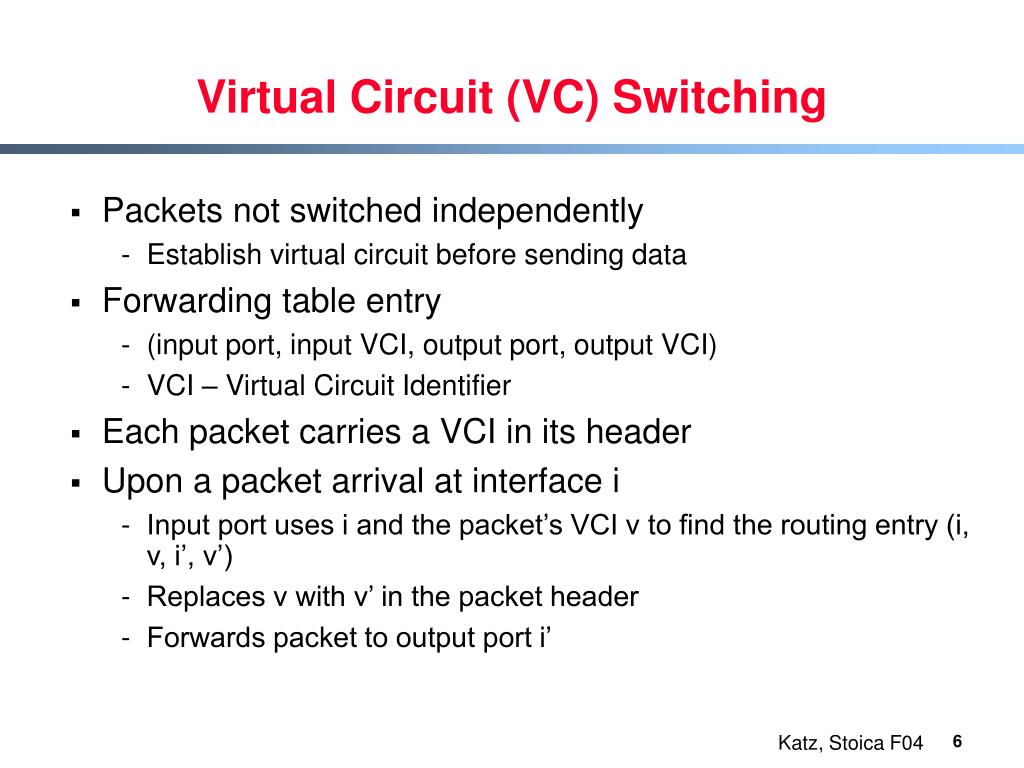

Virtual Circuit (VC) Switching
  • Packets not switched independently
    • Establish virtual circuit before sending data
  • Forwarding table entry
    • (input port, input VCI, output port, output VCI)
    • VCI – Virtual Circuit Identifier
  • Each packet carries a VCI in its header
  • Upon a packet arrival at interface i
    • Input port uses i and the packet’s VCI v to find the routing entry (i, v, i’, v’)
    • Replaces v with v’ in the packet header
    • Forwards packet to output port i’
vc forwarding example

1

11

5

7

VC Forwarding: Example

in-VCI

out-VCI

out

in

in-VCI

out-VCI

out

in

1

7

4

1

destination

source

3

5

4

11

1

1

2

2

1

1

3

3

2

2

4

4

3

3

4

4

1

1

2

2

3

3

4

4

in-VCI

out-VCI

out

in

2

11

3

7

vc forwarding cont d

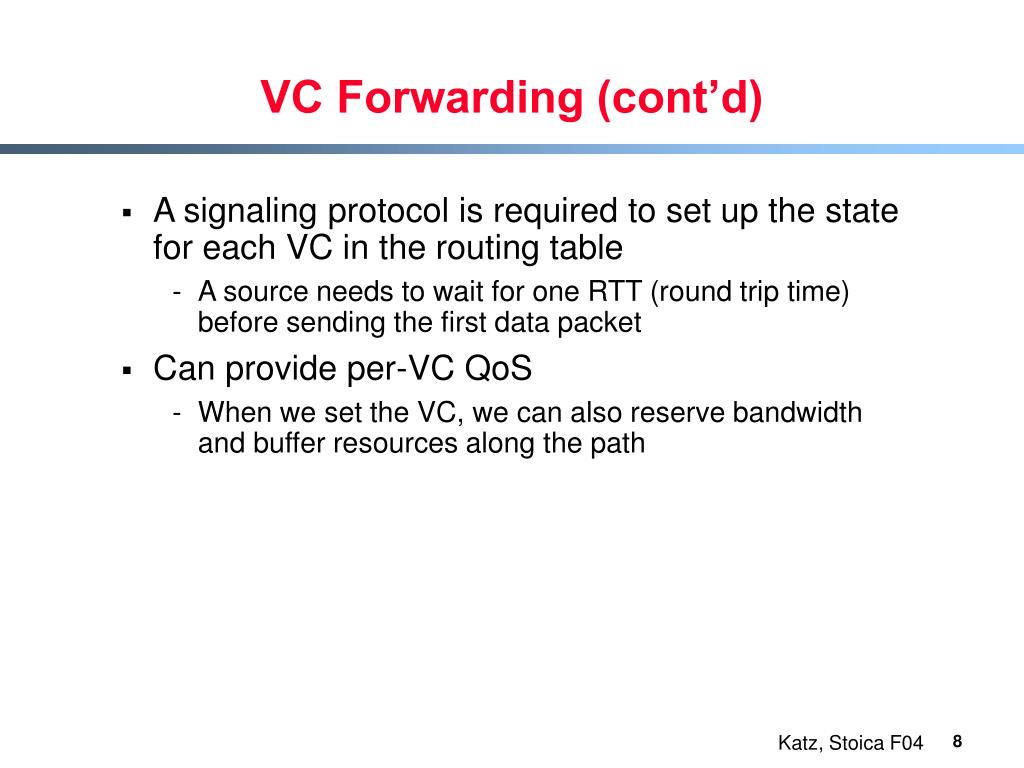

VC Forwarding (cont’d)
  • A signaling protocol is required to set up the state for each VC in the routing table
    • A source needs to wait for one RTT (round trip time) before sending the first data packet
  • Can provide per-VC QoS
    • When we set the VC, we can also reserve bandwidth and buffer resources along the path
vc switching properties

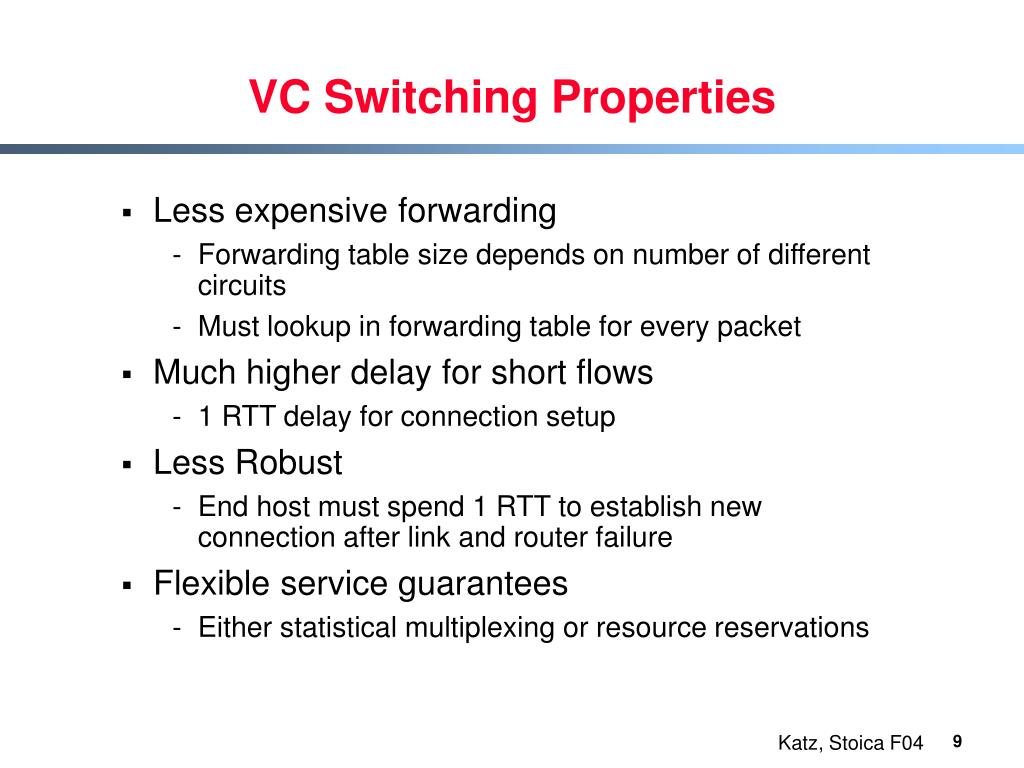

VC Switching Properties
  • Less expensive forwarding
    • Forwarding table size depends on number of different circuits
    • Must lookup in forwarding table for every packet
  • Much higher delay for short flows
    • 1 RTT delay for connection setup
  • Less Robust
    • End host must spend 1 RTT to establish new connection after link and router failure
  • Flexible service guarantees
    • Either statistical multiplexing or resource reservations
circuit switching

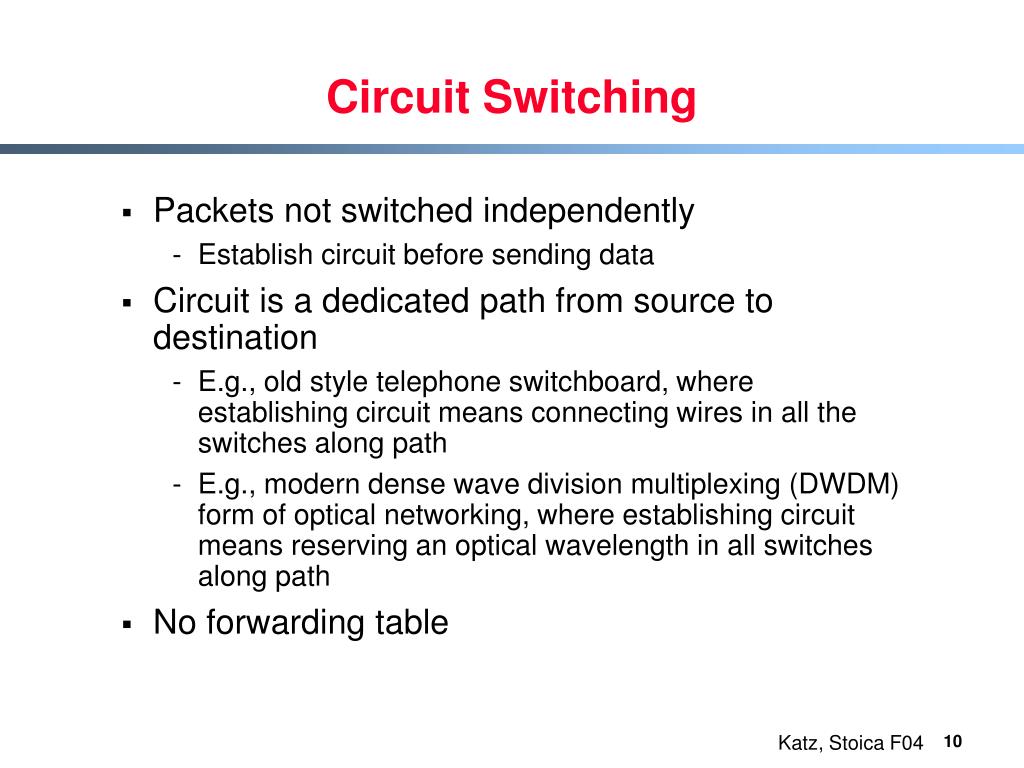

Circuit Switching
  • Packets not switched independently
    • Establish circuit before sending data
  • Circuit is a dedicated path from source to destination
    • E.g., old style telephone switchboard, where establishing circuit means connecting wires in all the switches along path
    • E.g., modern dense wave division multiplexing (DWDM) form of optical networking, where establishing circuit means reserving an optical wavelength in all switches along path
  • No forwarding table
circuit switching properties

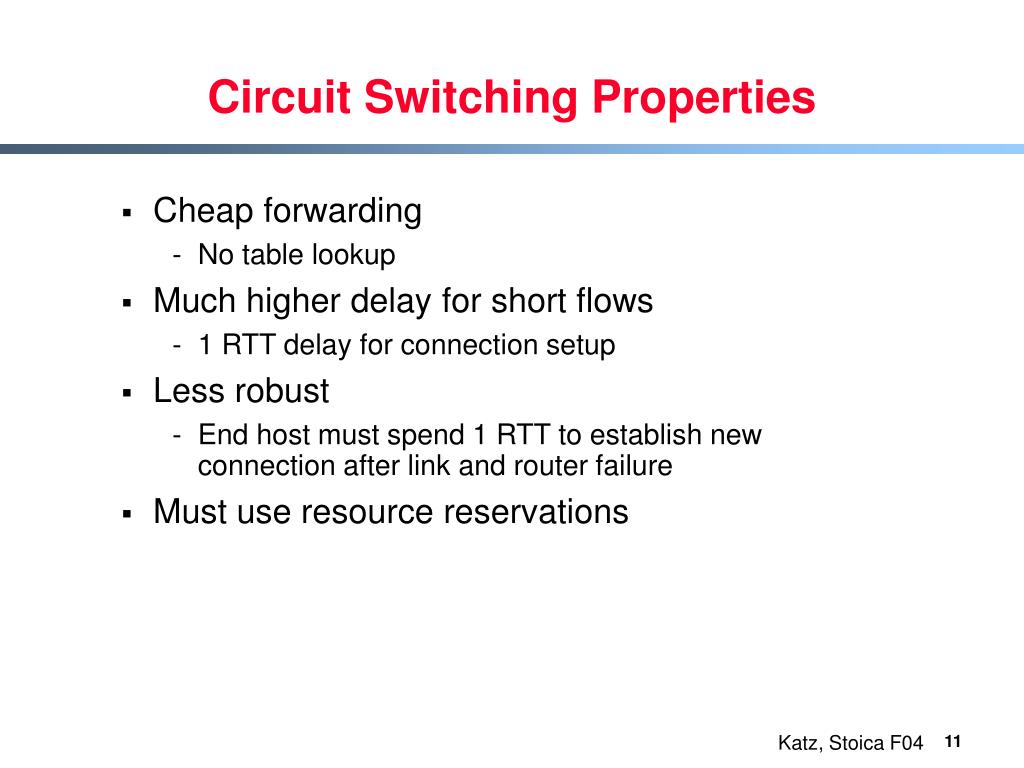

Circuit Switching Properties
  • Cheap forwarding
    • No table lookup
  • Much higher delay for short flows
    • 1 RTT delay for connection setup
  • Less robust
    • End host must spend 1 RTT to establish new connection after link and router failure
  • Must use resource reservations

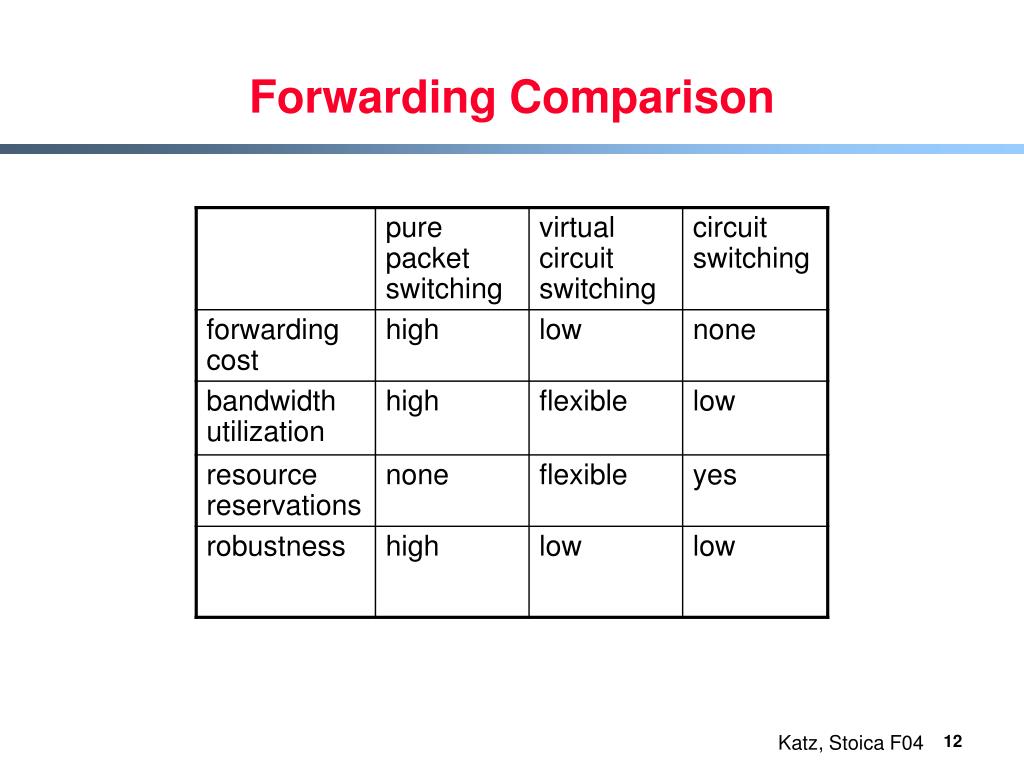

summary

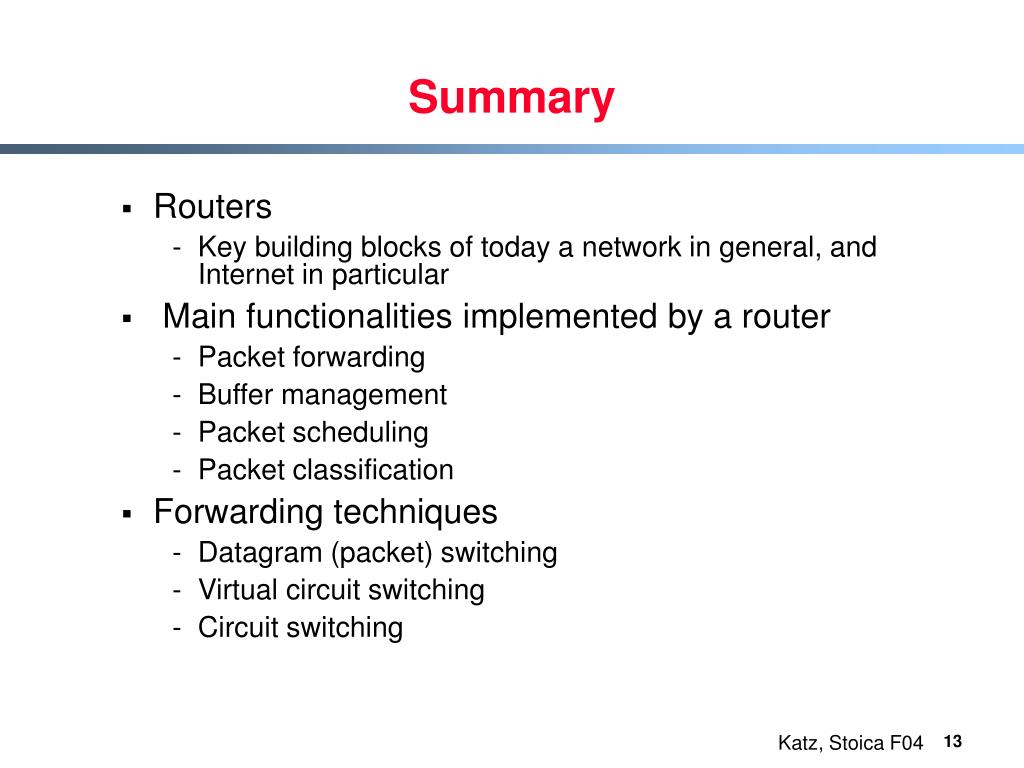

Summary
  • Routers
    • Key building blocks of today a network in general, and Internet in particular
  • Main functionalities implemented by a router
    • Packet forwarding
    • Buffer management
    • Packet scheduling
    • Packet classification
  • Forwarding techniques
    • Datagram (packet) switching
    • Virtual circuit switching
    • Circuit switching
starting new lecture

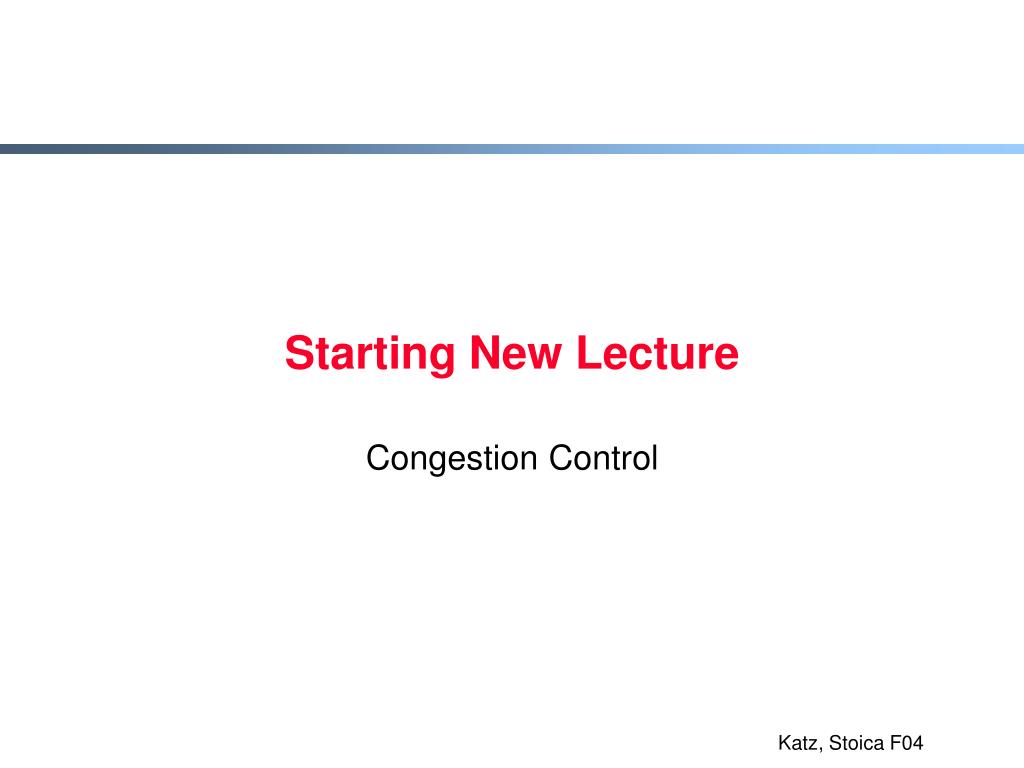

Starting New Lecture

Congestion Control

what we know
What We Know

We know:

  • How to process packets in a switch
  • How to route packets in the network
  • How to send packets reliably

We don’t know:

  • How fast to send
what s at stake

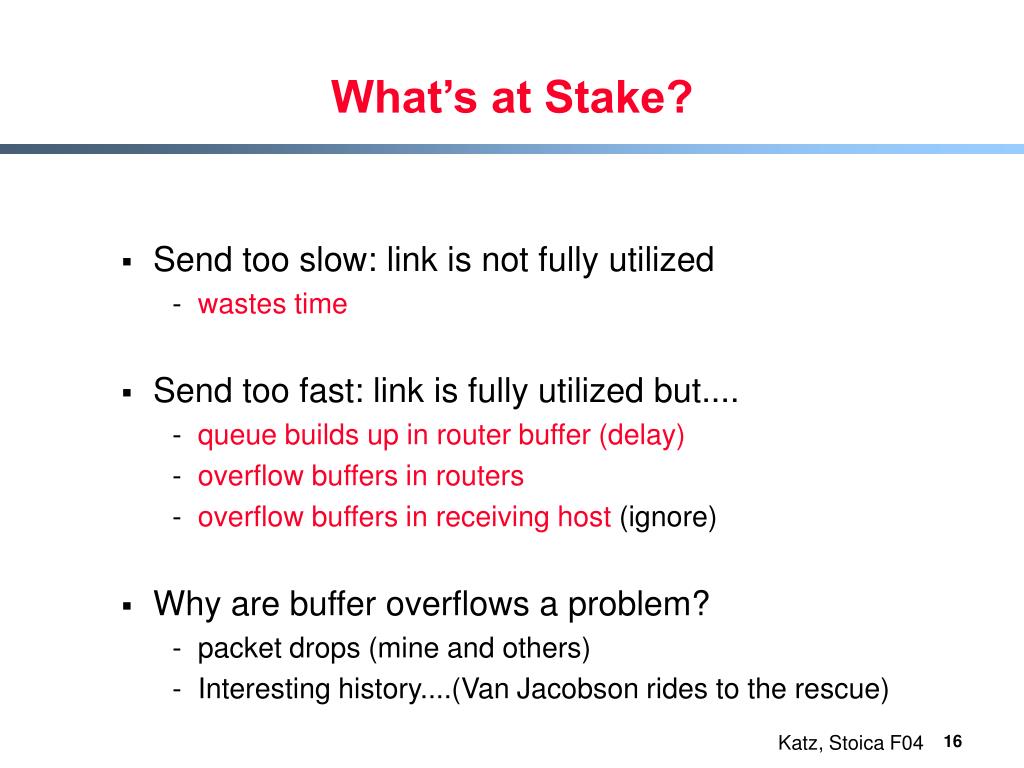

What’s at Stake?
  • Send too slow: link is not fully utilized
    • wastes time
  • Send too fast: link is fully utilized but....
    • queue builds up in router buffer (delay)
    • overflow buffers in routers
    • overflow buffers in receiving host (ignore)
  • Why are buffer overflows a problem?
    • packet drops (mine and others)
    • Interesting history....(Van Jacobson rides to the rescue)
abstract view

A

B

Abstract View
  • We ignore internal structure of router and model it as having a single queue for a particular input-output pair

Receiving Host

Sending Host

Buffer in Router

three congestion control problems
Three Congestion Control Problems
  • Adjusting to bottleneck bandwidth
  • Adjusting to variations in bandwidth
  • Sharing bandwidth between flows
single flow fixed bandwidth

A

B

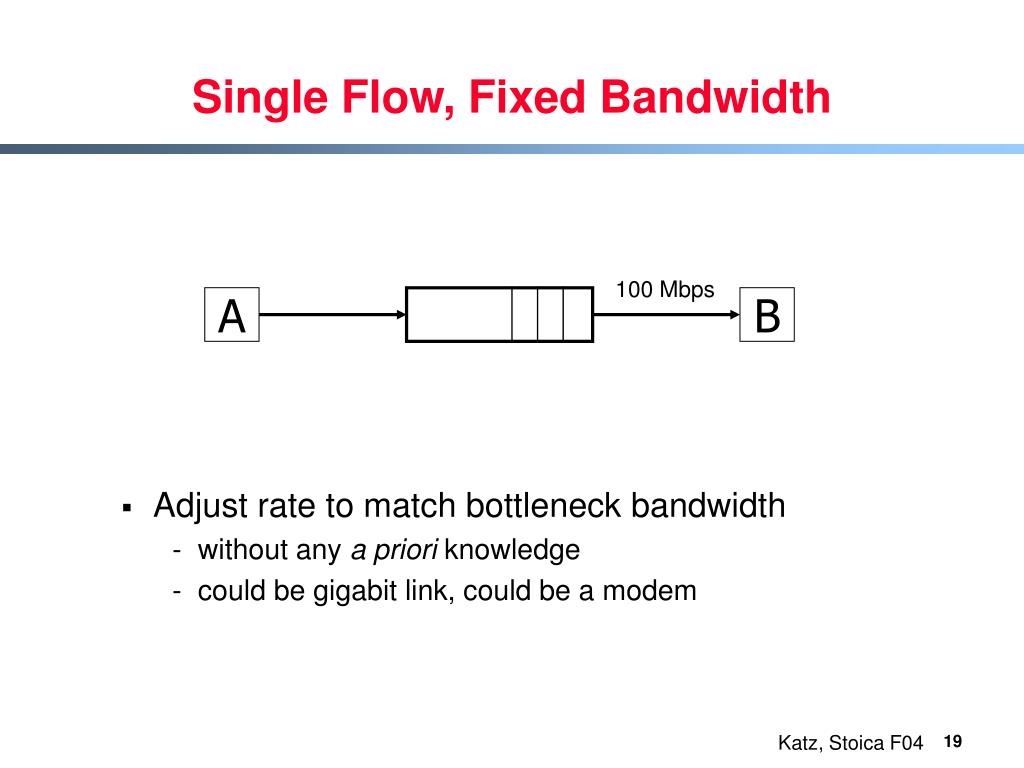

Single Flow, Fixed Bandwidth
  • Adjust rate to match bottleneck bandwidth
    • without any a priori knowledge
    • could be gigabit link, could be a modem

100 Mbps

single flow varying bandwidth

A

B

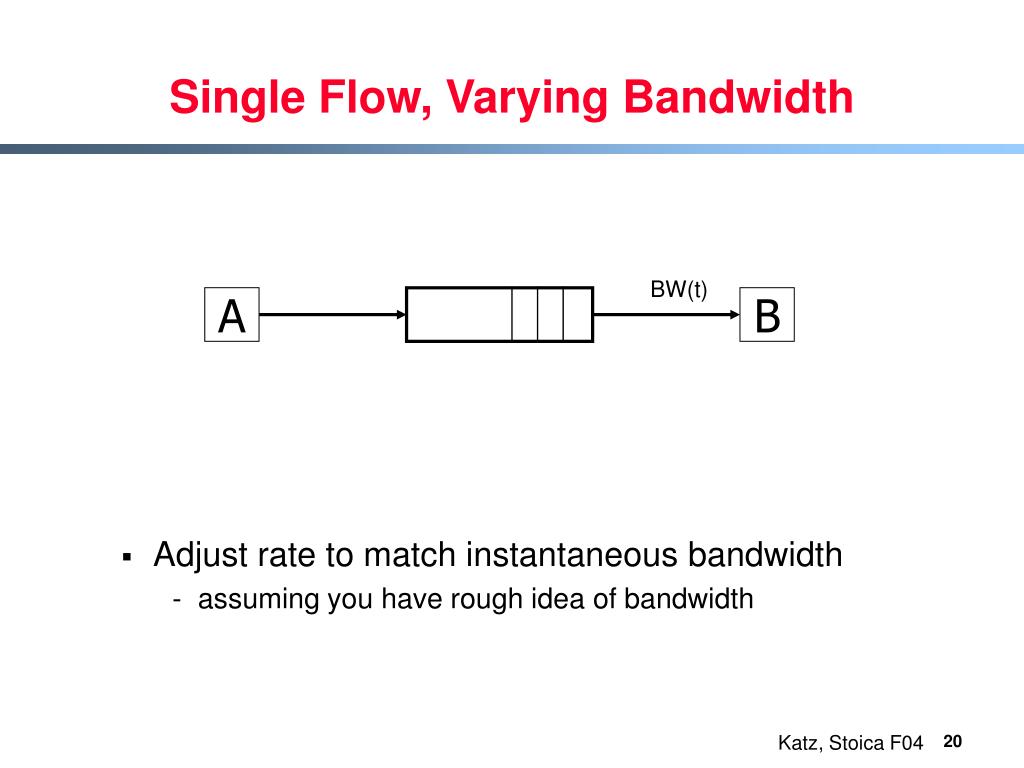

Single Flow, Varying Bandwidth
  • Adjust rate to match instantaneous bandwidth
    • assuming you have rough idea of bandwidth

BW(t)

multiple flows

A1

B1

100 Mbps

A2

B2

A3

B3

Multiple Flows

Two Issues:

  • Adjust total sending rate to match bandwidth
  • Allocation of bandwidth between flows
reality

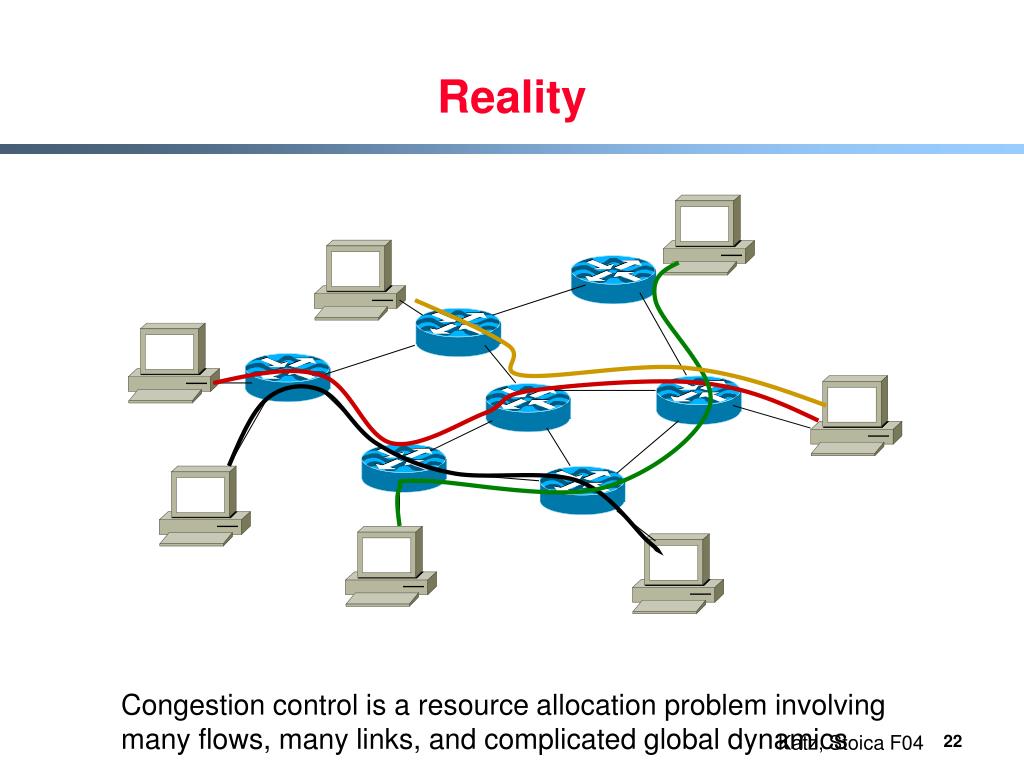

Reality

Congestion control is a resource allocation problem involving many flows, many links, and complicated global dynamics

general approaches

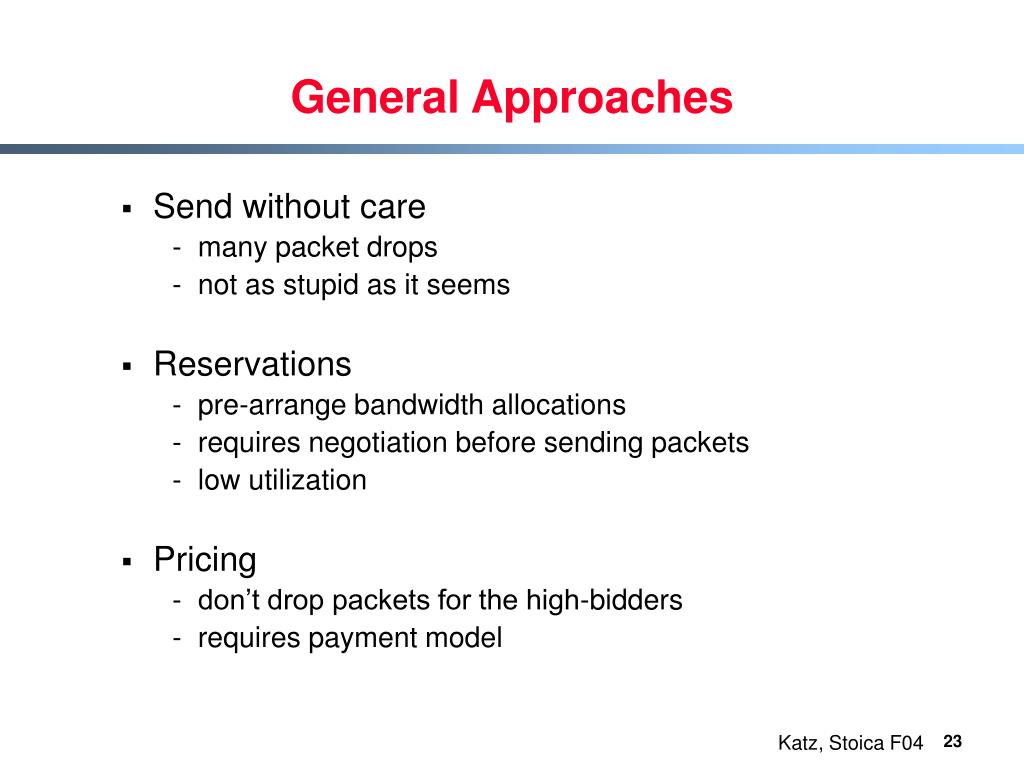

General Approaches
  • Send without care
    • many packet drops
    • not as stupid as it seems
  • Reservations
    • pre-arrange bandwidth allocations
    • requires negotiation before sending packets
    • low utilization
  • Pricing
    • don’t drop packets for the high-bidders
    • requires payment model
general approaches cont d
General Approaches (cont’d)

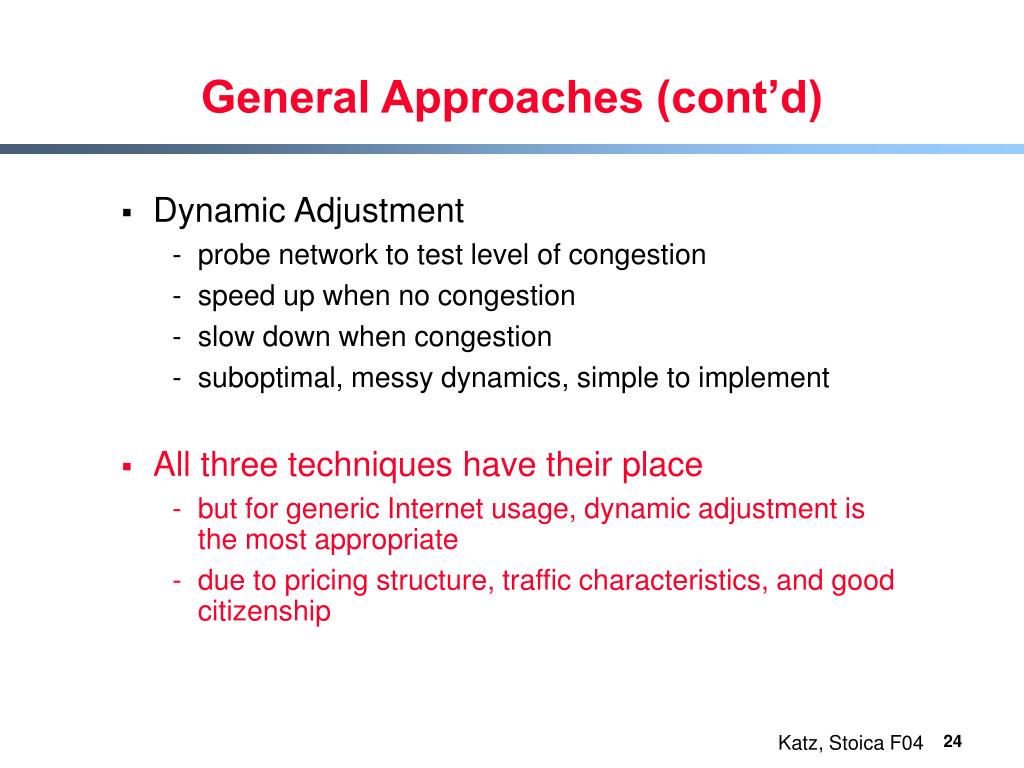

  • Dynamic Adjustment
    • probe network to test level of congestion
    • speed up when no congestion
    • slow down when congestion
    • suboptimal, messy dynamics, simple to implement
  • All three techniques have their place
    • but for generic Internet usage, dynamic adjustment is the most appropriate
    • due to pricing structure, traffic characteristics, and good citizenship
tcp congestion control

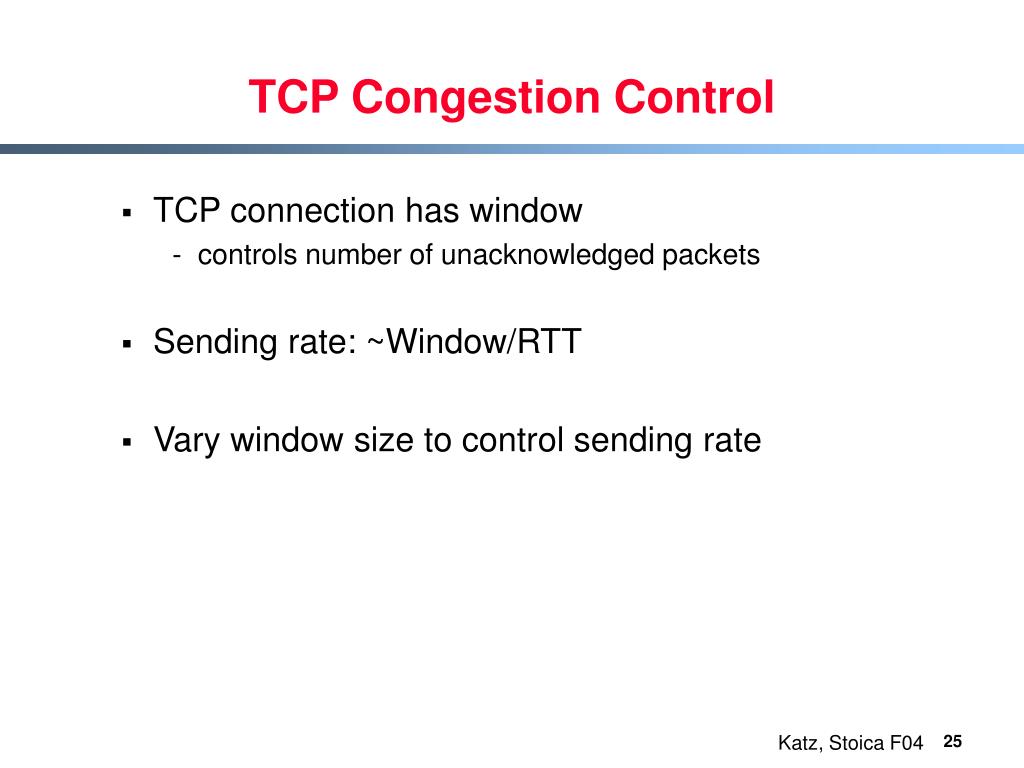

TCP Congestion Control
  • TCP connection has window
    • controls number of unacknowledged packets
  • Sending rate: ~Window/RTT
  • Vary window size to control sending rate
congestion window cwnd
Congestion Window (cwnd)
  • Limits how much data can be in transit
  • Implemented as # of bytes
  • Described as # packets in this lecture

MaxWindow = min(cwnd, AdvertisedWindow)

EffectiveWindow = MaxWindow – (LastByteSent – LastByteAcked)

MaxWindow

LastByteAcked

EffectiveWindow

LastByteSent

sequence number increases

two basic components

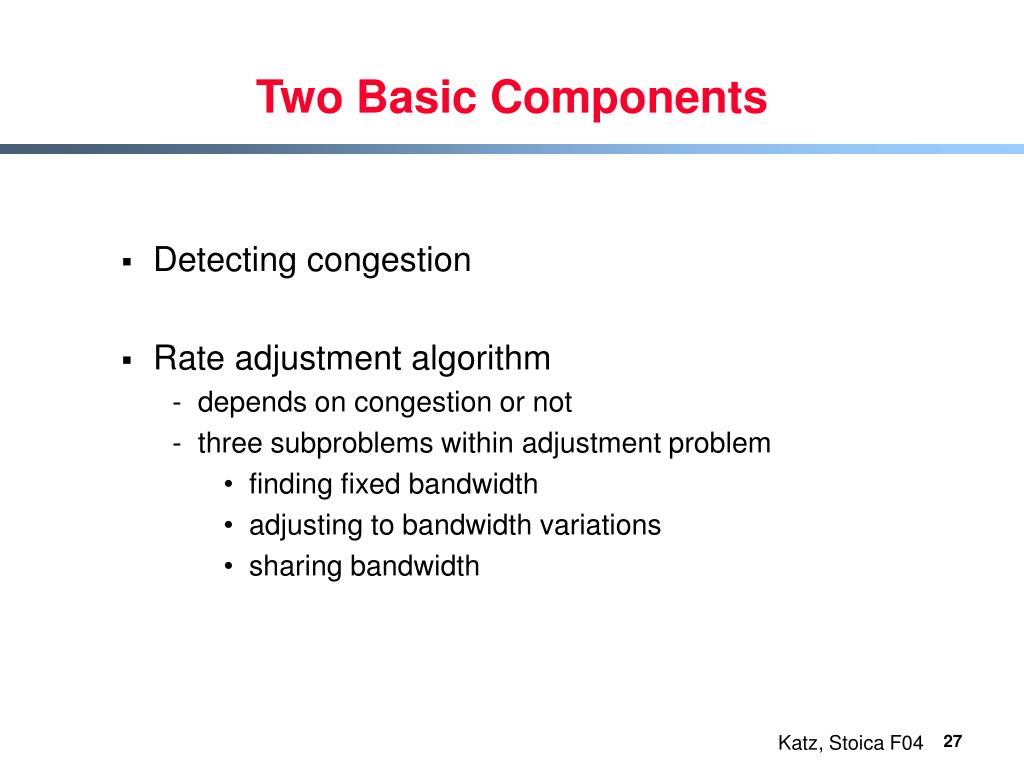

Two Basic Components
  • Detecting congestion
  • Rate adjustment algorithm
    • depends on congestion or not
    • three subproblems within adjustment problem
      • finding fixed bandwidth
      • adjusting to bandwidth variations
      • sharing bandwidth
detecting congestion

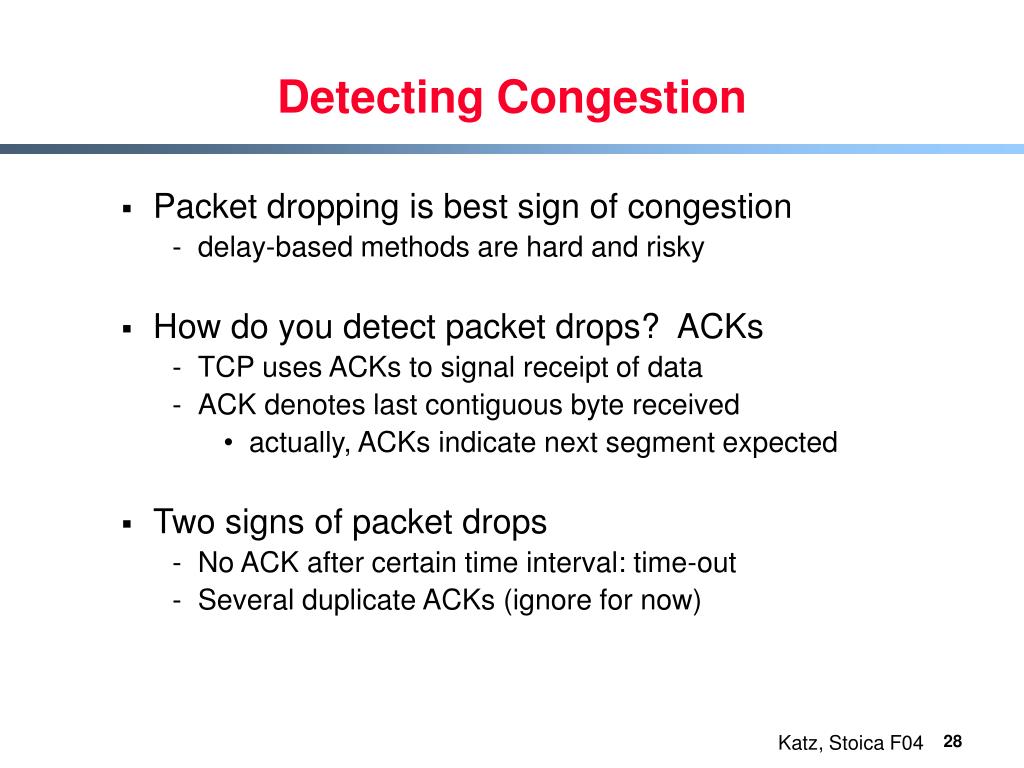

Detecting Congestion
  • Packet dropping is best sign of congestion
    • delay-based methods are hard and risky
  • How do you detect packet drops? ACKs
    • TCP uses ACKs to signal receipt of data
    • ACK denotes last contiguous byte received
      • actually, ACKs indicate next segment expected
  • Two signs of packet drops
    • No ACK after certain time interval: time-out
    • Several duplicate ACKs (ignore for now)
rate adjustment

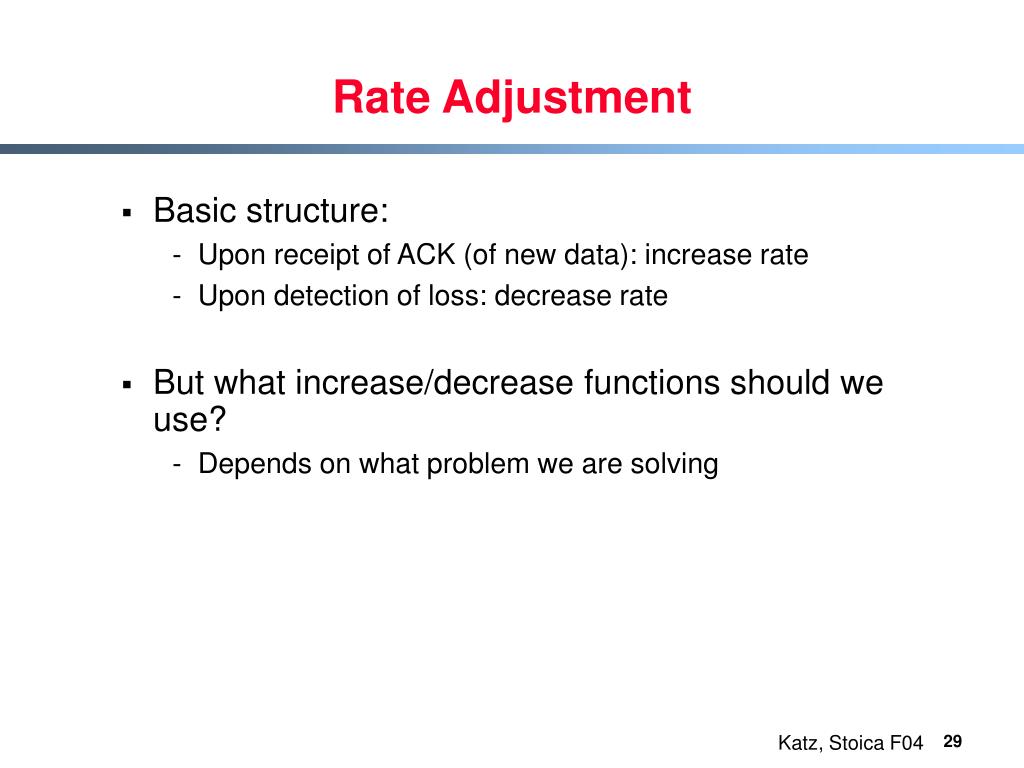

Rate Adjustment
  • Basic structure:
    • Upon receipt of ACK (of new data): increase rate
    • Upon detection of loss: decrease rate
  • But what increase/decrease functions should we use?
    • Depends on what problem we are solving
problem 1 single flow fixed bw

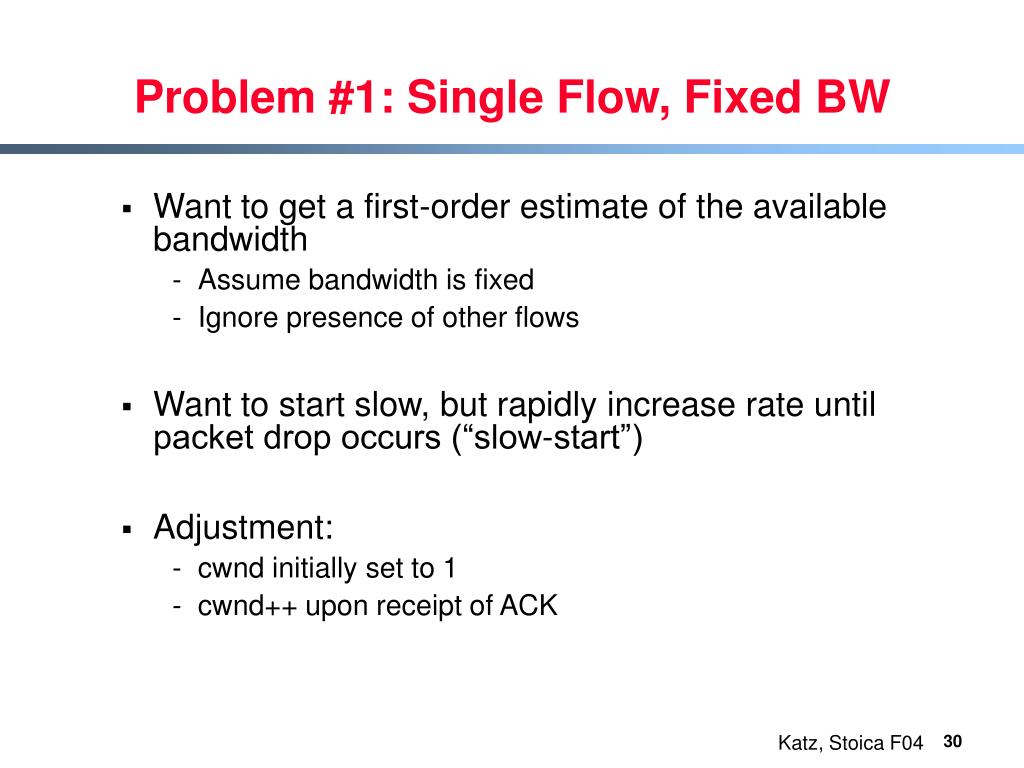

Problem #1: Single Flow, Fixed BW
  • Want to get a first-order estimate of the available bandwidth
    • Assume bandwidth is fixed
    • Ignore presence of other flows
  • Want to start slow, but rapidly increase rate until packet drop occurs (“slow-start”)
  • Adjustment:
    • cwnd initially set to 1
    • cwnd++ upon receipt of ACK
slow start

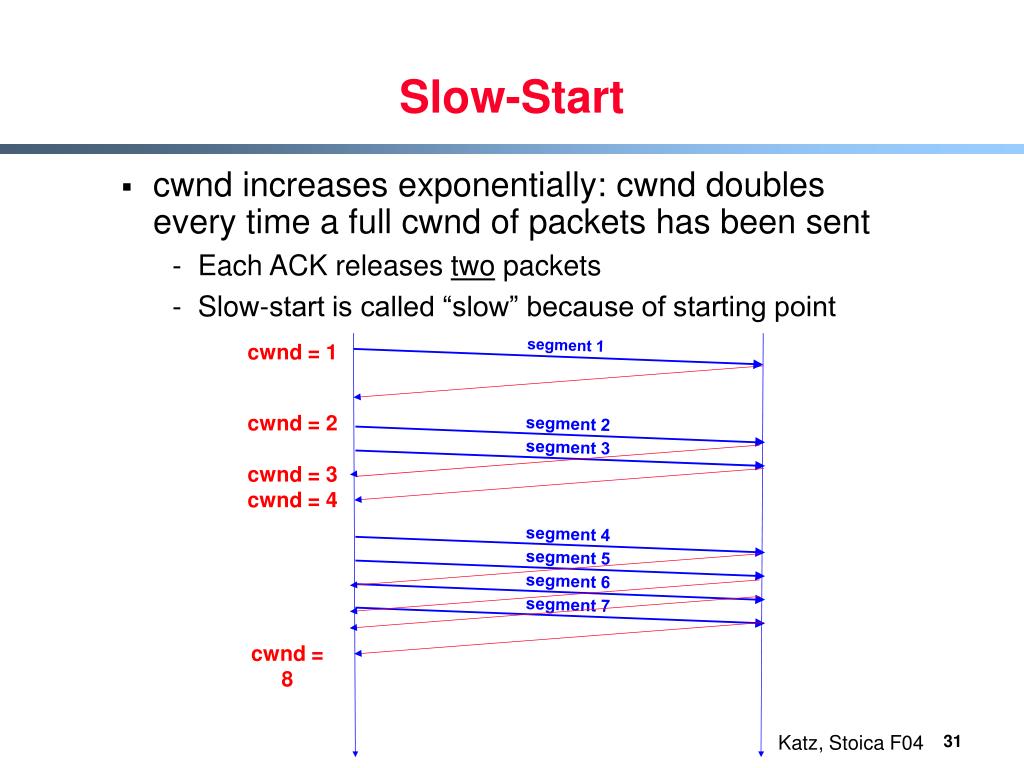

Slow-Start
  • cwnd increases exponentially: cwnd doubles every time a full cwnd of packets has been sent
    • Each ACK releases two packets
    • Slow-start is called “slow” because of starting point

segment 1

cwnd = 1

cwnd = 2

segment 2

segment 3

cwnd = 3

cwnd = 4

segment 4

segment 5

segment 6

segment 7

cwnd = 8

problems with slow start
Problems with Slow-Start
  • Slow-start can result in many losses
    • roughly the size of cwnd ~ BW*RTT
  • Example:
    • at some point, cwnd is enough to fill “pipe”
    • after another RTT, cwnd is double its previous value
    • all the excess packets are dropped!
  • Therefore, need a more gentle adjustment algorithm once have rough estimate of bandwidth
problem 2 single flow varying bw
Problem #2: Single Flow, Varying BW
  • Want to be able to track available bandwidth, oscillating around its current value
  • Possible variations: (in terms of RTTs)
    • multiplicative increase or decrease: cwnd a*cwnd
    • additive increase or decrease: cwnd cwnd + b
  • Four alternatives:
    • AIAD: gentle increase, gentle decrease
    • AIMD: gentle increase, drastic decrease
    • MIAD: drastic increase, gentle decrease (too many losses)
    • MIMD: drastic increase and decrease

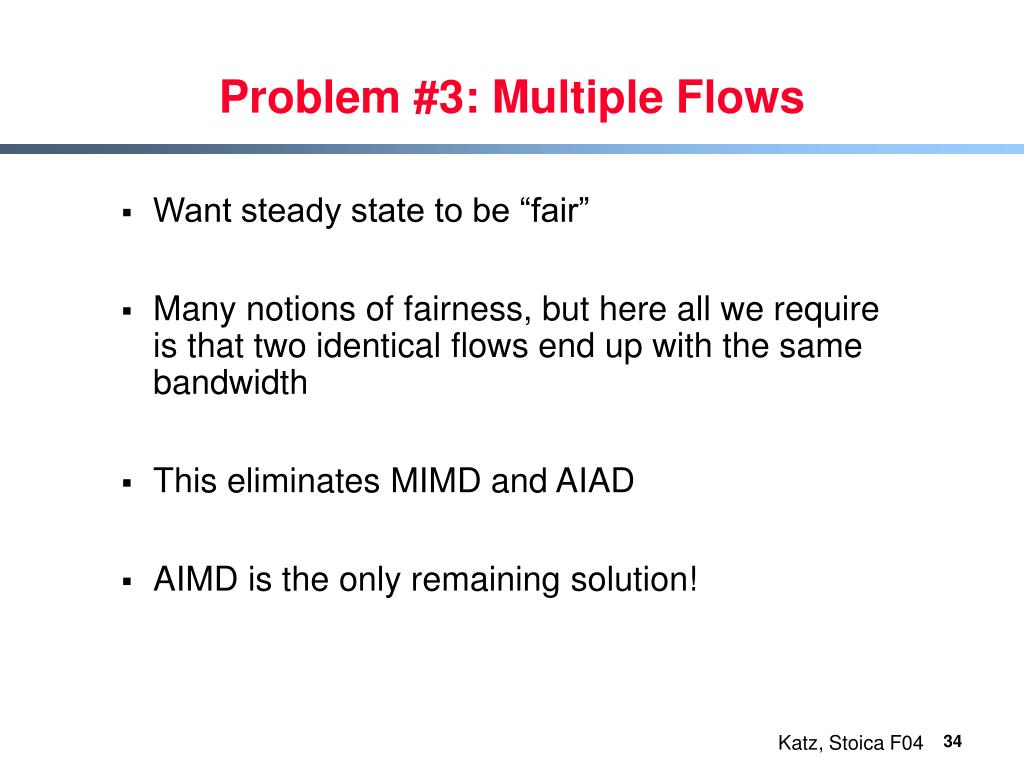

problem 3 multiple flows
Problem #3: Multiple Flows
  • Want steady state to be “fair”
  • Many notions of fairness, but here all we require is that two identical flows end up with the same bandwidth
  • This eliminates MIMD and AIAD
  • AIMD is the only remaining solution!
buffer and window dynamics

A

B

Buffer and Window Dynamics

x

C = 50 pkts/RTT

  • No congestion  x increases by one packet/RTT every RTT
  • Congestion  decrease x by factor 2

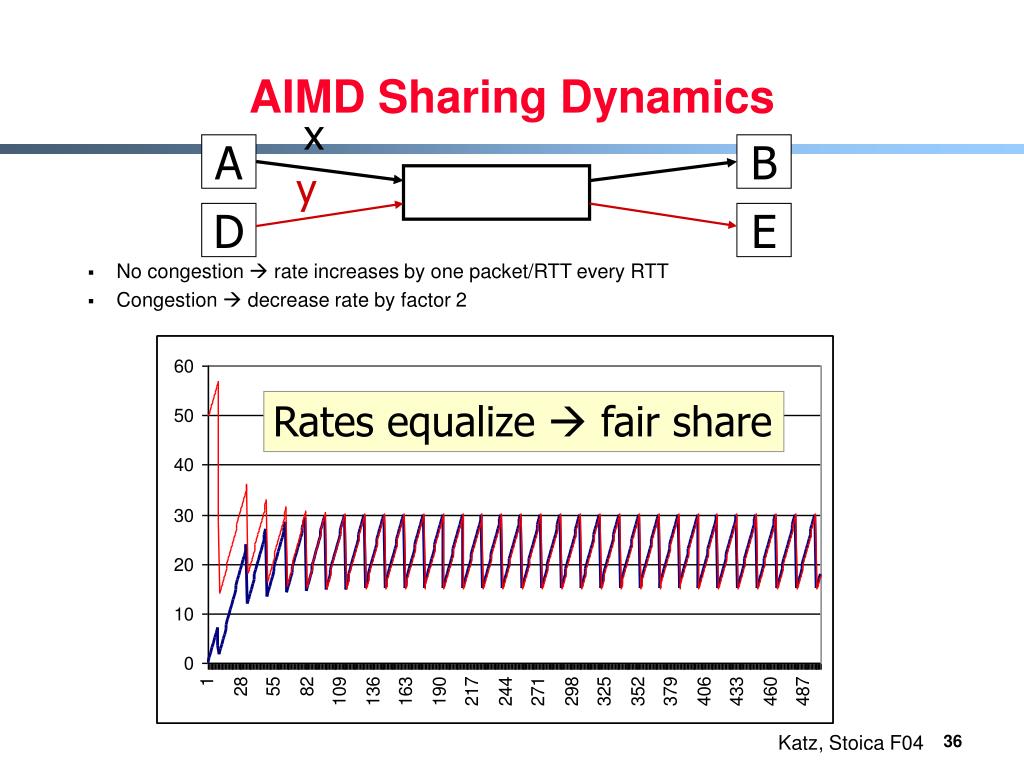

aimd sharing dynamics
AIMD Sharing Dynamics

x

A

B

y

D

E

  • No congestion  rate increases by one packet/RTT every RTT
  • Congestion  decrease rate by factor 2

Rates equalize  fair share

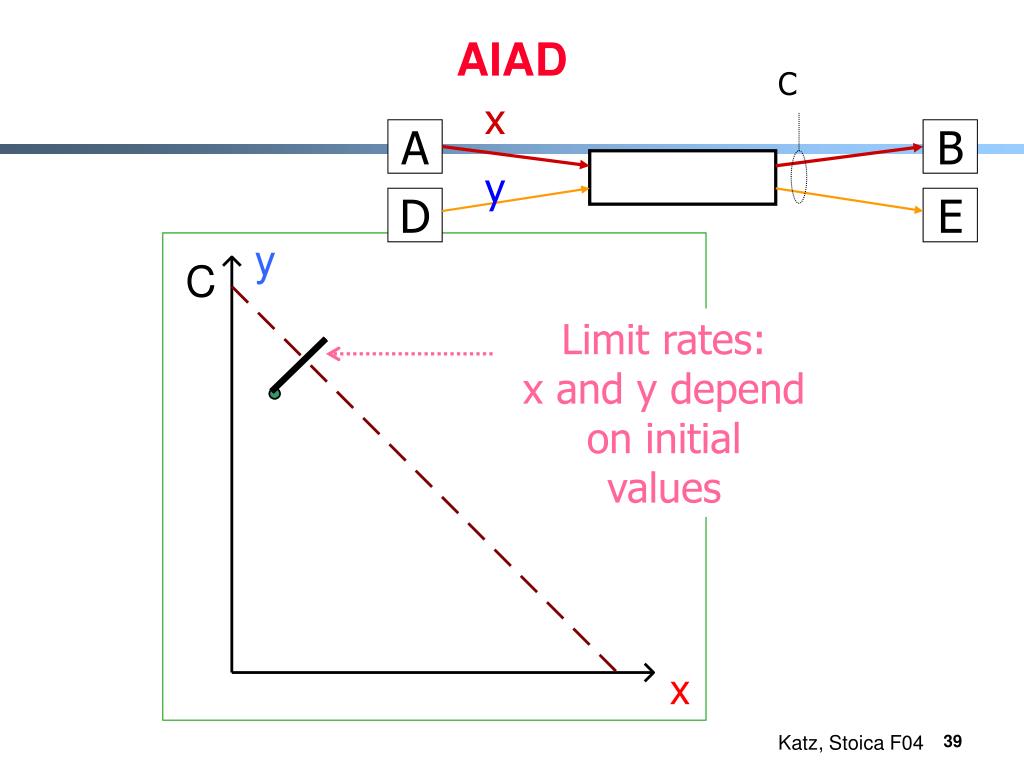

aiad sharing dynamics
AIAD Sharing Dynamics

x

A

B

y

D

E

  • No congestion  x increases by one packet/RTT every RTT
  • Congestion  decrease x by 1

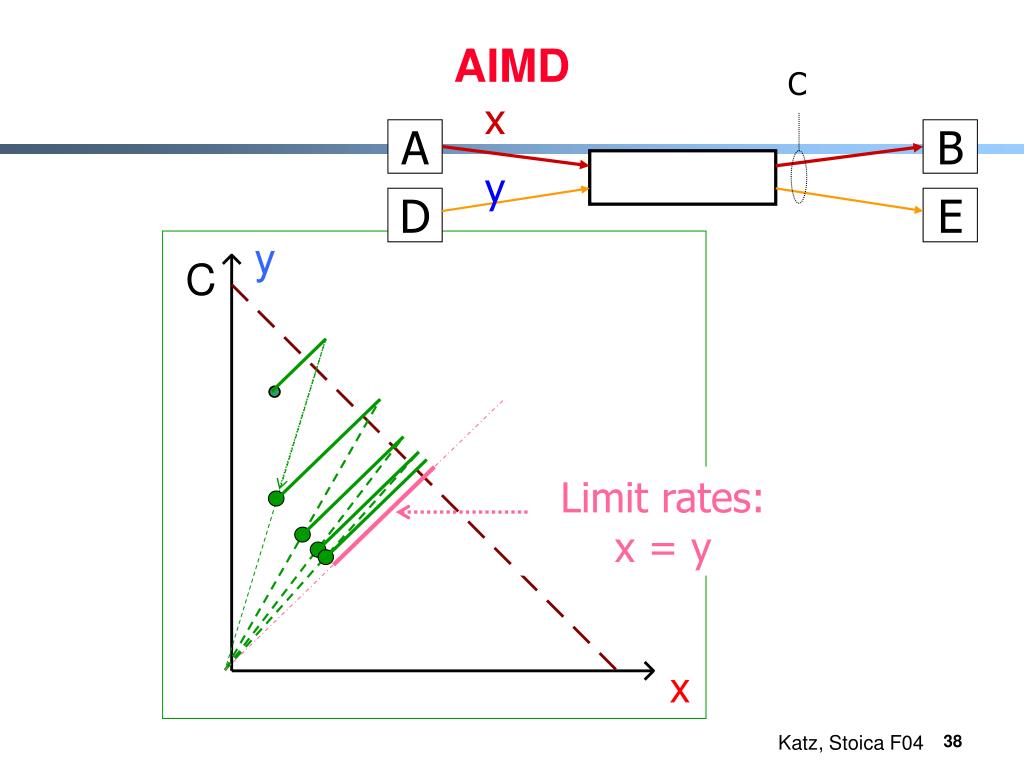

slide38

C

x

A

B

y

D

E

Limit rates:

x = y

AIMD
slide39

C

x

A

B

y

D

E

Limit rates:

x and y depend

on initial

values

AIAD
implementing aimd

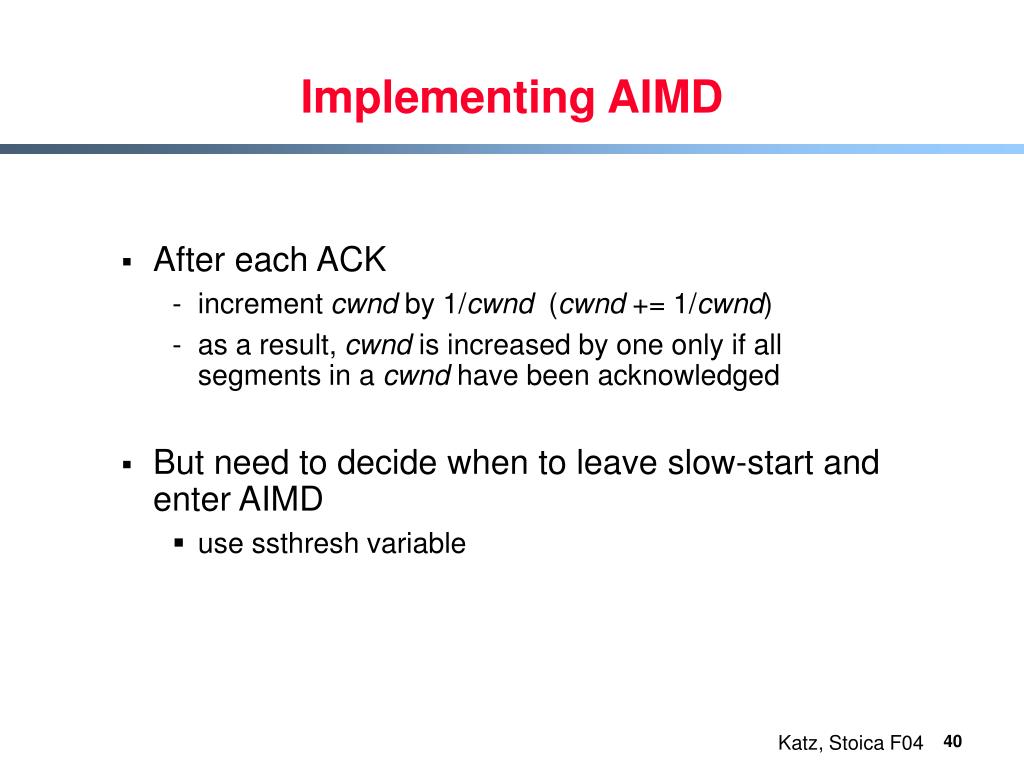

Implementing AIMD
  • After each ACK
    • increment cwnd by 1/cwnd (cwnd += 1/cwnd)
    • as a result, cwnd is increased by one only if all segments in a cwnd have been acknowledged
  • But need to decide when to leave slow-start and enter AIMD
    • use ssthresh variable
slow start aimd pseudocode
Slow Start/AIMD Pseudocode

Initially:

cwnd = 1;

ssthresh = infinite;

New ack received:

if (cwnd < ssthresh)

/* Slow Start*/

cwnd = cwnd + 1;

else

/* Congestion Avoidance */

cwnd = cwnd + 1/cwnd;

Timeout:

/* Multiplicative decrease */

ssthresh = cwnd/2;

cwnd = 1;

the big picture with timeouts

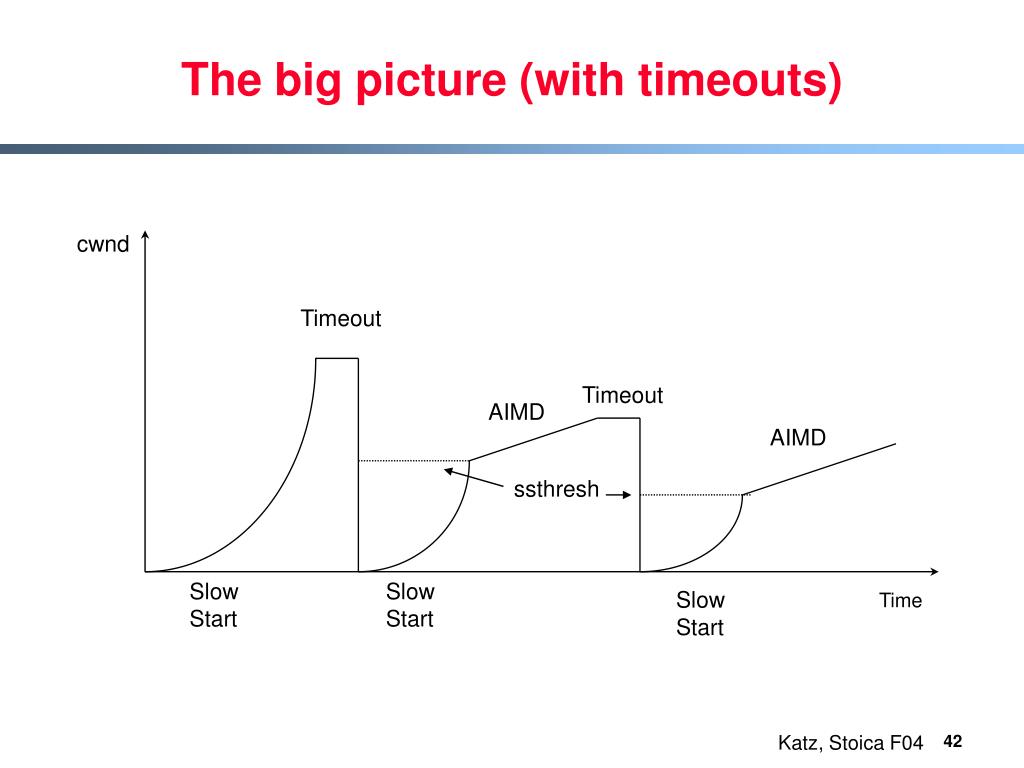

The big picture (with timeouts)

cwnd

Timeout

Timeout

AIMD

AIMD

ssthresh

SlowStart

SlowStart

SlowStart

Time

congestion detection revisited
Congestion Detection Revisited
  • Wait for Retransmission Time Out (RTO)
    • RTO kills throughput
  • In BSD TCP implementations, RTO is usually more than 500ms
    • the granularity of RTT estimate is 500 ms
    • retransmission timeout is RTT + 4 * mean_deviation
  • Solution: Don’t wait for RTO to expire
fast retransmits

segment 1

cwnd = 1

Fast Retransmits
  • Resend a segment after 3 duplicate ACKs
    • a duplicate ACK means that an out-of sequence segment was received
  • Notes:
    • ACKs are for next expected packet
    • packet reordering can cause duplicate ACKs
    • window may be too small to get enough duplicate ACKs

ACK 2

cwnd = 2

segment 2

segment 3

ACK 3

ACK 4

cwnd = 4

segment 4

segment 5

segment 6

segment 7

ACK 4

3 duplicate

ACKs

ACK 4

ACK 4

fast recovery after a fast retransmit

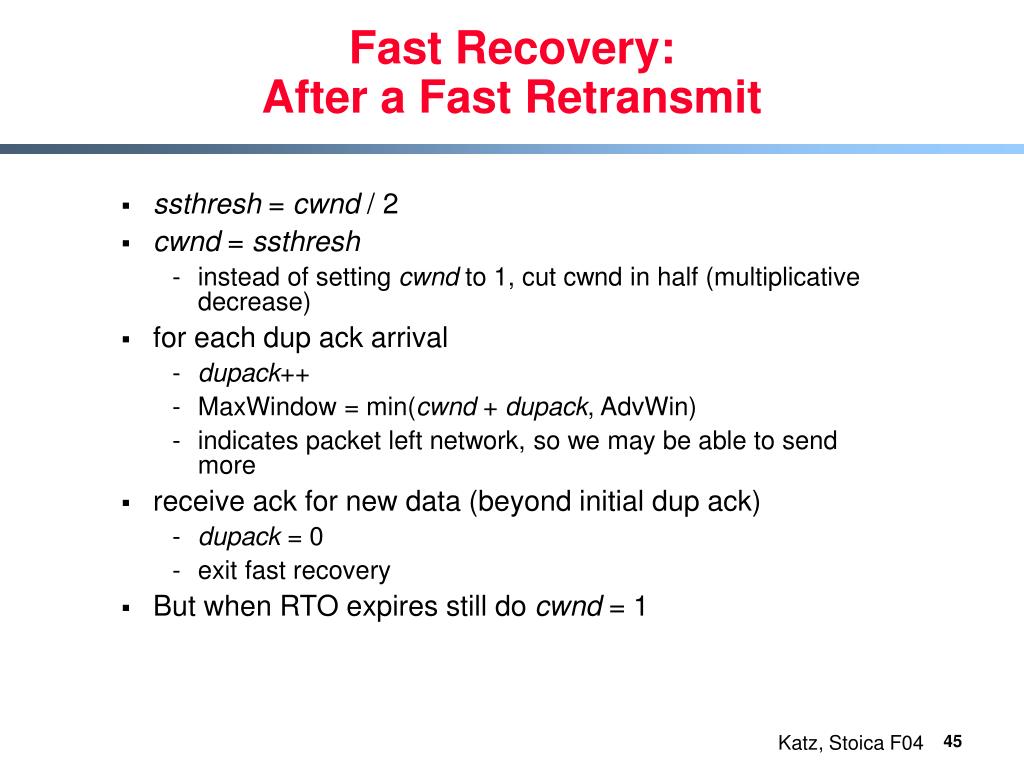

Fast Recovery: After a Fast Retransmit
  • ssthresh = cwnd / 2
  • cwnd = ssthresh
    • instead of setting cwnd to 1, cut cwnd in half (multiplicative decrease)
  • for each dup ack arrival
    • dupack++
    • MaxWindow = min(cwnd + dupack, AdvWin)
    • indicates packet left network, so we may be able to send more
  • receive ack for new data (beyond initial dup ack)
    • dupack = 0
    • exit fast recovery
  • But when RTO expires still do cwnd = 1
fast retransmit and fast recovery

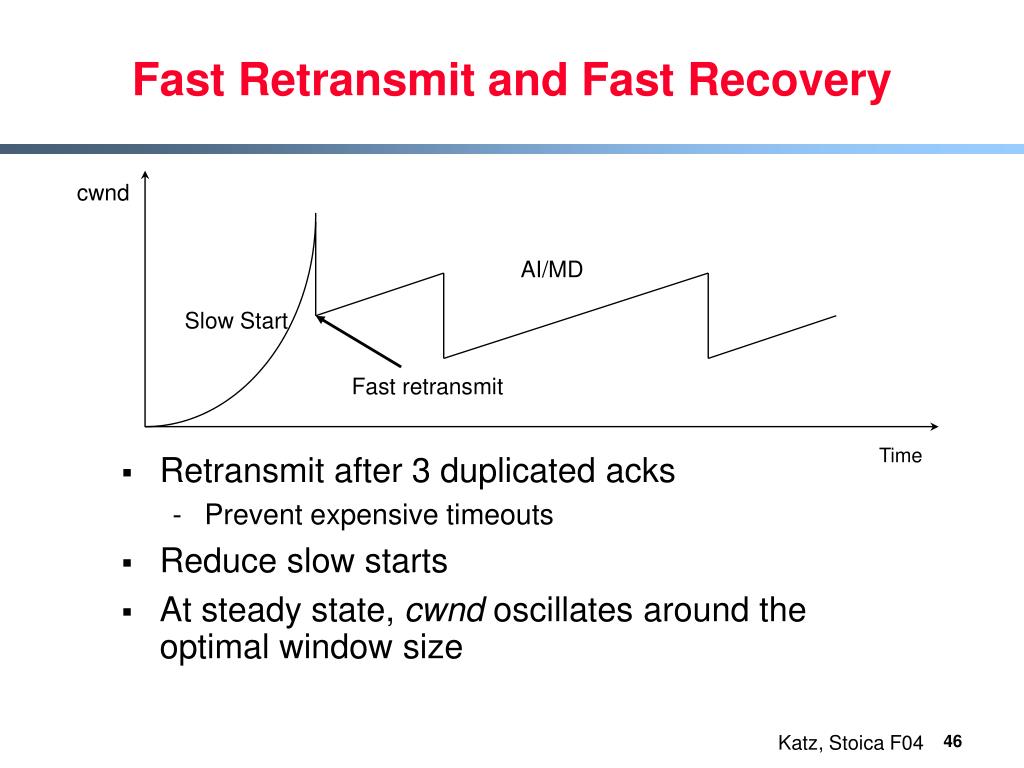

Fast Retransmit and Fast Recovery

cwnd

  • Retransmit after 3 duplicated acks
    • Prevent expensive timeouts
  • Reduce slow starts
  • At steady state, cwnd oscillates around the optimal window size

AI/MD

Slow Start

Fast retransmit

Time

tcp congestion control summary

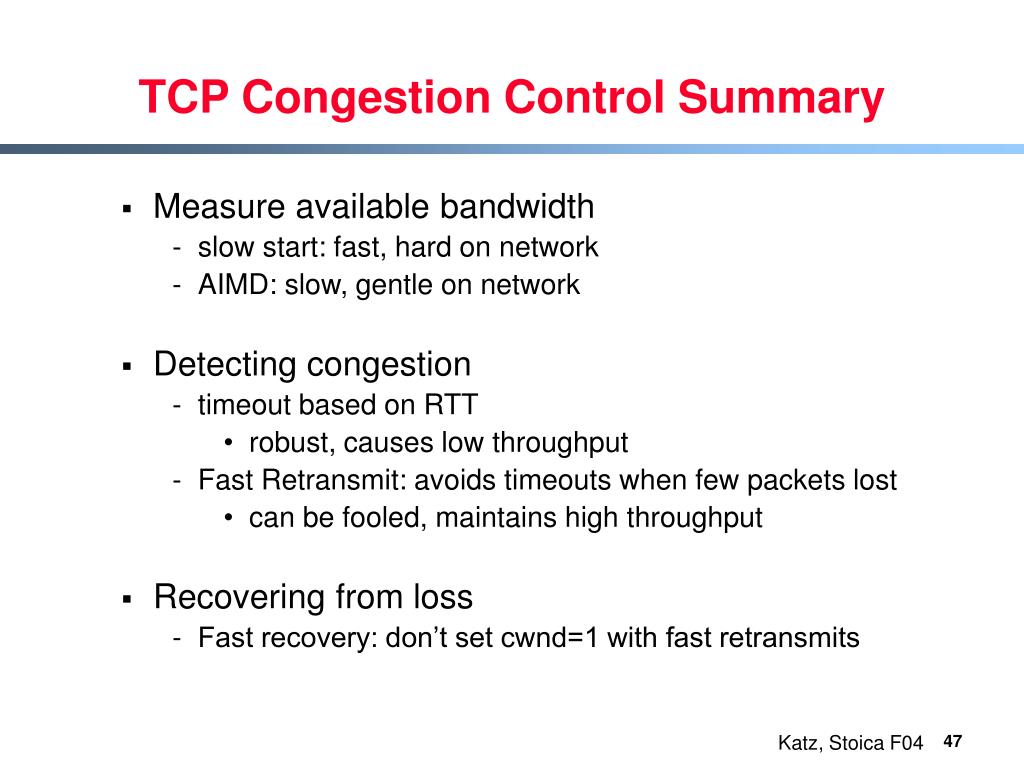

TCP Congestion Control Summary
  • Measure available bandwidth
    • slow start: fast, hard on network
    • AIMD: slow, gentle on network
  • Detecting congestion
    • timeout based on RTT
      • robust, causes low throughput
    • Fast Retransmit: avoids timeouts when few packets lost
      • can be fooled, maintains high throughput
  • Recovering from loss
    • Fast recovery: don’t set cwnd=1 with fast retransmits
issues to think about

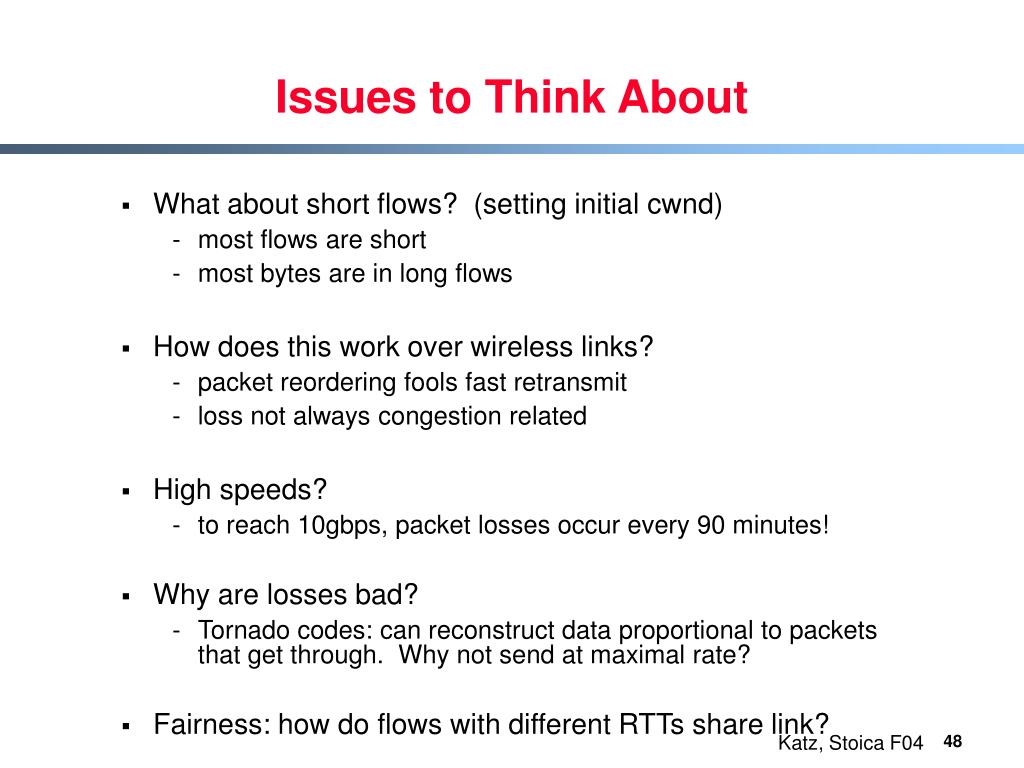

Issues to Think About
  • What about short flows? (setting initial cwnd)
    • most flows are short
    • most bytes are in long flows
  • How does this work over wireless links?
    • packet reordering fools fast retransmit
    • loss not always congestion related
  • High speeds?
    • to reach 10gbps, packet losses occur every 90 minutes!
  • Why are losses bad?
    • Tornado codes: can reconstruct data proportional to packets that get through. Why not send at maximal rate?
  • Fairness: how do flows with different RTTs share link?
bonus question

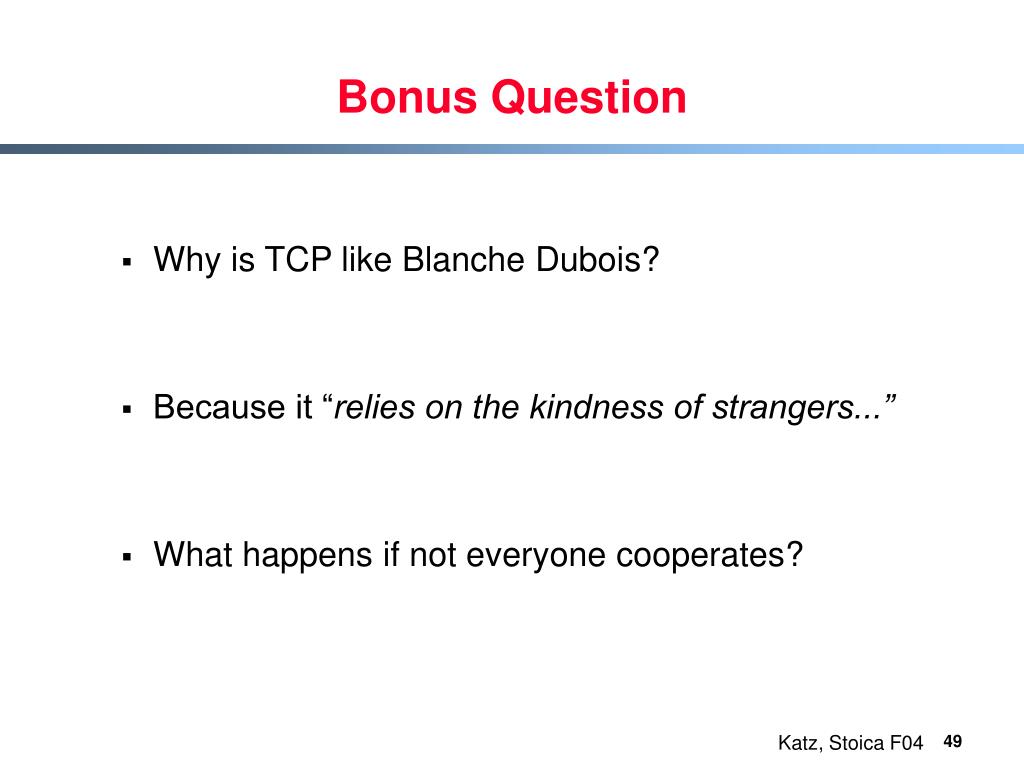

Bonus Question
  • Why is TCP like Blanche Dubois?
  • Because it “relies on the kindness of strangers...”
  • What happens if not everyone cooperates?
