  1. Troubleshooting StorageSecure Appliance Module 3: Lesson 6 SafeNet StorageSecure Storage Security Course

  2. Lesson Objectives • By the end of this lesson, you should be able to: • Identify the field replaceable units (FRUs) in SafeNet® StorageSecure appliance • Decode SafeNet StorageSecure appliance LED error messages • Troubleshoot SafeNet StorageSecure appliance

  3. SafeNet StorageSecure FRUs • The Field Replaceable Units within the SafeNet StorageSecure appliance are: • Power supplies • SFP/SFP+ • All other components requires an RMA

  4. Front Panel LEDs

  5. StorageSecure LEDs • See StorageSecure LEDs for information about the appliance: • PWR – Power Condition • SEC – Ability to provide encryption services • MGT – Management interface network link • CLIENT – Client interface network link • NAS – Storage interface network link • ALM – Appliance alarm • ENV – Temperature alarm • SCR – Smartcard activity

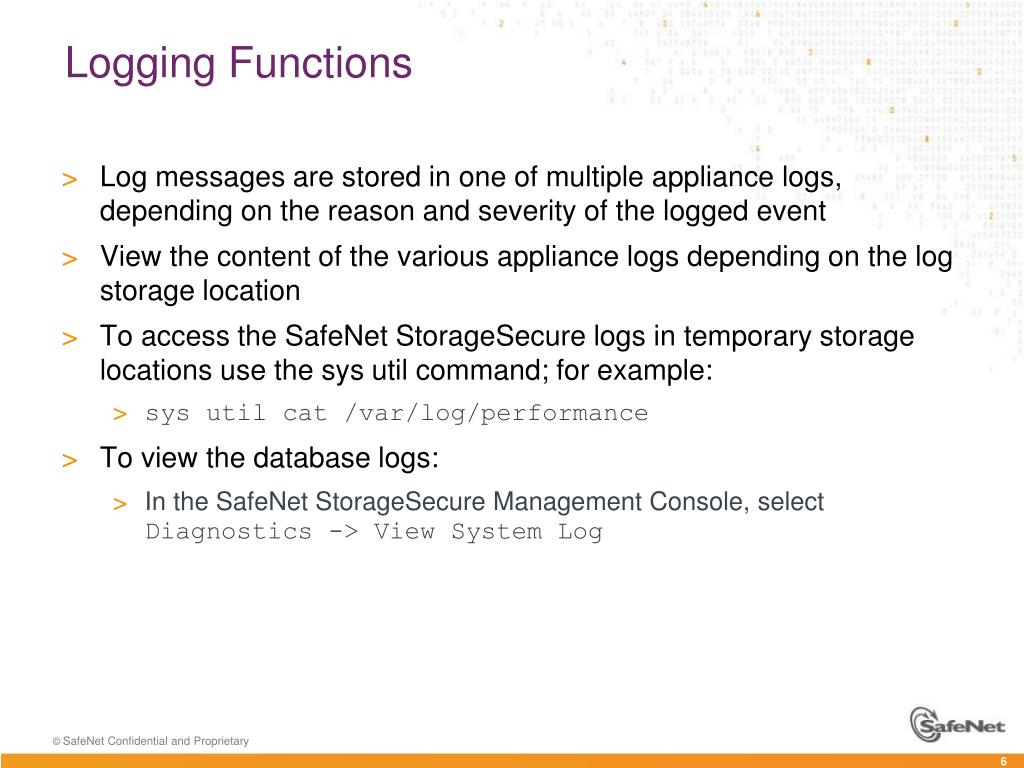

  6. Logging Functions • Log messages are stored in one of multiple appliance logs, depending on the reason and severity of the logged event • View the content of the various appliance logs depending on the log storage location • To access the SafeNet StorageSecure logs in temporary storage locations use the sys util command; for example: • sys util cat /var/log/performance • To view the database logs: • In the SafeNet StorageSecure Management Console, select Diagnostics -> View System Log

  7. Troubleshooting - General • Console issue • Issue: When connecting to the StorageSecure using the USB to Serial cable, wrong characters are displayed on the screen. • Suggested Solution: Connecting to the StorageSecure using a different USB cable / directly to a serial port ; In certain scenario’s reboot to the StorageSecure may be required. • NFS Storage Vault creation • Issue: A problem to create a Storage Vault when using NFS on Linux Server. • Suggested Solution: Restart NFS service on the NFS Server /sbin/service nfsrestart (Command may differ depending on the Linux distribution)

  8. Troubleshooting – General – Cont. • Problem to add a CIFS domain • Issue: A message that the time between the StorageSecure and the AD is not correct appears when trying to add a CIFS domain, even though the date and time are set correctly. • Suggested Solution: Uncheck the Auto Daylight Saving option on the Domain Controller and adjust the time

  9. StorageSecure and Anti Virus software • Anti Virus running directly on the encrypted storage is not useful ; Because the virus signatures are also encrypted, the Anti Virus will not be able to detect them. • If the storage needs to be checked with an Anti-Virus software, permit access from the Anti Virus server to the storage vaults through StorageSecure.

  10. Troubleshooting Smart Cards 1/4 • Management station does not detect Admin Card • Reset Admin Card • Reload card reader software • Reset System Card • The appliance needs a new or reset System Card in order to complete the Setup Wizard. • If the System Card was not inserted into the appliance chassis during zeroization or if it was not properly reset during zeroization, manually reset it. • Lost System Card • Zeroize, insert a new System Card and run the Setup Wizard.

  11. Troubleshooting Smart Cards 2/4 • Card not recognized • The reader may incorrectly identify the type of smart card. Pull out and reinsert the card. Wait a few seconds for the card reader to detect card insertion (indicated by the status light turning green on the smart card reader) before clicking OK. • Disconnect and reconnect the smart card reader. • Do not open the WebUI for more than one SafeNet StorageSecure appliance at a time on a single Management Station.

  12. Troubleshooting Smart Cards 3/4 • Lost Admin Card when Secure SSMC is enabled • Log in with a different Admin Card and associate a replacement Admin Card with an existing or new administrator. • If all Admin Cards are lost and Secure command-line interface is not enabled, log in to the command-line interface and disable Secure SSMC by running the CLI command: system property set sys.security.web.usesmartcard0. Then log in to SSMC and associate a replacement Admin Card with an existing or new administrator. • If both CLI and SSMC login are smart card enabled and all Admin Cards are lost, zeroize the appliance using the serial console.

  13. Troubleshooting Smart Cards 4/4 • Problem with multiple smart card readers • Multiple card readers are not supported for Cluster Recovery operations. • Lost Recovery Card • Assemble a quorum of Recovery Officers and replace the Recovery Card. • Smart card errors appear • Use an eraser to clean the metal contact on the smart card.

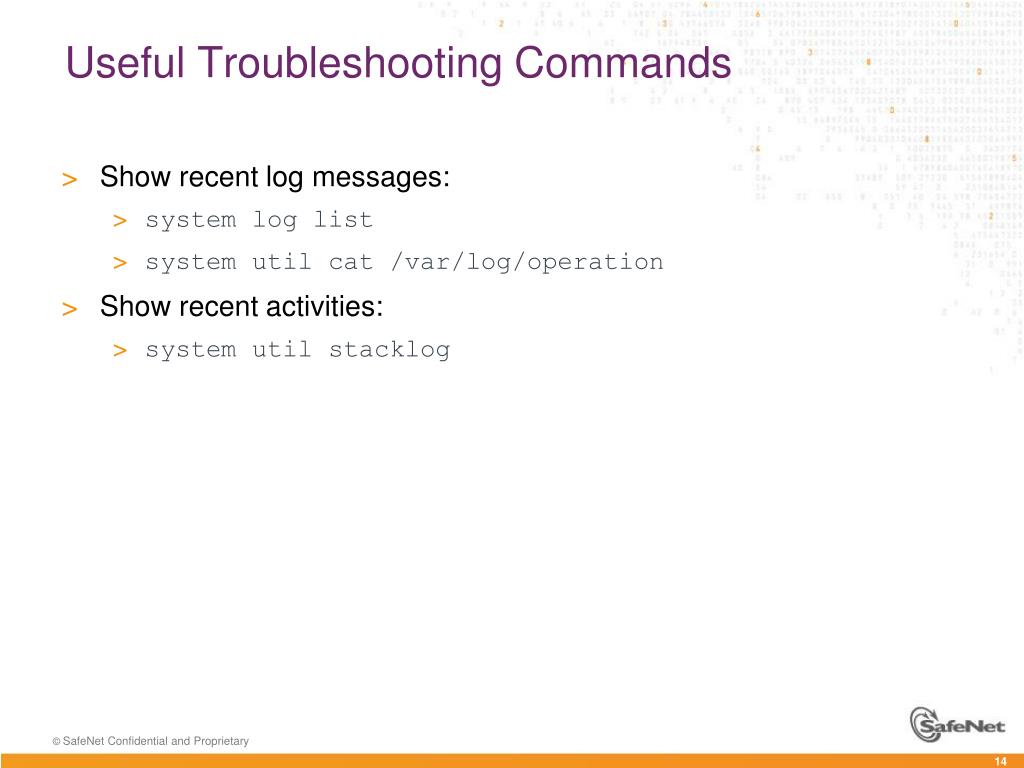

  14. Useful Troubleshooting Commands • Show recent log messages: • system log list • system util cat /var/log/operation • Show recent activities: • system utilstacklog

  15. Network Troubleshooting Commands • Display high-level network status: • net status • Translate hostnames to IP addresses: • net util host • Use Ping in order to verify that network packets can reach the destination host • net util ping • Display information about network interfaces: • net utilifconfig • Display network status and/or statistics: • net utilnetstat

  16. Hostname Lookup • Use net util host to verify the hostname-to-IP-address translations • Sends a query to the DNS server to convert hostnames to IP addresses, and IP addresses to hostnames • net util host <hostname> • net util host <IP address>

  17. Display Network Interfaces • Use net utilifconfig [option] to display information about network interfaces • -a Display all interfaces • -u Only display interfaces that are up • -d Only display interfaces that are down • -m Show acceptable media types • For example: net utilifconfig –u • Verify that the correct IP addresses are assigned • Verify that correct speed was negotiated

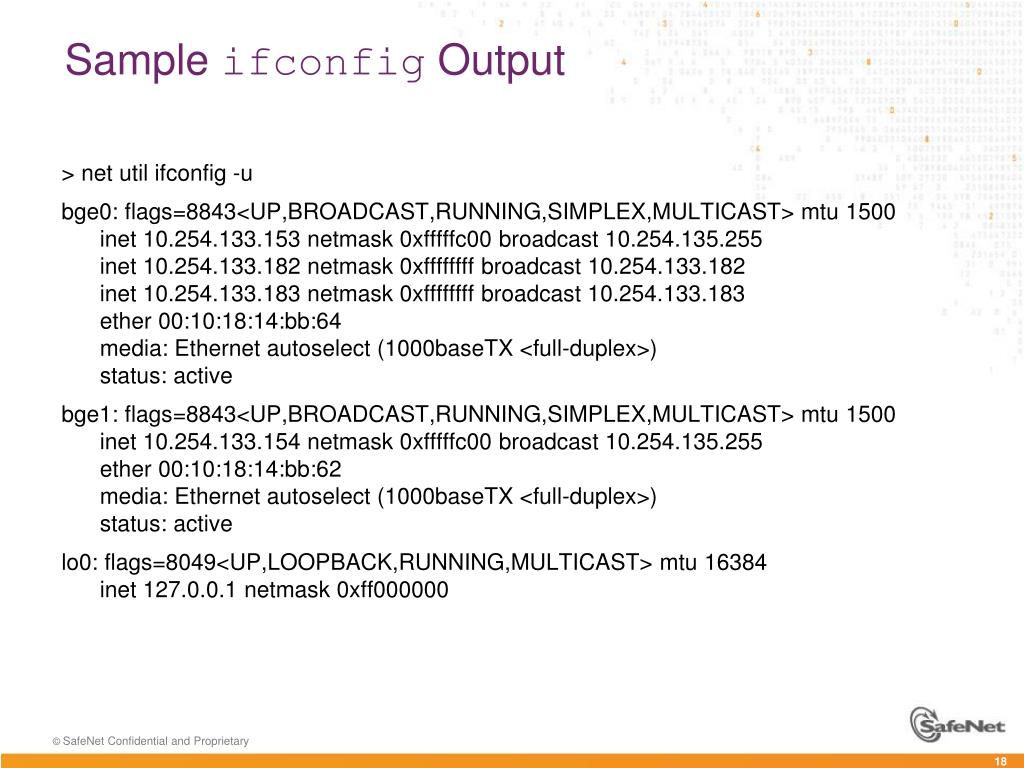

  18. Sample ifconfig Output > net utilifconfig -u bge0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> mtu 1500inet 10.254.133.153 netmask 0xfffffc00 broadcast 10.254.135.255 inet 10.254.133.182 netmask 0xffffffff broadcast 10.254.133.182 inet 10.254.133.183 netmask 0xffffffff broadcast 10.254.133.183 ether 00:10:18:14:bb:64 media: Ethernet autoselect (1000baseTX <full-duplex>)status: active bge1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> mtu 1500 inet 10.254.133.154 netmask 0xfffffc00 broadcast 10.254.135.255 ether 00:10:18:14:bb:62 media: Ethernet autoselect (1000baseTX <full-duplex>) status: active lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 16384 inet 127.0.0.1 netmask 0xff000000

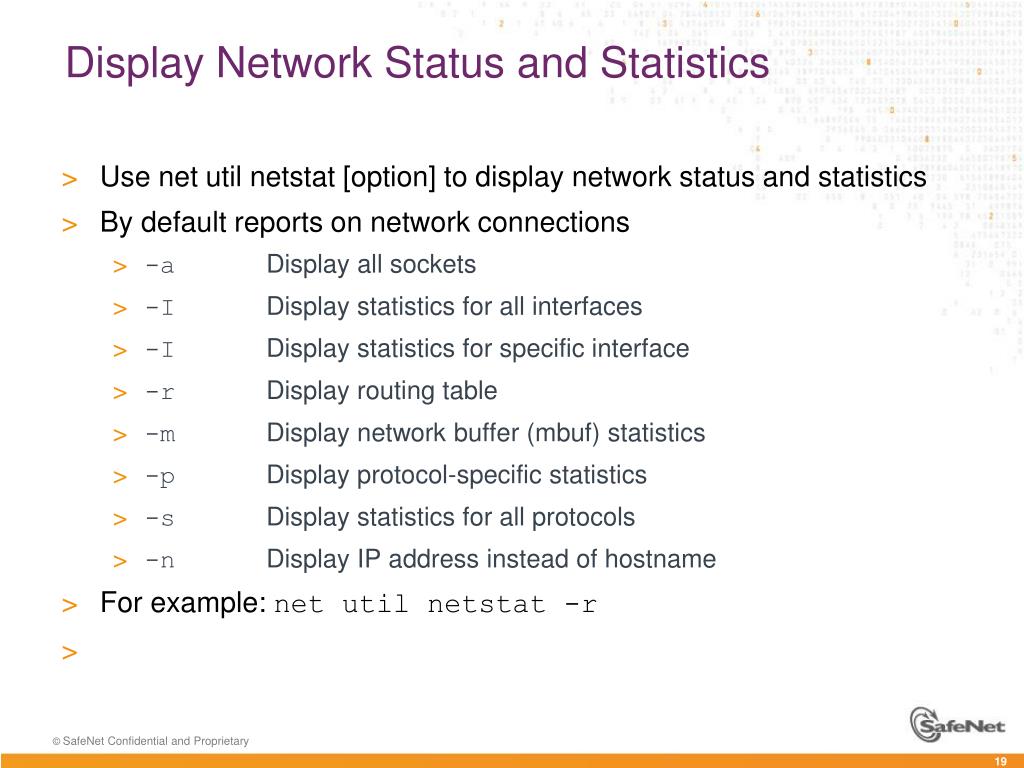

  19. Display Network Status and Statistics • Use net utilnetstat [option] to display network status and statistics • By default reports on network connections • -a Display all sockets • -I Display statistics for all interfaces • -I Display statistics for specific interface • -r Display routing table • -m Display network buffer (mbuf) statistics • -p Display protocol-specific statistics • -s Display statistics for all protocols • -n Display IP address instead of hostname • For example: net utilnetstat -r

  20. Display Network Interface Statistics • > net utilnetstat –I Name Mtu Network Address IpktsIerrsOpktsOerrsColl Bge0 1500.10.254.132/2210.254.133.153 1631969 2450168 - bge0 1500.10.254.133.18 10.254.133.182 9875 - 24 Bge0 1500.10.254.133.18 10.254.133.183 9840 - 24 Bge1 1500.10.254.132/22 10.254.133.154 1083007 0 - lo0 16384 127 127.0.0.1 17424 - 17424

  21. Display the Routing Table • net utilnetstat -r Routing tables Internet: Destination Gateway Flags Refs Use Netif Expire default 10.254.132.1 UGSc 2 31615 bge0 10.254.132/22 link#3 UC 6 0 bge0 10.254.132.1 0:0:5e:0:1:8c UHLW 3 21 bge0 242 10.254.132.2 0:a0:8e:33:80:13 UHLW 0 0 bge0 1199 10.254.132.10 0:50:56:61:3:fc UHLW 0 5363 bge0 1195 10.254.133.151 0:10:18:14:b4:55 UHLW 2 795221 bge0 206 10.254.133.182/32 link#3 UC 0 0 bge0 10.254.133.183/32 link#3 UC 0 0 bge0 10.254.134.6 0:4:96:18:40:f0 UHLW 0 0 bge0 1175 10.254.135.255 ff:ff:ff:ff:ff:ffUHLWb 2 3700 bge0 127.0.0.1 127.0.0.1 UH 1 16032 lo0

  22. Networking Properties • There are two sets of network interface-related properties • Display the properties that control the behavior of the client interface • net.client.* properties • Display the properties that control the behavior of the storage interface • net.server.* properties • After changing property values, run net apply, otherwise the changes do not take effect

  23. Ethernet Frame Size • Jumbo frames supported • Maximum frame size is 9578 (NetAppDatafort E-Series had support of up to 8998 bytes) • The current frame size is reported in the net utilifconfigand net utilnetstat –ioutput as Maximum Transmission Unit (MTU) • Change the MTU value with the properties settings net.client.mtunet.server.mtu

  24. Interface Settings • Duplex mode and speed are negotiated • Interface speeds can be hard set with: net.*.media • Valid values: 1000baseTx, 100baseTx, auto • Duplex mode can be hard set with: net.*.mediaopt • Valid values: half-duplex, full-duplex

  25. Trace Network Traffic • Run a packet analyzer tool on a machine connected between the Storage Client and the StorageSecure , or between the StorageSecure to the Storage in order to trace the network traffic. • Packet analyzer tools can include wireshark, tcpdump and others.

  26. NAS-Specific Troubleshooting • Diagnosing privilege problems • Users unable to access Storage Vaults and/or files • Active Directory® or Kerberos issues? • Analyze TCP/IP traffic • Trace TCP/IP I/O to diagnose NAS errors

  27. NAS Privilege Problems • Many access errors are caused by Kerberos • Most Kerberos errors are really DNS errors • Verify that DNS is properly configured • Confirm hostname  IP address translations • Client hosts • SafeNet StorageSecure real and virtual server • File servers • Domain controllers • Use net util host

  28. Diagnosing NAS Privilege Problems • Enable NAS audit logging • Through the SafeNet StorageSecure Management Console • From the command-line interfacesys prop set <property-name> enable • NAS Audit logging properties • sys.proc.syslogd.conf.nas_auth • sys.proc.syslogd.conf.nas_acl • sys.proc.syslogd.conf.nas_file_access • sys.proc.syslogd.conf.nas_cry_access

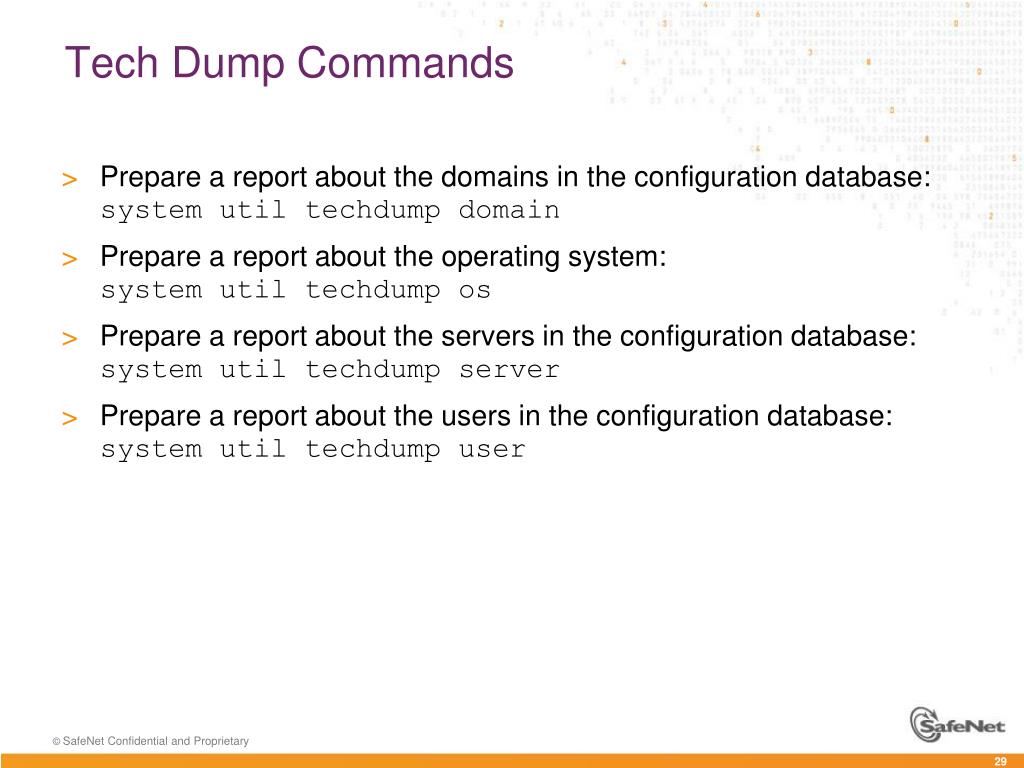

  29. Tech Dump Commands • Prepare a report about the domains in the configuration database:system utiltechdump domain • Prepare a report about the operating system: system utiltechdumpos • Prepare a report about the servers in the configuration database: system utiltechdump server • Prepare a report about the users in the configuration database: system utiltechdump user

  30. Stack Traces • StorageSecureOperating System creates an execution stack trace if the kernel panics • View the stack trace:system utilstacklog • SafeNet believes that trace does not expose user or critical data • Disable stack trace creation:system property set sys.stacktrace.enabled 0

  31. Technical Support • Technical Support requests the following information: • Audit logs • Reproduce the problem behavior • Capture a tech dump

  32. Lesson Summary • In this lesson, you should have learned to: • Identify the FRUs in SafeNet StorageSecure appliance • Decode SafeNet StorageSecure appliance LED error messages • Troubleshoot SafeNet StorageSecure appliance
